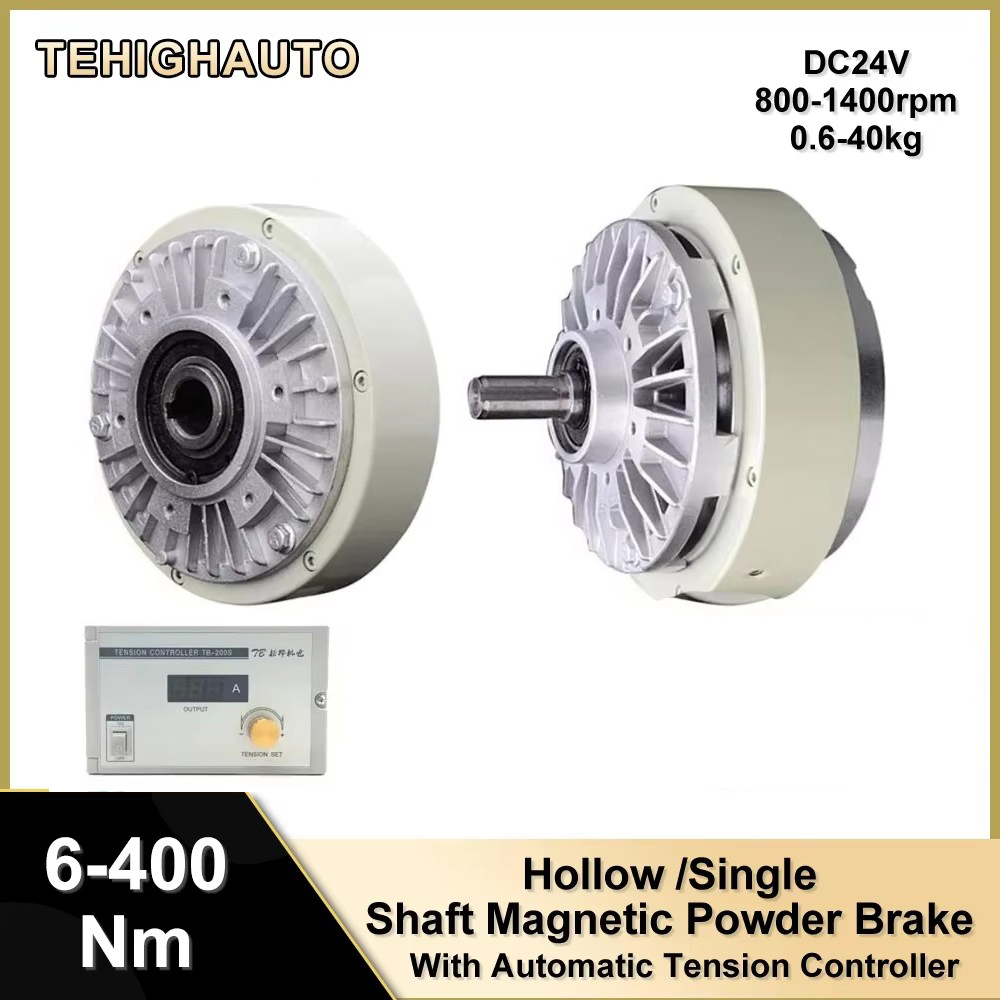

Hollow or Single Shaft Brake Only

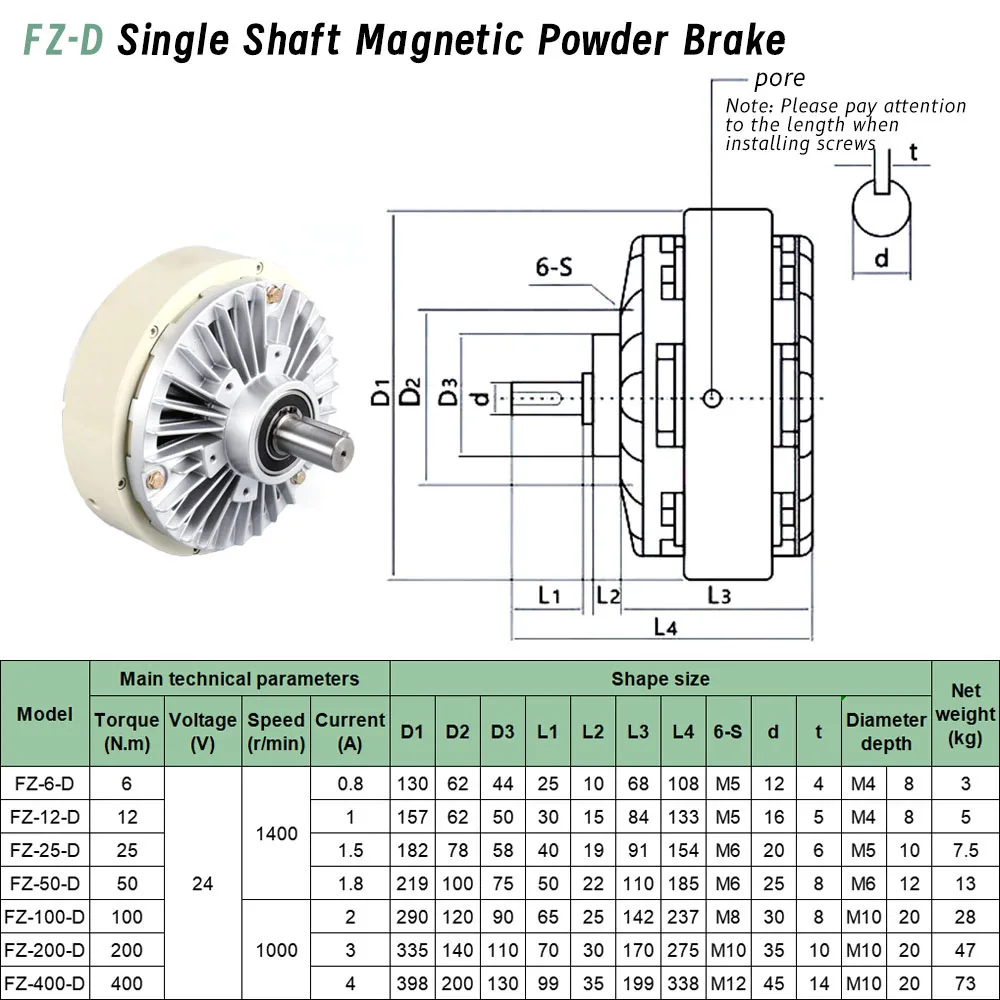

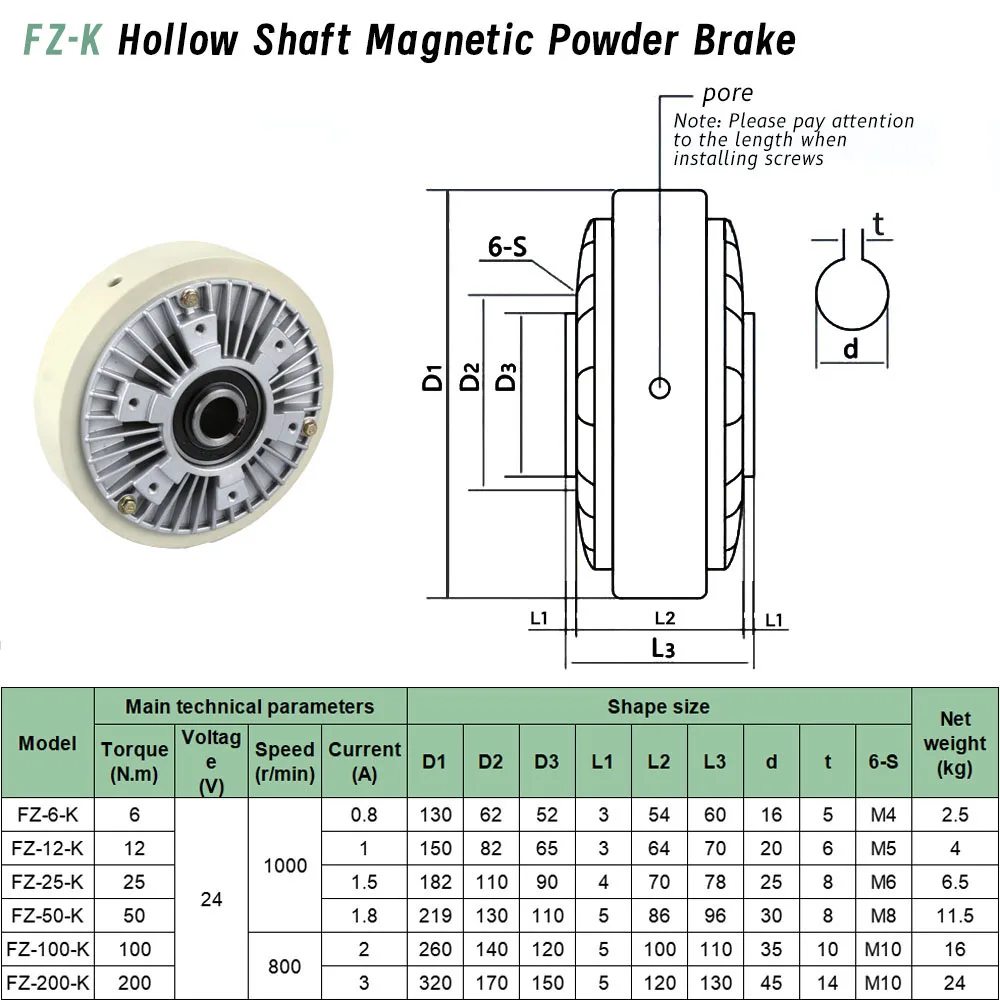

1* Hollow or Single Shaft Magnetic Powder Brake
Hollow or Single Shaft Brake with Controller SJ-180A or TB-200S
1* Hollow or Single Shaft Magnetic Powder Brake
1* Manual Tension Controller
Hollow or Single Shaft Brake with Controller KTC-812
1* Hollow or Single Shaft Magnetic Powder Brake
1* Manual/ Automatic Tension Controller
1* Hall Sensor
Hollow or Single Shaft Brake with Controller KDT-B-1000
1* Hollow/ Single Shaft Magnetic Powder Brake
1* Automatic Tension Controller
1* Hall switch
2* Pressure Sensor
★We can offer 100Nm, 200Nm, 400Nm/brake with base.
★This is a free shipping link for some countries. If you need to pay very high shipping fees, please provide your city name and zip code, and we can recalculate the shipping fees for you 🙂

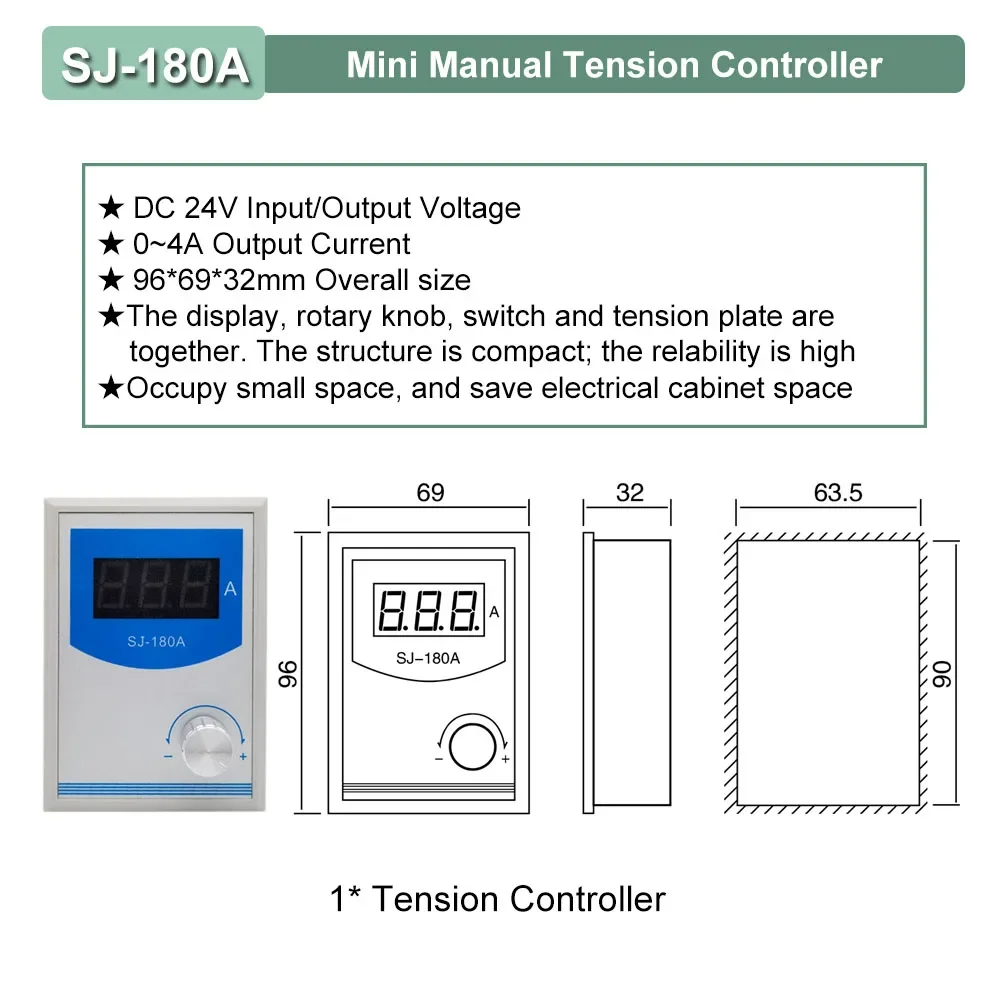

Mini Manual Tension Controller Technical Parameter:
Model: SJ-180A
Input/Output Voltage: DC 24V
Output Current: 0~4A
Overall size: 96*69*32MM
Type: Manual controller / PLC / Potentiometer

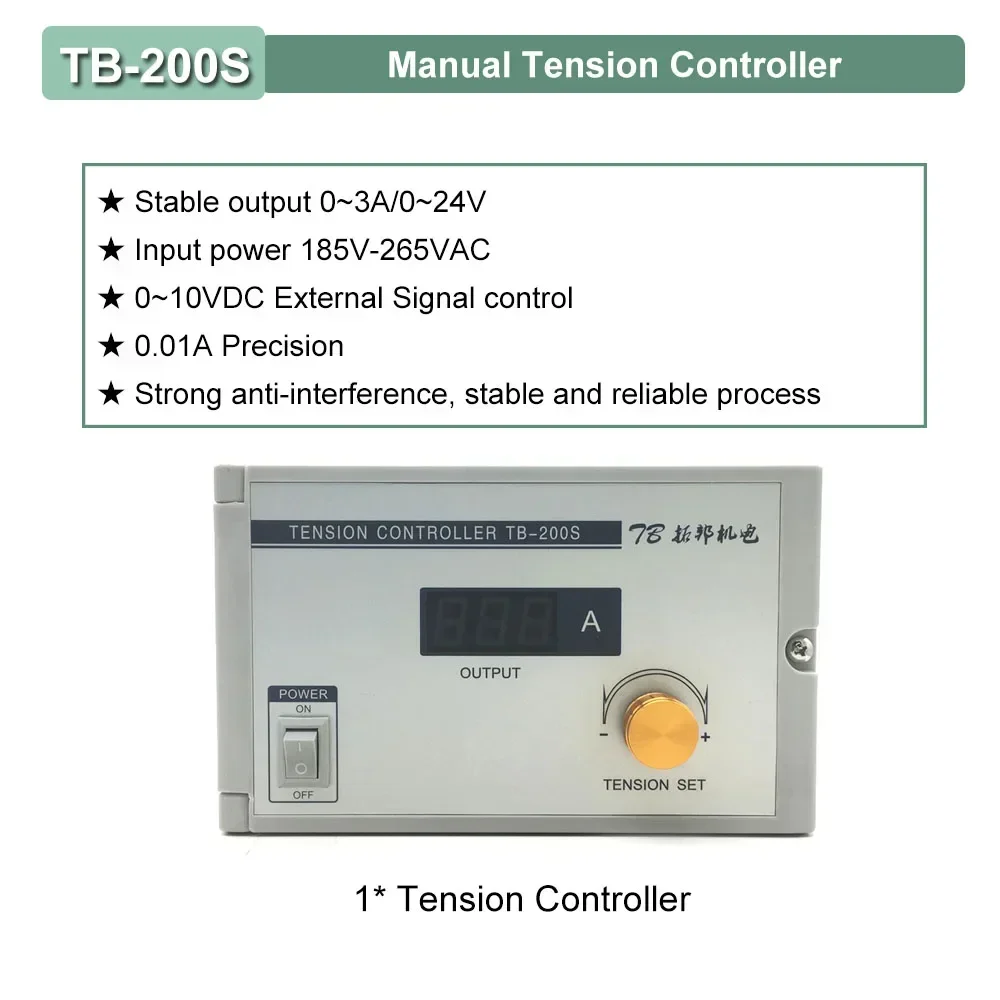

Manual Tension Controller Technical Parameter:
Model: TB-200S
Power Supply: 185V-265VAC 50/60Hz
Output Voltage:0~24VDC(0-3A)
External Signal control:0~10VDC
Precision: 0.01A
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade
Overall size: 160*100*70MM
Mounting size: 163*103*70MM
Installation: wall-mounted, floor-mounted, embedded

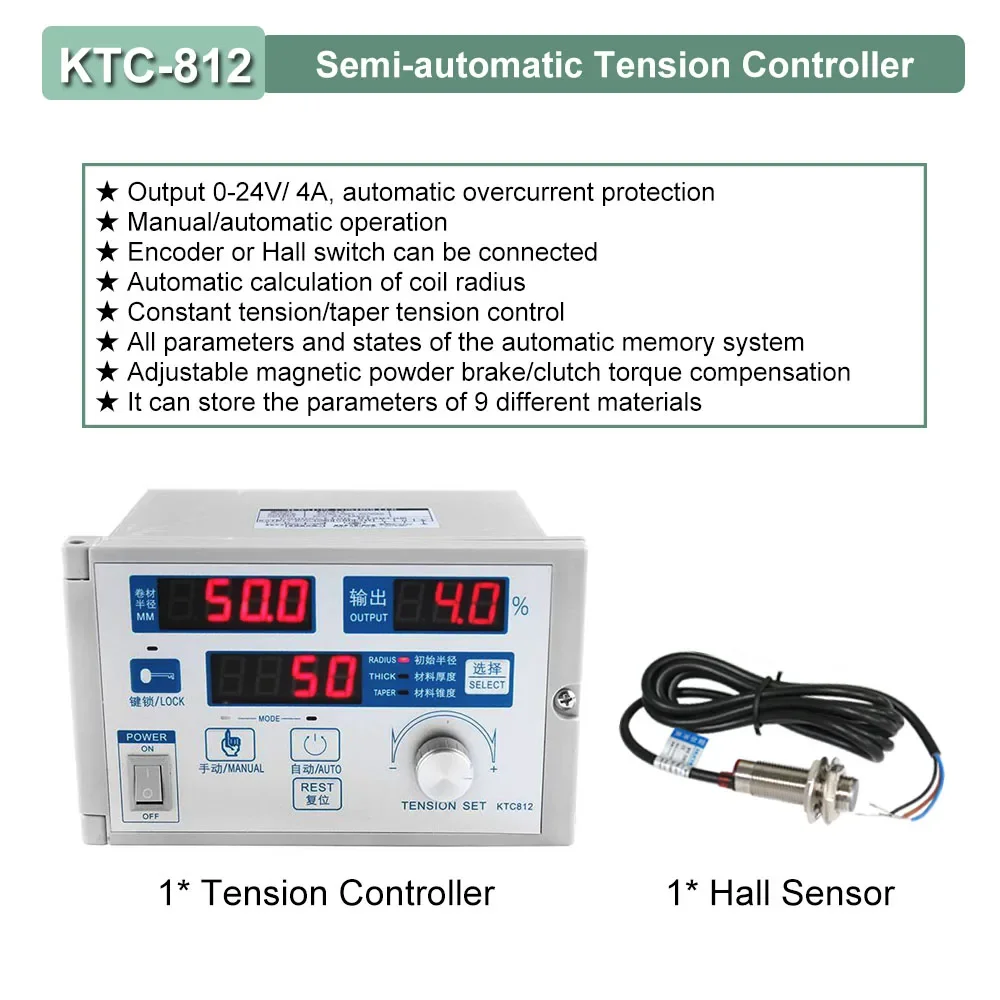

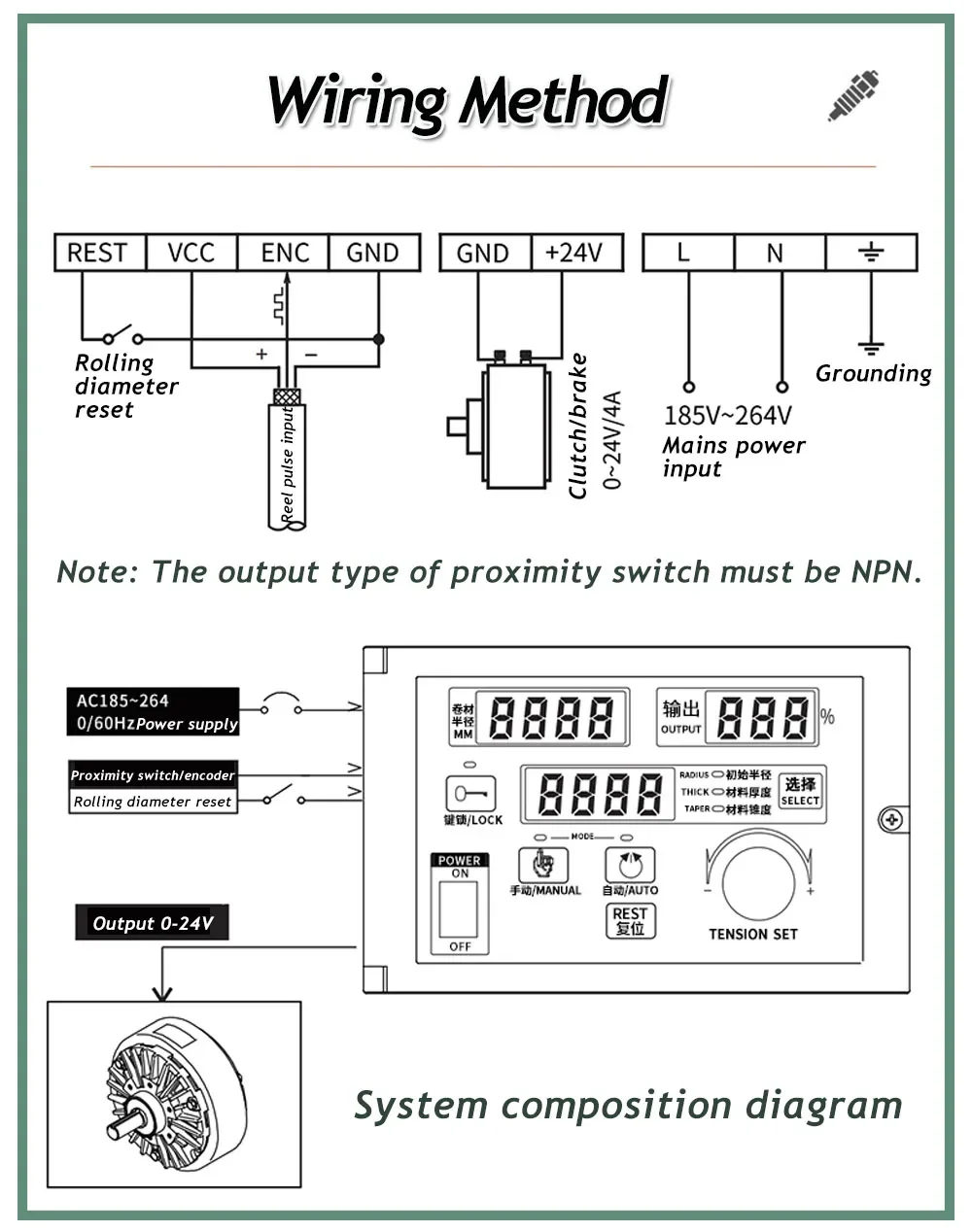

Semi-automaticTension Controller Technical Parameter:
Model: KTC-812
★ Manual/automatic operation
★ Encoder or Hall switch can be connected
★ Automatic calculation of coil radius
★ It can store the parameters of 9 different materials
★ Constant tension/taper tension control
★ Output 0-24V/4A, automatic overcurrent protection
★ All parameters and states of the automatic memory system
★ Adjustable magnetic powder brake/clutch torque compensation
Power Supply: 185V-265VAC 50/60Hz
Output Voltage: 0~24VDC
Output current:0-4A
External Signal control: 0~10VDC
Precision:0.01A

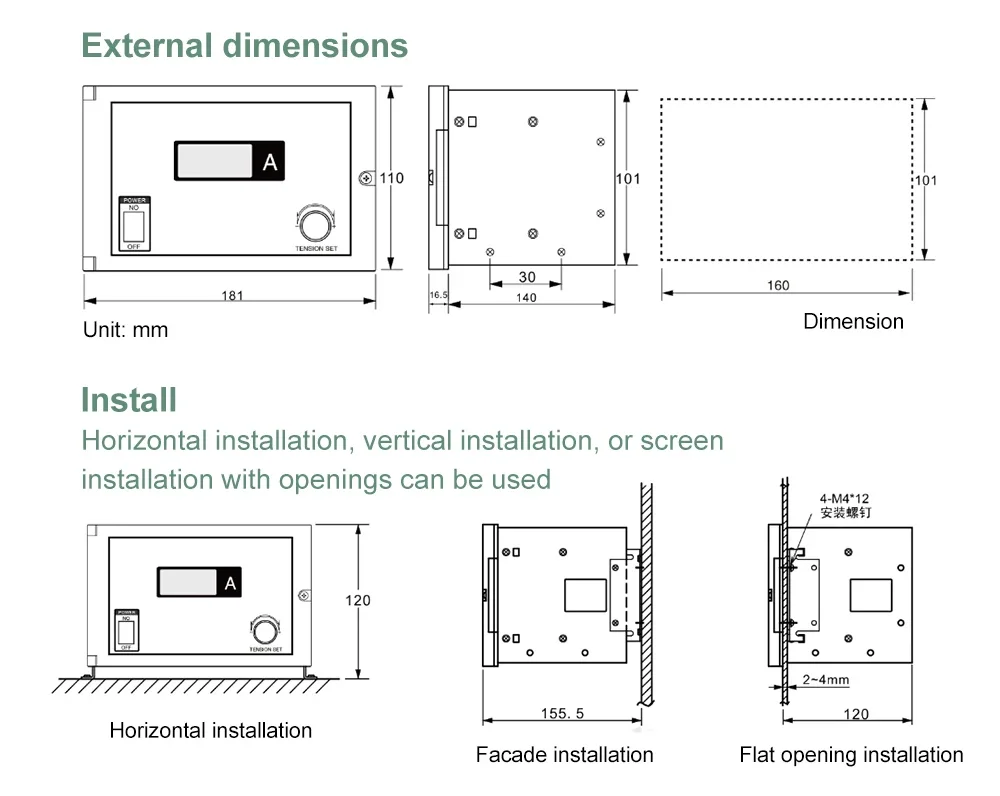

Overall size: 181*110*120MM
Type: Manual controller / PLC / Potentiometer
Working Temperature: -10~40 degree centigrade

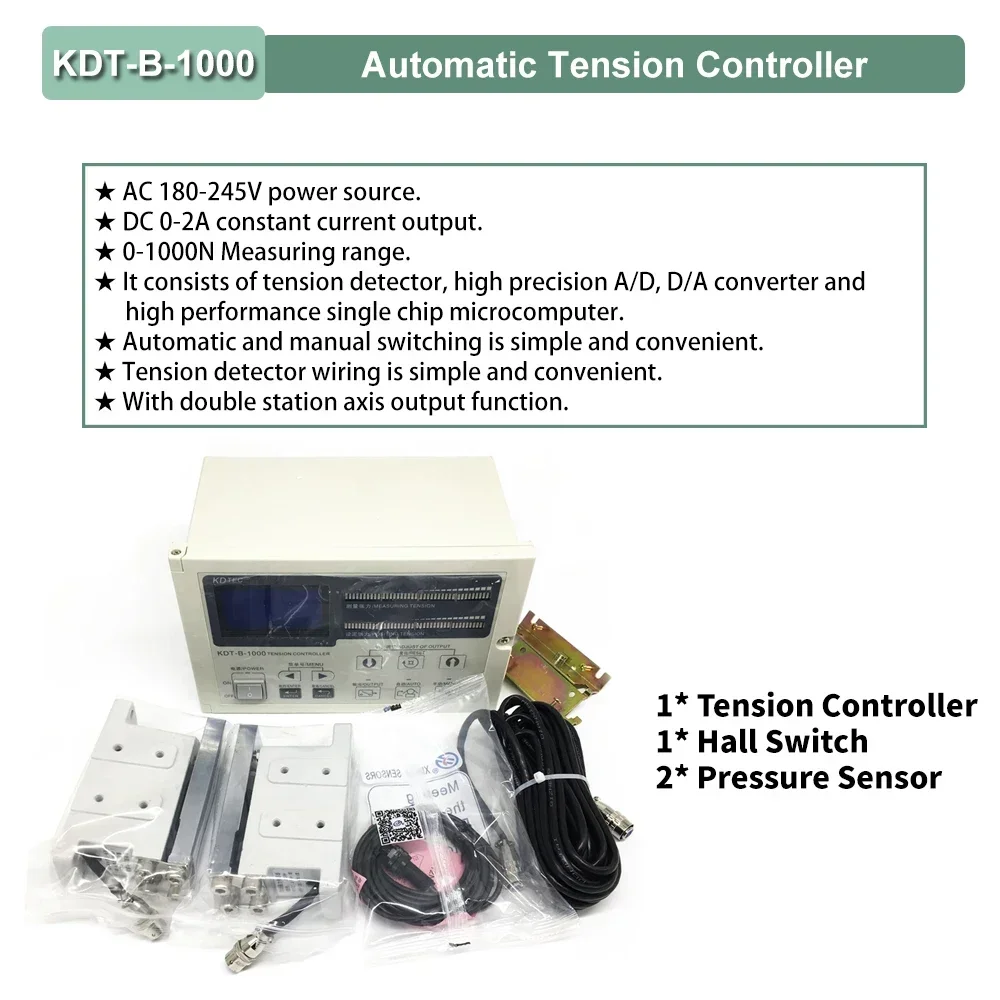

Semi-automaticTension Controller Technical Parameter:
Model: KDT-B-1000
★ It consists of tension detector, high precision A/D, D/A converter and high performance single chip microcomputer.
★ It can be widely used in various occasions where precision measurement and control is required. It has flexible use and wide applicability.
★ LCD display can be displayed in Chinese or English.
★ Automatic and manual switching is simple and convenient.
★ Tension detector wiring is simple and convenient.

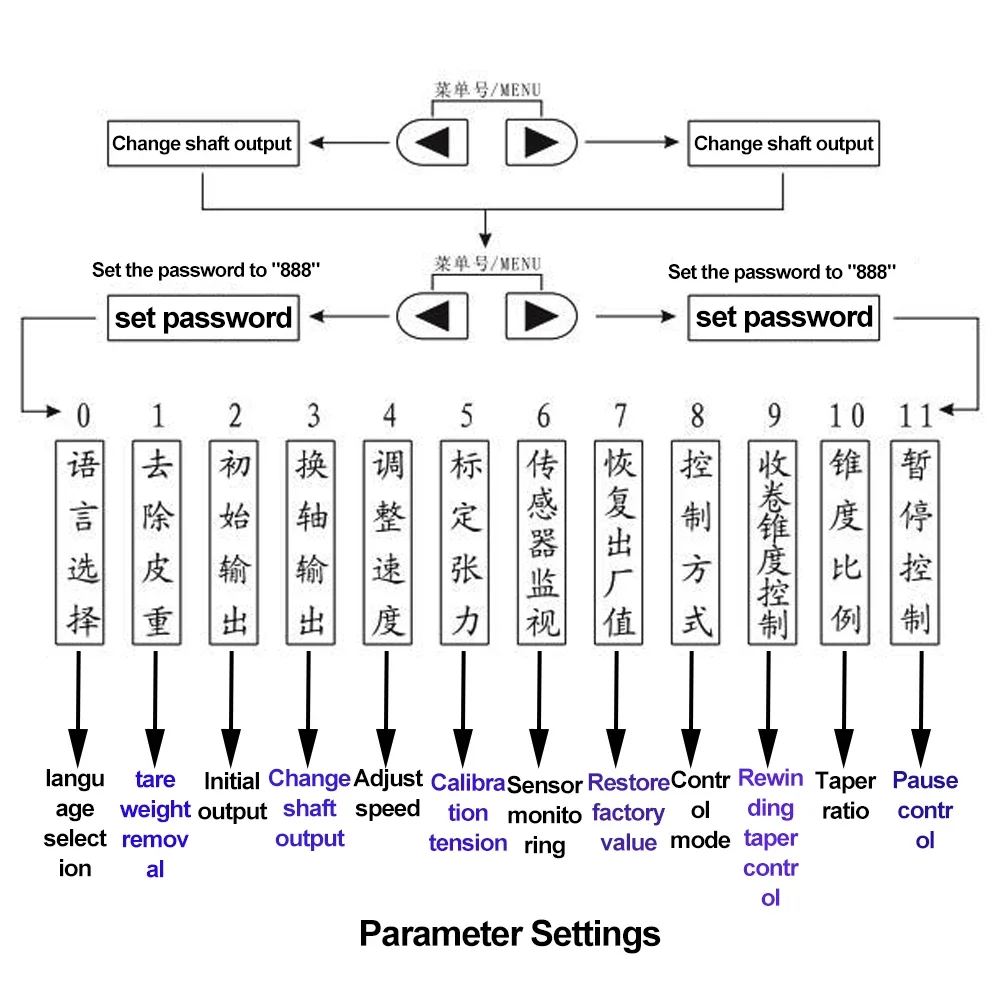

★ Convenient parameter settings.
★ With double station axis output function.
Measuring range: 0-1000N
Measurement accuracy: less than 1N
Sampling speed: 100 milliseconds
Main output mode: DC 0-2A constant current output (adapted load impedance 8-12Ω)
Auxiliary output: DC 0-5V (MAX 10MA) analog signal output
Dimensions: 245*155*140mm
Installation size: 230*150*120mm
Power source: AC 180-245V 50/60Hz
