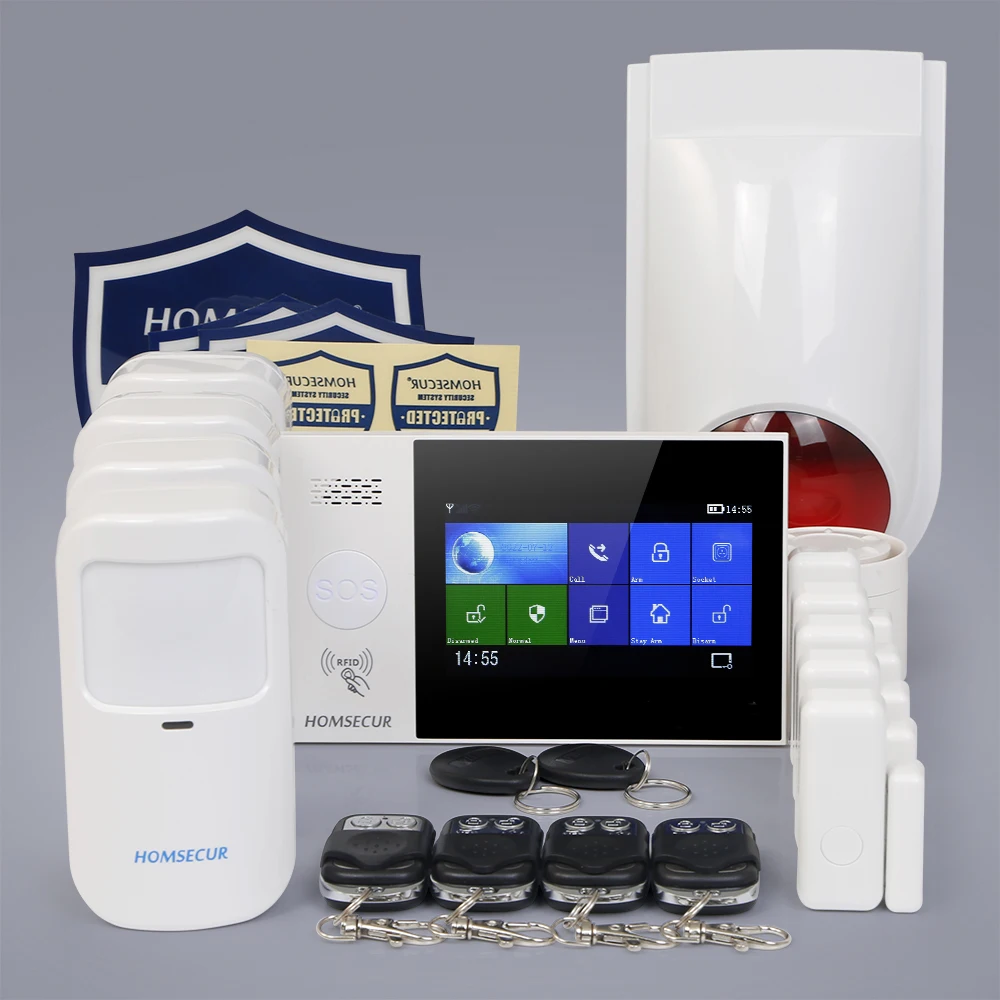

HOMSECUR Tuya App Wireless WIFI 4G LCD Burglar Intruder Alarm System+Wireless Flash Siren

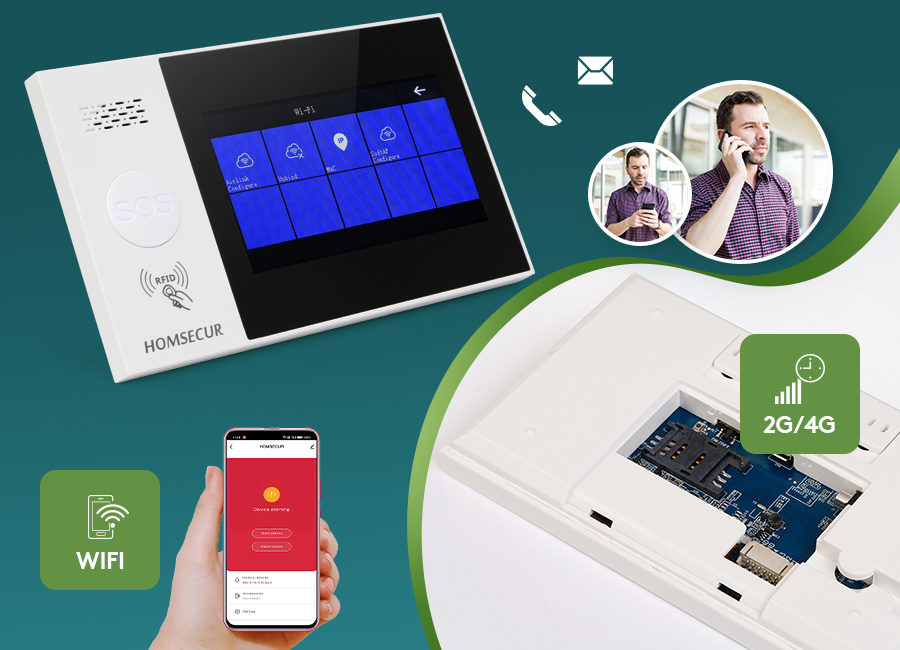

2 Kinds of Connection: 4G/GSM-2G and WIFI

The alarm system works with the 4G/GSM-2G SIM card, connecting to the outside world through Phone Call and SMS and with alarm information in real-time. The alarm system works with the WIFI module, connecting to the outside world through the Internet. The free APP pushes the alarm information in real-time.

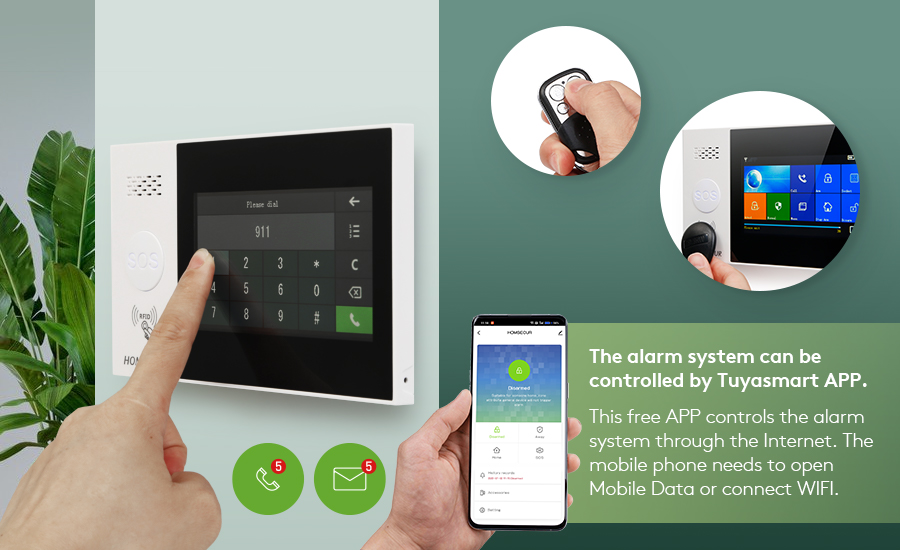

3 Ways to Remote Control the Alarm Panel

The alarm system can be controlled by Call and SMS (supports up to 5 designated phone numbers for alarm calls and 5 designated phone numbers for SMS notification). The alarm system can also be controlled through the panel, remote control, and RFID card.

8 Defense Zones Attribute

The alarm system provides 8 defense zones to customize your need.

Out Alarm Active	Stay Arm Active	Out Alarm Active Without Delay
Work on ARM status.	Work on ARM/Stay ARM(Home Arm/Partial Arm) status.	Work on ARM status without delay.
Stay Arm Active Without Delay	24 Hours Active	24 Hours Silent
Work on ARM/Stay ARM(Home Arm/Partial Arm) status without delay.	Alarm whenever and whatever status.	No audible alarm sound.
Doorbell	Close
Tinkling sound, suitable for front doors.	Bypass Sensors when They are not needed.

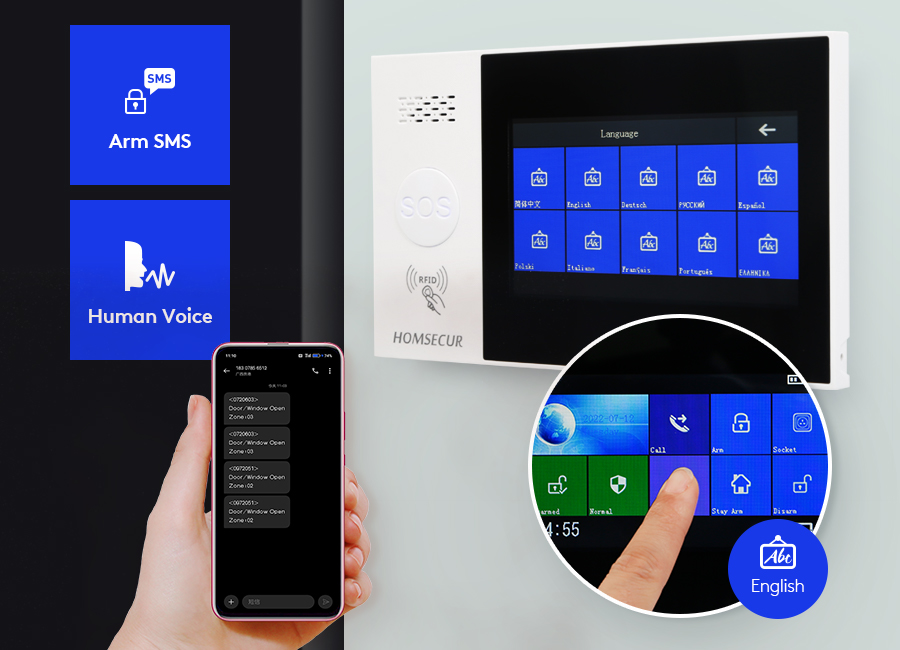

10 Languages for Selection

It is built-in 10 kinds of languages in the menu (English, Deutsch, Français, Español, Italiano, Português, РУССКИЙ, Polski, Ελληνικά, 简体中文). Human Voice, Displaying, SMS, and push notification will be in the selected language.

Support Various Wireless and Wired Sensors

The alarm panel supports 4 wired zones and 100 storage for remote control, rfid and wireless sensors. Please feel free choose accessories to customize your own security system.

Outstanding Features

Built-in Rechargeable Battery

Backup rechargeable battery can last up to 1-1.5hours hours with power lost alert when AC power is off.

SOS for Emergency Help

By pressing SOS button on remote control or alarm panel, the alarm system will be triggered with sounding siren for attention and automatically dial the designated phone numbers to enable on-site communication.

Timing Arm/Disarm the Alarm Panel

You can set exact time when to arm and disarm the system, making you feel peace of mind when you are at work.

Arm Delay and Alarm Delay

They are also known as exit and entry delay. The time can be adjusted based on your requirements, making you feel free to exit or enter the house when Arming/Disarming the system.

Arm/Disarm/Alarm Log Records

Arm/Disarm/Alarm Log can be reviewed on the alarm panel and APP, never miss any event for home security.

Arm/Disarm Status Confirmation

You can get SMS confirmed after Arming/Disarming to guarantee that your operation is successful.

SMS Notification of AC Power Failure and Recovery

If the main power fails/recovers, the security console will send SMS to preset phone number to alert you.

Anti-Tamper Alarm

The alarm will be activated when the mounting bracket is separated from the alarm host. No worry when the alarm host was damaged by the intruder.

12 Alarm Types for Sensors

It supports 12 alarm types for sensors like door alarm, fire alarm, window alarm, gas alarm, and so on.

20s Recorded Dial-Out Voice Messages

It can be automatically played when alarm occurs and alarm call is answered.

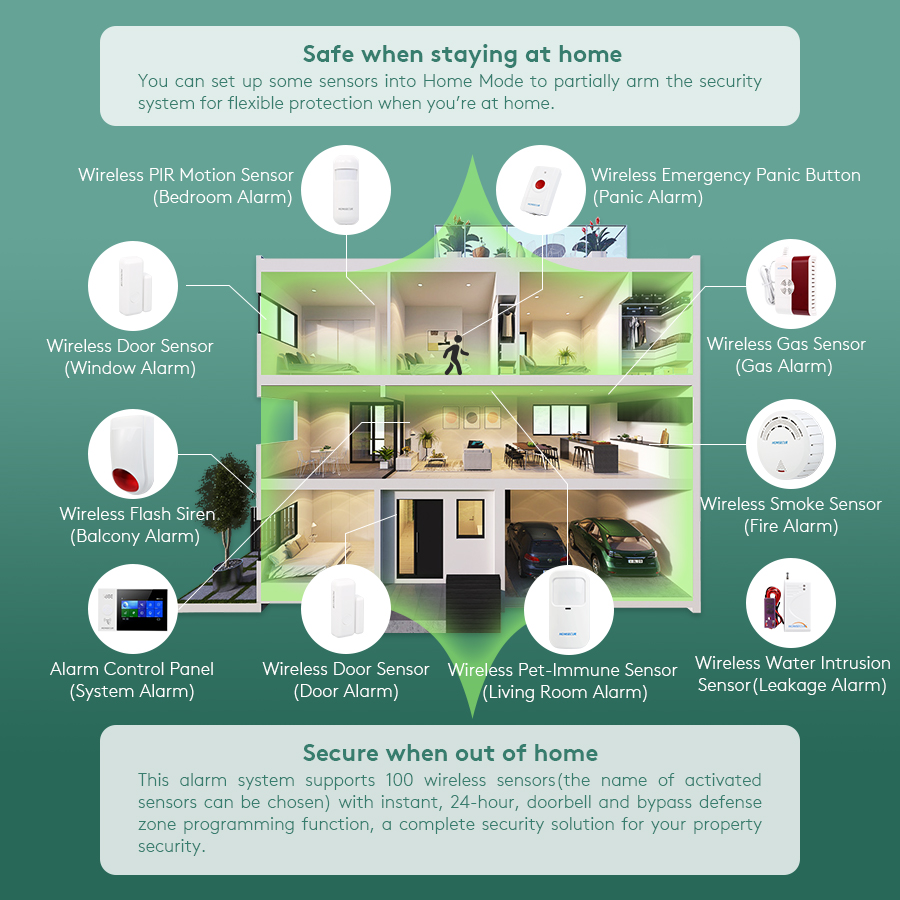

Secure and Safe for Smart Home

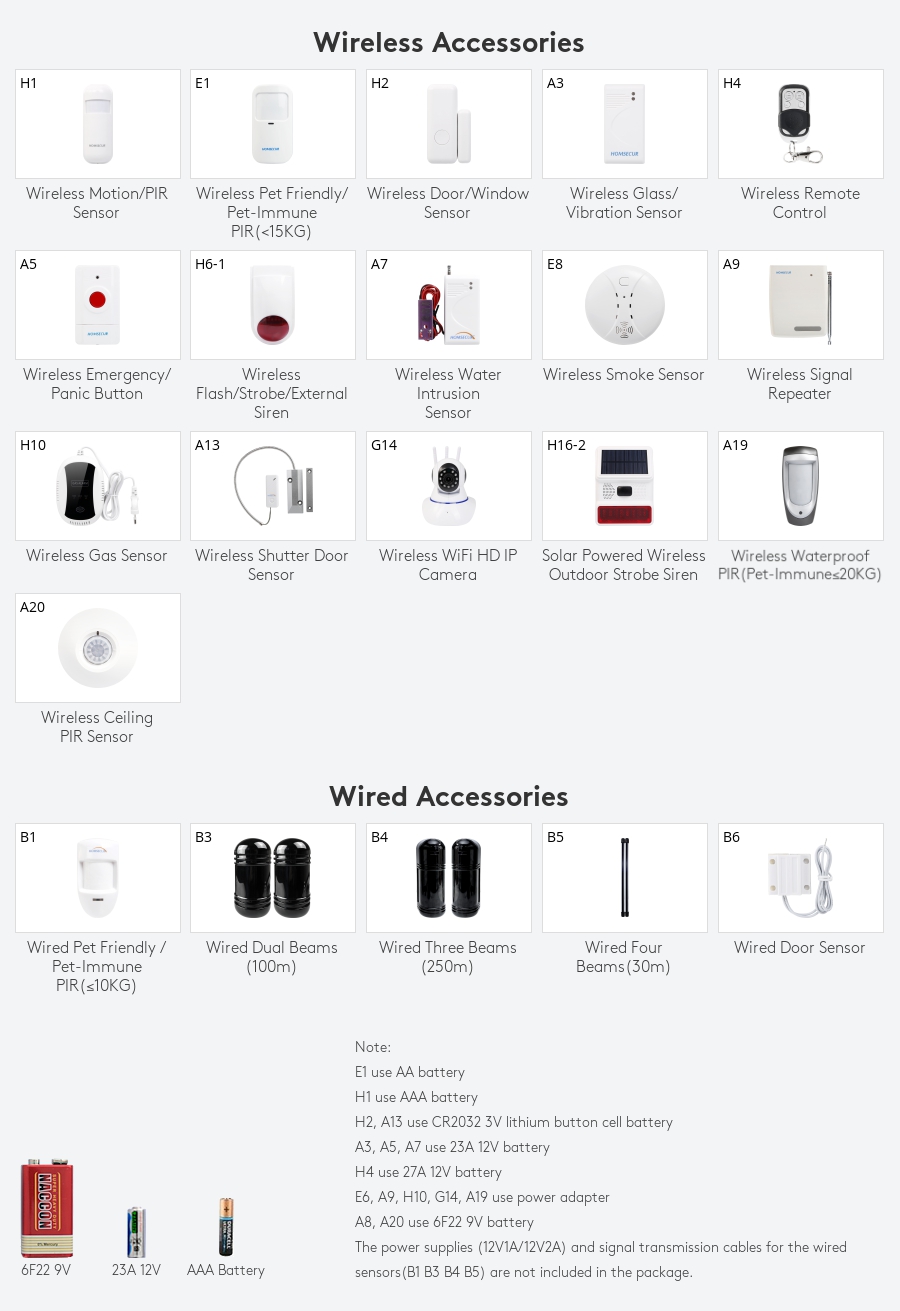

Functions and Installation of Accessories

We also provide other optional Wireless & Wired accessories for sale. Please feel free to contact us if you have any needs.

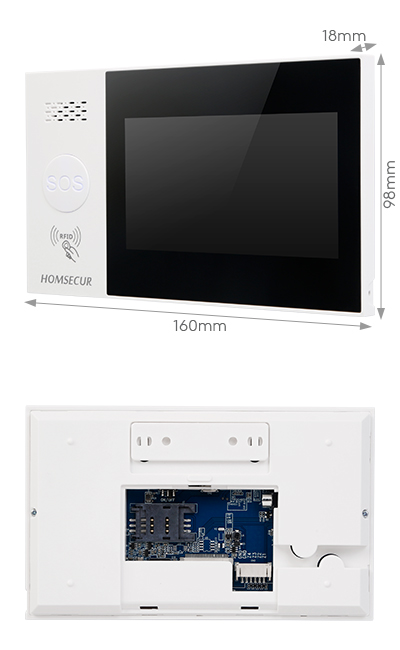

Alarm Control Panel
Model NO.	LD04-4G
Display	4.3 inch IPS color screen
Network	4G/2G
WiFi	IEEE802.11b/g/n(2.4GHz) wireless network
Wireless Frequency	433MHz±0.5MHZ
Wireless Coding	EV1527
Multi-Language Menu	English, Deutsch, Français, Español, Italiano, Português, РУССКИЙ, Polski, Ελληνικά, 简体中文
Power Supply	DC5V (Micro USB jack)
Wireless Sensors	Support up to 90 storage for remote control and sensors
RFID cards	10Pcs
Wired Sensors	4 wired zones support numerous pieces of wired sensors
Anti-Tamper Function	Available
Event Logs	50 alarm logs and 20 arm logs
Built-in Siren	80dB
Working Current	<140mA when the screen is off <280mA when the screen is on
Standby Current	<80µA
Siren Current	<560mA
Working Temperature	0°C~50°C
Material	ABS Plastic
Humidity	≤80% rh
External Siren	Unlimited wireless flash sirens and one wired siren
Back-up Battery	Backup rechargeable battery can last up to 1-1.5 hours with power lost alert when AC power off

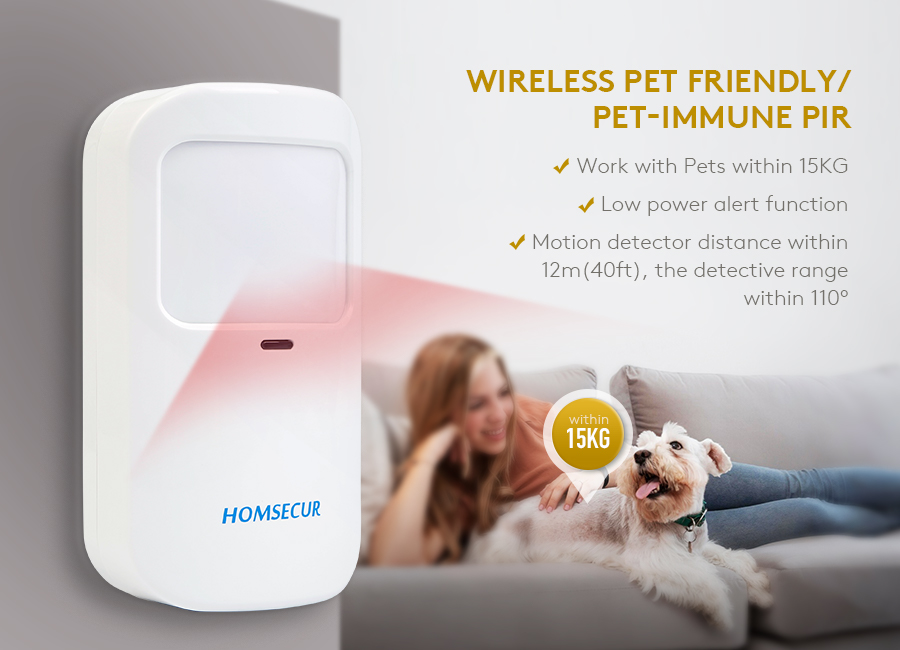

Wireless Pet Friendly/ Pet-Immune PIR(<15KG)
Outstanding Function	Low power alert function Pet-Immune for the pets under 15kg
Wireless Frequency	433MHz
Power Supply	3*AA battery (not included by default)
Transmission Distance	About 23m with one barrier
Standby Current	≤15uA
Working Current	≤15mA
Detective Range	Horizontal 110°
Installation Height	2.2m
Working Temperature	-10°C~50°C
Humidity	45%-75% rh
Battery Lifespan	About 6 -12 months

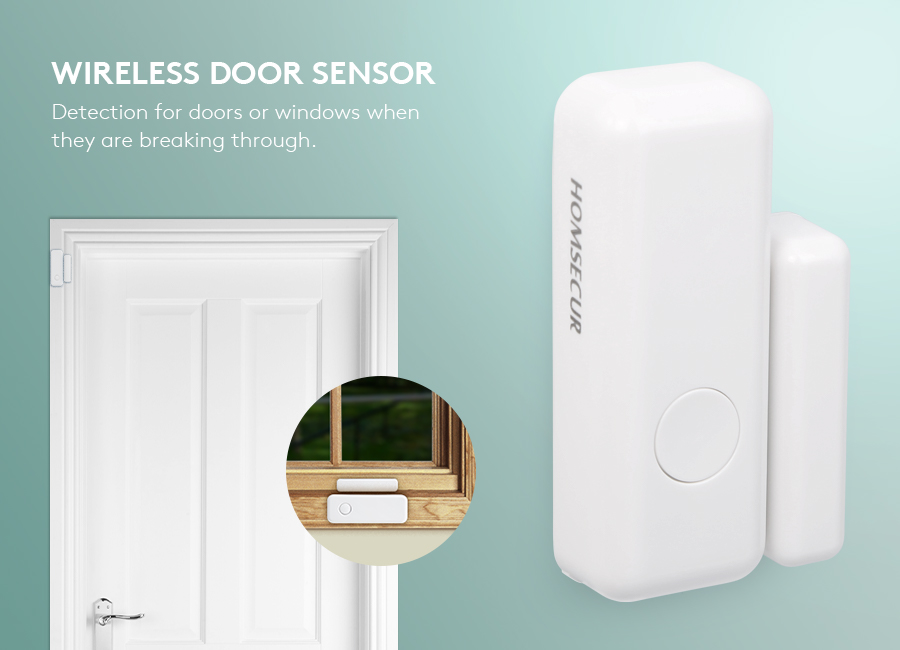

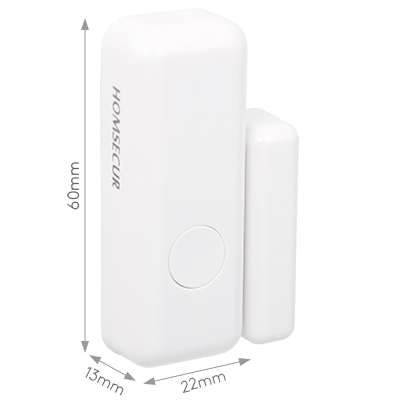

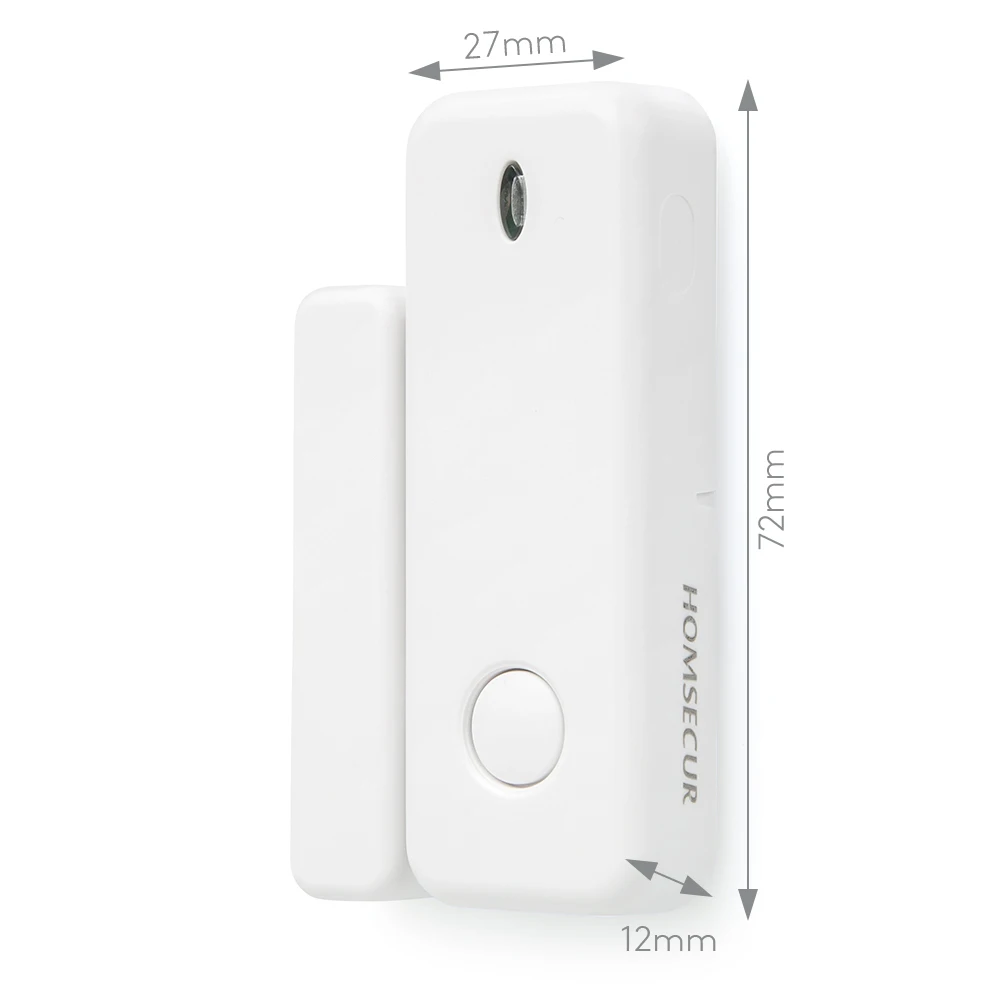

Wireless Door/Window Sensor
Wireless Frequency	433MHz
Power Supply	CR2032 3V battery (not included by default)
Transmission Distance	About 23m with one barrier
Internal Distance	20-25mm
Transmission Current	8-12mA
Static Current	1-5uA
Working Temperature	15°C~35°C
Humidity	45%-75% rh
Battery Lifespan	About 6 -12 months

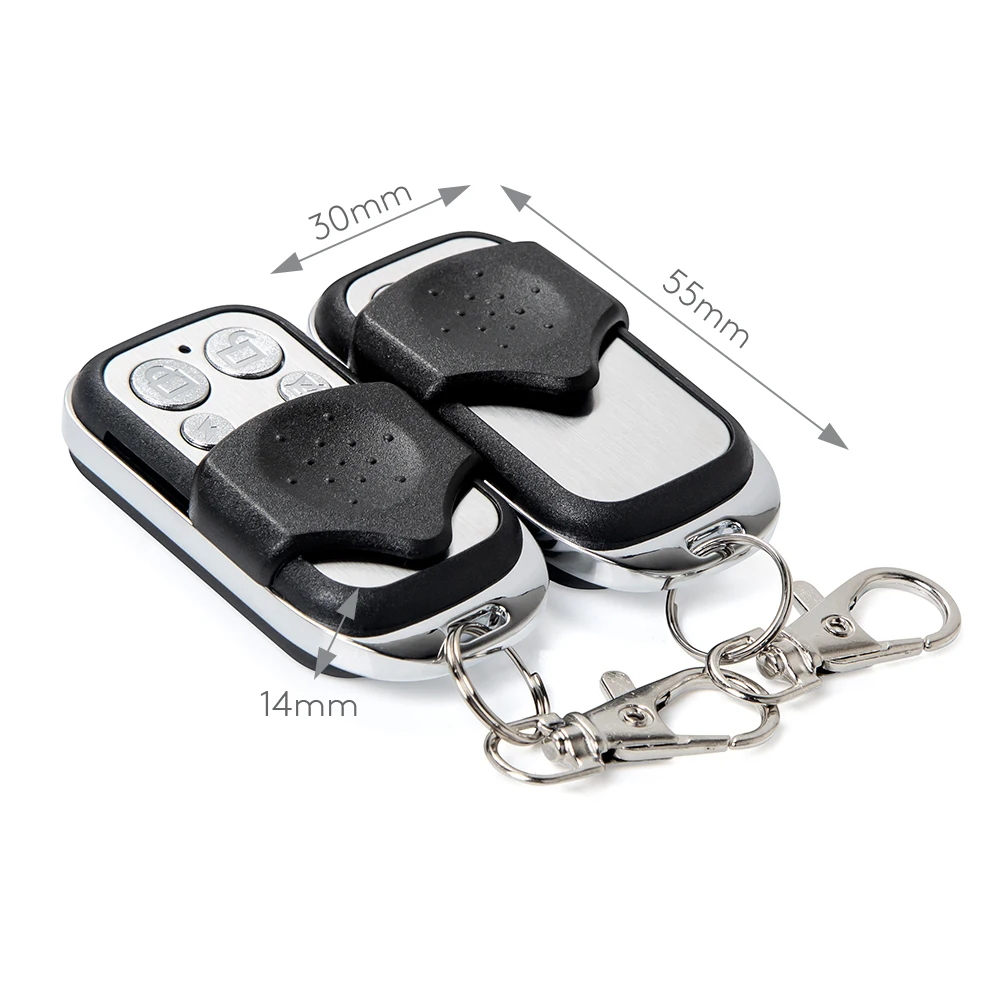

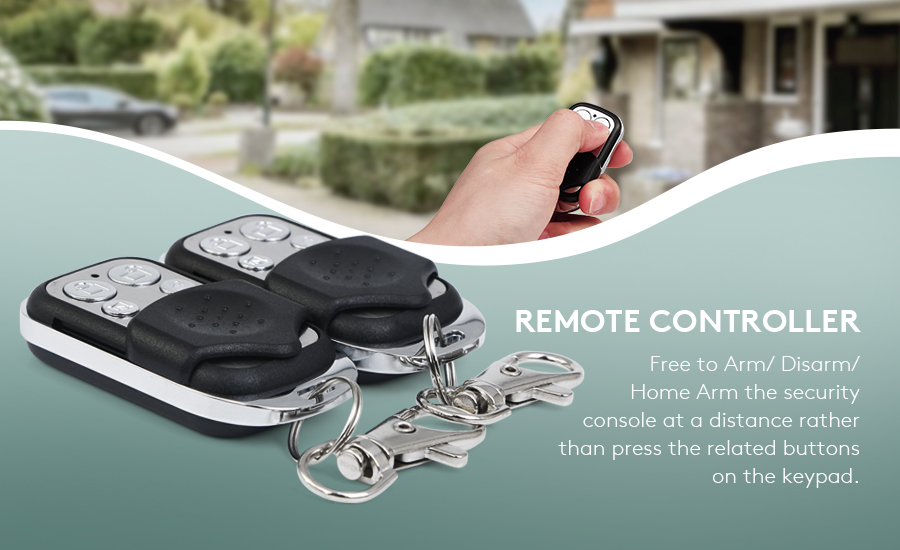

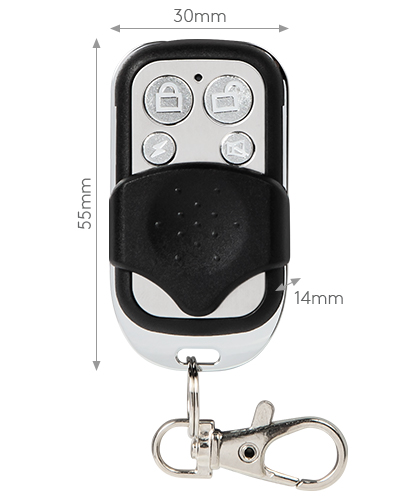

Wireless Remote Control
Wireless Frequency	433MHz
Power Supply	27A 12V battery
Transmission Distance	About 25M with one barrier
Emission Current	10-18mA
Emission Speed	T≤1 second
Working Temperature	15°C~35°C
Humidity	45%-75% rh
Battery Lifespan	About 12 months

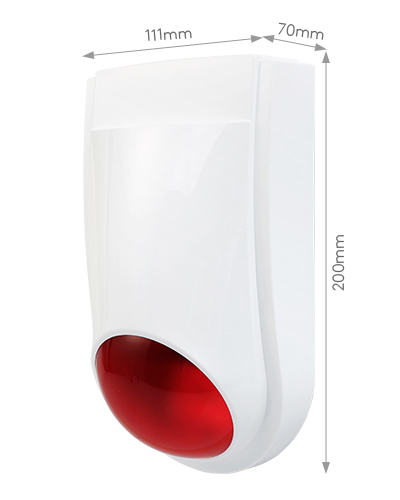

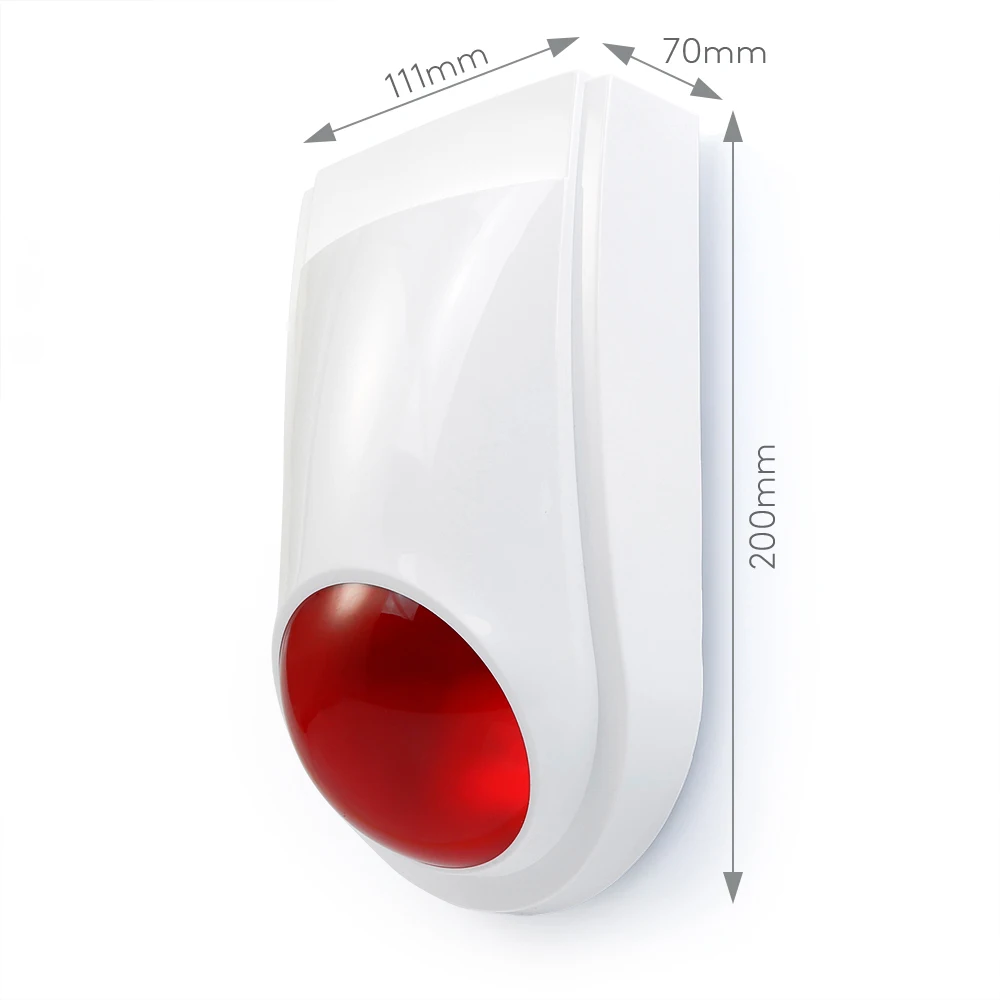

Wireless Flash/Strobe/External Siren
Outstanding Function	Sound alarm with a red bright flash to make more powerful warning on spot
Anti-Tamper Function	A tamper button on the back of flash siren
Wireless Frequency	433MHz
Input Voltage	AC100-240V 50/60Hz
Power Supply	DC12V/1A
Transmission Distance	About 23m with one barrier
Standby Current	<7mA
Alarming Current	≤230mA
Alarm Loudness	120dB
Back-up Battery	Built-in rechargeable battery can work directly when AC power off
Working Temperature	-20°C~+55°C
Humidity	40%-80% rh
