High Temperature Pressure Transmitter 200℃ / 500℃

The HHD High Temperature Pressure Transmitter is designed for pressure measurement of steam, hot oil, thermal fluid, boilers, reactors, chemical processes and other high-temperature industrial media.

To protect the sensing element and electronics from excessive process heat, the transmitter uses a multi-stage cooling structure that reduces heat transfer from the process connection to the transmitter body.

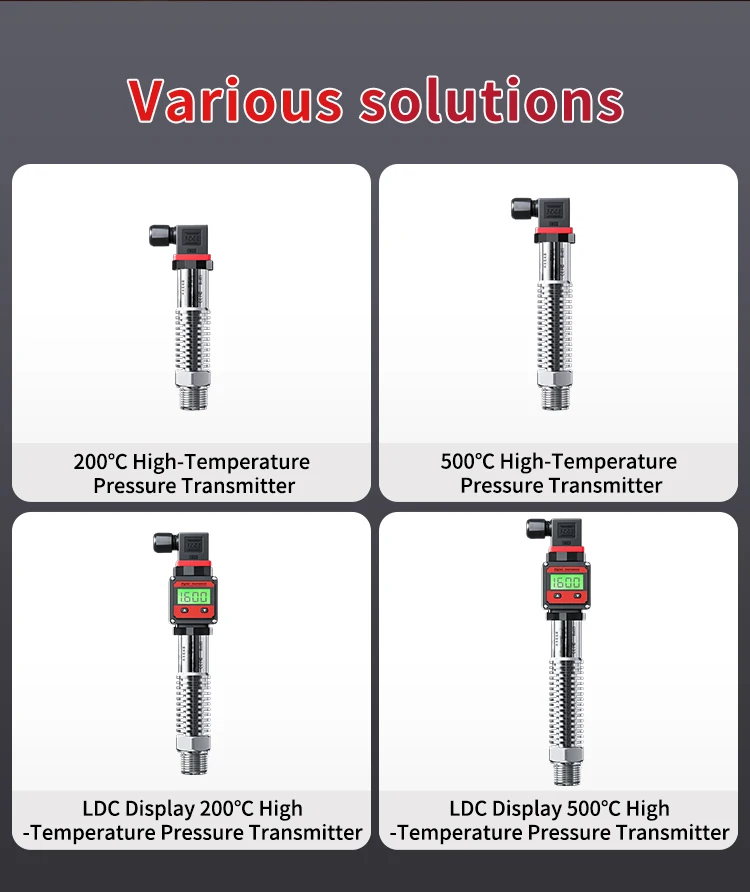

Two high-temperature versions are available:

200C Version – 10 Cooling Fins
Designed for process medium temperatures from -40°C to +200°C. The compact multi-fin cooling structure provides effective thermal isolation for common high-temperature industrial applications.

500C Version – 15 Cooling Fins + Upgraded Cooling Structure
Designed for process medium temperatures from -40°C to +500°C. In addition to 15 cooling fins, the process-pressure transmission and heat-dissipation structure is upgraded to further reduce heat transfer to the sensing and electronic sections.

With ±0.25%FS accuracy, the transmitter supports multiple industrial signals:

4-20mA | 0-10V | RS485 Modbus

Standard electrical connection is a Hirschmann connector. Optional configurations include LCD display, waterproof cable connection, aviation plug and explosion-proof transmitter head.

Typical applications include steam pipelines, boilers, thermal oil systems, reactors, chemical equipment, power plants, heating systems and high-temperature process pipelines.

Why Choose HHD

1. Two High-Temperature Solutions
Choose the 200C 10-fin version or the 500C 15-fin upgraded version according to actual process temperature.

2. Flexible OEM / ODM Customization
Custom pressure range, output signal, electrical connection, display, logo and packaging are available for different projects.

3. Local Technical Support & Faster Delivery
Professional support is available for model selection, installation and troubleshooting. Selected specifications can be supplied from local warehouses for shorter delivery times.

4. Global Distributor Cooperation
HHD welcomes distributors, agents, engineering companies, system integrators and automation partners for long-term cooperation.

Technical Specifications
