Main Features

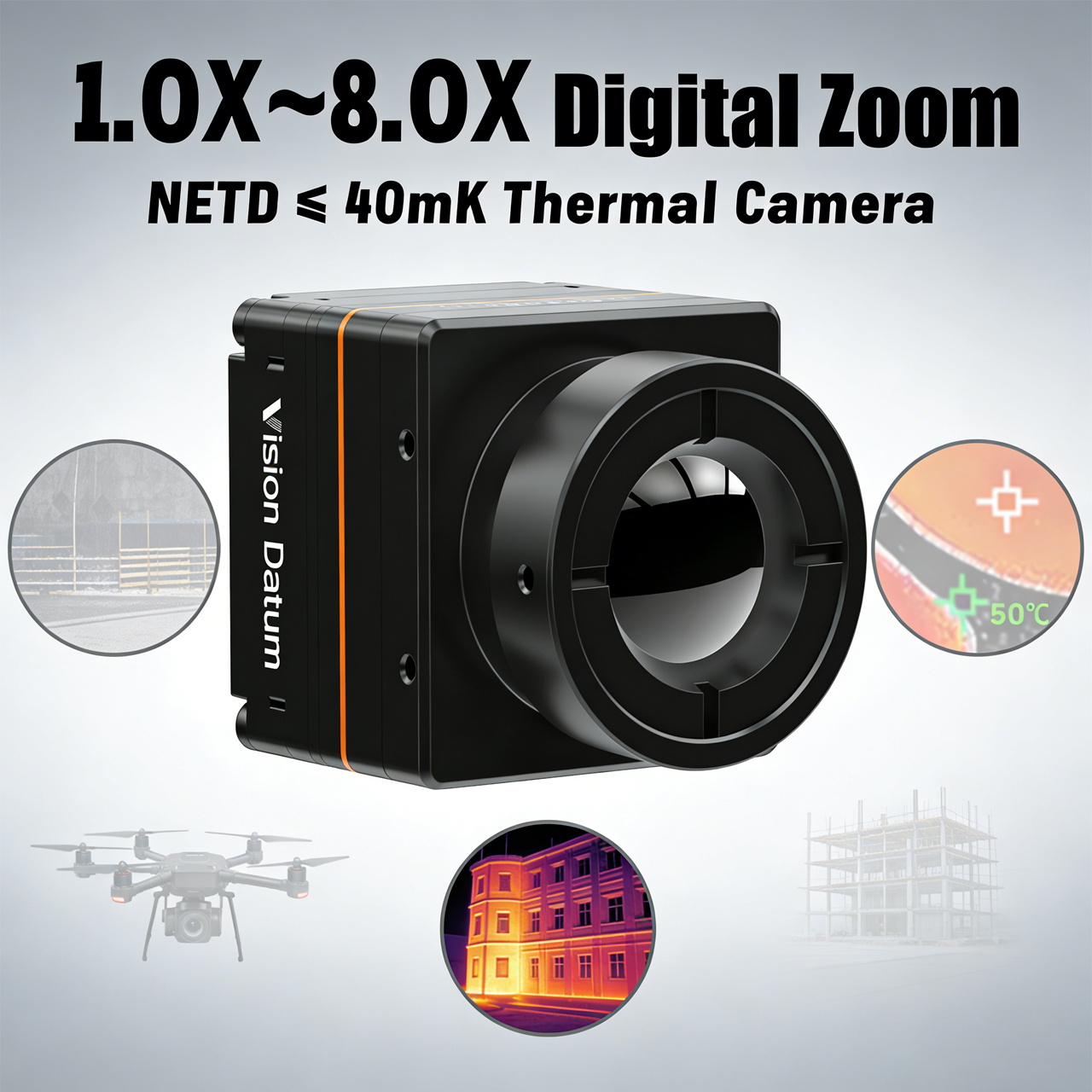

● 8 to 14 μm spectrum
● High thermal sensitivity, typical NETD ≤ 40mK
● Windows/Android/Linux SDK can be provided to achieve full screen temperature measurement
● Regional analysis, high temperature alarm, hot spot tracking, isothermal mode
● Temperature measurement range: -20~+150℃ , 0~+550℃ ,Temperature measurement accuracy: ± 3 ℃ or ± 3%
|
Model |
Digital zoom |
Pixel spacing (μm) |
Resolution |
Frame rate (Hz) |
Dimension/Weight (mm/g) |
|
iRP03BPLWA |
1.0-8.0x |
12 |
640×512 |
25/30 |
25.4×25.4×15.6/11.5g² |
