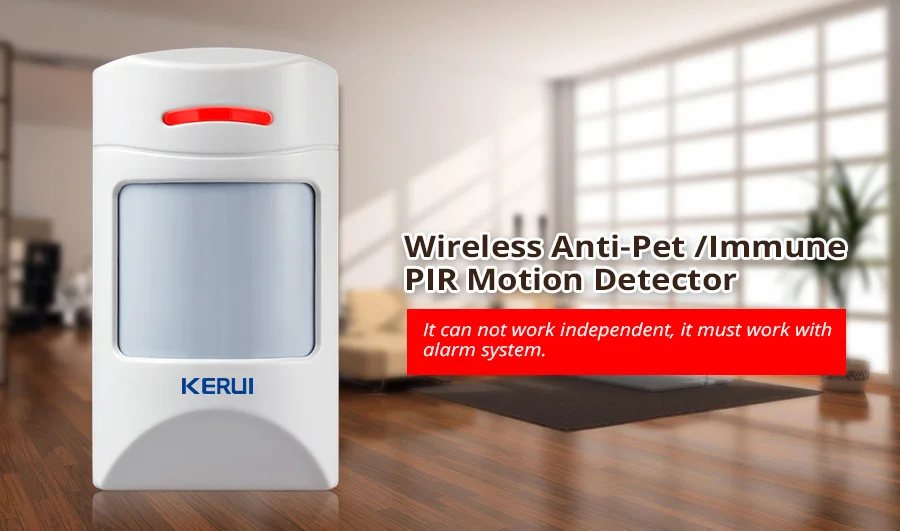

Wireless Anti-Pet /Immune PIR Motion Detector For GSM/PSTN Home Alarm
1.The product is wireless intelligent pet-immunity detector with high stability.
2.It has adopted advanced technology in signal processing,provided super high detection ability,function of automatically identify valve control and pulse count.

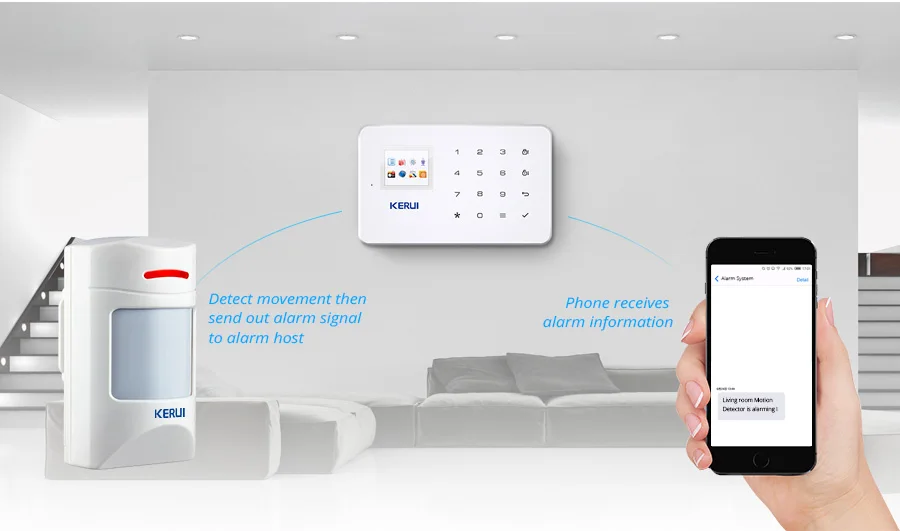

3.The detector will detect movement of human auotomatically when intruder pass through the detector area,and it will send out alarm signal to alarm host if there is movement.
4.The product suitable for the safety of residential house,villas,factories,markets,warehouses,office building etc.
* Working voltage: 2*AA battery (battery NOT included)
* Static current≤15uA Alarm current≤10mA
* Emission distance: 30-80(open area)
* Installation height: 2.2m
* Detection distance: 6-15m
* Detection range: 90-110 degree
* Encoding method: 2262
* Sensor: dual element infrared sensor
* Operating temperature: -10 to+50
* Emission frequency: 315MHz or 433MHz(we default433MHz)
* Installation method: wall mounting
* Lower battery indicator: yellow LED
* Alarm indicator: red LED
Immunity of less than 5 kgs pet
The detector will detect movement of human auotomatically when intruder pass through the detector area,and it will send out alarm signal to alarm host if there is movement.
Detection distance: 6-15m
Detection range: 90-110 degree
Installation height: 2.2m
Product Testing
Turning on power and LED indicator will be flashed for 1s, the detector comes into state of self-check, it takes about 30s, after that it is in the state of normal work. Conner should walk parallel with the wall installed detector in the testing area. LED lighting means the detector is in the state of alarm.
install the detector at the height of 2.2m or so.
Make sure there is no inducement for pet to pass by, like stair and etc.
Notice: the function of pet-immunity will not work, if the distance of detector and pet is less than 1.8m.
Notice:
1. Please install and use the detector according to this manual, don't touch the surface of sensor for avoiding affecting the sensitivity of the detector. Please shut off power and then clean the sensor by soft cloth with little alcohol if cleaning needed.
2. The product can reduce accident but may not perform as expected . The user is advised to take all necessary precautions for his/her safety and the protection of his/her property.
3. In order to ensure it can work normally, the power should be kept to supply and get on walking test periodically, once a week is better.
