Note before order!
– Input Voltage: 100~250VAC, 50/60Hz；Output Voltage(Motor Voltage): 100~250VAC, 50/60Hz(Our switch can't work with DC motor!)
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our curtain switch module. And please be noted that neutral wire is a must for the installation, or you can't use our device.
ZigBee Hub is Required
– Tuya ZigBee 3.0 curtain switches and ZigBee Remote need work with Tuya ZigBee Hub, please make sure you already have a Tuya ZigBee Hub, if not, please buy the Tuya ZigBee Hub in this listing.
– This ZigBee curtain switch can't work with other brands' ZigBee Hub, please make sure your ZigBee Hub is from Tuya.
Features
– Voice Control: Compatible with Amazon Alexa, Google Home, and Yandex Alice.
– App Remote Control: Support Smart Life APP /Tuya APP.
– ZigBee Remote Control: Use a ZigBee Remote to control the curtain blinds.
– Running Time Setting: The running time can be set from 1-120 seconds, suitable for the use of large blinds.
– Tuya ZigBee Mesh: It has a stable network performance with zigbee 3.0 mesh technology.
– Timer and Schedule: You can set a timer to open or close the curtains at a specified time.
Product Parameters
Input voltage: 100-250VAC, 50/60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 600W
Wireless Protocol: Tuya ZigBee 3.0
Standby Consumption: below 0.5W
Colour: White
Compatible with: Tubular Motor with 4 wires
App Remote Control
– Support Smart Life APP /Tuya APP.
– You can use Tuya or Smart Life APP to remotely control the opening and closing of curtains.
Voice Control
– Compatible with Amazon Alexa, Google Home.
– Open and close curtains by voice control.
ZigBee Remote Control
– Use a ZigBee Remote to control the curtain blinds.(Open, Pause, Close)
* The zigbee remote control needs to work with the tuya zigbee gateway.
* zigbee remote control requires corresponding functions to be set in the app.

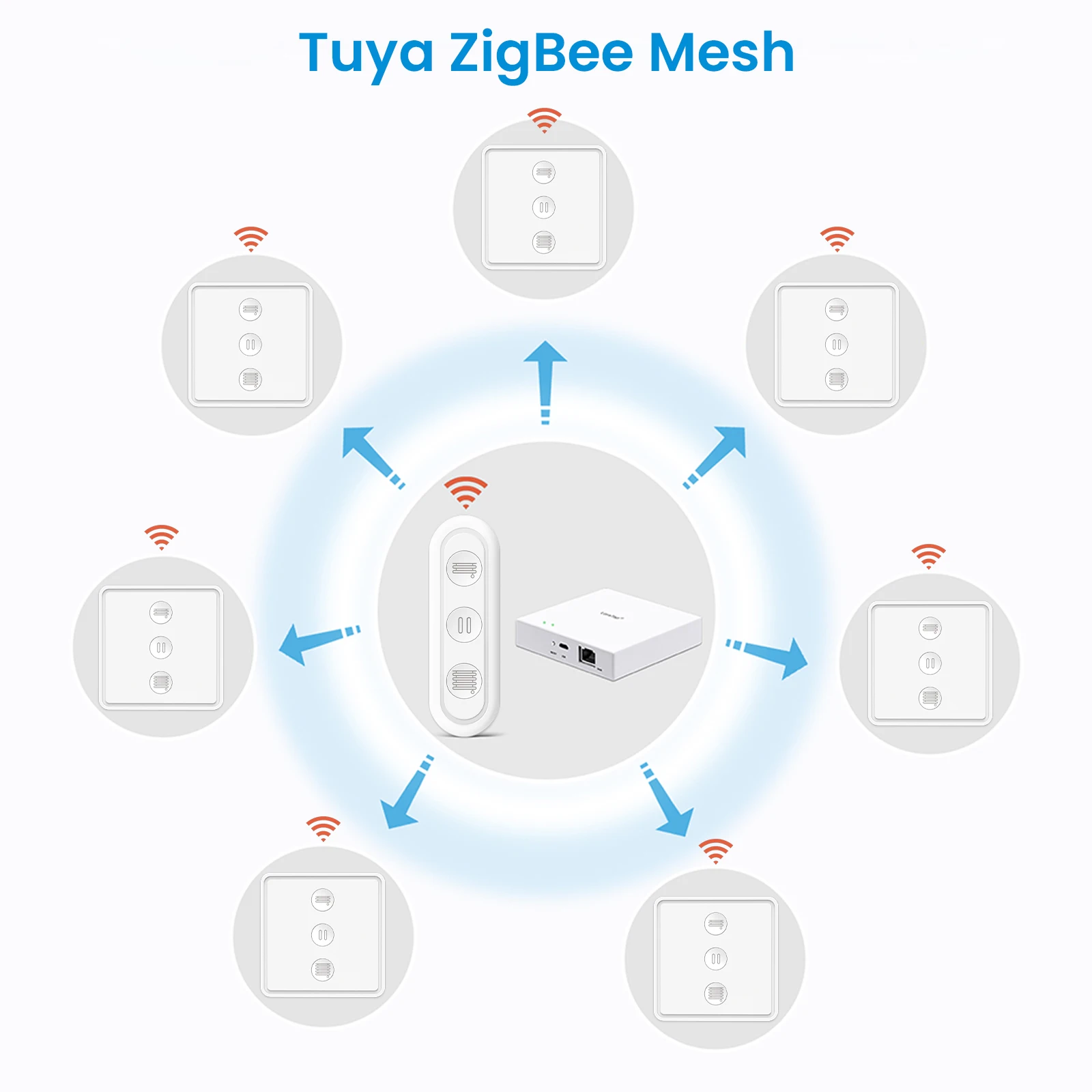

Tuya ZigBee Mesh
– It has a stable network performance with zigbee 3.0 mesh technology.
– Please make sure you already have a Tuya ZigBee Hub, it's a must for all the Tuya/Smart Life ZigBee devices.

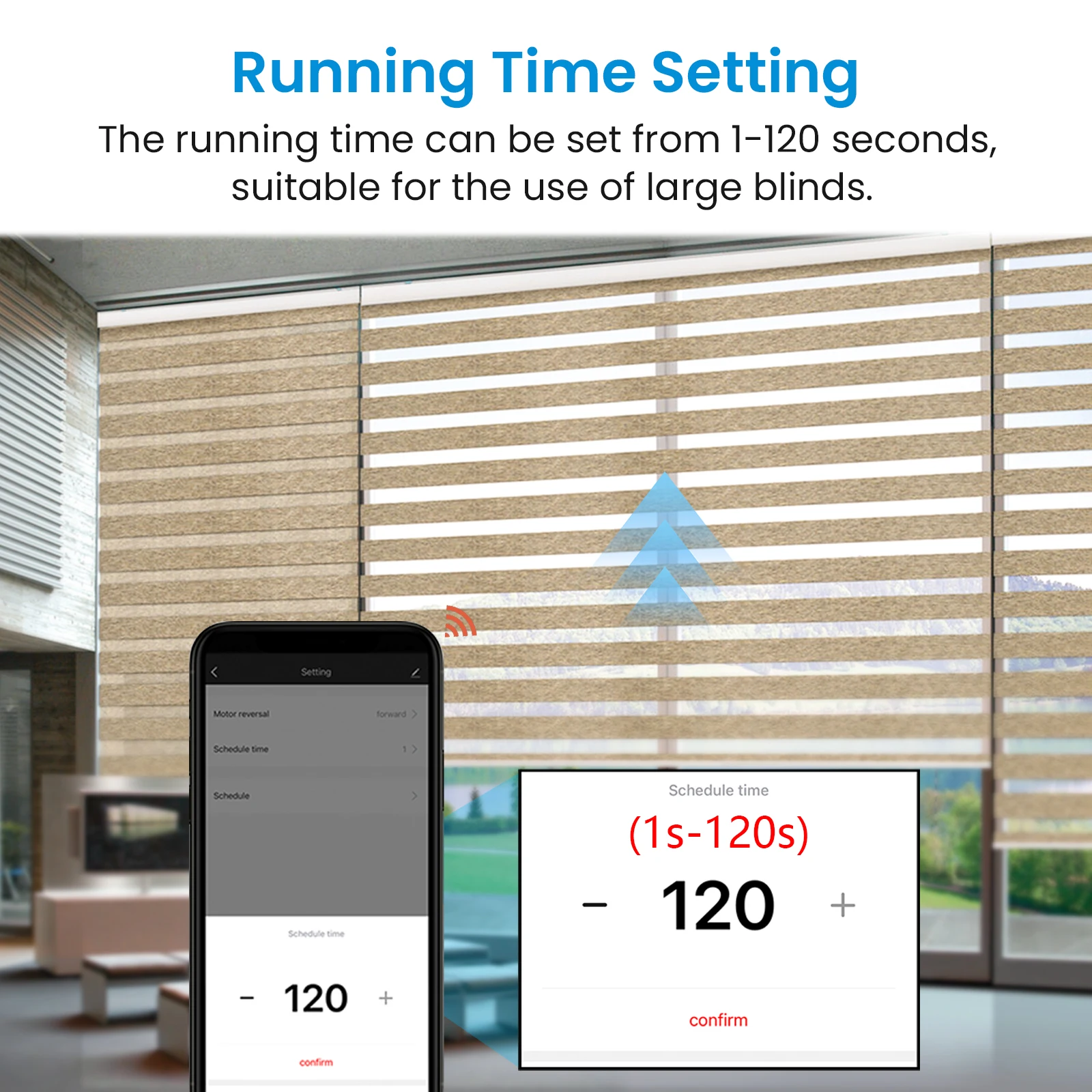

Running Time Setting
The running time can be set from 1-120 seconds, suitable for the use of large blinds.
Timer Function
– You can set a timer to open or close the curtains at a specified time.

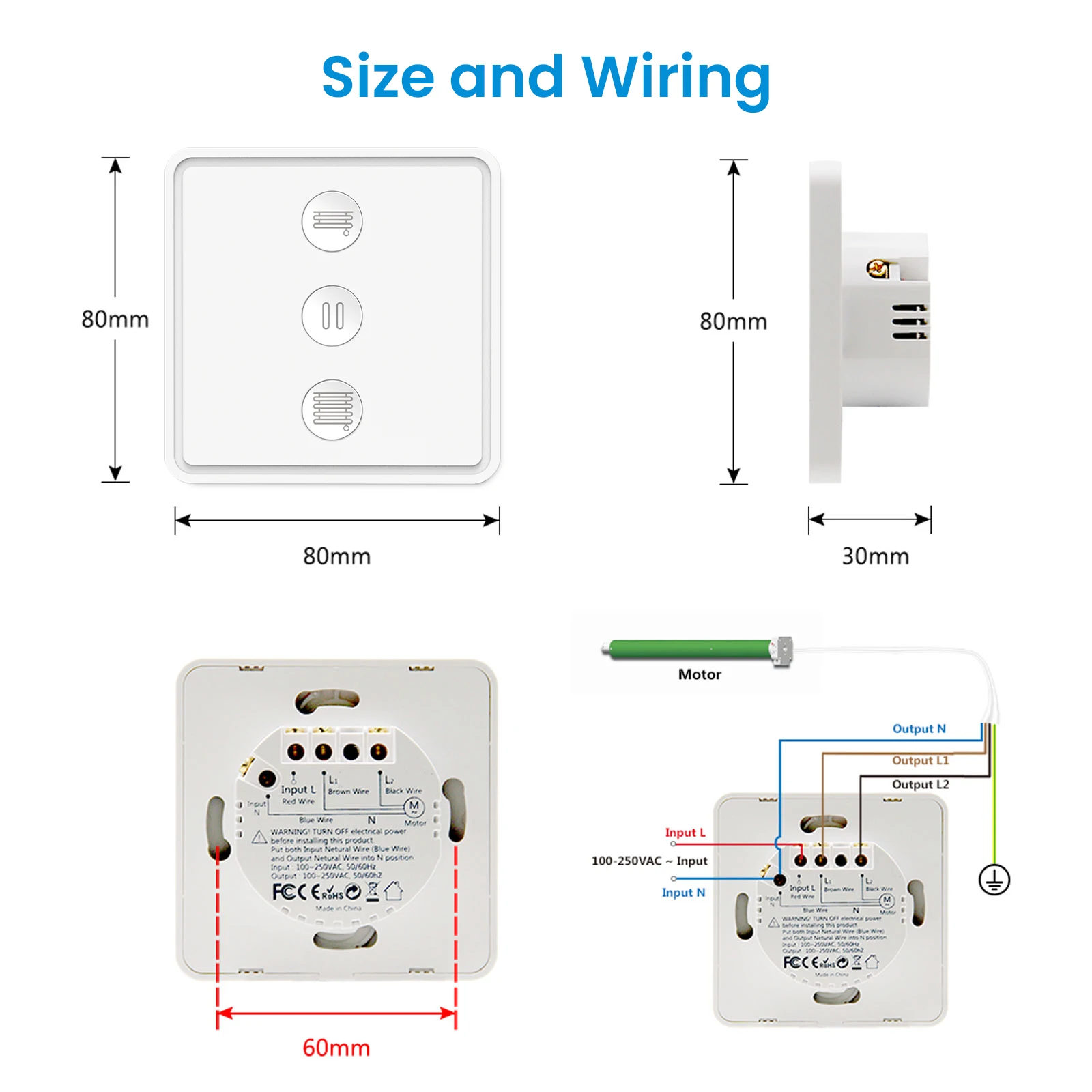

Size and Wiring
– 80mm*80mm EU standard size Switch
– Suitable for the junction box in most of the countries.
