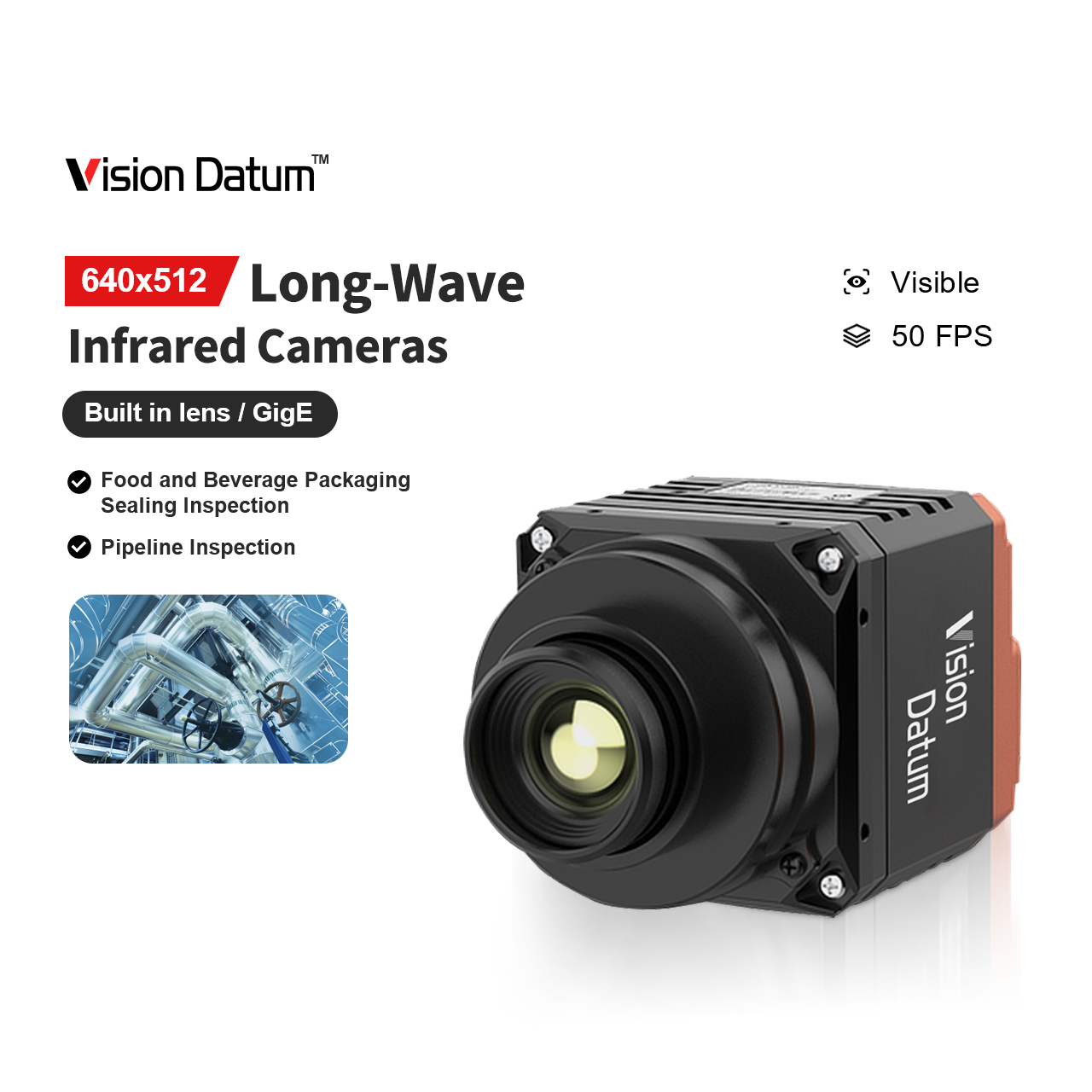

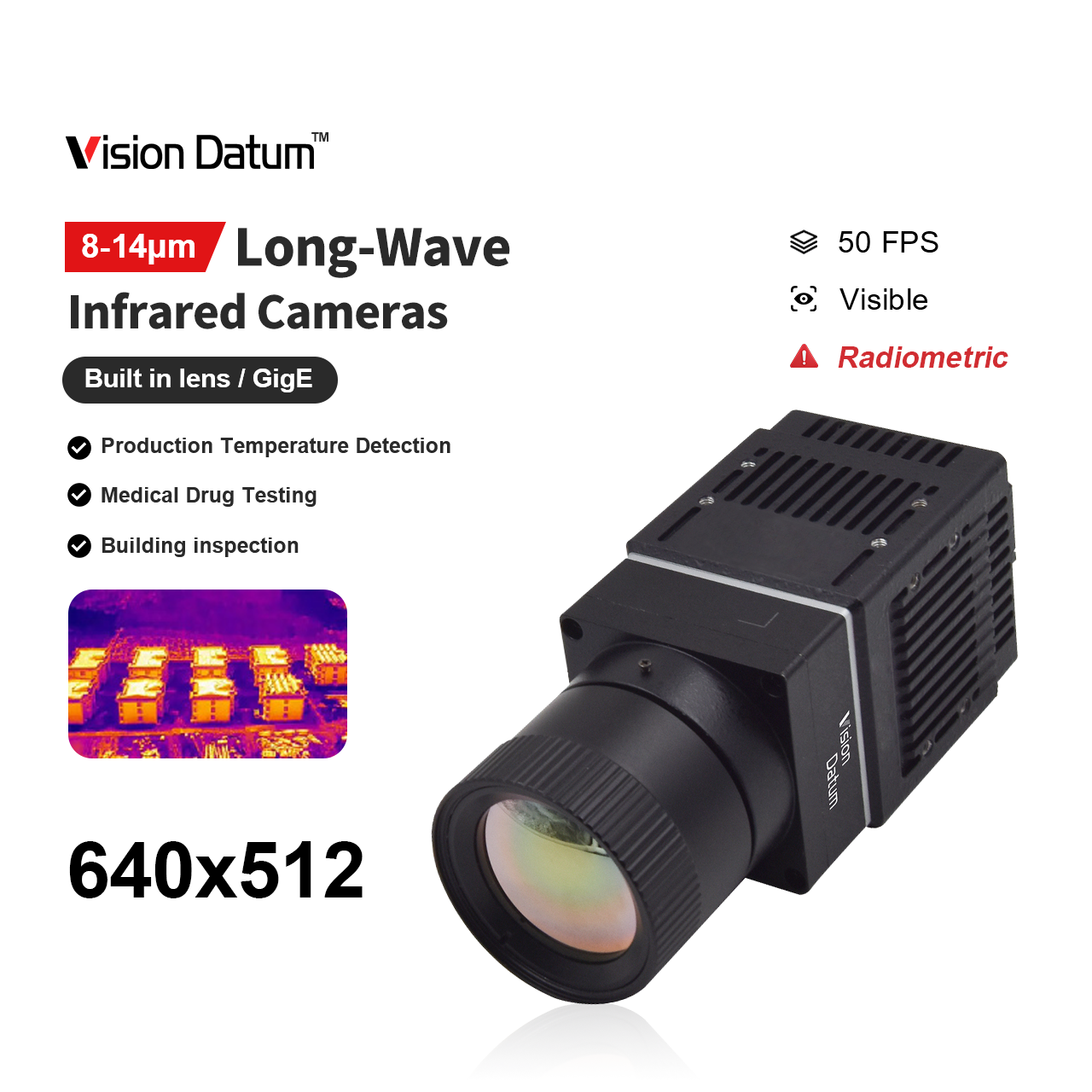

LWIR Camera Module 640X512 High-Temperature -20℃ ~150℃ or 0℃ ~550℃ With 6.3/15/25/35mm Lens 17 μm
Main Features
● 8 to 14 μm spectrum
● High precision temperature measurement
● Rich color display mode
● Low cost high sensitivity uncooled sensor
● GigE Vision protocol support
Main Specification
|
Model |
Sensor Technology |
Temp |
Pixel Size (μm) |
Resolution (H×V) |
Frame Rate (fps) |
Interface |
EFL (mm) |
|
LEO 64006LW-50gm |
Uncooled VOx Detector |
– |
17 |
640 x 512 |
50 |
GigE |
6.3 |
|
LEO 64006LWT-50gm |
Uncooled VOx Detector |
● |
17 |
640 x 512 |
50 |
GigE |
6.3 |
|
LEO 64015LW-50gm |
Uncooled VOx Detector |
– |
17 |
640 x 512 |
50 |
GigE |
15 |
|
LEO 64025LW-50gm |
Uncooled VOx Detector |
– |
17 |
640 x 512 |
50 |
GigE |
25 |
|
LEO 64035LW-50gm |
Uncooled VOx Detector |
– |
17 |
640 x 512 |
50 |
GigE |
35 |
