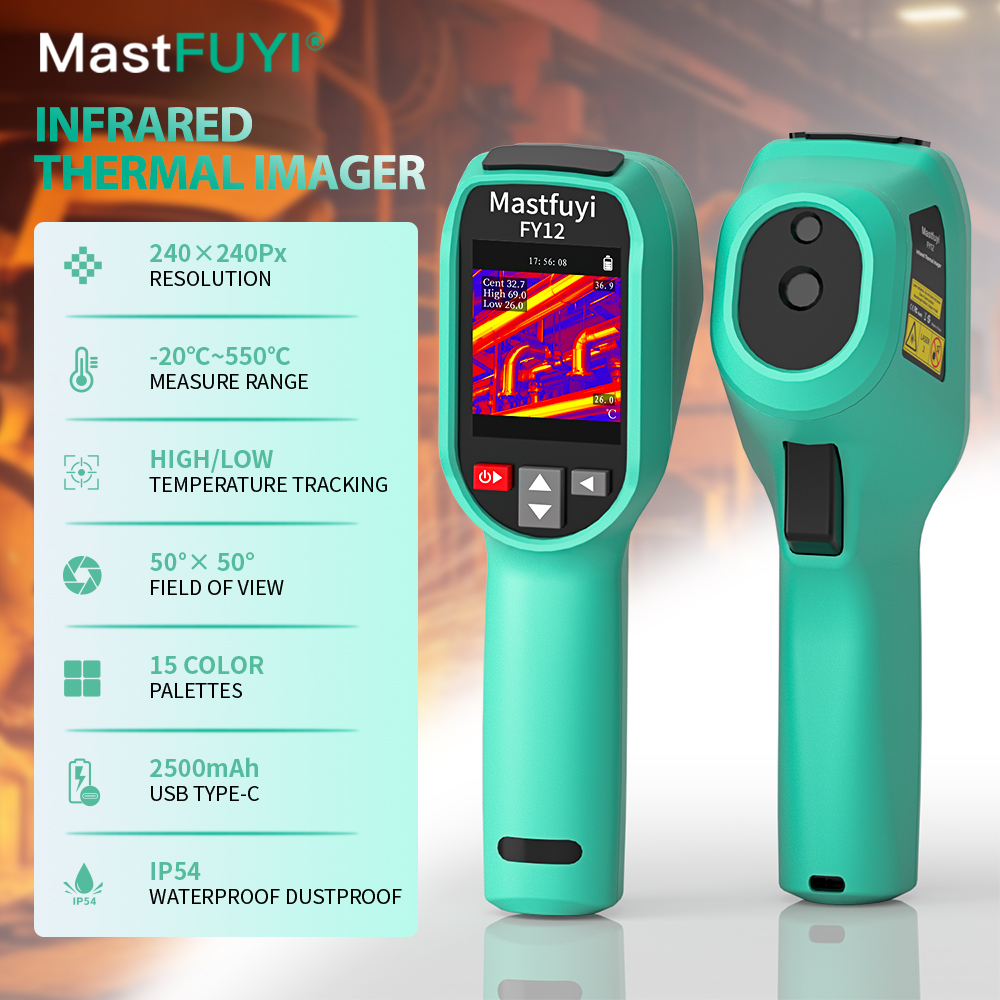

Handheld Infrared Thermal Imager
Swift Detection,Pinpoint Accuracy,Unmatched Stability
apable of simultaneously detecting temperatures at 57,600 points
Locates temperature measurement points instantly with visual thermography
Rapid fault detection, ensuring no omission or misjudgment
Measuring range:-20℃~550℃
Wider temperature measurement range, more application scenarios.

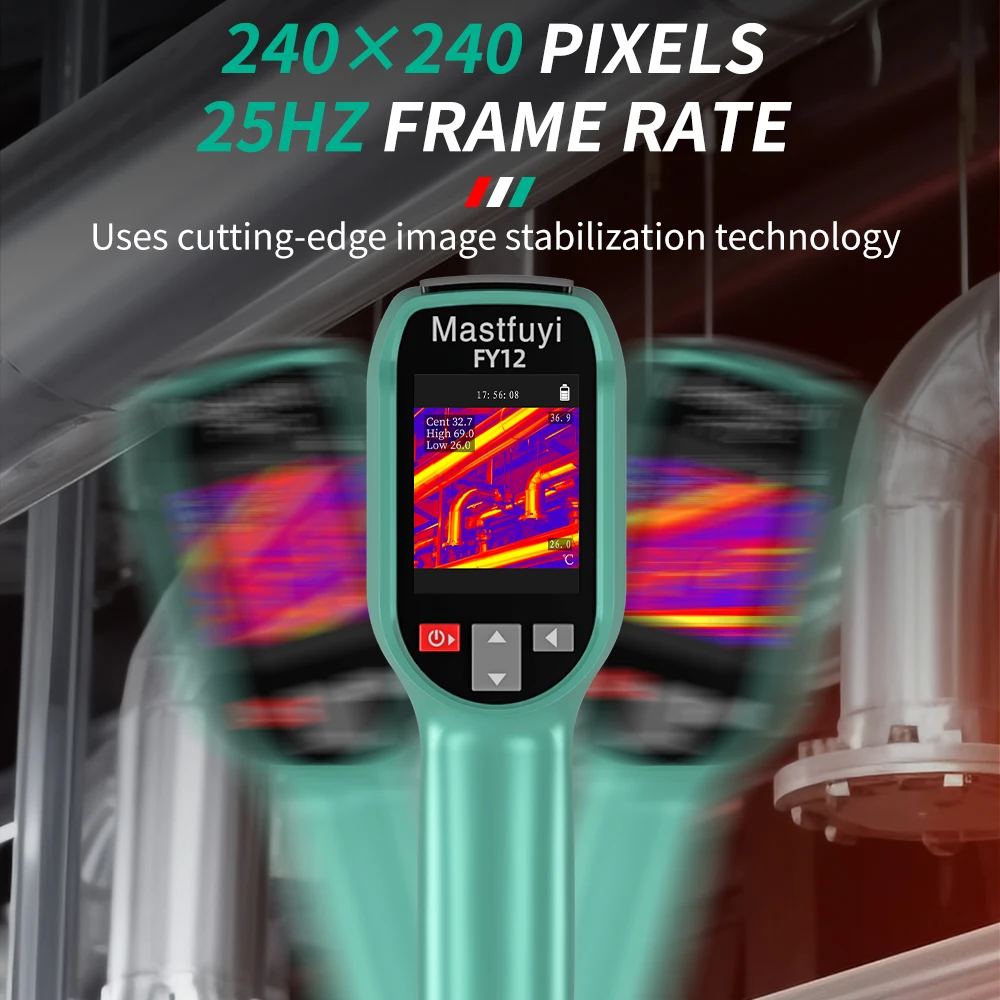

240×240 Pixels,25Hz Frame rate
Uses cutting-edge image stabilization technology

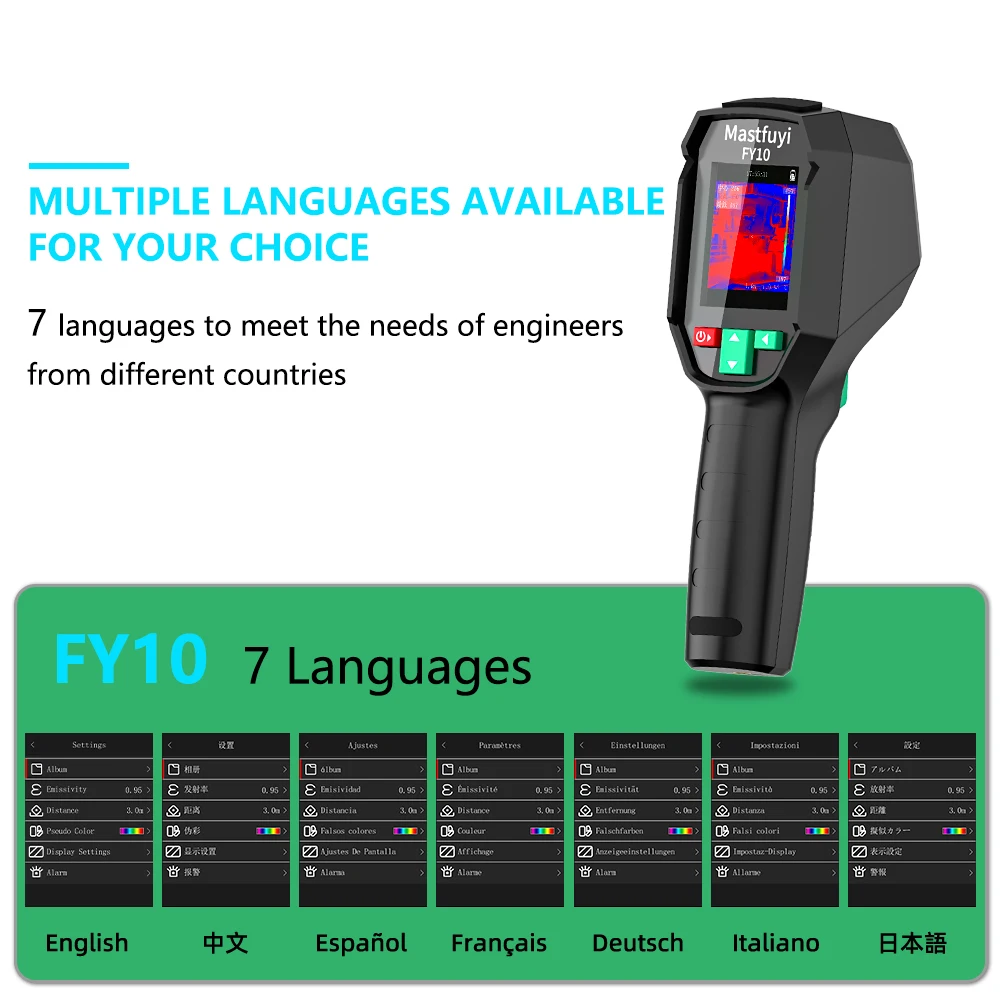

FY10 Built-in 7 Languages
English
Chinese
Spanish
French
German
Italian
Japanese
Widely used Suitable for various tests
This product is widely used in medical, fire protection, transportation, agriculture, geology, energy, smelting, electronic manufacturing pipelines, circuits, etc. It is an ideal choice for electricians and maintenance technicians to quickly find problem areas.
Underfloor heating detection
Pinpoint the problem
Automatically tracking
High temperature, low temperature, center temperature 3 points simultaneously measurement.
Automatically track the Highest temperature, Lowest temperature, and center point temperature in the same screen, and display temperature values in real-time.
Temperature alarm
Menu can set high/low alarm values
If the measured temperature exceeds the set alarm value, the value on the screen will turn red.
Shooting/positioning
Short press: Take a picture and save
Long press: Use laser infrared for positioning and measurement
Built-in memory card
BMP format file，It can be connected to a computer to analyze pictures.
Built-in 4GB memory card
Number of image files:30000
15 Color palettes
Offers 15 distinct color display modes
Adjustable Emissivity & Measuring Distance
the emissivity can be adjusted according to different measurement needs on objects (ranging from 0.1 to 1)
measuring range can be adapted based on varying distance requirements (between 0.3 meters to 3 meters).
Common Emissivity
50°×50°Large wide-angle lens
Offering a broader view. It is designed for outdoor usage and excels in inspecting infrastructure safety, such as power lines, with enhanced visibility due to its full-view TFT true-color screen with LED backlighting and a resolution of 240×240 pixels, ensuring clearer images.
Rechargeable battery(USB TYPE-C)
Built-in 2500mAh lithium battery.
7H+ using time，3H- Full charging.

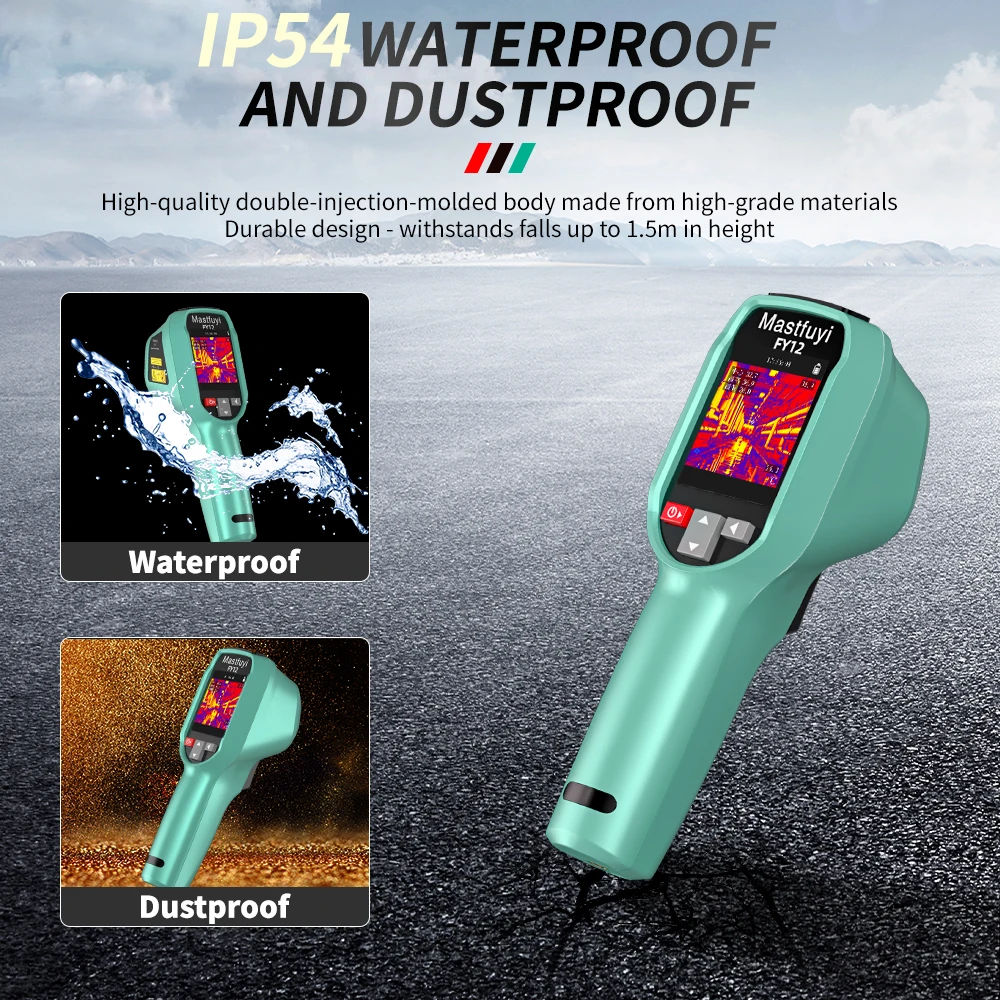

IP54 Waterproof and Dustproof
High-quality double-injection-molded body made from high-grade materials
Durable design – withstands falls up to 1.5m in height

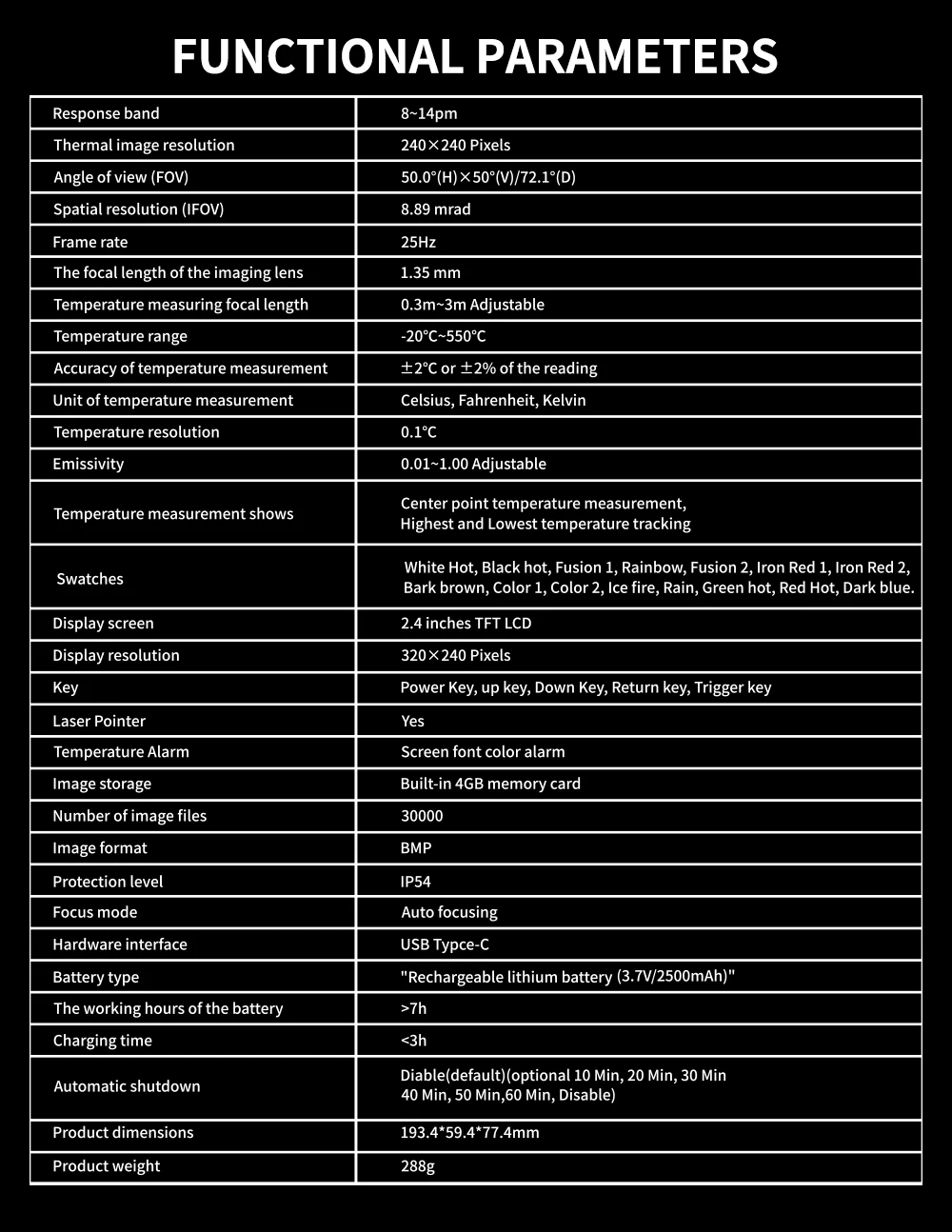

Functional parameters

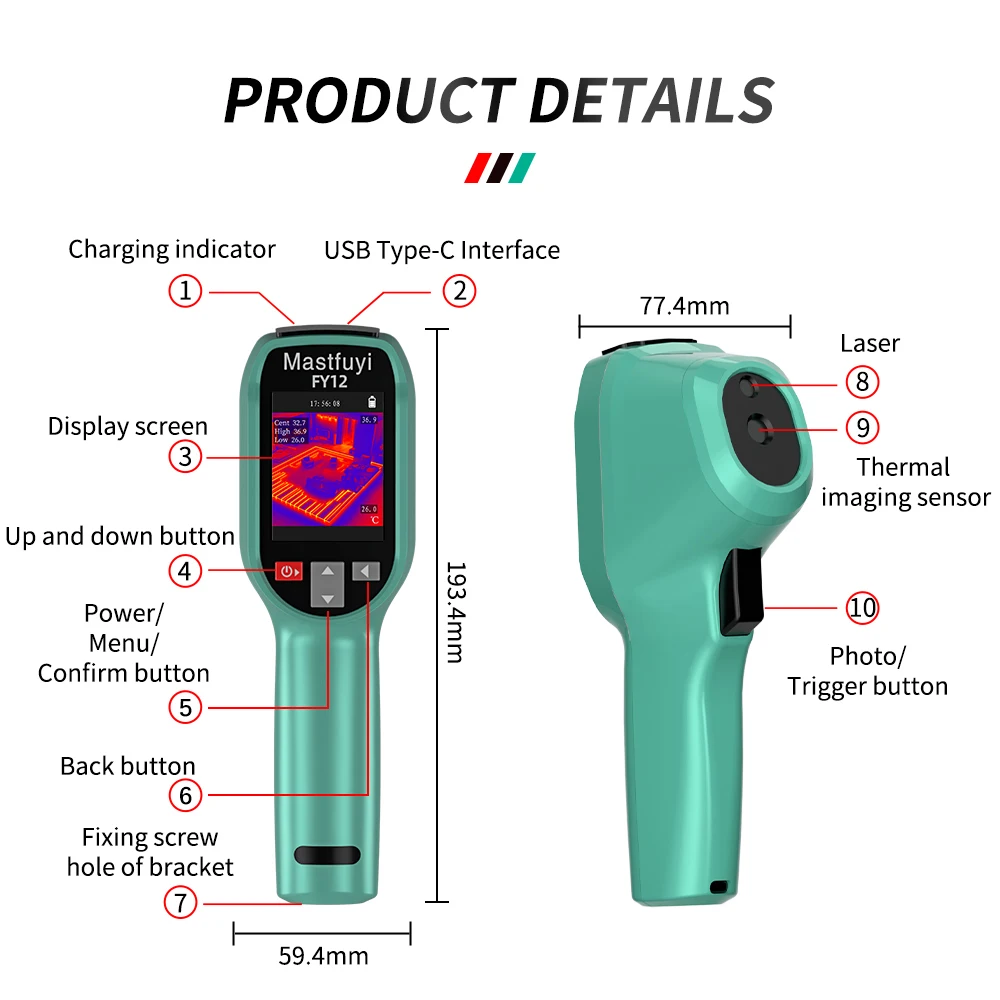

Product details
1.Charging indicator
2.USB Type-C Interface
3.Display screen
4.Up and down button
5.Power/Menu/Confirm button
6.Back button
7.Fixing screw hole of bracket
8.Laser
9.Thermal imaging sensor
10.Photo/Trigger button

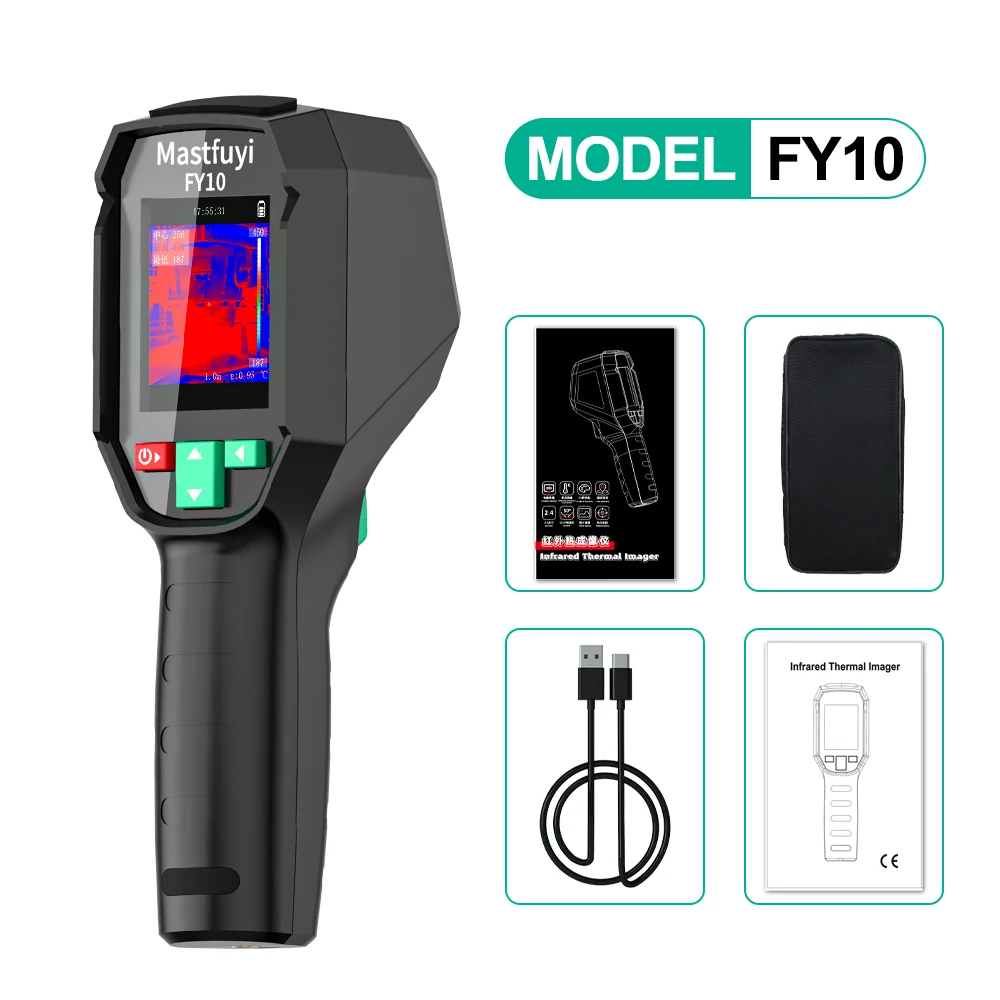

Product list
