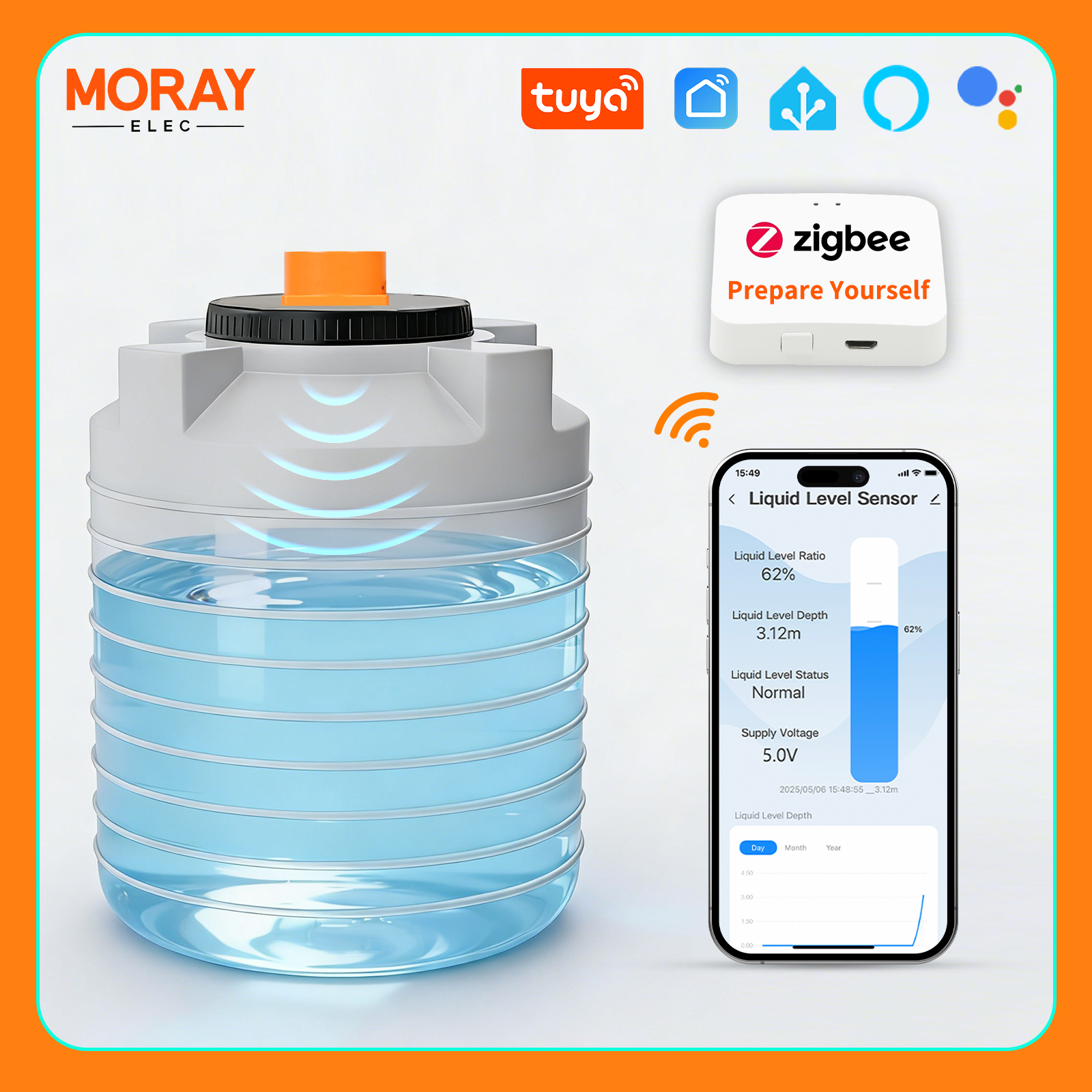

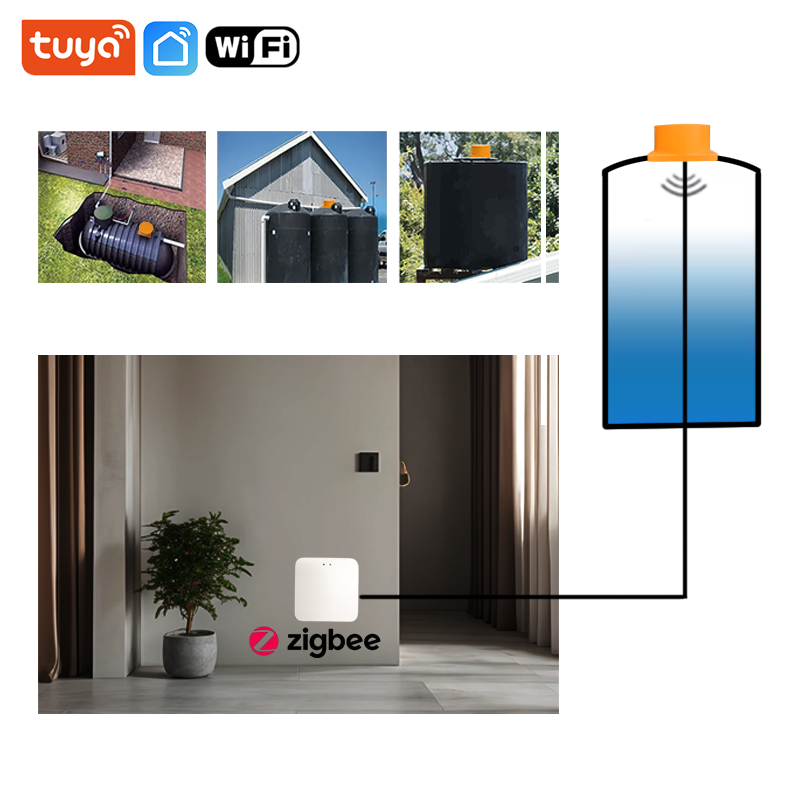

*Zigbee 3.0 Gateway Be Prepared By Yourself
Tank Level Monitor (Excluding Zigbee)
Any time, Any where.
Tuya Ultrasonic Sensor is an outstanding
technology that boasts numerous advantages
for various applications.
Its reliable distance detection capability, easy
installation and use, high durability, versatility,
and low maintenance costs make it an
incredible value addition to any project.
This sensor is, without a doubt, a revolutionary
advantage that sets it apart from other sensors.

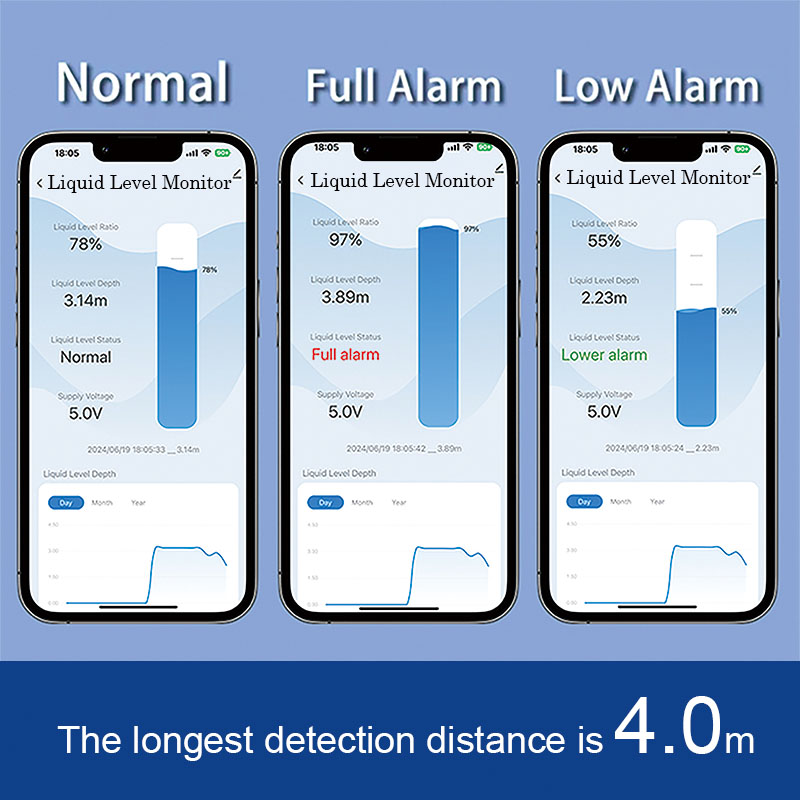

Alarm Notice
The detection height of the sensor is 10 cm to
400 cm. The alarm and message notification were
triggered when the threshold was exceeded.
Product Connection
1. Power on the AC/DC ADAPTOR first, and
then power on the sensor.
2. Scan code to download “TUYA Smart APP” or
“Smart Life APP” on mobile device.
3.Network Reset
Press and hold the button for 5s, the led light
flashes rapidly, then release the button, the
network reset, the device connect to the
network automatically.

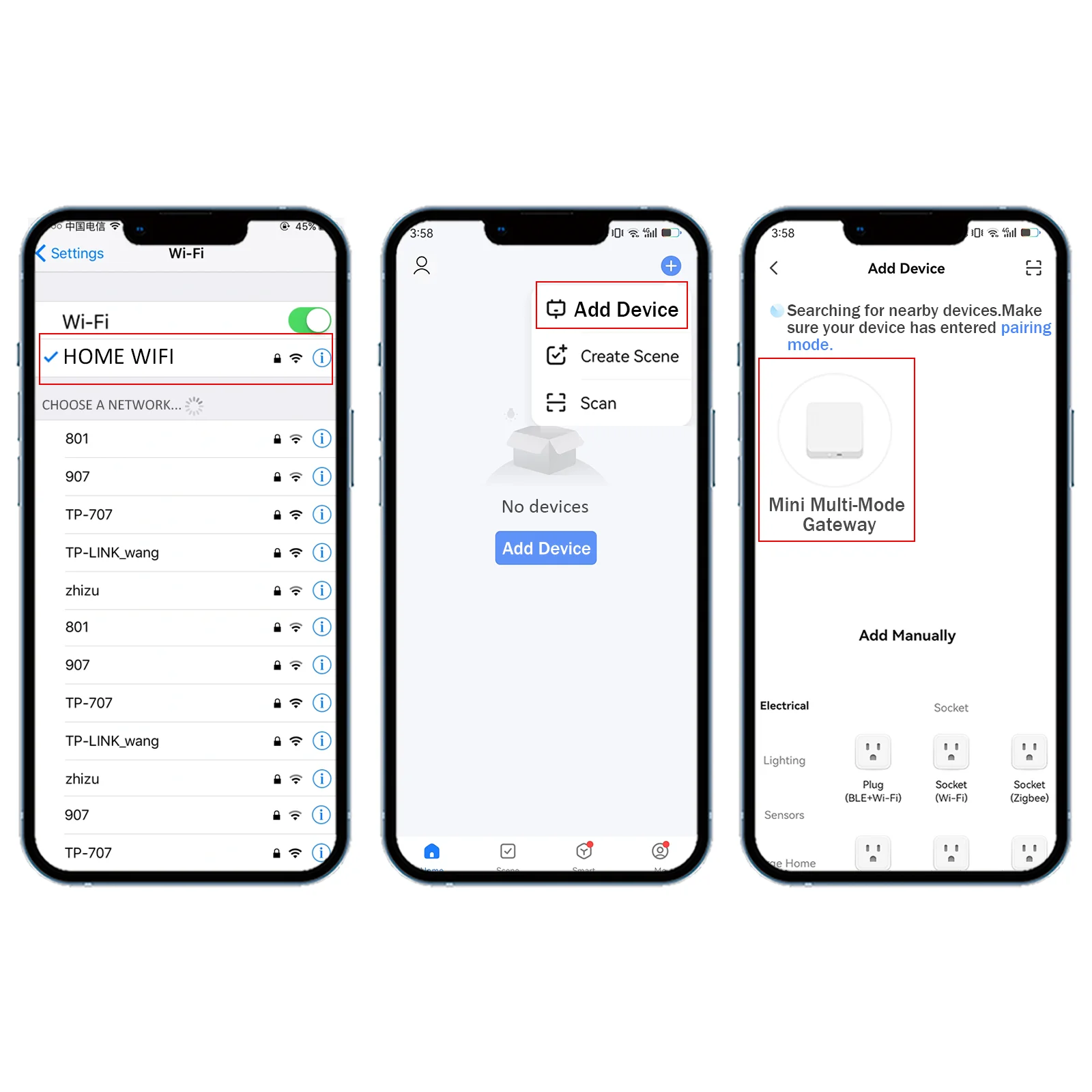

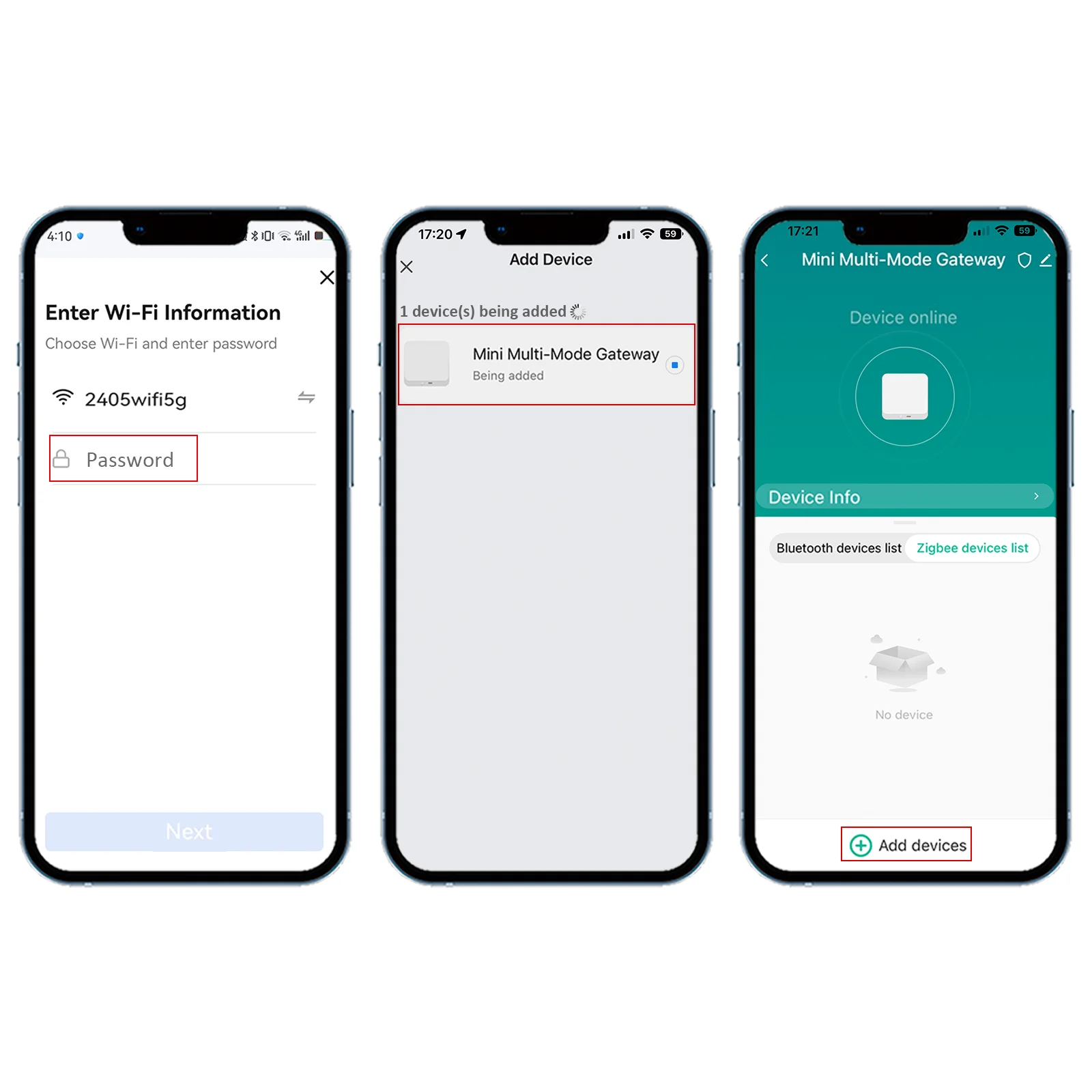

4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your
phone,enter the app and add device
Product Settings
1.Set Installation height
lt is distance from sensor to tank bottom
2. the pump working mode is Refilling by default
3.Set Max for high level alarm
4.Set Min for low level alarm
Control Pump(Optional)

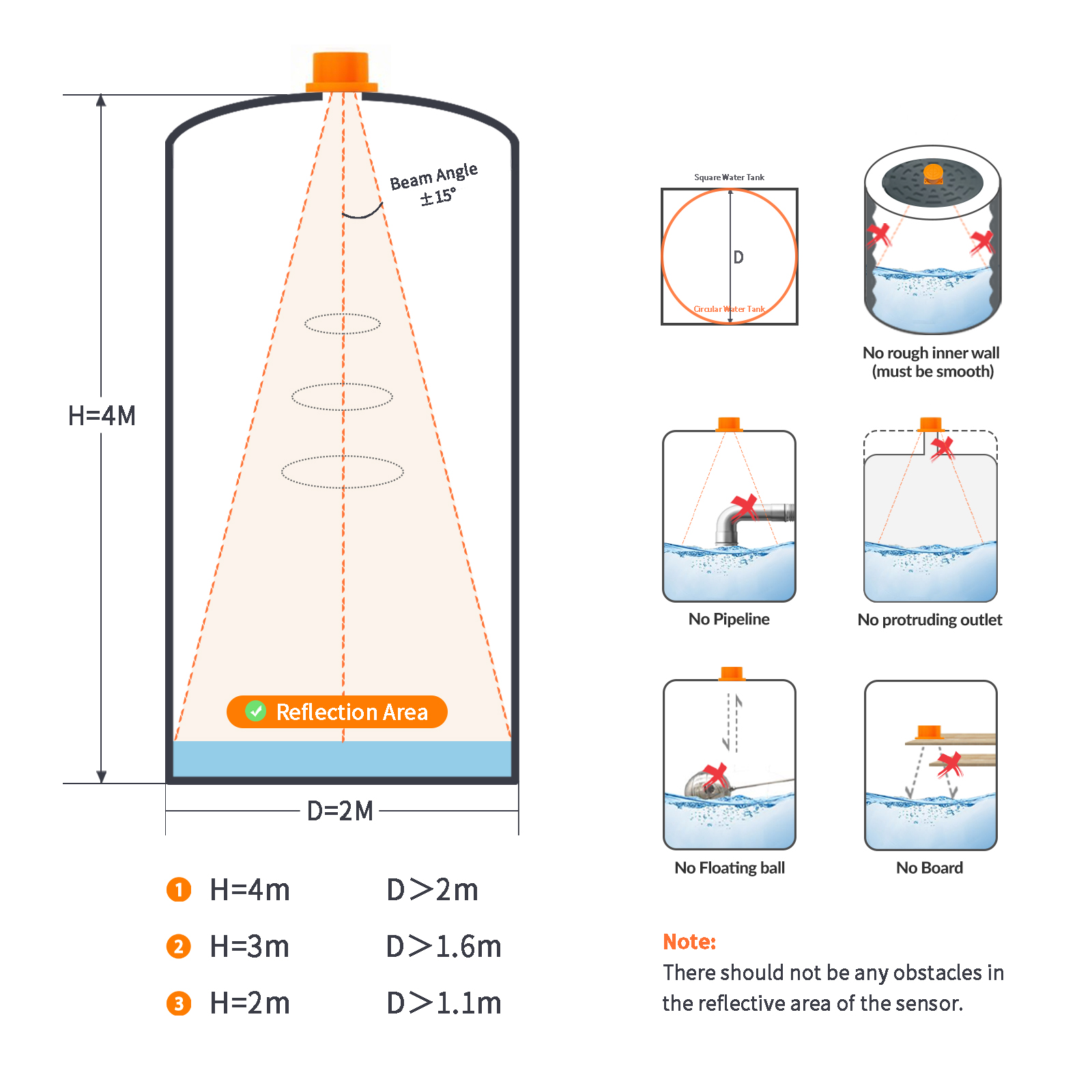

Product Installation
1. In the center of the tank, paste 3M
installation mark.
2. Drill a hole right in the middle of the label
with a diameter of 55mm;
3. Place the sensor over the hole, keeping it
centered and the probe unobstructed;
4. Fasten the sensor with a self-tapping screw.

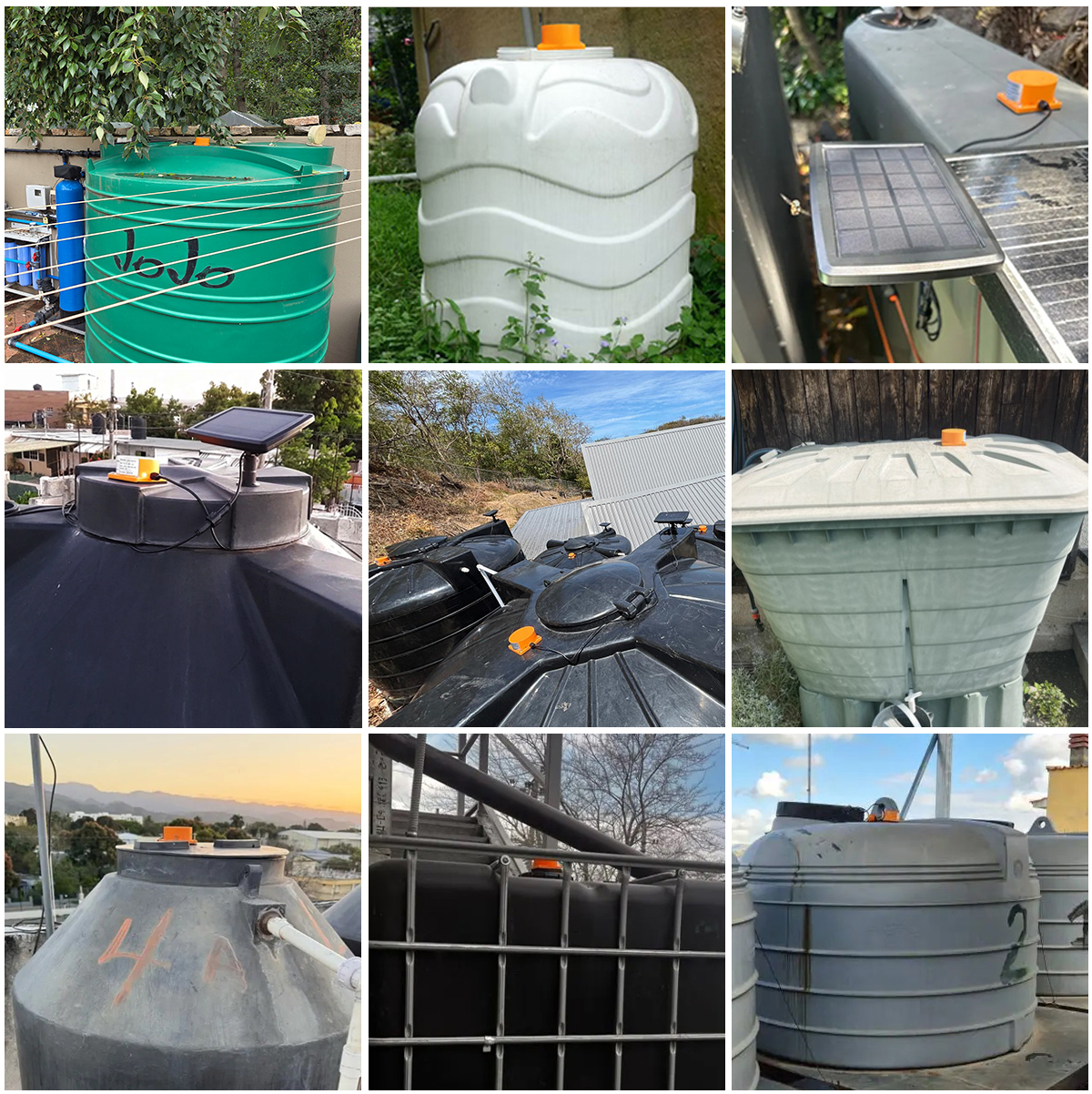

Multi-Tank Monitoring
