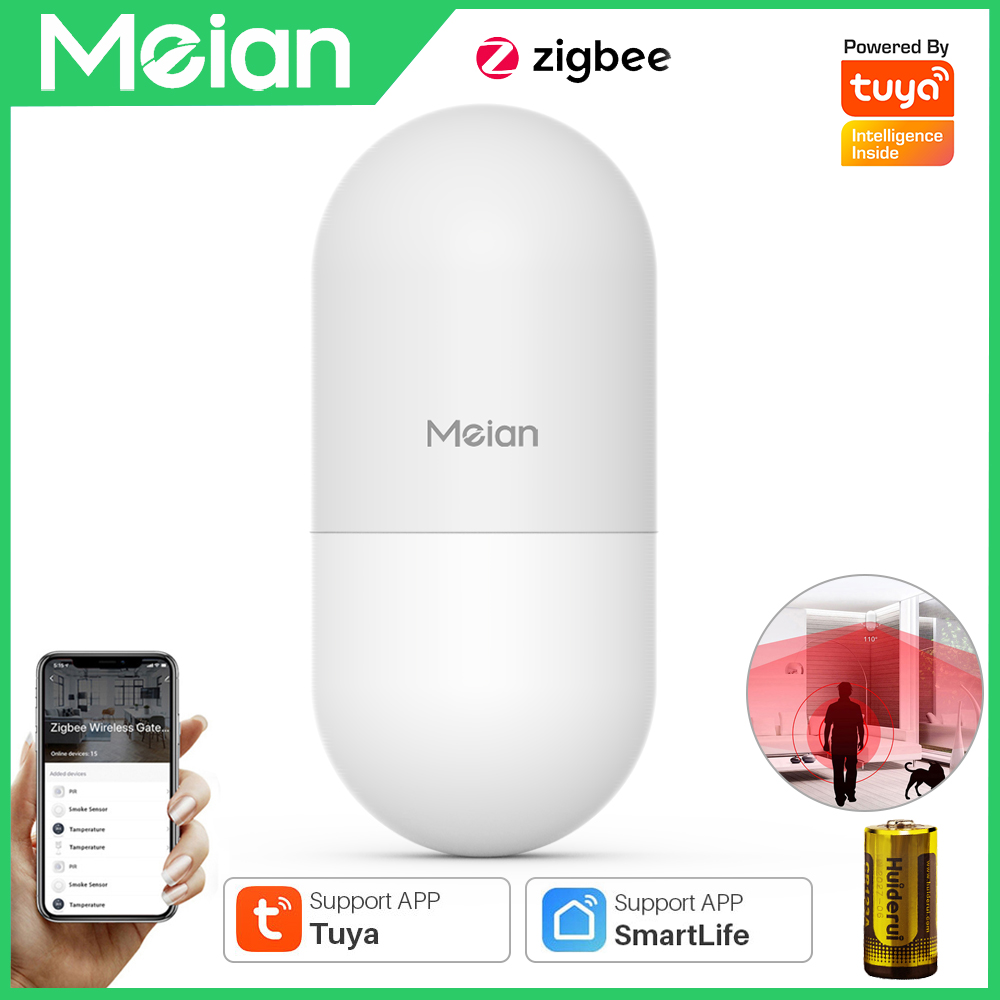

Tuya Smart PIR Motion Sensor Wireless Infrared Detector Zigbee 3.0 Smart Life APP Control by Meian
Product Description:
SP01-ZB is an infrared motion sensor suitable for indoor use. It uses a precision cylindrical Fresnel lens, which can effectively improve the efficiency of energy reception. The detection sensitivity is high but does not form false alarms. It can be widely used in smart homes and various commercial scenarios to achieve security protection.
Product Features:
1. Zigbee Gateway Required & Intelligent Linkage
Note: Zigbee Gateway is not included
2. PIR Infrared Motion Sensor, 110° wide detection angle, 12m detection distance
3. Application Remote Control & Real-time Detection Alarm Push
4. Intelligent Pet Prevention & Anti Dismantling Alarm
5. Long Standby & Low Battery Reminder
6. Simple Installation & Multi-scene Application
Package Included:
Sensor *1
Bracket *1
3M adhesive *1
Screw *2
User Manual *1

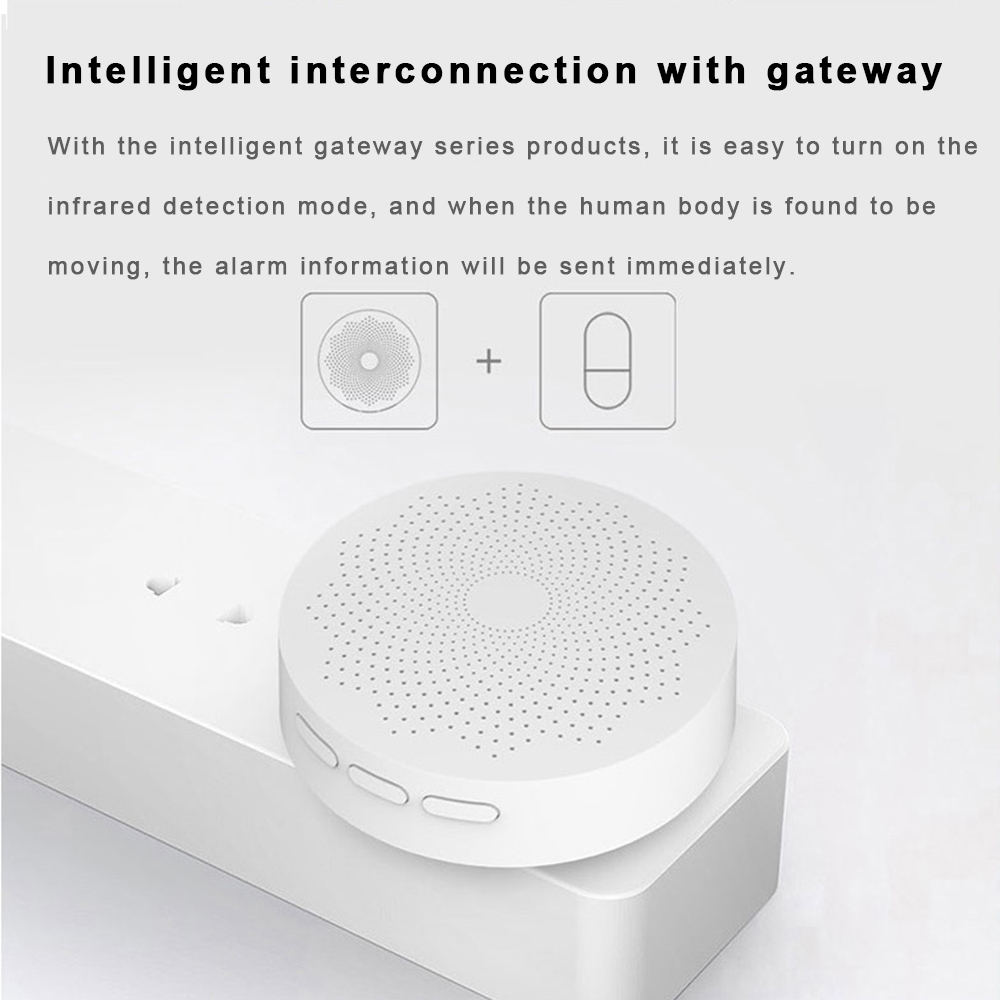

Intelligent Interconnection with Zigbee Gateway
It is needs to connect to ZigBee gateway to achieve networking
Note: Zigbee Gateway is not included and need to buy separately

PIR Infrared Motion Sensor
PIR detect people or animals that are moving, 110° detection angle, 12m detection distance, whether day or night can be real-time monitoring

Real-time Detection Alarm Push
When the PIR sensor senses a person moving, it will push a warning message to your phone

Application Remote Control
View Records through mobile APP and know home safety status at any time

Intelligent Pet Prevention
Adopting infrared PIR intelligent detection technology, it can effectively identify small pets weighing less than 15kg and prevent false alarms

Digital Anti-white Light Technology
Sensing changes in ambient light through light sensors, intelligently analyzing and determining whether an alarm is triggered
Even in environments with strong light intensity and large changes in light, it can still detect and issue accurate alarm signals

Long Standby & Low Battery Reminder
Using the CR123A lithium battery, the standby time up to 2 years, and you will receive a reminder when the battery is low

High Quality Materials, Safe and Durable

Simple Installation & Multi-scene Application



Please be clear before purchase, this product needs to be used with a zigbee3.0 gateway (Our store has a gateway for sale)
Connection Steps:
1. Connect the device to the power supply and ensure that the mobile phone is connected to the network.
2. Open the Tuya app(Available in all app stores), click Add sub device under ZigBee intelligent gateway, and confirm the sub device flashing mode
3. For the first power on, press the reset key for more than 6S ith the pin, until the front indicator light flashes and the device indicator light flashes, then the distribution network mode can be entered.
4.Before using this product, please disassemble the product and tear off the battery protective film and reinsert it into the product for normal use.
After the distribution network is successful, the distribution network indicator light will flash three times and go out.
