Specifications

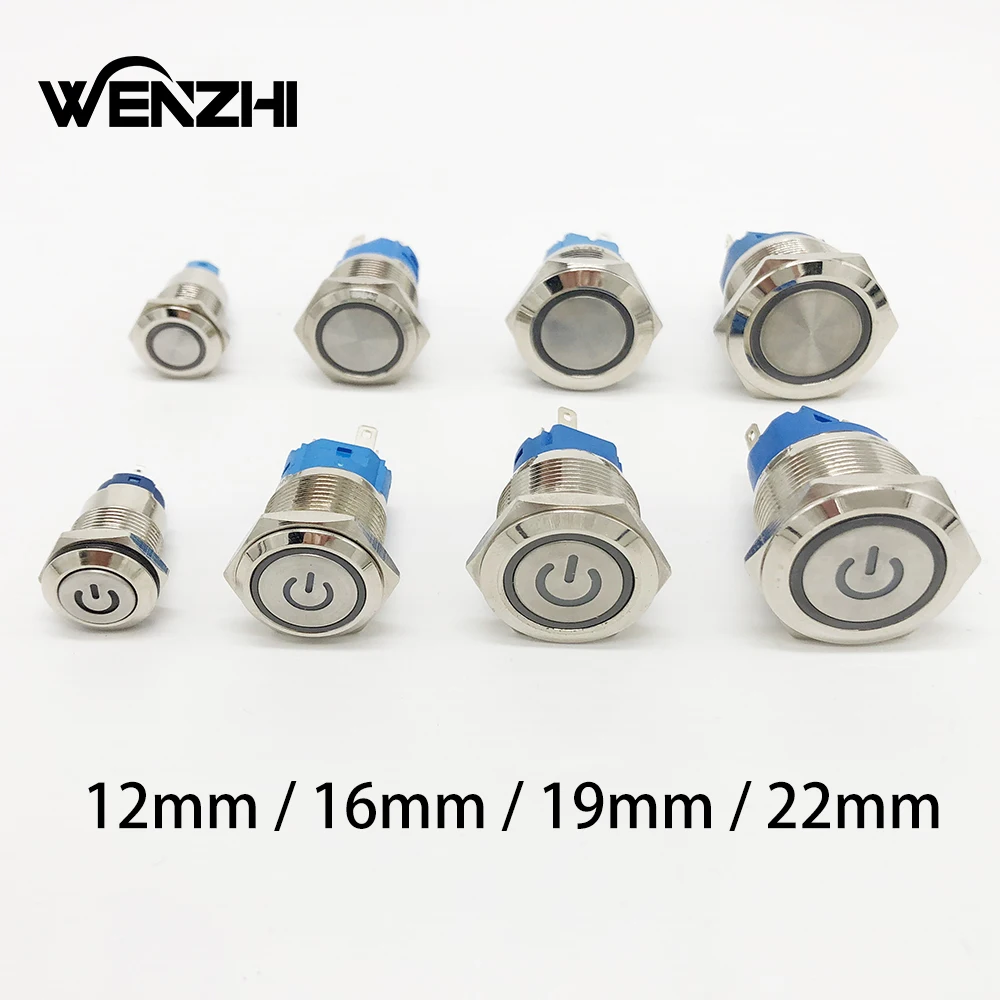

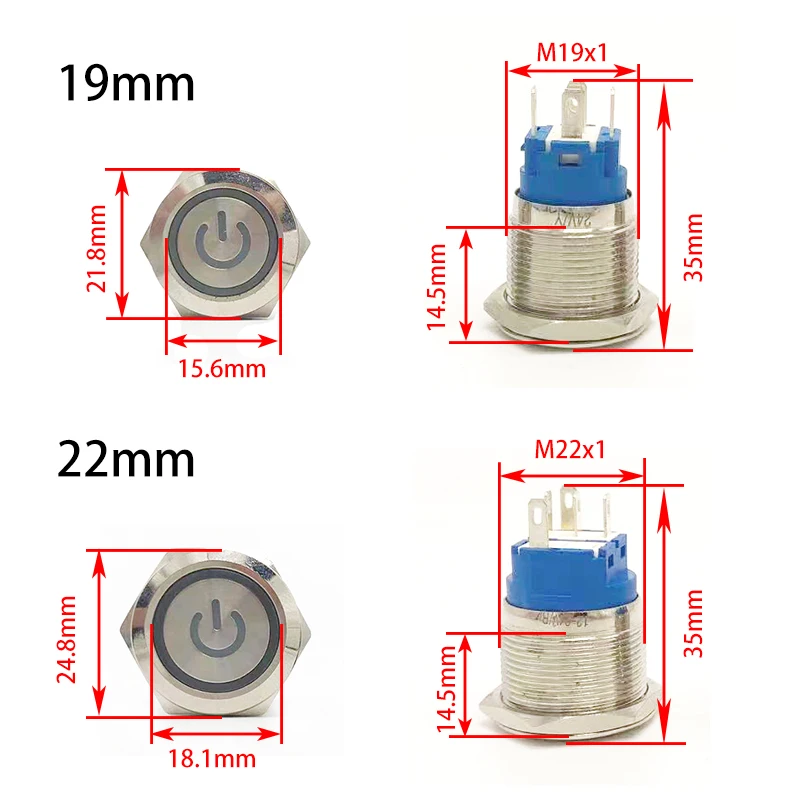

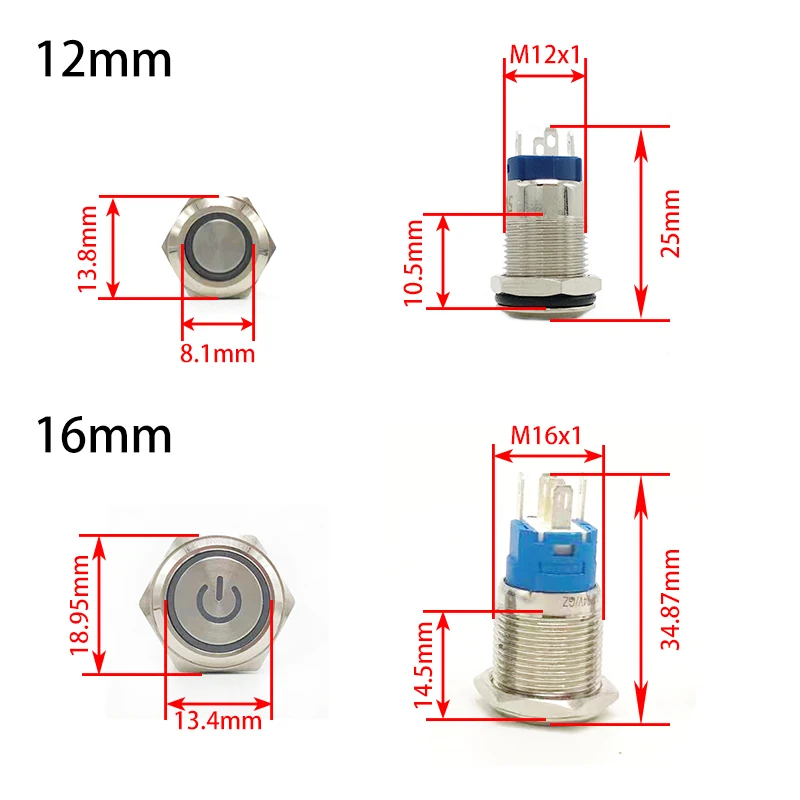

Size:12mm(4Pin) 16/19/22mm(5Pin)
Rating: 3-6V;12-24V;220V.
Please contact the Seller for customization.
NOTE: The socket is note included.
NOTES:
1.What does the signal “NC” and “NO” means?
“A” “+”: positive pole of the led
“LED” ” – “: negative pole of the led
” NC “: Normal Close
” NO “: Normal Open
” C ” : Common
2.How to connect?
1.Connect ” NO ” and ” C ” : The circuit is alway open unless press the button.
2.Connect ” NC ” and ” C ” : The circuit is alway close unless press the button.
3.Will I get a seal ring for each button?
Yes,each button will have a free seal rin.
The delivery does not contain sockets or any wires, if you need them, you can purchase them separately.

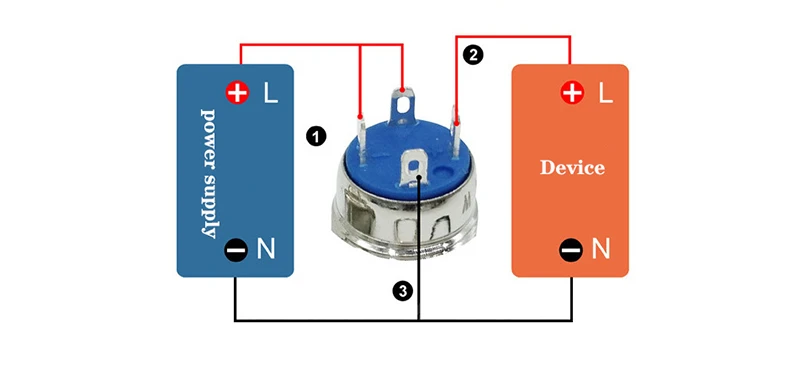

12MM Wiring Diagram 1:
LED lights always on

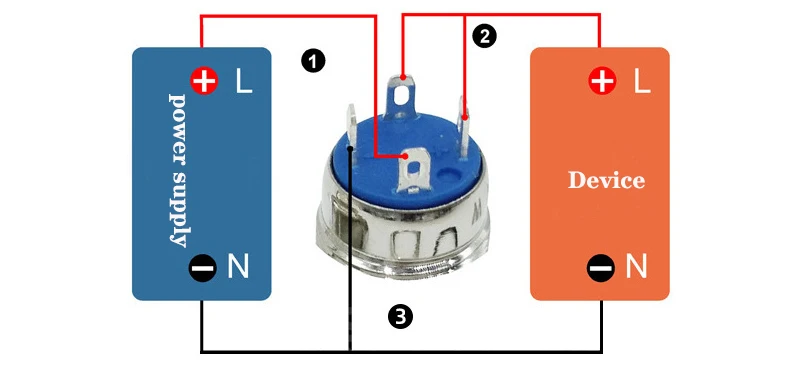

12MM Wiring Diagram 2:
The button is pressed and LED lights up
16/19/22 MM Wiring Diagram1:
Light: Not Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.
16/19/22 MM Wiring Diagram2:
Light: Working
Switch: Opened
When you Pess the button, light: Working & Switch: Closed.
16/19/22 MM Wiring Diagram3:
Light: Working
Switch: closed
When you Pess the button, light: Not Working & Switch: Opened.
16/19/22 MM Wiring Diagram4:
Light: Working
Switch: closed
When you Pess the button, light: Working & Switch: Opened.
