Micro Mini Analog CCTV Camera 140 Degree Wide Angle HD 1.8mm Lens 1000TVL Small Miniature Color Camera
Technical parameters:
Pickup device: Color
Horizontal resolution: 1000TVL
Resolution( H X V ): 1280 x 960
System format: PAL/NTSC
Electronic shutter: PAL= 1/50 – 1/100,000 seconds NTSCL= 1/60 – 1/120,000 seconds
Minimum illumination: 0.1Lux (F: 1.2)
SNR(Signal to Noise Ratio): > 48dB (automatic gain closed)
Gamma: 0.45
Backlight compensation: Auto
Lens: 1.8mm Lens

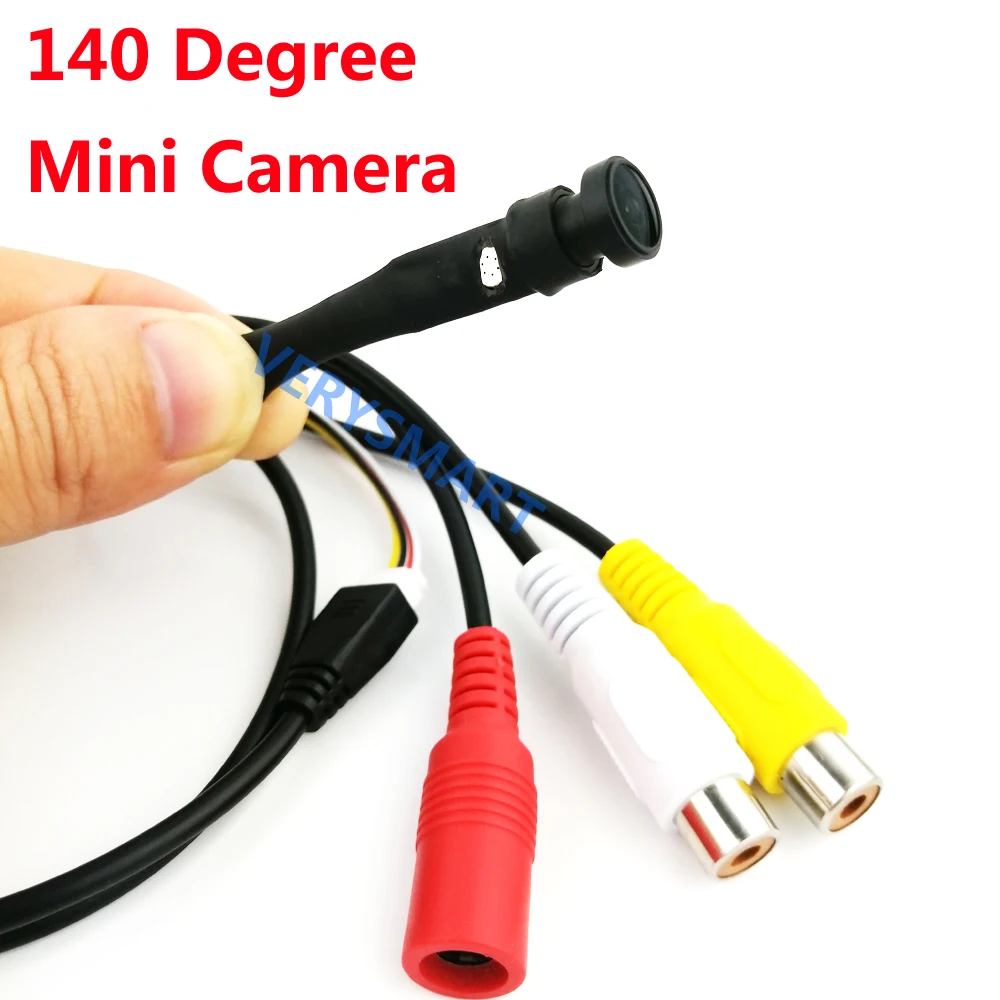

Viewing Angle : 140°
Automatic gain: Yes
Automatic white balance: Yes
Lens installation: C/CS

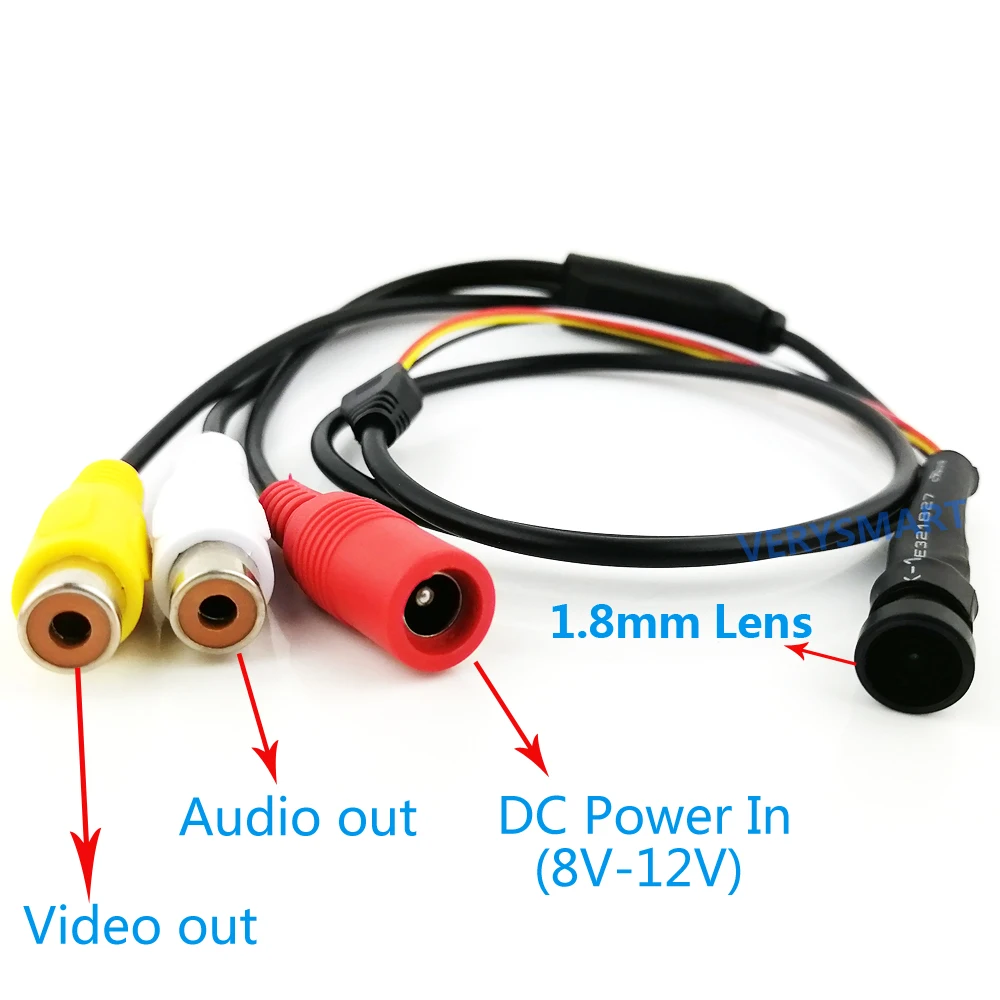

Video output: 1 Vp-p, 75Ω
Power input: DC 8V to 12V
Working temperature range: -10C to 50C (maximum humidity 95%)
Storage temperature range: – 20C to 60C (maximum humidity 95%)
Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on
Features: Clean and fine image, vivid picture quality, low illumination, wide voltage and low power consumption

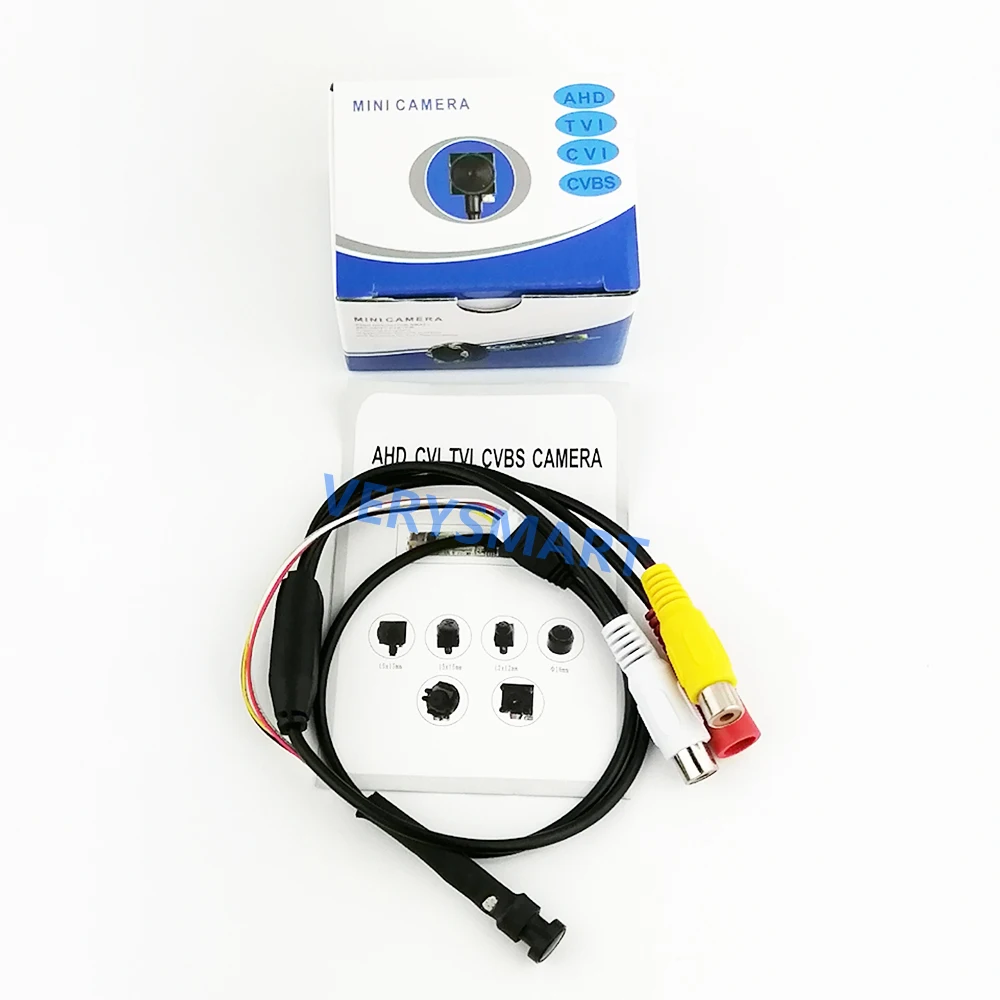

Package include:
1 x Mini Analog CCTV Camera
