MiLESEEY TR120 TR256 3.5 inch Dual-Camera Infrared Thermal Imager High Resolution Thermal Camera High Sensitive Thermal Imager for Repair тепловизор
Q: Why is the infrared thermal map not fusion with the visible light map? How to adjust?
A: When shooting at close range, due to the difference in the minimum focus distance of infrared and visible light lenses, there is likely to be picture dislocation.
In case of close observation, the visible light image can be adjusted by pressing the up/ down,/left/ right buttons to complete the fusion.
If you are shooting at a long distance, the infrared and visible light images will be automatically and completely fused because they are larger than the focus distance.

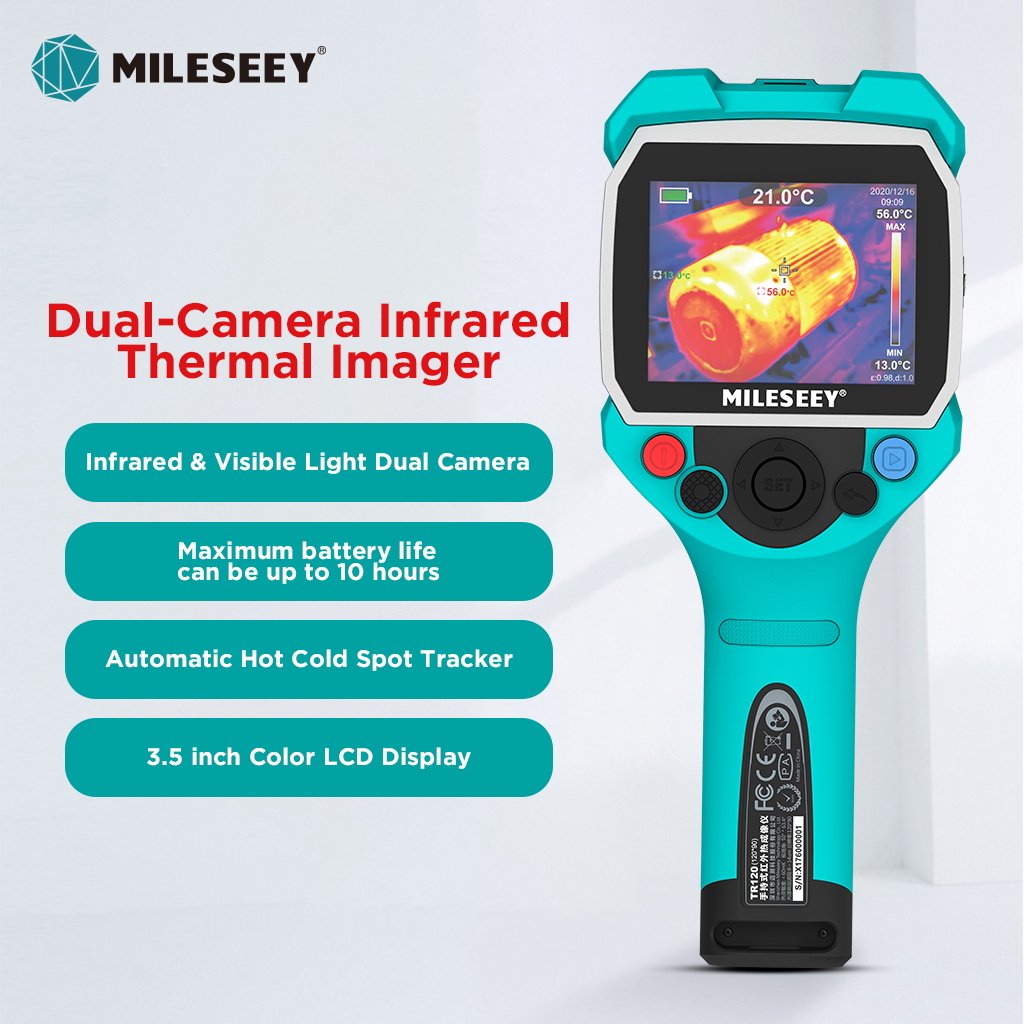

1.Model : TR120 Dual-Camera Infrared Thermal Imager
Features:
1. 3.5 inch Color LCD Display, high resolution

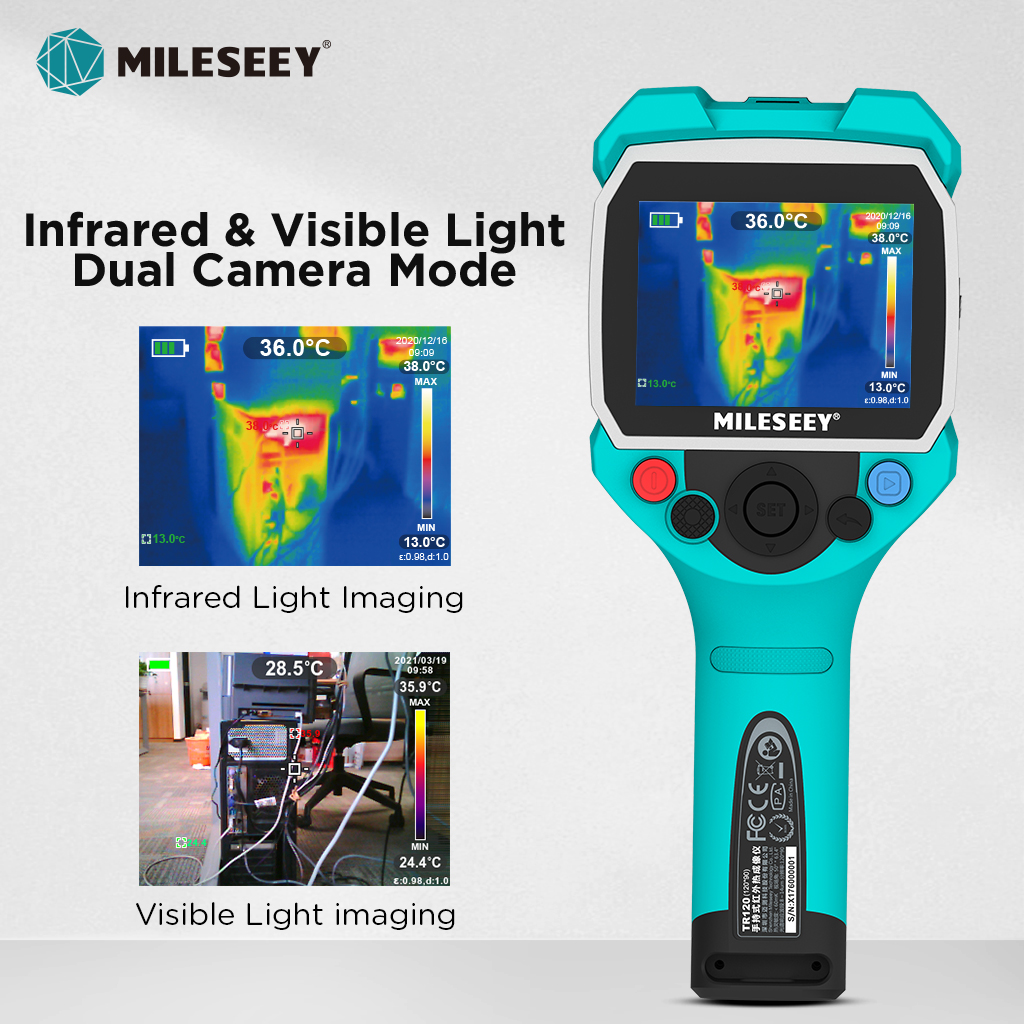

2. lnfrared & Visible Light Dual Camera: lnfrared Light Imaging and Visible Light imaging
3. Automatic Hot Cold spot Tracker
4. Adjustable emissivity

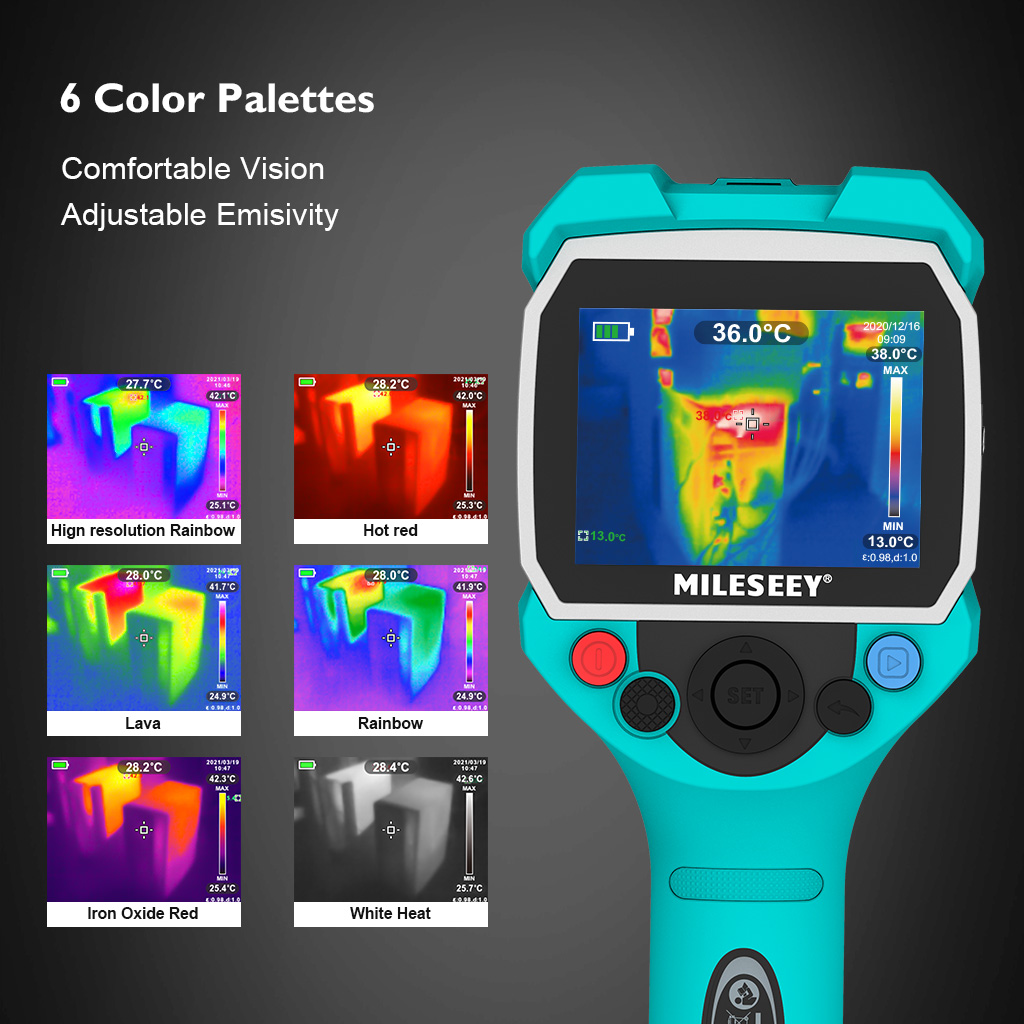

5. 6 Color Palettes Comfortable Vision

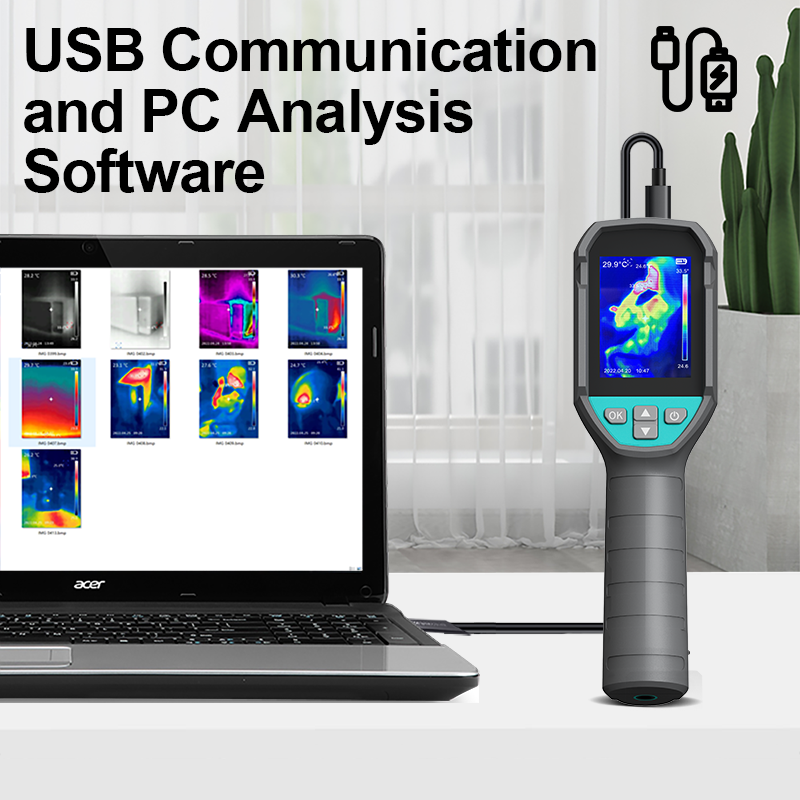

6. Data export: Connect PC via USB Cableanalyze pictures more clearly and accurately real-time export data or pictures;
7. Big Memory with 2000 Pictures
8. Maximum battery life can be up to 10 hours
