if you need other connector ,pls kindly contact with us for custom made !
for more products infomation ,pls go to our store page !
if you have other requirement ,welcome contact with us free !

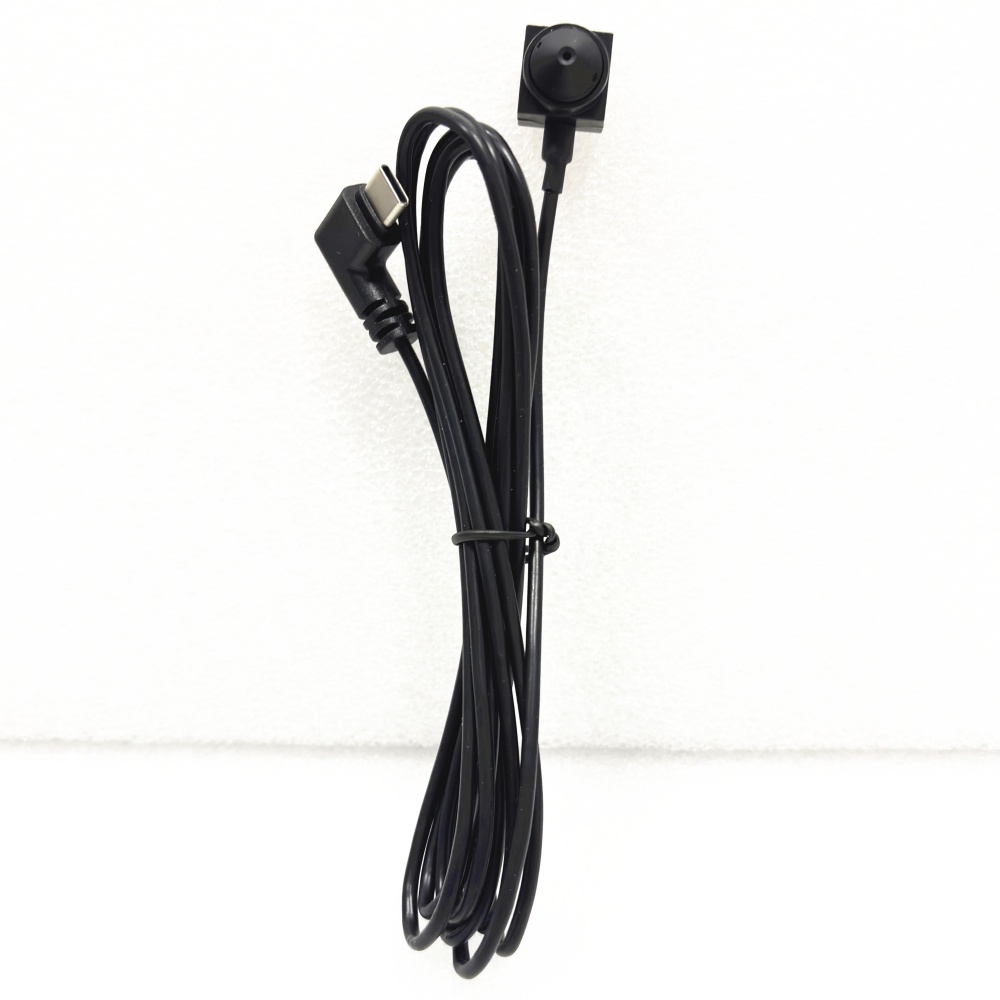

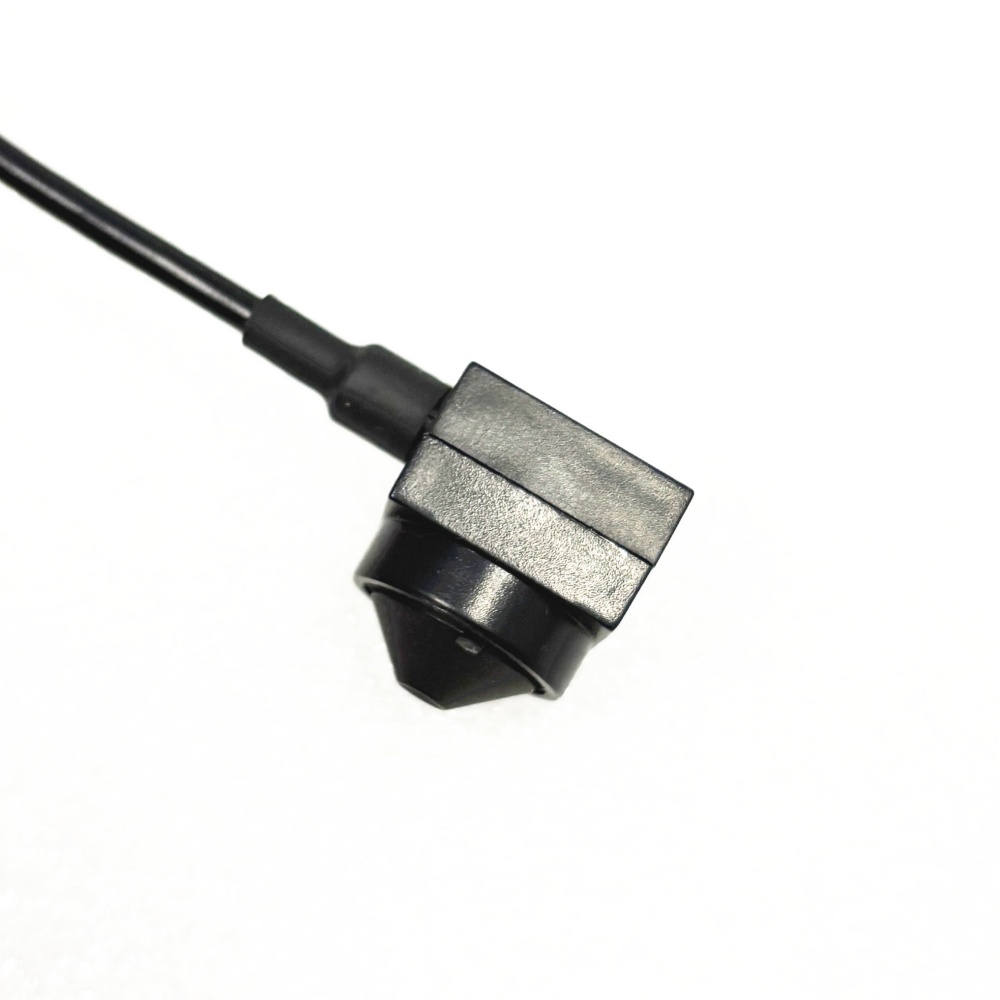

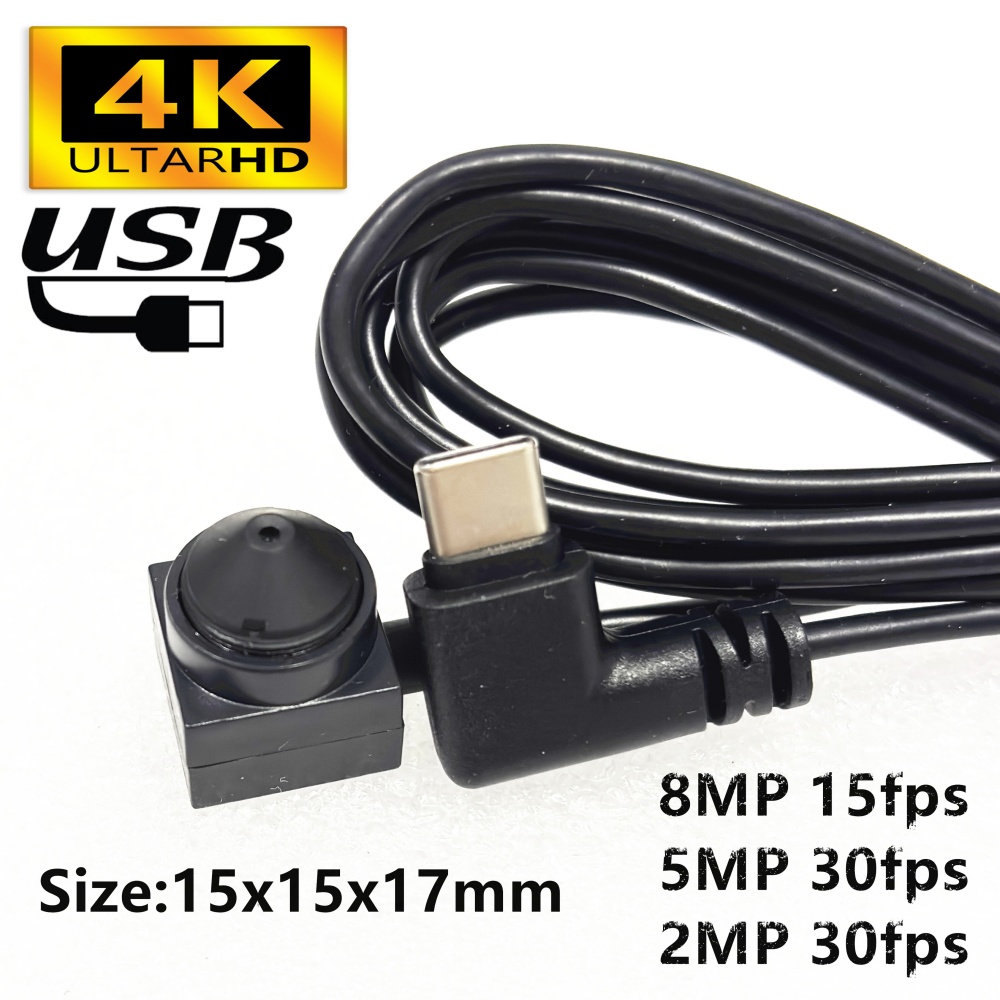

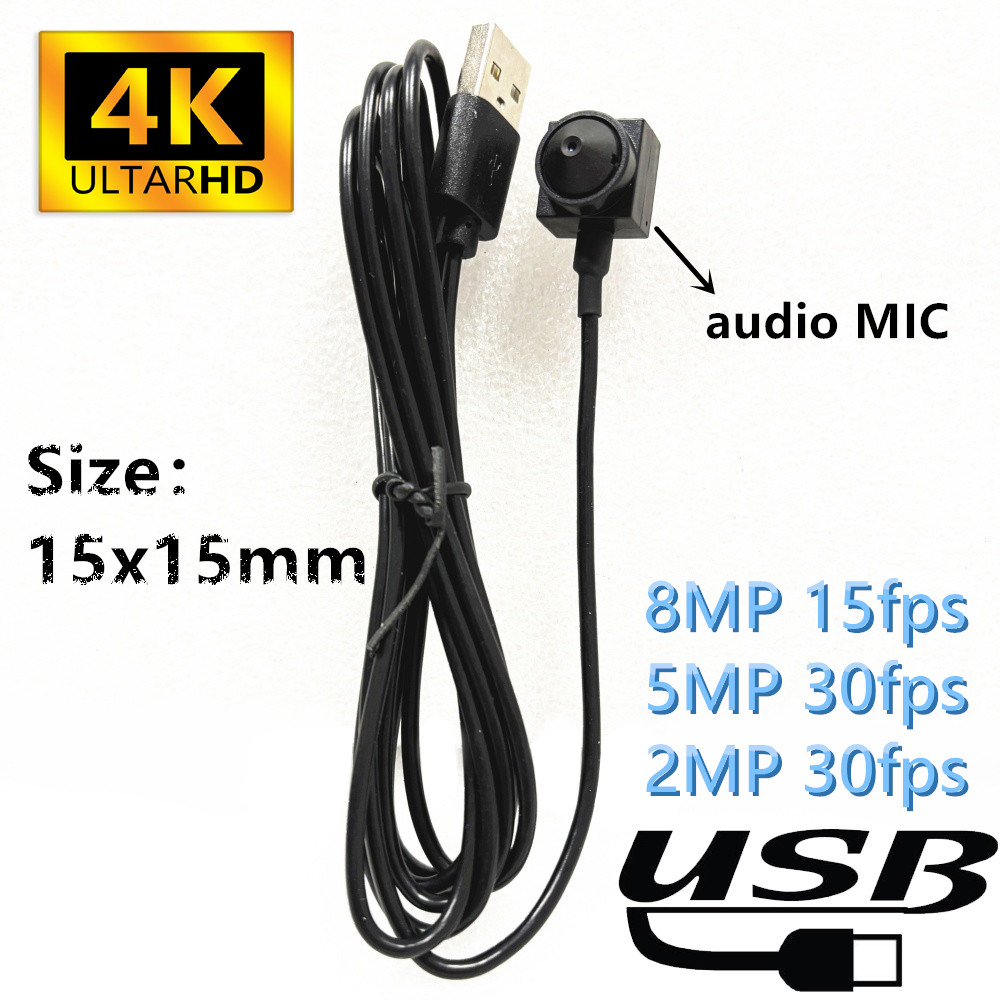

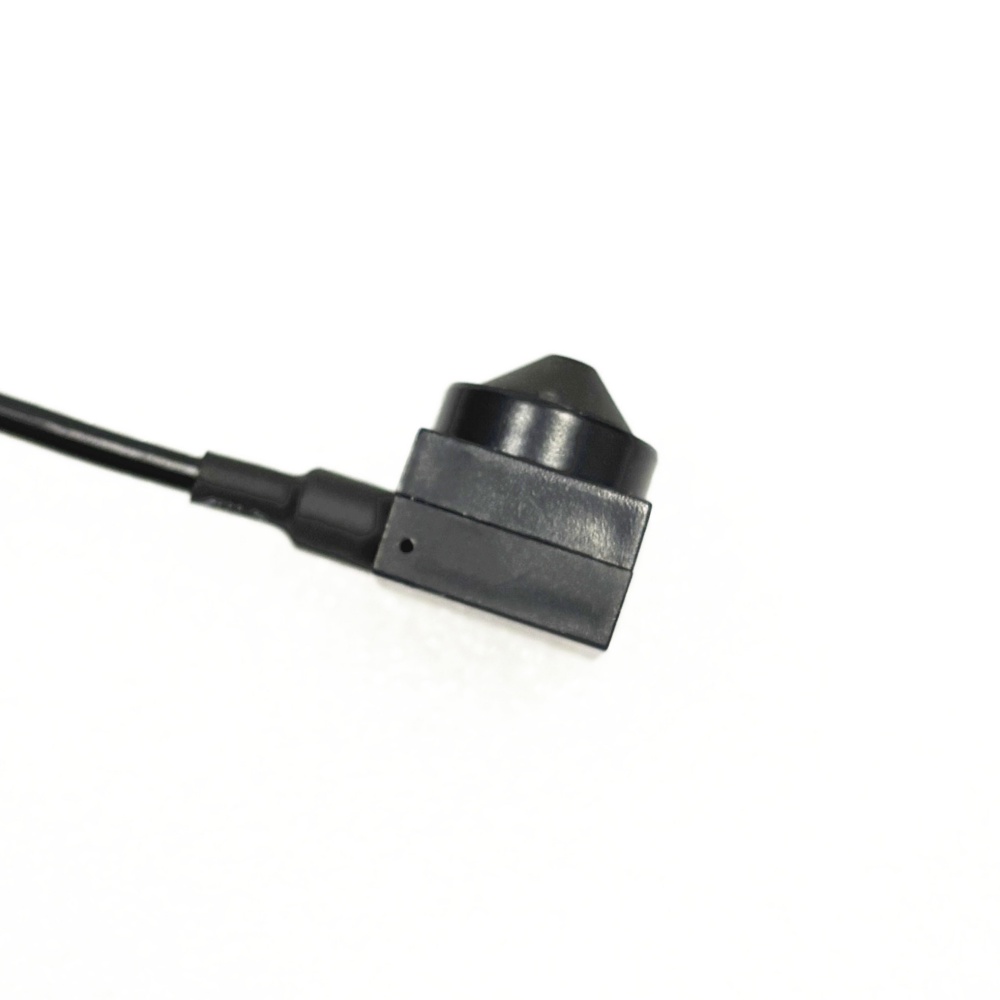

This camera is a 2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!
Feature:
HD 1080P USB camera
High speed USB 2.0 interface
High quality image
Low power consumption

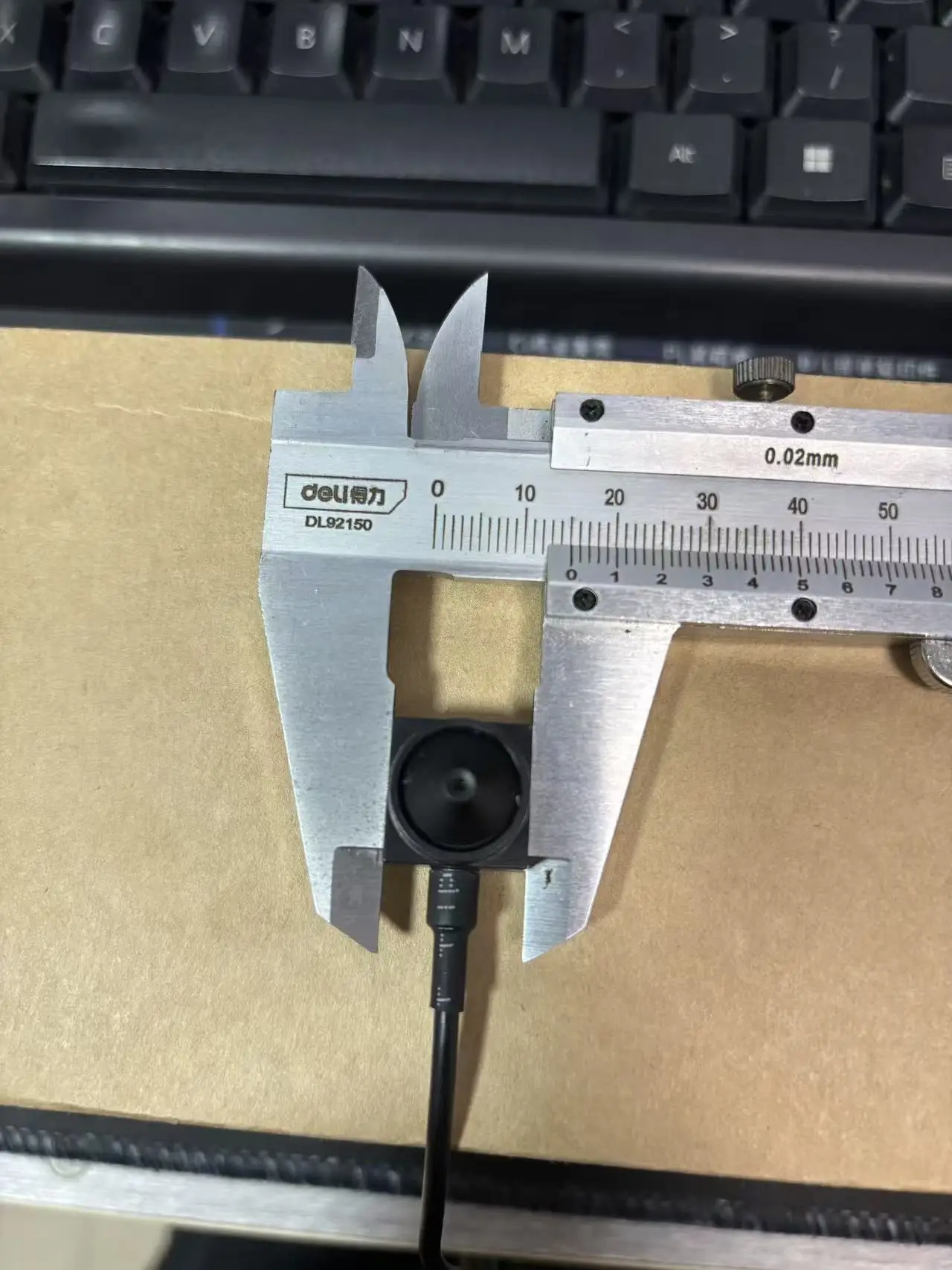

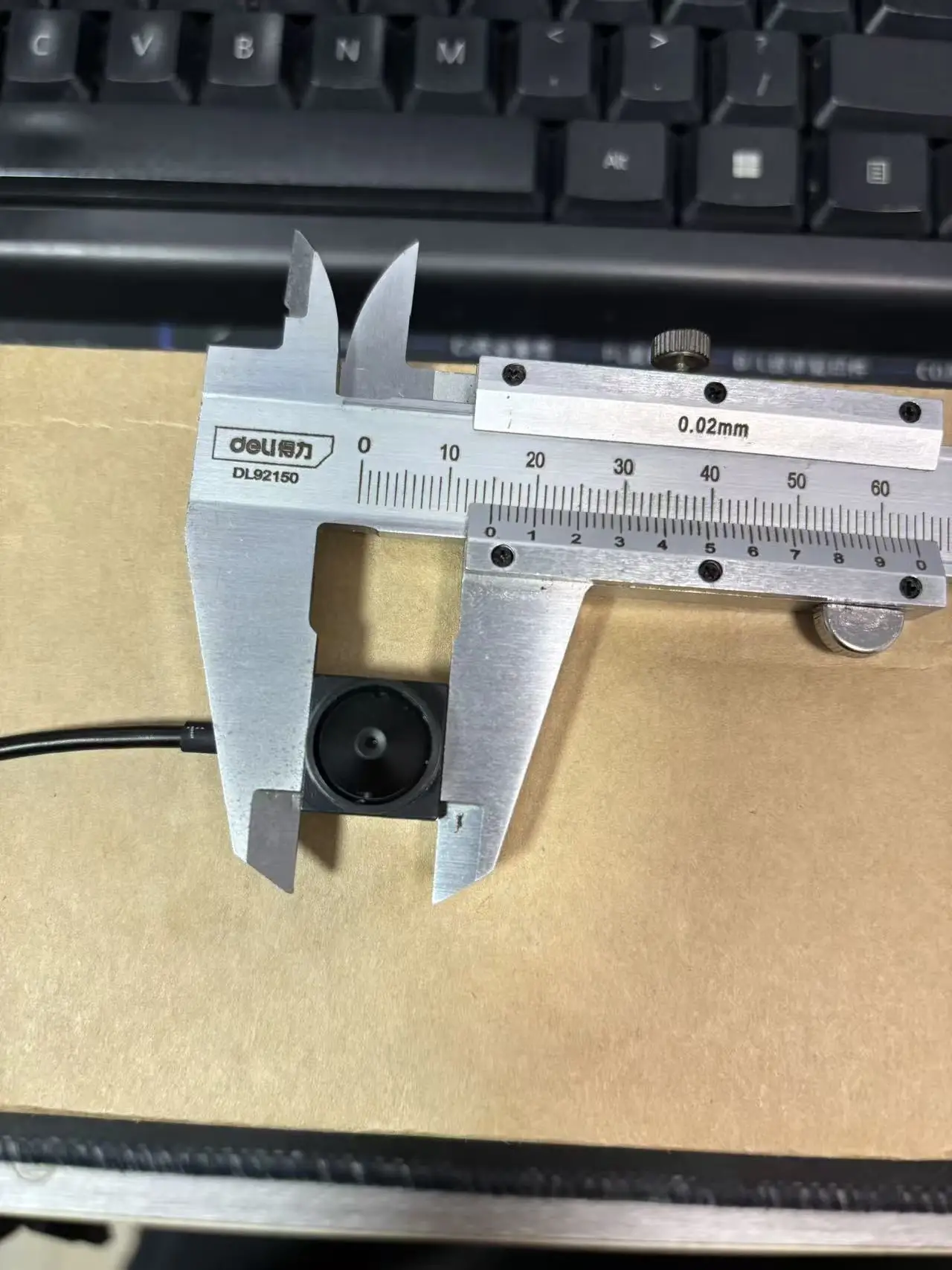

Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac

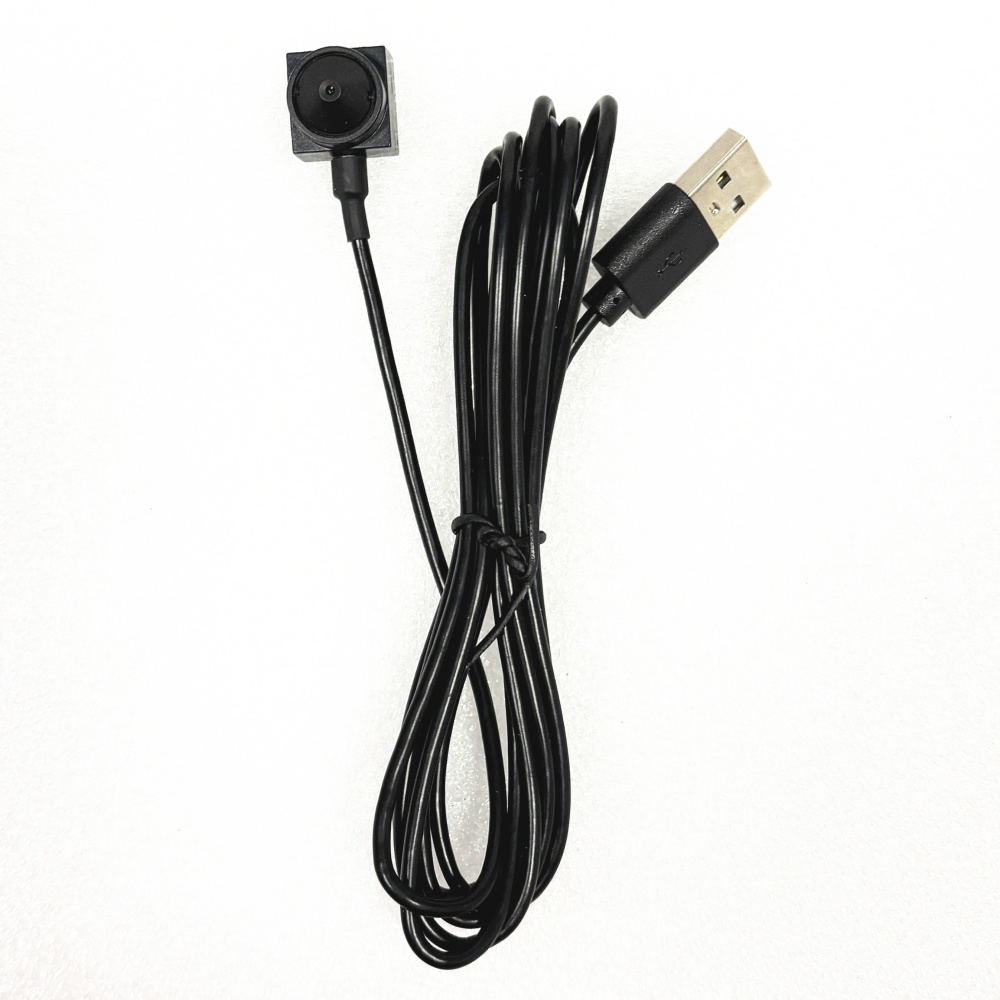

Wire length: 2 meters
Typical application
1: ATM,Kiosk,POS,TV box 2: advertising cameras 3: one camera 4: Smart TV built-in camera
5: Construction Equipment 6: Banking equipment 7: body switch 8: Scanner
9: a mobile terminal device 10: Medical diagnostic image acquisition 11: fingerprints, palm prints image acquisition
12:video door phone 13:HD surveillance
Remarks:
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.
3: This product is equipped with a USB cable.

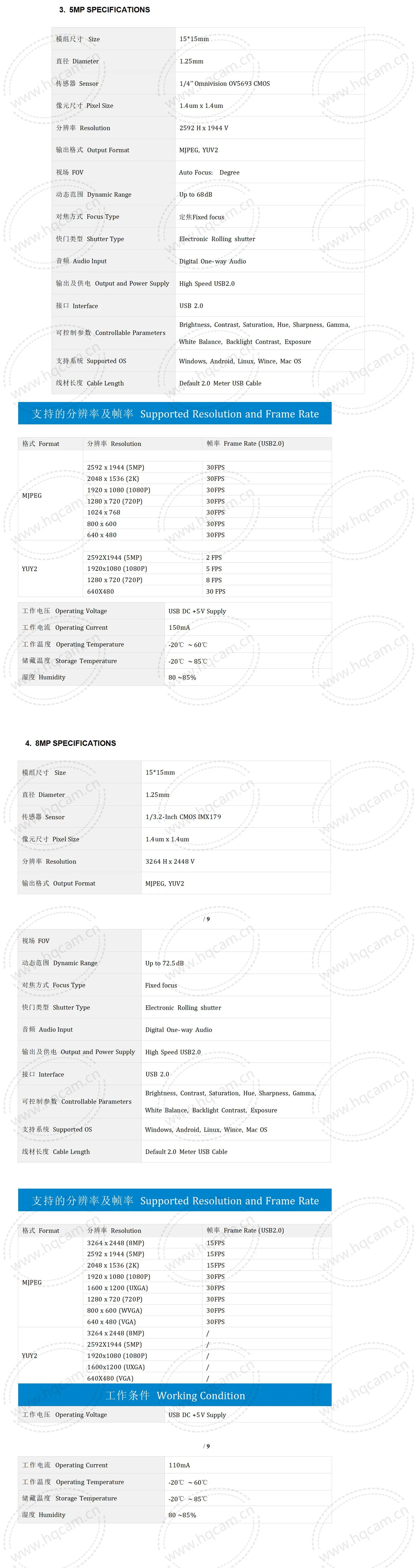

1080P Detailed Specifications Of The Parameters
|
Lens Size |
1/3“CMOS 1080P Gc2083 |
||
|
Pixel Size |
2.9µm X 2.9µm |
||
|
Temperature (Operation) |
-20°Cto 70°C |
||
|
Temperature (Stable Image) |
0°Cto 50°C |
||
|
Assemblytechnique |
SMT (ROSH) |
||
|
Objectdistance |
1CM~ ∞ |
||
|
Interface |
USB2.0Type A mother port terminal |
||
|
Power system requirements |
160mA (VGA) |
||
|
Voltage |
DC5V |
||
|
Exemption agreement |
USB Video Class（UVC） |
||
|
Operating systemrequest |
Windows XP/7/8/10 , Linux（Supporting UVC Protocol）, Android（Supporting UVC Protocol）, MAC-ios |
||
|
Adjustable parameters |
Brightness, contrast, hue, saturation, clarity Gamma, white balance, backlight contrast, |
||
|
AEC |
support |
||
|
AEB |
support |
||
|
Output format |
MJPG / YUY2 |
||
|
ActiveArraySizeVideo Rate |
resolution |
MJPG Frame rate |
YUY2Frame rate |
|
320x240 640X480 |
30fps |
30fps |
|
|
1280X720 1280X960 |
30fps |
||
|
800×600 |
30fps |
||
|
1920X1080 1280×1024 |
30fps |
||
|
Focusing mode |
Adjustable, manual focusing or fixed focal length |
||
|
Minimum illumination |
0.1 LUX |
||
|
Available Lens |
|||
Hqcam is a professional video surveillance camera R & D(research and development) team. We can provide various PCBA modules of different sizes for customers. Welcome to inquire OEM ODM products, thank you!
If you can't find these products in the store, please write to me, we are the factory can customize the modules you need, you can develop the design for free.
