Tank Level Monitor
Any time, Any where.
Tuya Ultrasonic Sensor is an outstanding technology that boasts numerous advantages for various applications.
Its reliable distance detection capability, easy installation and use, high durability, versatility, and low maintenance costs
make it an incredible value addition to any project.
This sensor is, without a doubt, a revolutionary advantage that sets it apart from other sensors.
Alarm Notice
The detection height of the sensor is 10 cm to 400 cm. The alarm and message notification were triggered when the
threshold was exceeded.
Product Connection
1. Power on the AC/DC ADAPTOR first, and then power on the sensor.
2. Scan code to download “TUYA Smart APP” or “Smart Life APP” on mobile device.
3.Network Reset
Press and hold the button for 5s, the led light flashes rapidly, then release the button, the network reset, the device
connect to the network automatically.

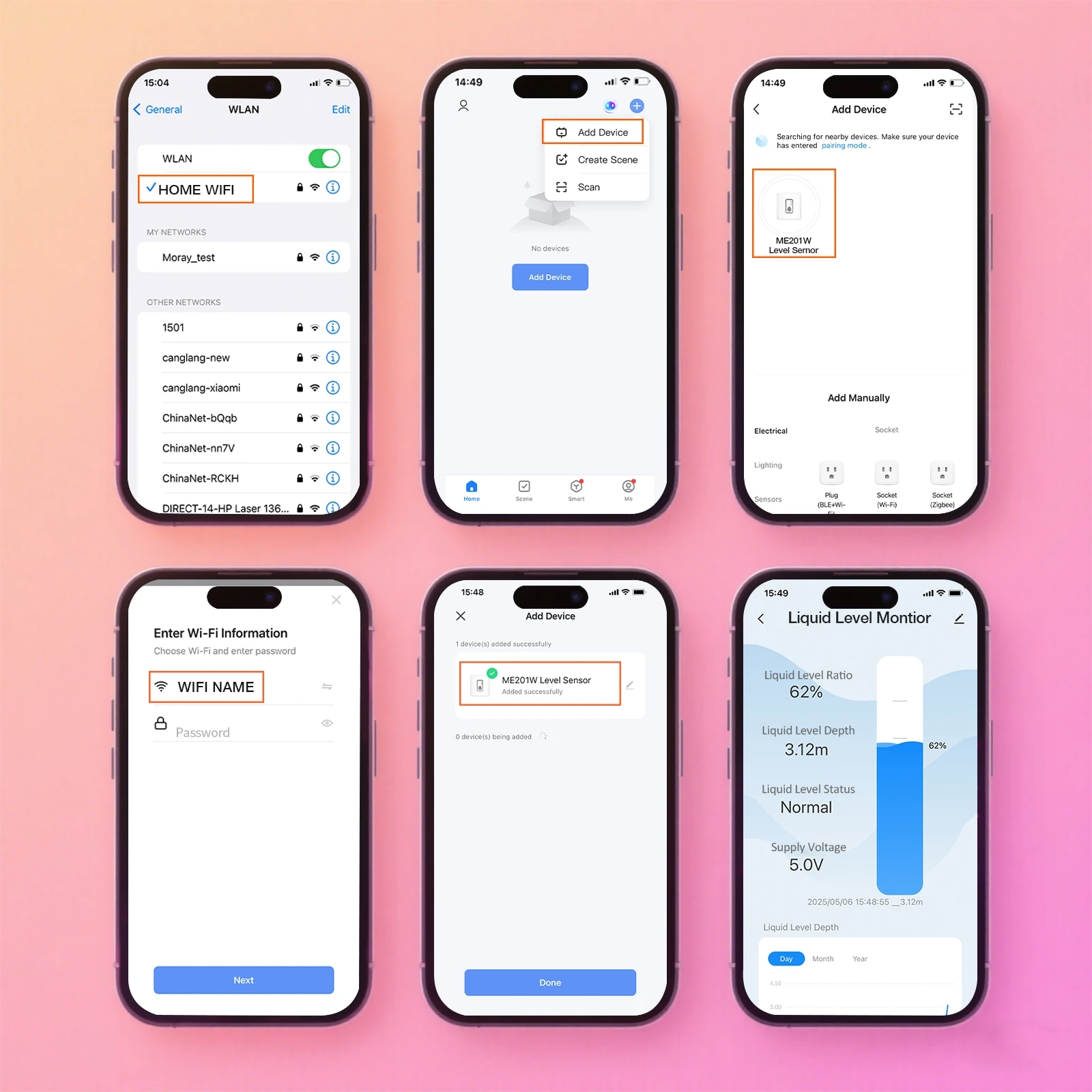

4.Connecting Sensors to APP.
Turn on the WiFi and Bluetooth of your phone,enter the app and add device.
Product Settings
1. Set Installation height
lt is distance from sensor to tank bottom
2. the pump working mode is Refilling by default
3.Set Max for high level alarm
4.Set Min for low level alarm

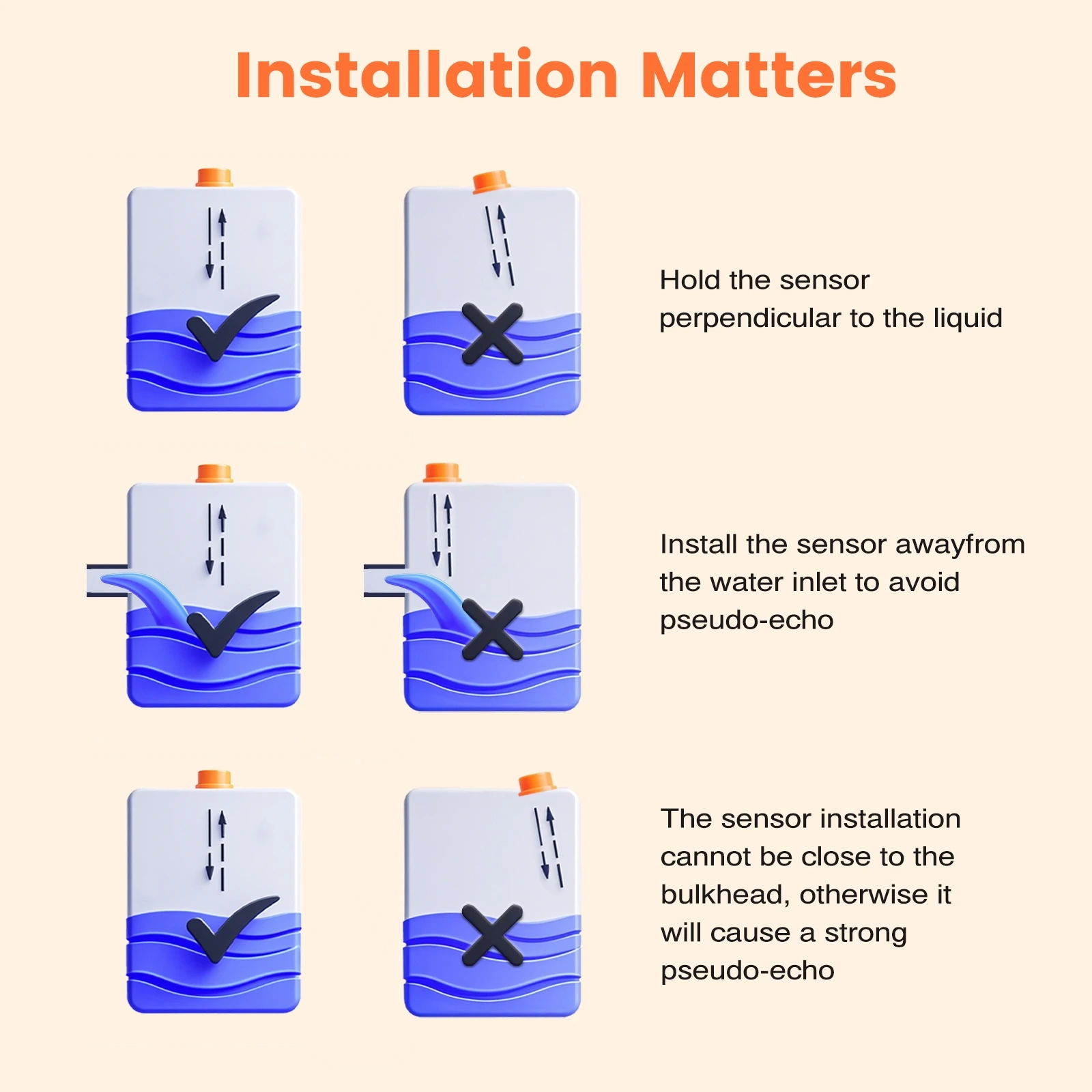

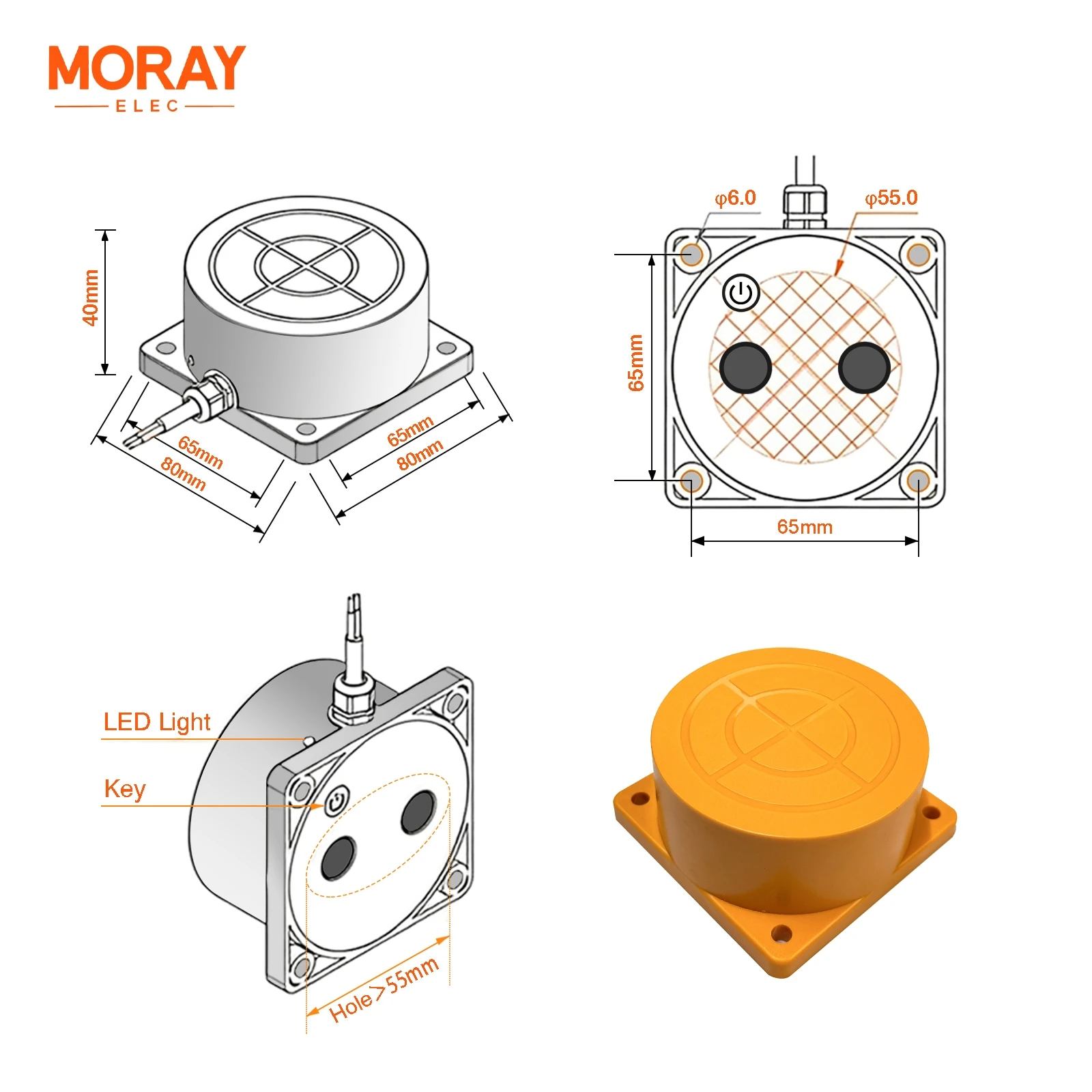

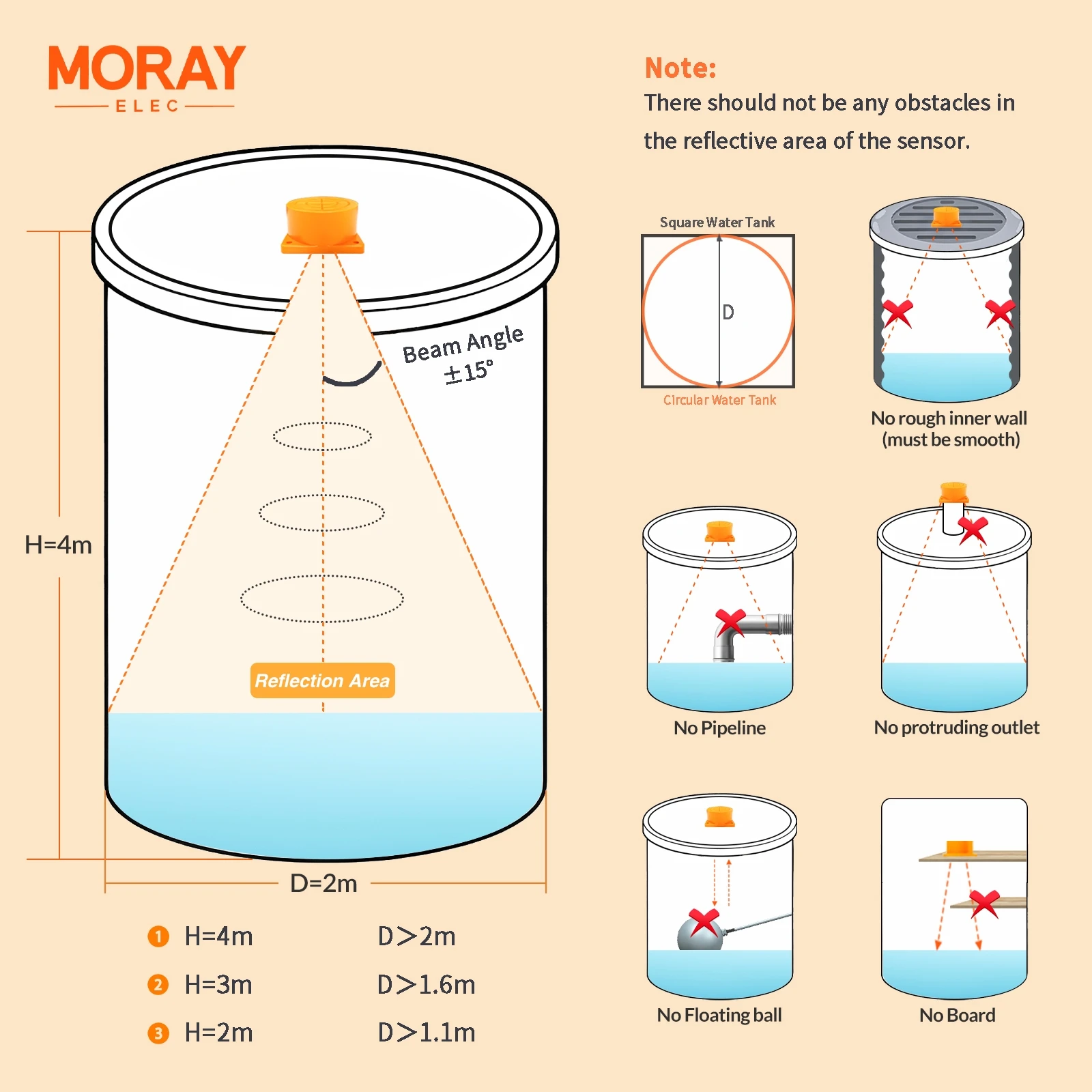

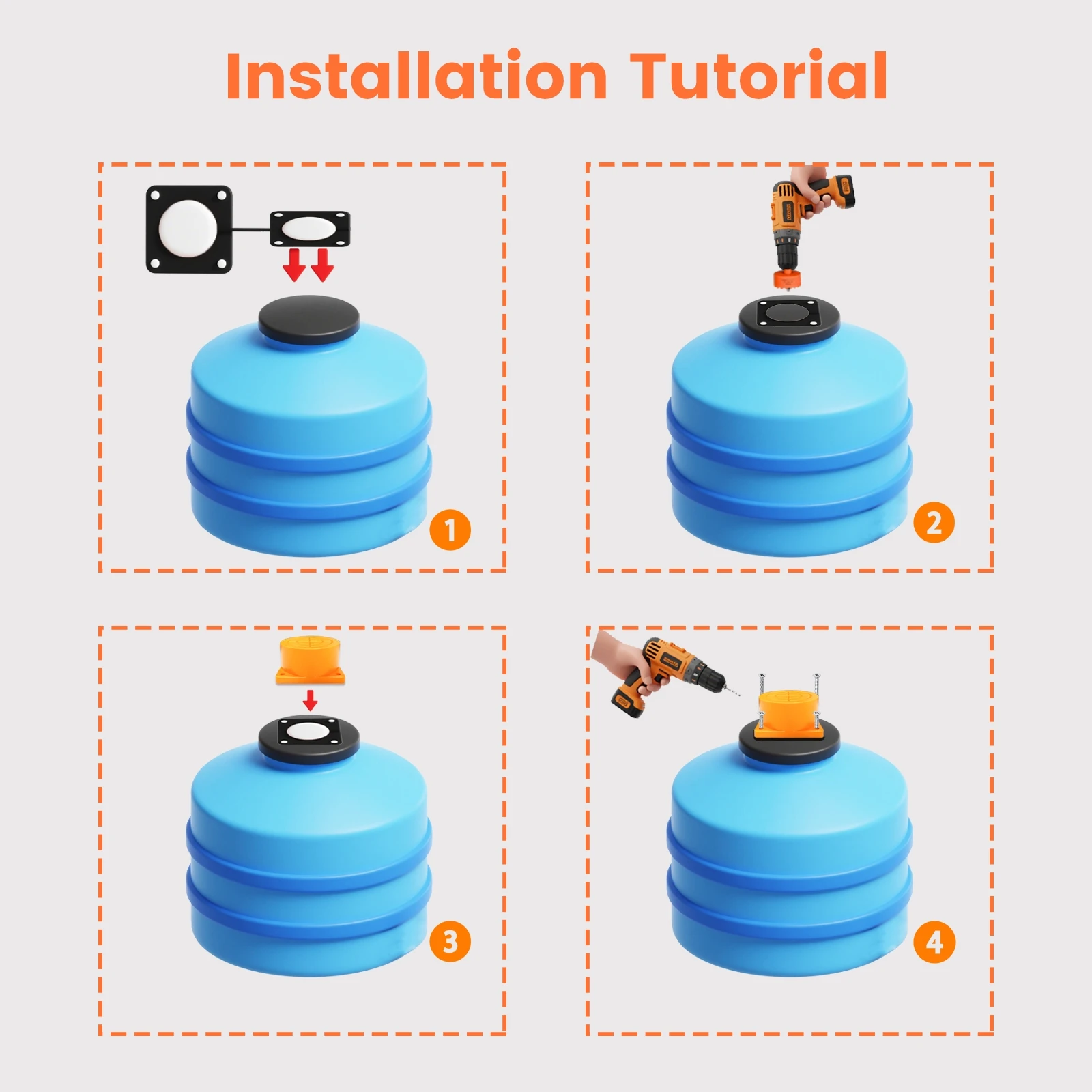

Product Installation
1. In the center of the tank, paste 3M installation mark.
2. Drill a hole right in the middle of the label with a diameter of 55mm;
3. Place the sensor over the hole, keeping it centered and the probe unobstructed;
4. Fasten the sensor with a self-tapping screw.
Multi-Tank Monitoring
