Product Description

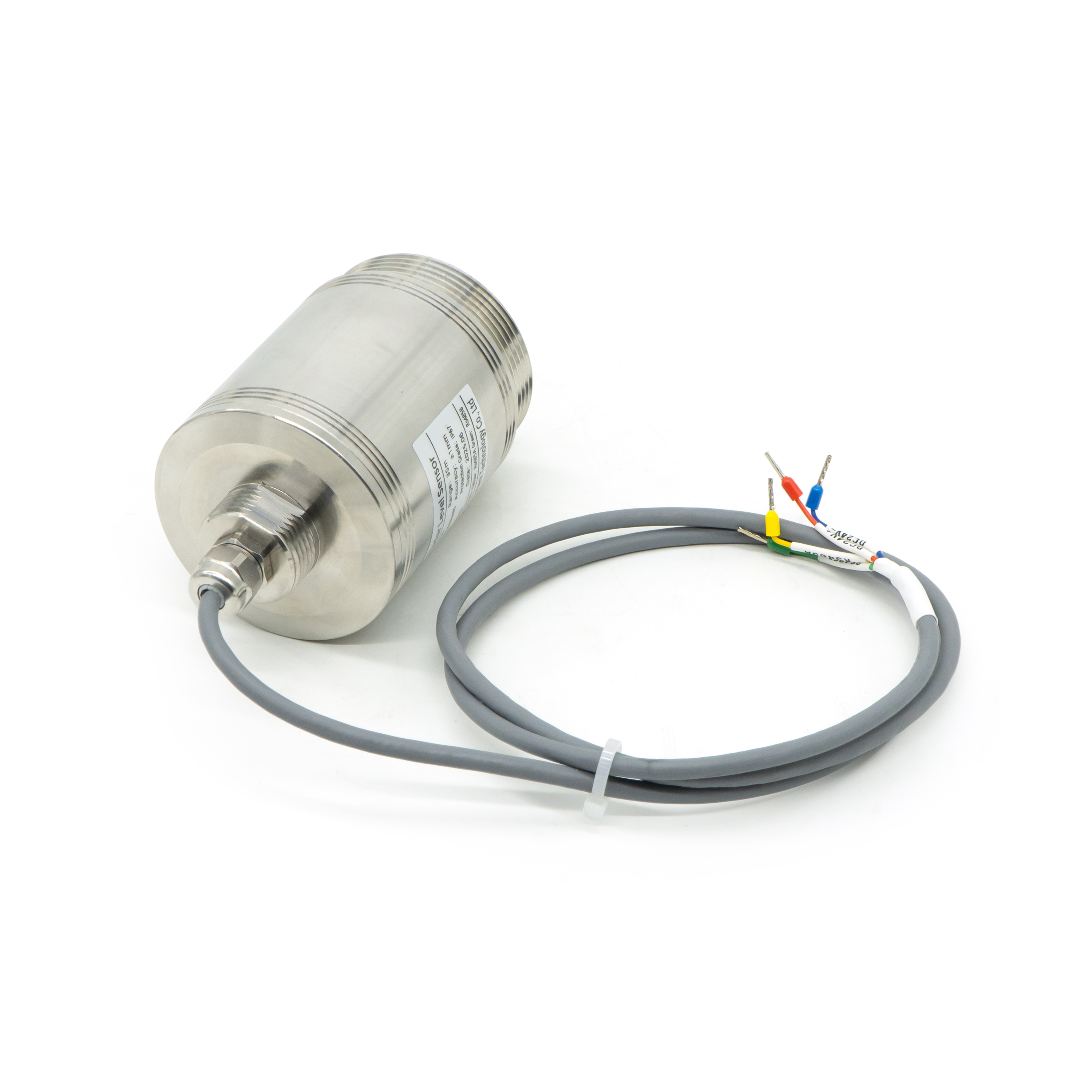

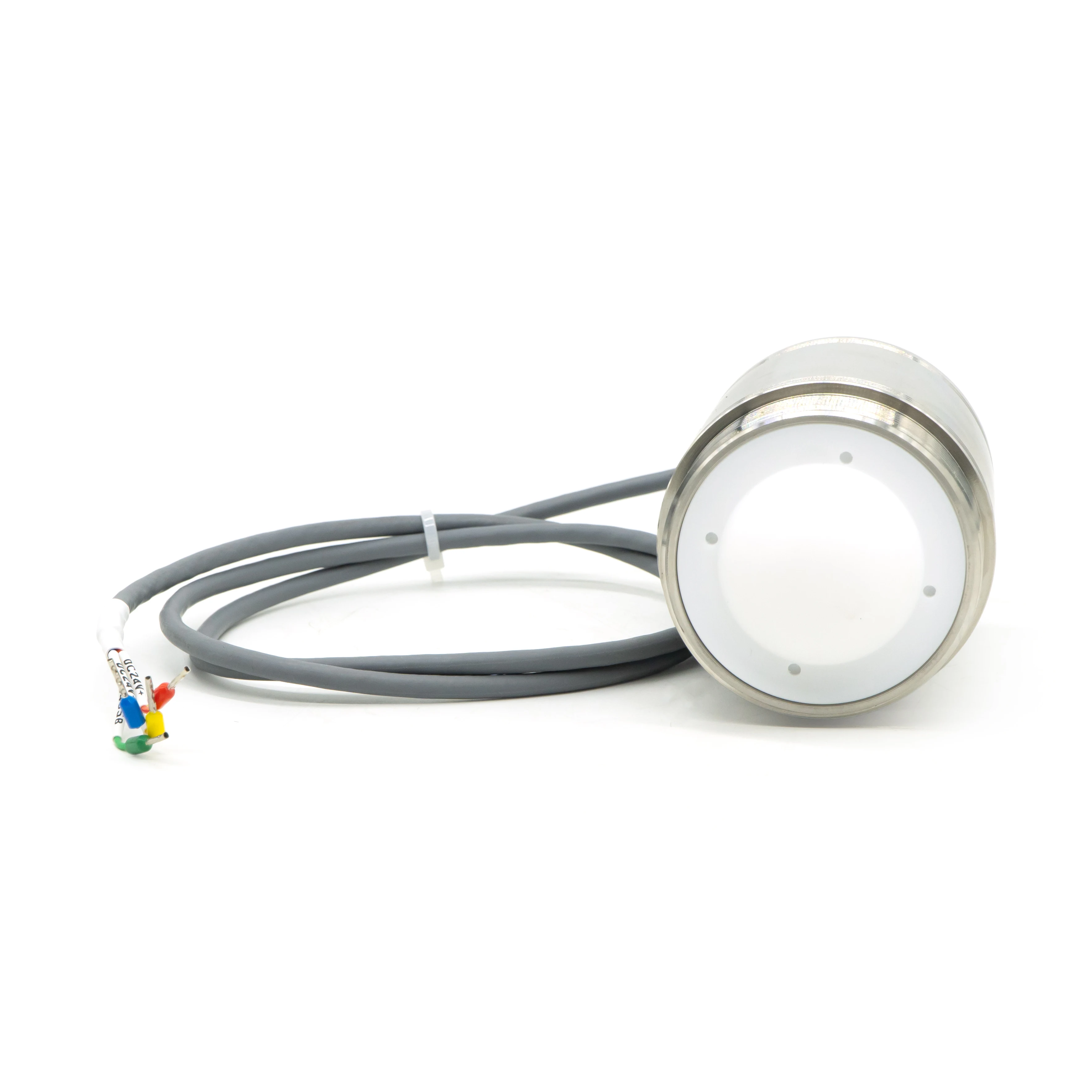

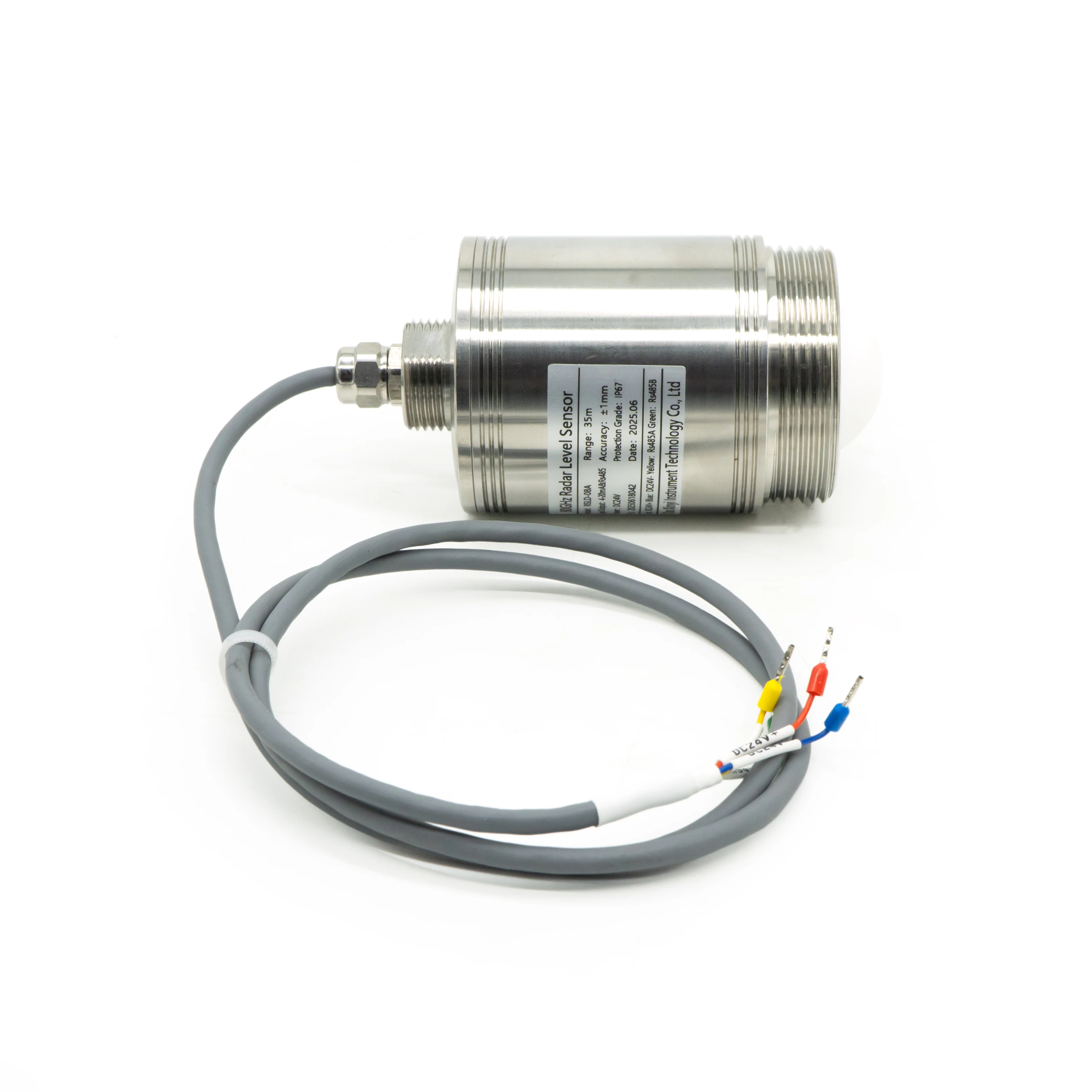

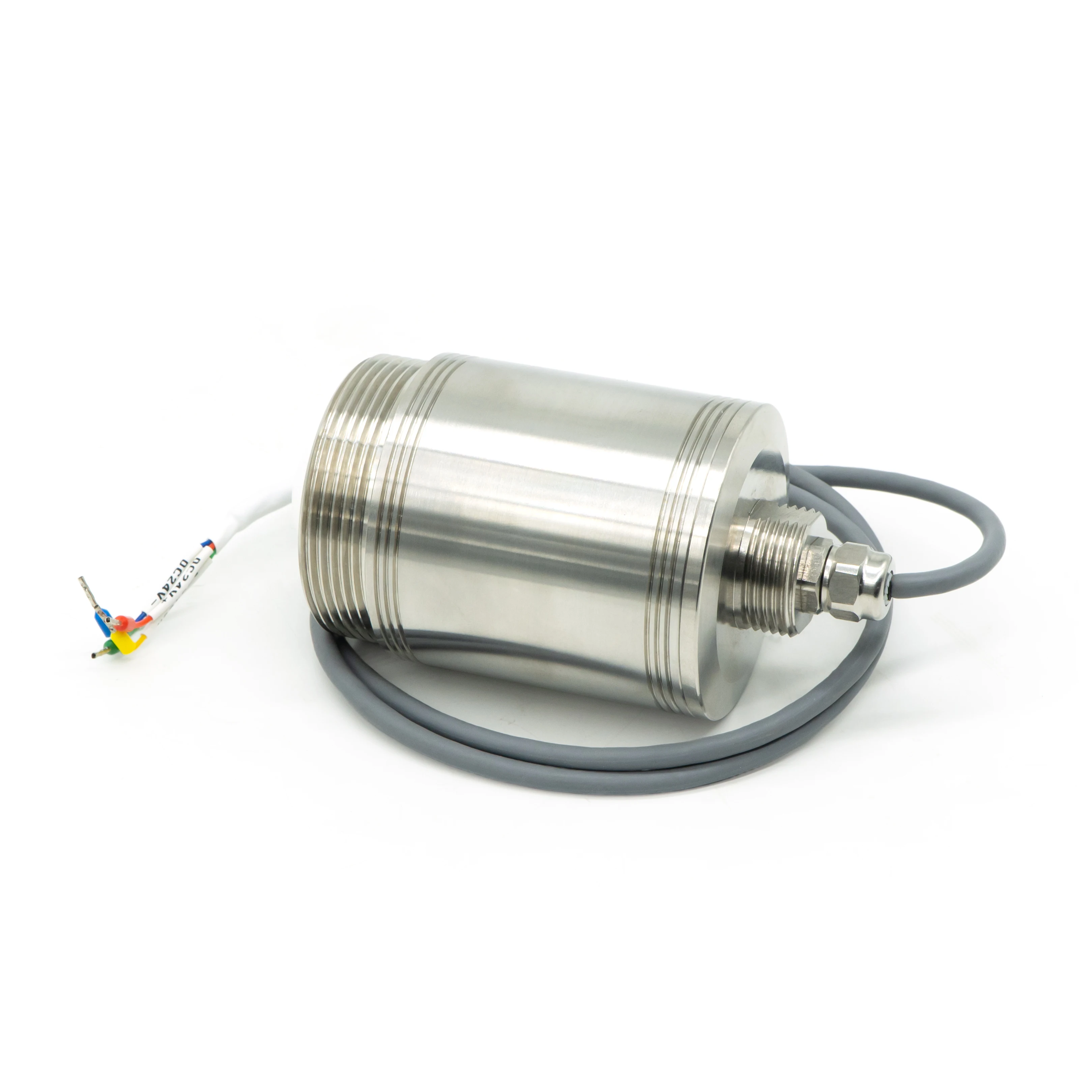

Based on frequency modulated continuous wave (FMCW) technology, the 80G radar level gauge measures the height or distance of materials by transmitting and receiving microwave signals. Its working principle is to emit a microwave signal with a frequency that varies linearly with time. When the signal encounters the surface of the measured material, it will reflect back and form a frequency difference with the emitted signal. By measuring this frequency difference and time delay, combined with the propagation speed of radar waves, the height or distance of the material can be accurately calculated.
The 80G radar level gauge achieves closed-loop control from signal transmission to liquid level output through a triple technical architecture of high-frequency signals, AI algorithms, and intelligent diagnosis, making it particularly suitable for high-precision measurement under harsh working conditions. Its schematic design takes into account both physical optical characteristics and digital signal processing technology, making it an ideal choice for Industry 4.0 intelligent tank area management.
Product Features
1.High frequency anti-interference technology
a.80G wavelength 3.75mm, beam angle 3 °, strong penetration, can penetrate steam and light dust;
b.Dynamic adaptive threshold, efficient elimination of transient interference;
c.AI false echo learning, automatically blocking false echoes;
2.Non contact measurement
Corrosion resistance and high temperature resistance;
3.Intelligent diagnosis and adaptive technology
The device has real-time health status detection and code alarm;
4.Flexible installation
Multiple installation methods such as threads, flanges, brackets, etc. are compatible with the vast majority of workers moreover;
Product advantage
* Mobile APP configuration with 4-20mA and RS485 output options;
* Enhanced anti-interference capabilities;
a.Low-noise anti-interference circuit design;
b.3° narrow beam angle for challenging environments with vapor, dust, or foam;
c. Advanced noise suppression algorithms with false echo learning capability;
* Premium construction and performance
a.Aviation-grade aluminum alloy and stainless steel construction for durability and corrosion resistance;
b.80GHz FMCW radar technology with ±1mm accuracy and 85M maximum detection range;
