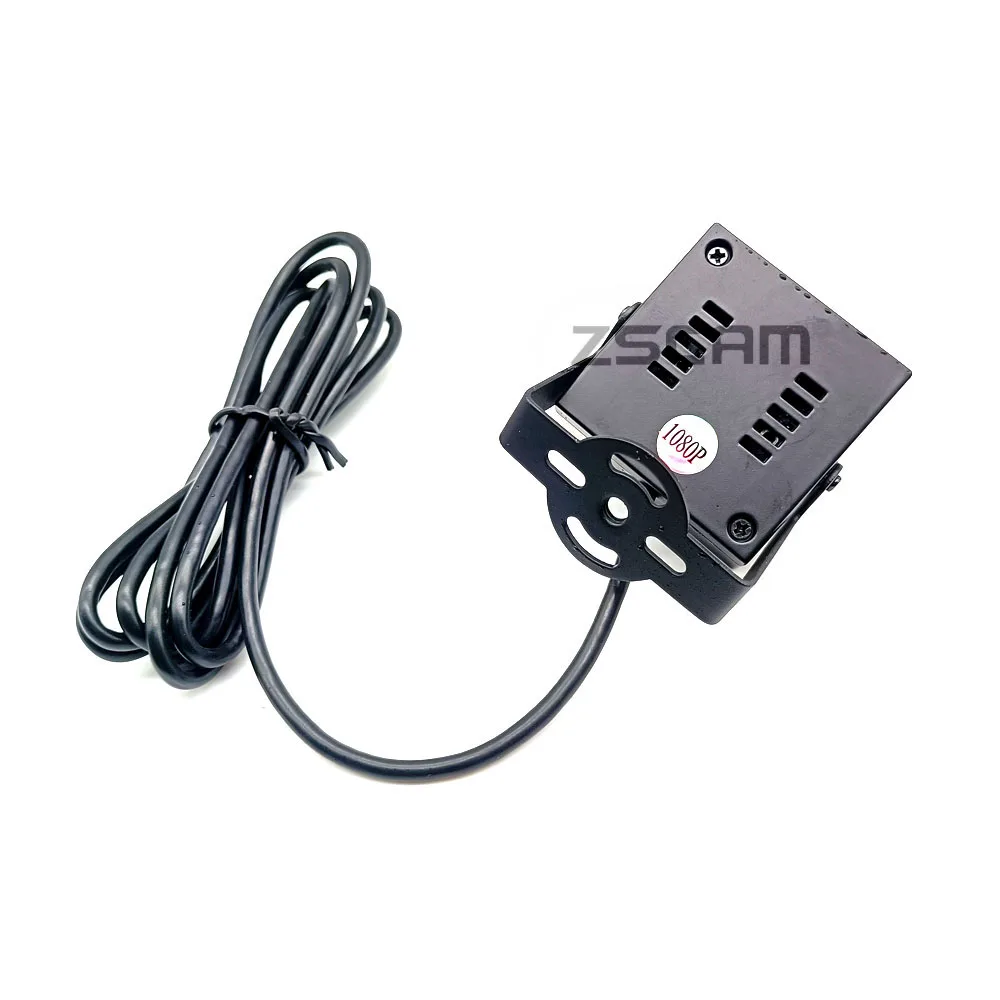

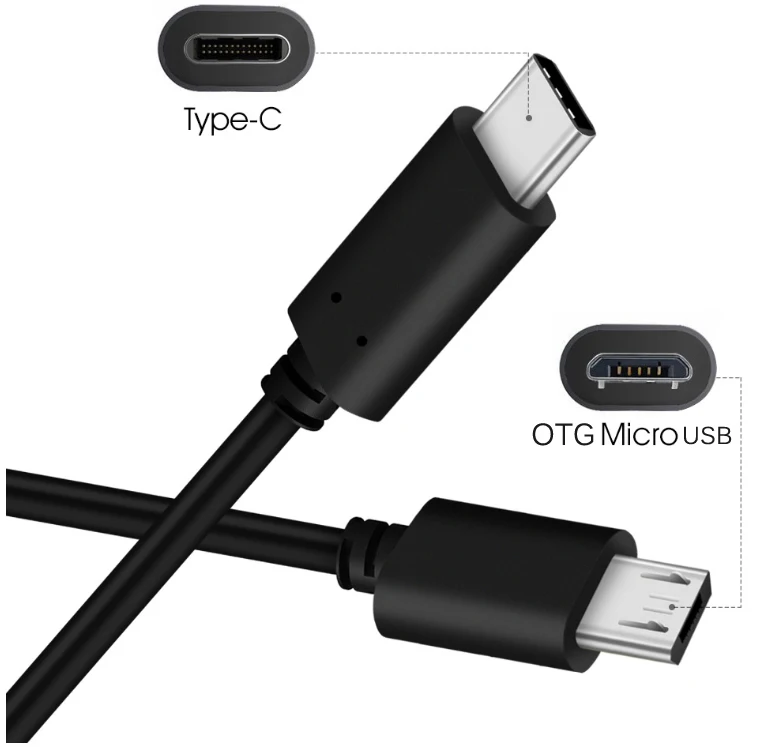

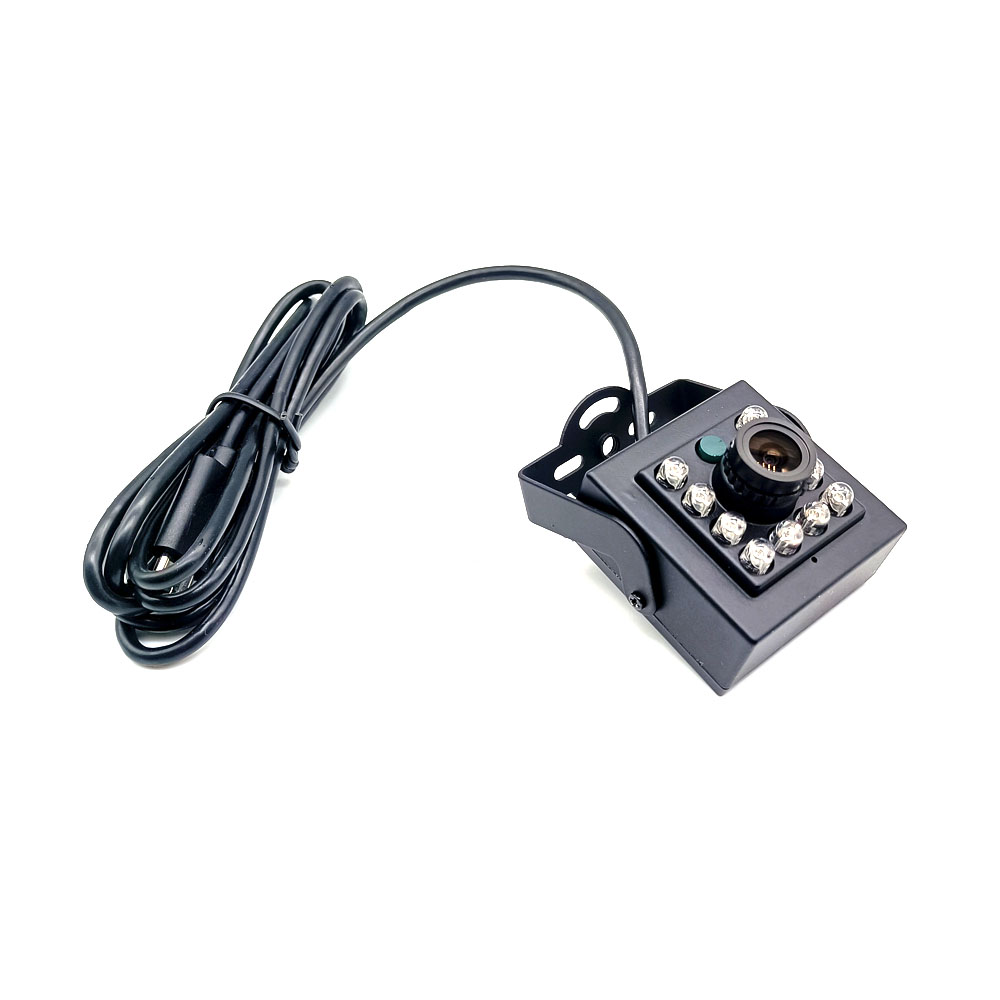

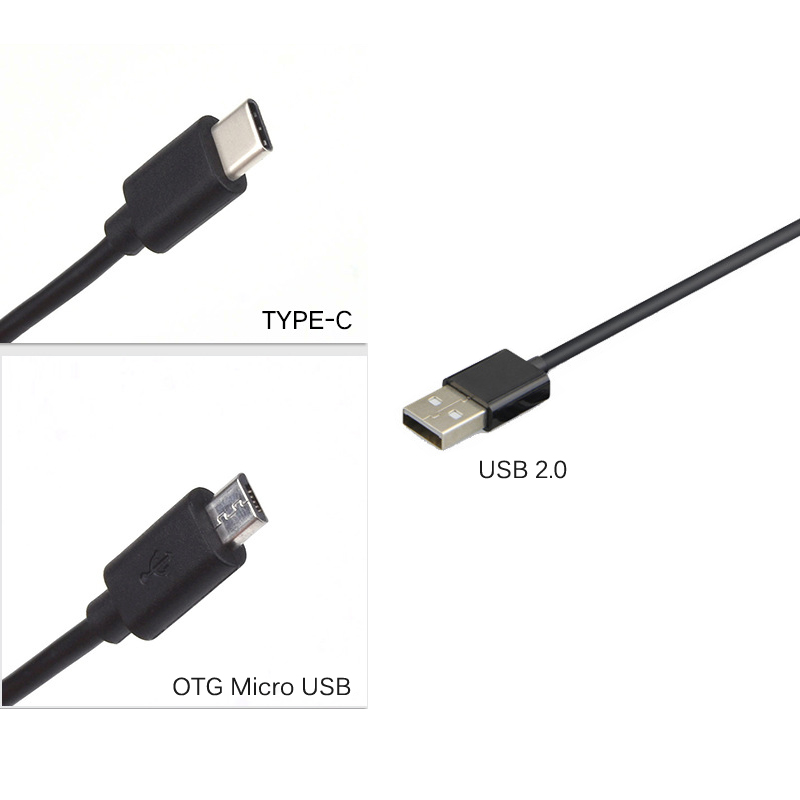

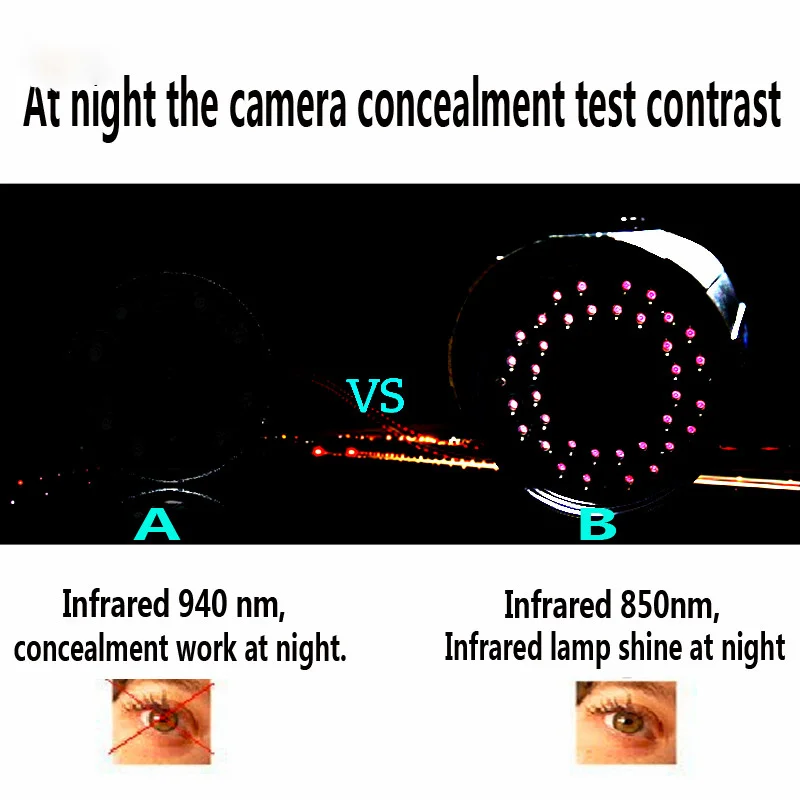

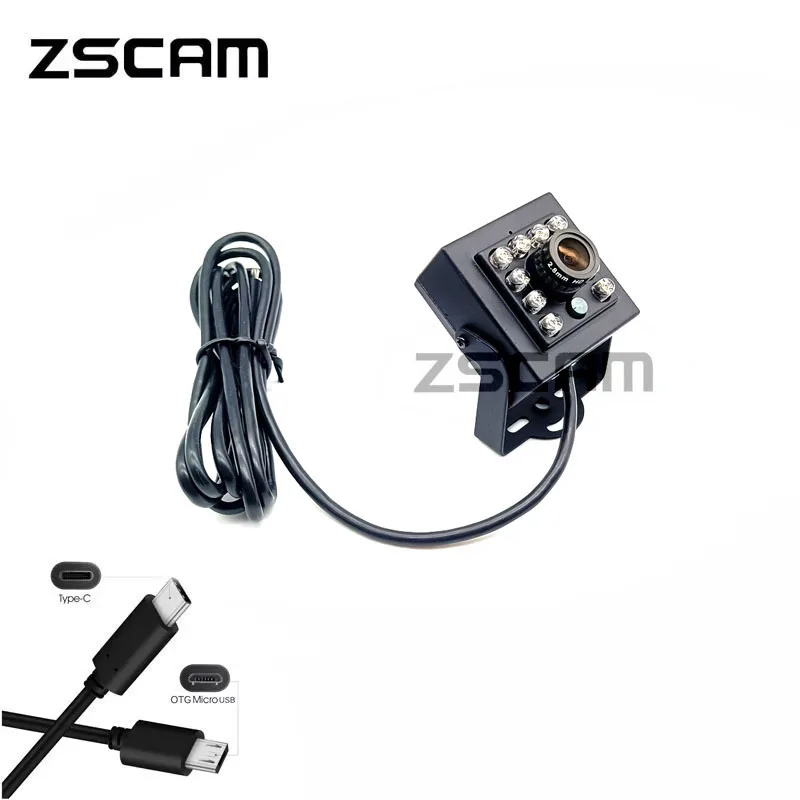

ZSCAM Night Vision USB 2.0 OTG Micro USB Type-C Drive-Free 720P 1080P 940nm LED IR CCTV Security UVC Android Camera for Industrial Use
Note:

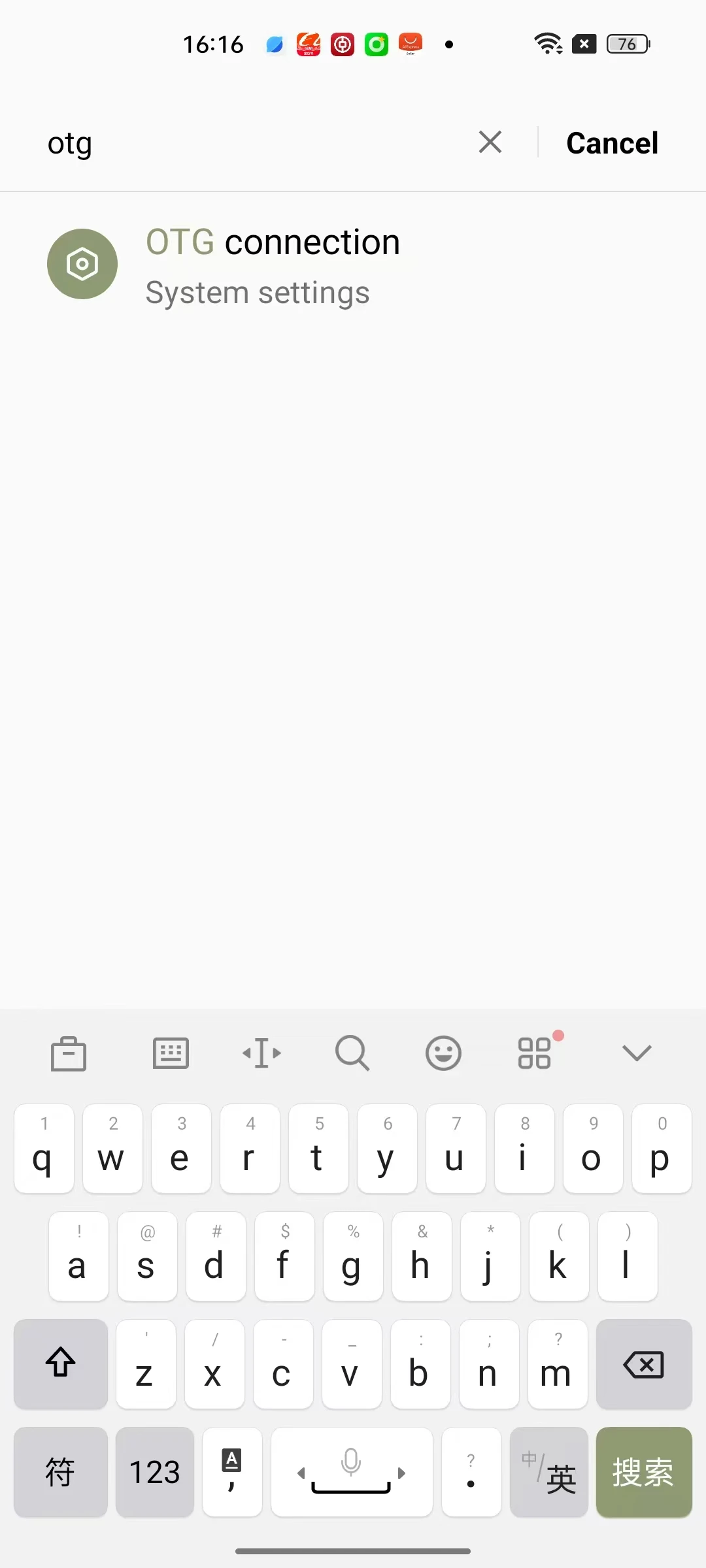

This Camera not apply to all the Android Phone and Computer System.Please note that your phone must support OTG and UVC camera function.

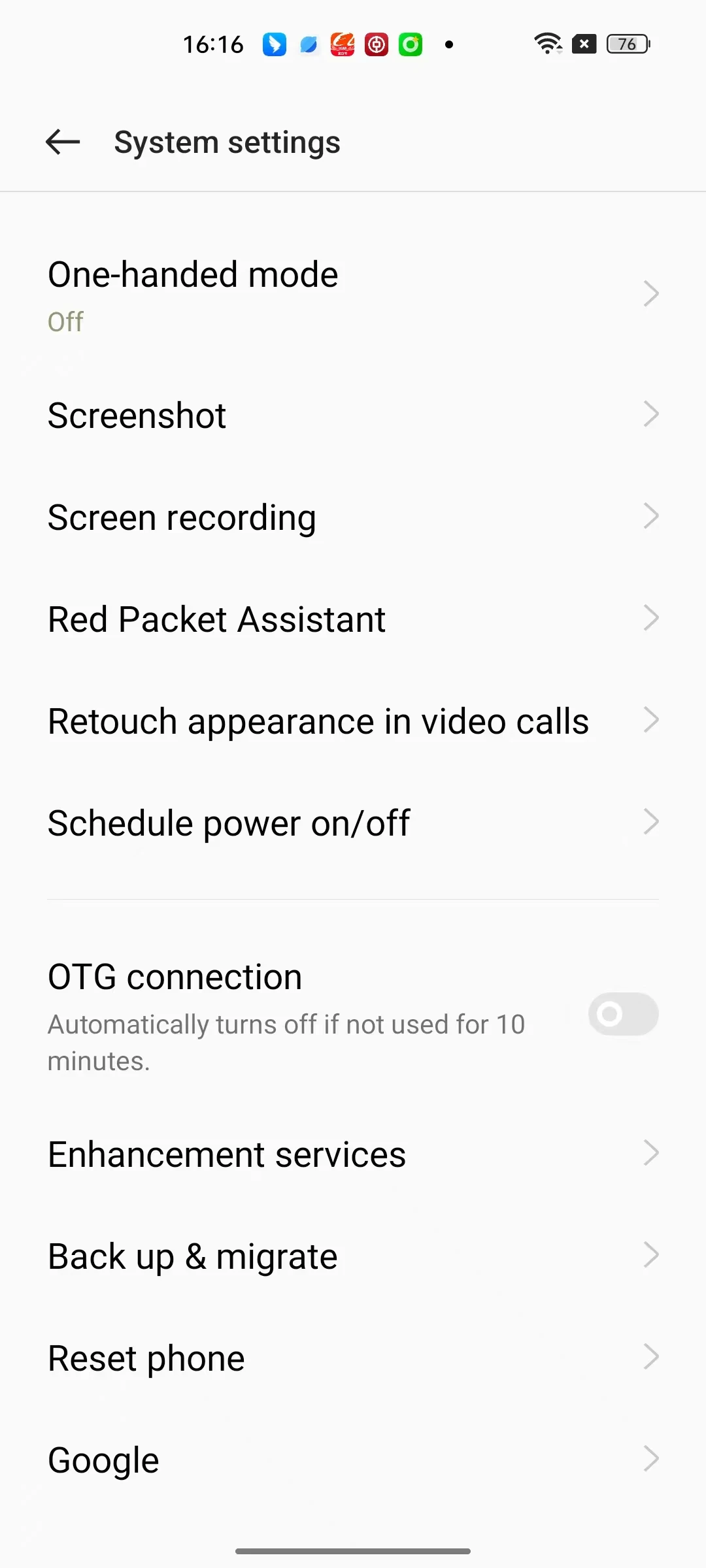

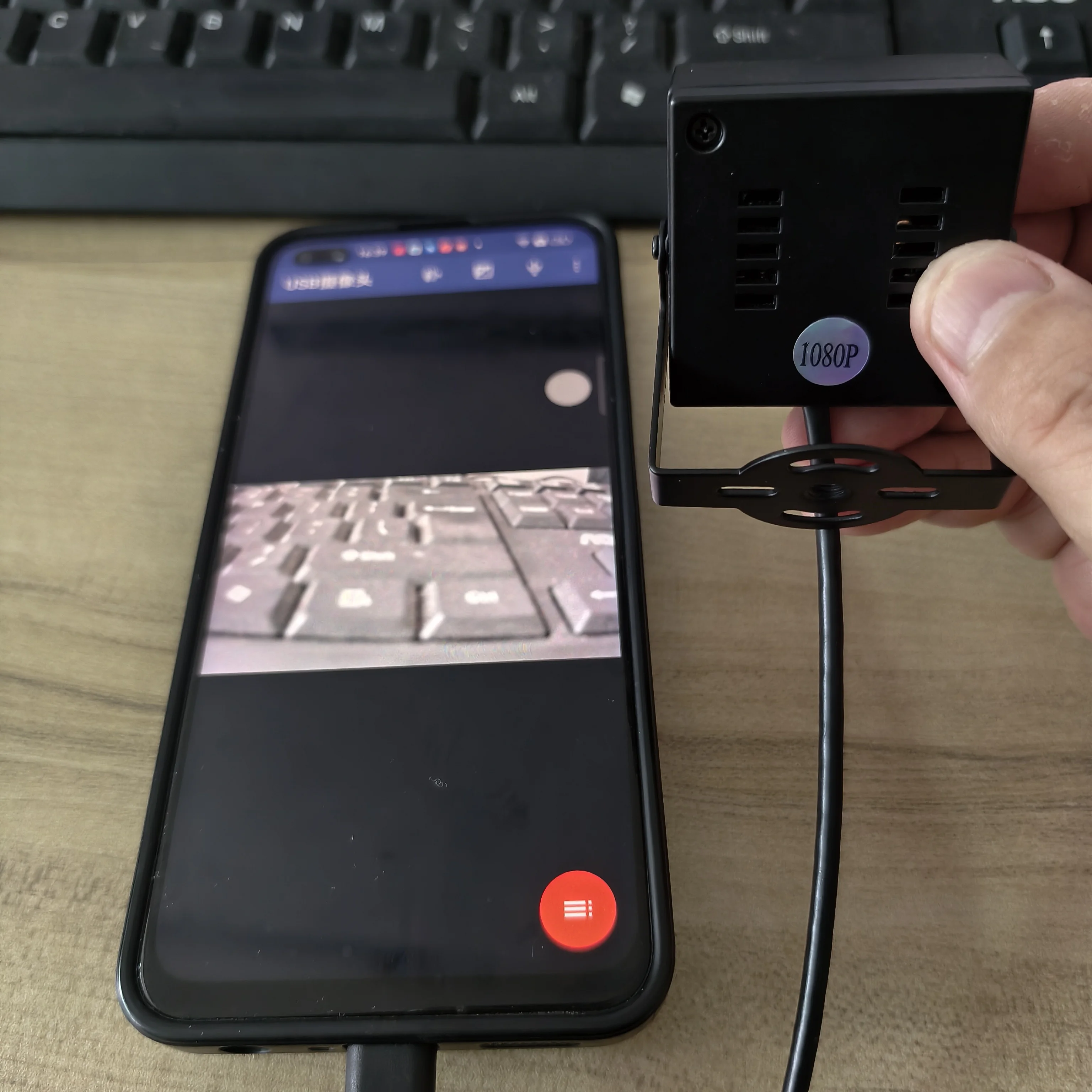

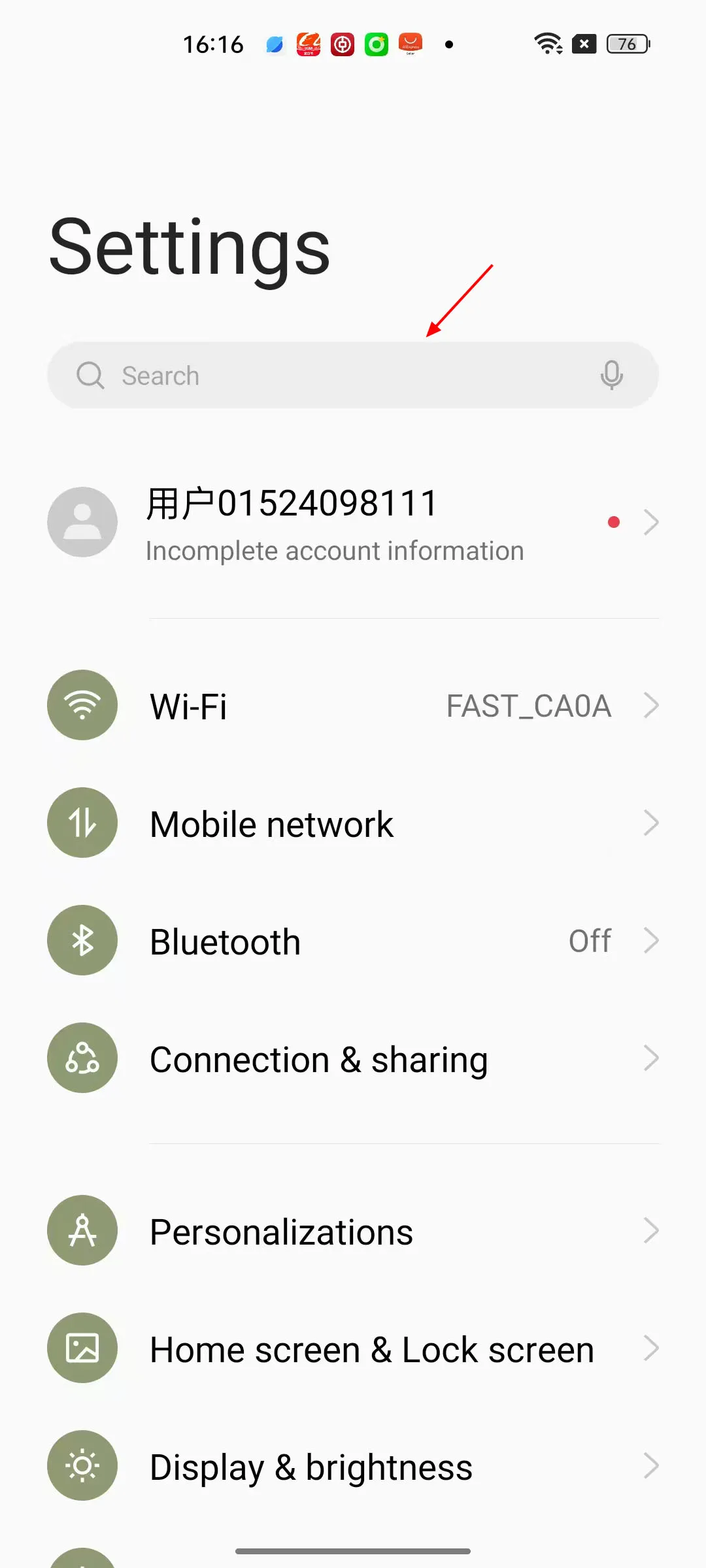

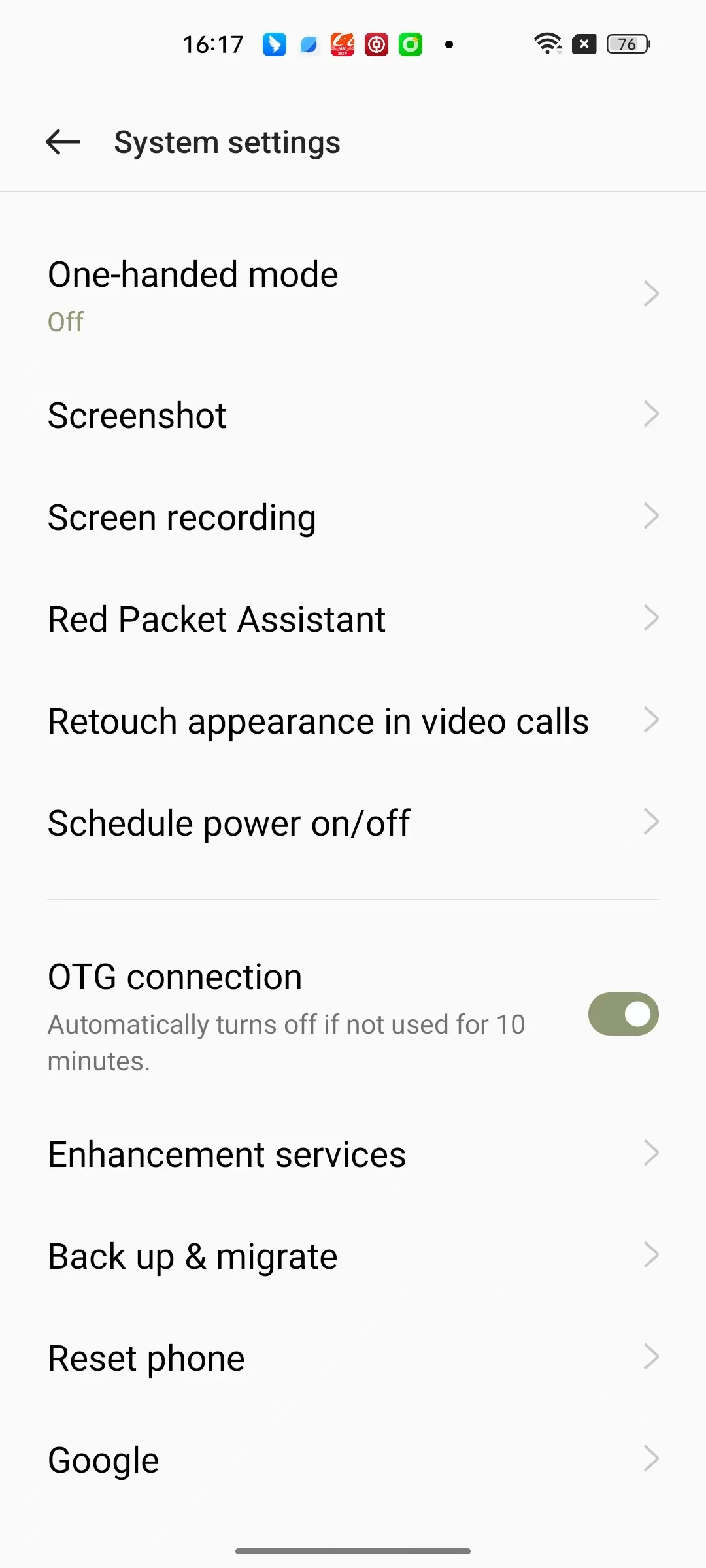

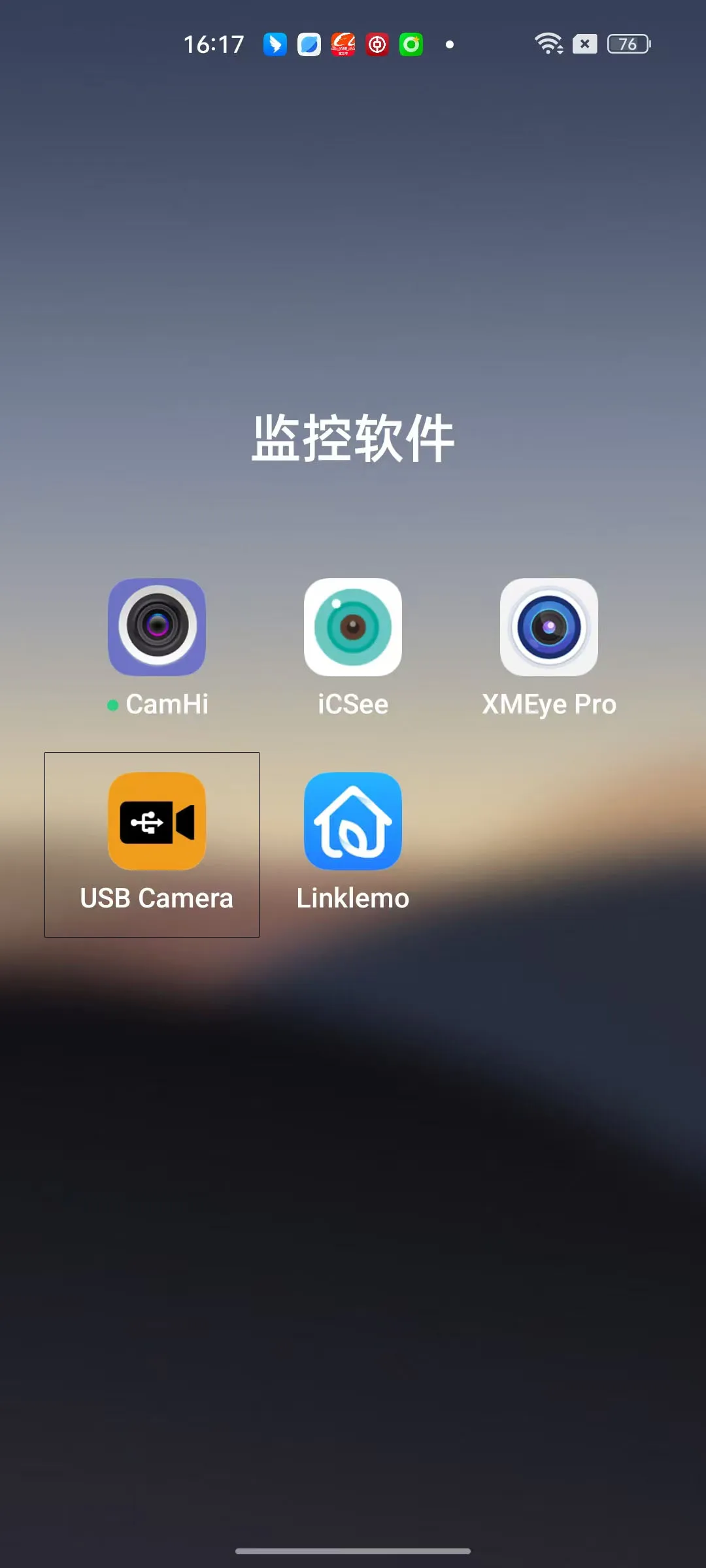

How to use a Type-C interface camera:
Introducting:
USB Mini colour camera
Color CMOS sensor
USB Format
Support Linux operation system
Main Features:
-
Image sensor 1/2.7″ CMOS, 0.1Lux, 2.0MP imag
-
Free Driver USB 2.0 (UVC)
-
USB2.0 HIGH SPEED, compression USB 1.1
-

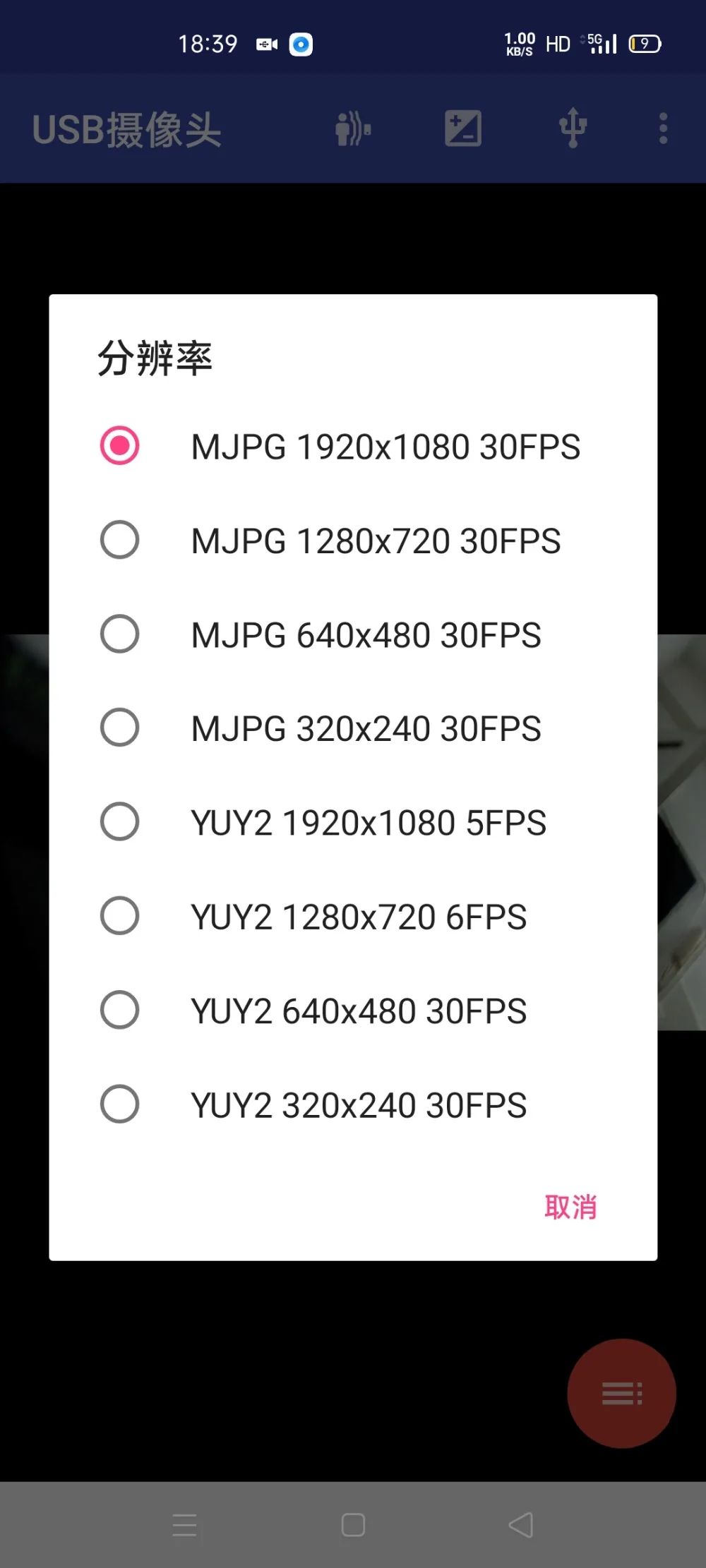

Default setting (30fps@1920*1080p)
-
Manual focus len
-
Compression YUY2 & MJPEG
-
Support Windows 2000; Windows XP; Windows VISTA; Windows 7 and later;
-
Linux(In 2.6.18 above the kernel version);Mac ps3; Android system
-
Standard 1.5m cable,if you need shorter cable ,pls contact with us for custom made
-
Dimension: 42*42mm
-
USB Power: 5V±10%DC,50mA
-
Used:intelligent machine,Android device
-
Can be customized by your requirements
Detailed Specifications Of The Parameters
Models ZSCAM-usb58
|
Image sensor |
1/2.7″ Color CMOS |
|
|
Effective Pixels |
1920(H)x1080P(v)1280(H)x720(V), 640(H)x480(V), 352(H)x288(V), 320(H)x240(V) resolutions |
|
|
Synchronizing system |
Internal |
|
|
Scanning system |
Progressive Scan |
|
|
Video output |
VGA(640X480), CiF(352X288), SiF(320X240), QSiF(176X144, ),C iF(160×120) |
|
|
S/N ratio |
More then 48 dB (AGC Off) |
|
|
Min. Illumination |
0.001 Lux @ F1.2 |
|
|
Exposure |
Auto / Manual(Shutter Speed & AGC Control) |
|
|
White Balance |
Auto / Fixed / Indoor / Initial / Outdoor |
|
|
Gamma Characteristic |
Auto r=0.45 |
|
|
Picture |
Brightness / Contrast / Gamma / Saturation |
|
|
Miscellaneous |
BW Image / Mirror / Flip / Back Light / Flickerless |
|
|
Power source |
5V DC / 400mA |
|
|
Operating current |
125mA / regulated 5.7VC in |
|
|
Lens |
Standard |
Option |
|
Operating Temperature |
0°C∼ 40°C (Humidity : 0% RH∼ 80% RH) |
|
|
Interface Type |
USB format(Complies with USB 2.0) |
|
|
Measurement (mm) |
/ |
|
|
Weight (Approx. G) |
170g |
|
