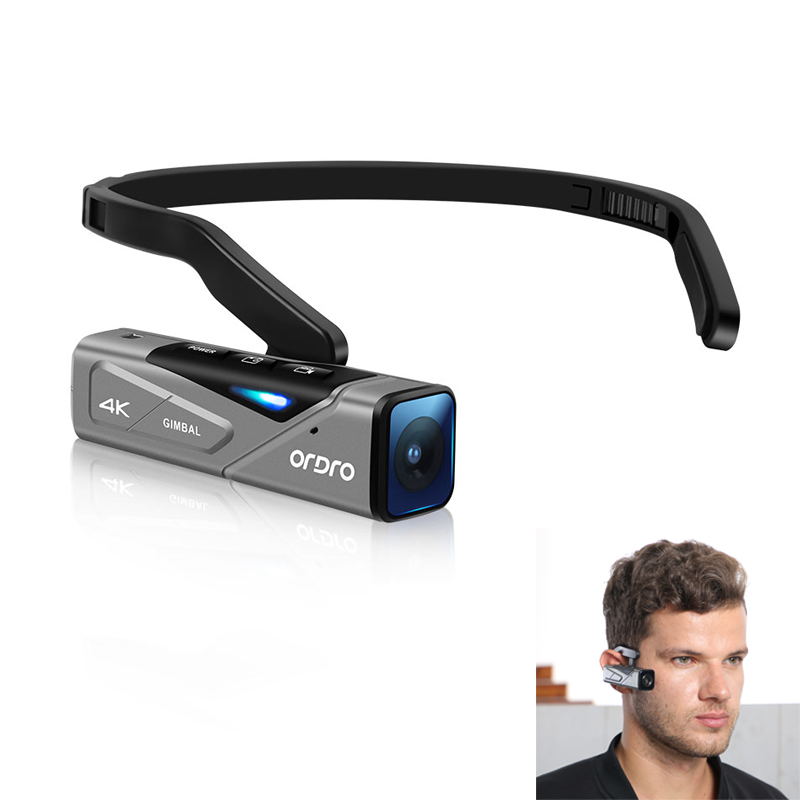

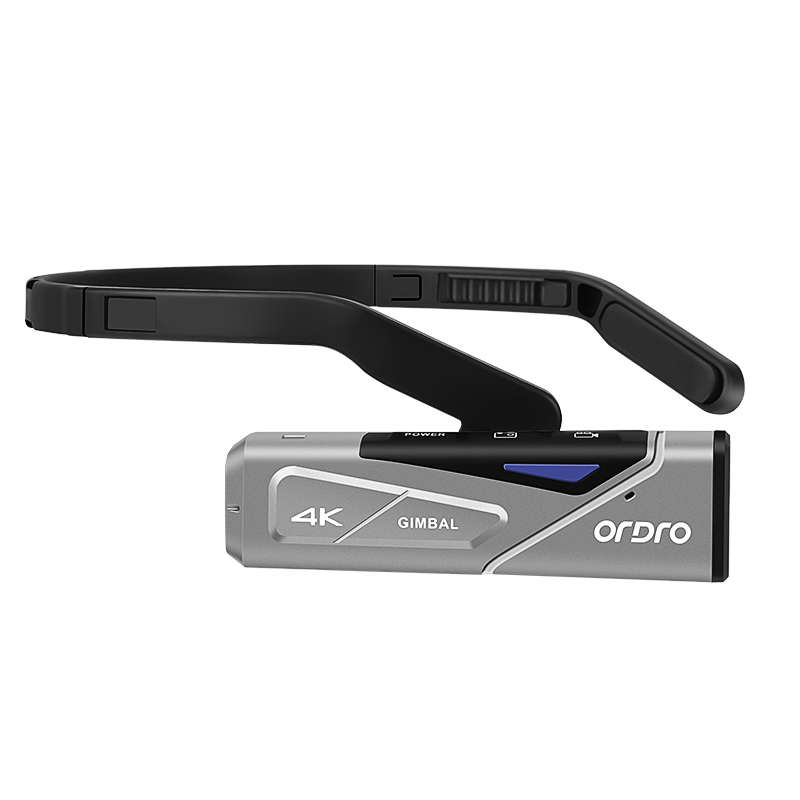

ORDRO EP7 Body Camera Head Wearable Vlog Digital Camcorder 4K 60FPS Photopraphes Filming

Product Specifications

Sensor: Configure IMX258 1/3 inch 13MP CMOS sensor
Aperture: F/NO: 2.2 f=4.88mm
View angle: 90 degree
Focus range: 10cm or more
4K video code stream: 100Mbps
Video format: MP4 / H.264
Video resolution:
4k(3840*2160@60FPS)/(3840*2160@30fps); 2.7k(2704*1524@30fps); FHD(1920*1080@60fps); 1920*1080@30fps; HD(1280*720@120fps)
Photo format: JPEG
Photo resolution: 20M(5200*3900), 18M(4640*3840), 12M(4032*3024), 10M(3648*2736), 8M by default(3264*2448), 5M(2592*1944), 3M(2048*1536), 2MHD(1920*1080), 1.3M(1280*960), VGA(640*480)
Microphone: built-in 2
Speaker: built-in 1
Indicator light: green (power), red(charging), blue(wifi open)
Button: touch button
Wifi: built-in
USB: high speed 2.0
Storage: PLEASE must use U3 grade micro SD card 64GB or above, support max 256GB
Battery: built-in 3.8V, 1000mAh rechargeable lithium battery
Power access: DC5V 1A, micro 5PIN USB
Size: 94mm*23mm*27mm
Weight: 78g
Work temperature: 0-40 degrees Celcius
Dust-proof and waterproof: IP65
APP languages: Chinese, English, German, French, Japanese, Spanish, Italian.
Please Note: camera voice service only supports Chinese, English and Japanese

Packing list of standard package

1* EP7 FPV camera
1* Headband
1* Small wrench
1* Screw head
2* Soft rubber sleeve
1* Hook
1* User manual (Support Languages : English; Russian; Chinese)
1* USB charger cable
1* Solid box

Packing list of combination kit

1* EP7 FPV camera
1* Headband
1* Small wrench
1* Screw head
2* Soft rubber sleeve
1* Hook
1* User manual (Support Languages : English; Russian; Chinese)
1* USB charger cable
1* Black carry bag

1* 64gb micro SD card

1* memory card reader

1* remote control (wiht wristband)

FQAs of EP7

Q: How long the battery lasts?

A: the battery lasts for 1-2 hours, depending on which shooting mode you choose.

Q: How to replace battery?

A: Please send the product back to us, we will replace the battery for you for free.

Please note: Due to the complicated structure of the camera, only professional technicians can replace the internal battery.

Q: Can I wear this camera for surfing?

A: This camera is suitable for outdoor sports such as cycling, hiking, etc.

But it is not suitable for extreme sports such as surfing, skiing, skydiving, etc.

Q: Is this camera waterproof?

A: This camera has IP65 life waterproof and dust-proof.

Q: What SD card should i use?

A: U3 micro SD card with storage capacity of 32GB or above.

Q: How to connect Wi–Fi?

A: step1. Download and installApp ODCAM on smartphone;

step 2. Turn on Wi–Fi on smartphone and connect with EP7 (EP7 Wi–Fi Name: EP7-XXX, Password: 12345678);

step 3. Turn onOD CAM and connect it with your EP7 camera.

Q: WiFi connected, why OD CAM says no connection to the device?

A: after WiFi connected, please wait a while, you will see a message says: this WLAN networks has no internet access. connect anyway?

please select “connect”, then you can go to App.

Q: Why the videos recorded by this camera was cut into segments every 5 minutes?

A: it a file system limitation, which don't allow more than 4gb file sizes, so the camera will automatically create multiple clips with like 3.5-3.9gb sizes. A lot of cameras do that, not just EP7.

Q: Why the camera doesn’t record videos? (it can take photos)

A: Please use a SD card with storage capacity of 32GB or above.

Q: How to set this camcorder? since this camcorder does not have screen.

A: All settings are through the application, after connect OD CAM app you can do settings.

Q: Can i use this camcorder without APP and phone?

A: Yes, you can take picture and recording video without APP and phone, because the camcorder body has physical buttons.
