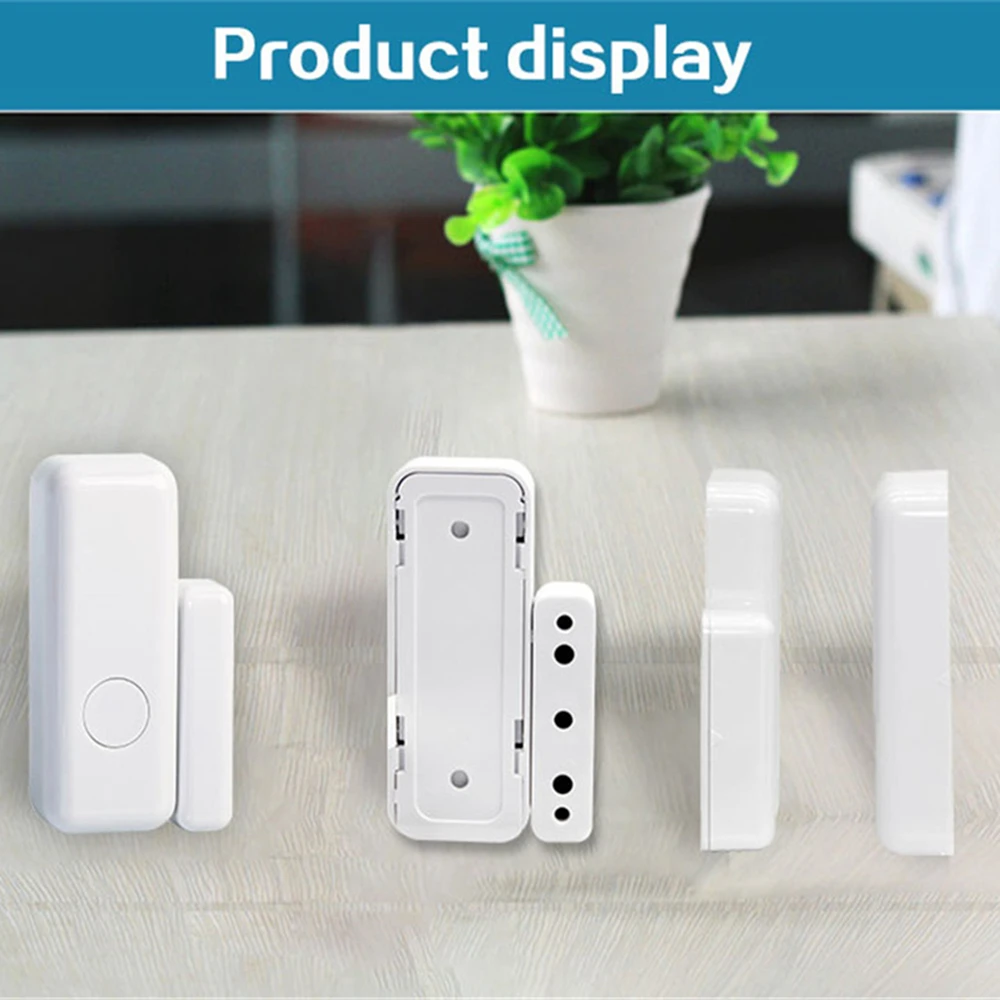

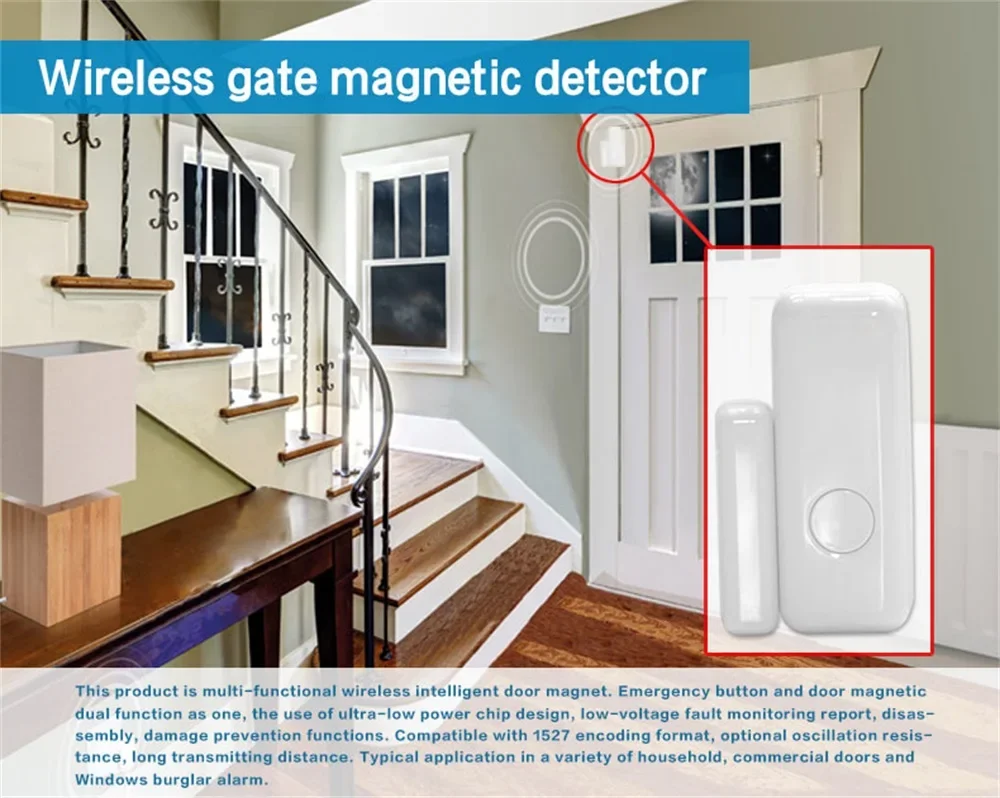

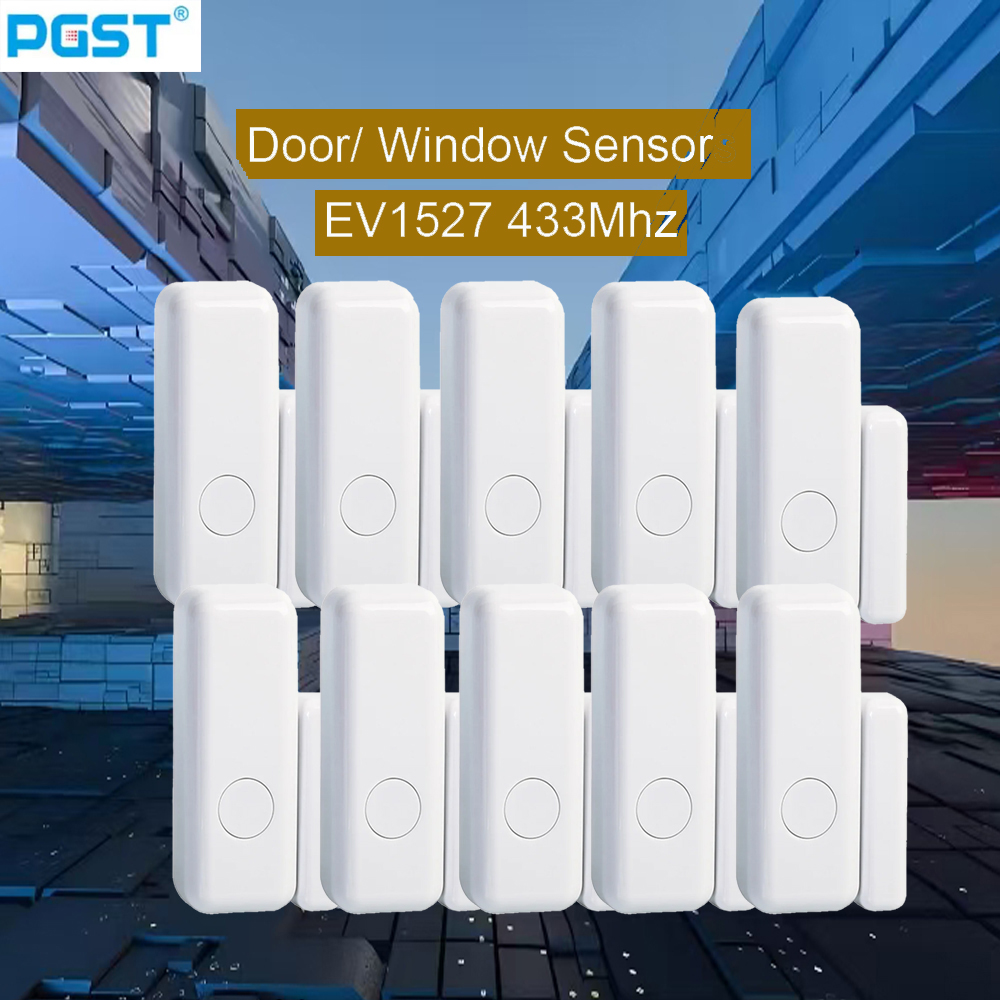

Wireless gate magnetic detector

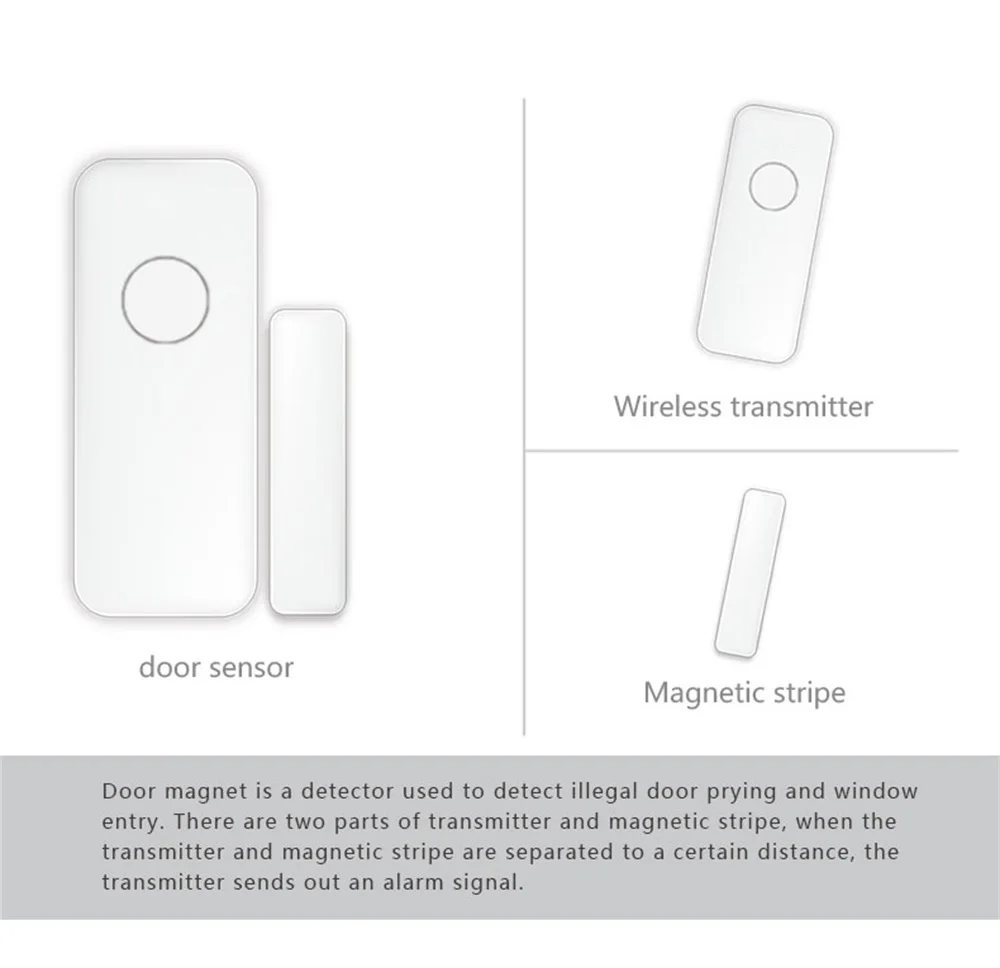

This product is multi-functional wireless intelligent door magnet. Emergency button and door magneticdual function as one, the use of ultra-low power chip design, low-voltage fault monitoring report, disas-sembly, damage prevention functions. Compatible with 1527 encoding format, optional oscillation resis-tance, long transmitting distance, Typical application in a variety of household, commercial doors andWindows burglar alarm.

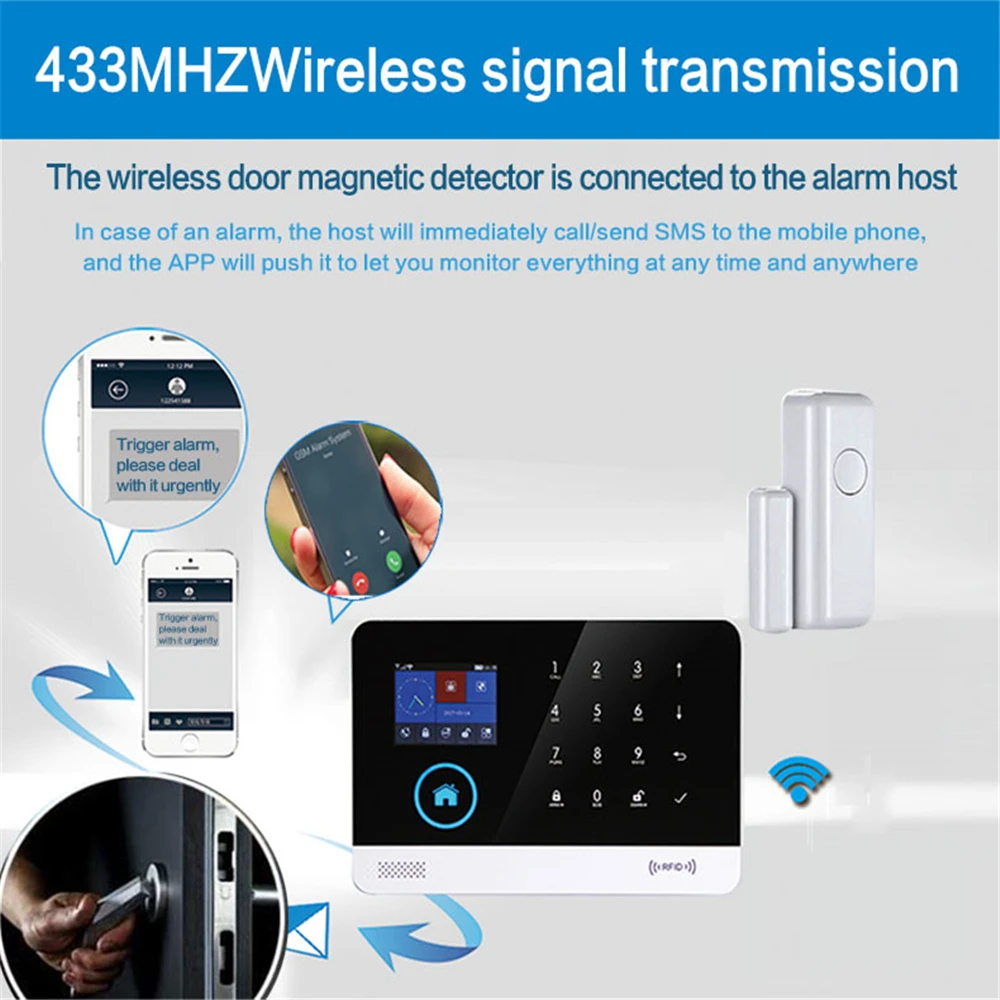

433MHZWireless signal transmission
The wireless door magnetic detector is connected to the alarm host
In case of an alarm, the host will immediately call/send SMS to the mobile phone,and the APP will push it to let you monitor everything at any time and anywhere



Parameter
Working voltage: DC3V(CR2032)
Static current: less than or equal to 8uA
Emission current: less than or equal to 10 mA
Emission distance: 100m(open space distance)
Trigger distance: 25 + + 5 mm
Underpressure detection point: 2.4 +/- 0.2v
Encoding fommat: 1527
Transmission frequency: 315/433/868mhz (optional)
Working temperature:-10 -to+50℃
