Push start , remote start, App control by Bluetooth
Function:
1.Push start
2.Remote start
3.Step on the brake to lock, unlock when engine off
4.Blinking turn lamp when doors opened
5.Support setting button ignition time, remote start ignition time, driving lock, double unlock, double tail box and many other functions. Our products can basically support models that cannot be installed by other products.
6.With special ignition harness ,easy to install ,reduce cut wires
7.Compatible with original alarm, rear mirror folding,auto headlight,windows closer
8.Bluetooth control vehicle , Your phone is your car key
Special design for easy installation
1. Very simple installation , No need cut any wires for connecting or only connect foot brake wire:

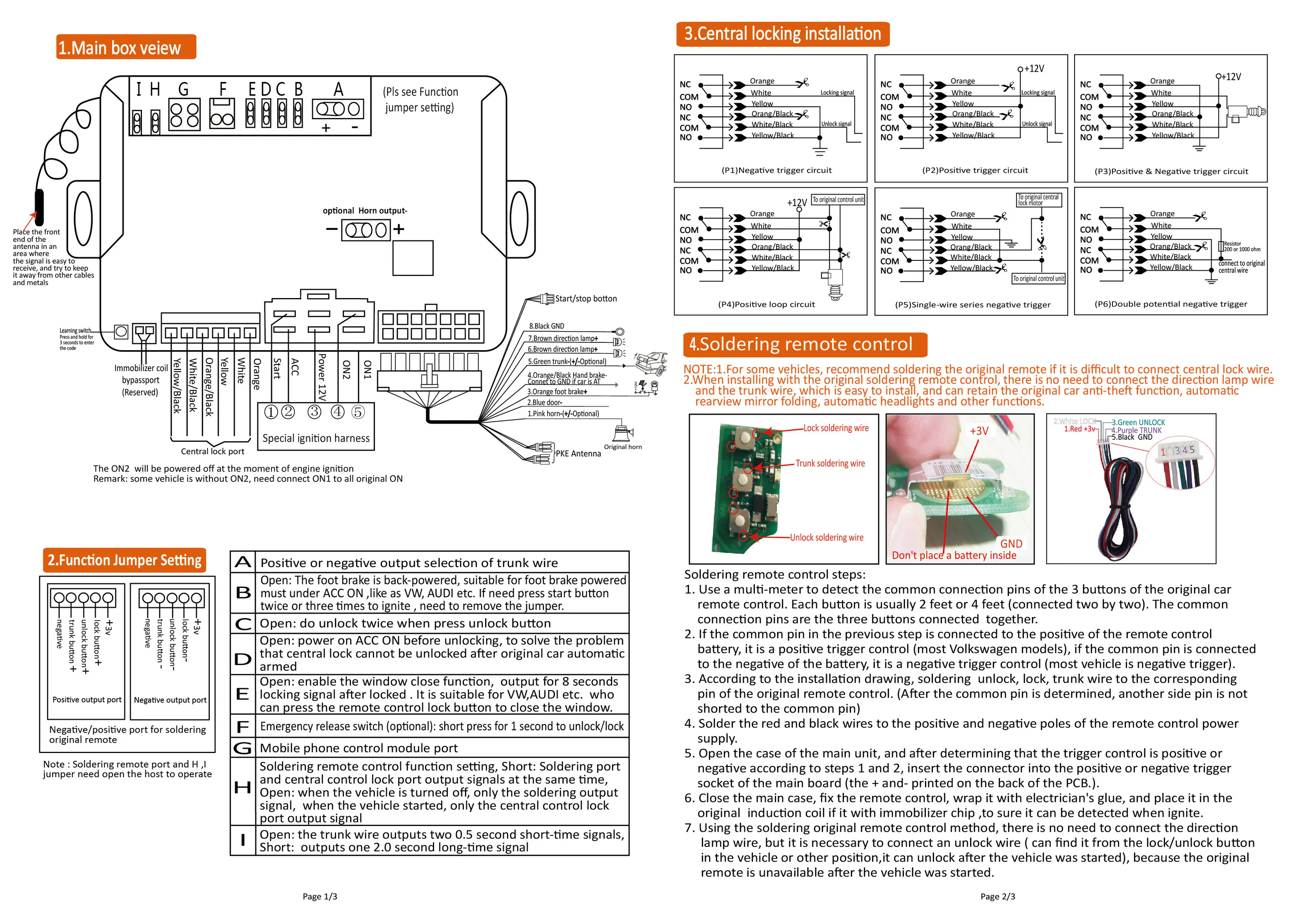

1.1 To connect ignition wires and Ground with special harness, then soldering the original remote controller ,and put it nearby the coil of key for unlock immobilizer. Our device will control original remote controller to do lock, unlock and open trunk.

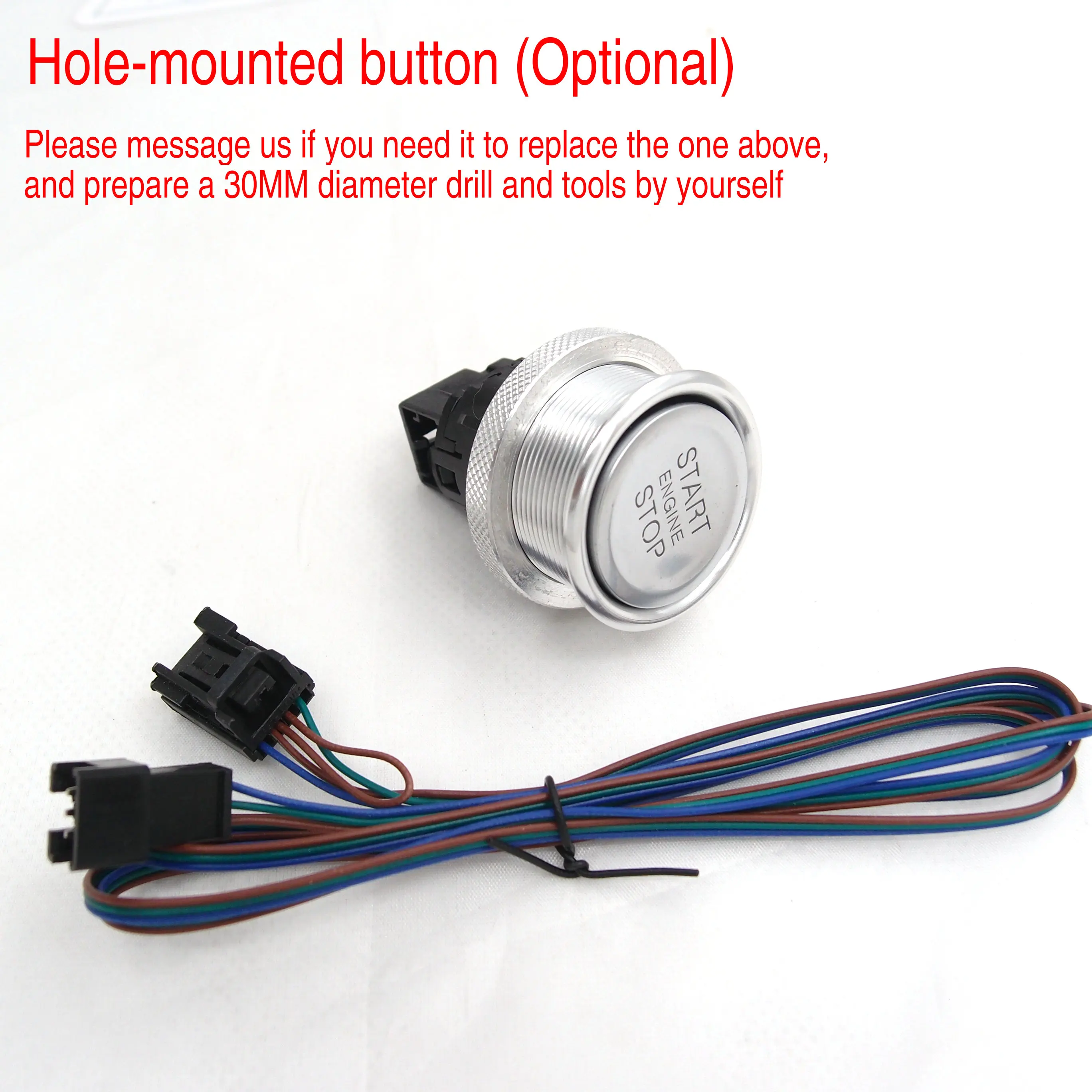

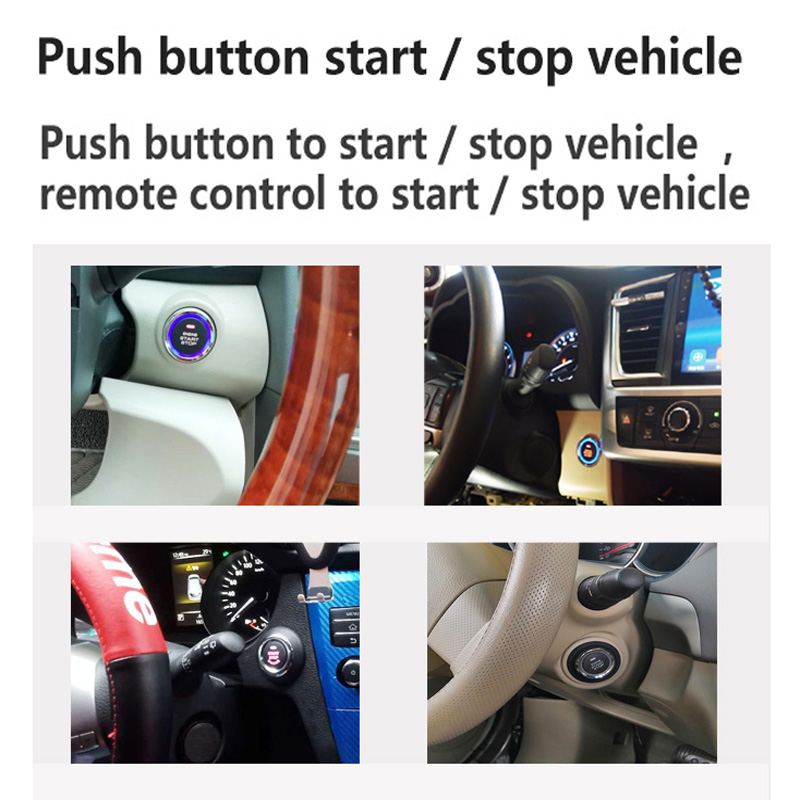

1.2 Push start: it can do push start/off by press the button 2 seconds if didn’t connect foot brake wire
1.3 remote start on/off : press and hold lock button 3 seconds to do remote start, when the engine start , it can’t unlock or lock , because the original remote controller can’t control the vehicle when engine start. So there are two options for choice: 1. default setting : don’t unlock before remote start, so the doors is locked after remote start, it need use key blade to open the door . 2. unlock before remote start, so the doors isn’t locked. These two options can be set by user ,please refer to the setting options .
1.4 All of these two options, it need do unlock by remote controller or APP after remote start, otherwise it will turn off engine automatically after 20 minutes.
1.5 This method is with good compatible with original alarm, automatic head light, folding rear mirror etc.
2. Simple installation method: (recommend)
2.1To connect ignition wires and Ground with special harness, then soldering the original remote controller ,and put it nearby the coil of key for unlock immobilizer. Our device will control original remote controller to do lock, unlock and open trunk.
2.2 To connect foot brake, horn, lock and unlock wires, for this installation , it can unlock and lock after remote start 。
2.3 This method is with good compatible with original alarm, automatic head light, folding rear mirror etc.
Note: for some vehicles ,like as VW decoded by special tools (5053,5054), the original key can do lock and unlock when engine started , then no need connect central locking wire.

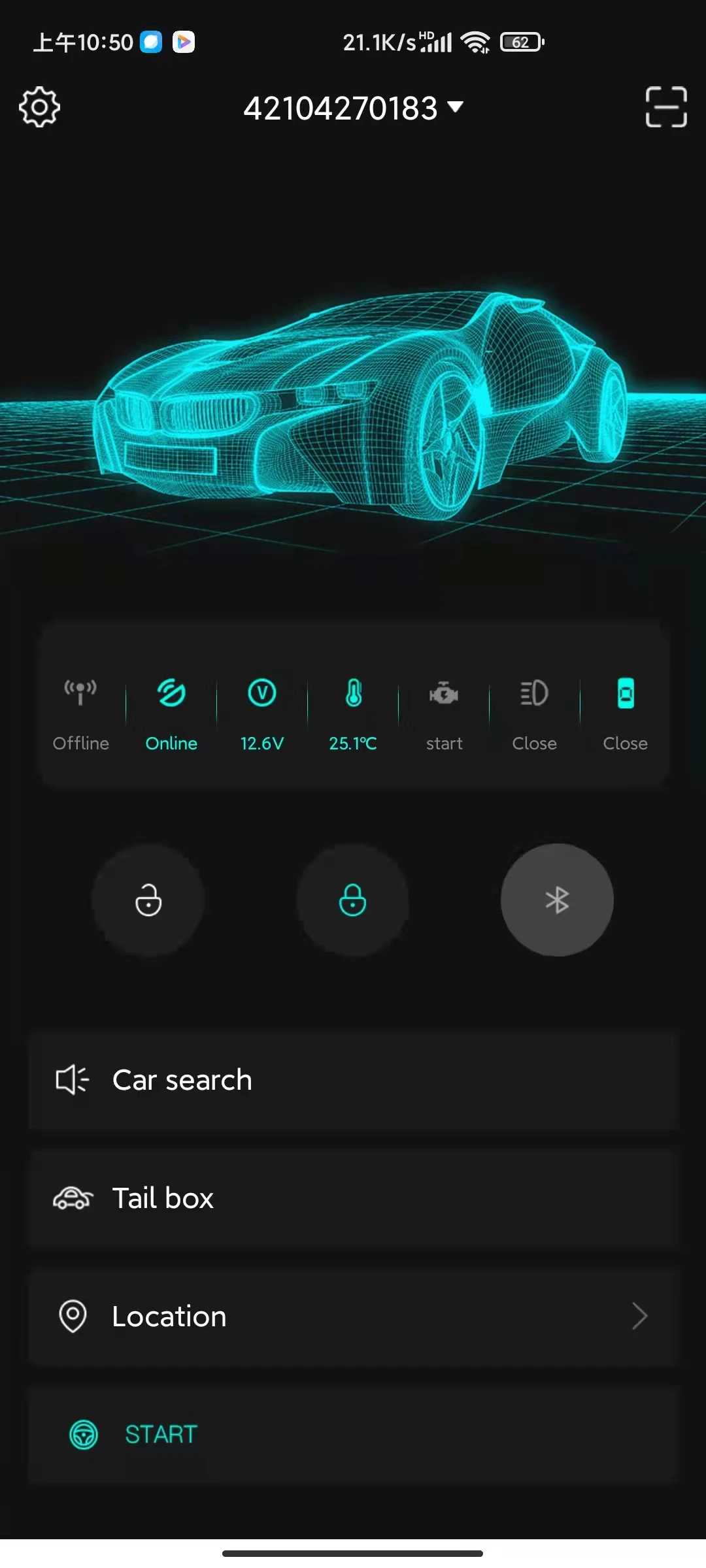

APP for bluetooth control vehicle
Note:
This product don't have passive keyless entry (Automatic lock and unlock when take the key away or close the vehicle )function, please buy our other products if you want this function

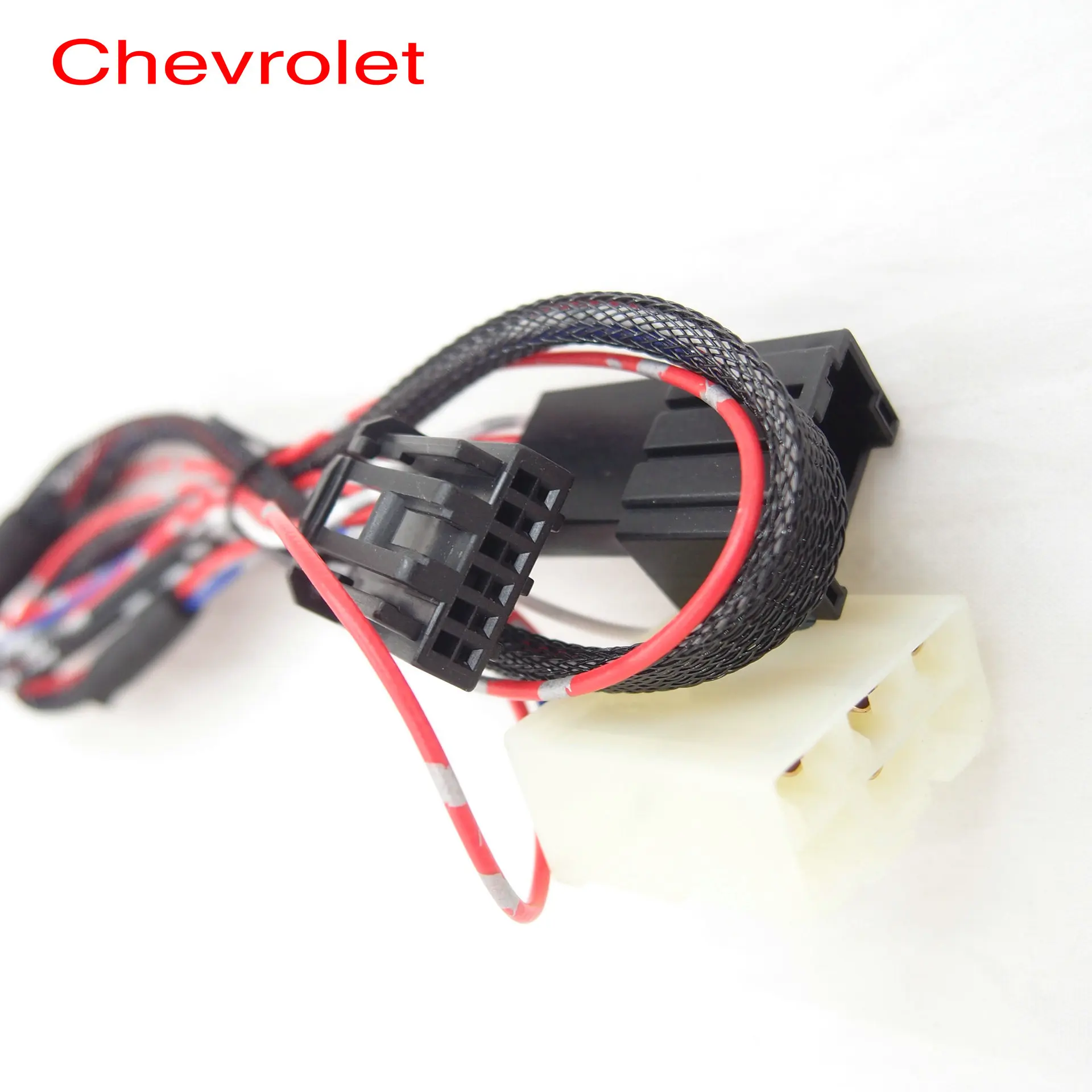

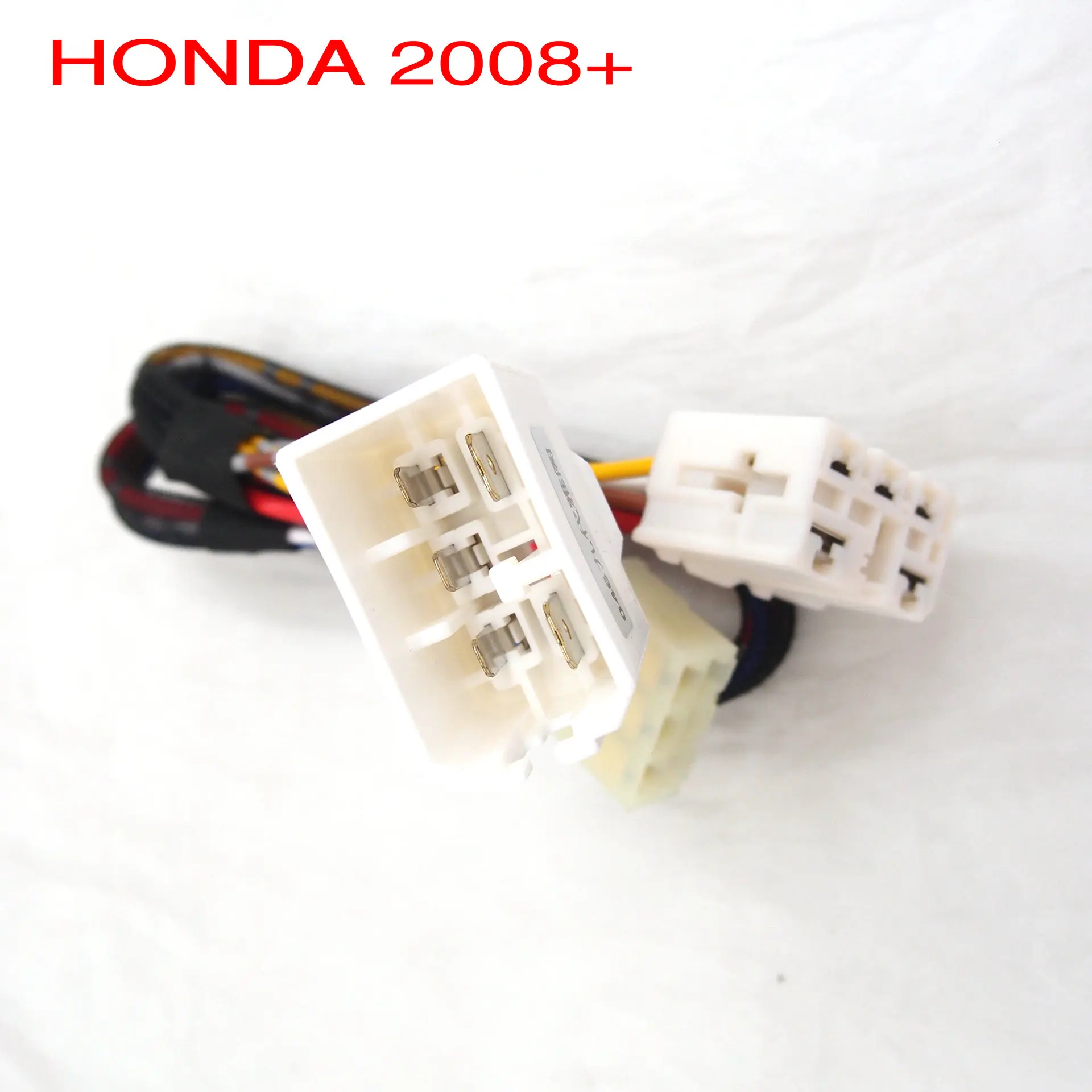

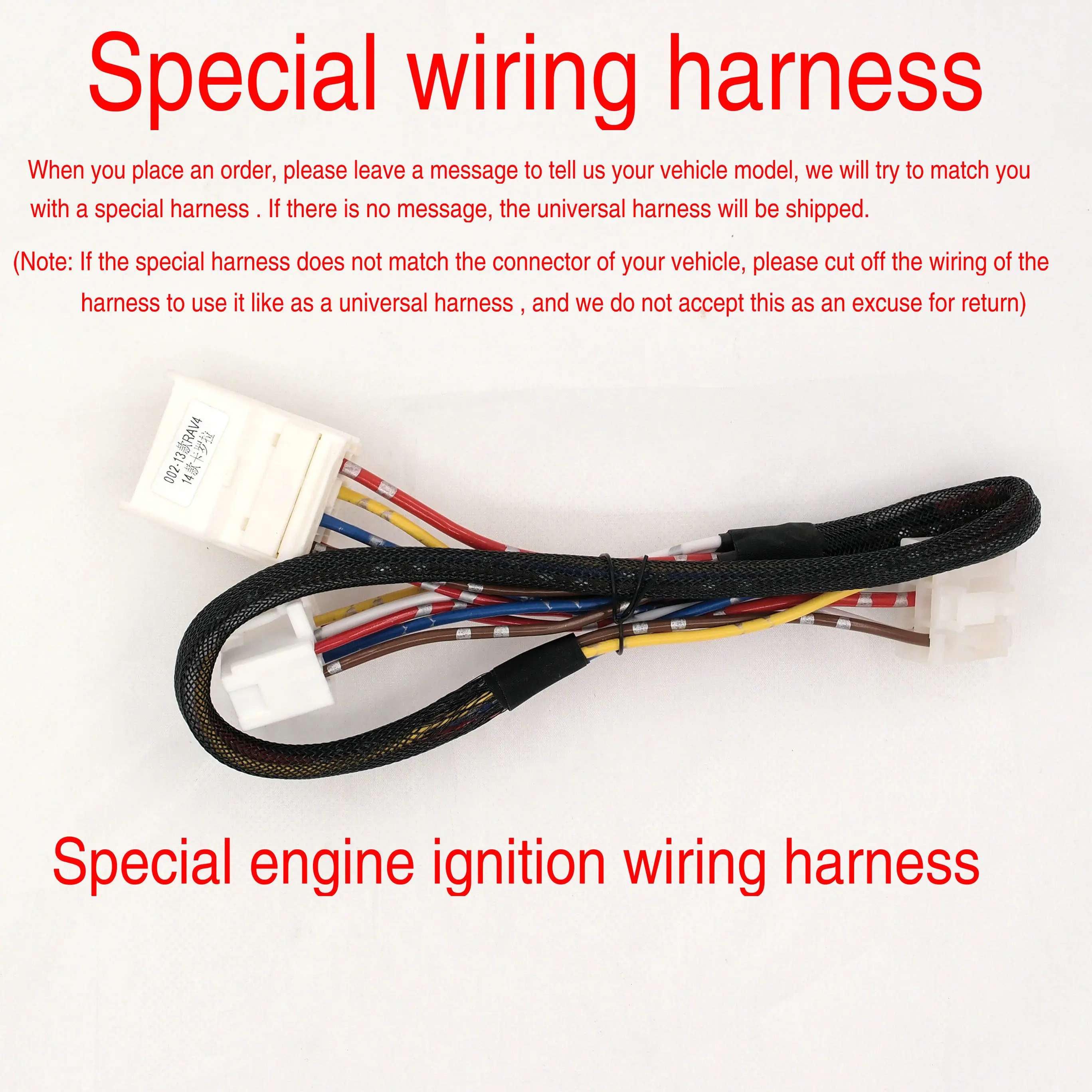

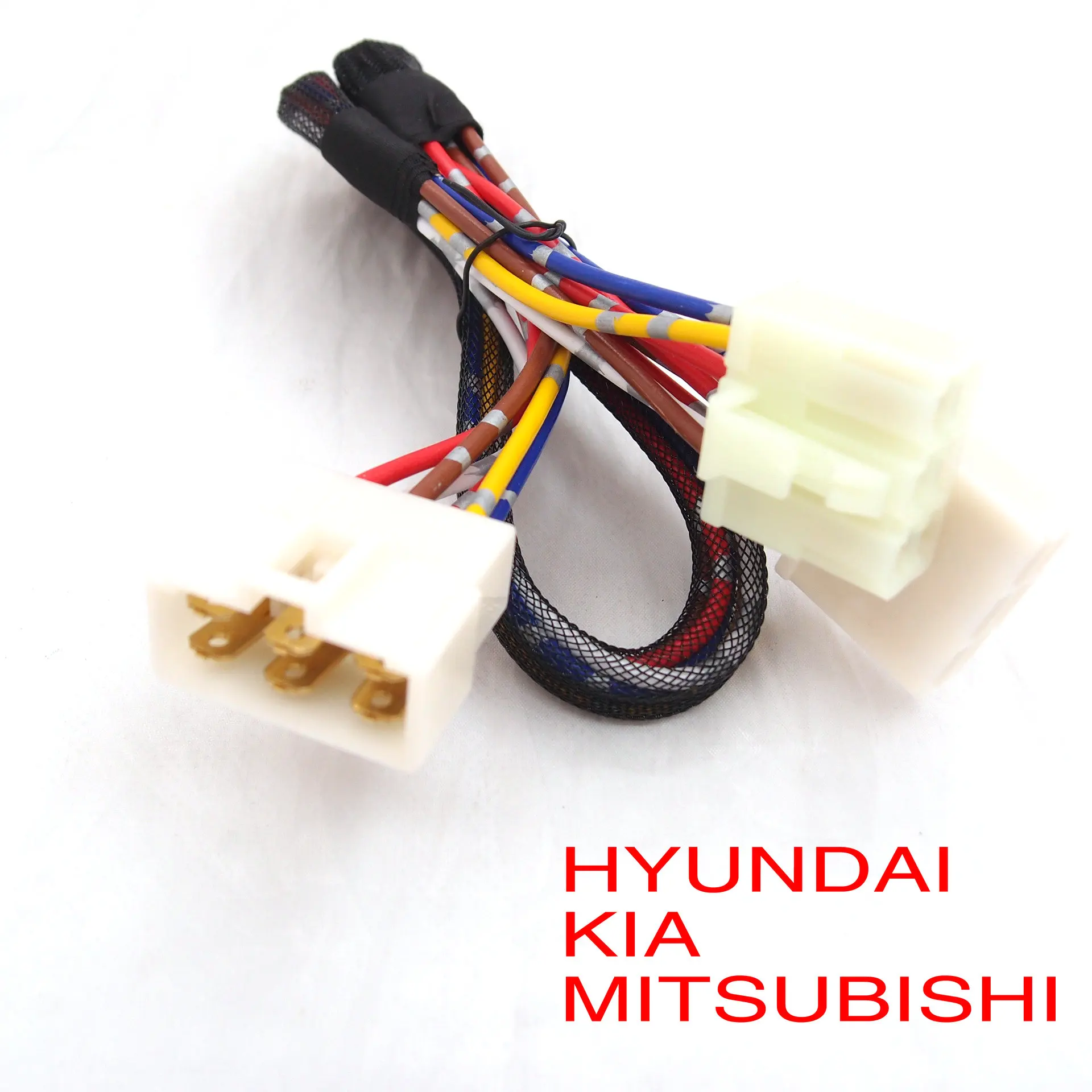

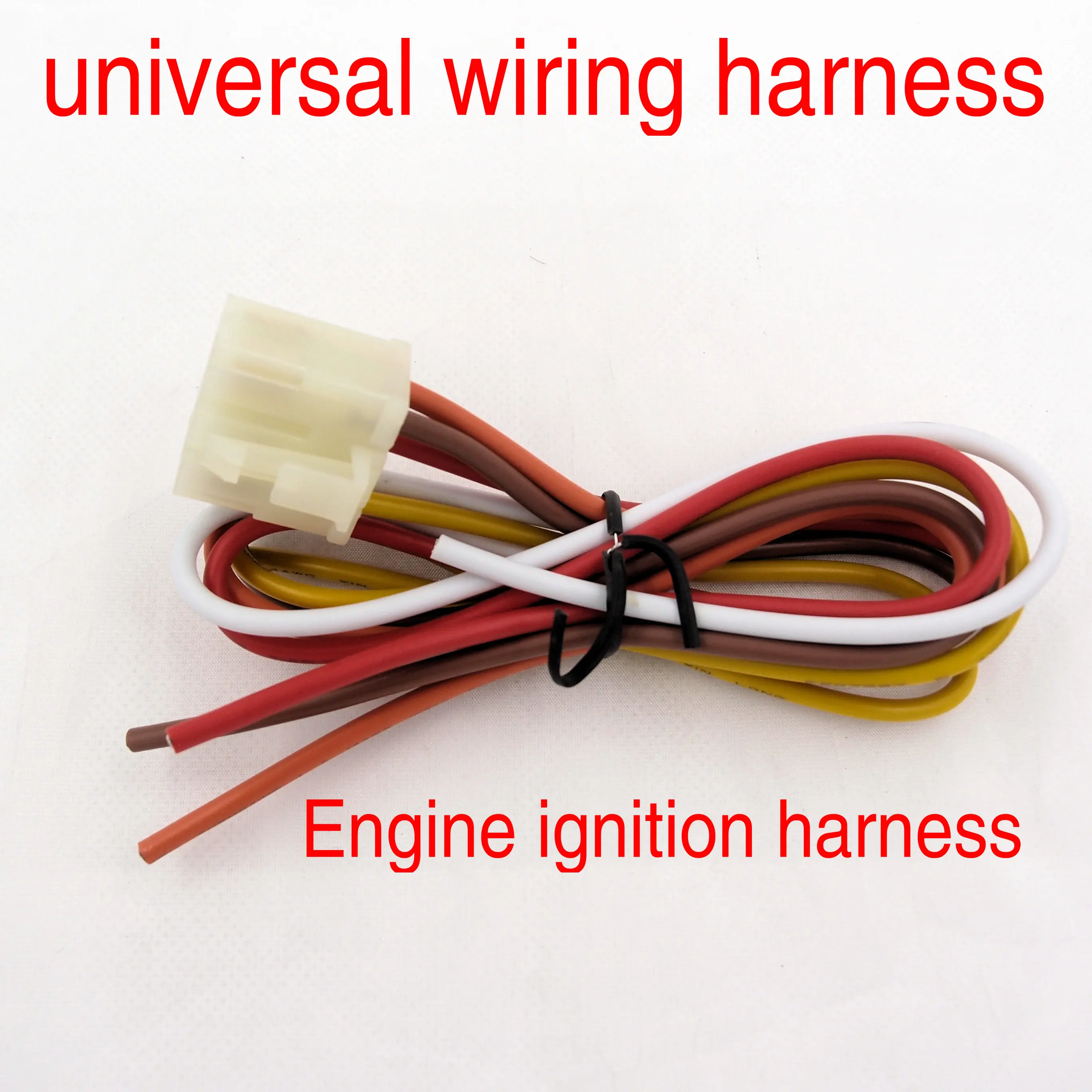

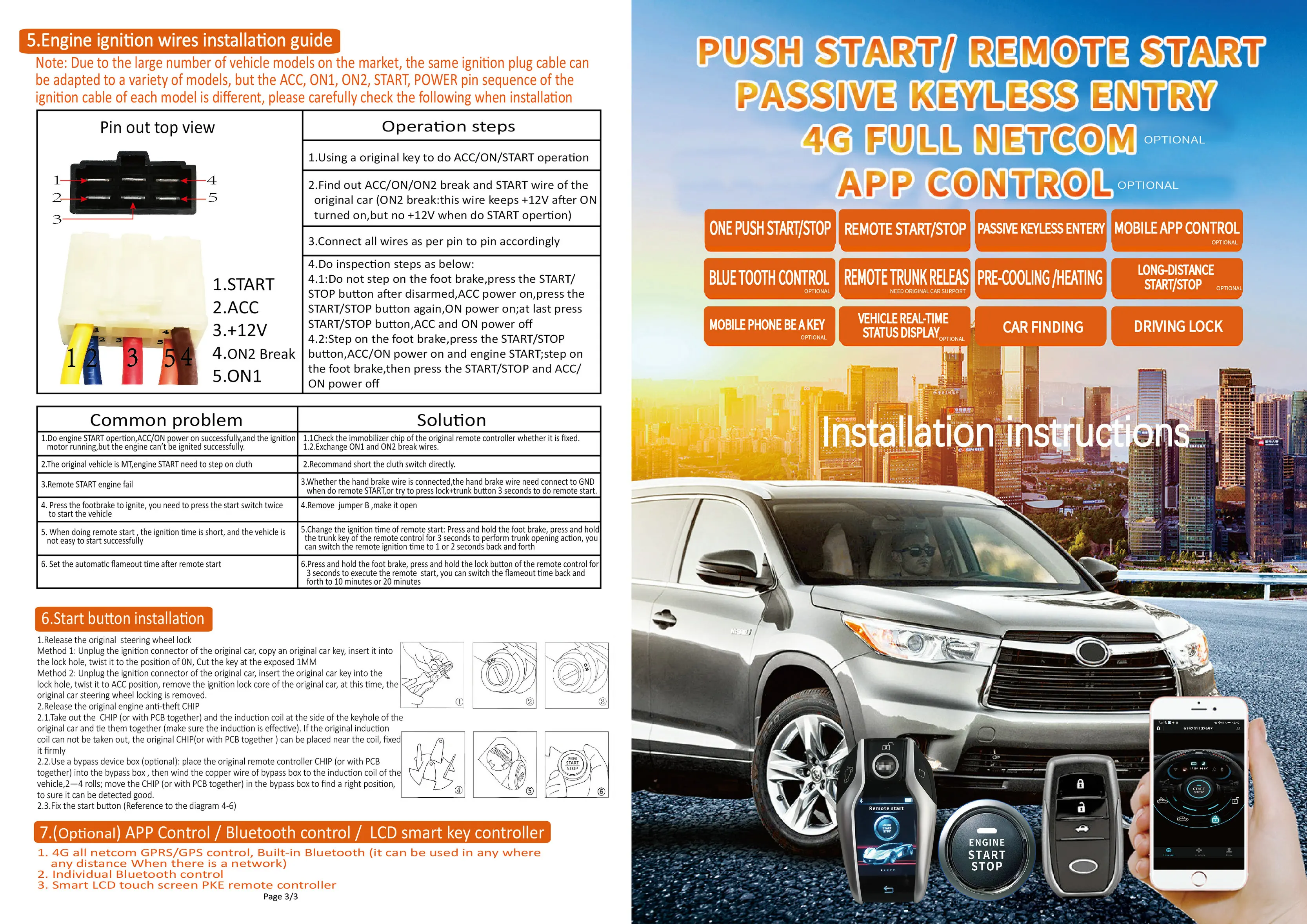

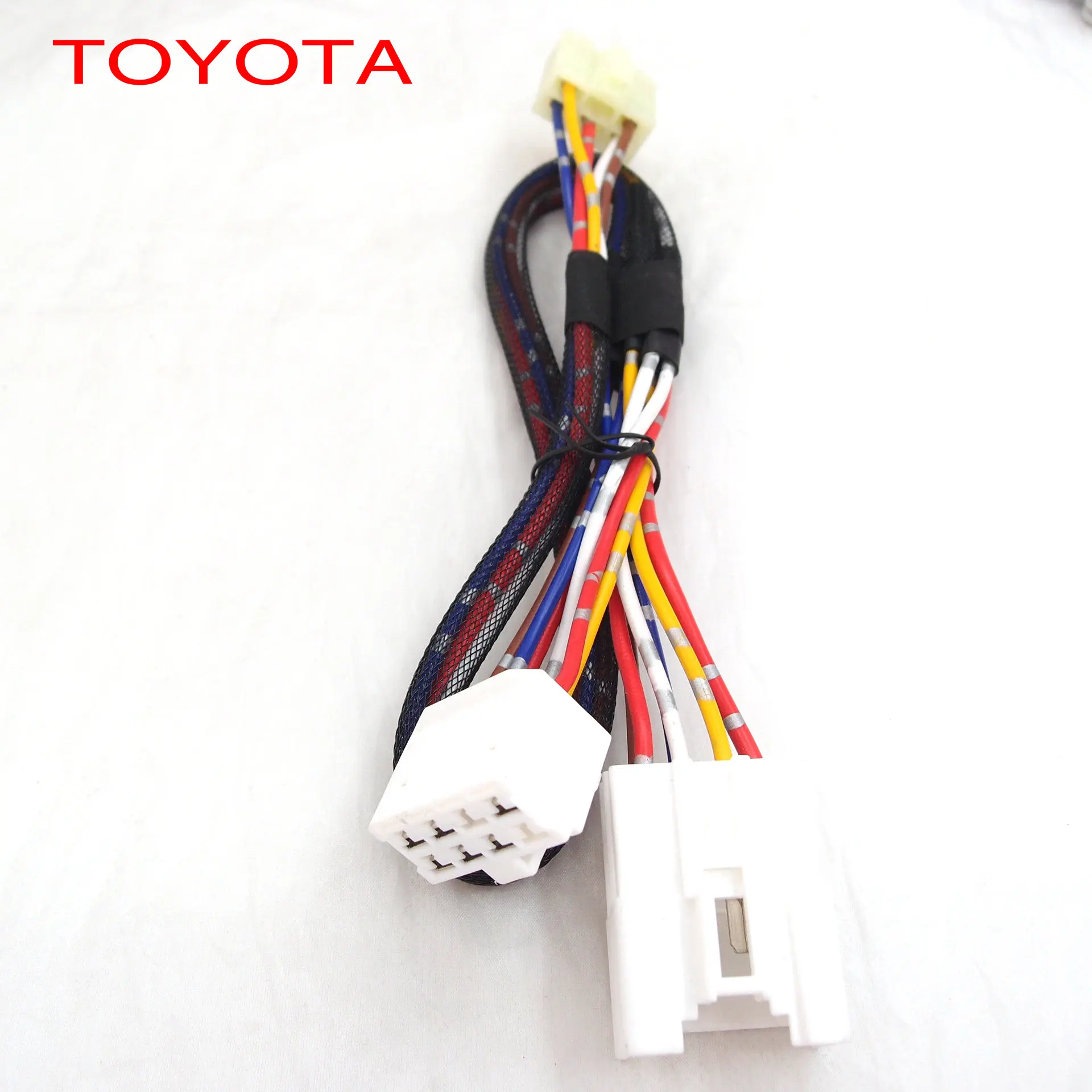

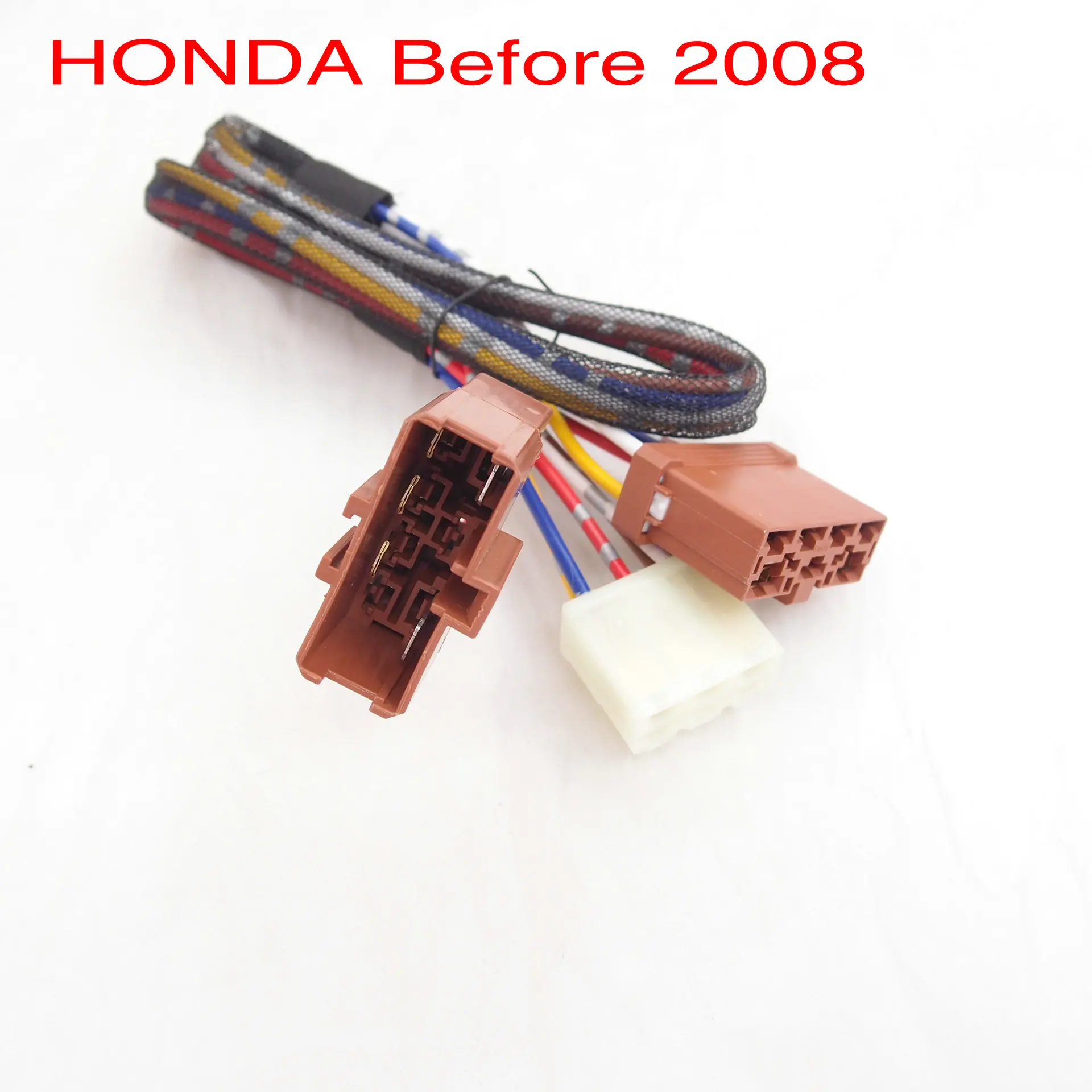

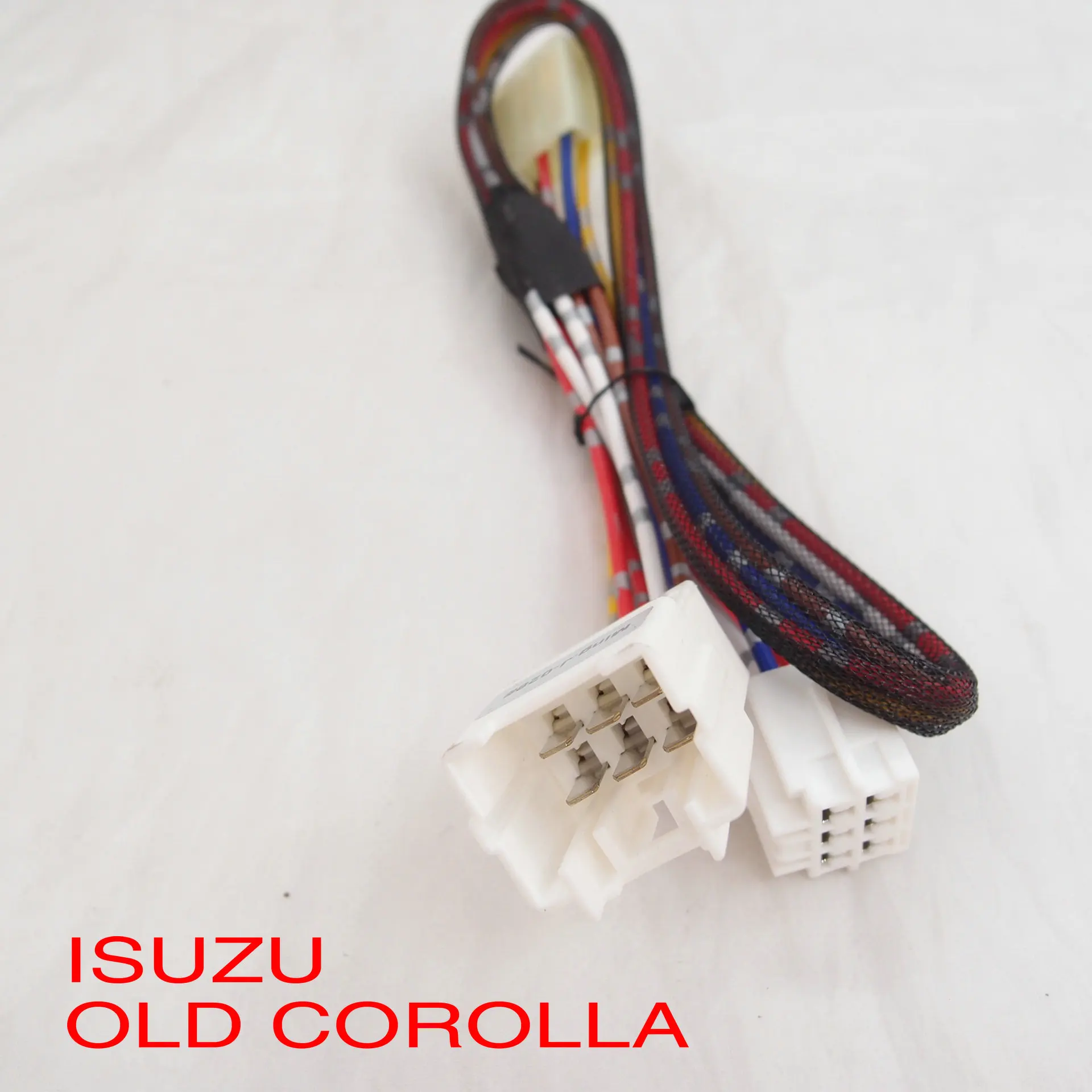

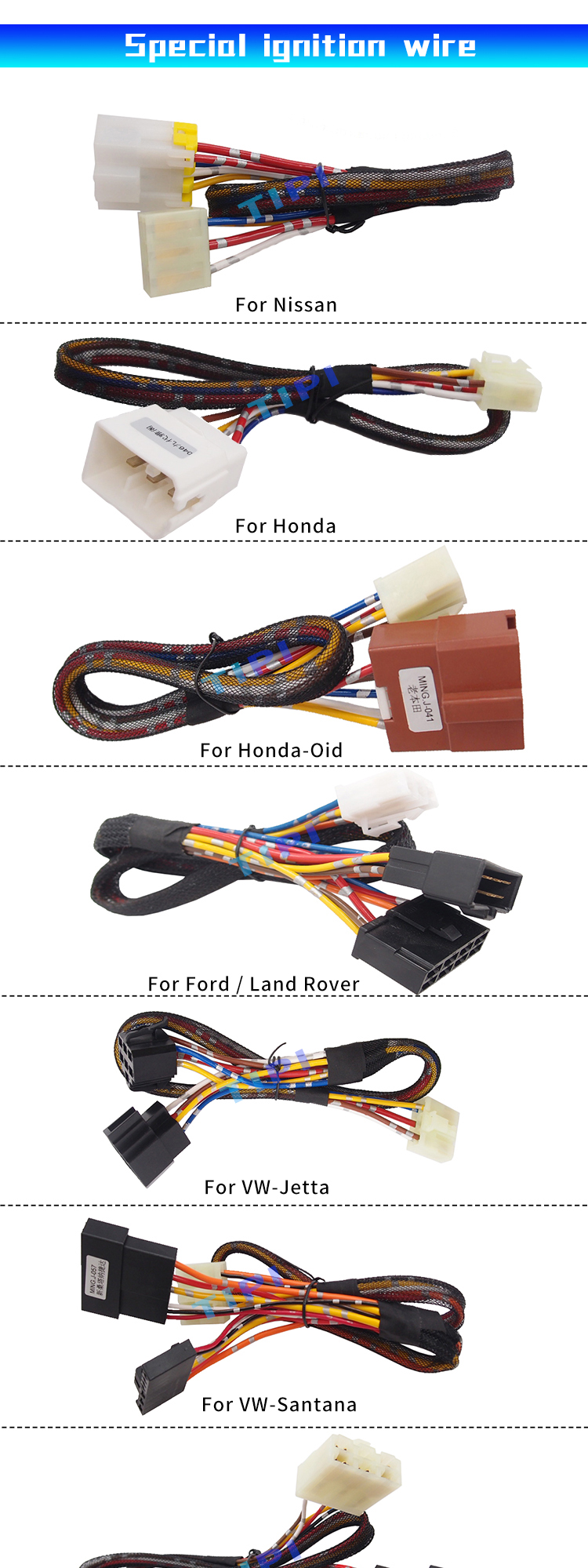

Special ignite connector ,plug to plug
When you place an order, please leave a message to tell us your vehicle model and year, we will try to match you with a special harness (Note: If the special harness does not match the connector of your vehicle, please cut off the wiring of the harness to use it like as a universal harness , and we do not accept this as an excuse for return)

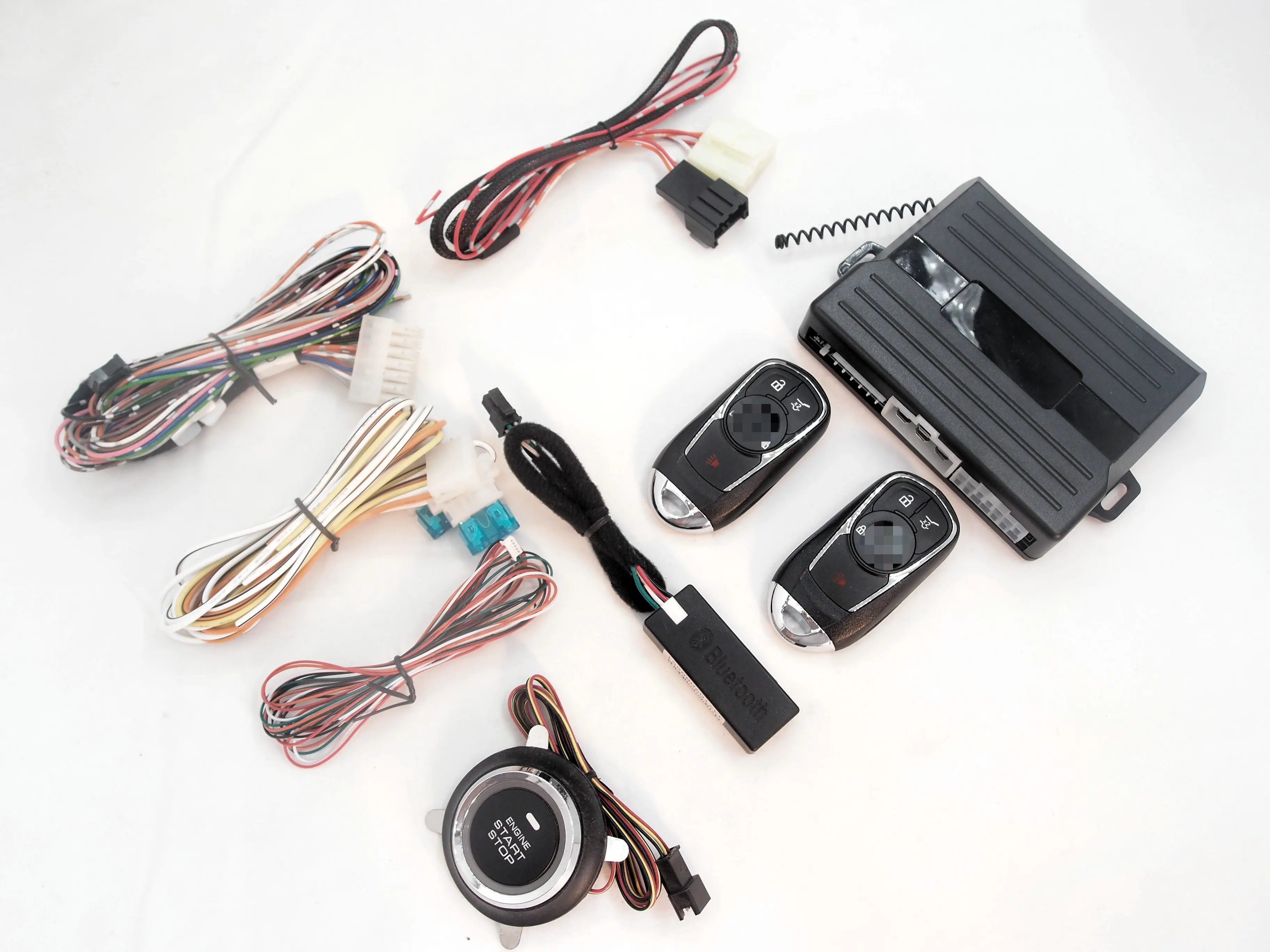

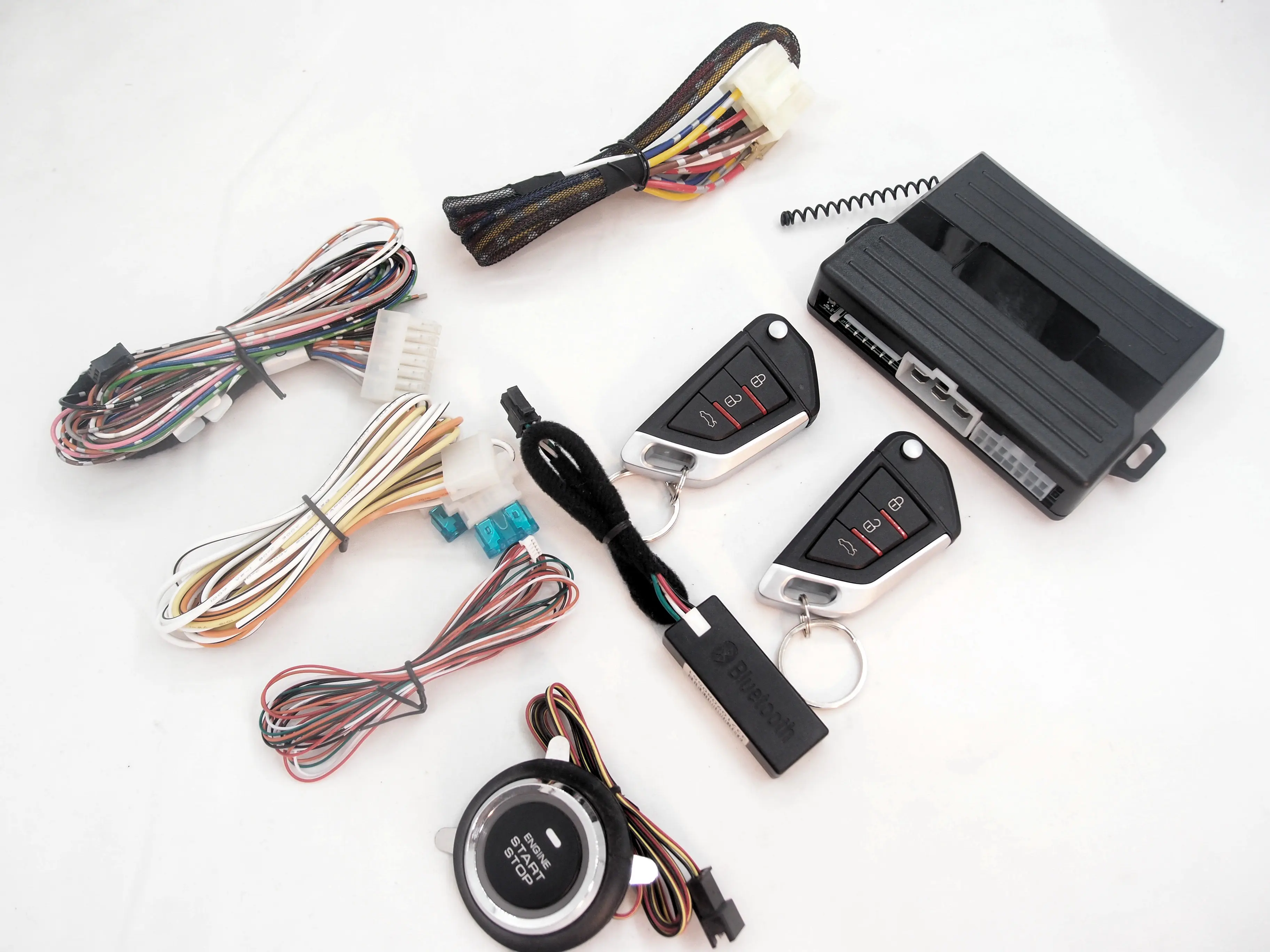

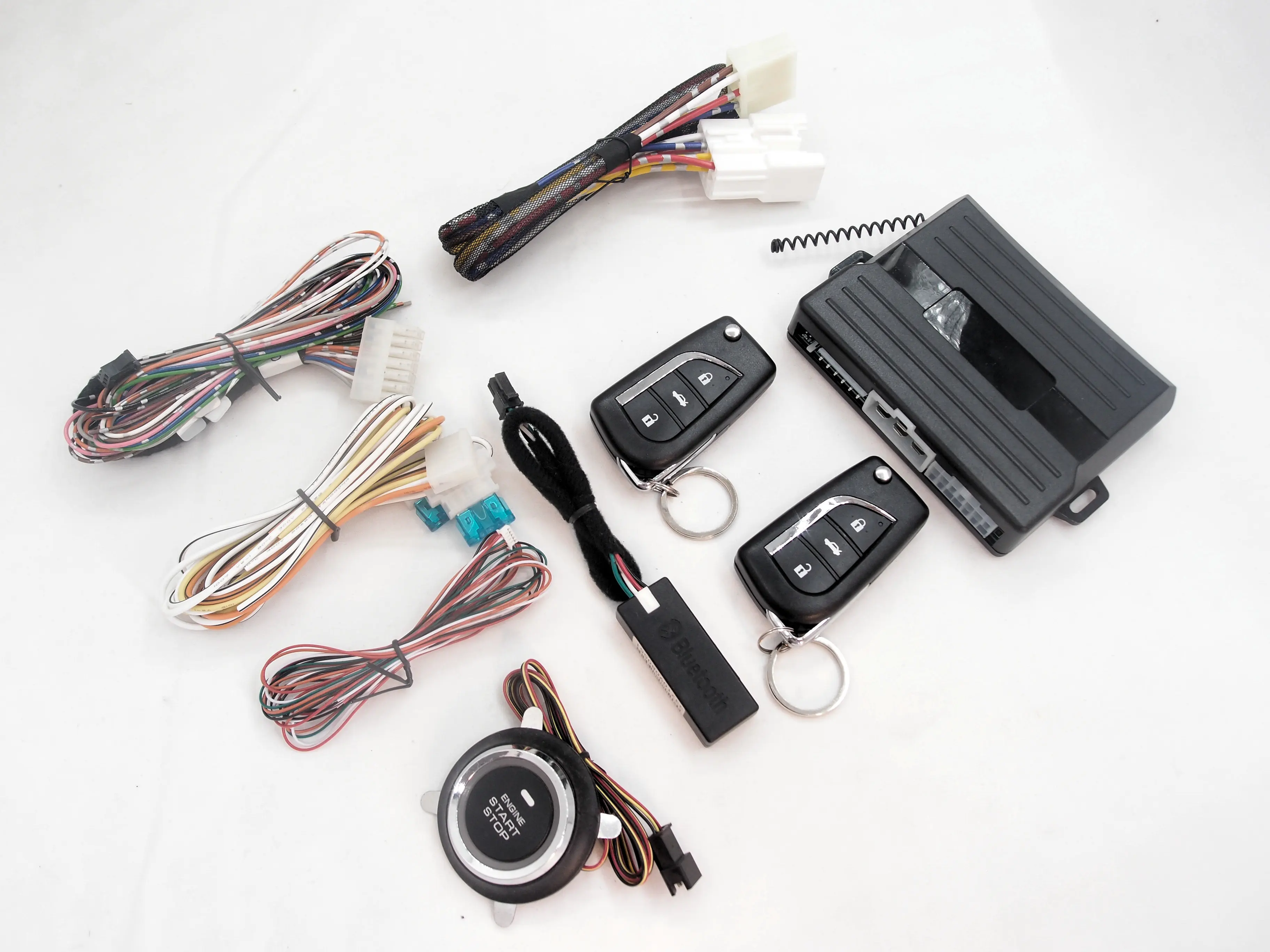

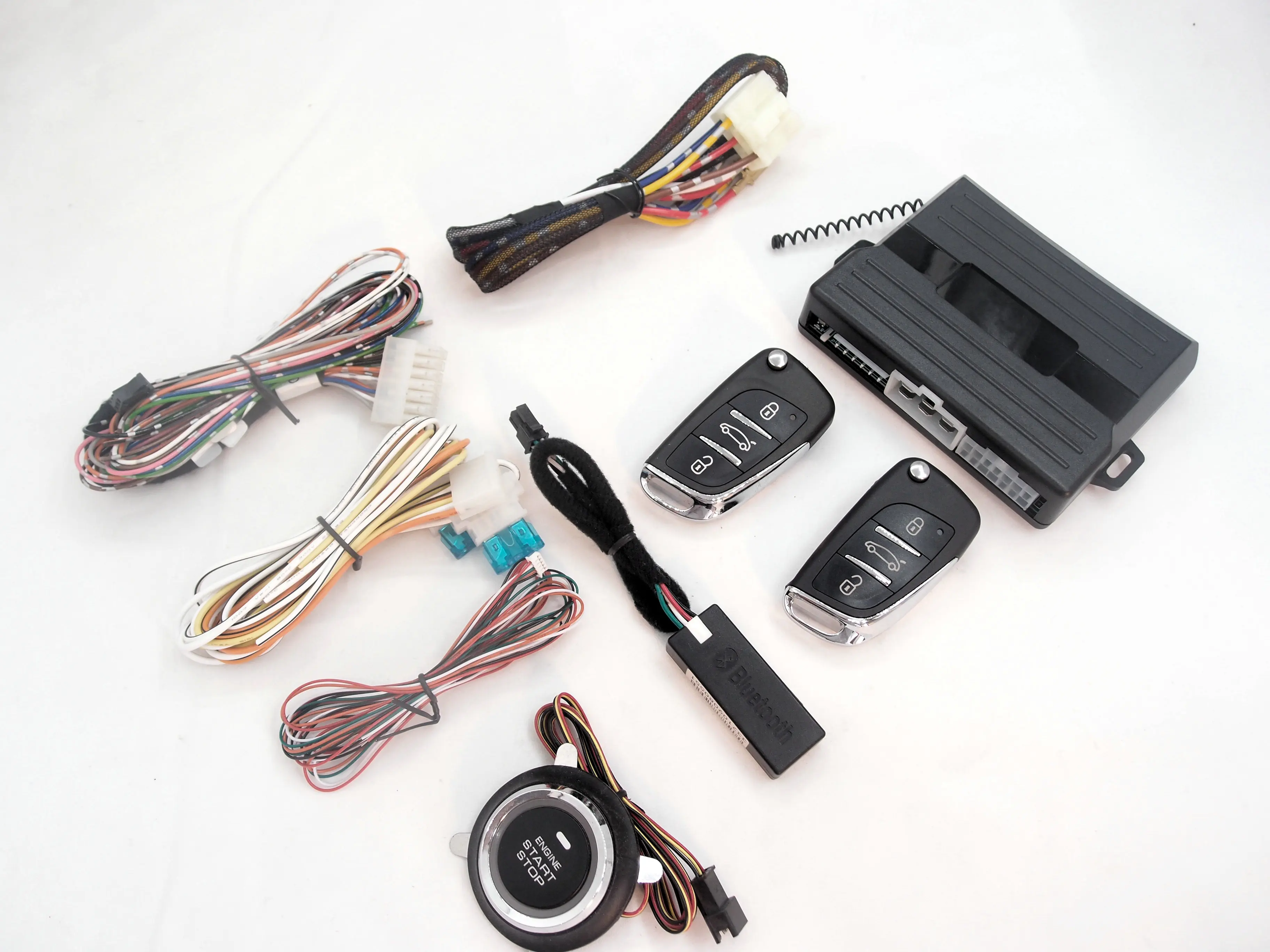

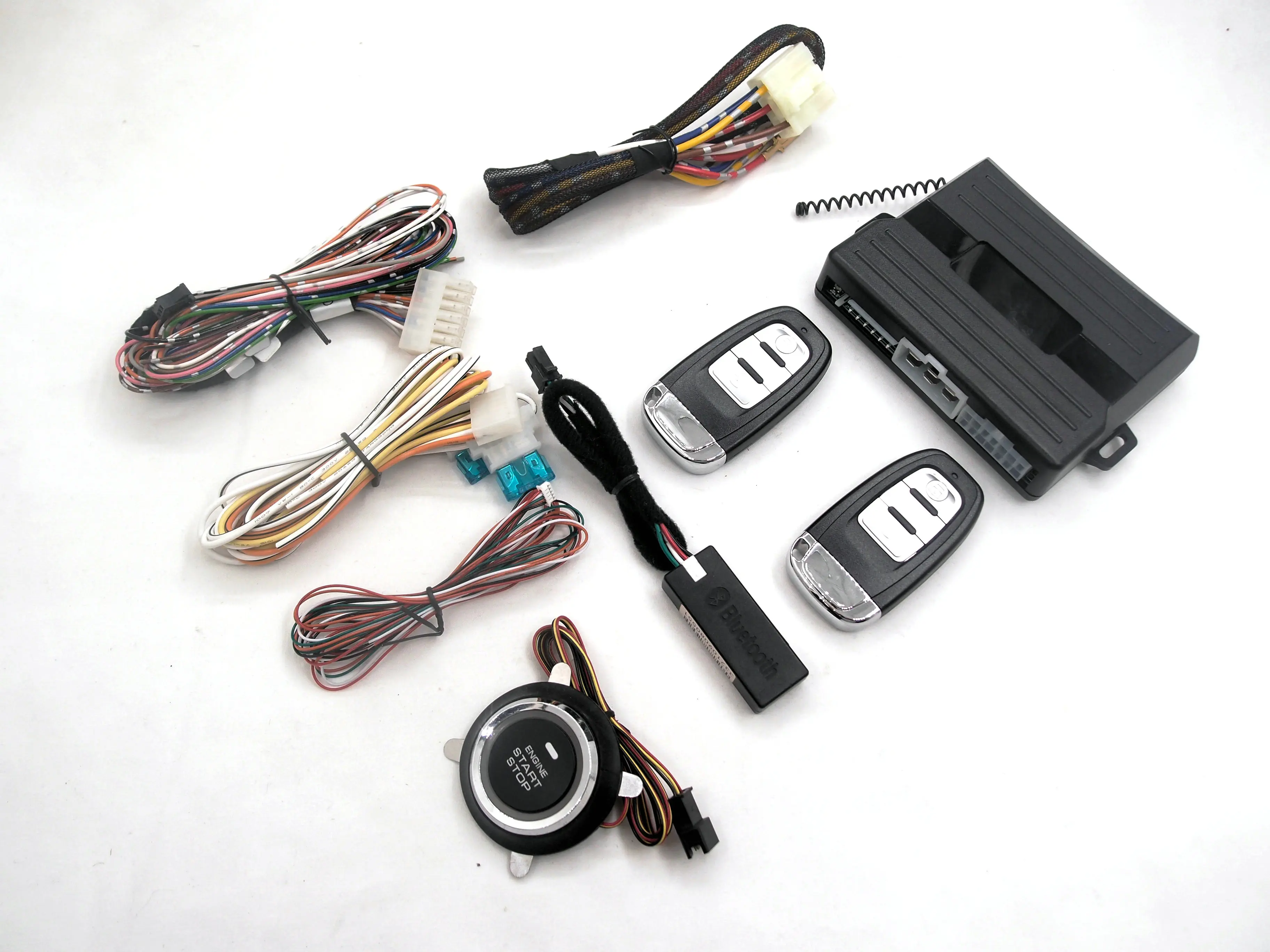

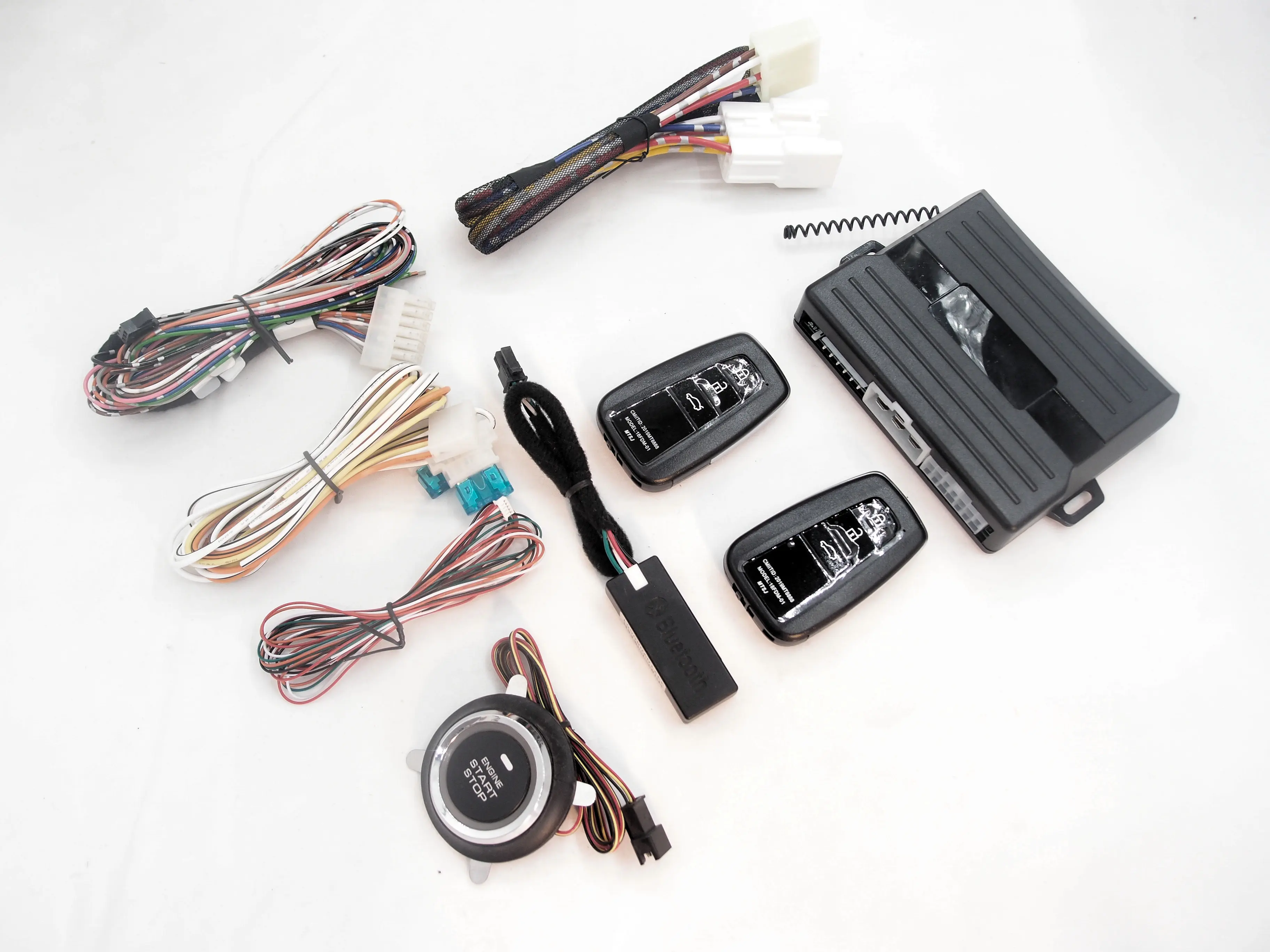

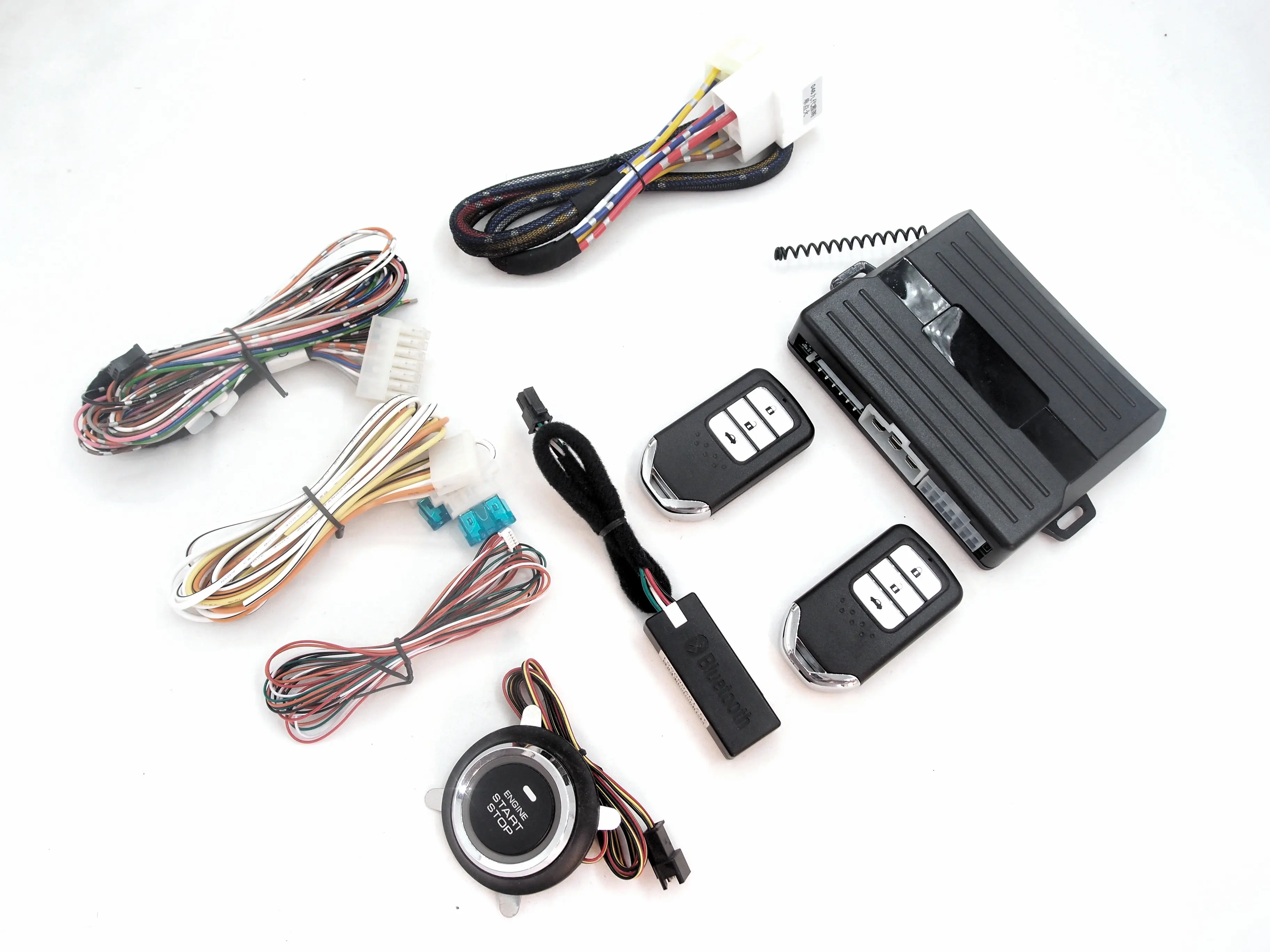

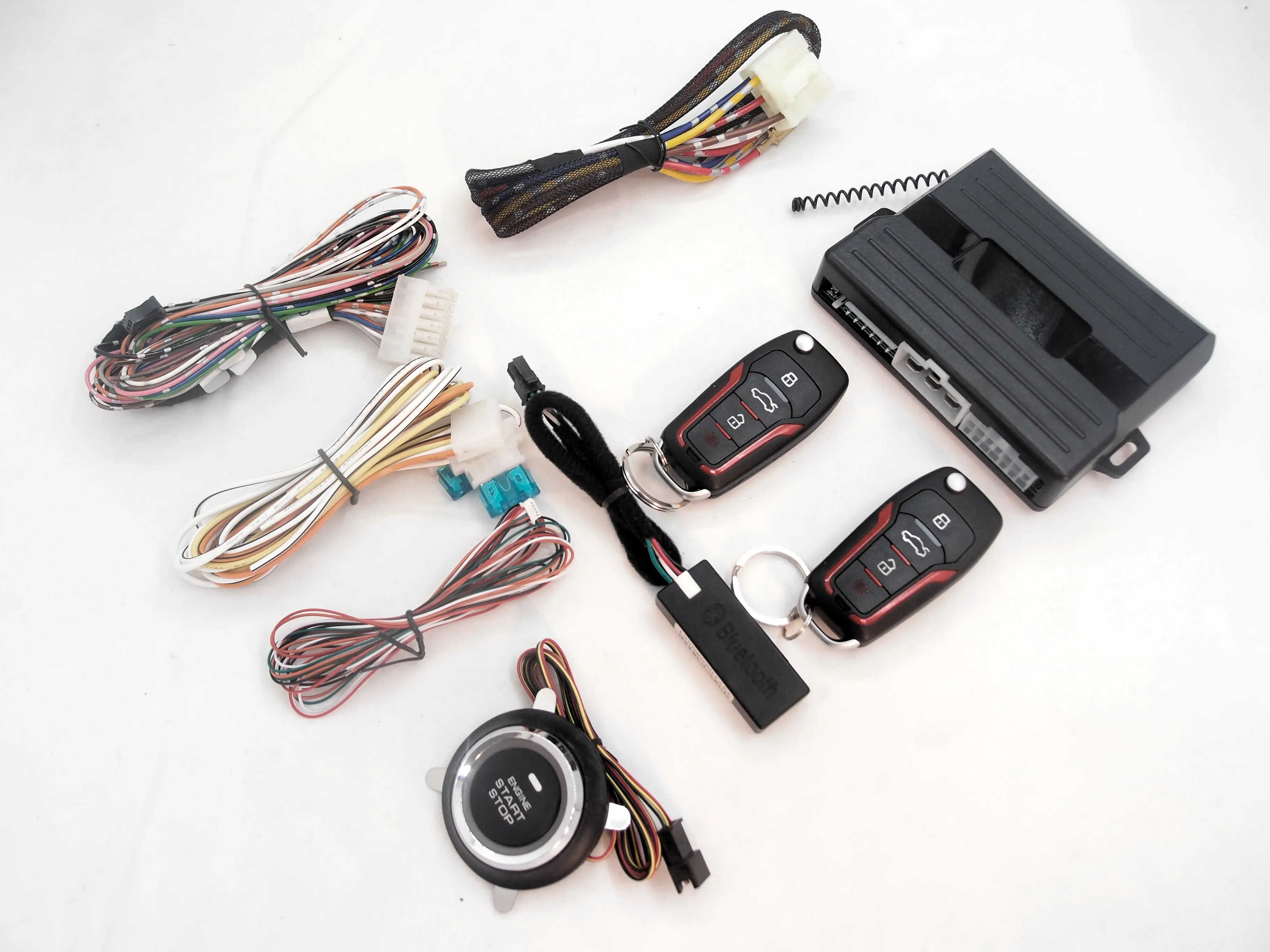

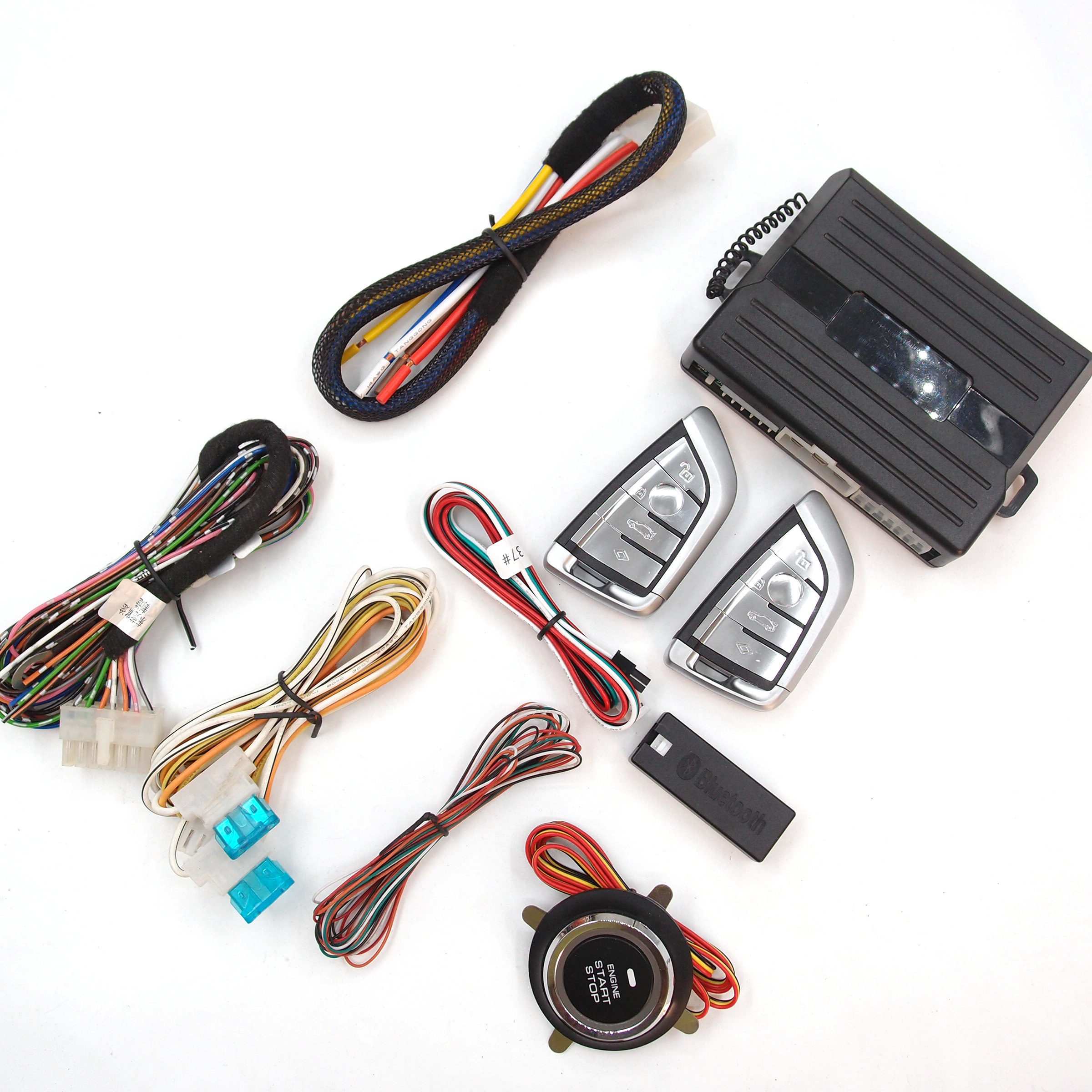

Product configuration
Main control box : 1 pcs
Remote controller: 2 pcs

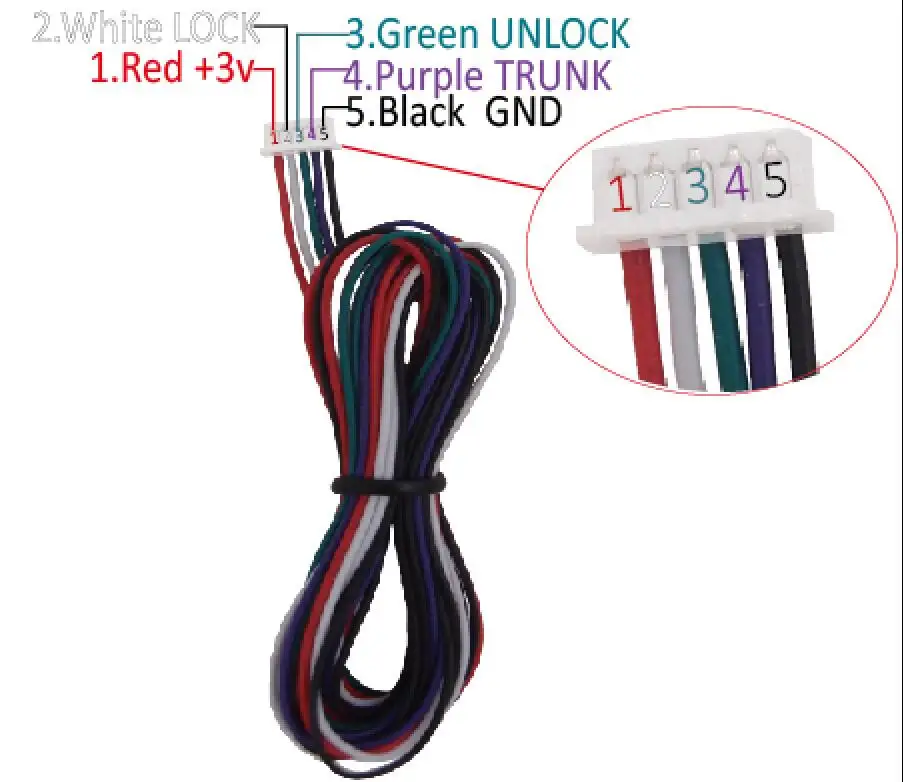

Soldering remote Wires : 1pcs
Control Wire : 1pcs
Ignition wire : 1 pcs
Bluetooth module : 1 pcs
Note :
1.When you place an order, please leave a message to tell us your vehicle model, we will try to match you with a special harness .. (Note: If the special harness does not match the connector of your vehicle, please cut off the wiring of the harness to use it like as a universal harness , and we do not accept this as an excuse for return)
2.For safe shipping, the battery has been removed, please install a CR2032 battery when you get it
