Fits for Nissan Kicks, interstar 2023year
Other Nissan car which has same ignite connector. (It can be checked under streering whell )
Function:
1.Push start
2.Remote start
3.Step on the brake to lock, unlock when engine off
4.Blinking turn lamp when doors opened
5.Support setting button ignition time, remote start ignition time, driving lock, double unlock, double tail box and many other functions. Our products can basically support models that cannot be installed by other products.
6.With special ignition harness ,easy to install ,reduce cut wires
7.Compatible with original alarm, rear mirror folding,auto headlight,windows closer,if install the device by soldering original remote controller
8.Bluetooth control vehicle is optional , Your phone is your car key
9.Passive keyless entry : The vehicle automatically locks or unlocks when leaving or approaching the vehicle with the key

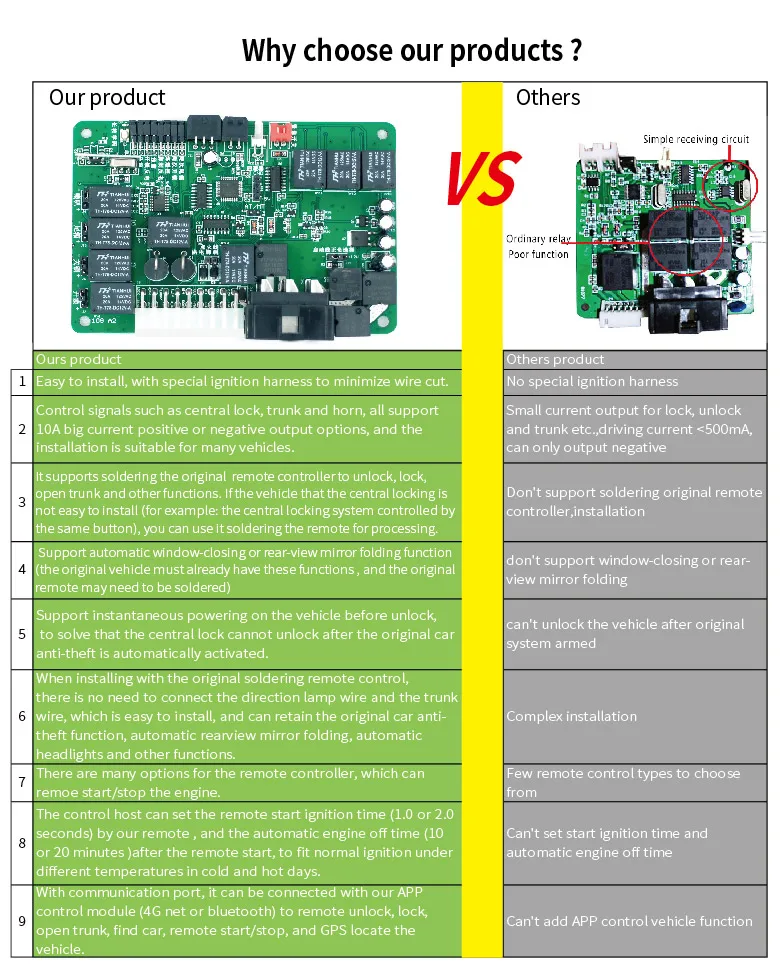

Why choose our products ?
1. Easy to install, with special ignition wire to minimize wire cut.
2. Control signals such as central lock, trunk and horn, all support 10A big current positive or negative output options, and the installation is suitable for many vehicles.
3. It supports soldering the original remote controller to unlock, lock, open trunk and other functions. If the vehicle that the central locking is not easy to install (for example: the central locking system controlled by the same button), you can use it soldering the remote for processing.
4. Support automatic window-closing or rear-view mirror folding function (the original vehicle must already have these functions , and the original remote may need to be soldered)
5. Support instantaneous powering on the vehicle before unlock, to solve that the central lock cannot unlock after the original car anti-theft is automatically activated.
6. When installing with the original soldering remote control, there is no need to connect the direction lamp wire and the trunk wire, which is easy to install, and can retain the original car anti-theft function, automatic rearview mirror folding, automatic headlights and other functions.
7. There are many shape options for the remote control, which can remoe start/stop the engine.
8. The control host can set the remote start ignition time (1.0 or 2.0 seconds) by our remote , and the automatic flameout time (10 or 20 minutes )after the remote start, to fit normal ignition under different temperatures in cold and hot days.
9. With communication port, it can be connected with our APP control module to remote unlock, lock, open trunk, find car, remote start/stop, and GPS locate the vehicle.
Special design for easy installation
1. Very simple installation , No need cut any wires for connecting or only connect foot brake wire:
1.1 To connect ignition wires and Ground with special harness, then soldering the original remote controller ,and put it nearby the coil of key for unlock immobilizer. Our device will control original remote controller to do lock, unlock and open trunk.

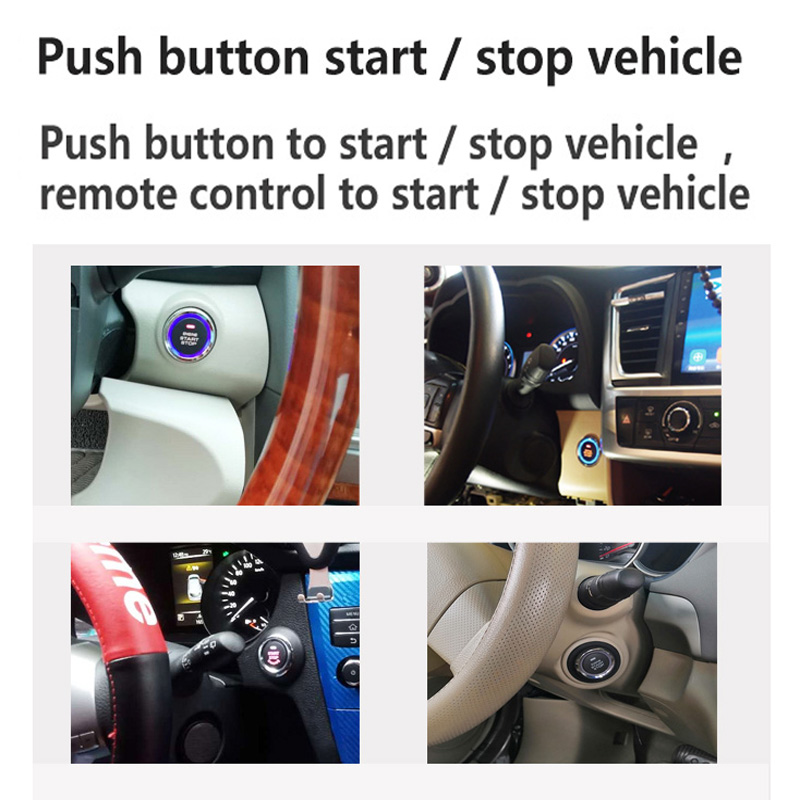

1.2 Push start: it can do push start/off by press the button 2 seconds if didn’t connect foot brake wire
1.3 remote start on/off : press and hold lock button 3 seconds to do remote start, when the engine start , it can’t unlock or lock , because the original remote controller can’t control the vehicle when engine start. So there are two options for choice: 1. default setting : don’t unlock before remote start, so the doors is locked after remote start, it need use key blade to open the door . 2. unlock before remote start, so the doors isn’t locked. These two options can be set by user ,please refer to the setting options .
1.4 All of these two options, it need do unlock by remote controller or APP after remote start, otherwise it will turn off engine automatically after 20 minutes.
1.5 This method is with good compatible with original alarm, automatic head light, folding rear mirror etc.
2. Simple installation method: (recommend)
2.1To connect ignition wires and Ground with special harness, then soldering the original remote controller ,and put it nearby the coil of key for unlock immobilizer. Our device will control original remote controller to do lock, unlock and open trunk.
2.2 To connect foot brake, horn, lock and unlock wires,for this installation , it can unlock and lock after remote start 。
2.3 This method is with good compatible with original alarm, automatic head light, folding rear mirror etc.
3. The normal connection method, do not soldering the original car remote controller, To connect ignition wires and Ground with special harness, then connect foot brake, horn, lock , unlock ,trunk and two direction lamps .for this installation , it can unlock and lock after remote start 。

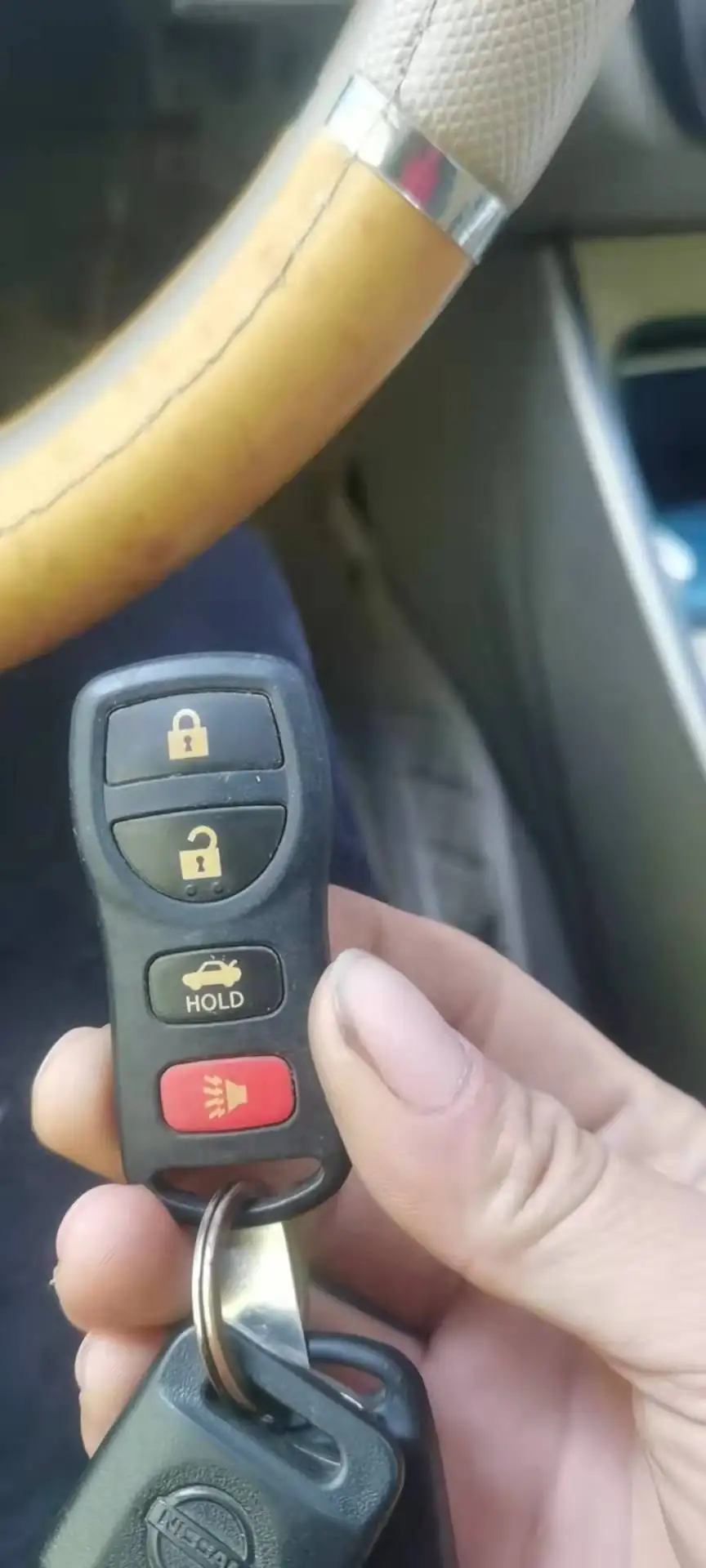

How to soldering original key for easy installation?

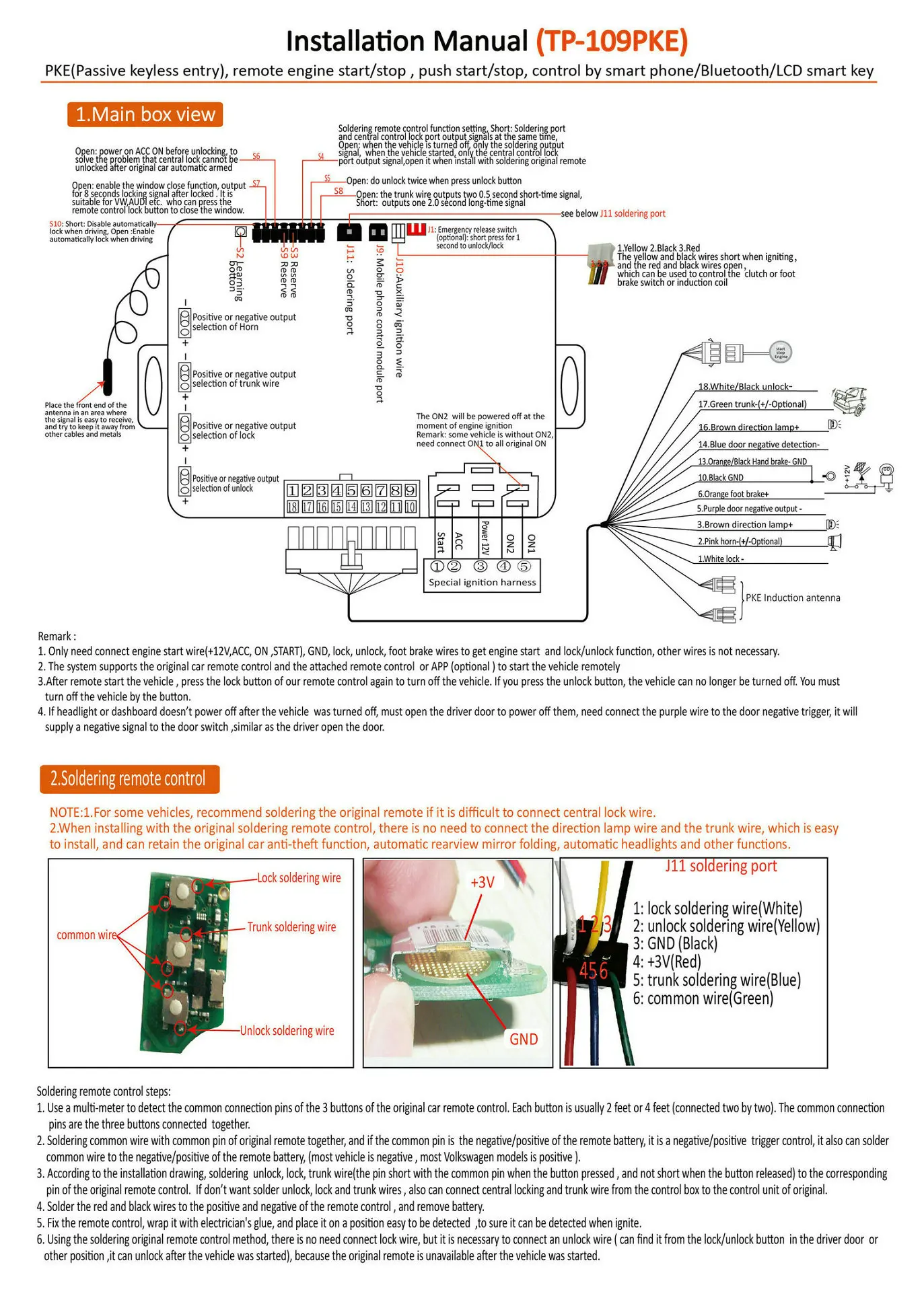

Schematic diagram of soldering original remote control (For some vehicles, recommend soldering the original remote if it is difficult to connect central lock wire)
PIN1: lock soldering wire (white)
PIN2：unlock soldering wire(yellow)
PIN3： GND (black)
PIN4： +3.3V (red)
PIN5： trunk soldering wire (blue)
PIN6： common wire for +/- trigger selection (green)

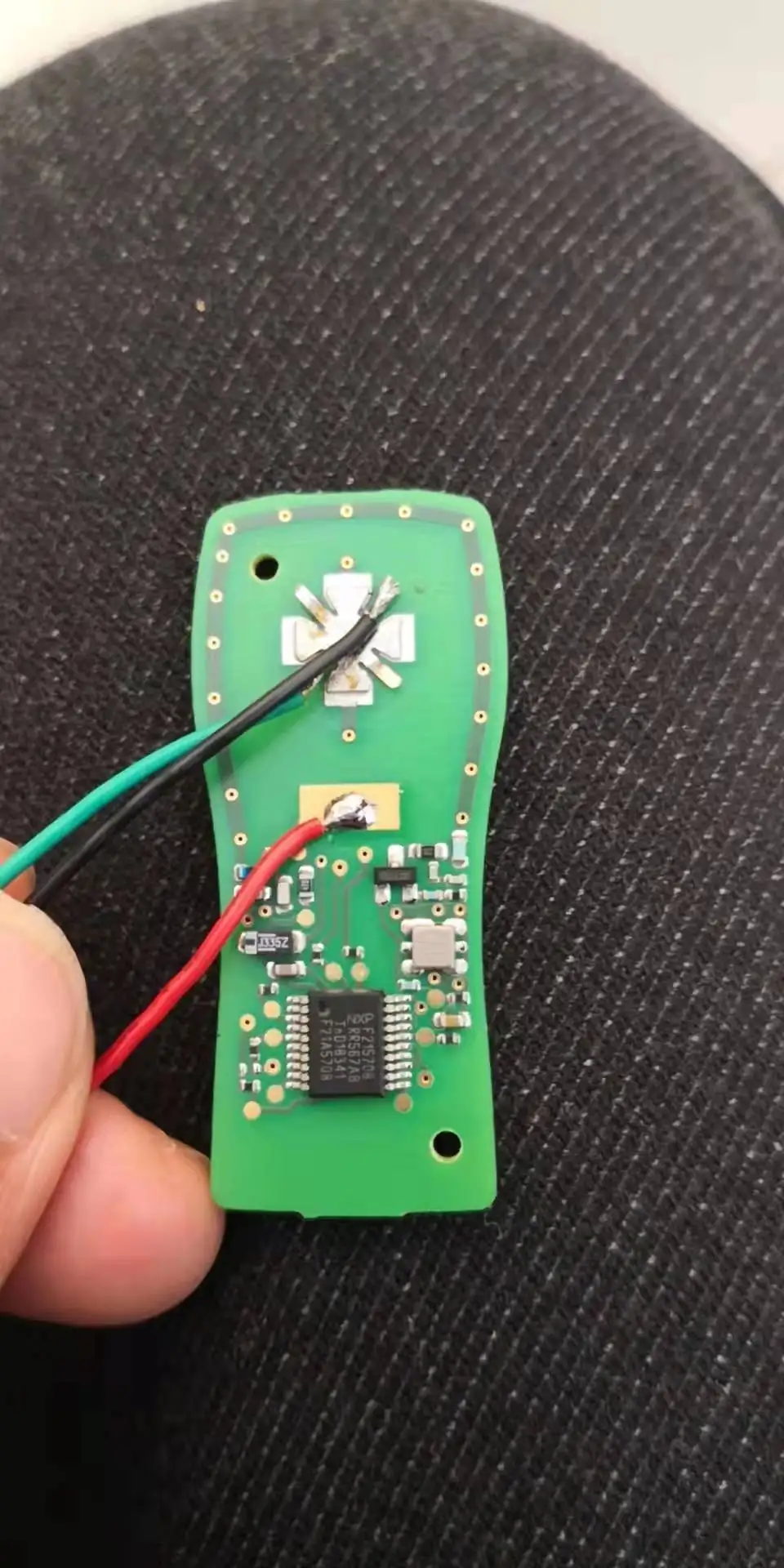

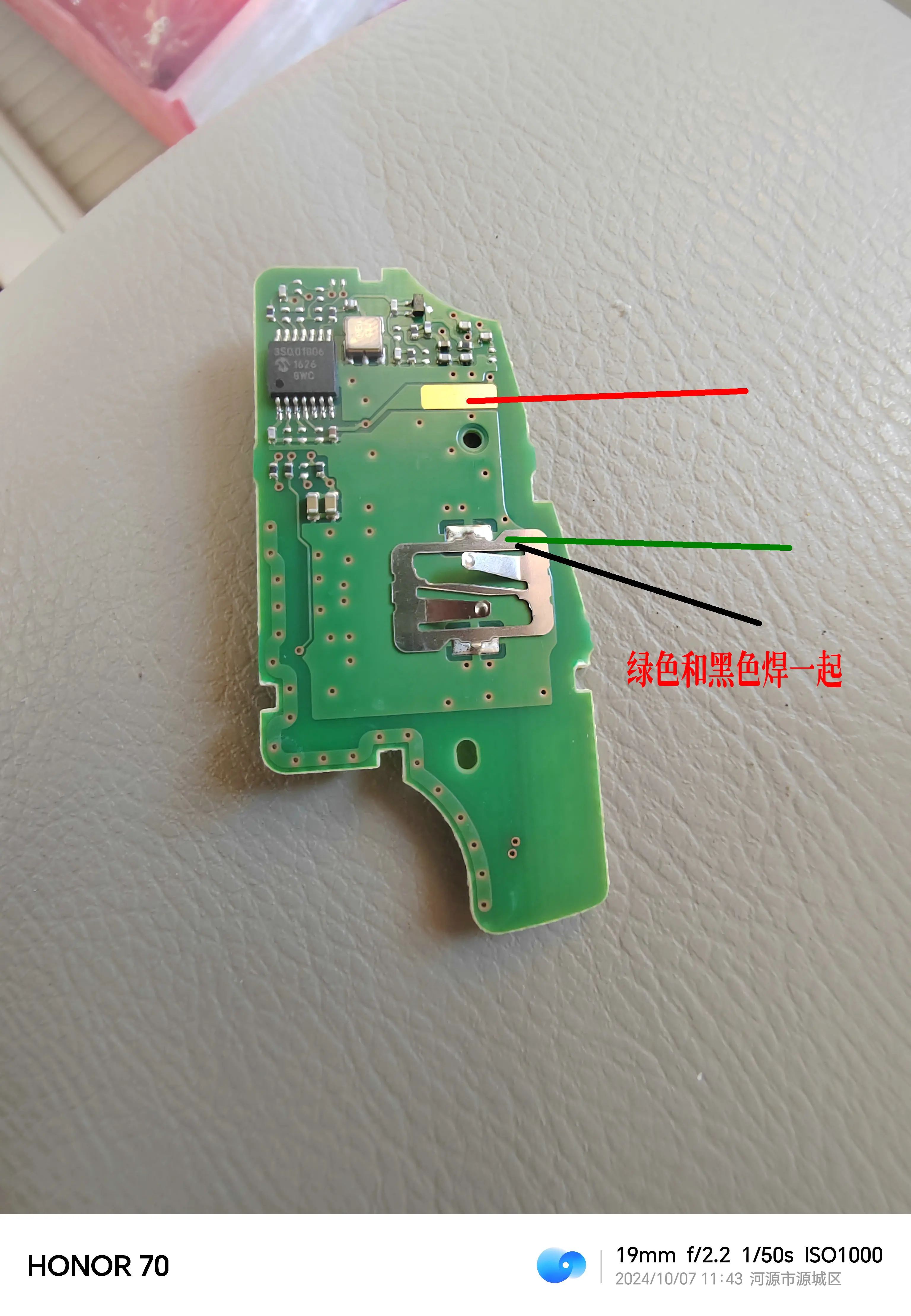

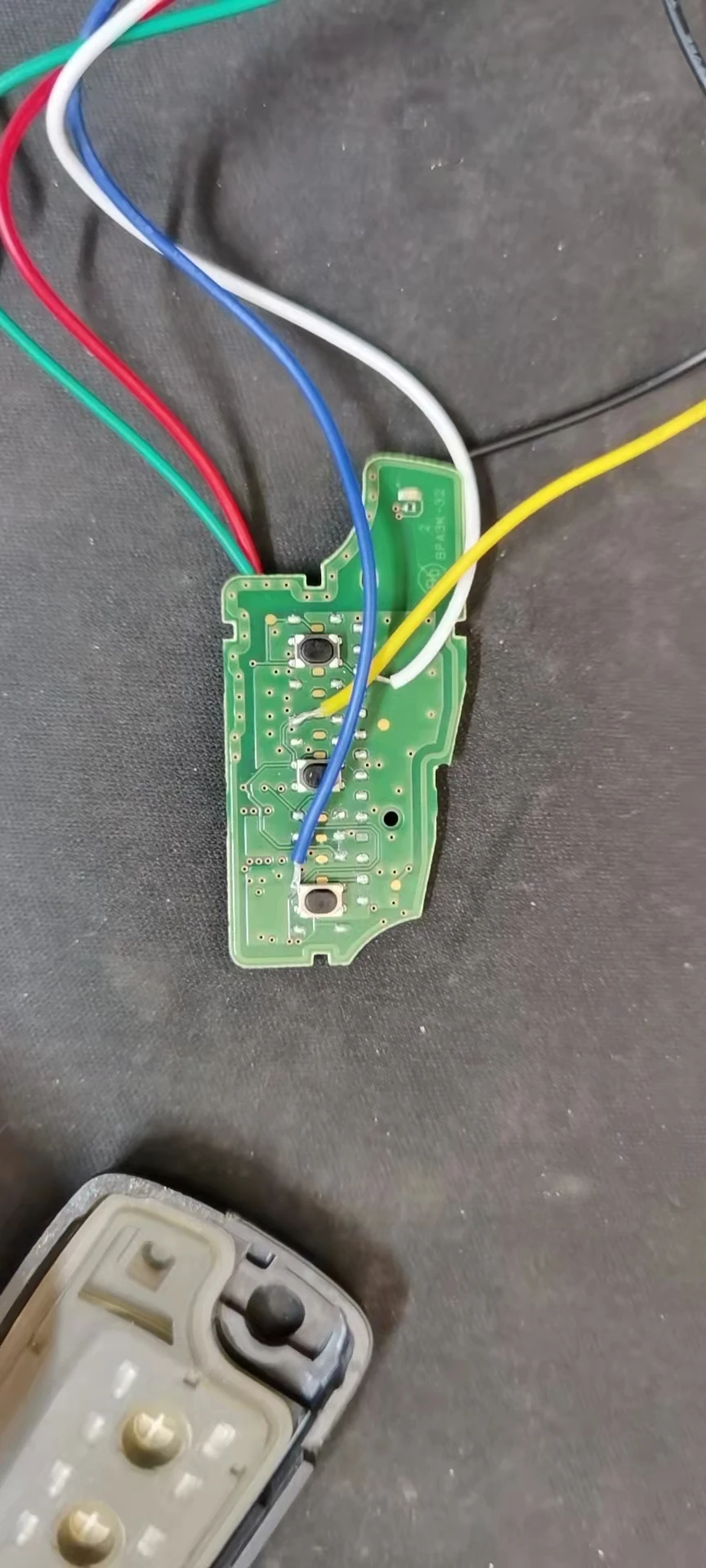

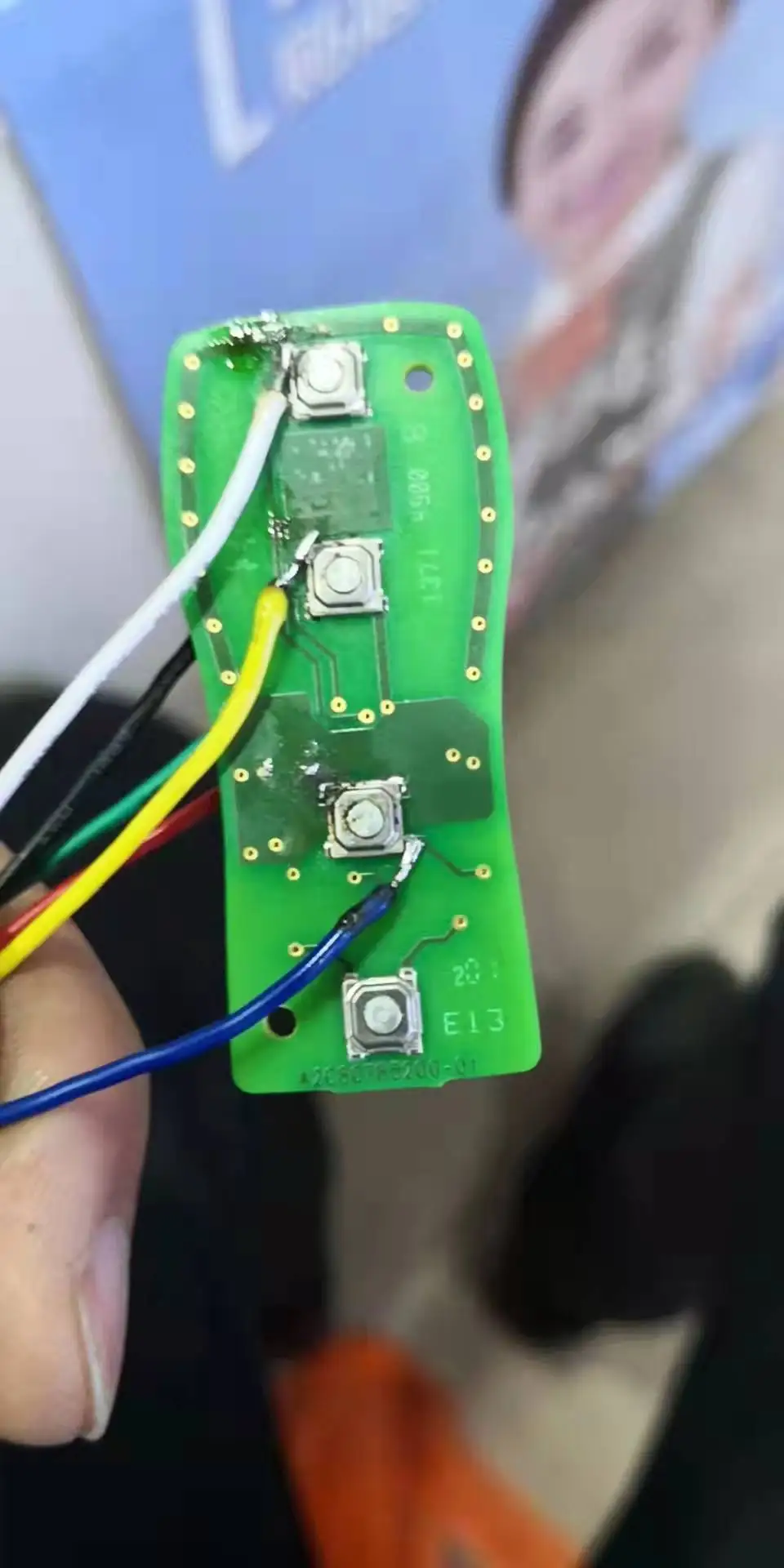

Soldering remote control steps:
1. Use a multi-meter to detect the common connection pins of the 3 buttons of the original car remote control. Each button is usually 2 feet or 4 feet (connected two by two). The common connection pins are the three buttons connected together.
2. If the common pin connected to the positive of the remote control battery, it is a positive trigger control, if the common pin connected to the negative of the battery, it is a negative trigger control (most vehicle is negative trigger).
3. According to the installation drawing, soldering unlock, lock, trunk wire to the corresponding pin of the original remote control. (After the common pin is determined, diagonal pin is correct pin )
4. Solder the red and black wires to the positive and negative poles of the remote control power supply.
5. If it is negative trigger , need to solder green wire to black wire together. If it is positive trigger , need to solder green wire to red wire together.
6. fix the original remote controller which soldered, wrap it with electrician's glue, and place it in the original induction coil if it with immobilizer chip ,to sure it can be detected when ignite.
7. Using the soldering original remote control method, there is no need to connect the direction lamp wires and trunk wire, but it is necessary to connect lock and unlock wires, because the original remote is unavailable after the vehicle was started.
How to test central locking wire for lock and unlock:
Use the bulb testing pen (Important , can’t use LED testing pen) , clamp ground wire , to touch the wire which can do lock or unlock.
Usually ,it is on the triangular cover or in the driving door . For most Honda car , it is in the driving door .Under the locking switch , it is easy to find a locking wire, and unlock wire is a empty hole which nearby the locking wire .
Installation on Qashqai

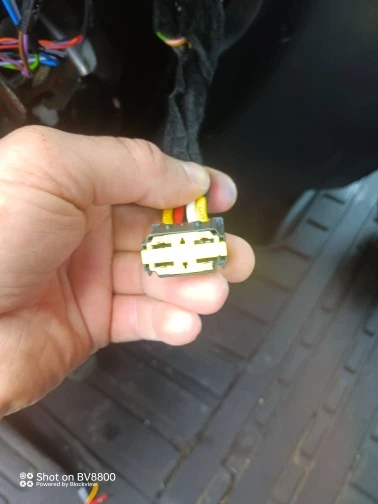

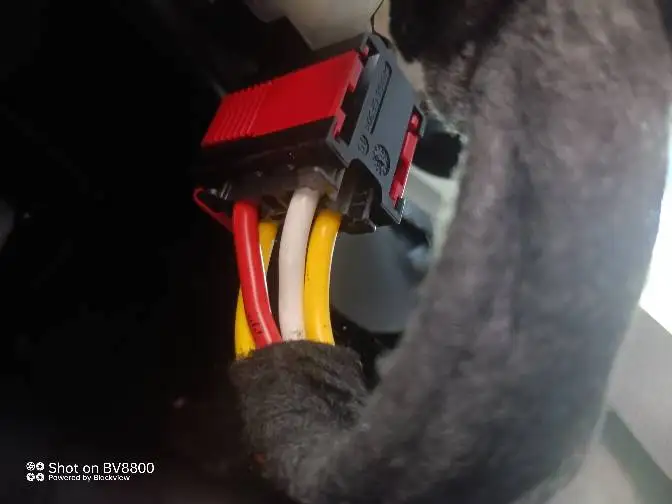

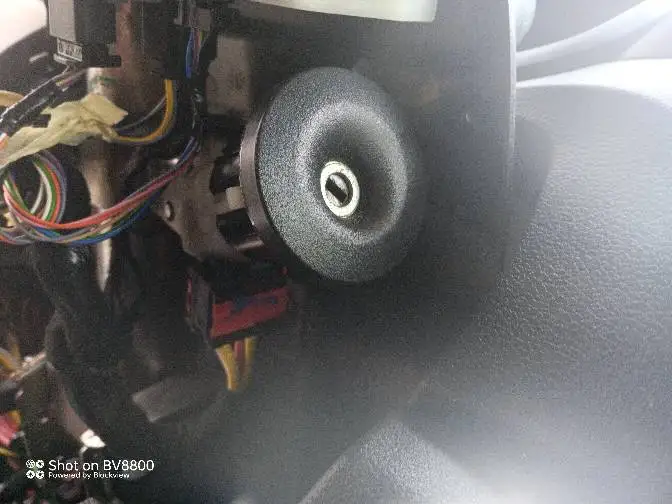

Ignition connector

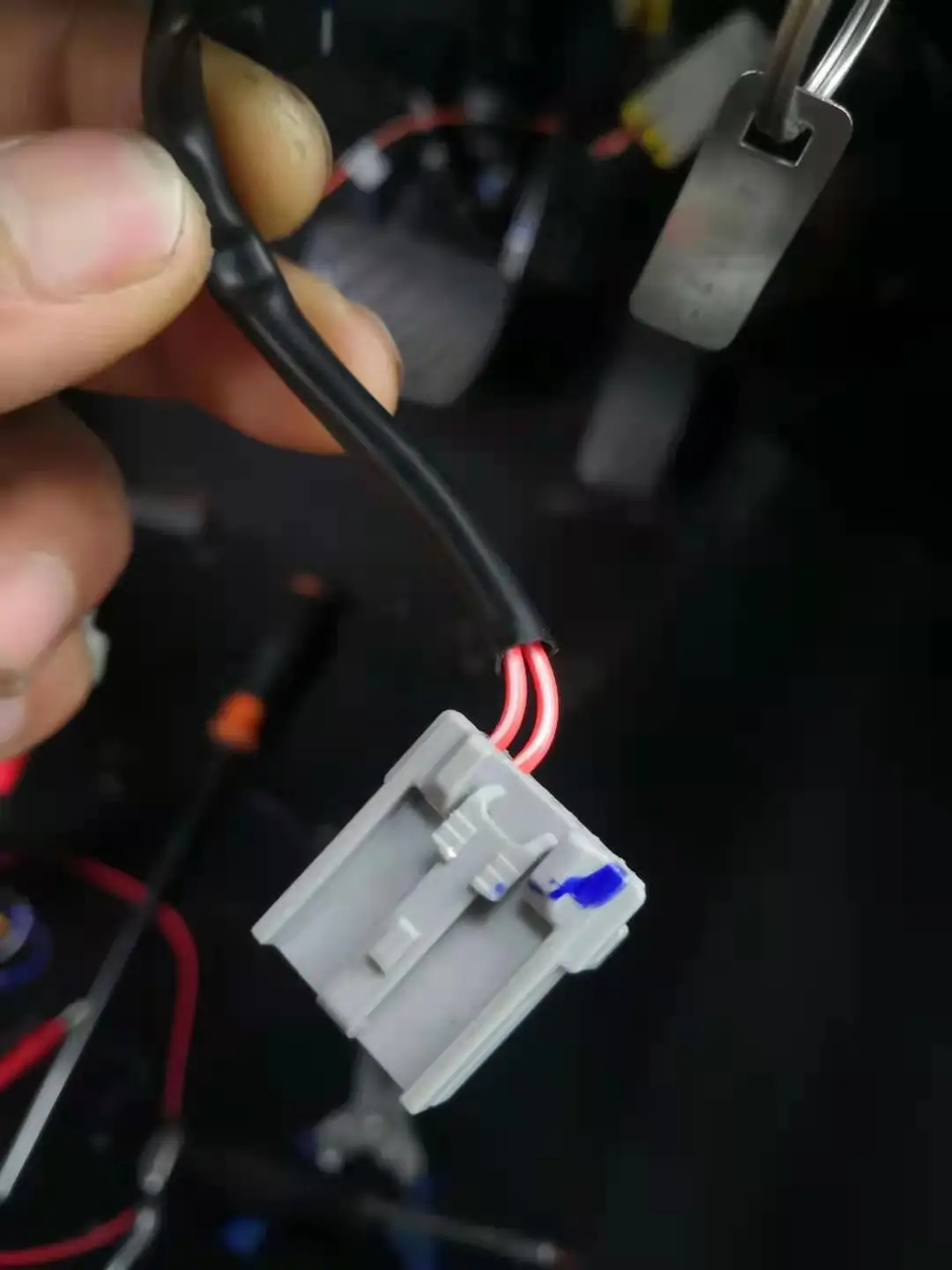

Unplug key detecting connector

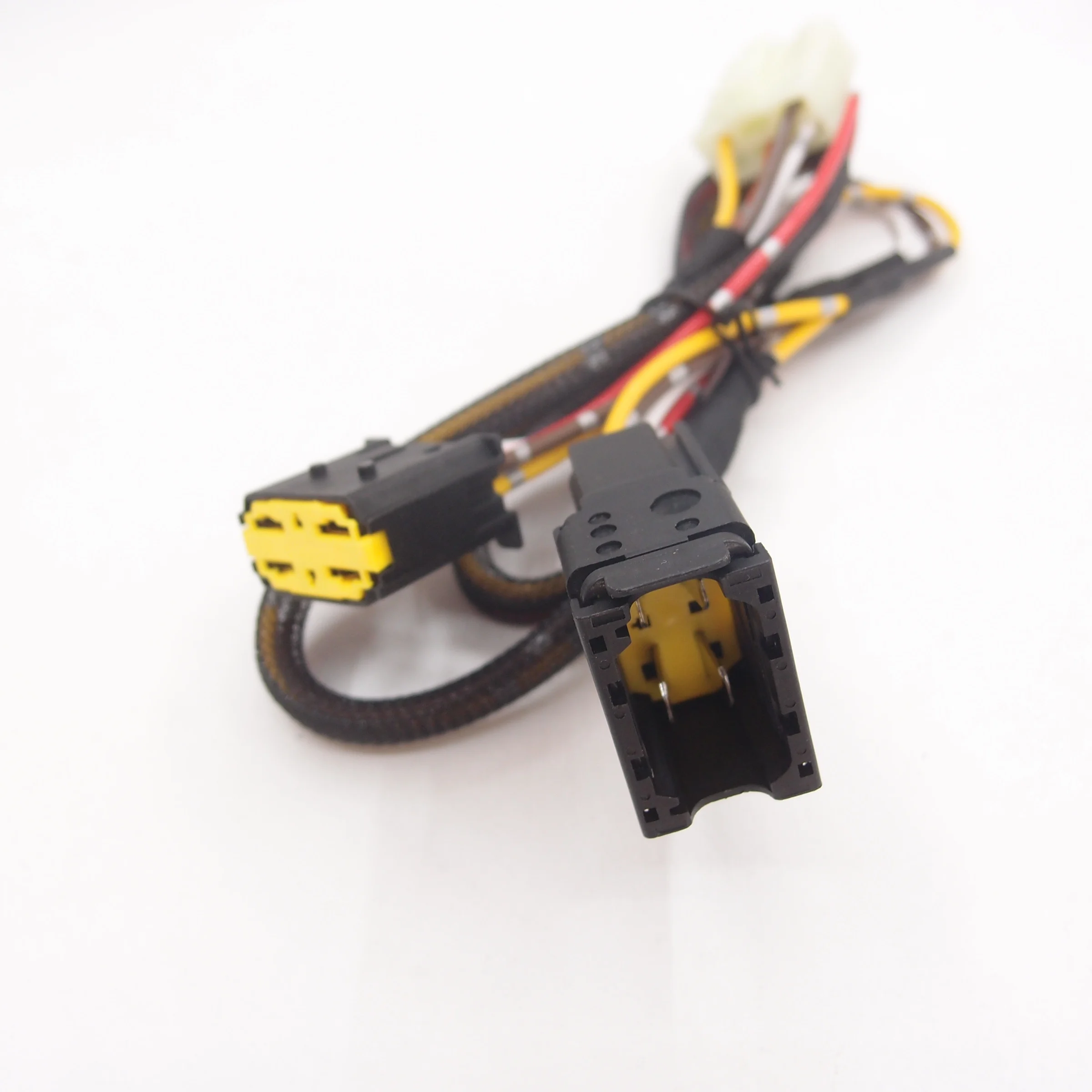

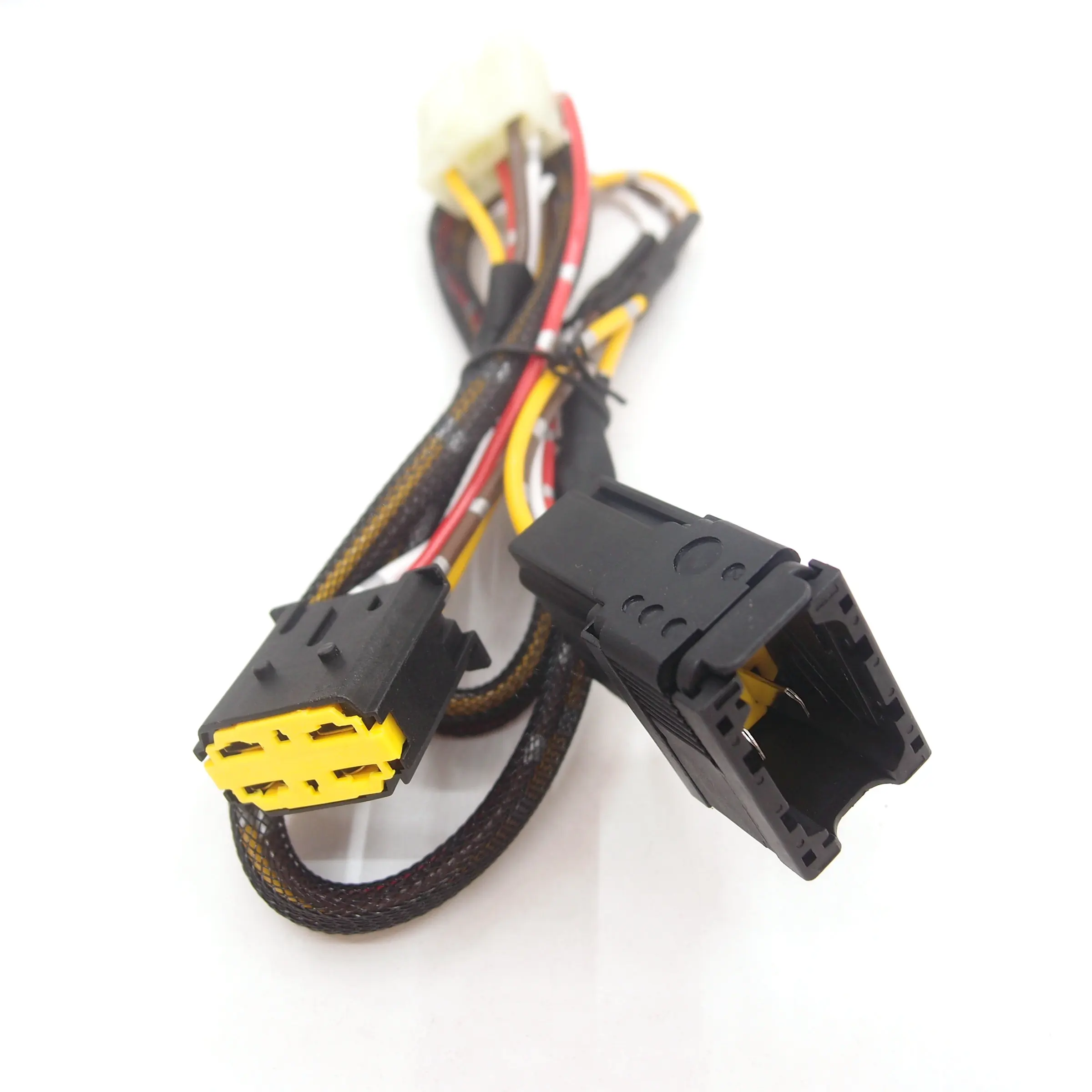

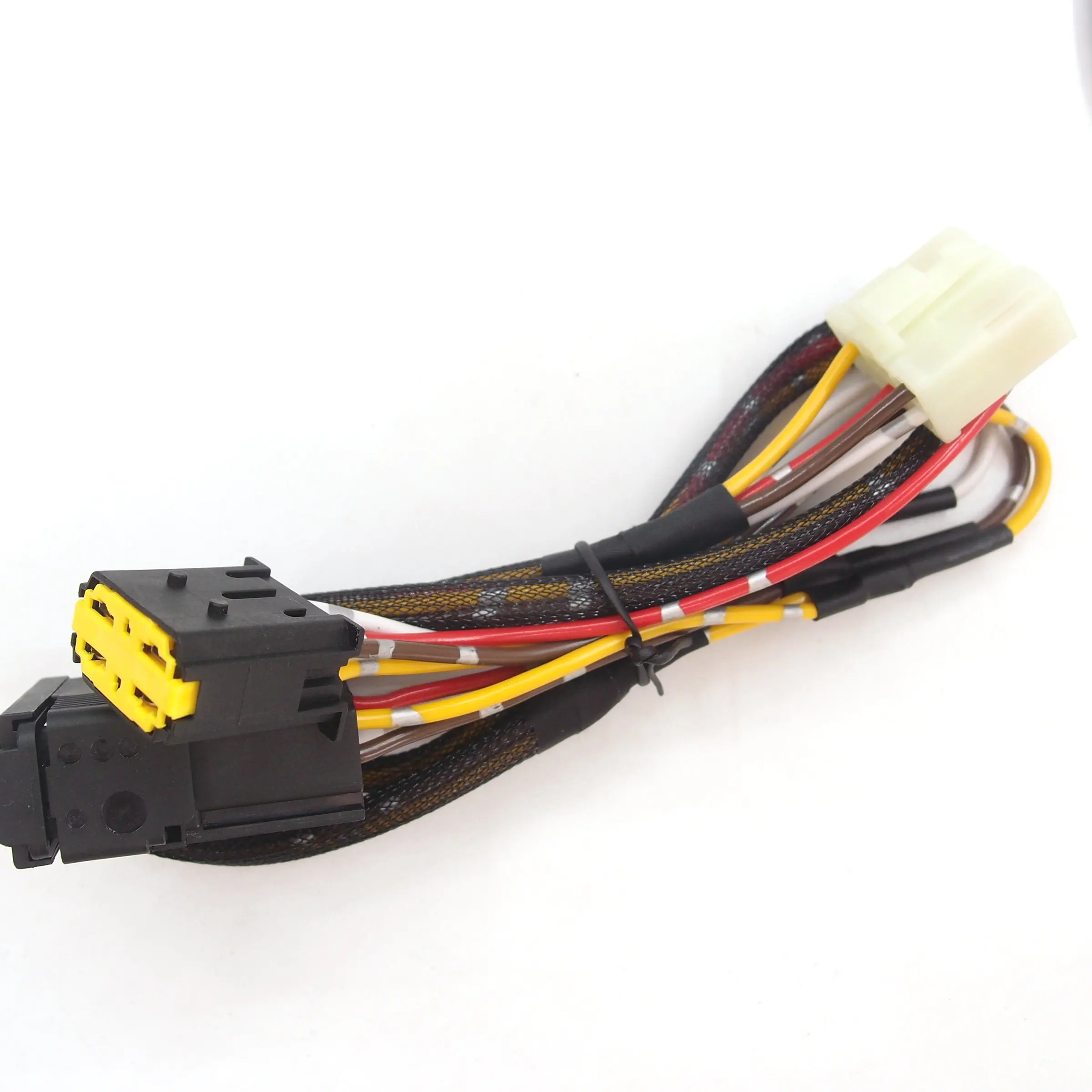

Special ignite cable

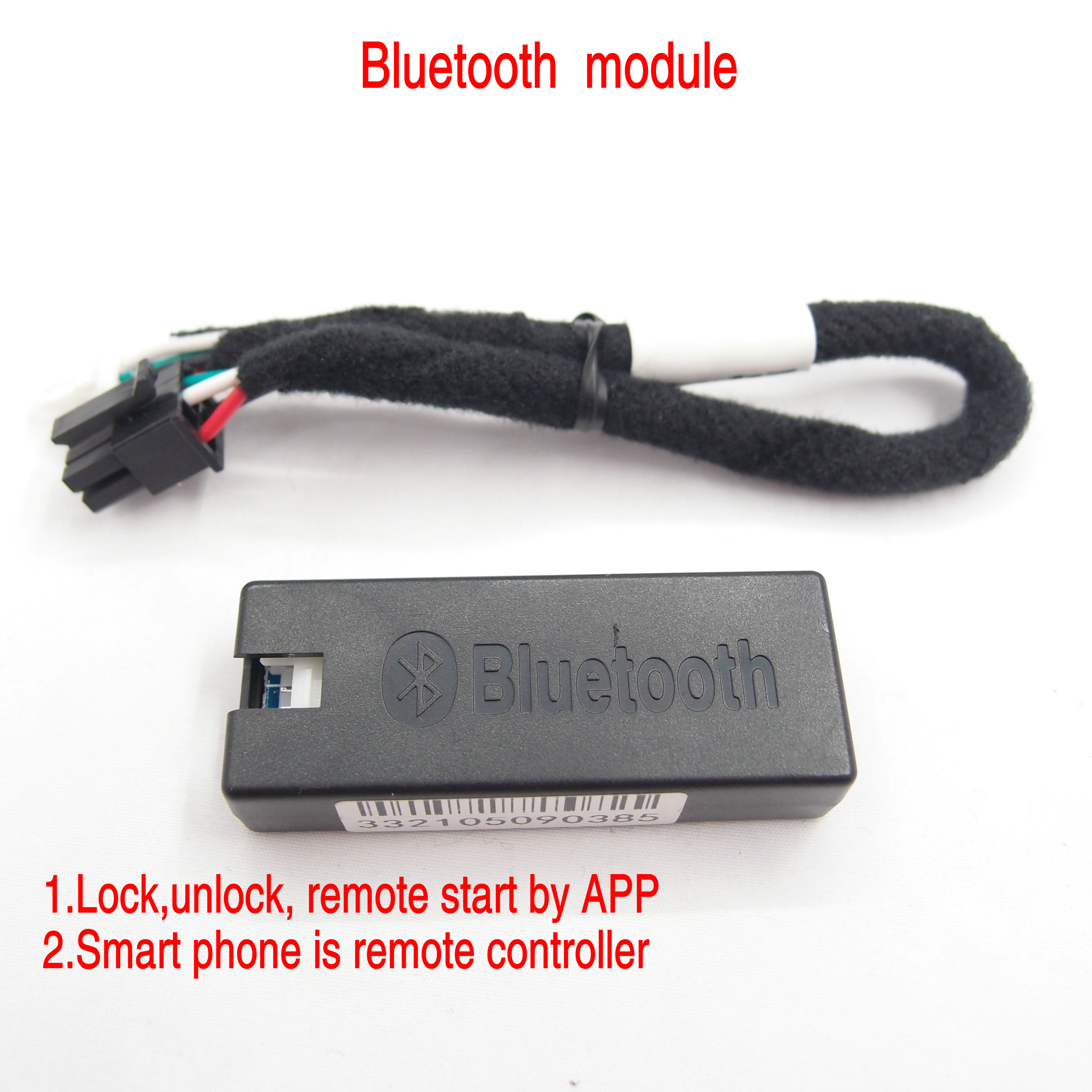

Bluetooth APP contro device is optional
Bluetooth APP device is optional ,driving without key ,only need unlock/lock on APP .And you can set APP with Bluetooth keyless go function too, Digital car key in your smart phone, please add it to cart and buy it with product together
Otherwise we will ship universal ignite cable

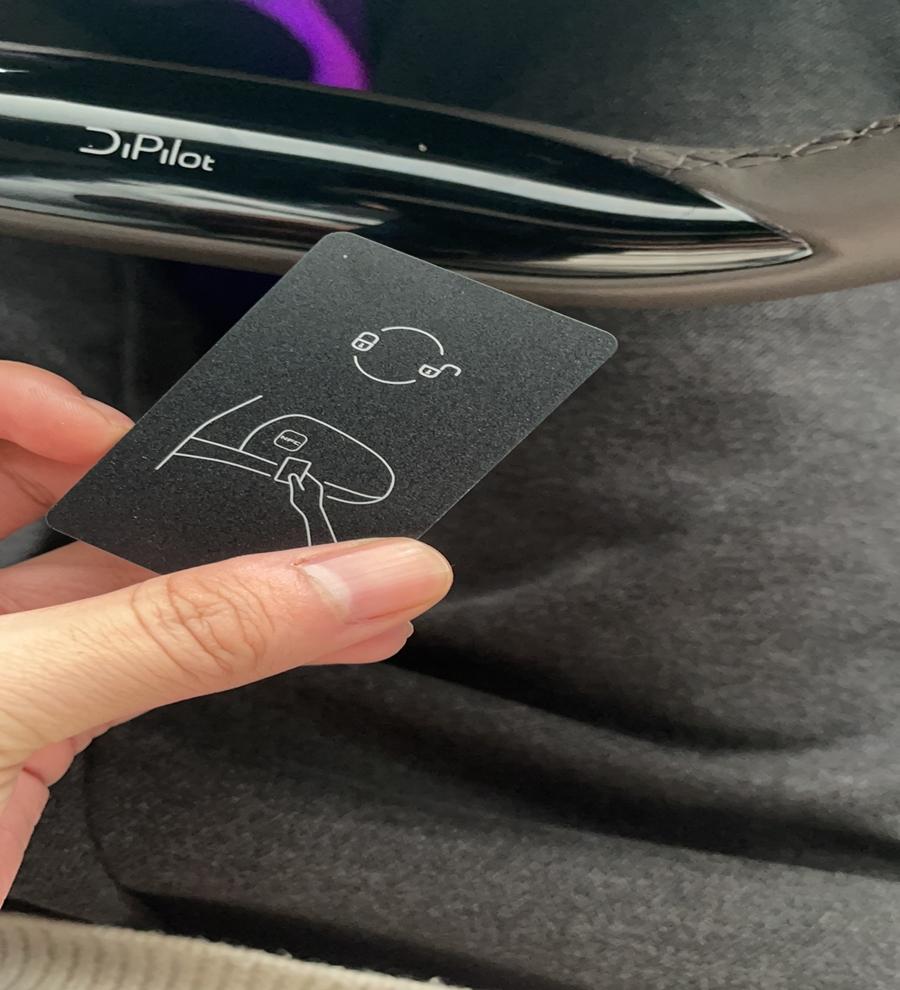

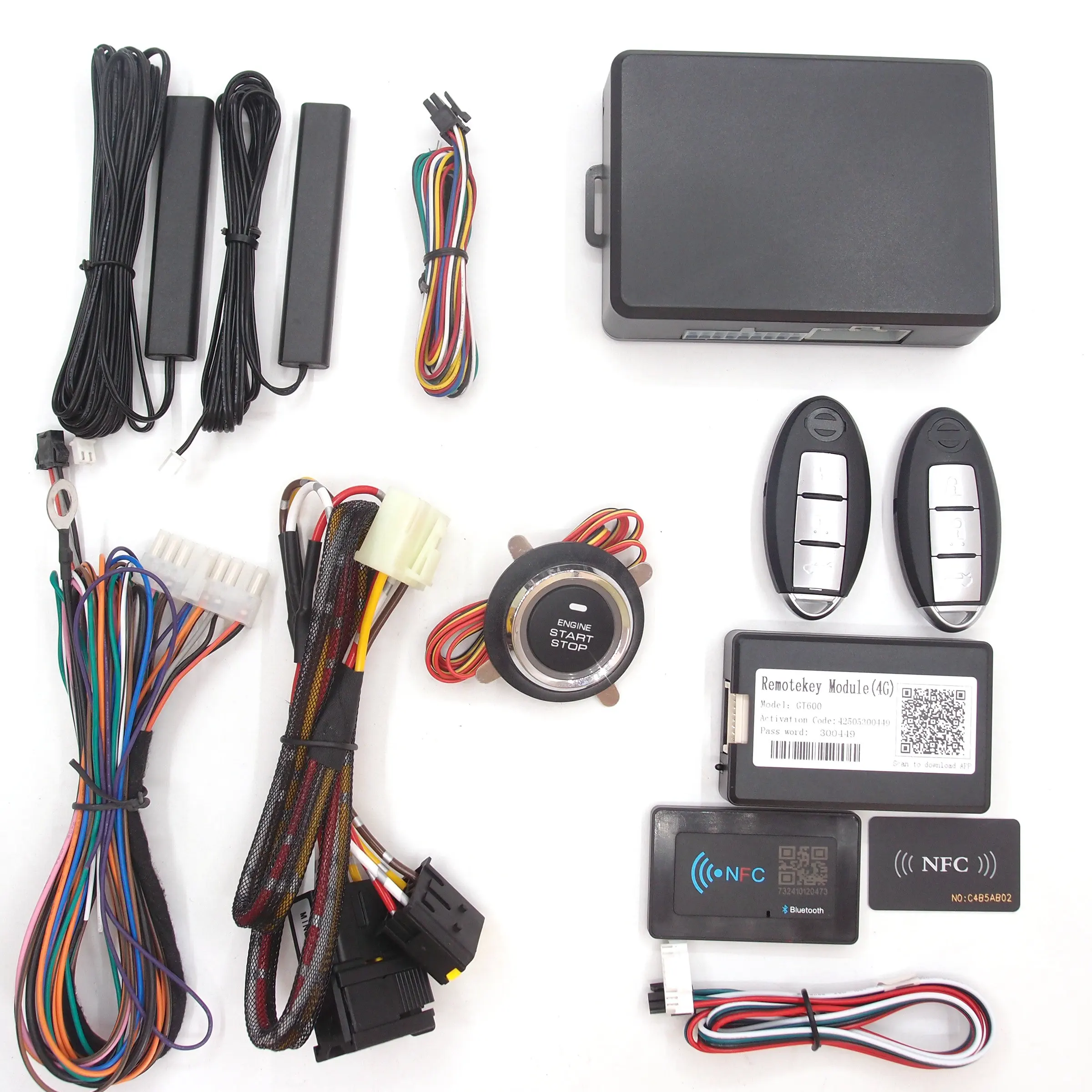

NFC and Bluetooth device
How to use :
1. Swipe NFC card to do lock and unlock
2. For Andriod phone , copy NFC card to phone , swipe phone to do lock and unlock
3. For iphone , add a transportation card and bind NFC card with it

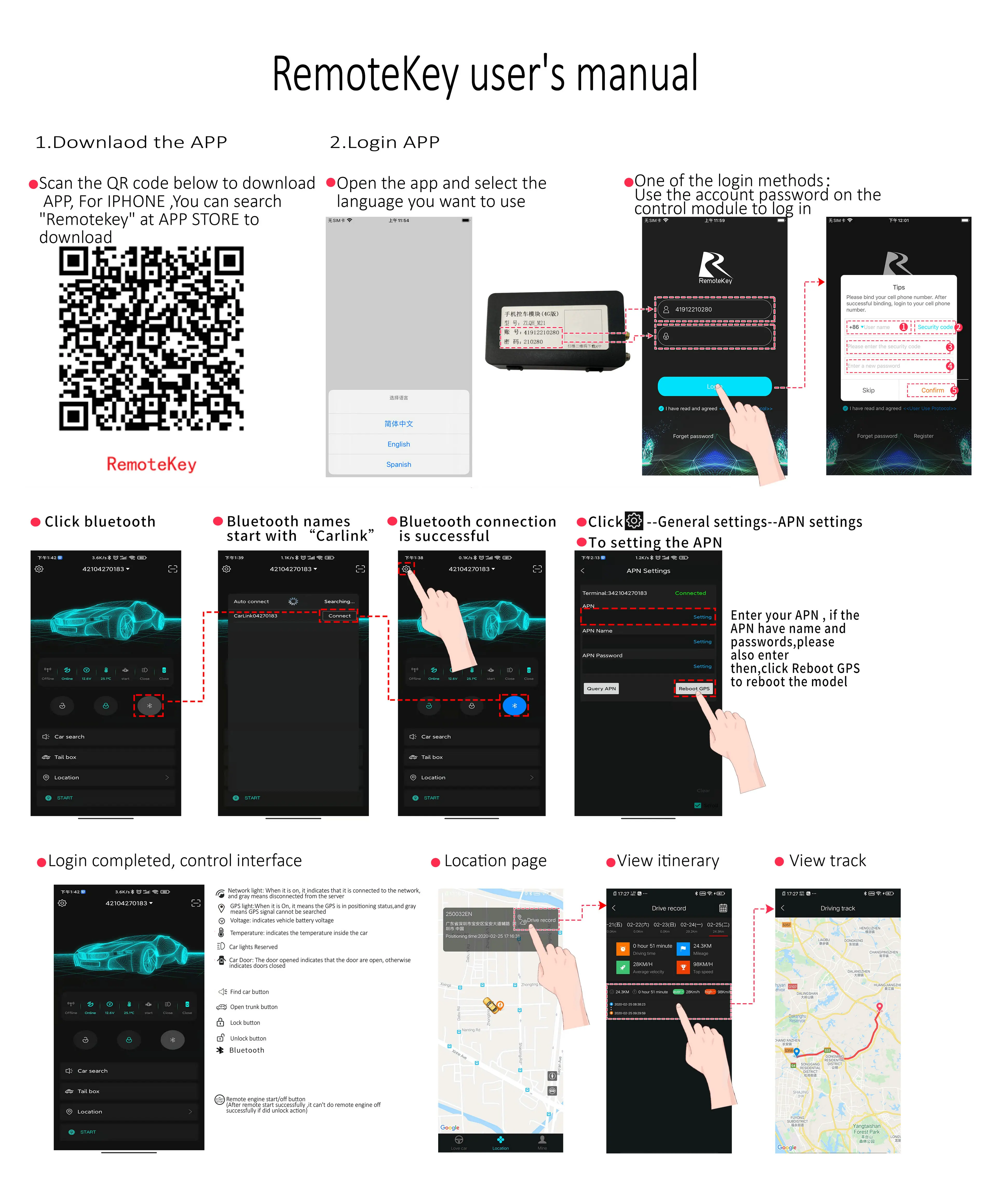

4. Scan QR to down APP , bind our device first , then use APP to do lock, unlock and trunk by Bluetooth.
5. It must work with our remote start device together, do not only buy it. Add it to your cart and buy it with remote start device together.

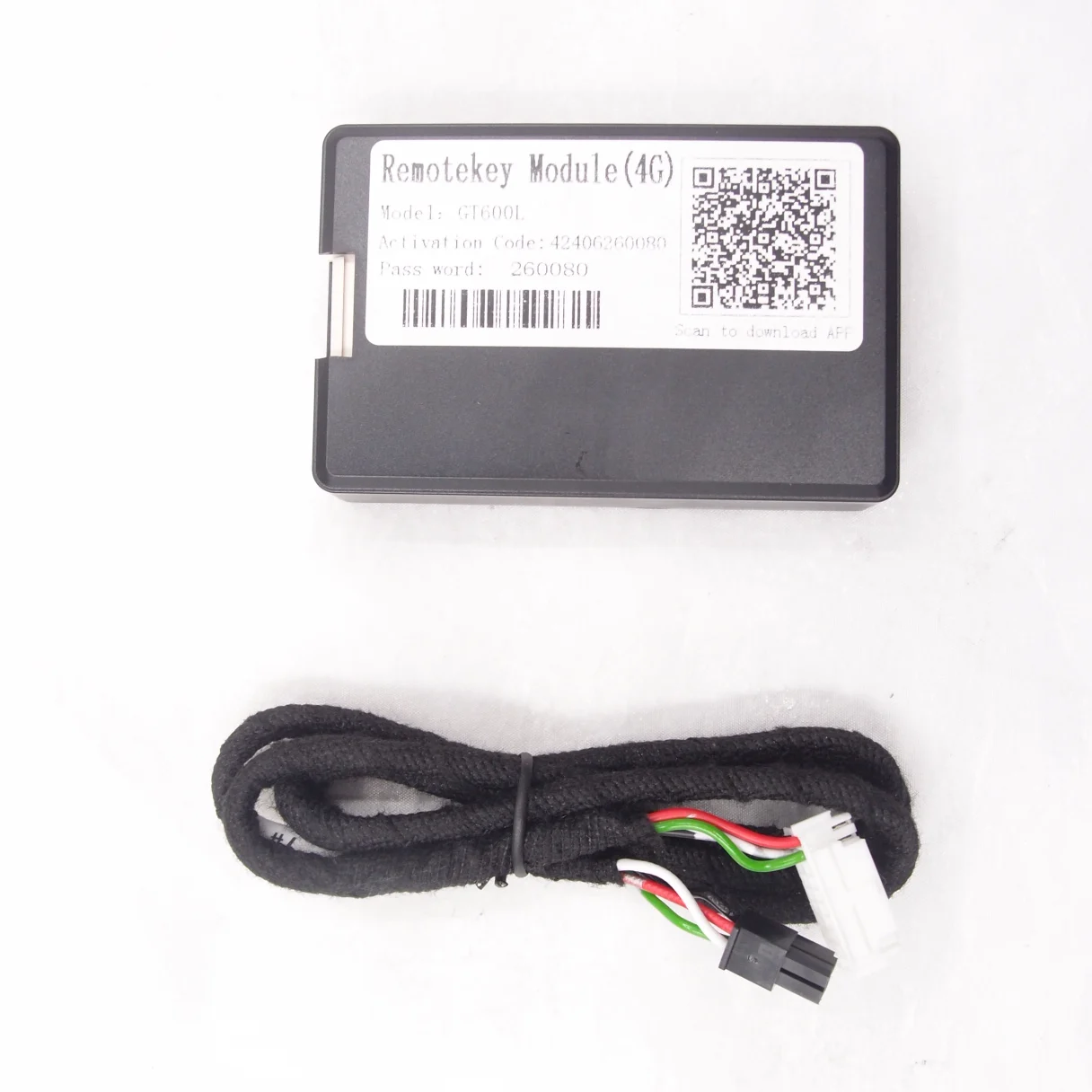

What is different between 4G network , Bluetooth and NFC module ?
1.4G module need install a SIM CARD , and it communicates through GSM LTE network without distance restrictions, and can work wherever there is a network to control vehicles.At the same time, there is also Bluetooth built-in. If there is no network signal or SIM card is not charged, the vehicle can be controlled through Bluetooth.
2.You need to buy an extra micro SIM card in your local town,and set APN by Bluetooth to make it connect to internet.
Tips: To enable the GPS module can work with, your micro SIM card monthly data should at least 50MB
The 4G module is with free 3 years subscription since date of activation( not including the SIM card subscription fees that charged by your SIM card operator). After 3 years, you need to pay for the server fees & maintenance fees if you plan to continue to use it. It is about USD26.00/year.And you can pay on the app directly to continue to use it.
4G module can be used for free for 3 years. It will show expire after 3 months , call us to renew it . If you don’t want pay it after 3 years , you also can use Bluetooth function free.
4G module has GPS positioning function, but in some countries, the specific location may not be displayed due to map issues
3.Bluetooth works only about 5-20meters .
4.NFC has Bluetooth built-in too ,likes as 4G module , it can use APP to do lock, unlock and remote start too . and there is a NFC card to swipe for locking and unlocking, it can add NFC card into your smart phone if it supports NFC function, Swipe smart phone like as NFC card . Don't worry about your phone running out of battery

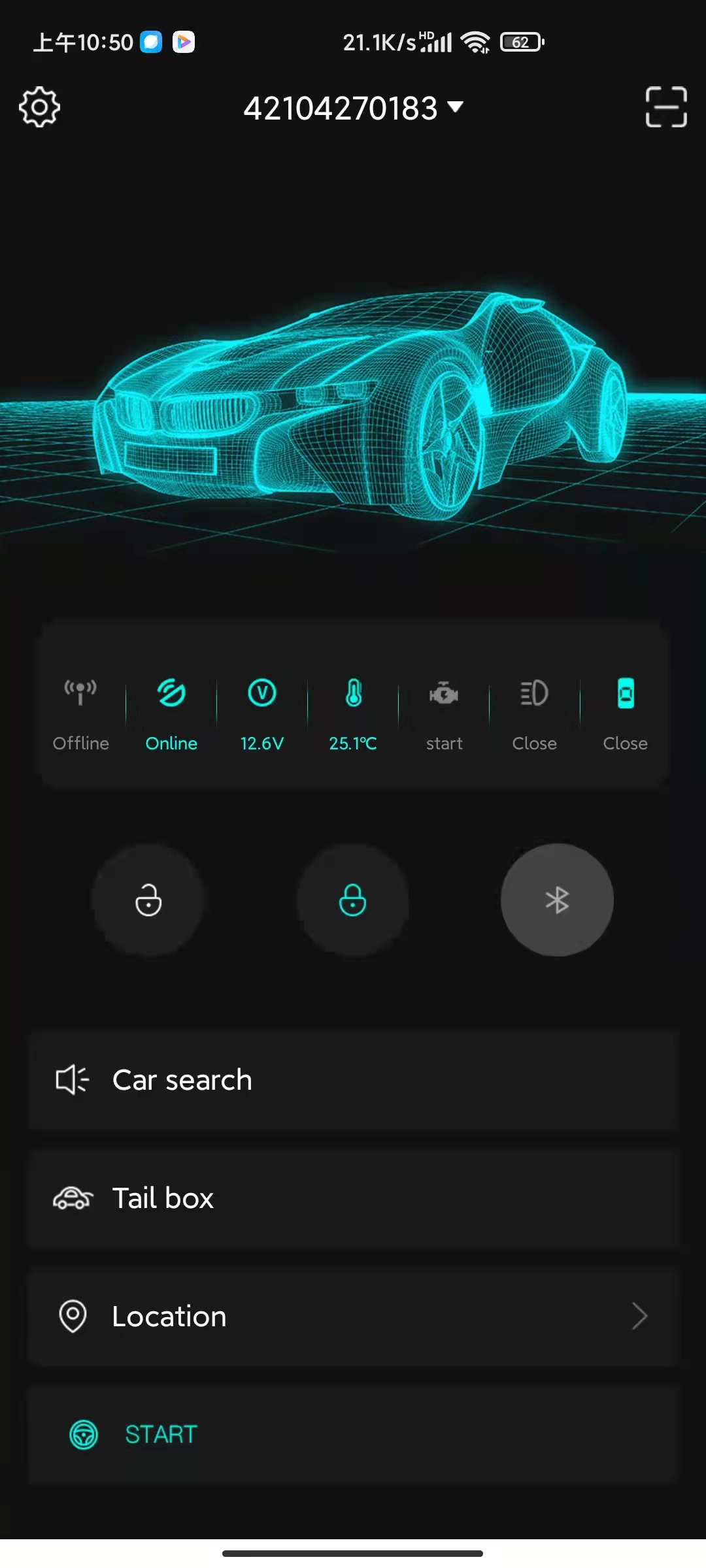

5.For 4G , Bluetooth and NFC module ,User can monitor their vehicles with the APP on the phone, no need to take the remote control. Your phone is your car key. You can download the APP after installation completed.
6.Both 4G , Bluetooth and NFC module has passive keyless entry function base on Bluetooth 5.0 . Take your phone closes to car for unlock automatically ,and leave away for locking.
Note :
Both 4G , Bluetooth and NFC module must work with the remote start device together , it is only for connecting the remote start device to smart phone, so don’t only buy the modules alone.

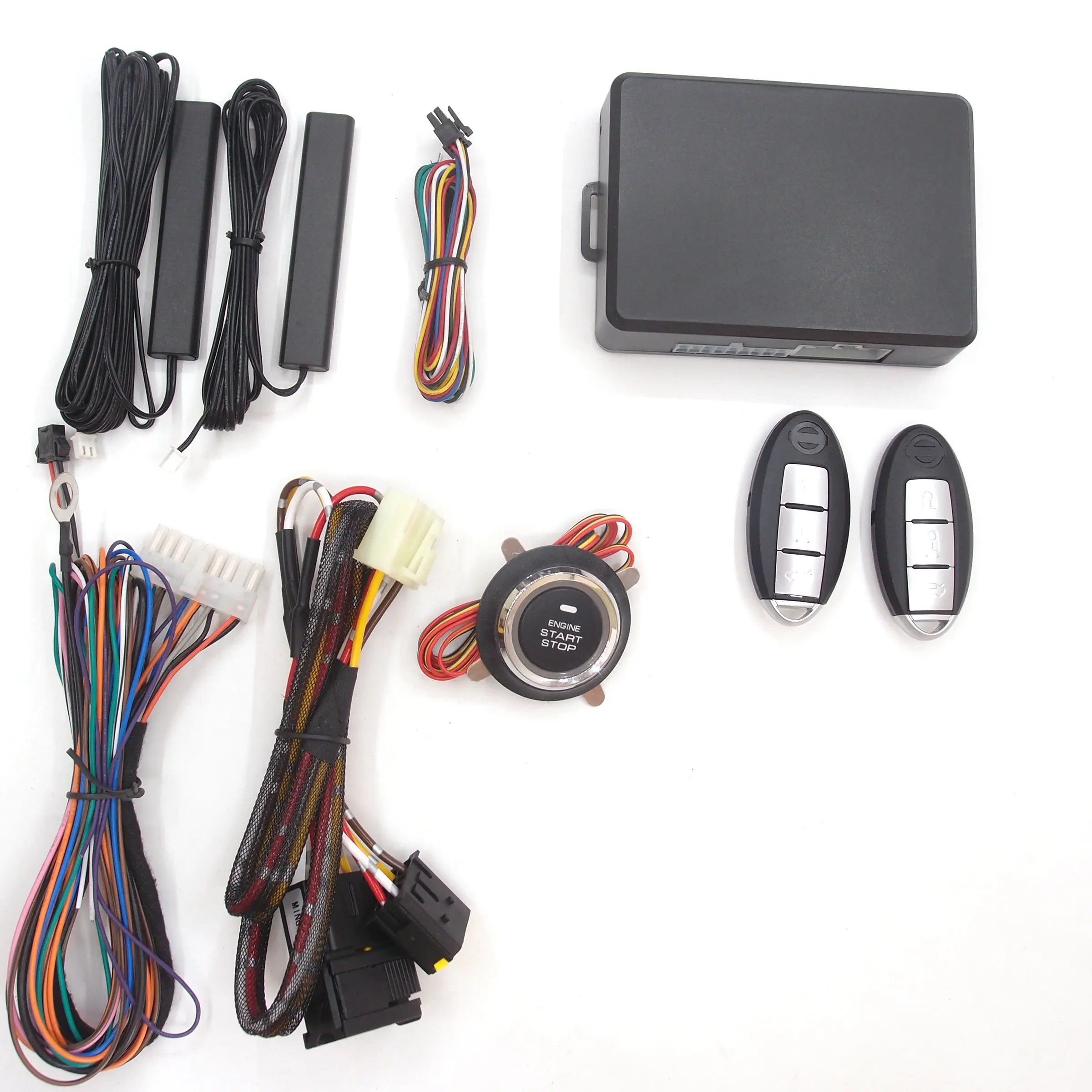

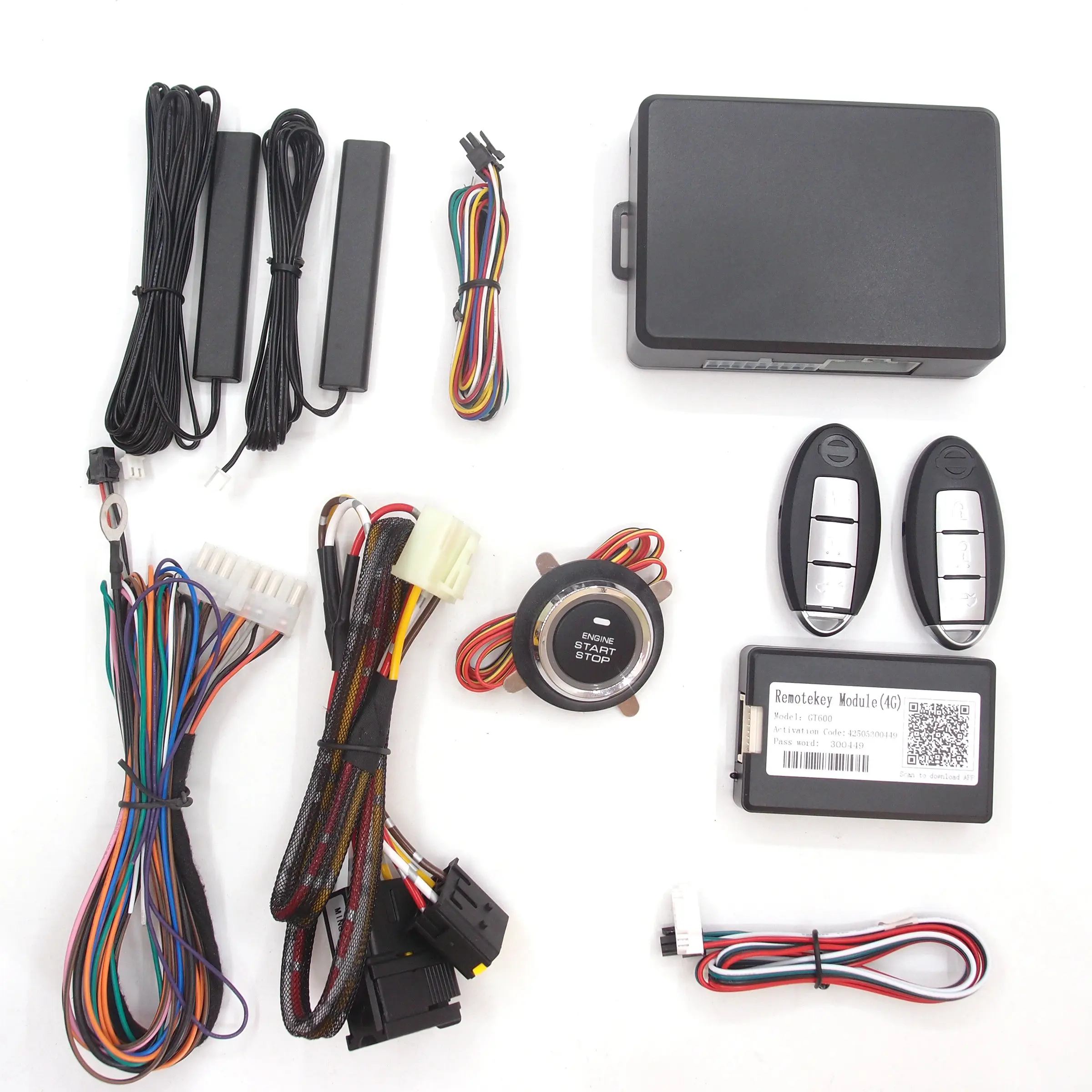

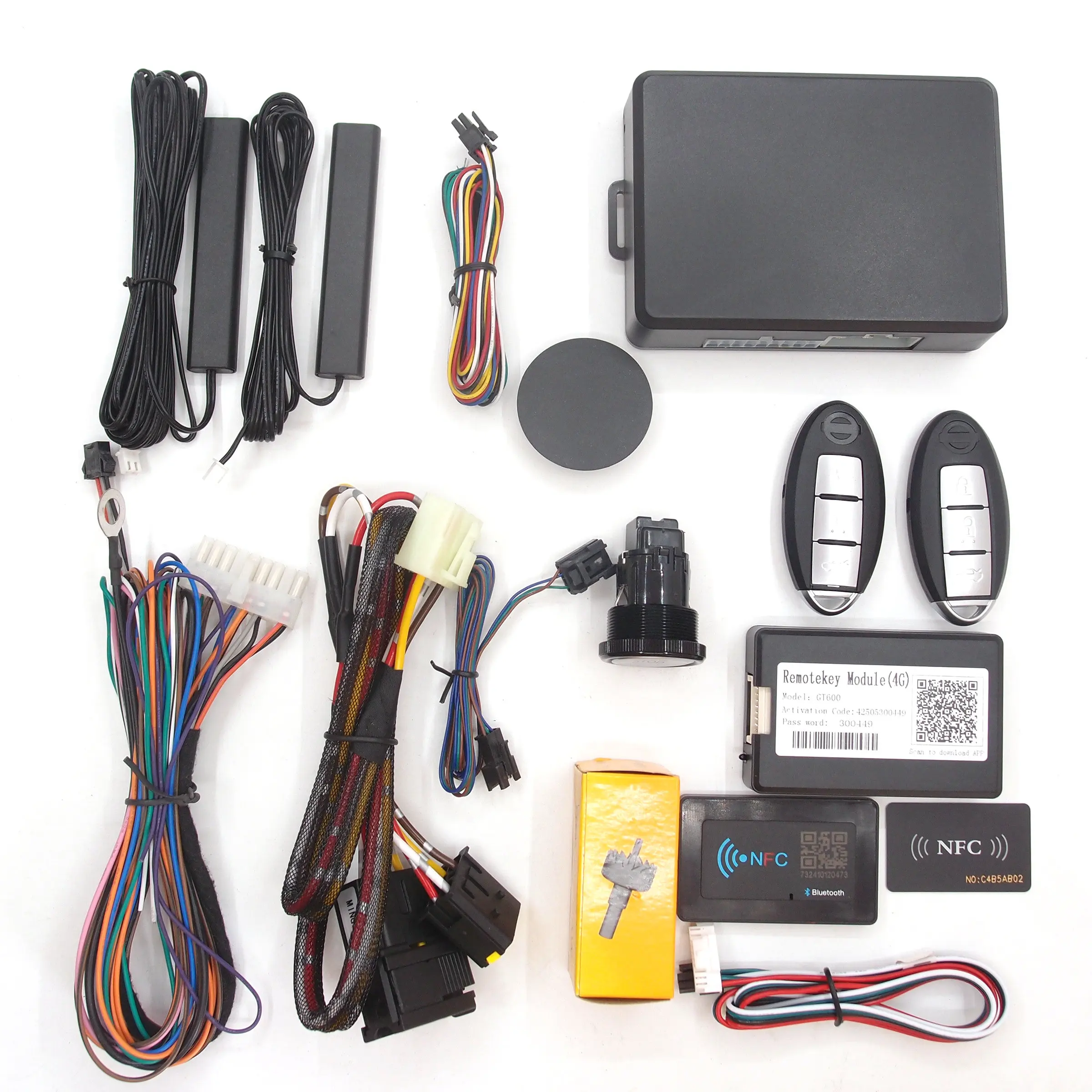

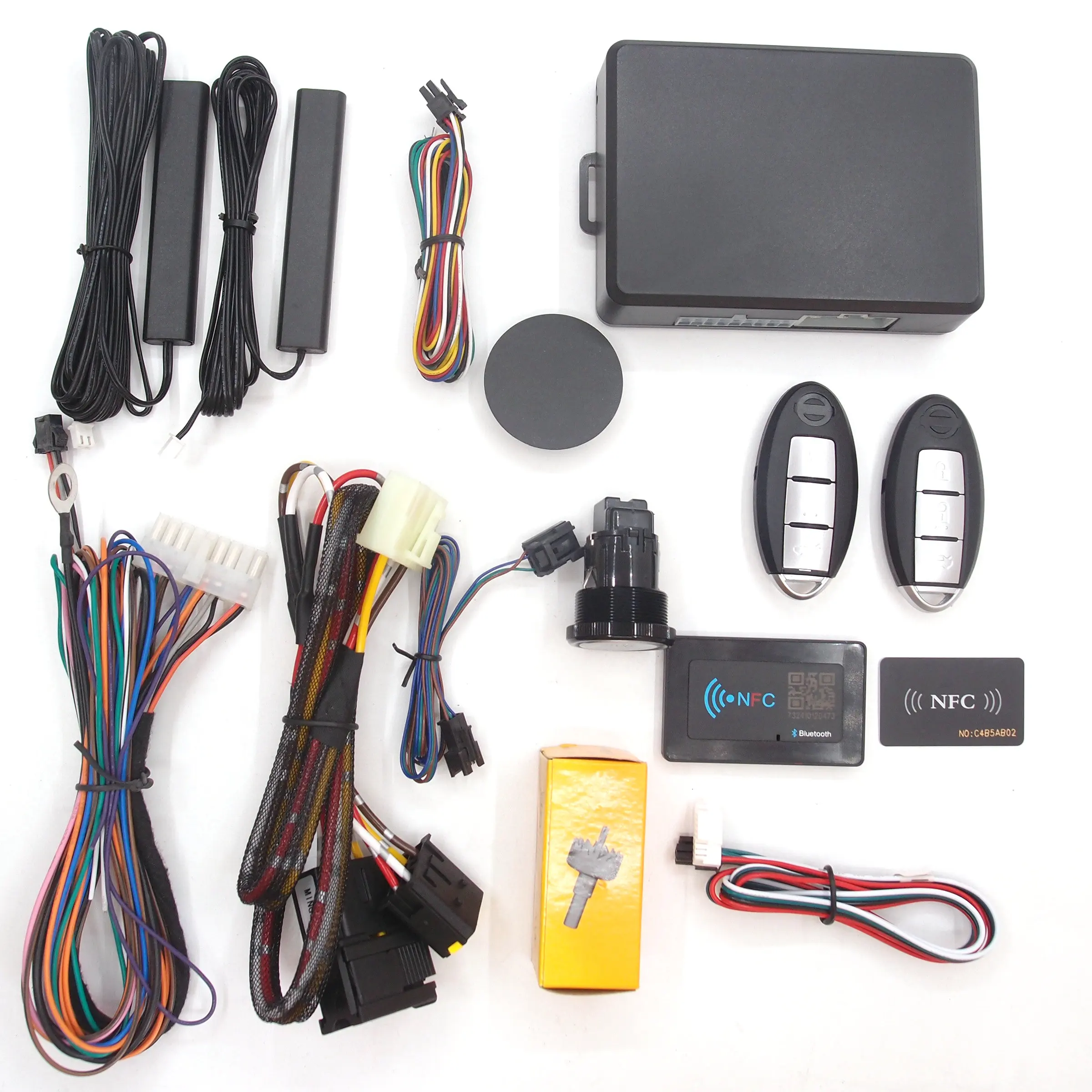

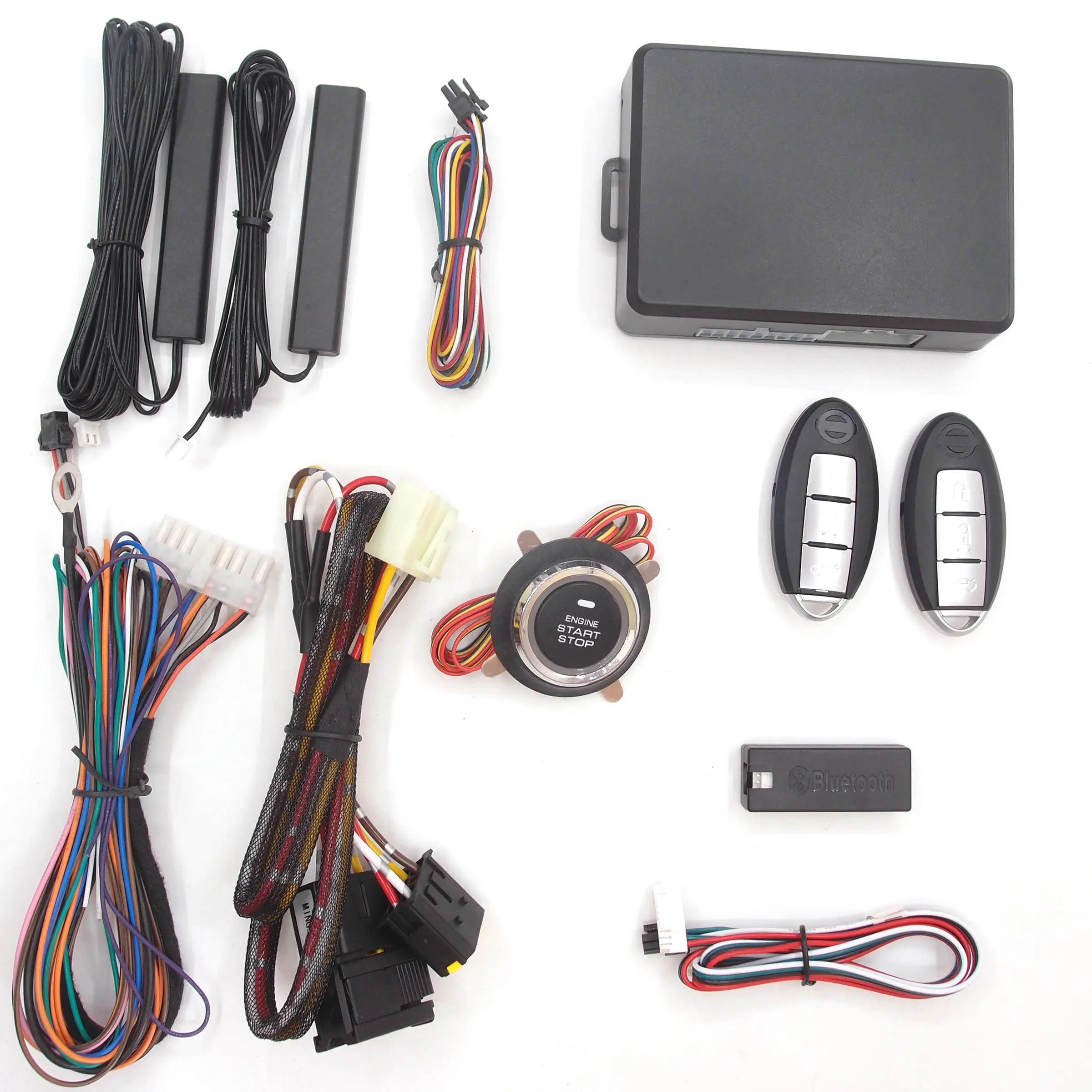

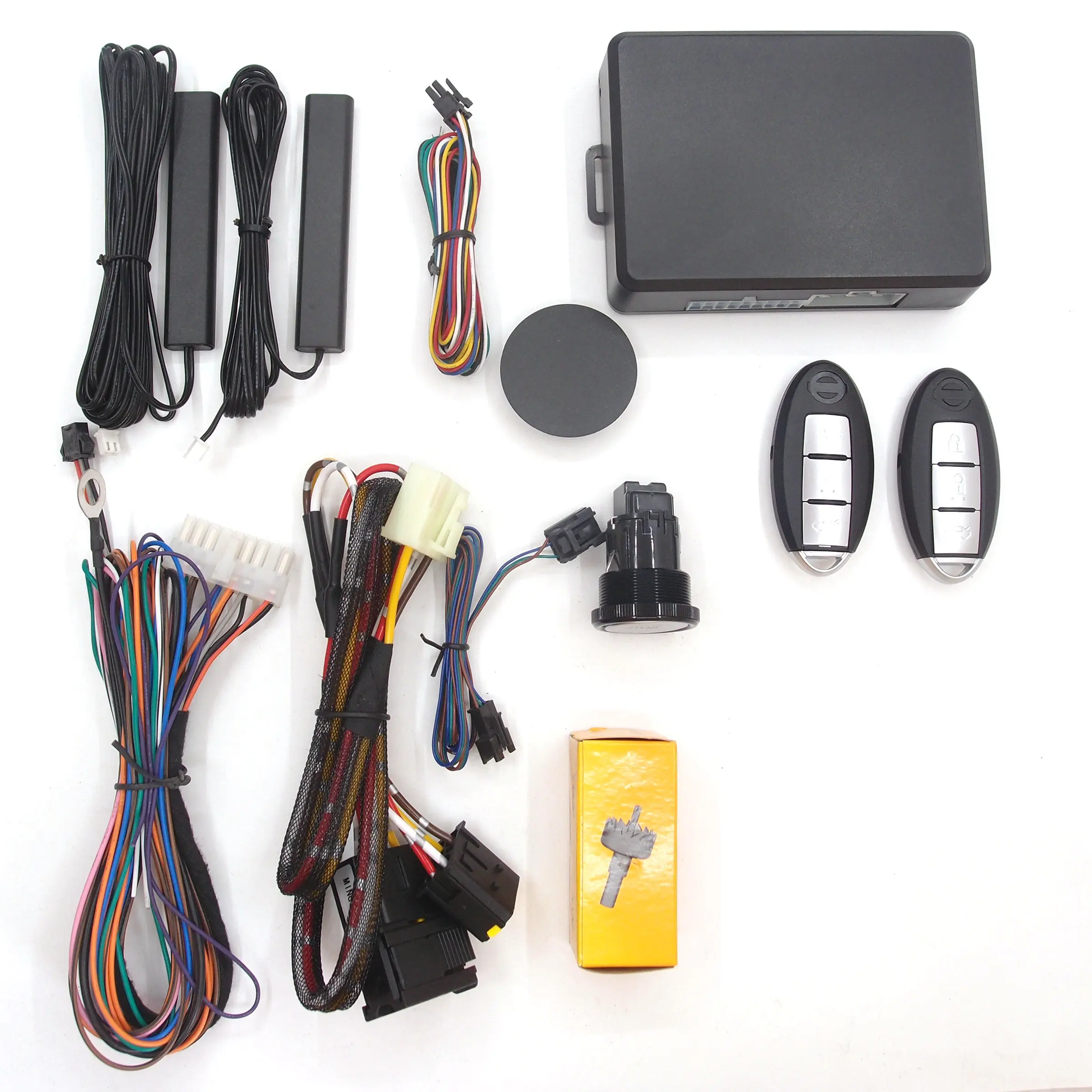

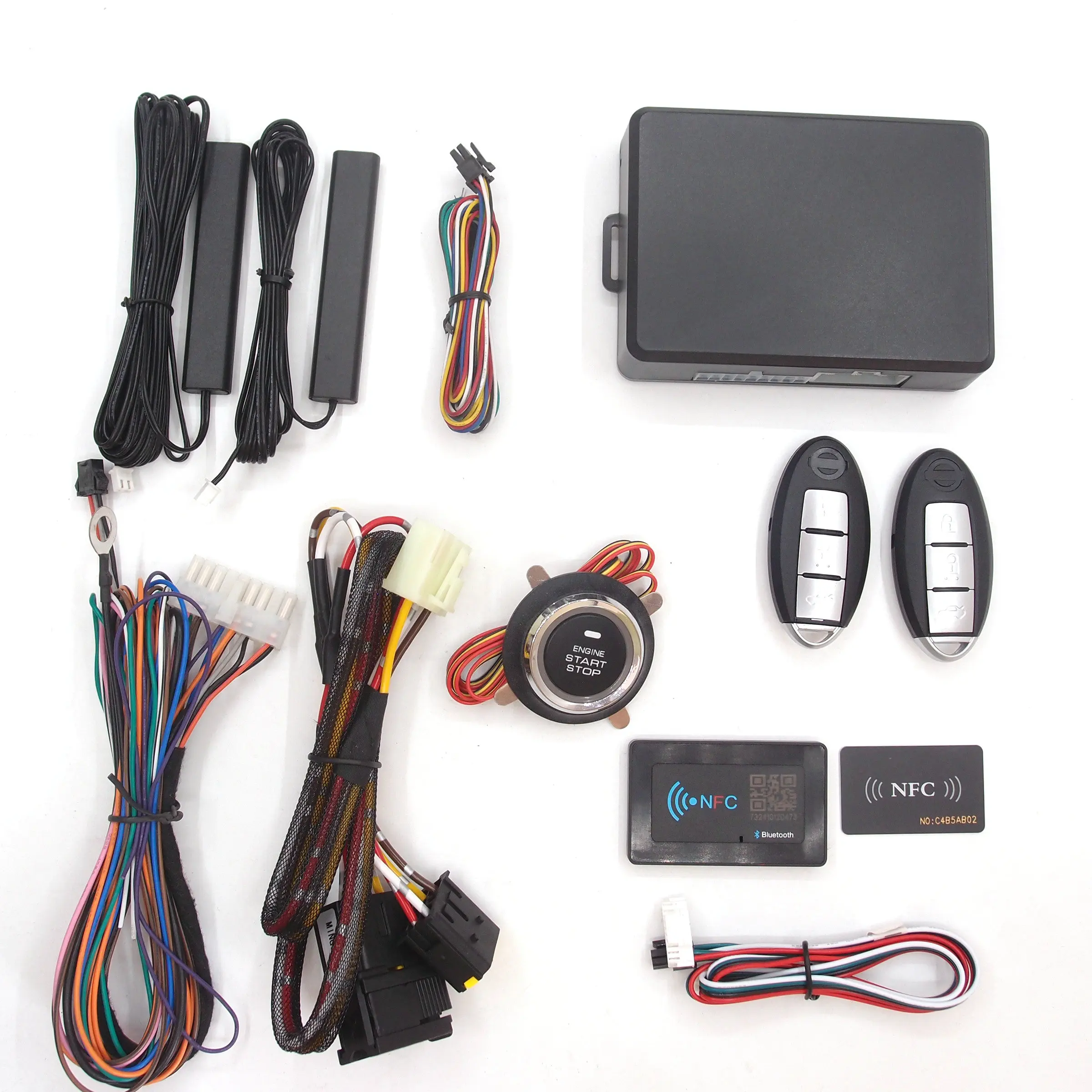

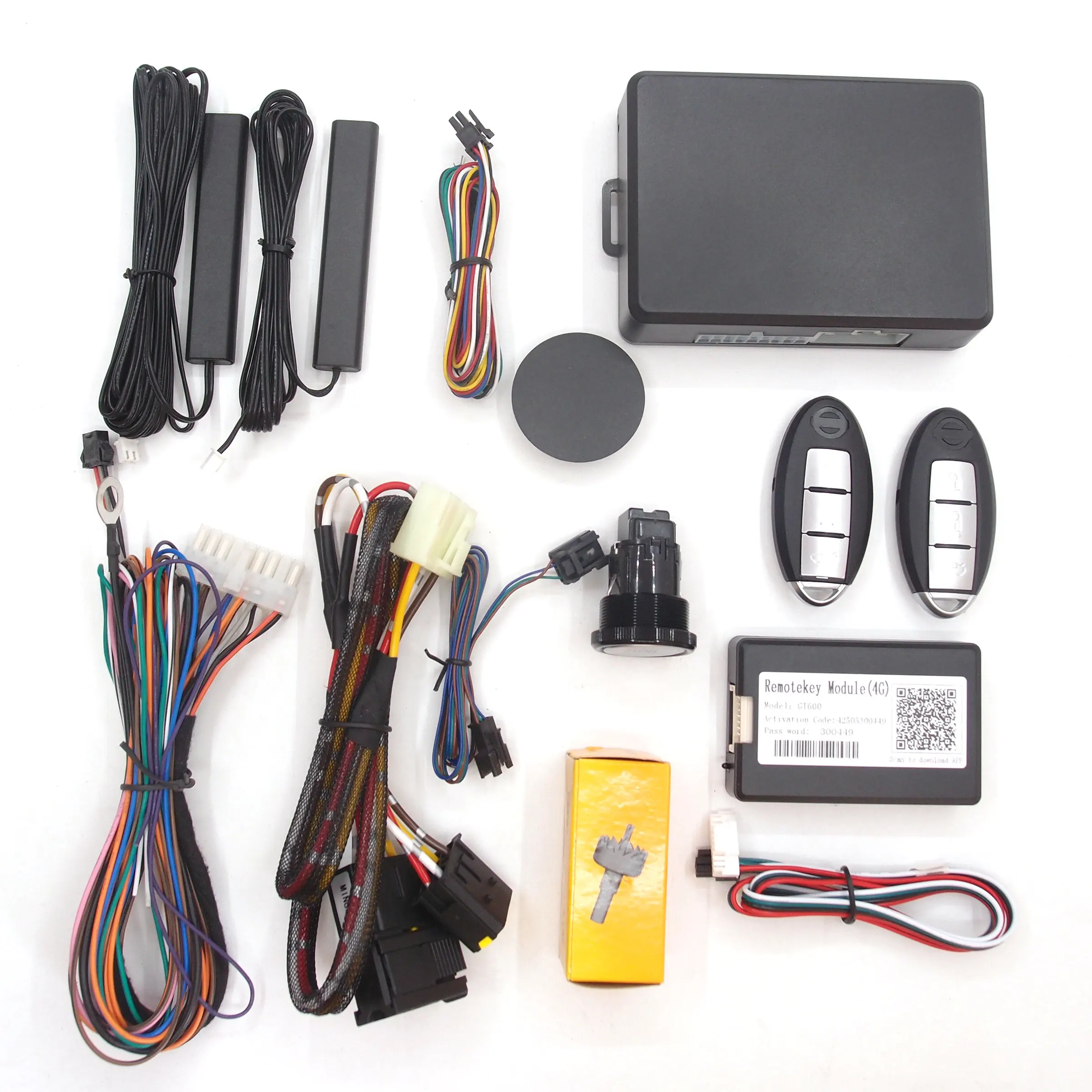

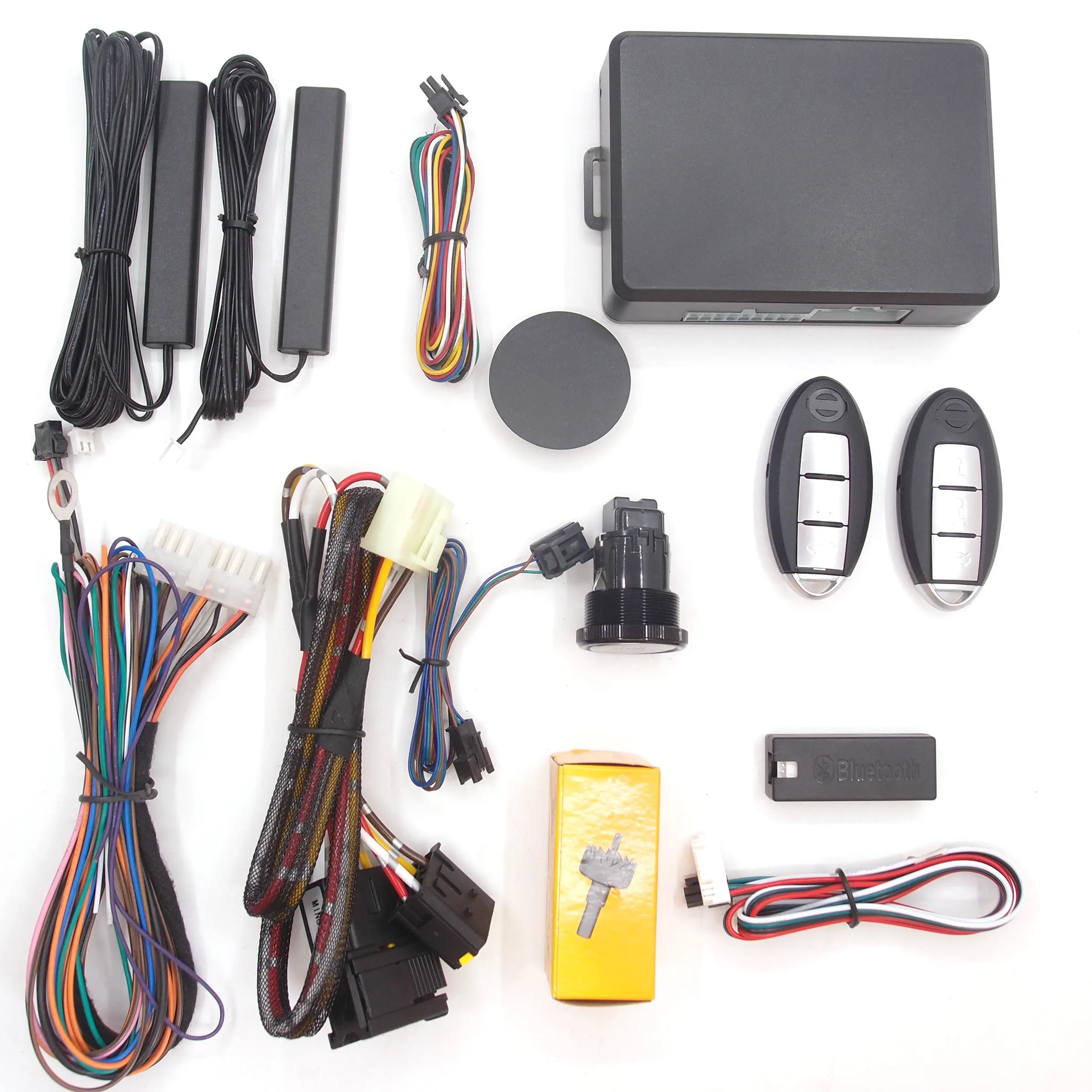

Product Configuration
Main control box : 1 pcs
Start/stop button : 1pcs
Remote controller: 2 pcs
PKE inductor antenna: 2pcs
Engine Start Wires : 1pcs
Control Wire : 1pcs
Solering wires :1pcs
