Products Description

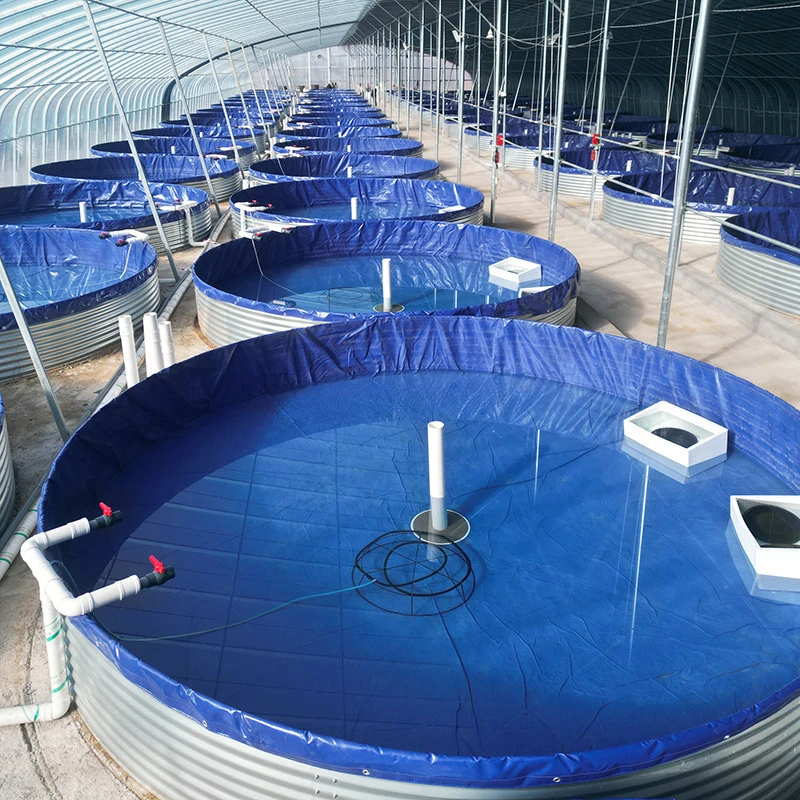

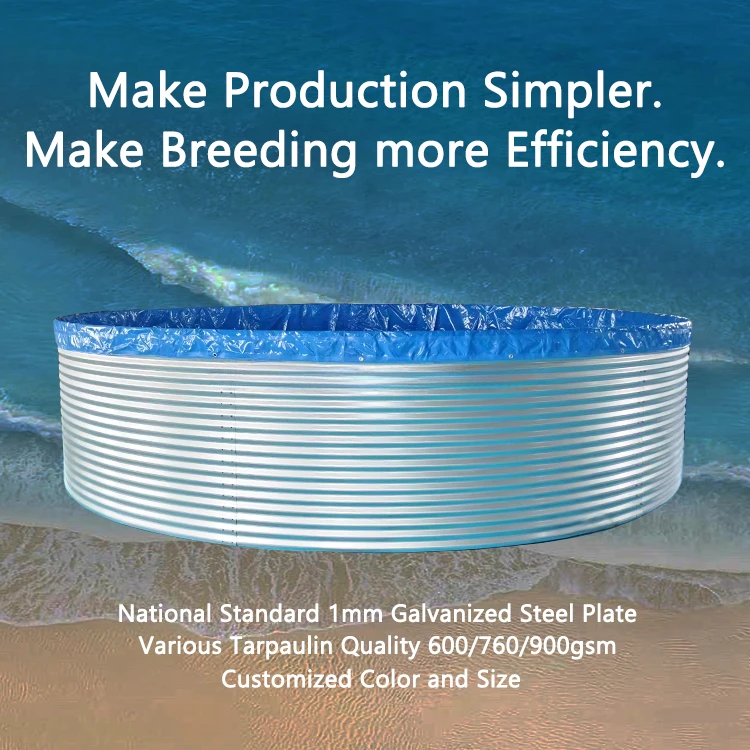

The galvanized steel sheet fish tank is a new type of high-density breeding pond, the force point of the circular shape and galvanized steel plate support is even, can reach a high water level, and can be used for circulating water breeding system.
|
Product Name
|
Recirculating Aquaponic Biofloc Aquaculture Tarpaulin Tank Equipment Fish Farming System Above Ground For Aquaculture
|
|
Material
|
● PVC tarpaulin
|
|
|
● Galvanized steel plate support
|
|
Steel Plate Thickness
|
● 1mm,1.2mm
|
|
Tarpaulin GSM
|
● 600gsm / 760gsm/ 900gsm
|
|
Thickness
|
● 0.5mm / 0.6mm / 0.7mm
|
|
Tank Height
|
● 0.9m/1.15m/1.43m
|
|
|
● Customized
|
|
Color
|
● Light blue Dark Blue _. ____. __ Black _____ __. _ White/Yellow /Customized
|
|
Application
|
● Indoor/Outdoor ● Aquaculture Fish farming/Shrimp farming
|
|
Service life
|
● About 6 to 10 years
|
|
Application Temp
|
● -50℃-70℃
|
Applications

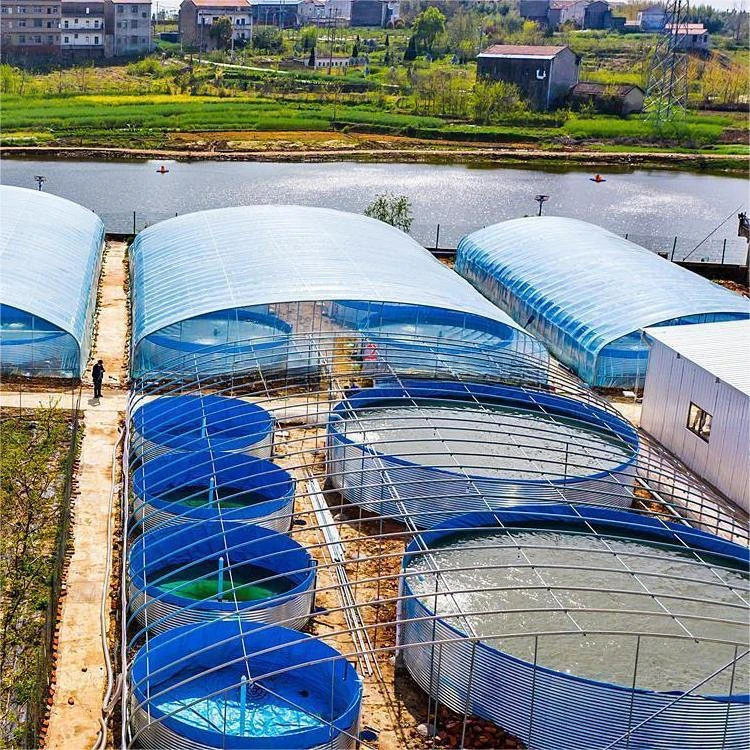

Our galvanized plate support fish ponds are sold to more than 100 countries abroad. Have 70 successful project of factory farming, covering markets in America, Europe, Africa, and Southeast Asia. Welcome to send us an inquiry to get the latest product quotations and factory farming solutions!
|
BREEDING GUIDE
|
|
|
|
Breeding Density
|
1000L can breed 30-40kg Fish or 10-15kg prawn
|
|
|
Breeding Species
|
Fish farming(Especially used for tilapia,catfish,etc.),shrimp farming,leech farming,etc.
|
|
|
Other Applications
|
Industrial water,fire-fighting water,agricultural irrigation,greenhouse irrigation,orchard mountain water,water storage in arid areas.
|
|
Product Details
1.Simple operation and easy management, do not require any civil work only 1-2 people can be deployed quickly.
2. Detachable and folding, take small space and very convenient to transportation and store..

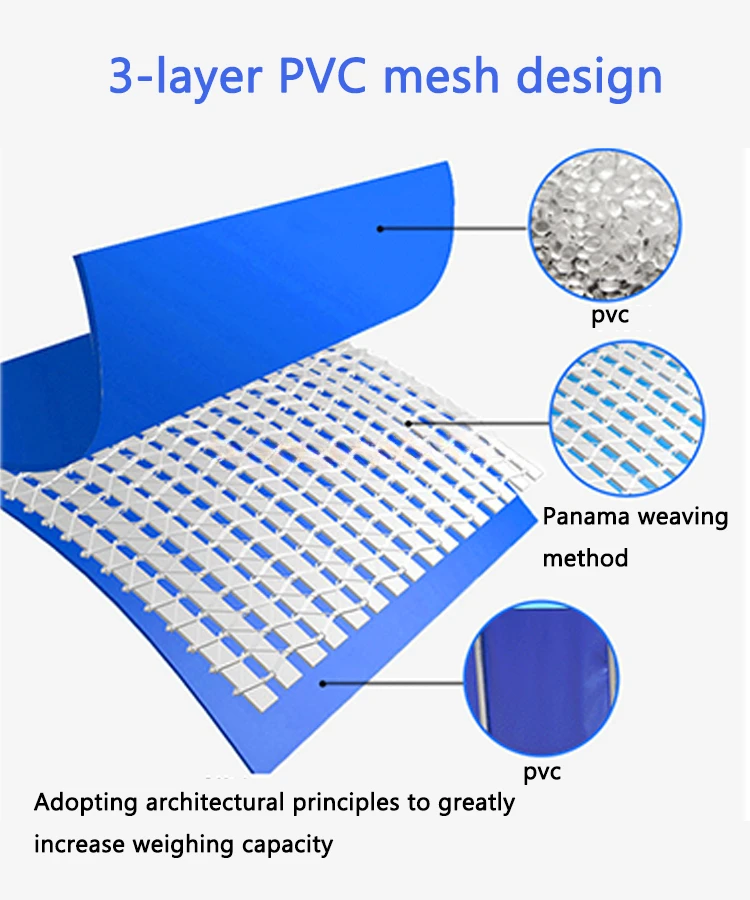

3. High tenacity polyester yarns with laminated technology and hot-melt PVC coating strength with stable color fastness.
4. Strong waterproof, Ani-UV, Cold crack resistance, Anti-mildew and Anti-static treatment. Great strength, good flexibility and adhesion strength.
5. Long service time, at least 6-10years.
3. High tenacity polyester yarns with laminated technology and hot-melt PVC coating strength with stable color fastness.
4. Strong waterproof, Ani-UV, Cold crack resistance, Anti-mildew and Anti-static treatment. Great strength, good flexibility and adhesion strength.
5. Long service time, at least 6-10years.
● Grade-A Eco-friendly Materials
● Anti-UV
Anti-leaking
Anti-Fouling
Acid Alkaline Resistance
● Application Temp 70℃ to -50℃
● Customized
Drain Fittings
Standard drain fittings: 110mm, 160mm,200mm.
Send us inquiry to get FREE drain fitting accessories!
Parameters
|
Product number
|
Water Capacity
|
Dia*H
|
Product number
|
Water Capacity
|
Dia*H
|
|
GSS1503
|
8m3
|
3m*1.15
|
GSS4303
|
10m3
|
3m*1.43
|
|
GSS1504
|
14m3
|
4m*1.15
|
GSS4304
|
18m3
|
4m*1.43
|
|
GSS1505
|
22m2
|
5m*1.15
|
GSS4305
|
28m3
|
5m*1.43
|
|
GSS1506
|
32m3
|
6m*1.15
|
GSS4306
|
40m3
|
6m*1.43
|
|
GSS1507
|
44m3
|
7m*1.15
|
GSS4307
|
55m3
|
7m*1.43
|
|
GSS1508
|
57m3
|
8m*1.15
|
GSS4308
|
71m3
|
8m*1.43
|
|
GSS1509
|
73m3
|
9m*1.15
|
GSS4309
|
90m3
|
9m*1.43
|
|
GSS1510
|
90m3
|
10m*1.15
|
GSS4310
|
112m3
|
10m*1.43
|
|
GSS1511
|
109m3
|
11m*1.15
|
GSS4311
|
135m3
|
11m*1.43
|
|
GSS1512
|
130m3
|
12m*1.15
|
GSS4312
|
161m3
|
12m*1.43
|
|
GSS1513
|
152m3
|
13m*1.15
|
GSS4313
|
189m3
|
13m*1.43
|
|
GSS1514
|
177m3
|
14m*1.15
|
GSS4314
|
220m3
|
14m*1.43
|
|
GSS1515
|
203m3
|
15m*1.15
|
GSS4315
|
252m3
|
15m*1.43
|
|
GSS1516
|
231m3
|
16m*1.15
|
GSS4316
|
287m3
|
16m*1.43
|
|
GSS1517
|
261m3
|
17m*1.15
|
GSS4317
|
324m3
|
17m*1.43
|
|
GSS1518
|
292m3
|
18m*1.15
|
GSS4318
|
363m3
|
18m*1.43
|
|
GSS1519
|
326m3
|
19m*1.15
|
GSS4319
|
405m3
|
19m*1.43
|
|
GSS1520
|
361m3
|
20m*1.15
|
GSS4320
|
449m3
|
20m*1.43
|
●7,000 square meters of factory building area ●10 sets common welding machines, 5 sets high-frequency welding machines, 2 sets autmantic cutting machine, 20 processing workers with 5 years of experience, 3 quality inspection personnel, 3 professional technicians, and 3 sales teams.
●Sufficient raw material reserves and professional production equipment
The products have passed ISO9001, SGS, TUV, BV, CE certification.
Packing and Shipment
we provide one-stop service
Product packing and multiple production
● Layers Protection Packing Standard: inter plastic film+ protection cloth+outer waterproof woven bag+iron pallet ● Sample Shipping: cooperated with DHL, FEDEX, UPS, 3-7 days door to door service. ● Bulk goods Shipping: cooperated with domestic Listed Freight Forwarding Company, Direct line to your appointed destination port! FCL(full container) and LCL(Less than Container Load) acceptable
●. We can also ship the goods to your appointed warehouse in Shanghai, Guangzhou, Yiwu , Shenzhen etc. Welcome the inquiry to enjoy the quality product and the satisfied service!
FAQ
Q1. Can you provide samples?
A: Yes. We can provide the PVC canvas for free, send the sample by the fastest express.
A: Yes. We can provide the PVC canvas for free, send the sample by the fastest express.
Q2. Can I get a discount?
A: The price is negotiable. We can give you a discount according to your quantity.
Q3. How much is the freight?
A: The freight is calculated according to the weight of the package, the mode of transport and the destination.
Q4. Can you offer custom size and style?
A: Yes. please contact us on alibaba for the detailed catalog
Q5. What is your lead time?
A: Usually 7 to 15 working days after you receive your payment.If your order is urgent, we can arrange it for you in advance.
Q6. What is your warranty?
A :1-3 years (except intentional damage).
What will you do if the goods we receive are not of good quality?
Answer: 1. Take pictures of the defective goods to us;2. Keep these goods for us;We will give you a refund or replace the goods.
Q7. What if there is an accident of breakage?
Answer: Our product repair stickers, you need to hot melt to the damaged areas.
Q8. Can you provide repair materials?
Answer: can provide, and is the material is not charged, but you have to give express fee.
