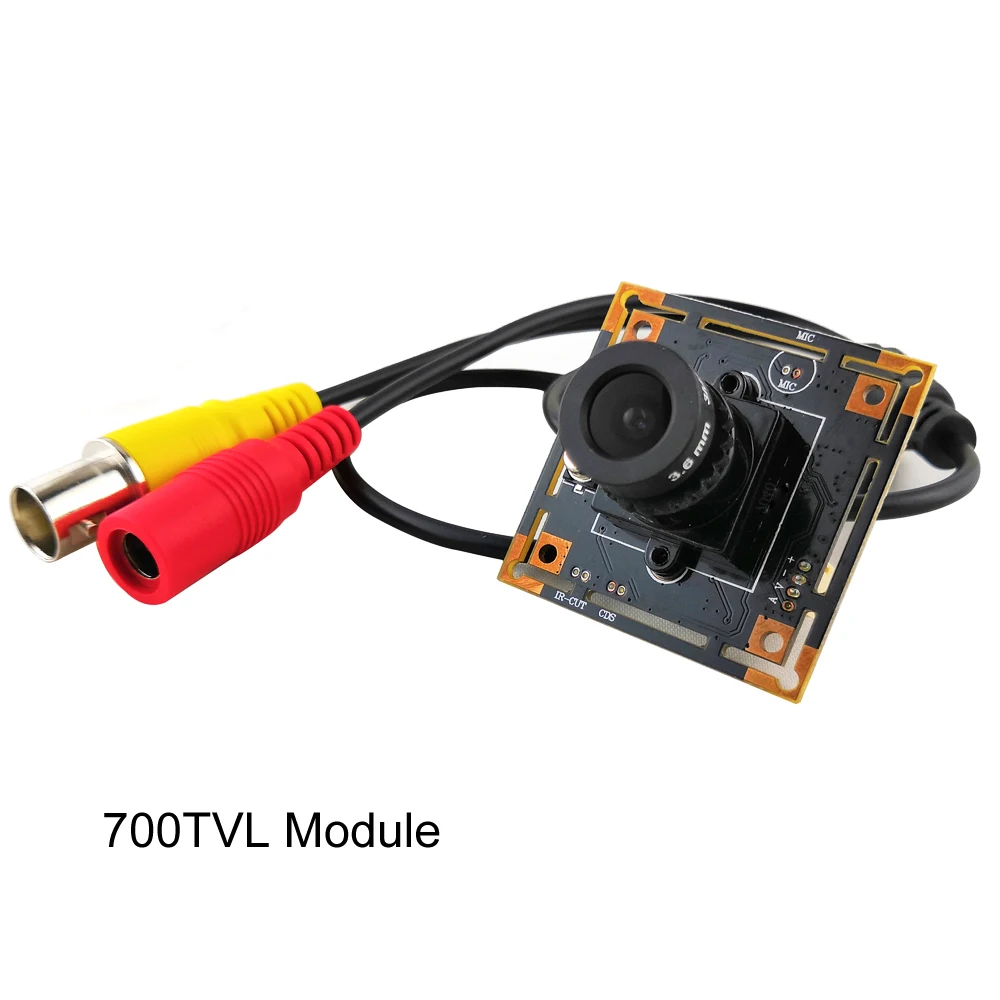

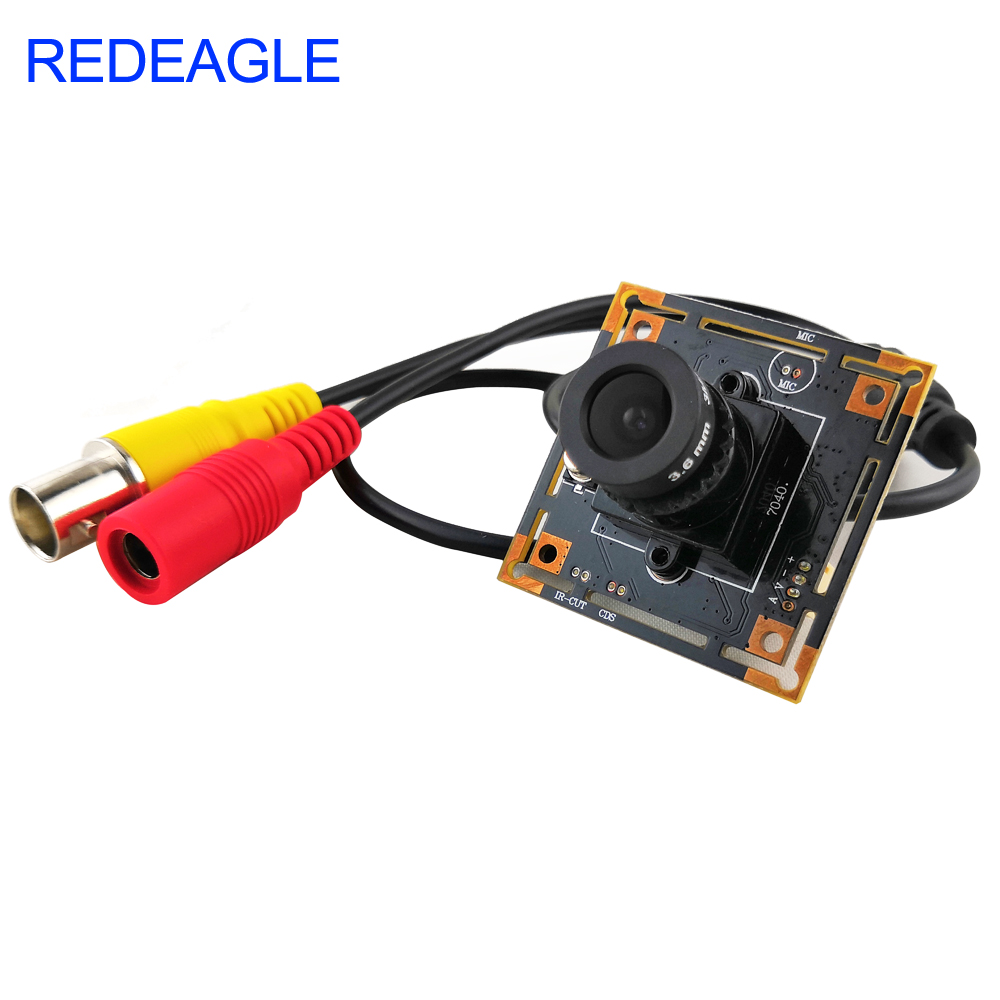

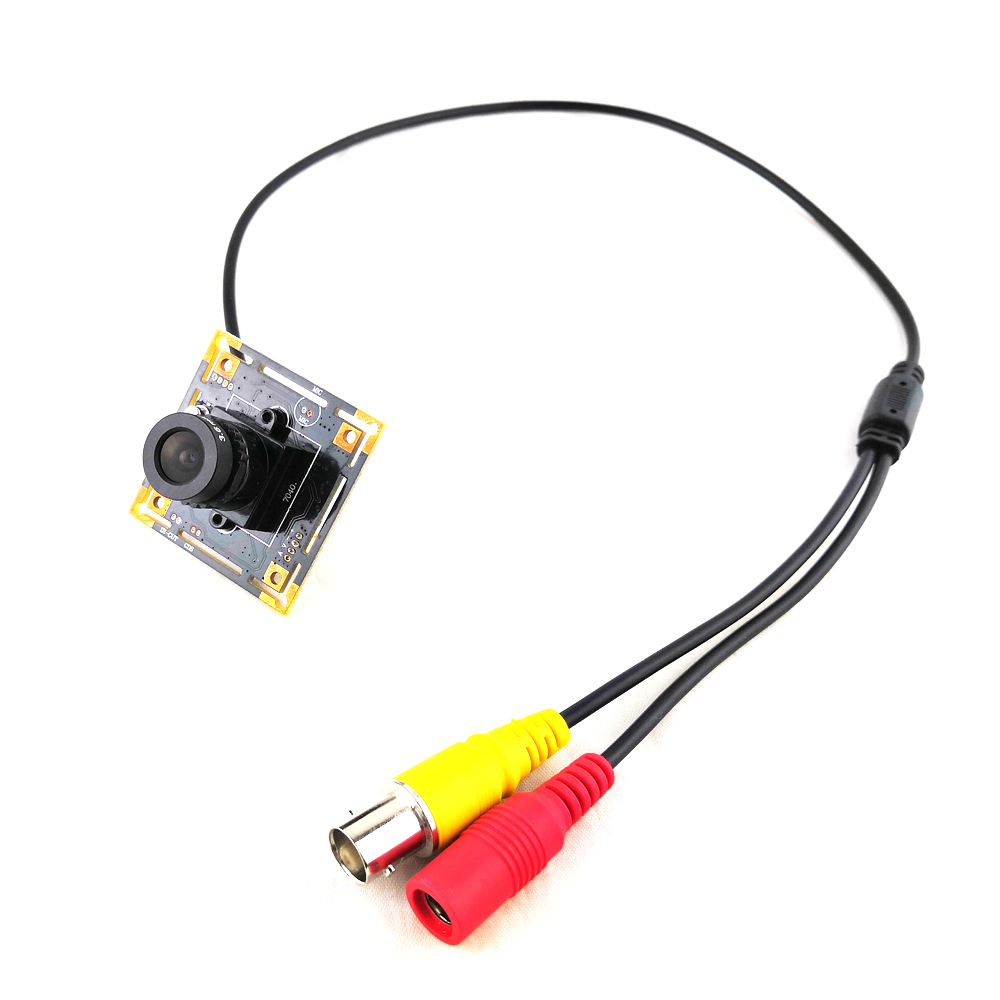

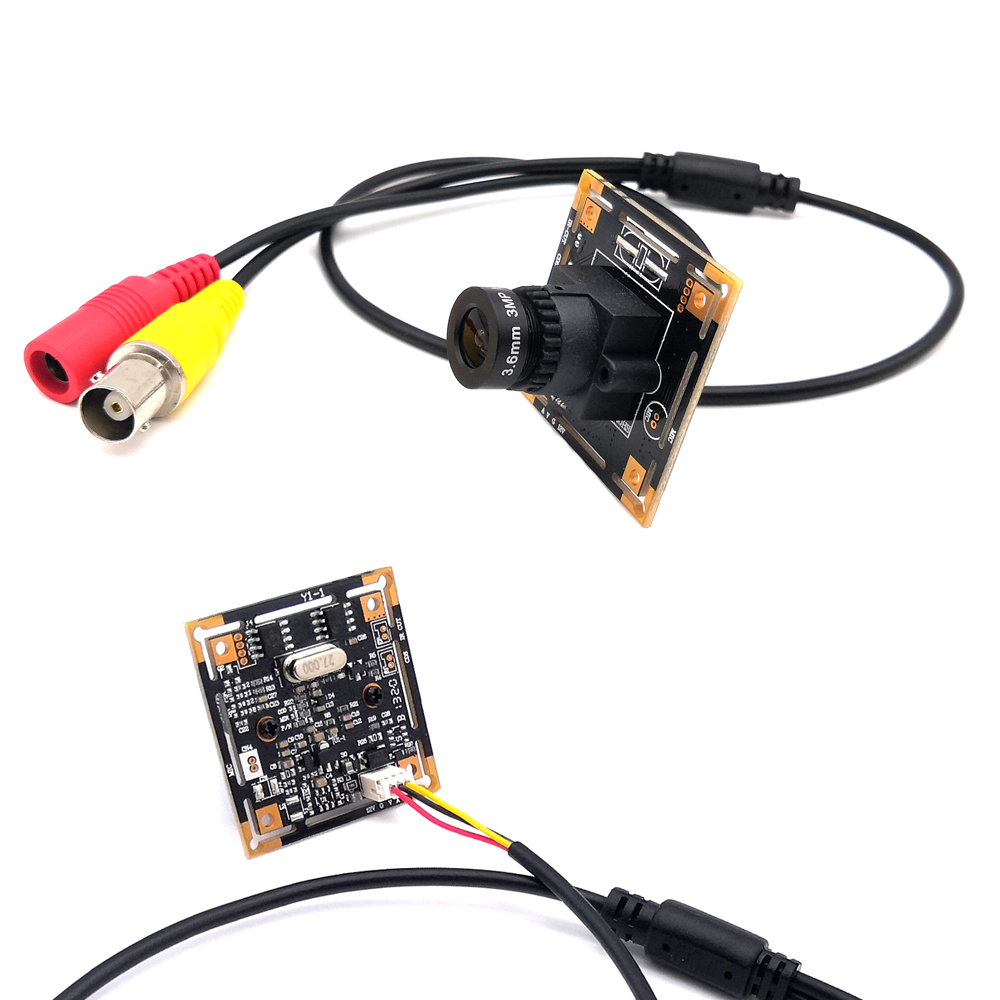

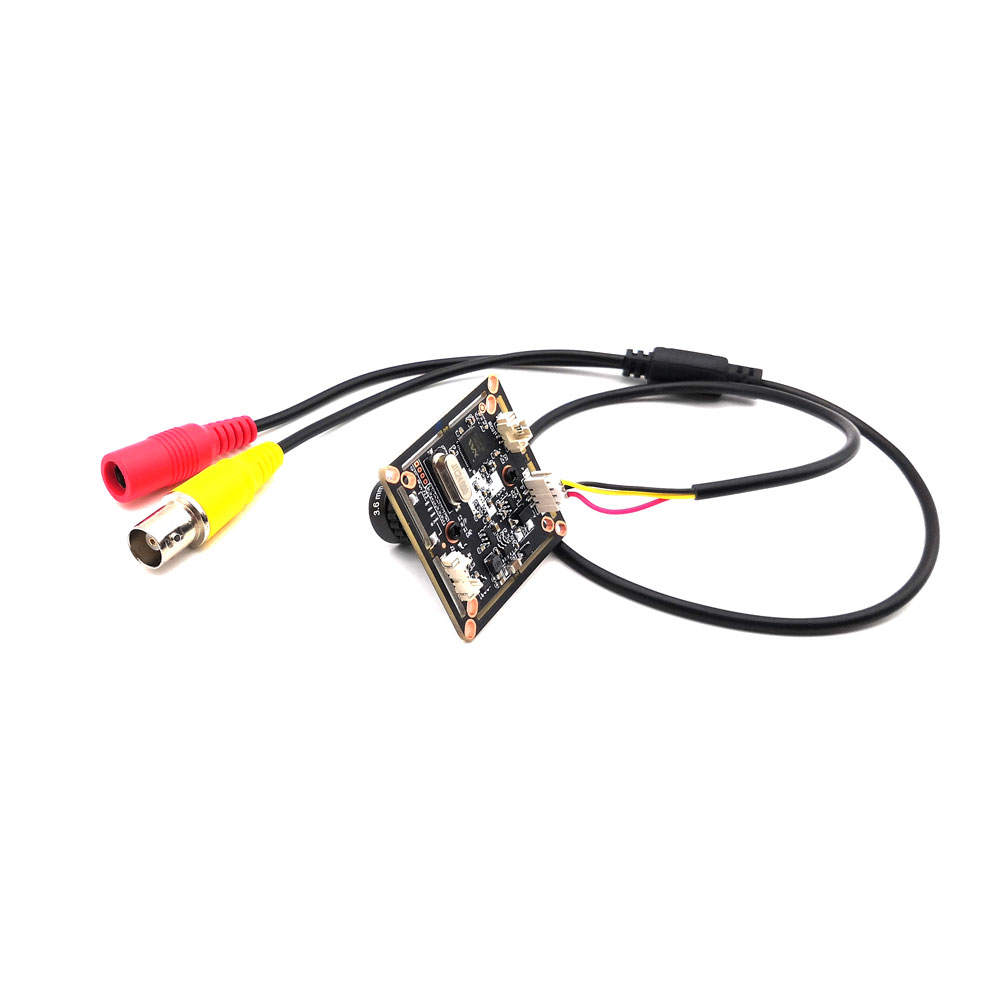

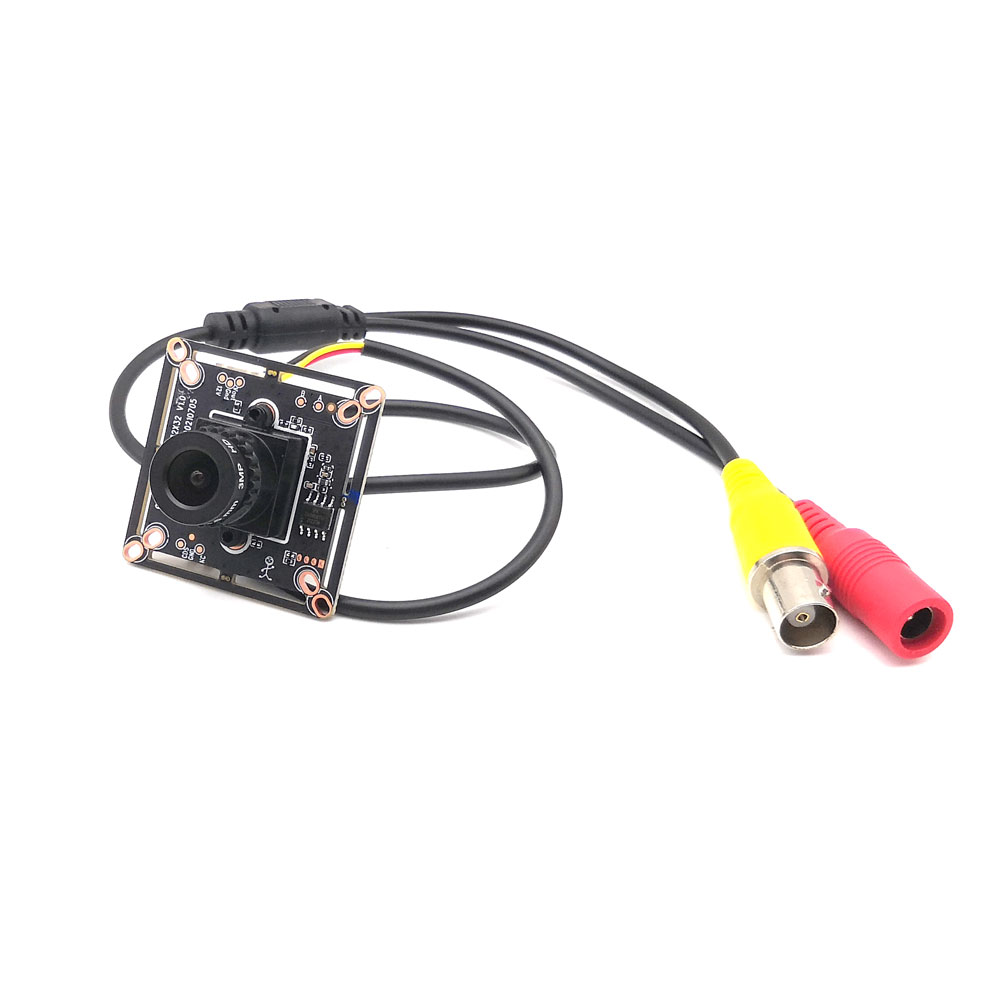

CVBS CCTV 700TVL Mini Color Analog Camera
Specifications
Image Sensor: 1/4″ CMOS
Signal system: NTSC / PAL

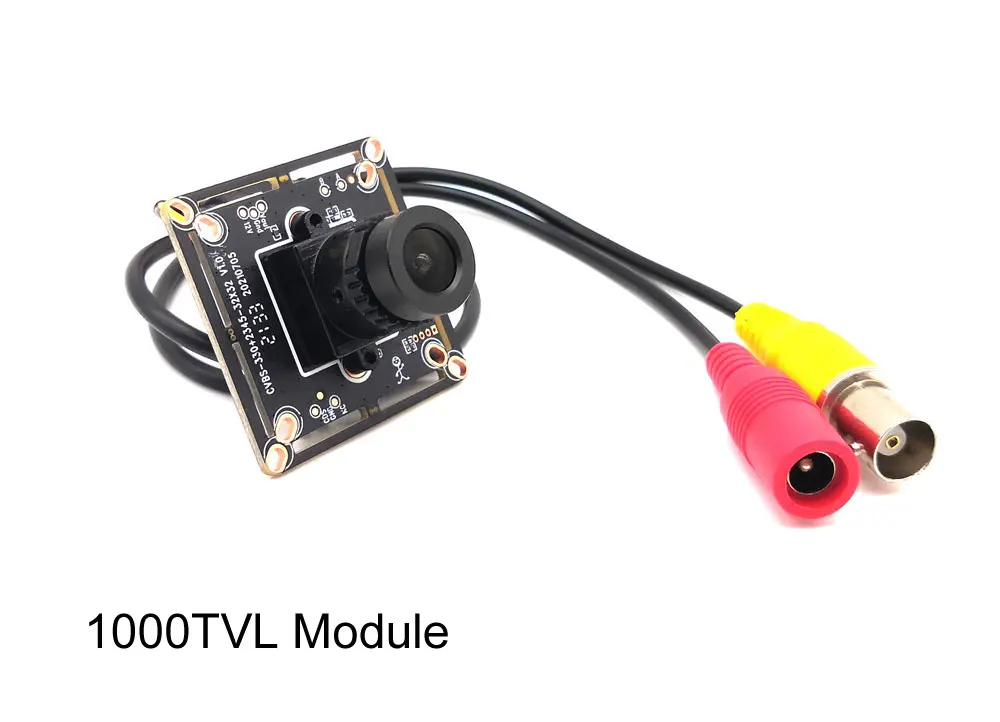

Horizontal Resolution: 700TV Line / 1000TV line
Lens: 3.6 mm
IR Illuminators: NO
Back Light Compensation: Auto
S/N Ratio: 48db (AGC-OFF)
Scanning System: 2:1 Internal
Synchronization System : Internal Synchronization
Shutter Speed: 1/15000 (second)
Video Output: BNC 1.0Vp-p, 75 OHM
Power Supply: 12V DC (No include)
Operation Temperature: -10C ~ 50C / 0F ~ 110 F
Package
1 x Analog Security Camera Module
1 x 3-Core cable with BNC&DC port
NOTE: only for security camera, indoor use.
If you apply it to other products, we cannot guarantee it and cannot provide technical support.


FAQ:
Q: This camera can connect to TV Monitor/LCD directly via cable?
A: Yes
Q: Can I connect it to the video doorphone intercom?
A: Whether they are compatible depends on your product. We cannot guarantee that they are compatible.
