– High Resolution 4.0/5.0 Megapixel 1/3” CMOS Sensor
– 4MP 2560*1440P resolution / 5MP 2880*1616P resolution
–Support web interface of IE6.0 and above browser.

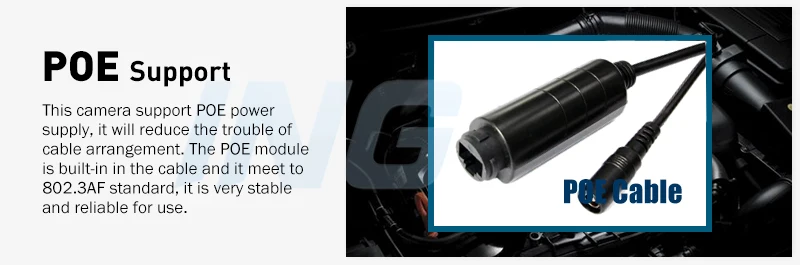

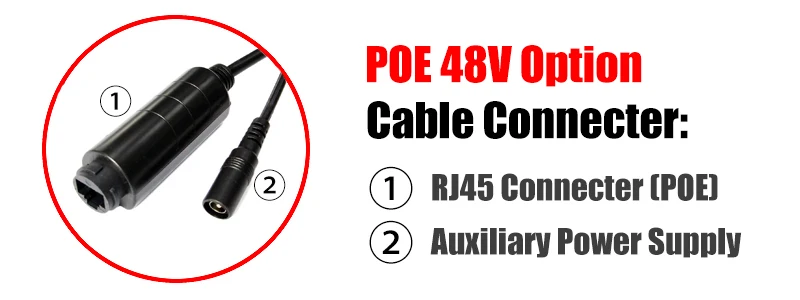

“POE 48V” Option
mean the camera support POE, can power from POE, need to connect with a802.3AF Standard 48V POE Switch (It have auxiliary power supply connector, can be used like a Non-POE IP camera).

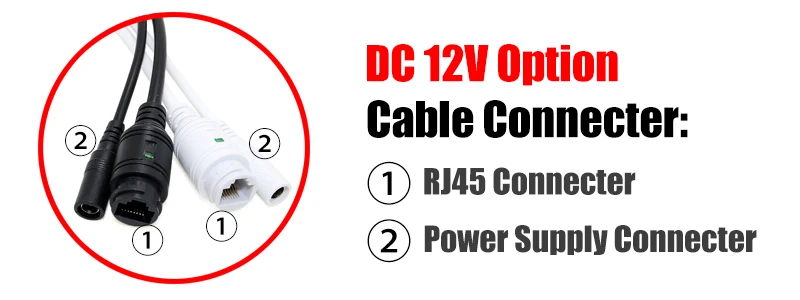

“DC 12V” Option
mean the camera is regular version, do not support POE and it can only with with a 12V regular power.

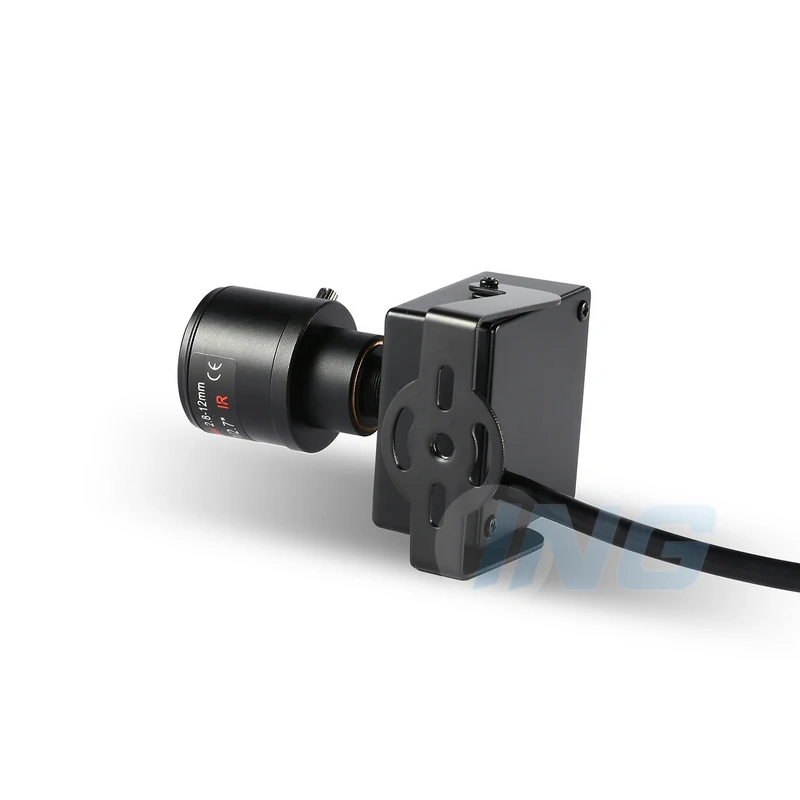

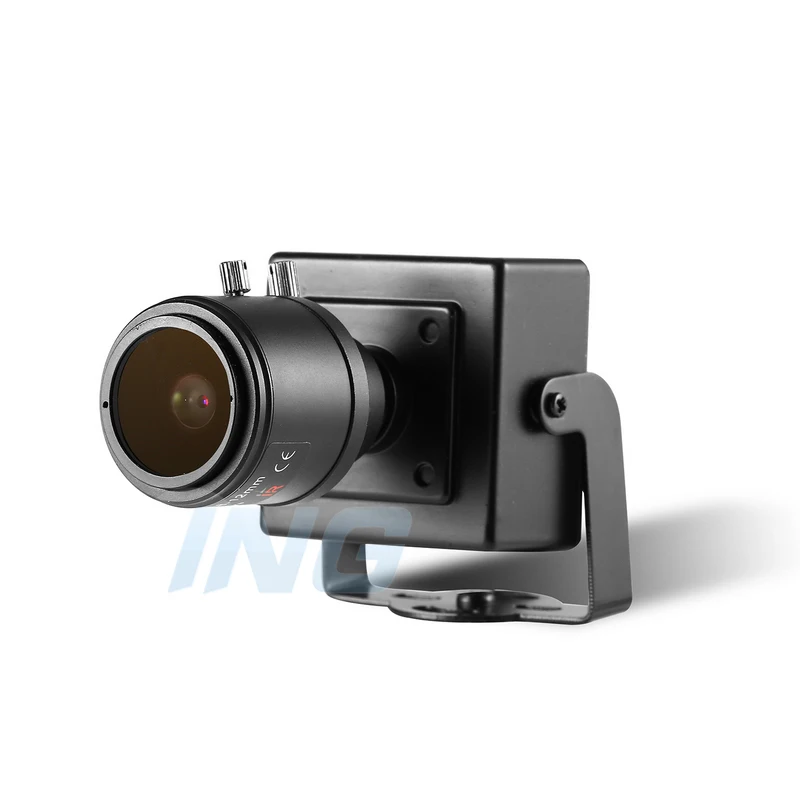

Camera

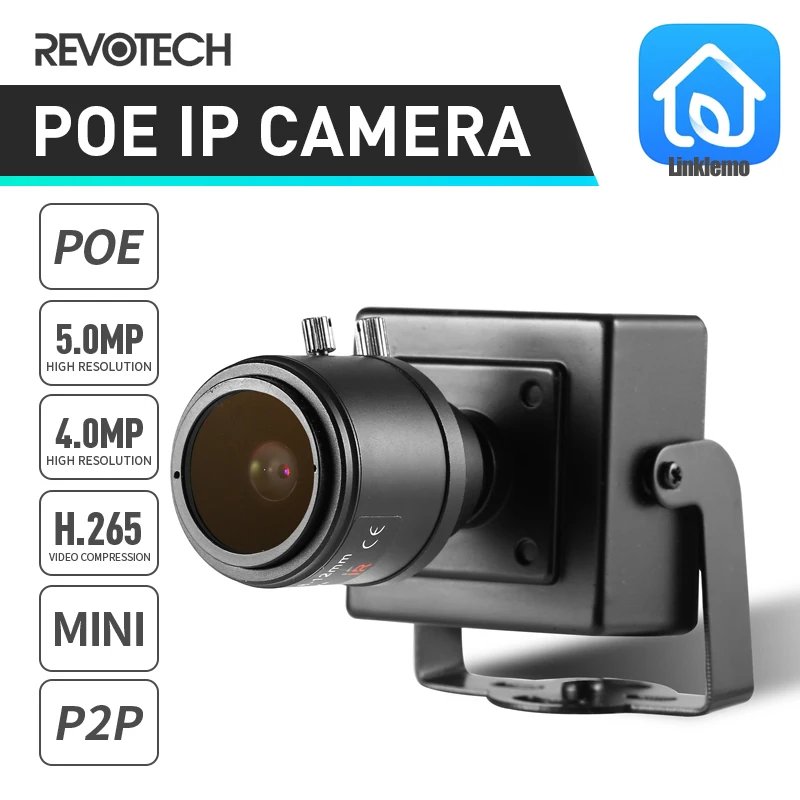

Model: I712-HS
4MP Resolution:2560 x 1440P 4.0 Mega Pixels camera
4MP Sensor: FH8852V201 + GC4063
4MP Frame rate: 25fps
5MP Resolution:2880 x 1616P 5.0 Mega Pixels camera
5MP Sensor: FH8852V200 + GC5053
5MP Frame rate: 20fps
Min illumination: 0.01Lux @(F1.2,AGC ON)
Shutter: 1/25 seconds -1/100,000 seconds

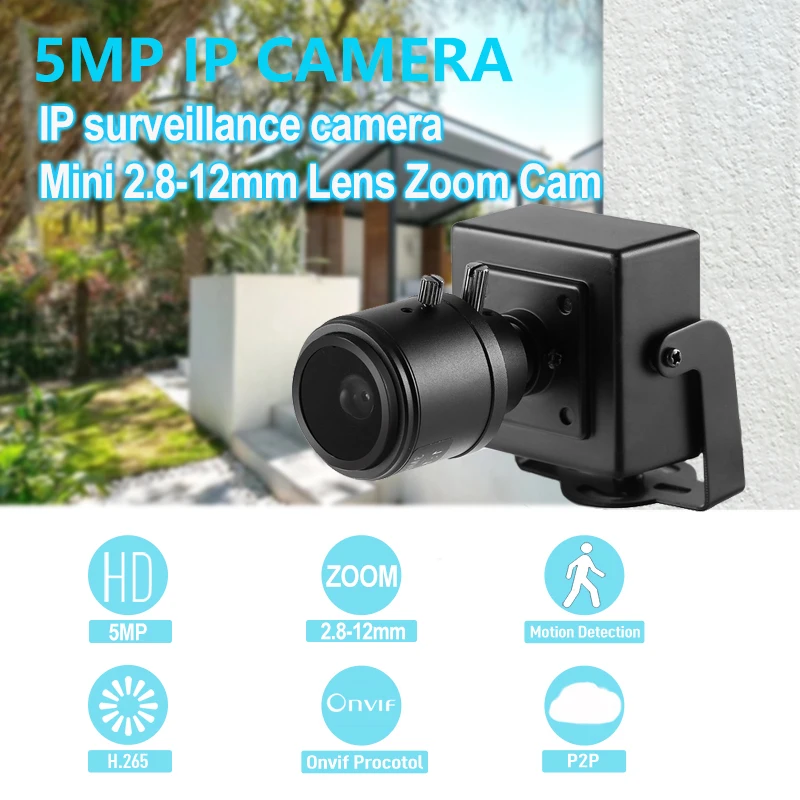

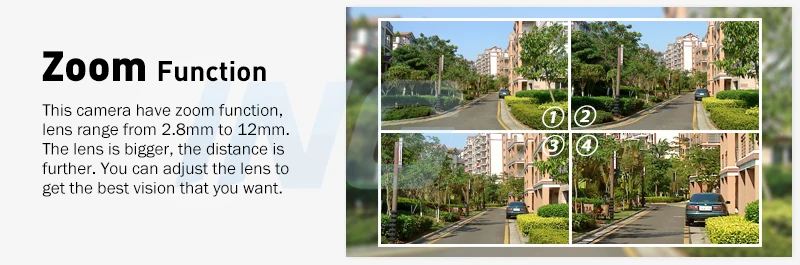

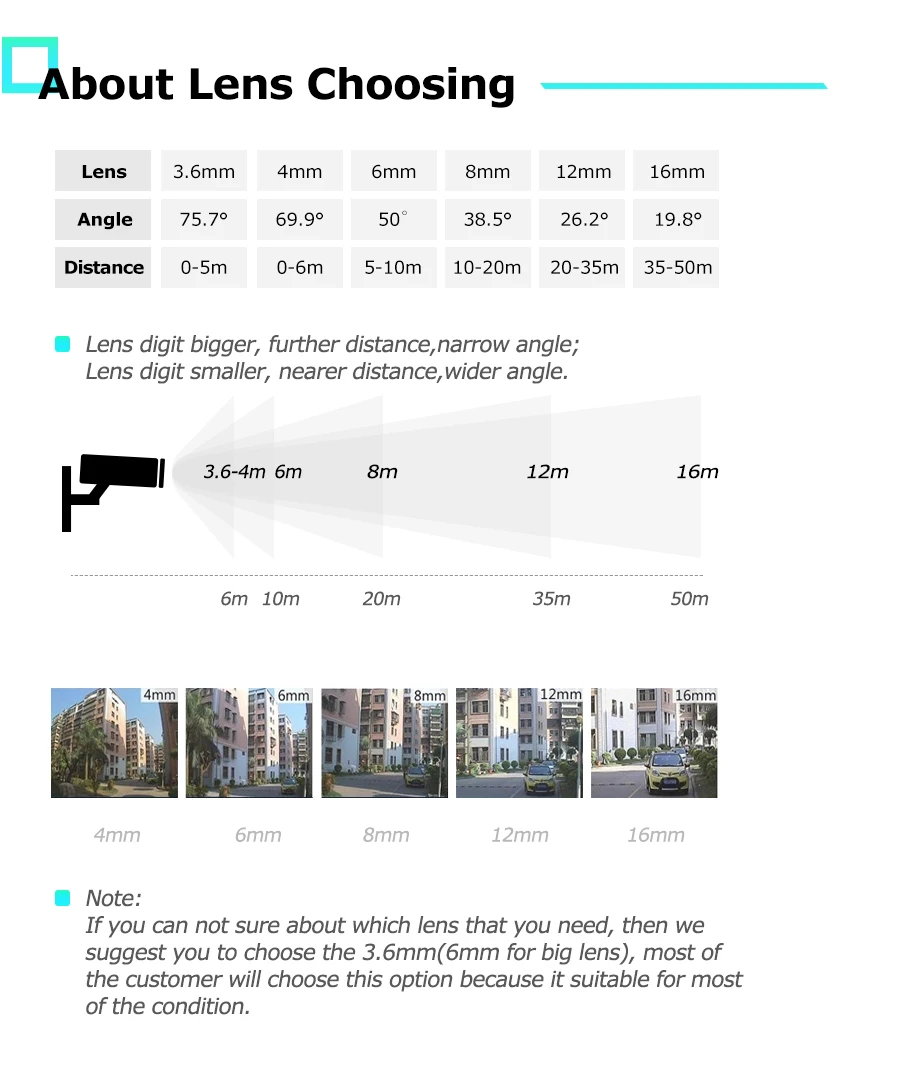

Lens: 2.8-12mm Zoom
Lens interface type: M12
Compression Format: H.264 / H.265
Compression rate output: 128 Kbps~8Mbps

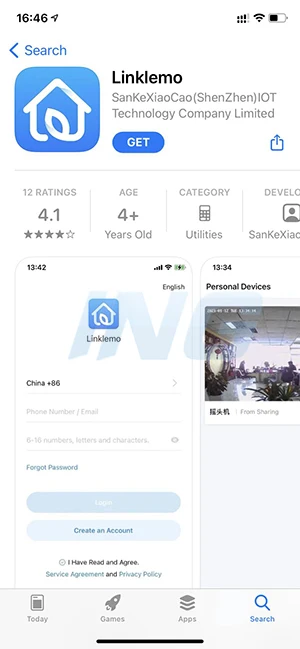

Storage: NVR or Computer. This device do not support Cloud Storage, please do not purchase the Cloud Storage from the “Linklemo” app.
IP address: Dynamic (Default) / Static
Smart alarm: Motion detection, Email alarm
Support protocol: HTTP, TCP/IP, ICMP, RTSP, RTP, UDP, RTCP, SMTP, DHCP, DNS, PPPoE, NTP
Input protocol: The standard ONVIF
Onvif Port: 80
General function: A key recovery, dual stream, password protection, video hiding
Ethernet: 10M / 100M mbps Ethernet (RJ-45)
General
Operating Temperature: -25°C~60°C
Operating Humidity: 10%~90%
Power Supply:
POE 48V option support POE 48V(802.3af) & DC12V/2A
DC 12V option support DC12V/2A
HousingMaterial: Metal

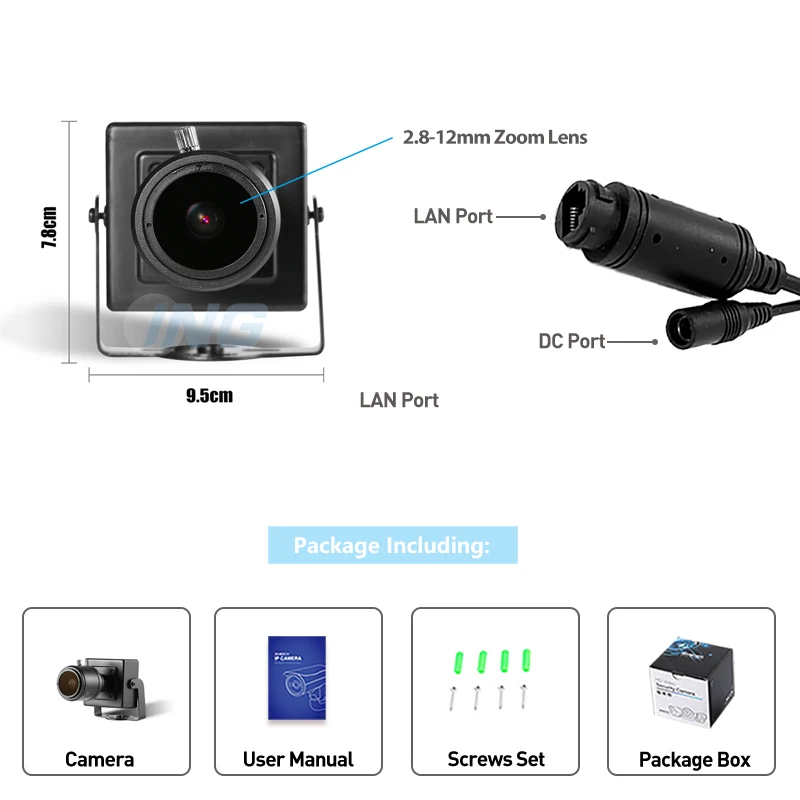

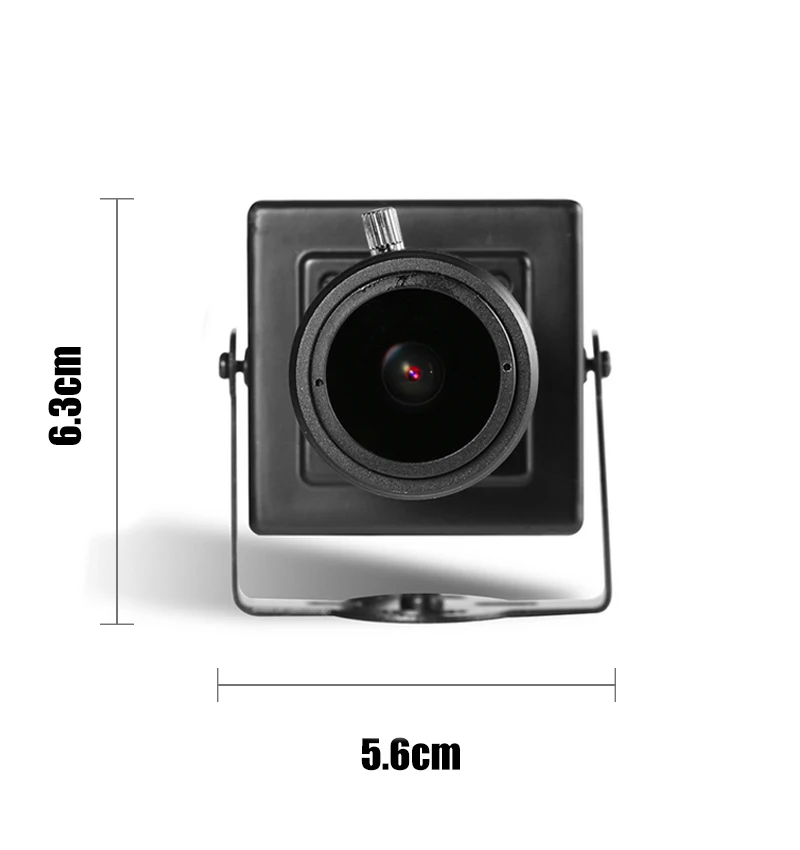

Dimension:5.6 x 4.6 x 6.3cm
Weight:0.2kg

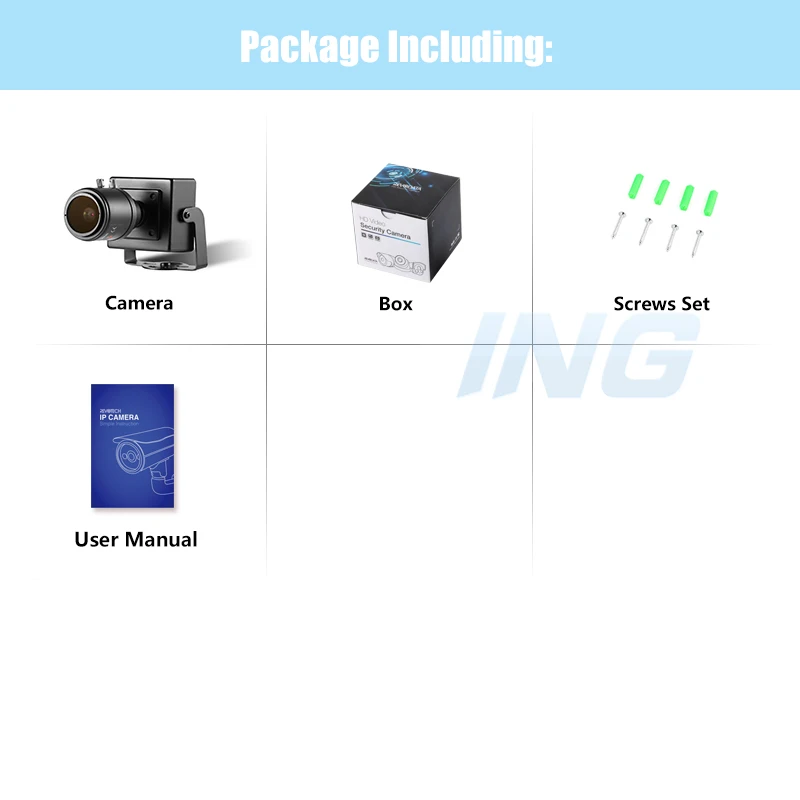

Package Content
Power supply Note:
1.POE 48V version can power from POE, need to connect with a802.3AF Standard 48V POE Switch. if you need one, please click the picture to buy.

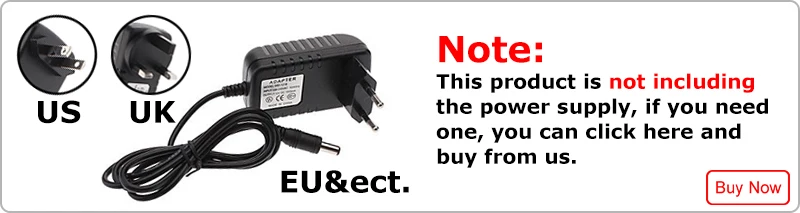

2.Both POE 48V version and DC 12V version have not include power adapter, if you need one, please click the picture to buy.
4MP Pictures:

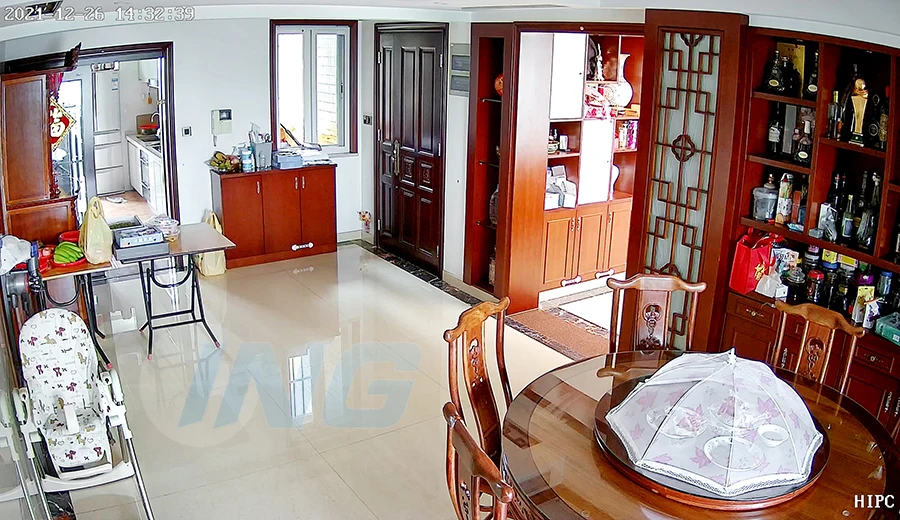

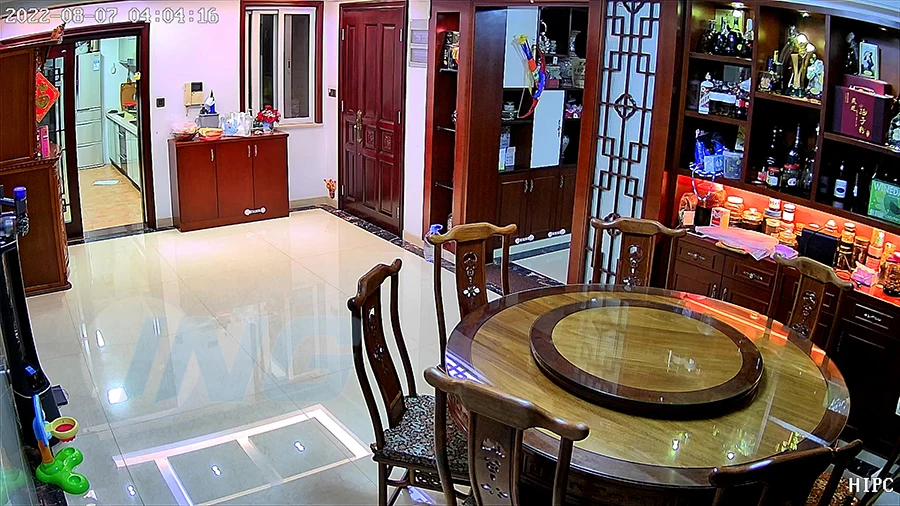

Daytime + Indoor
Night with light + Indoor
5MP Pictures:
Daytime + Indoor
Night with light + Indoor

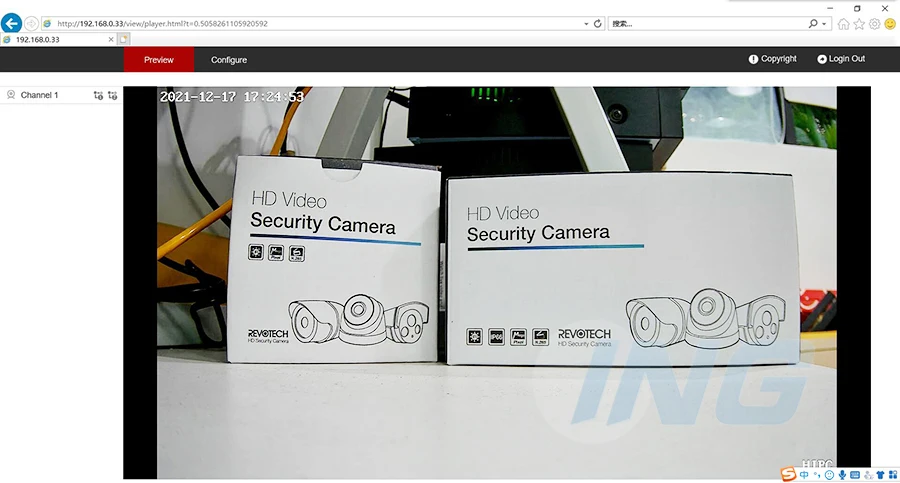

Browser Views

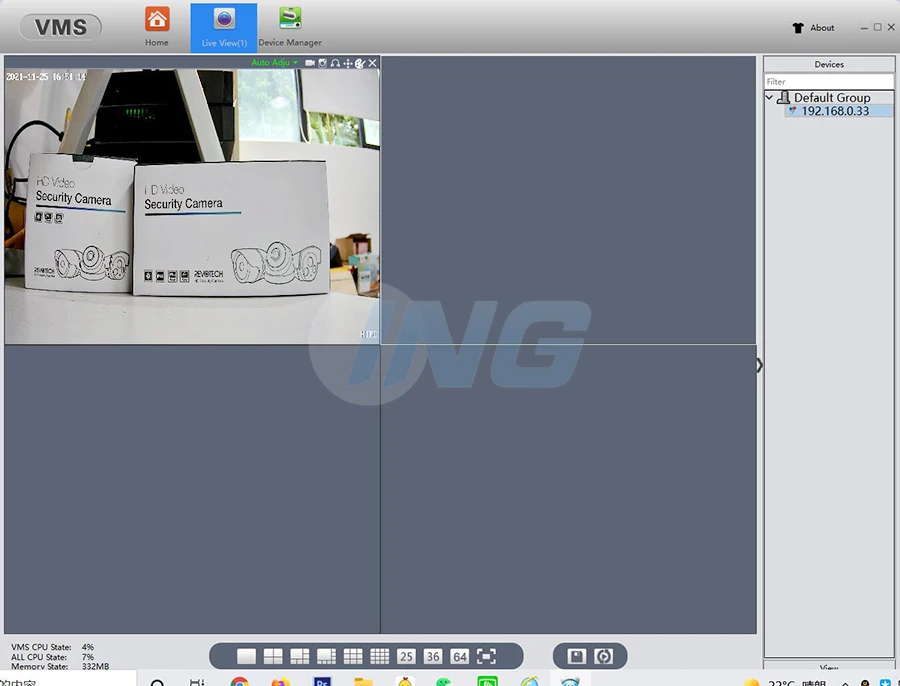

Software Views

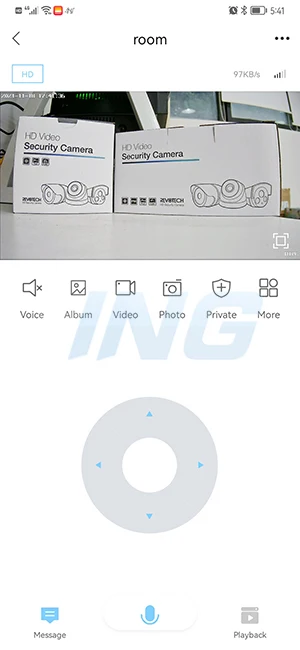

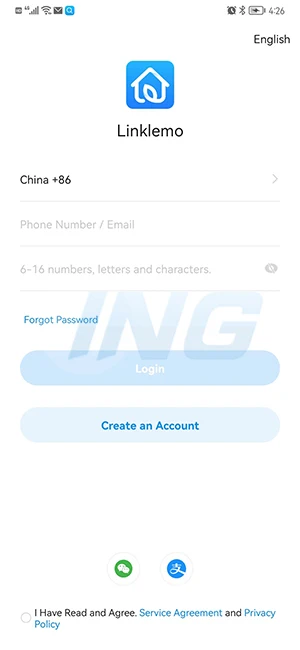

App Views

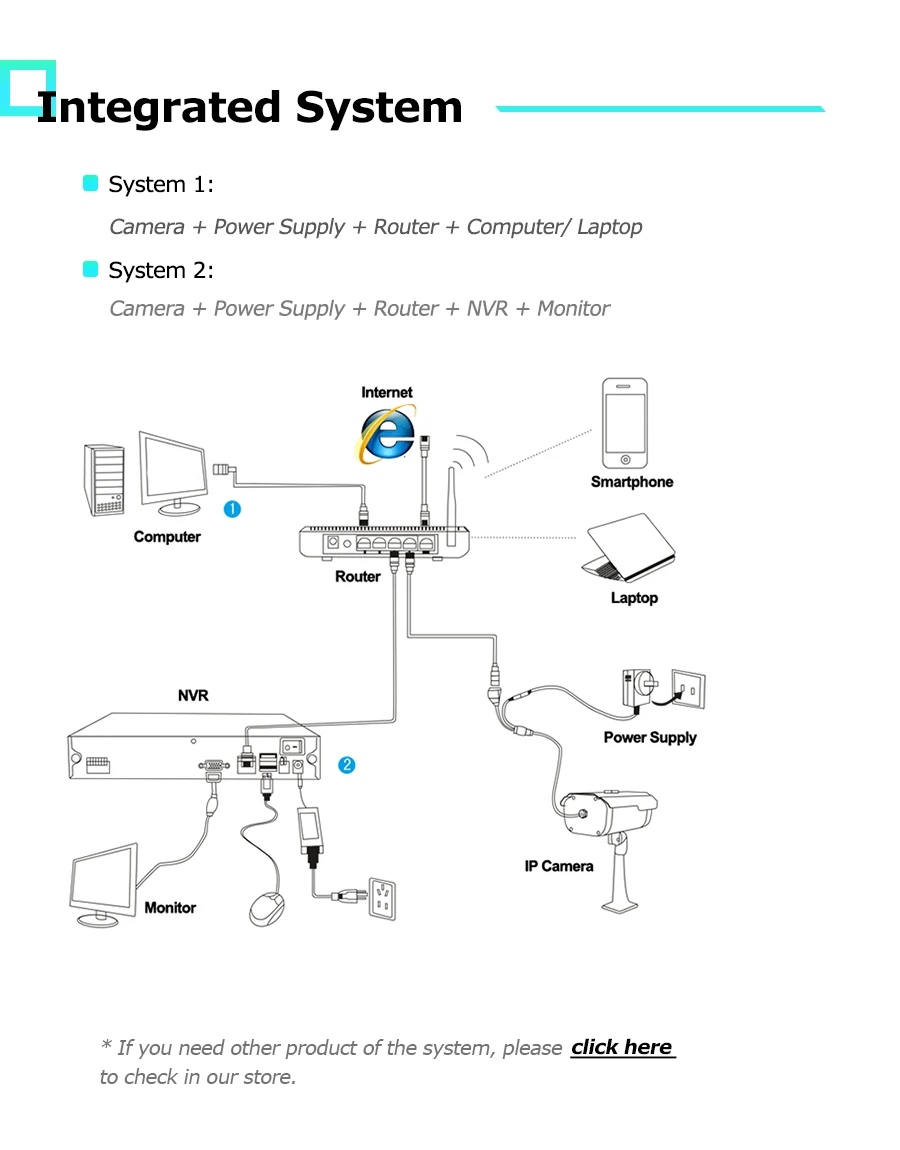

NOTE:System 1 also can save the video by CMS software, but it need to set and open the computer all the time. It is not convenient, so we suggest your to use system 2 to save the video. It is stable and reliable.
