Attention:
The remote control and receiver must be used together, and cannot be used together with other types of remote controls, switches.

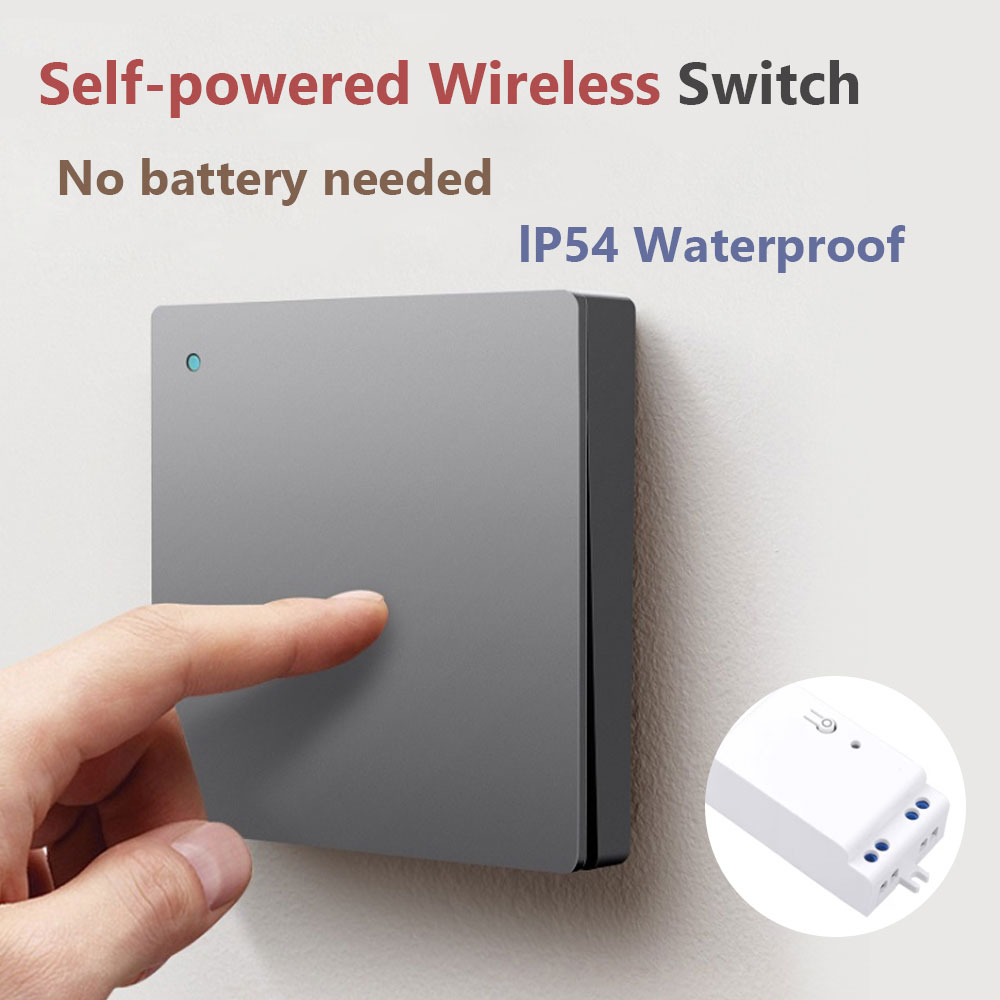

The working principle of the self-powered wireless wall switch:

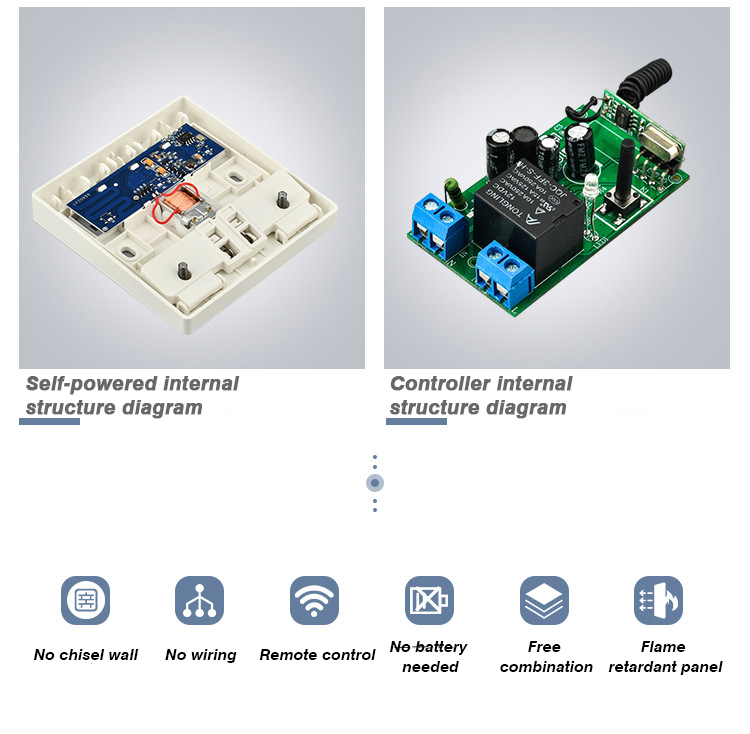

The self-powered wireless switch adds a receiver to the connection between the light and the wire. The switch does not require wiring; there is a self-powered module inside the switch, which converts the kinetic energy generated by pressing into electromagnetic energy, and then into electric drive components. The device emits radio frequency signals. The receiver turns the light on or off when it receives a signal.
Wireless remote control parameters:
Size: 86*88*15.5mm
Working voltage: self-generation
Emission current: <30mA
Transmit power: >+13dBm
Keystroke force: 300+/-50g
Waterproof performance: 1P54

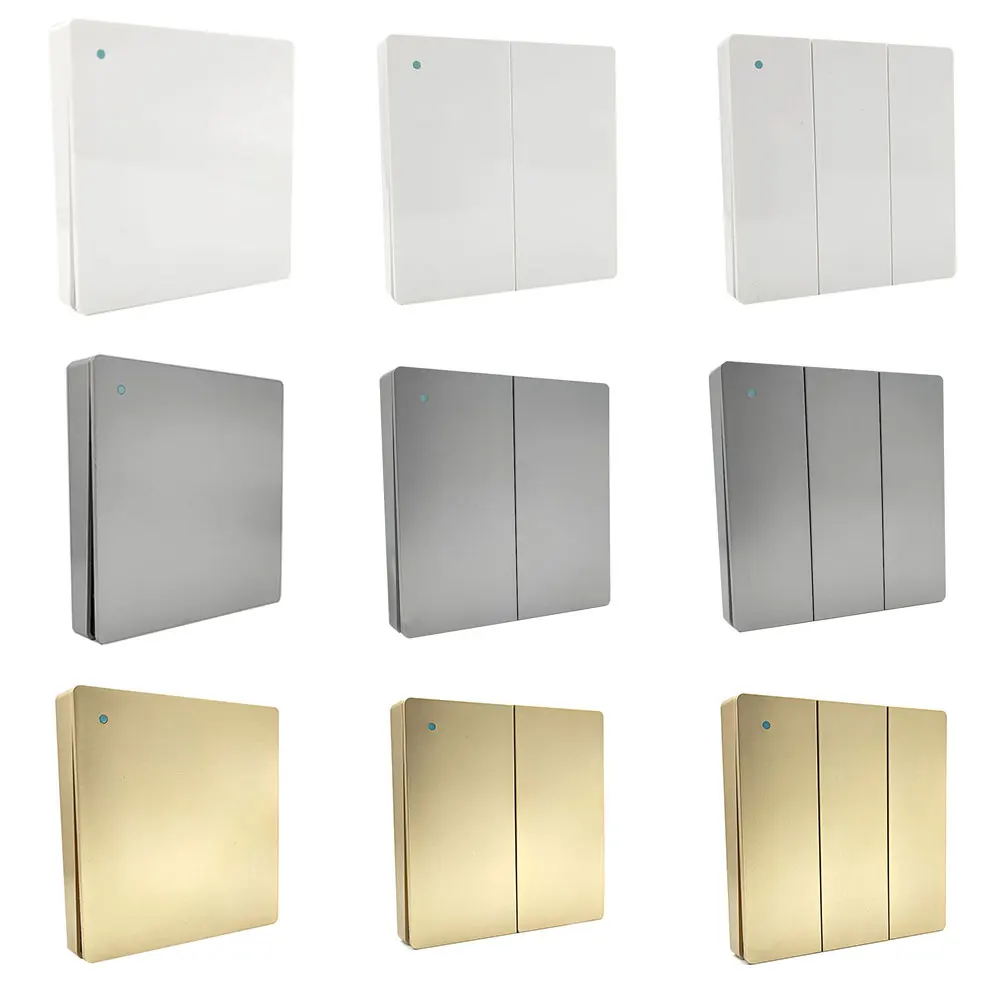

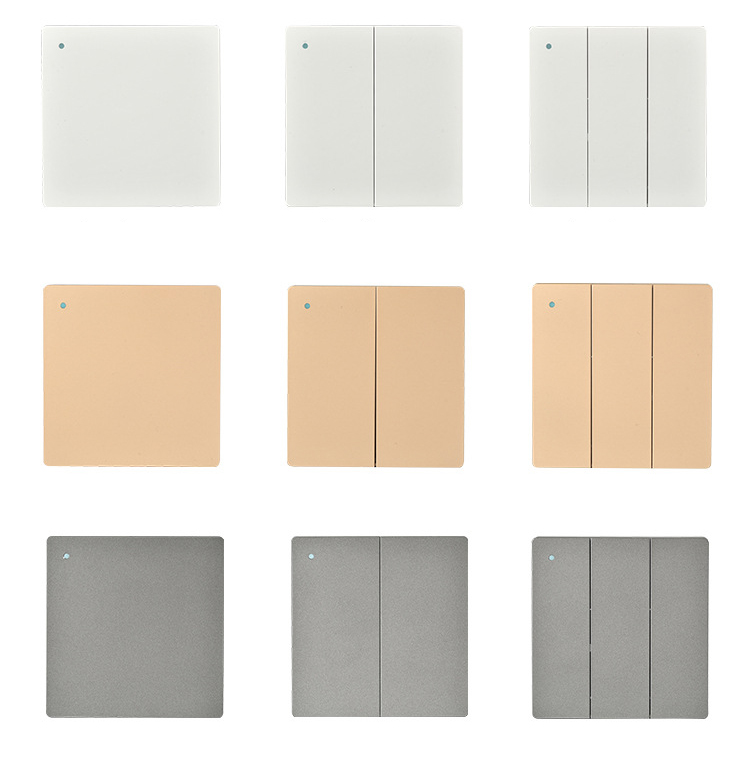

Panel bottom shell: interchangeable bottom shell universal
Standby current: Oua
Frequency: 433.92+/-75KHz MHz（Encryption processing）
Remote control distance: open area>200M indoor>50M
Button life: >200,000 times

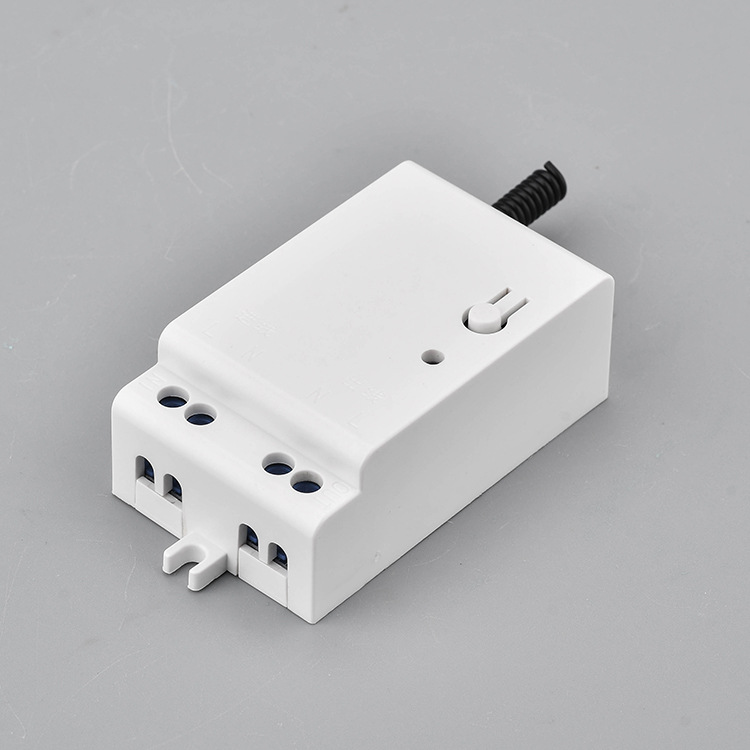

Receiver experimental parameters:

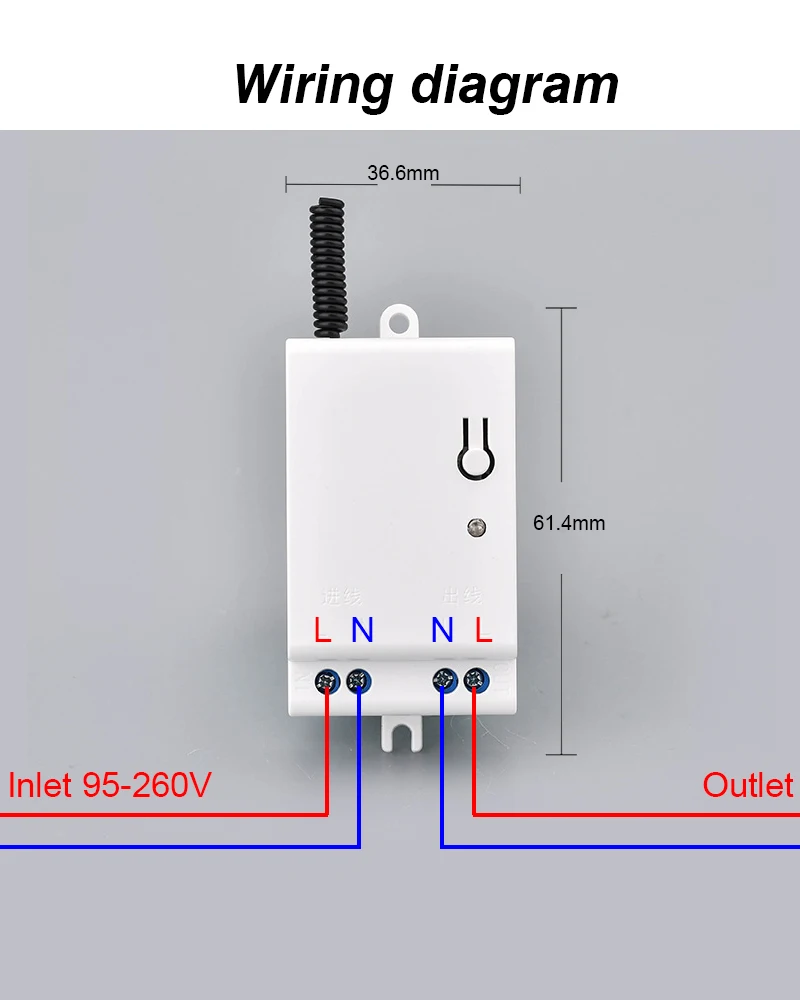

Rated voltage: 95-260V
Relay life: open/close times ≥ 400,000
Resistive load: ≤1500W
Standby power consumption: ≤0.3W
Inductive load: ≤1200W
Working power consumption: ≤0.8W
Capacitive load: ≤1200W
Working temperature: -20C~+70℃℃
Working humidity: ≤80%
Working temperature rise: 15℃
Instruction Manual
1. Set on and off status
Long press the receiver button for 3 seconds, the indicator light flashes once, release the button, press the wall switch once, and the receiver indicator flashes once, indicating successful learning.
2. Set the on state (only for turning on the light)
Long press the receiver button for 5 seconds, the indicator light flashes twice, release the button, press the wall switch once, and the receiver indicator flashes once, indicating successful learning.
3. Set the off state (only for turning off the lights)
Long press the receiver button for 7 seconds, the indicator flashes 3 times, release the button, press the wall switch once, and the receiver indicator flashes once, indicating successful learning.
4. Clear the learning status.
Long press the receiver button for 10 seconds, the indicator light flashes 4 times, indicating that all learning remote controls are deleted.
5.Short press the receiver button, each time you press it, the relay will turn on or off.
Wireless remote control is not required
Cabling without chisel wall can be attached anywhere in the home
No power connection without fear of electric shock hazard

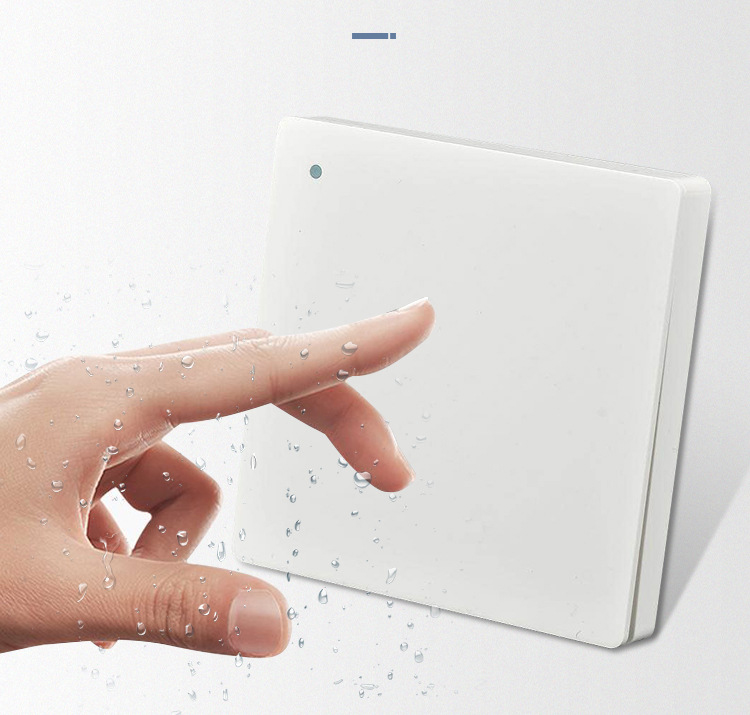

Waterproof switch insulation wet hand can also touch away from the danger of electric shock
High quality materials are flame retardant
PC material has long temperature and pressure resistance service life
