Package List for 4CH DVR+2/4pcs Cameras(Optional):

1* 4CH 5M-N AHD DVR

2/4 * AHD 5.0MP Waterproof Camera (Optional)

2/4 * 18m BNC Cables(Optional)

1* DC12V/2A power adapter for DVR

1/2 * DC12V/2A power adapter for Cameras(Optional)

1/2 * 1-to 2 power splitter(Optional)

1 * USB Mouse

1 * Fast Operation Guidesome screws

1/2 * Warning Sticker(Gift)

***1TB/2TB HDD is optional***

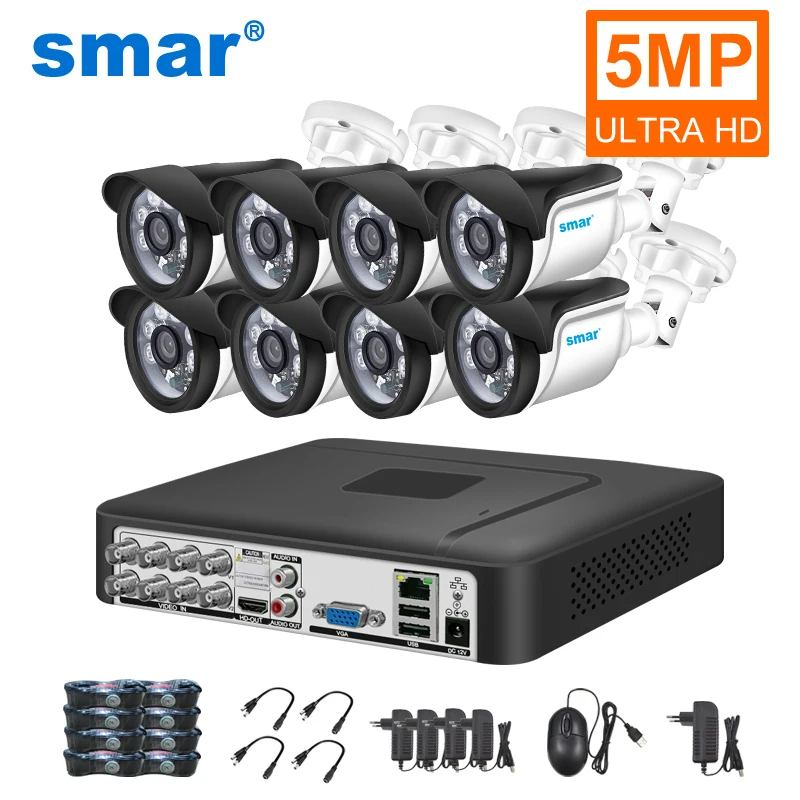

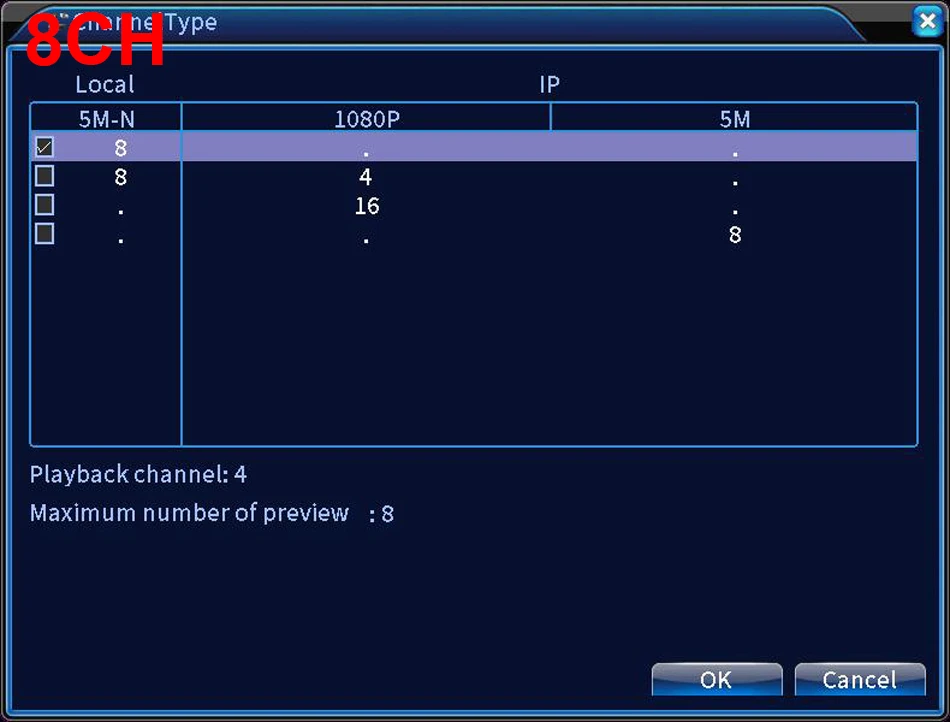

Package List for 8CH DVR+6/8pcs Cameras(Optional):

Super HD 5MP (2560X1920px) video resolution

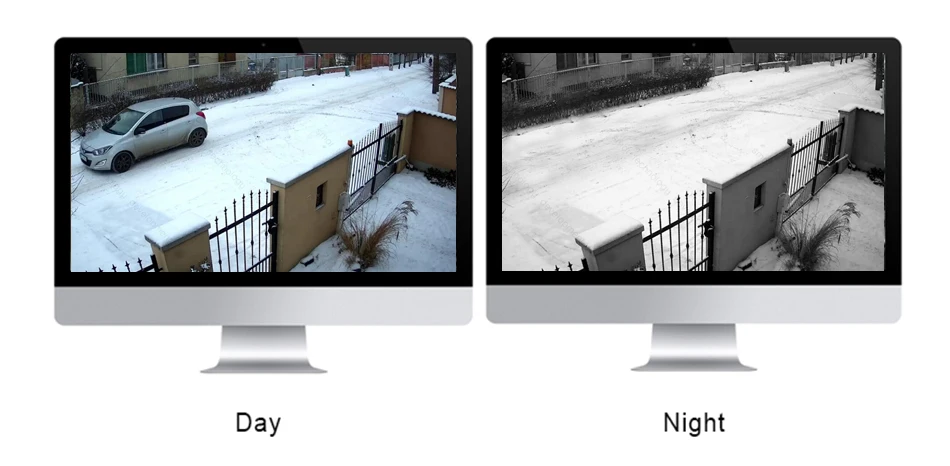

Smart IR-CUT Night Vision

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

Intelligent Motion Detection & Email Alert

You can enable motion detection alerts,When movement is detected in monitoring area, instant email will be sent to your mailbox and phone automatically. Get everything informed even you're away from home.

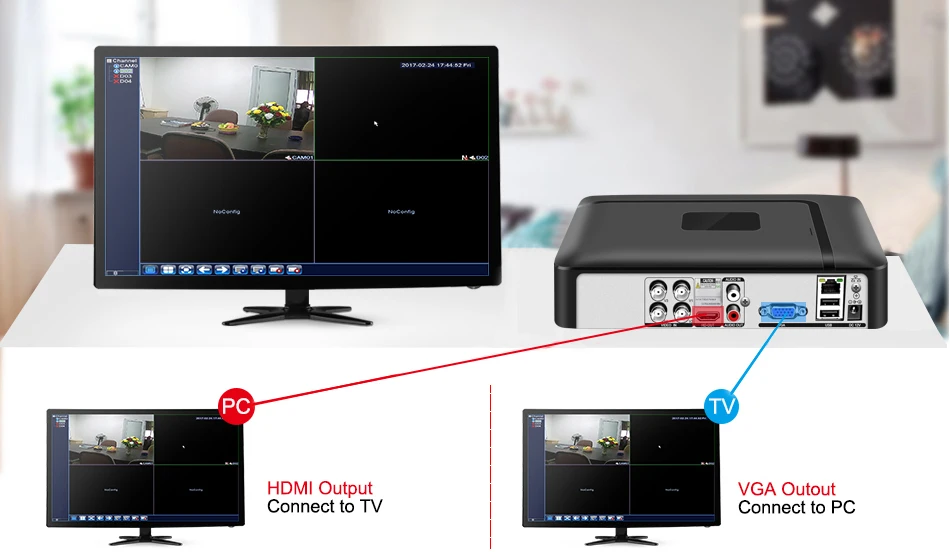

VGA and HDMI Output

It supports VGA/HDMI output simultaneously. You only put the device to your TV or Desktop Computer to enjoy exceptional clear video.

Locate Incident Video With Smart Play

It effectively econnomized your time in playing back the video; Incident video clips can be found and marked in no time with smart playback function; so you get the chance to go directly to incident video clips while skipping others.

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…

Mobile Remote access in seconds

Easy setting , just 4 steps for mobile phone viewing (Android and iPhone iOS)

Applied to Multiple Occasions:

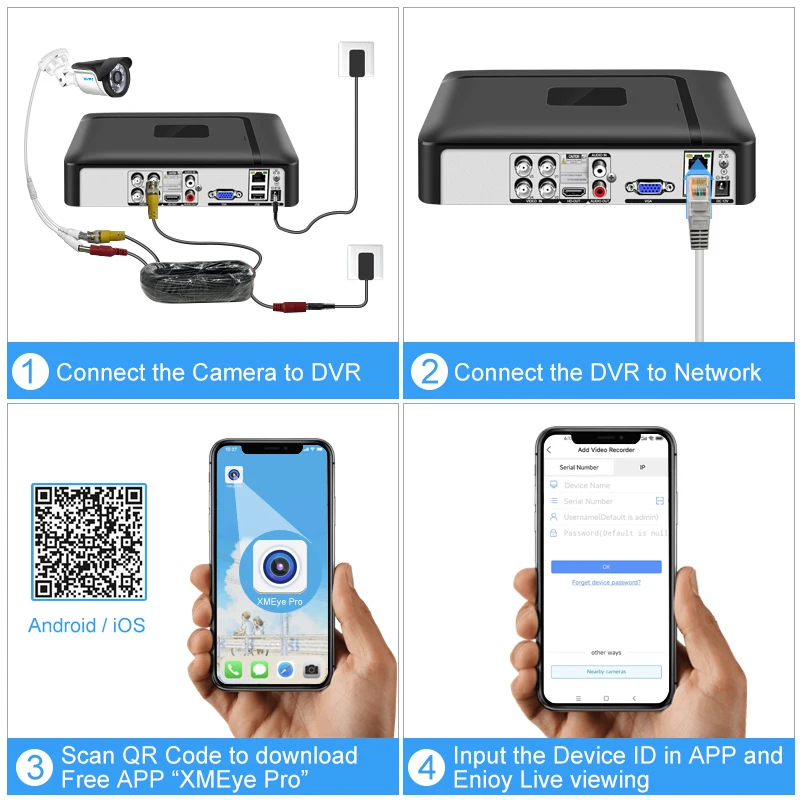

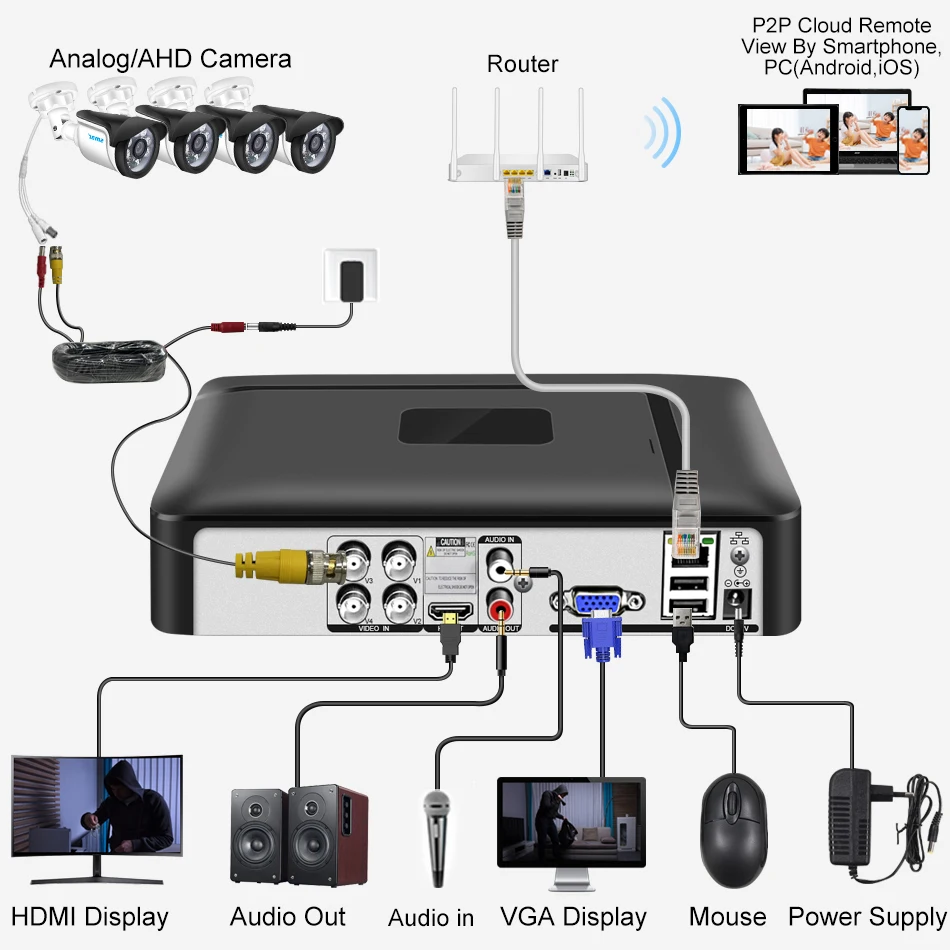

Install and Connect it

It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.

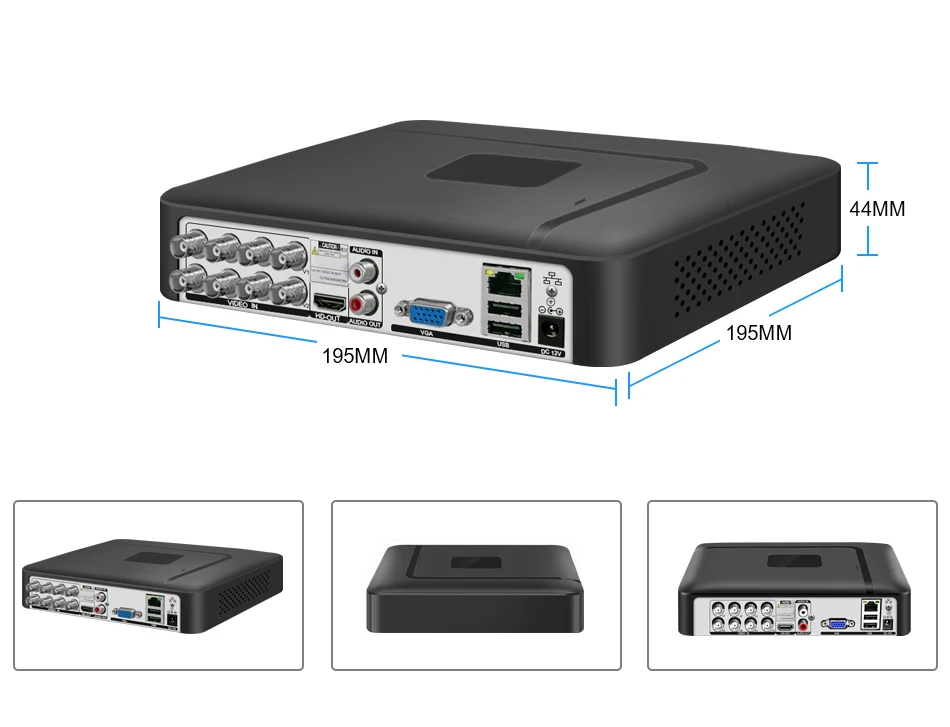

4CH 5M-N HD-AHD DVR Specification

Video compression: H.264

Encode capacity: 4 * 5M-N @25FPS, NTSC @30FPS

Video input/ output: 4CH BNC/ 1CH VGA, 1CH HDMI

Audio input/ output: 1CH RCA/ 1CH RCA

Recording , Playback , Backup resolution: 2 * 5M-N

USB: 2x USB 2.0

HDD: 1xSATA port (Max support up to 8TB)

P2P Remote View: Support iOS, Android

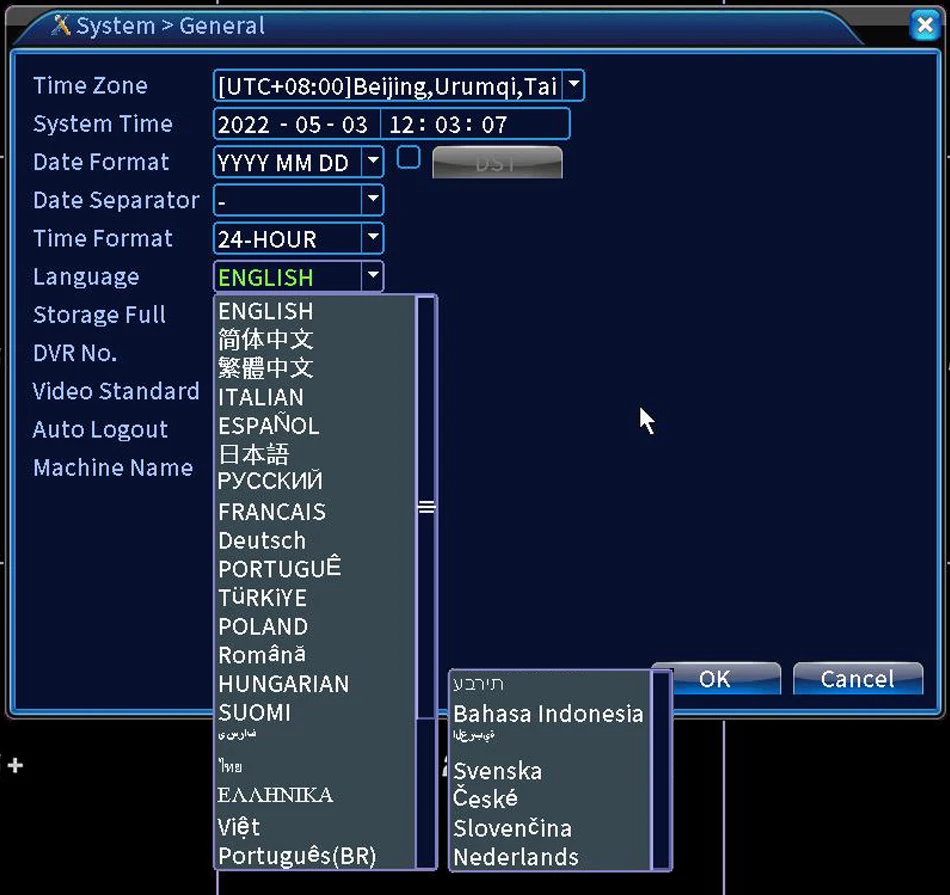

Language: Support 20+languages: It has English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish,Polish,
Romanian, Hungarian, Finnish, Farsi, Thai, Estonia, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech,Slovenian, Dutch…

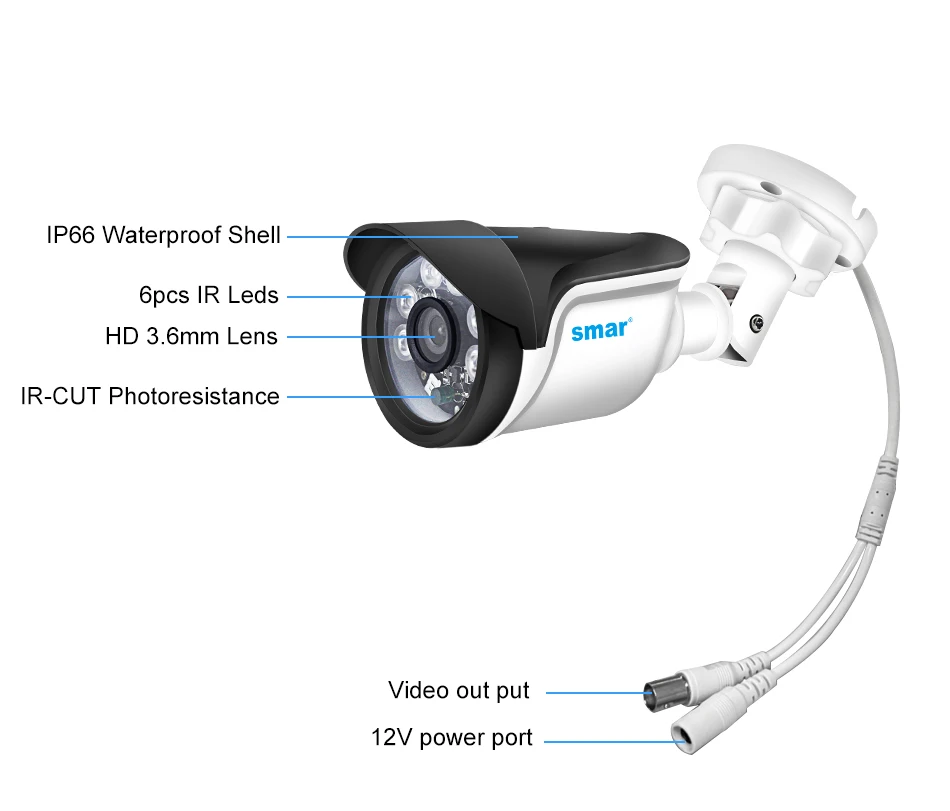

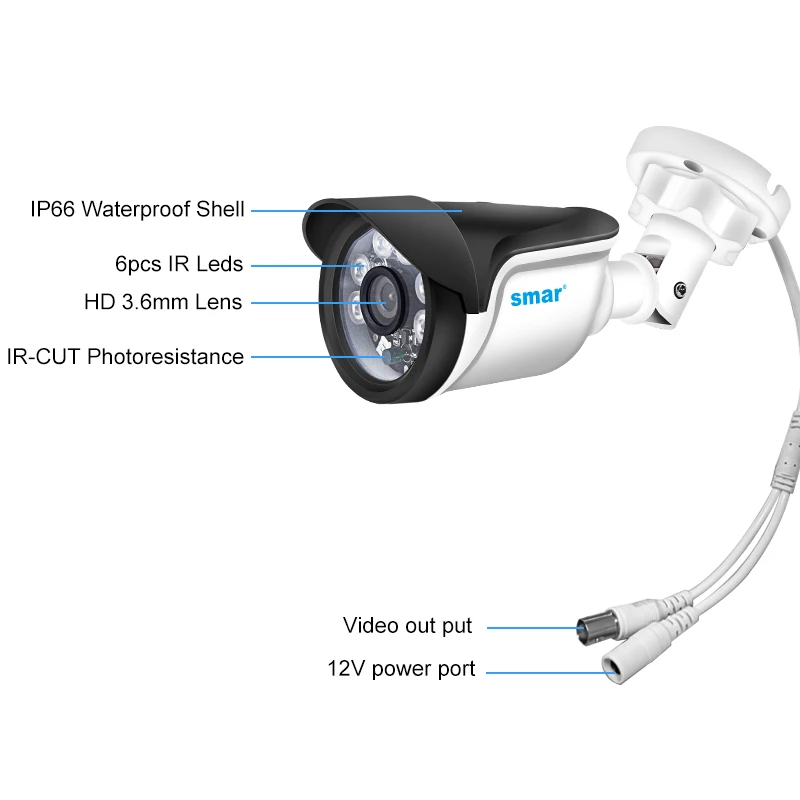

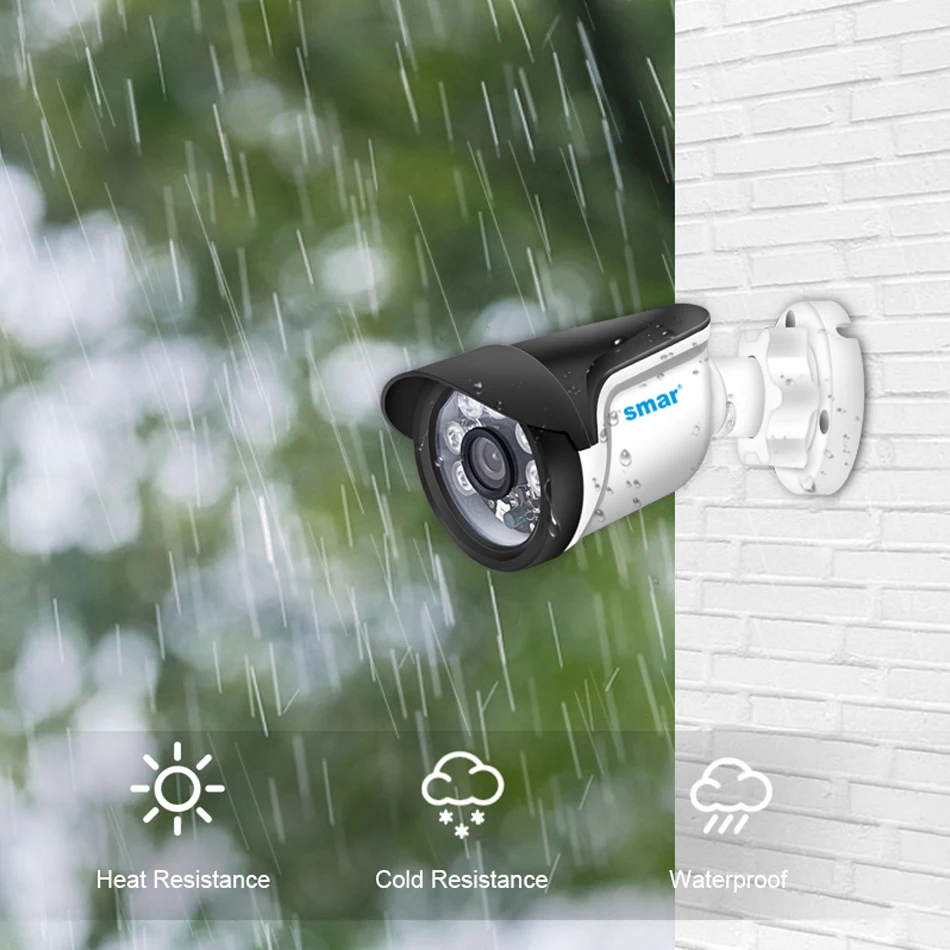

IP66 Waterproof

IP66 professional security surveillance camera for Outdoor/Indoor use. Operating Conditions: -20 ~50 , Humidity 95% or less (non-condensing)

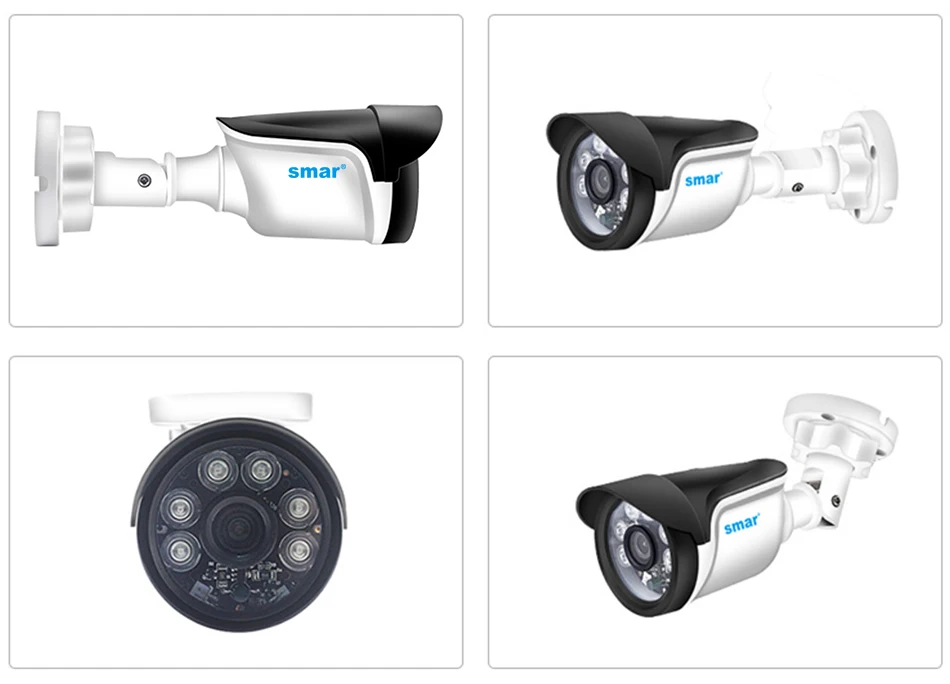

Product description and all-round display：

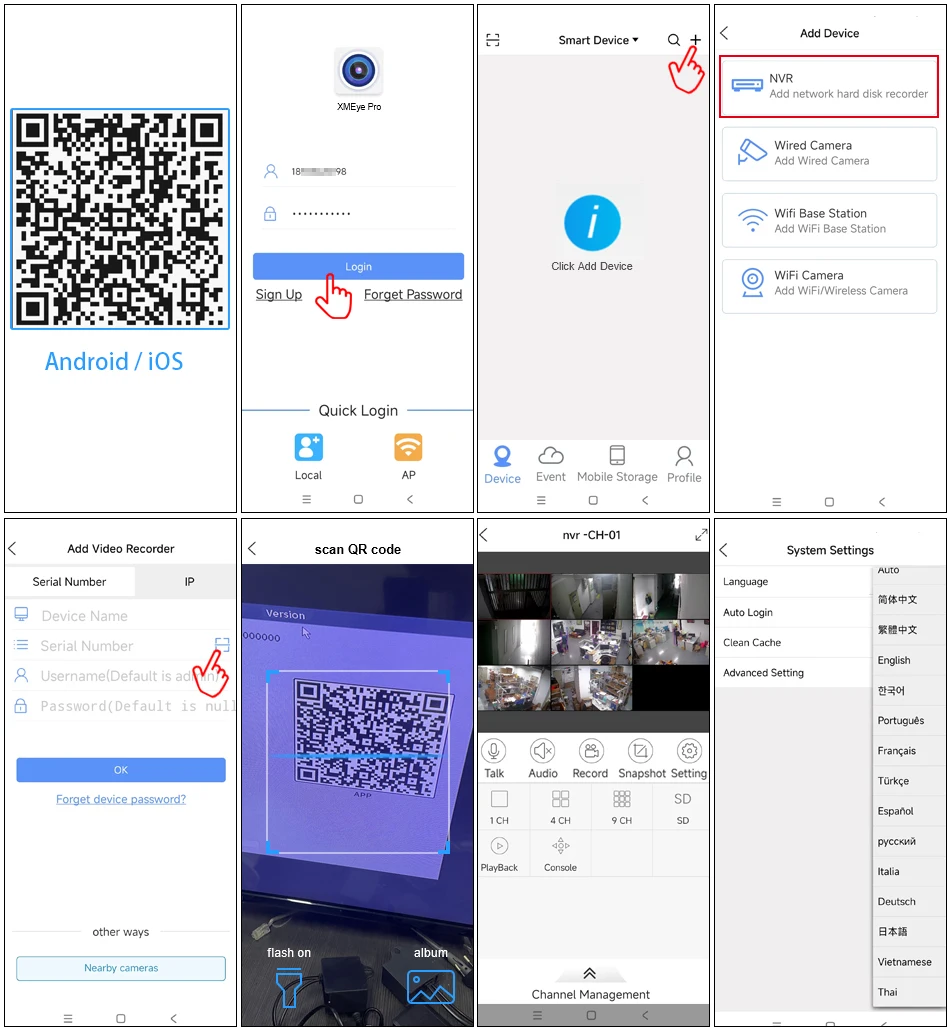

Please scanning the QR Code, then intall the XMEye Pro APP on your phone;
Then follow the steps in the picture to add the device and connect it successfully. You will be able to access videos anytime, anywhere through your phone
