Feature:

1. The camera supports 1080P/5MP HD resolution(Optional);
2. The kit supports Motion Detection and Email Alert;
3. Support H.264 video compression technology;
4.The camera has 6pcs Array IR LEDs, Day & Night Vision, 15-30m IR Distance.
5.Used Indoor or Outdoor, IP 66 waterproof.
6. The DVR is 4CH hybrid DVR, support AHD Camera, Analog Camera, IP Camera, TVI Camera, CVI Camera;
7. The DVR support 4CH BNC Video Input,1CH VGA+1CH HDMI Output; 1CH RCA Audio input and 1CH RCA Audio Output.

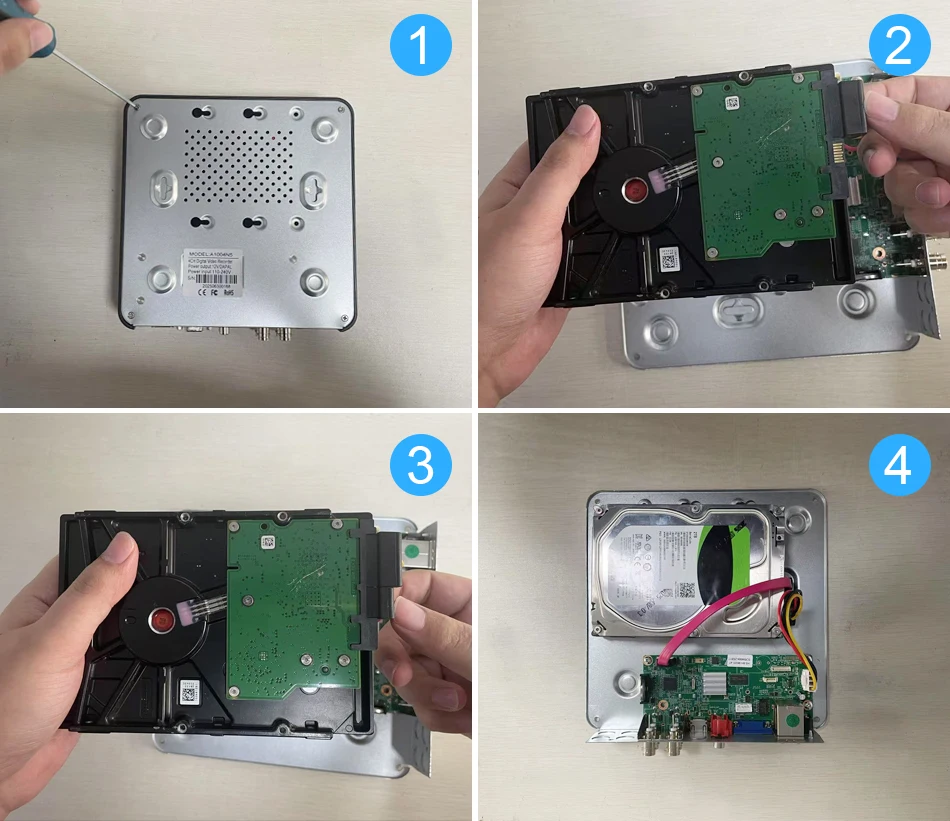

8. The DVR support 1PCS 3.5″ SATA Hard Disk storage, max support 8TB.
9. The DVR Support 20+languages: It has English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Polish,Romanian, Hungarian, Finnish, Farsi, Thai, Estonia, Vietnamese, Brazilian, Hebrew, Indonesian, Arabic, Swedish, Czech, Slovenia, Dutch…
10. The kit supports 7×24 hours loop recording, motion detection recording, and other recording modes, you can playback the recording to view;
11. Support web side, CMS, central management platform software XMEYE Pro;
12.Supprt Cloud technology,Realize network penetration, front and rear end docking, and push alarm information to mobile phones.

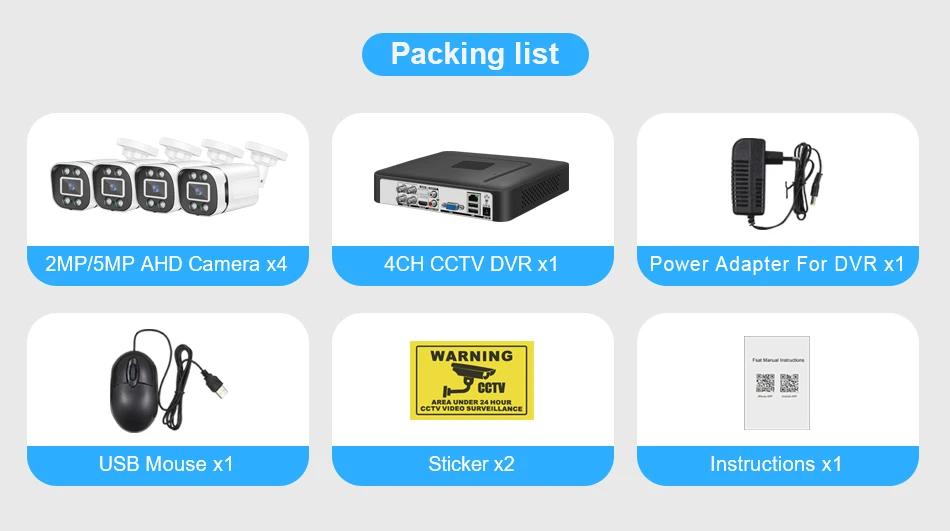

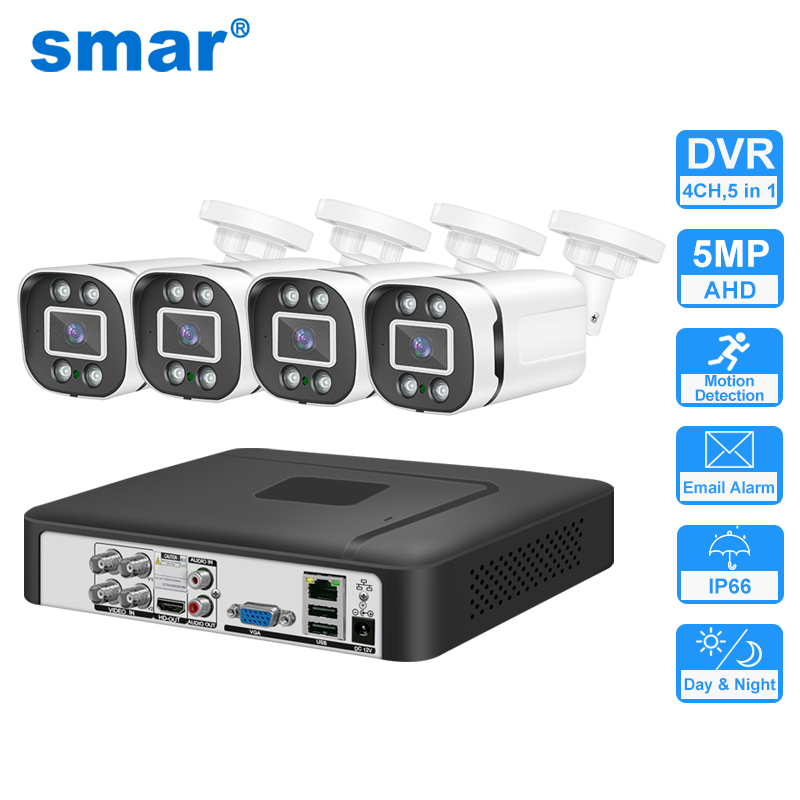

Package List(1):

1 * 4CH Hybrid DVR
1 * Power Supply for DVR
1 * USB Mouse
1 * Fast Operation Guide
4 * 1080P/5MP Waterproof AHD Cameras(Optional)
2 * Warning Sticker(gift)
***Hard Disk is not include in the kits***

(Note: For the PAL or NTSC .we will send it according to different countries. )

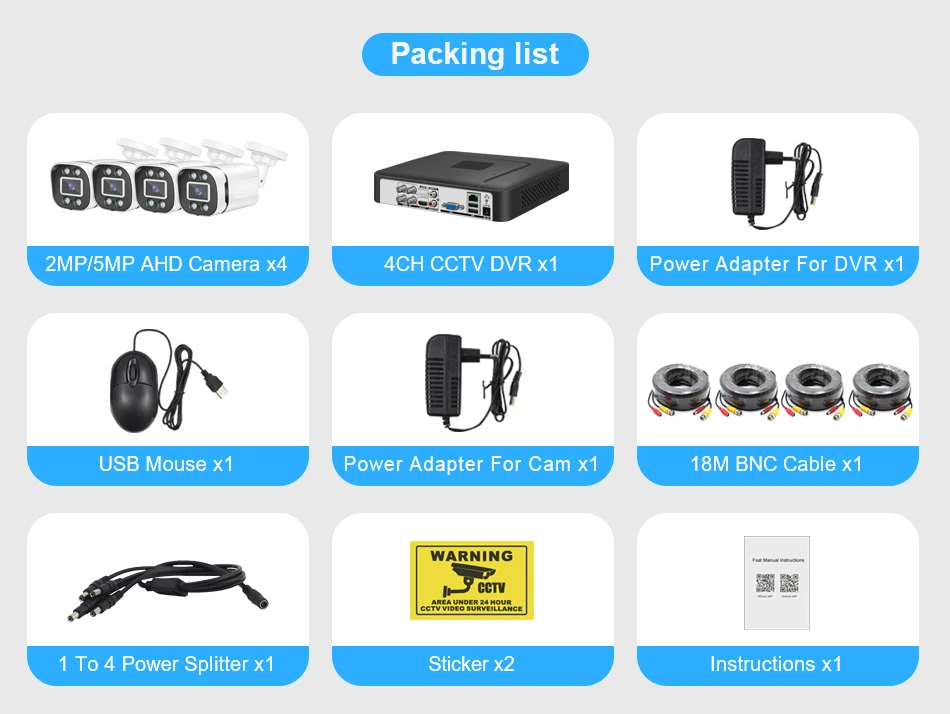

Package List(2):

1 * 4CH Hybrid DVR
1 * Power Supply for DVR
1 * USB Mouse
1 * Fast Operation Guide
4 * 1080P/5MP Waterproof AHD Cameras(Optional)
4 * 18M BNC Cable for Cameras
1 * DC12V Power adapter for Cameras
1 * 1 TO 4 Power Splitter for Cameras
2 * Warning Sticker(gift)
***Hard Disk is not include in the kits***

(Note: For the PAL or NTSC .we will send it according to different countries.)

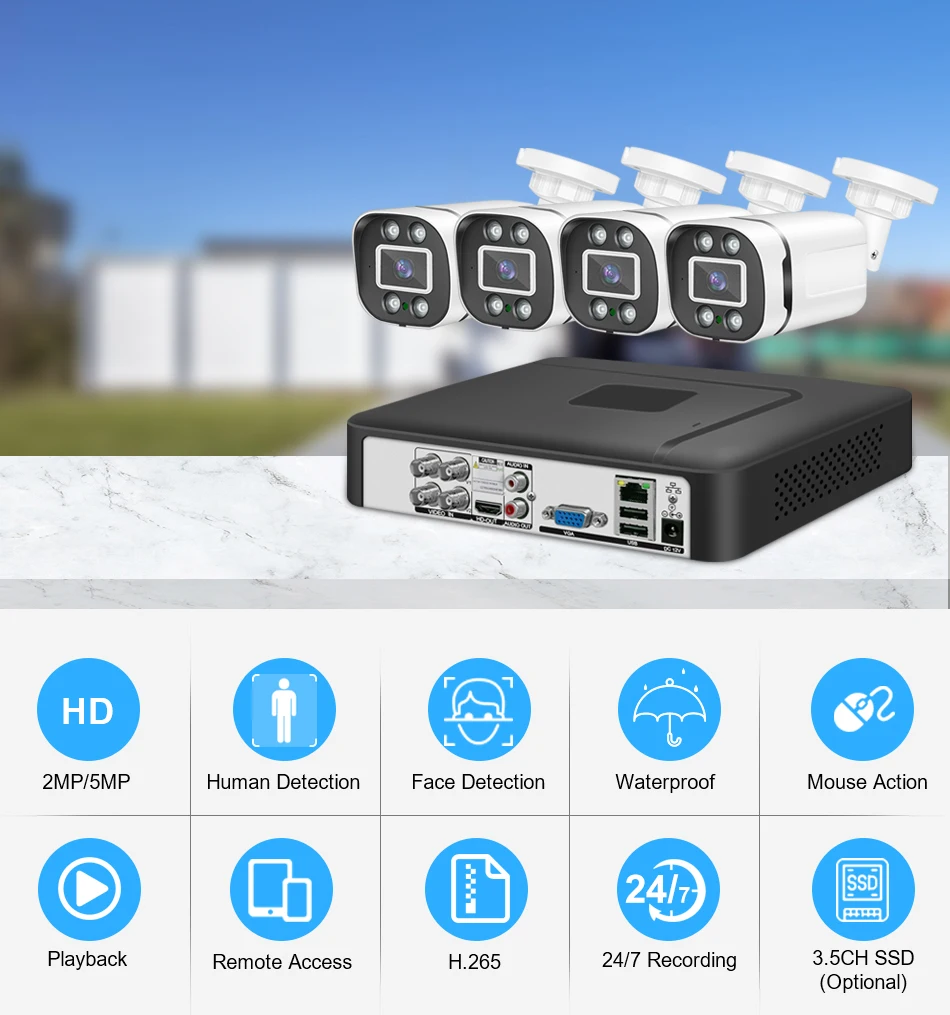

Product description and all-round display：

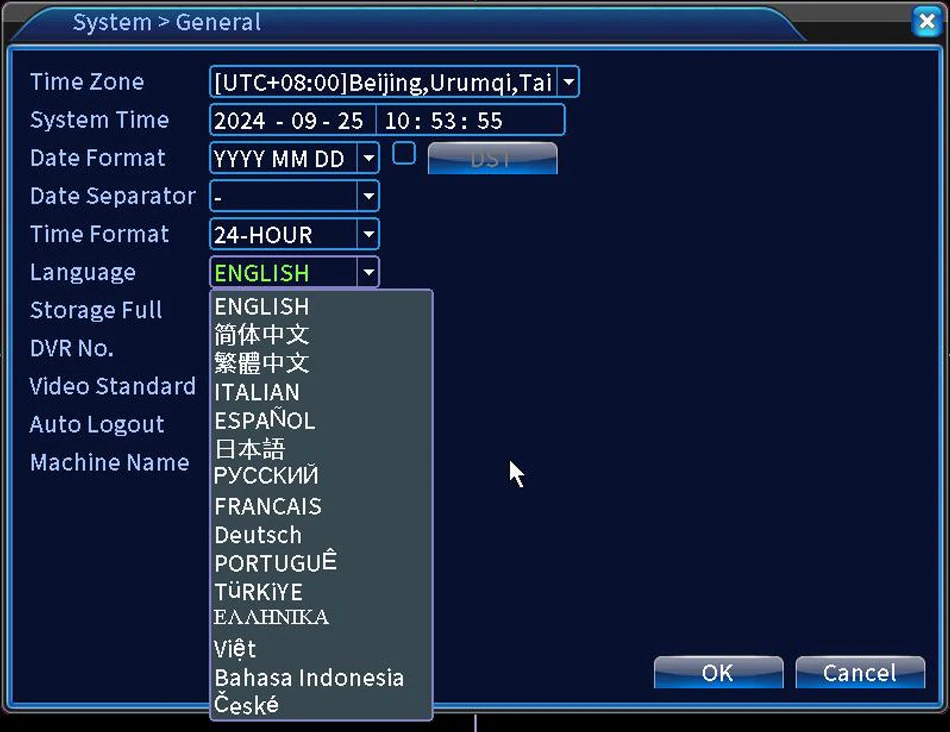

Language: Support 10+languages，has English, Chinese, Italian, Spanish, Japanese, Russian, French, German, Portuguese, Turkish, Thai,
Estonia, Vietnamese, Brazilian, Indonesian, Czech…

4CH 5M-N AHD DVR Specification for 5MP Kit

Video compression: H.264
Encode capacity: 4x 5M-N @25FPS, NTSC @30FPS

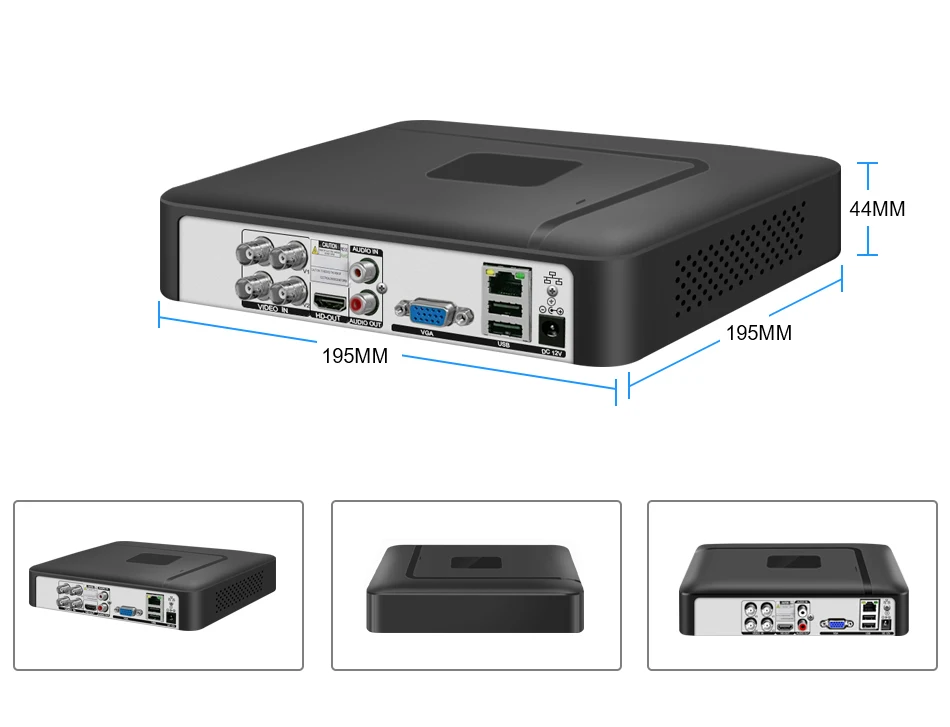

Video input/ output: 4CH BNC/ 1CH VGA, 1CH HDMI
Audio input/ output: 1CH RCA/ 1CH RCA
Recording , Playback , Backup resolution: 5M-N/1080P
USB: 2x USB 2.0
HDD: 1xSATA port (Max support up to 8TB)

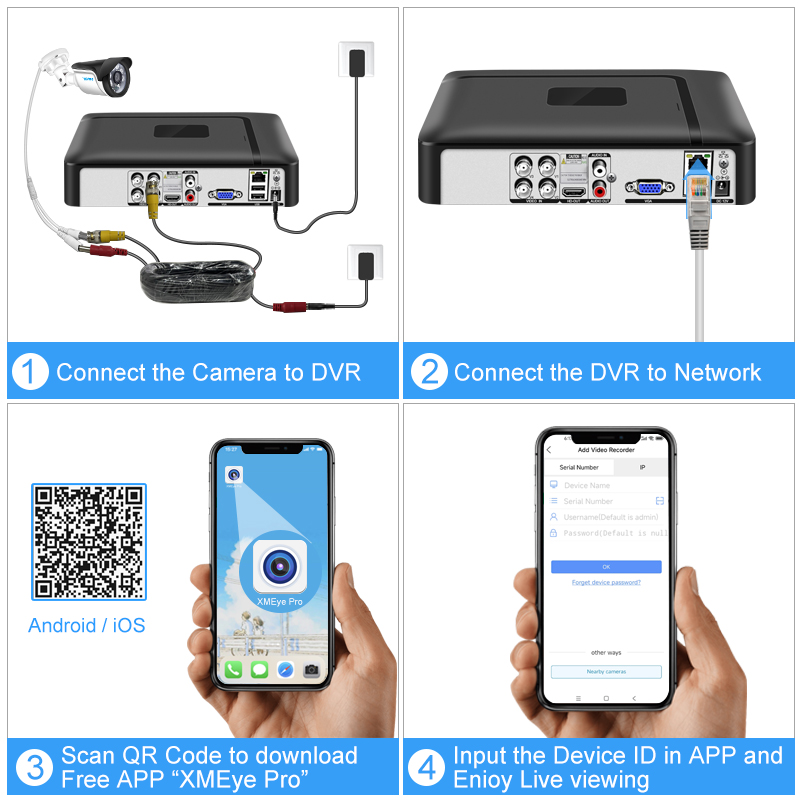

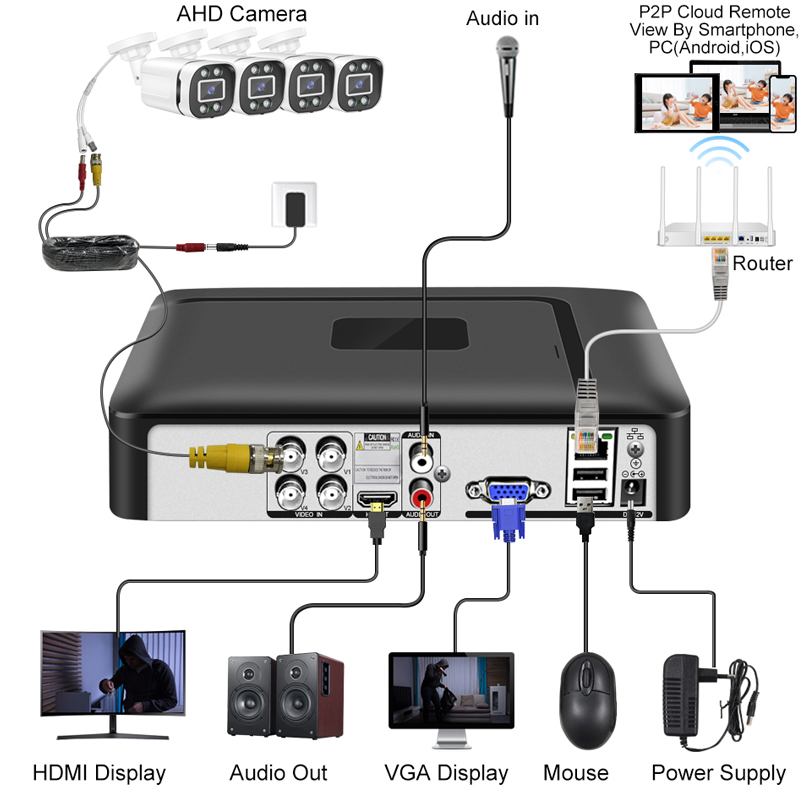

Install and Connect it

It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.

Experience with 1080P & 5MP HD System

Ideal for home or business – 1080P(1920 * 1280) /5MP(2880*1616) offers exceptional Full HD resolution and quality enhancing efficiency and monitoring capabilities.

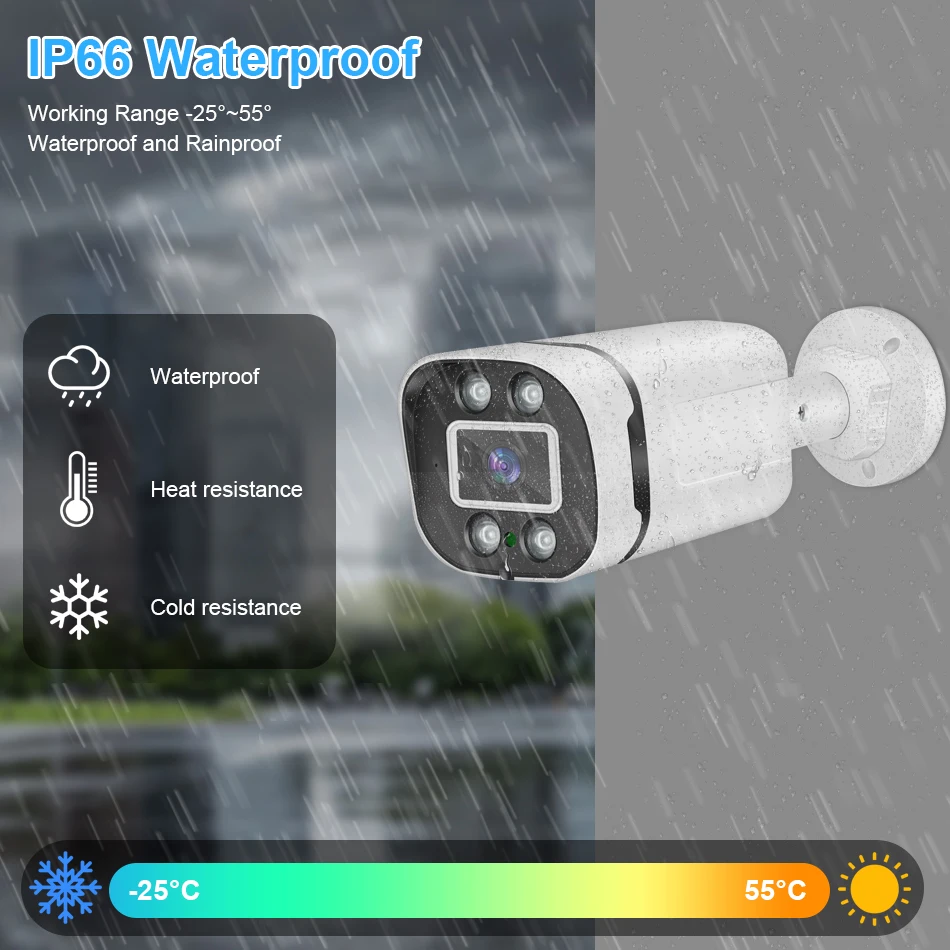

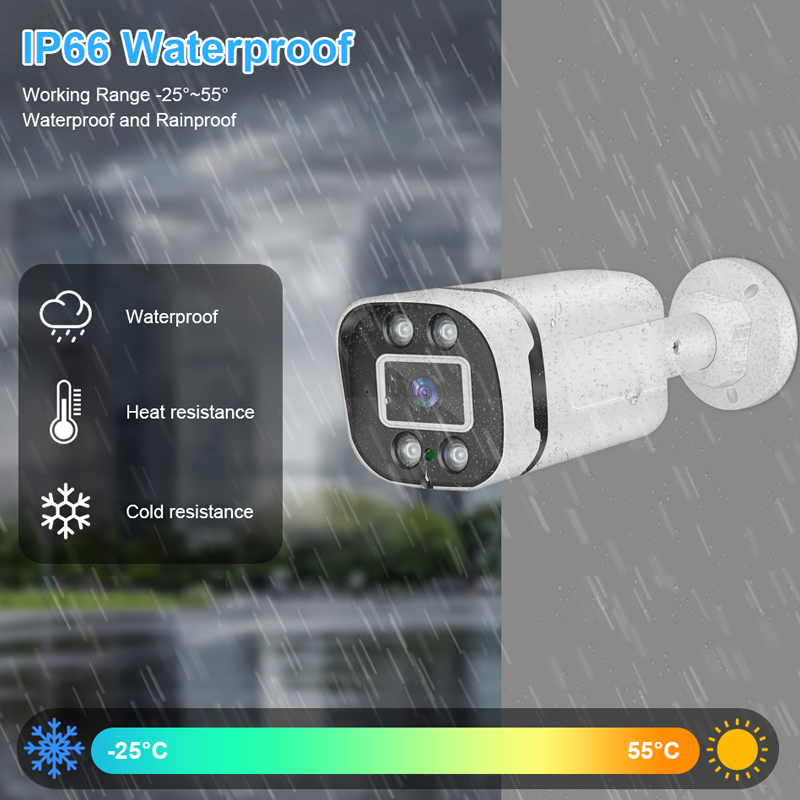

IP66 Waterproof

IP66 professional security surveillance camera for Outdoor/Indoor use. Operating Conditions: -20 ~50 , Humidity 95% or less (non-condensing)

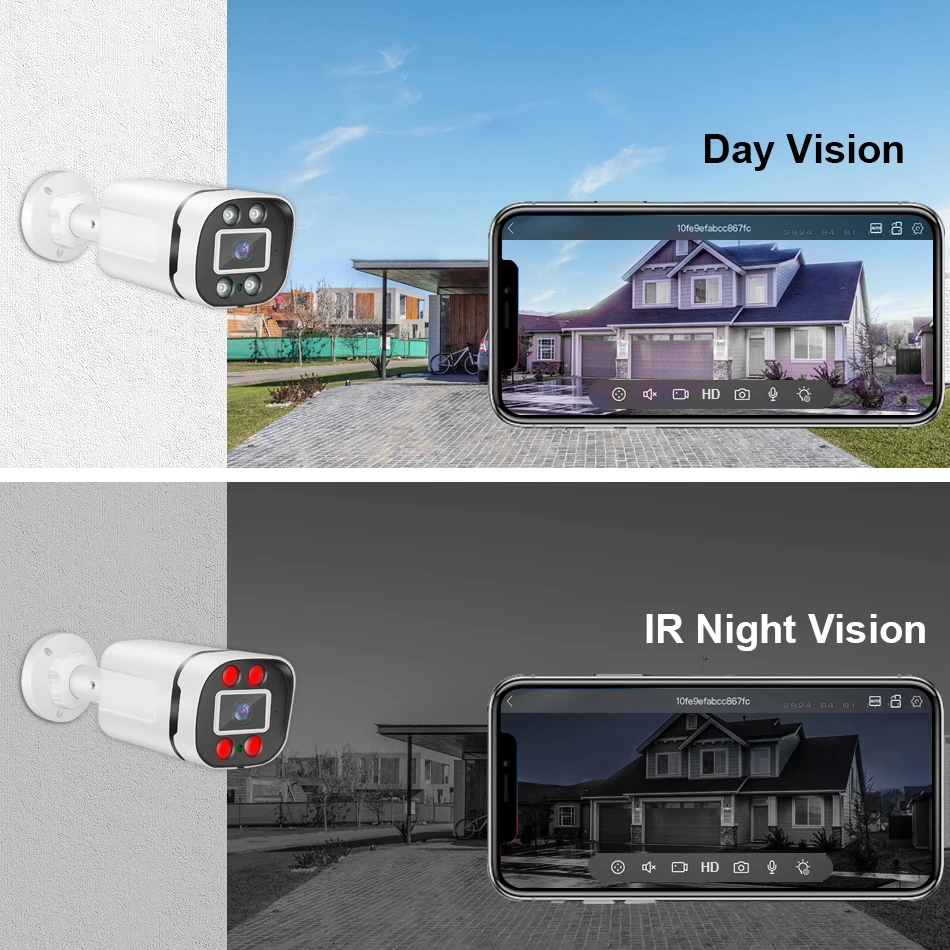

Smart IR-CUT Night Vision

The camera has a built-in mechanical IR-cut filter placed in front of the image sensor to filter out infrared light in the daytime, producing better color reproduction. At nighttime or when the built-in light sensor detects low-light conditions, the IR Cut Filter moves away from the lens to let in100% of the infrared light for maximum night vision performance. This results in the camera image changing to Black and White for better image quality.

Intelligent Human body detection & Email Alert

You can enable motion detection alerts,When movement is detected in monitoring area, instant email will be sent to your mailbox and phone automatically. Get everything informed even you're away from home.

VGA and HDMI Output

It supports VGA/HDMI output simultaneously. You only put the device to your TV or Desktop Computer to enjoy exceptional clear video.

Locate Incident Video With Smart Play

It effectively econnomized your time in playing back the video; Incident video clips can be found and marked in no time with smart playback function; so you get the chance to go directly to incident video clips while skipping others.

Easy access via multi-platform

Support Mobile Phone iOS, Android System，Remote view of mobile phones, any time… any where…

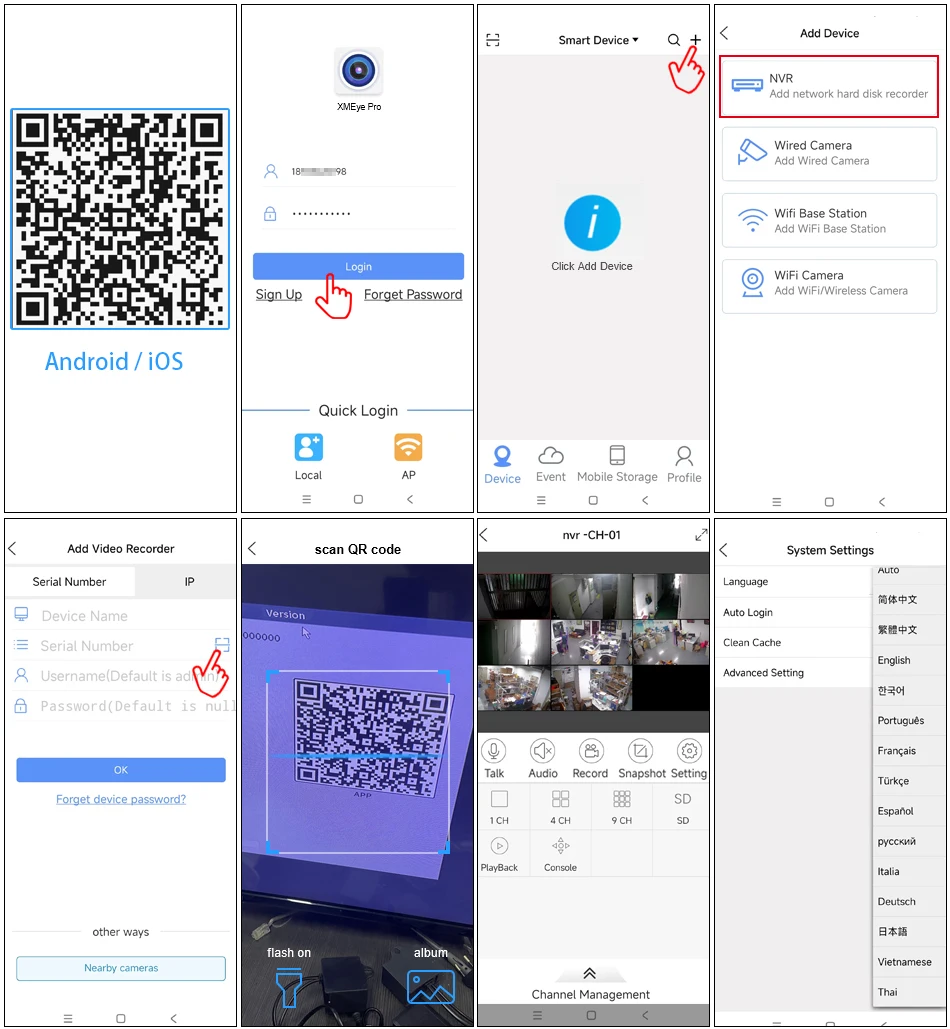

Easy setting , just 4 steps for mobile phone viewing (Android and iPhone iOS)

Applied to Multiple Occasions:
