About the product:
The 6 Way relay (ZIGBEE/WIFI option), can communicate with a gateway or cloud to control various power supplies of devices. Used to control lighting switches, electric screen lifting, electric curtain opening and closing, and provide power control for projectors, cameras, conference systems and other equipment.
The power controller panel provides manual buttons and LED status lights, which can freely control various switches via the body manual buttons. The LED lights on the panel indicate the current operating state of the channel and the panel provides several status lights, which are complete and support the indication of the device power supply and the indication of the channel switch status.
Specific functional characteristics are as follows:

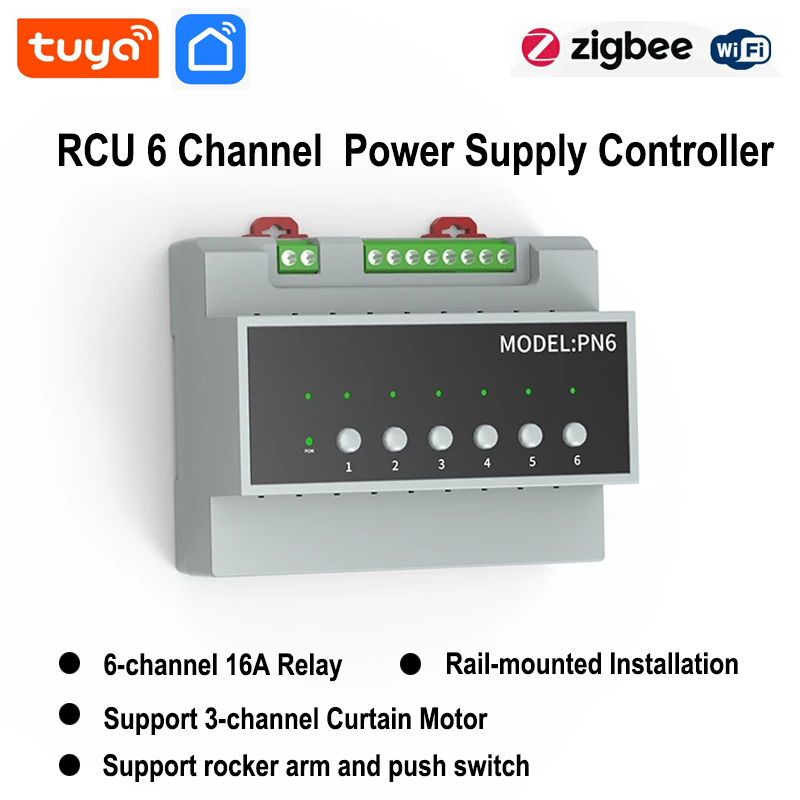

1. There are 6 channels in total, each channel is a 16A relay.
2. The status of the 6 channel switch can be displayed by the LED lights of the panel.
3. Using panel button switches, individual channel switching functions can be achieved.
4. Provide special node control interface (related to hotel card insertion and power recovery/energy saving modules).

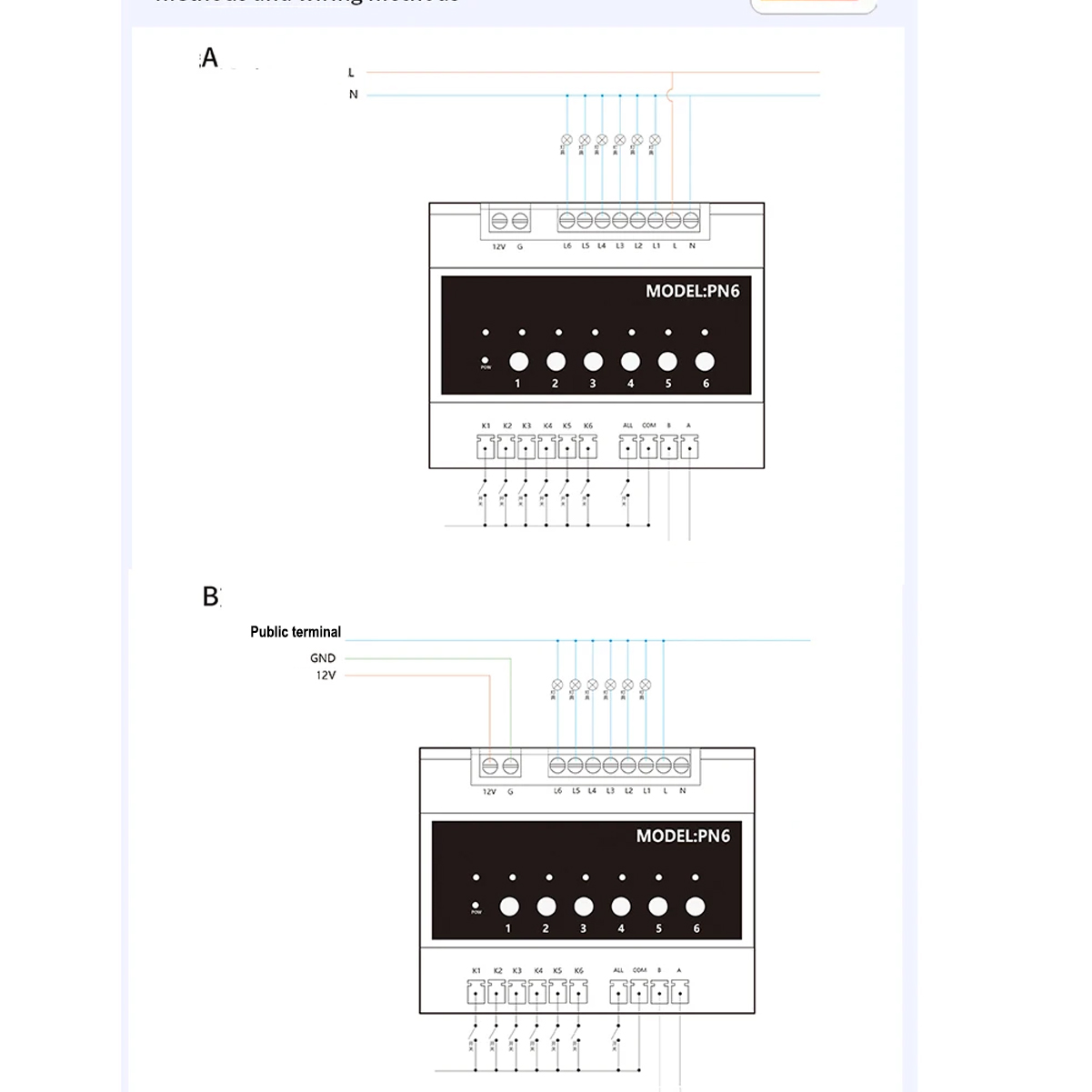

5. Provide 6 independent node control interfaces, which can be connected to external buttons or
central control system and perform separate switching operations on the channel switches.
6. Provide three recovery modes in case of power failure:
a、Power off mode ，b、Power on mode， c、Memory mode
