Mini Universal GPS Speed Sender
GPS Speed Sender (Mini Size, Universal Type)

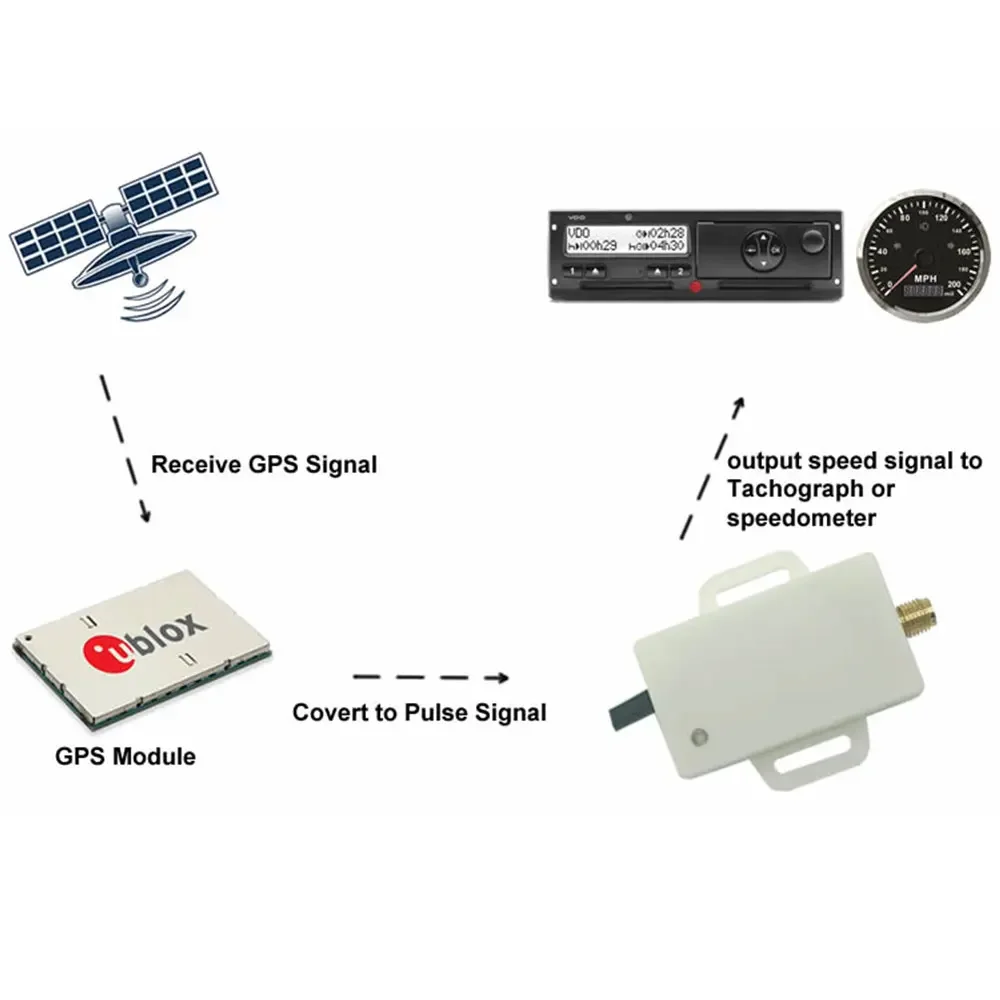

1. Application: AlI kinds of Speedometer, Tachograph

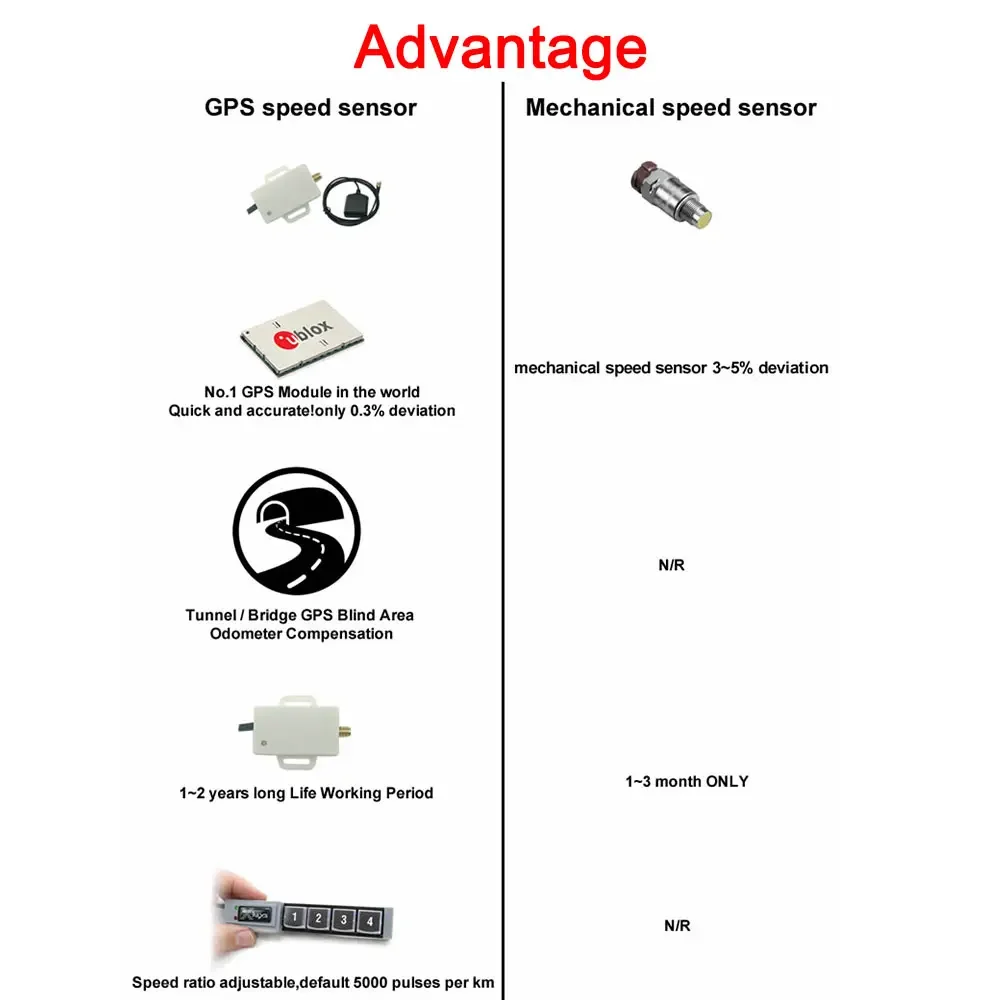

– High Accuracy only 0. 2% deviation (mechanical speed sensor will be 3~5% deviation)
– Anti-GPS Stationary Drift technology.
– Support both Negative & Positive Pulse output with Max 50,000pules/km

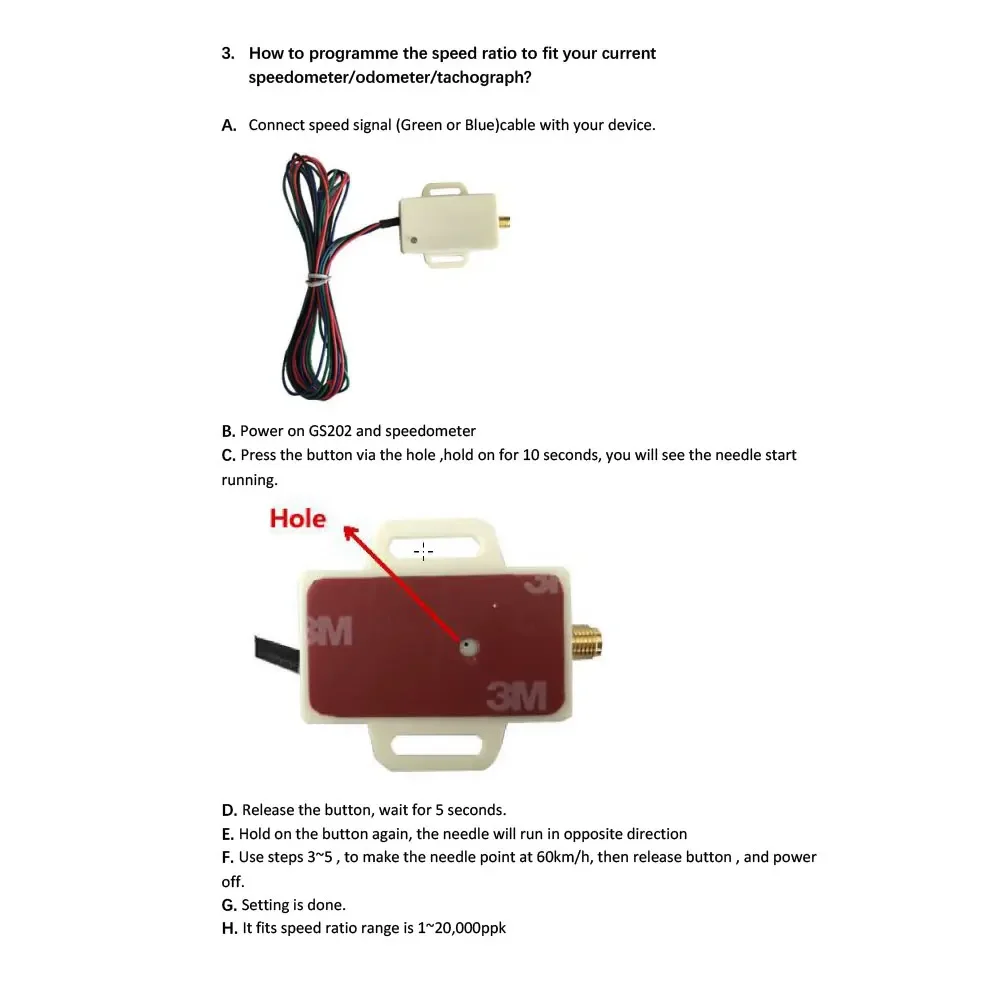

– suitable for different gauges with programmable speed ratio and lowest 0.5km/h speed to start.
– Output two speed signals which are reverse
– Shockproof and Circuit Protection design
– Pulse/Odometer Compensation when in Tunnel or under Bridge Default Speed Ratio: 5000ppk (5000 pulses per km)
– High quality GPS Active Antenna which performs well in windy or heavy rainy weather.
– Mini Size: 4. 5cm(L)x1.9cm(W), 100cm extended cable
– DC12V/24V Power Supply (6- 36V DC)
Product LED light status:
① Red flashing not positioned
② Green flashing positioning successful with vehicle speed
③ Always green, successful positioning without vehicle speed

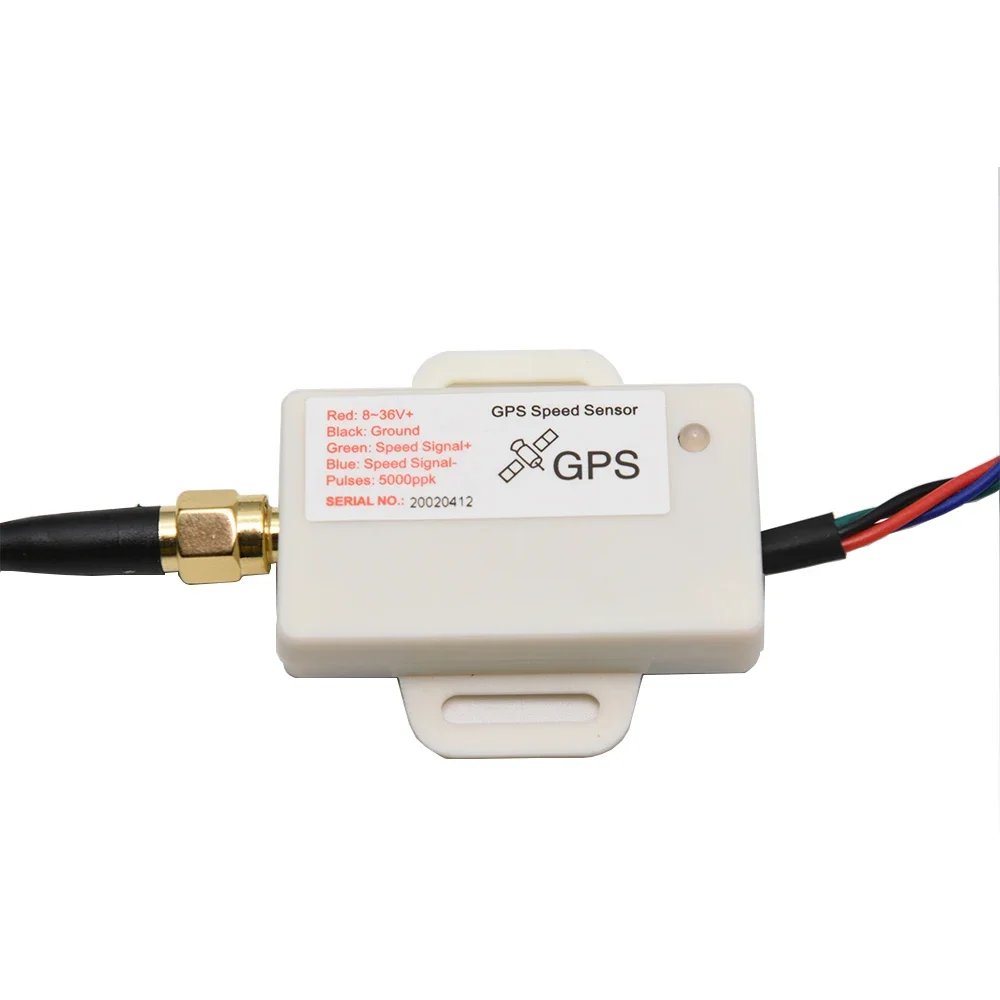

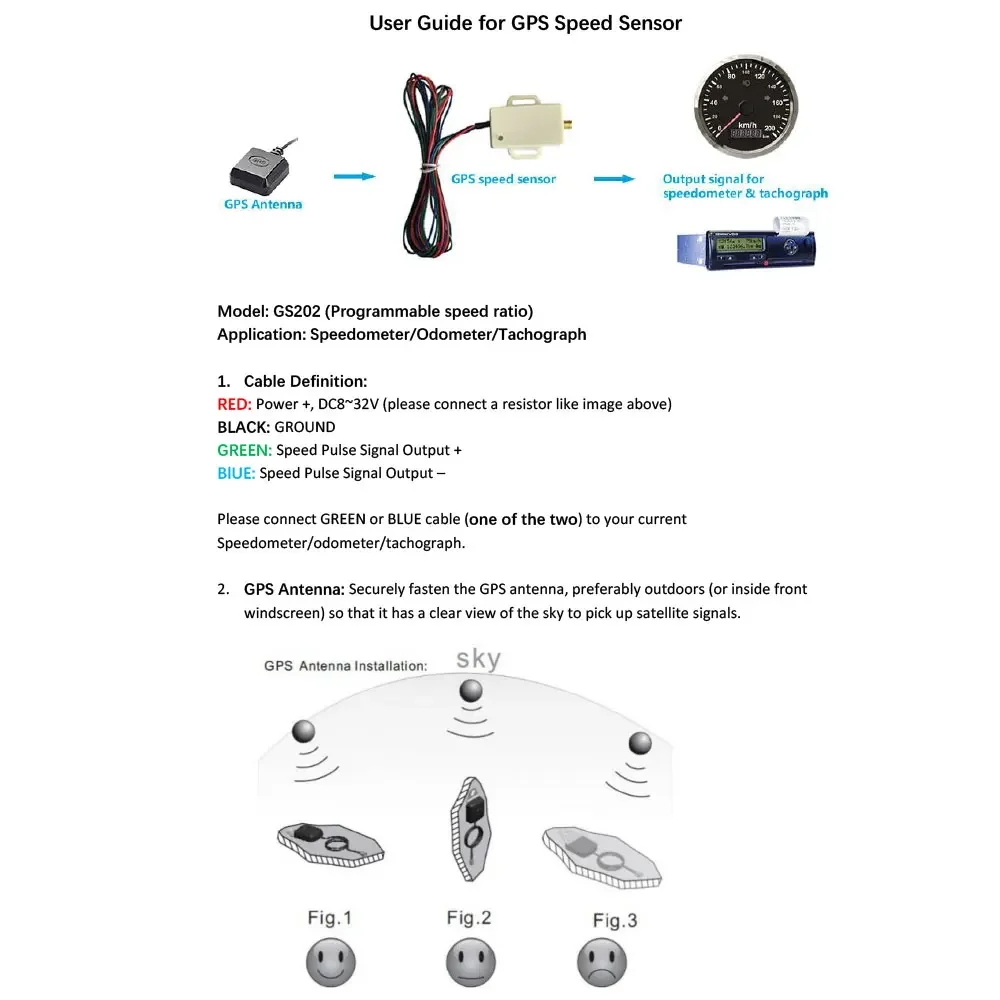

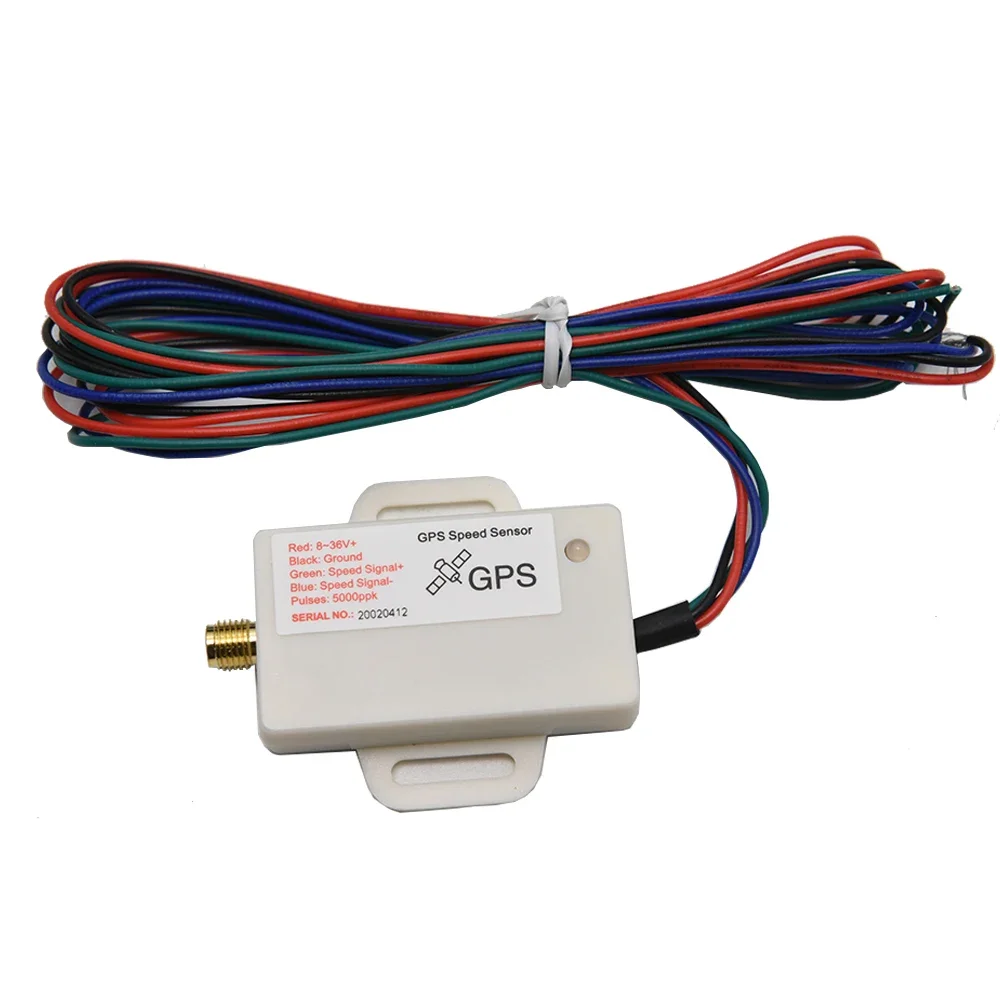

Cable Definition:
– RED: Power +, DC8~32V
– BLACK: GROUND
– GREEN: Speed Pulse Signal Output +
– BIUE: Speed Pulse Signal Output-
Please connect GREEN or BLUE cable (one of the two) to your current
Speedometer/odometer/tachograph.
Package: (as the picture shows)

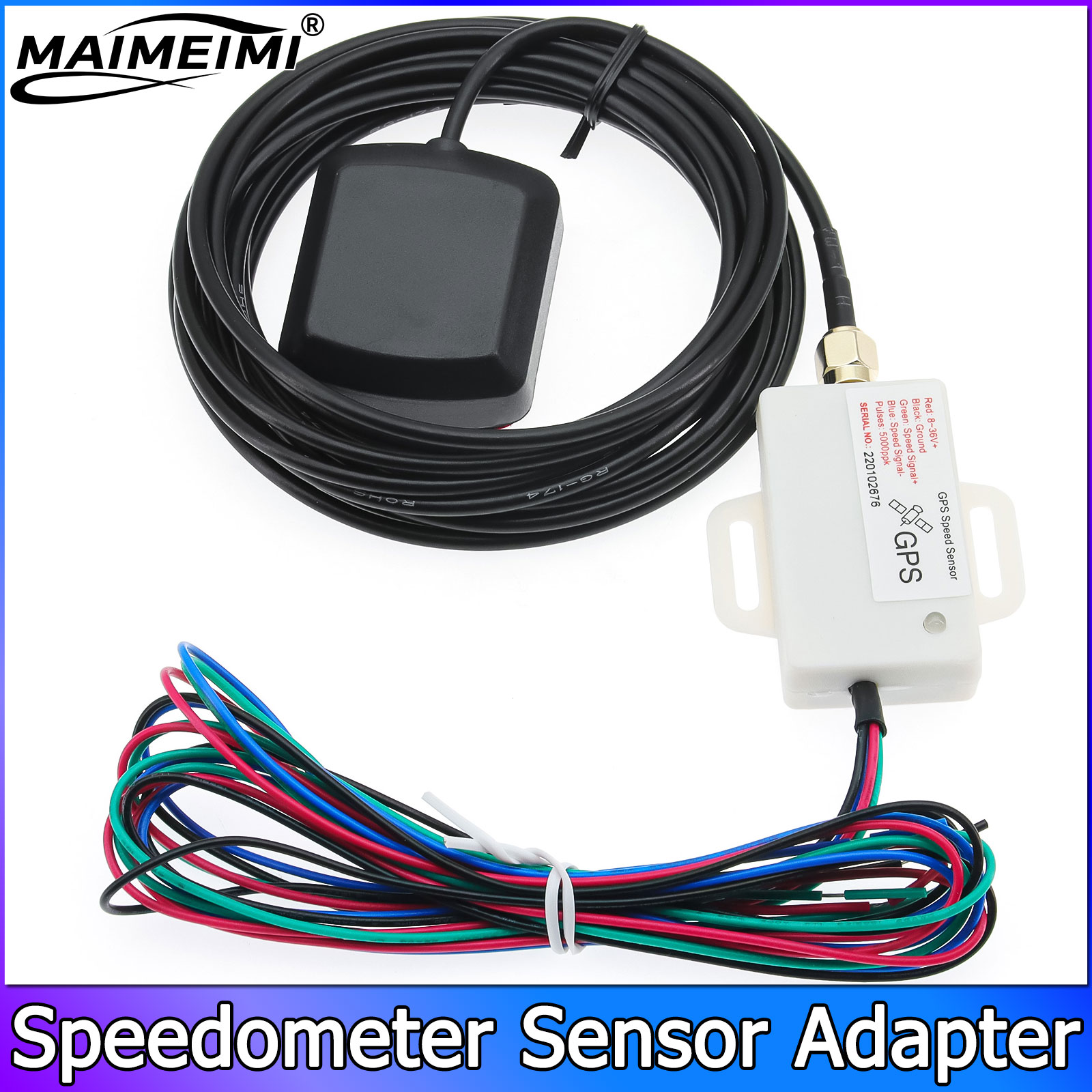

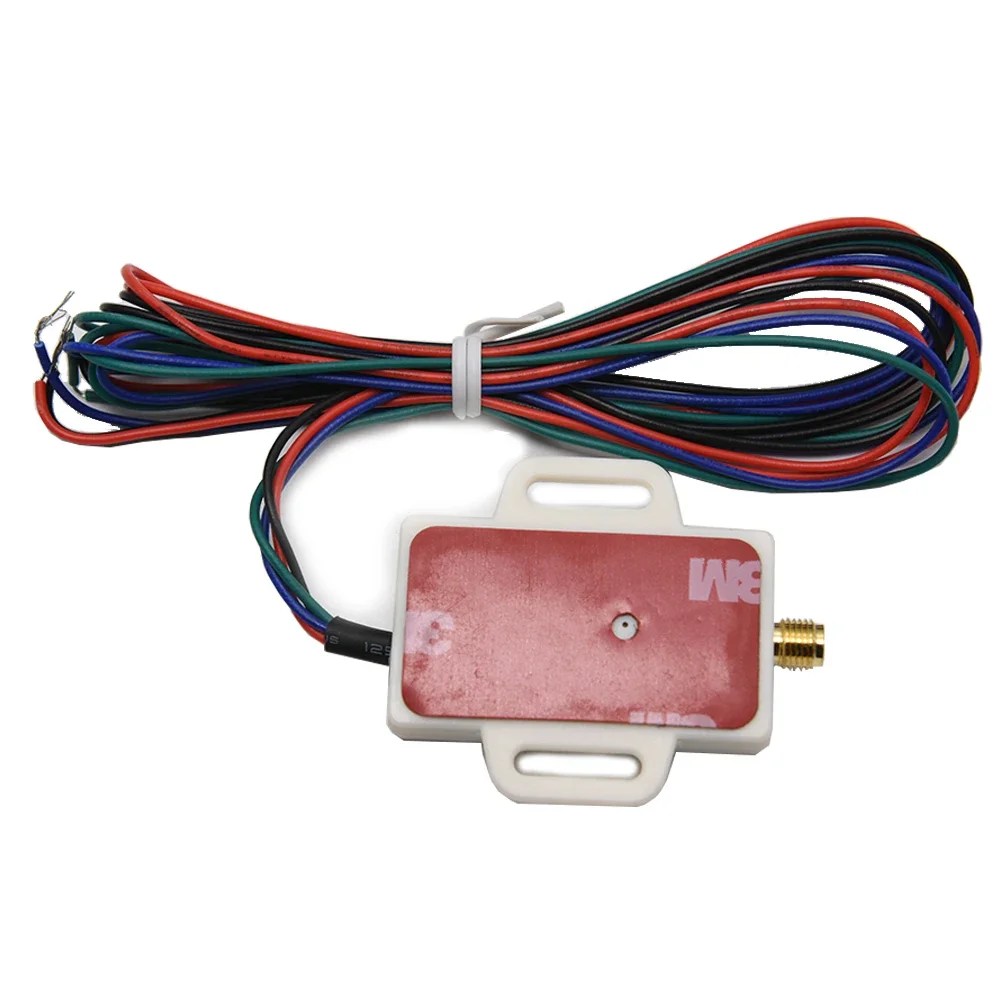

1 x Speedometer Sensor Adapter
OR

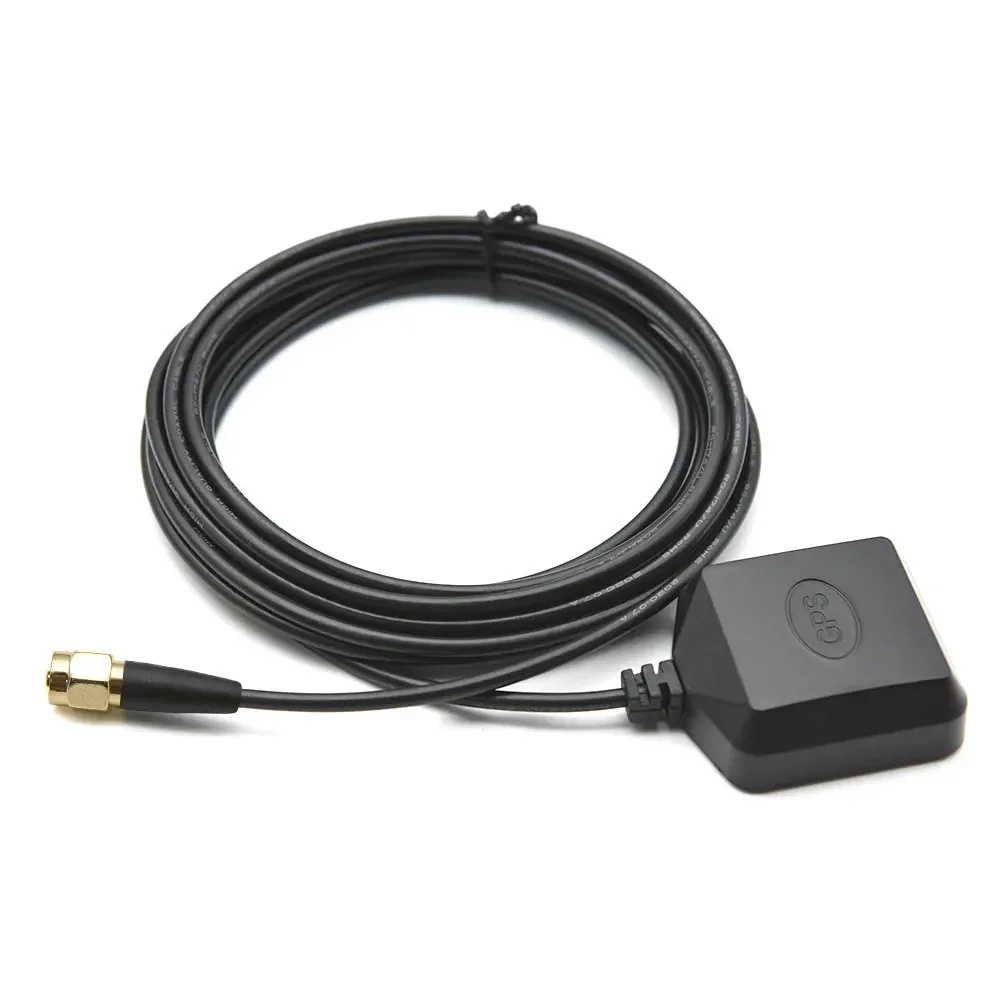

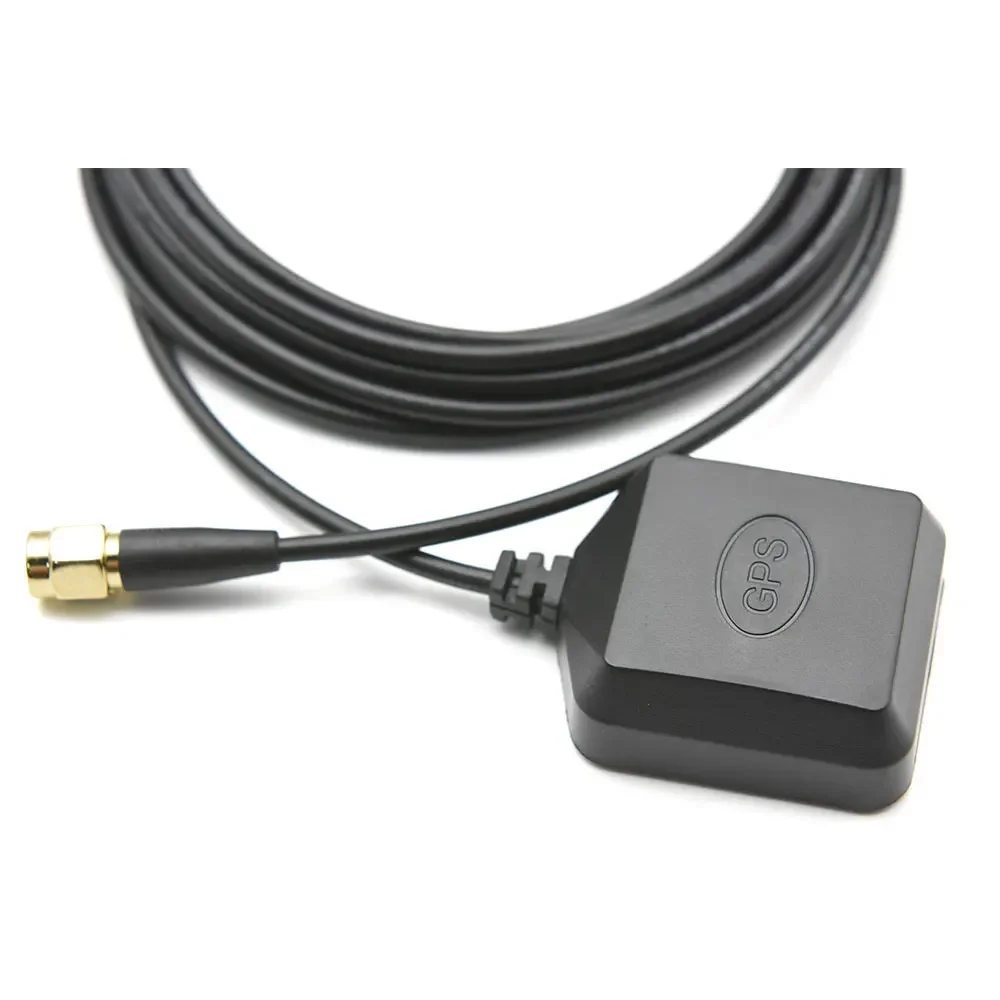

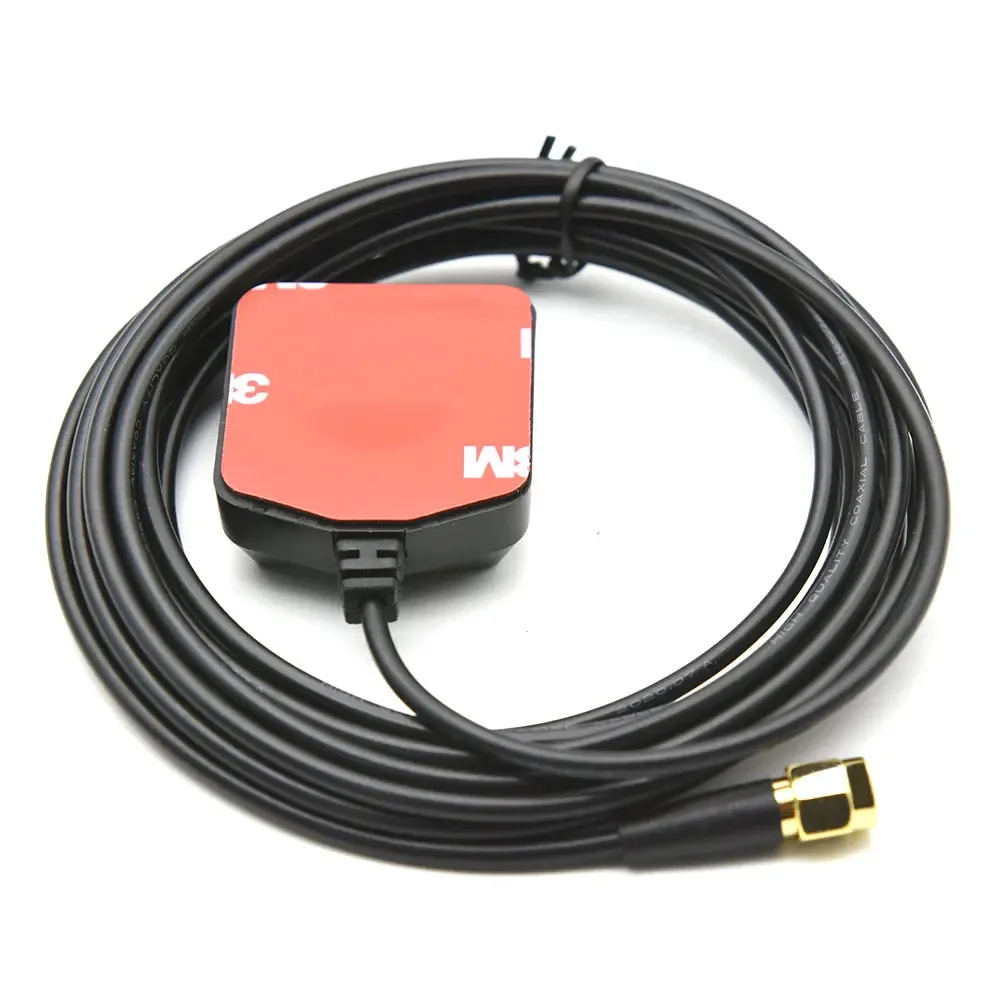

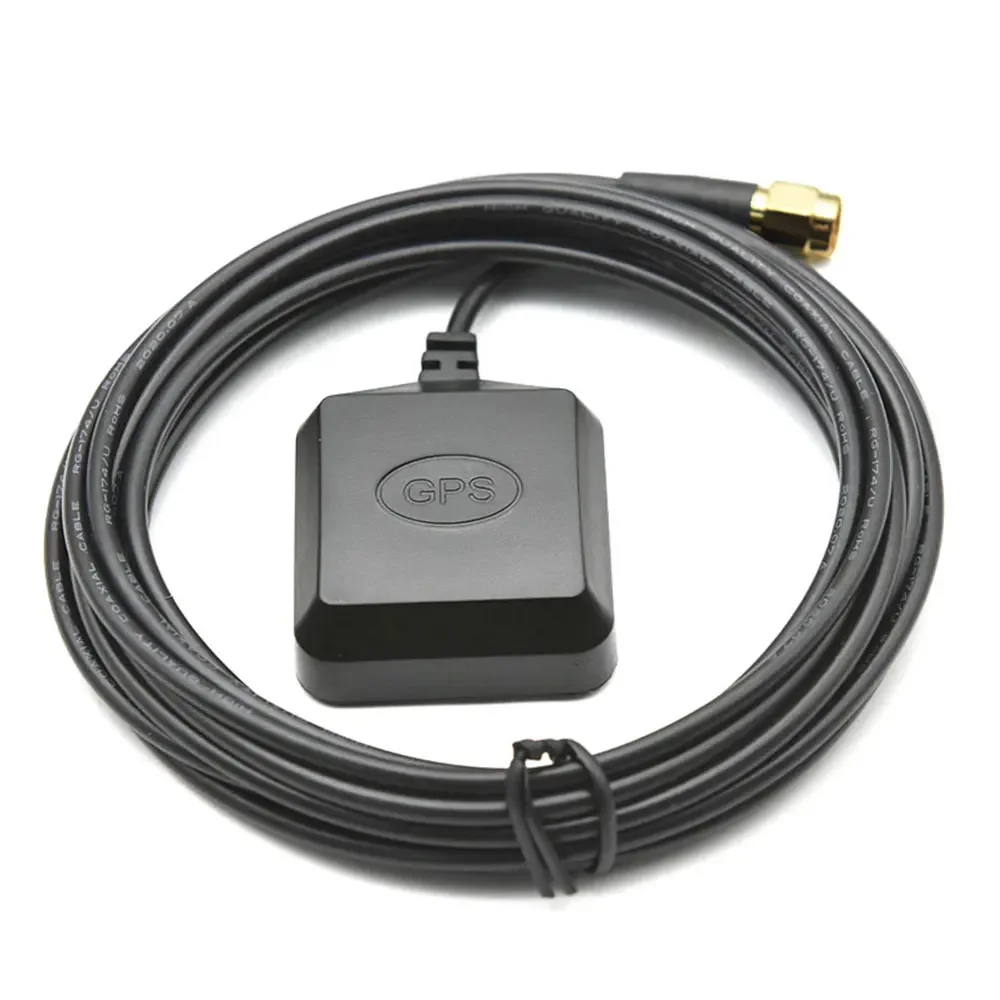

1 X GPS Antenna
OR

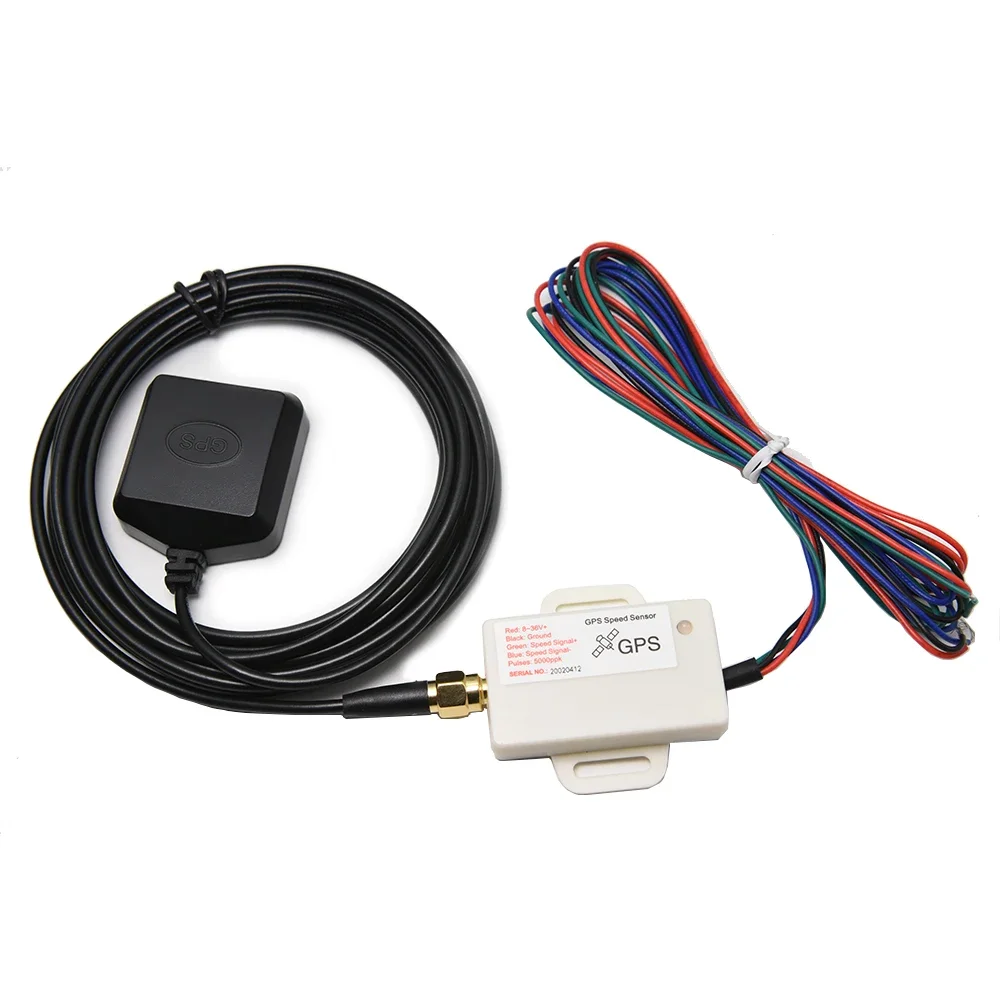

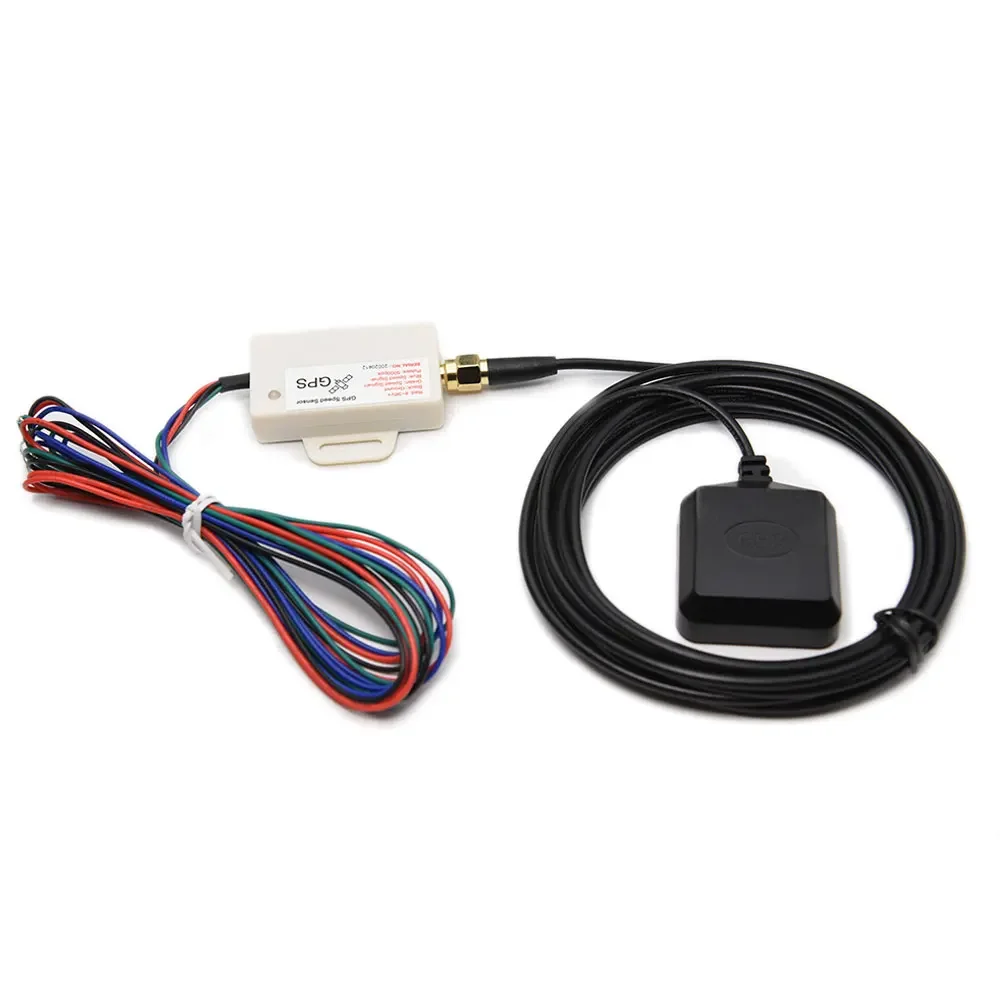

1 X GPS Antenna + Adapter
