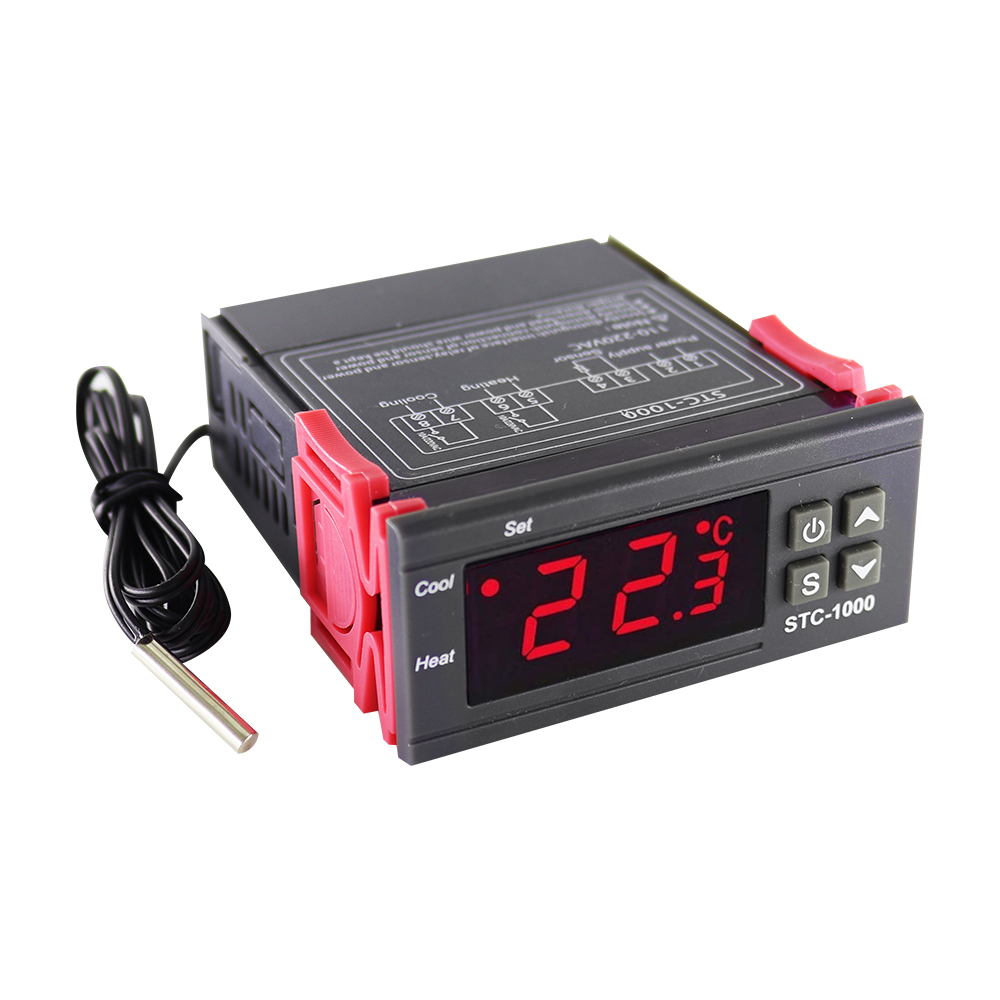

STC-1000

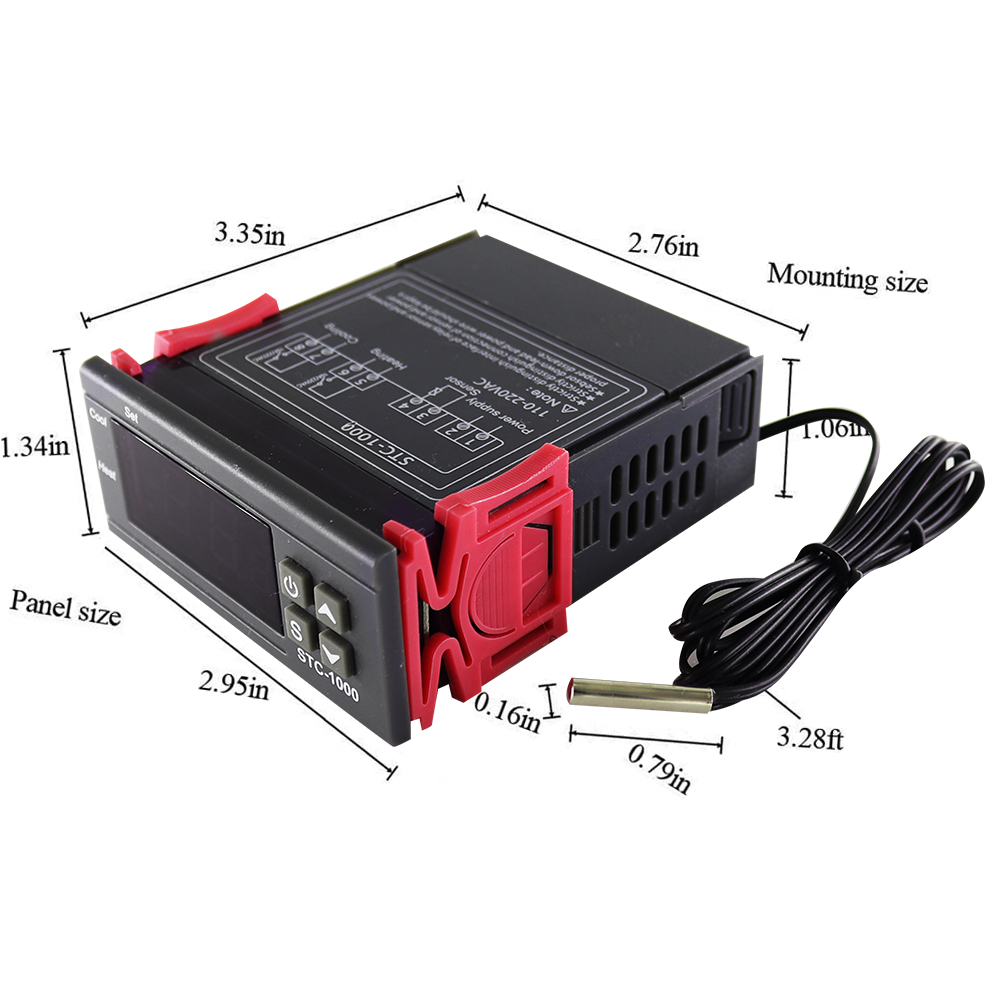

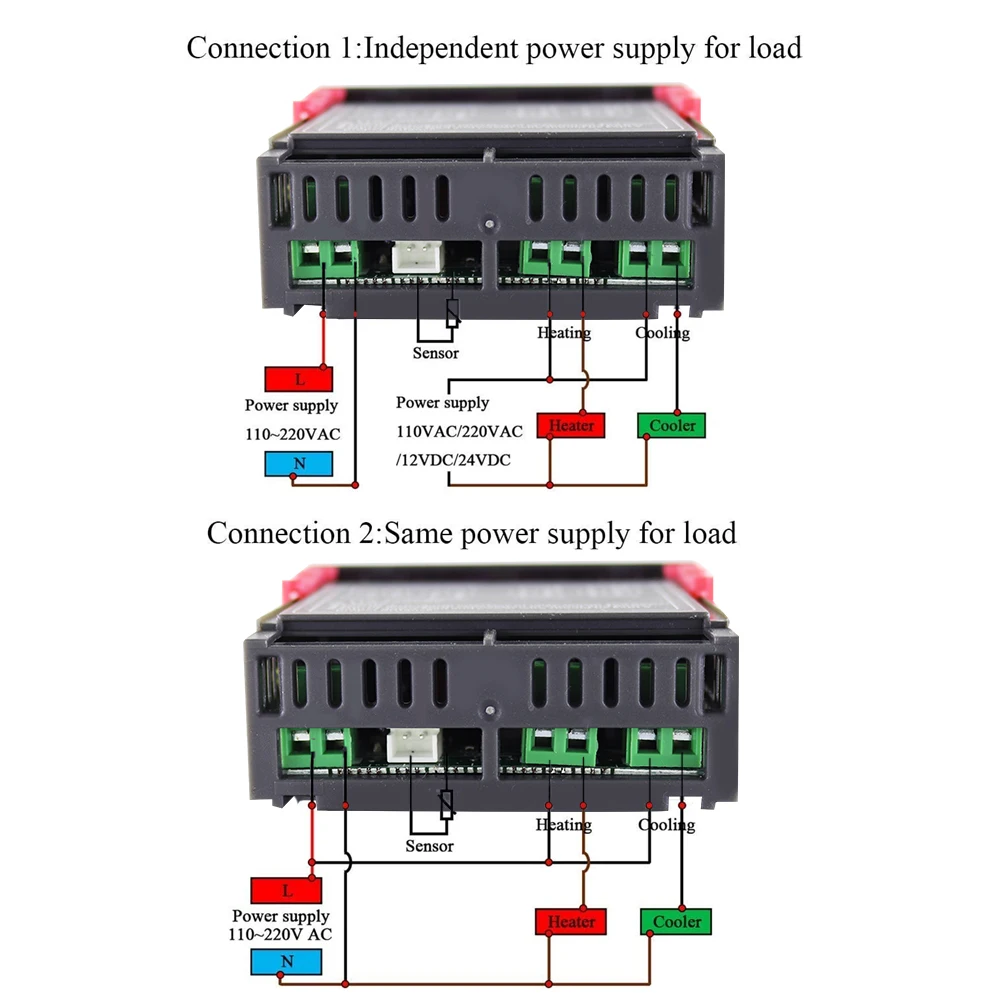

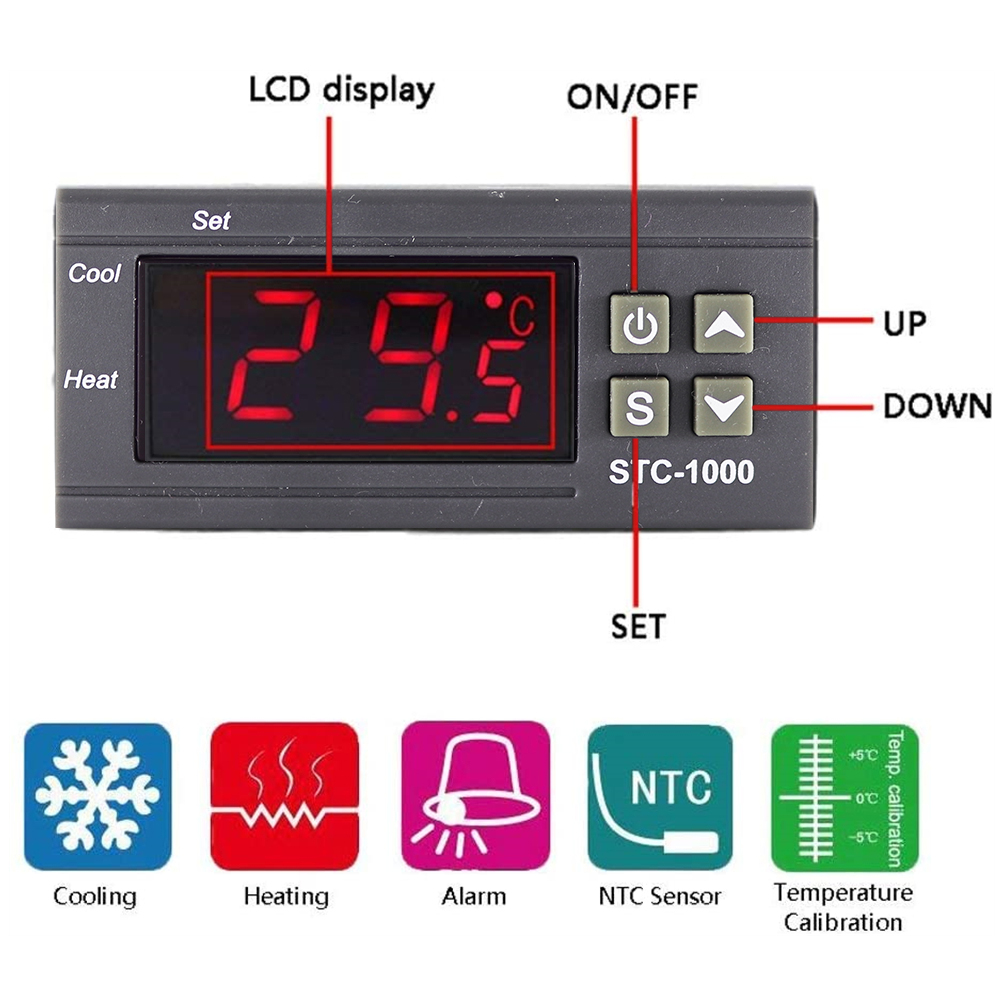

Technical Parameters: 1.Temperature measuring range: -50 ° C ~ 99 ° C 2.Resolution: 0.1 ° C; 3.Accuracy:+- 1° C (-50 ° C ~ 70 ° C); 4.Sensor error delay: 1 minute 5.Power supply: 110-220VAC 50/60Hz, 12Vdc , 24Vdc ( Choose power supply when you place order ) ; 6.Power consumption: <3W; 7.Sensor: NTC sensor (1PC); 8.Relay contact capacity: Two Relay Cool 10A/220VAC; Heat 10A/220VAC; 9.Ambient temperature: 0 ° C ~ 60 ° C; 10.Storage temperature: -30 ° C ~ 75 ° C; 11.Relative humidity: 20% ~ 85% (No condensate) 12.Sensor length: 1.0m 13. Front Panel Size: 75×34.5mm ; Product Size: 75×34.5×85 mm ; Mounting Size: 71x29mm Menu Instruction: Code Function Set Range Default F1 Temperature set value -50.0~99.9°C 10.0°C F2 Difference set value 0.3~10.0°C 0.5°C F3 Compressor delay time 1~10 minutes 3 minutes F4 Temperature calibration value -10.0°C~10.0°C 0°C 100% brand new and high quality modle: STC-1000 Switch the modes between cool and heat; Control temperature by setting the temperature setting value and the difference value; Temperature calibration; Refrigerating control output delay protection; Alarm when temperature exceeds temperature limit or when sensor error.
