Product Parameters

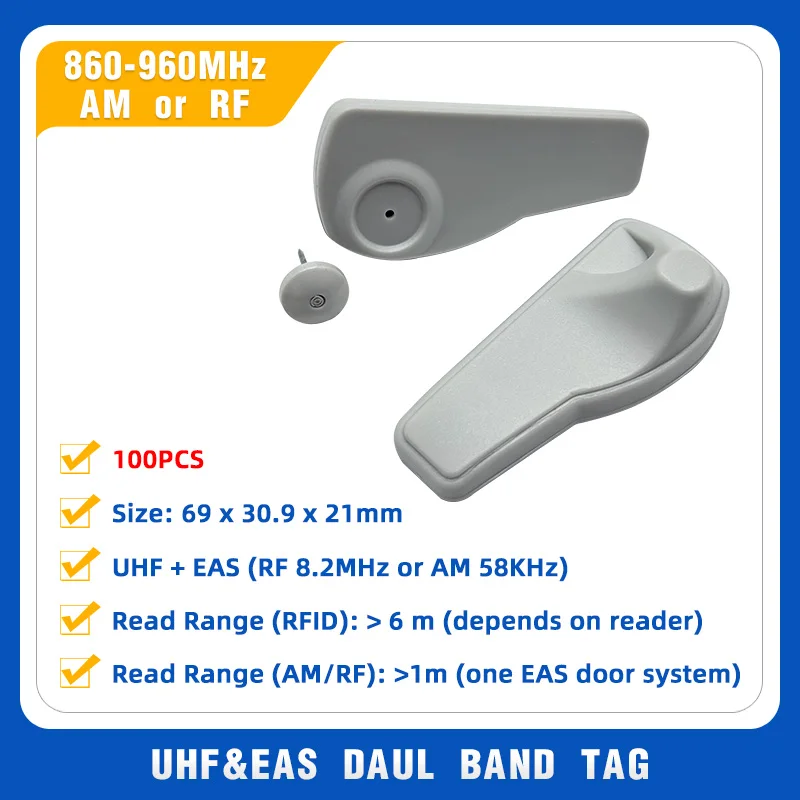

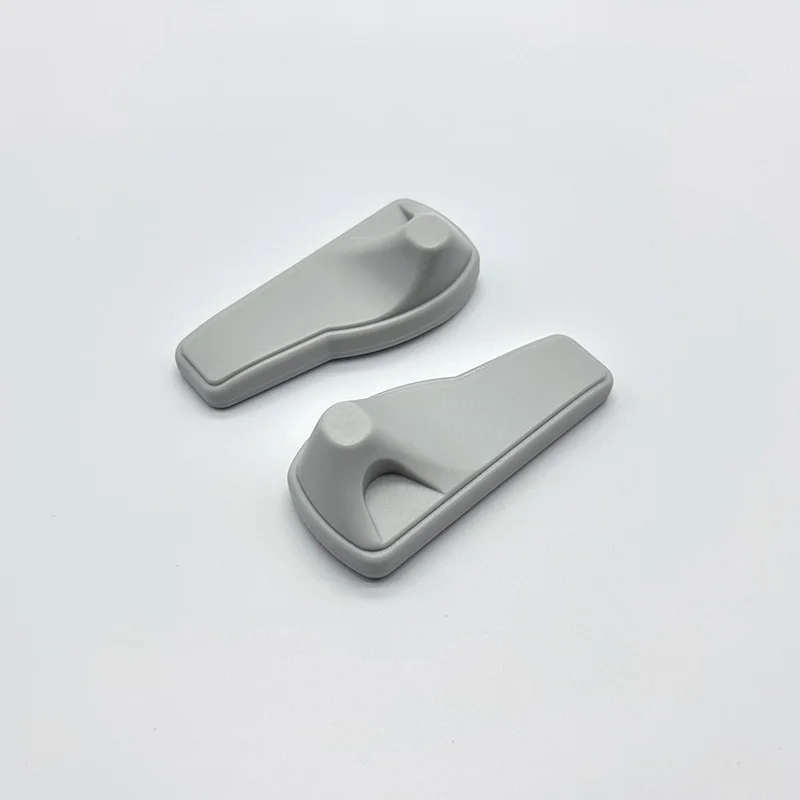

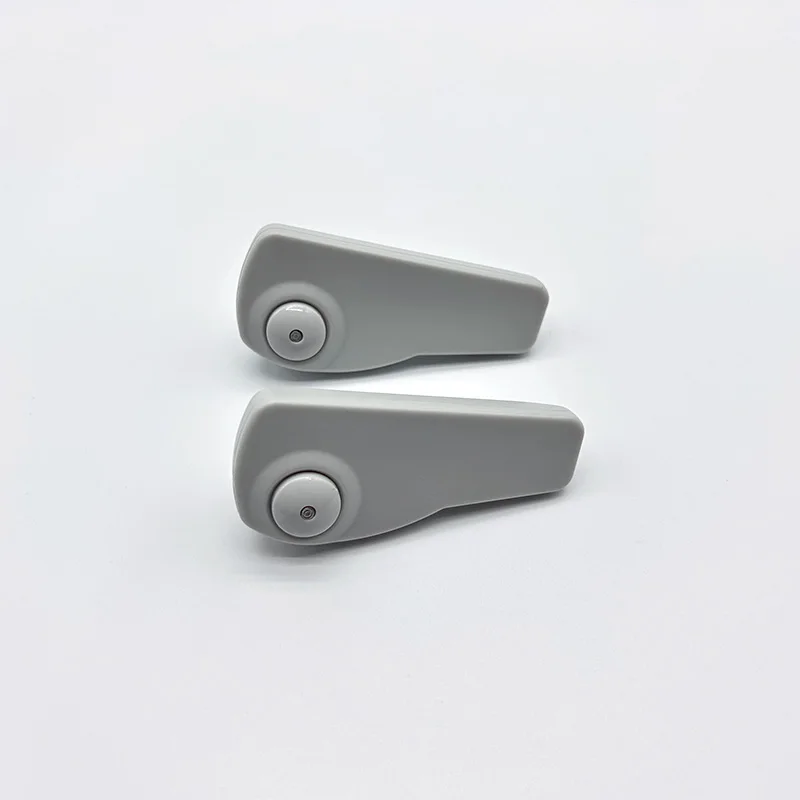

TF9681 is encased with ABS plastic, with the advantage of durable and reusable, offers cost-effective tagging solutions for industry customers and enables inventory visibility throughout the supply chain reducing shrinkage and out-of-stocks. The RFID+EAS hard tags upgrade the existing EAS technology, integrate merchandise visibility and loss prevention into a single and synergistic solution. Opened with a strong magnet, mainly applied to clothing tracking in retail store.
Physical Parameters
|
Model
|
TF9681
|
|
Material
|
ABS
|
|
Size
|
69 x 30.9 x 21mm (L x W x T)
|
|
Weight
|
11g
|
|
Working Temp
|
-40~+85℃
|
|
Storage Temp
|
-40~+85℃
|
RFID Parameters
|
RFID Standard
|
EPC C1G2 (ISO18000-6C)
|
|
Frequency
|
UHF (860-960 MHz) + EAS (RF 8.2MHz or AM 58KHz)
|
|
Chip Type
|
Impinj Monza R6
|
|
Memory
|
EPC: 96 bits; User: 32bits
|
|
Read Range (RFID)
|
>6M
|
|
Read Range (AM/RF)
|
>1M, for one EAS door system
|
Other Parameters
|
Data Storage
|
> 10 years
|
|
Re-write
|
100000 times
|
|

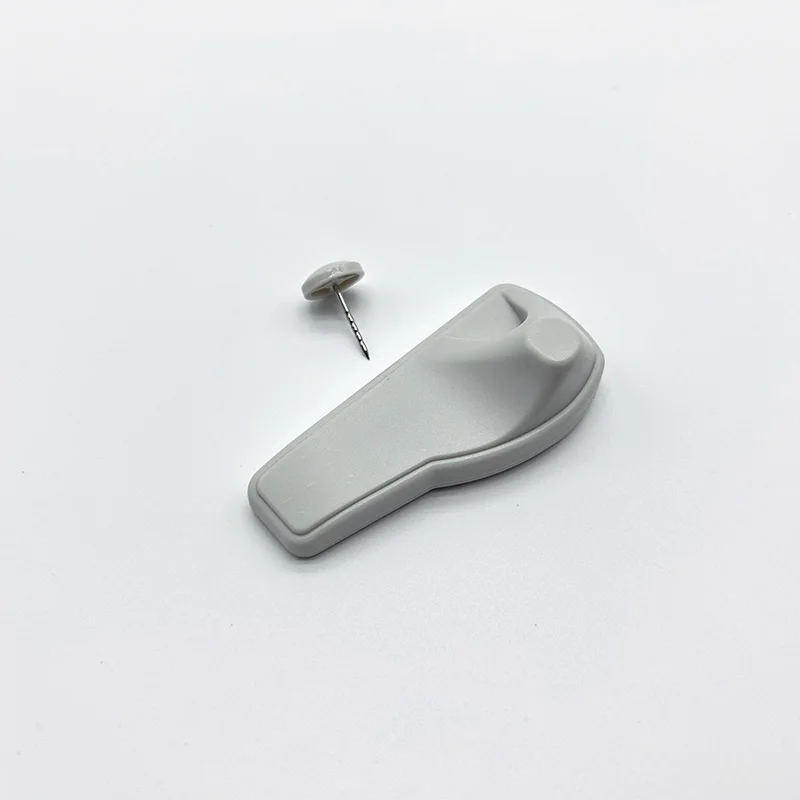

Installation
|
Pin buckle (16mm umbrella nail or 17cm wire rope)
|
|
Support Printer
|
SATO CL4NX, Zebra ZT410 Silverline, Postek TX3r, etc.
|
|
Customization
|
Logo, barcode/QR code, number printing, encoding, design, etc.
|
|
Package
|
1000pcs/box
|
|
Application
|
Clothes security anti-theft
Apparel retail management Clothes inventory management Other items security control, etc. |

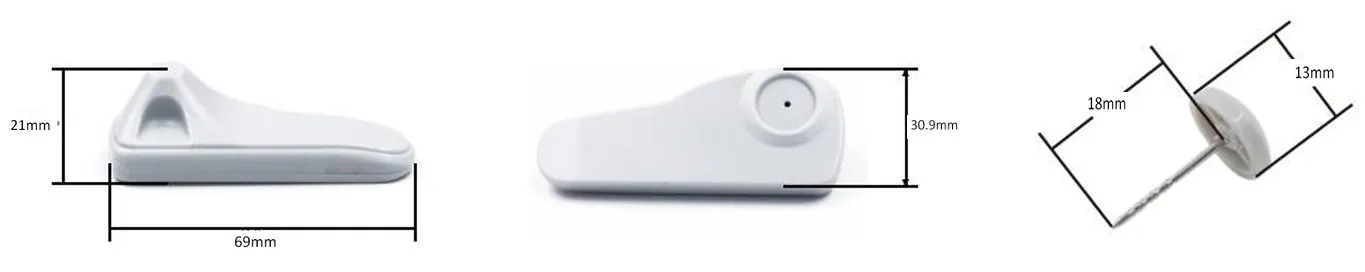

Product Size
Application Scenarios
Company Profile
ABOUT TENHANYUN

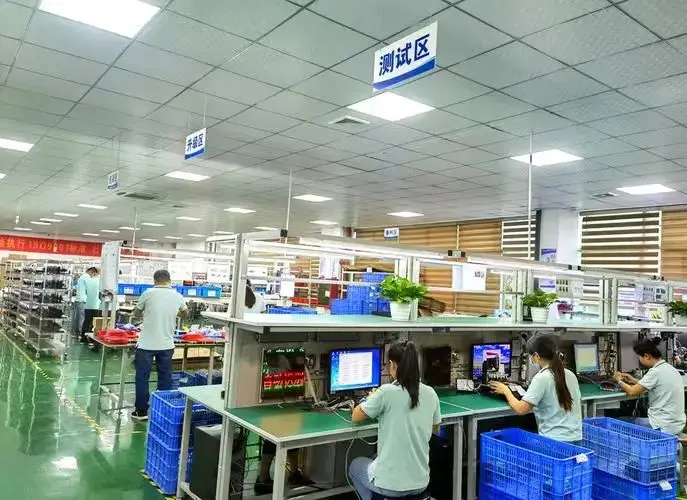

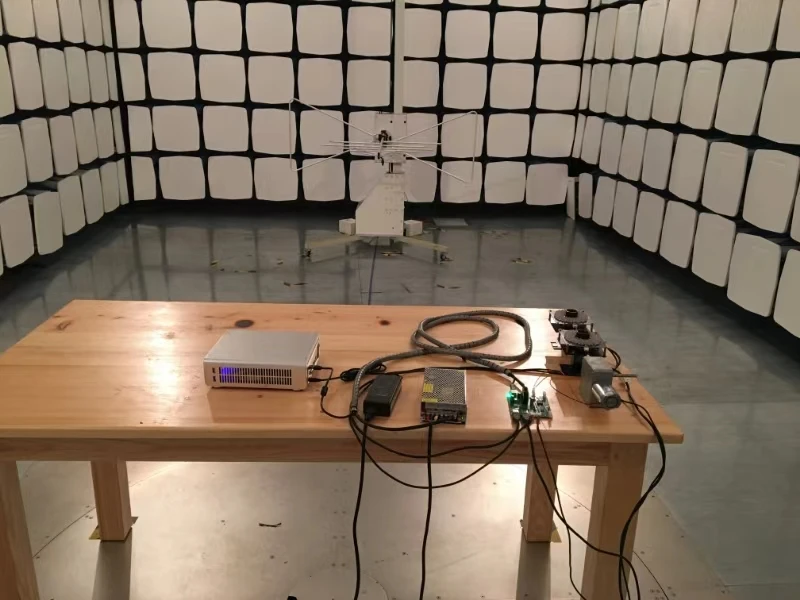

Guangzhou TenhanyunTechnology Co., Ltd. was established in Guangzhou in 2008, and focus on innovation and R&D, production and sales of IOT RFID products and solution. It is a well-known enterprise in the IOT RFID industry in China. Tenhanyun focus on the service model of product innovation plus integrated application solution. With more than 2,000 square meters of R&D and integrated test centers, Tenhanyun strictly control the product quality and provide customers with competitive products and solutions. Based on years of development and accumulation, Tenhanyun have formed the product category including RFID fixed / integrated / handheld / industrial Reader, RFID antenna, RFID tag and integrated software.
