About this item

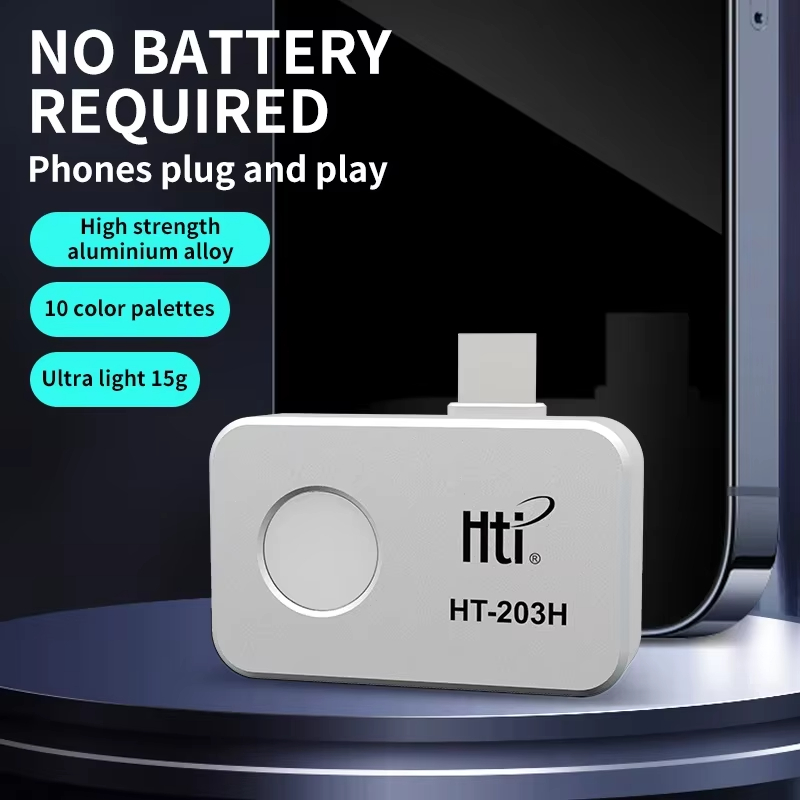

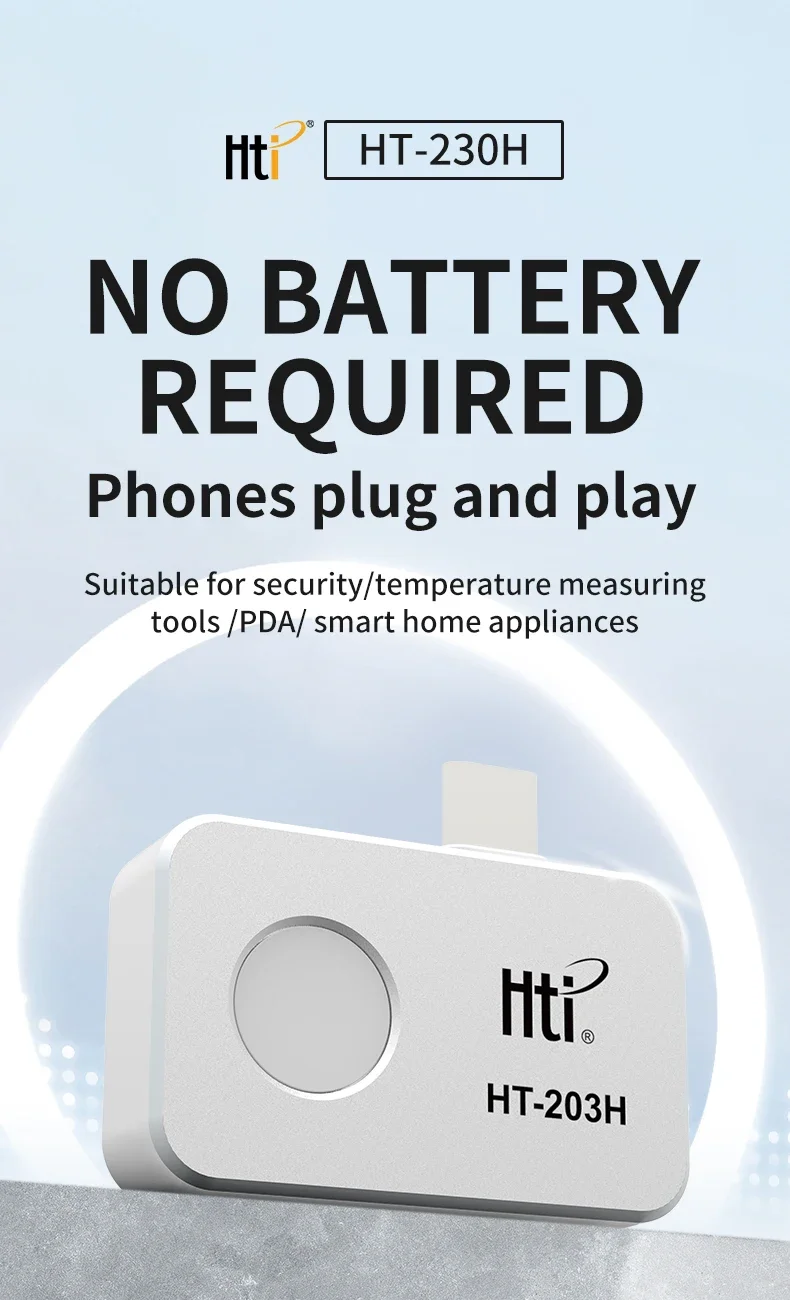

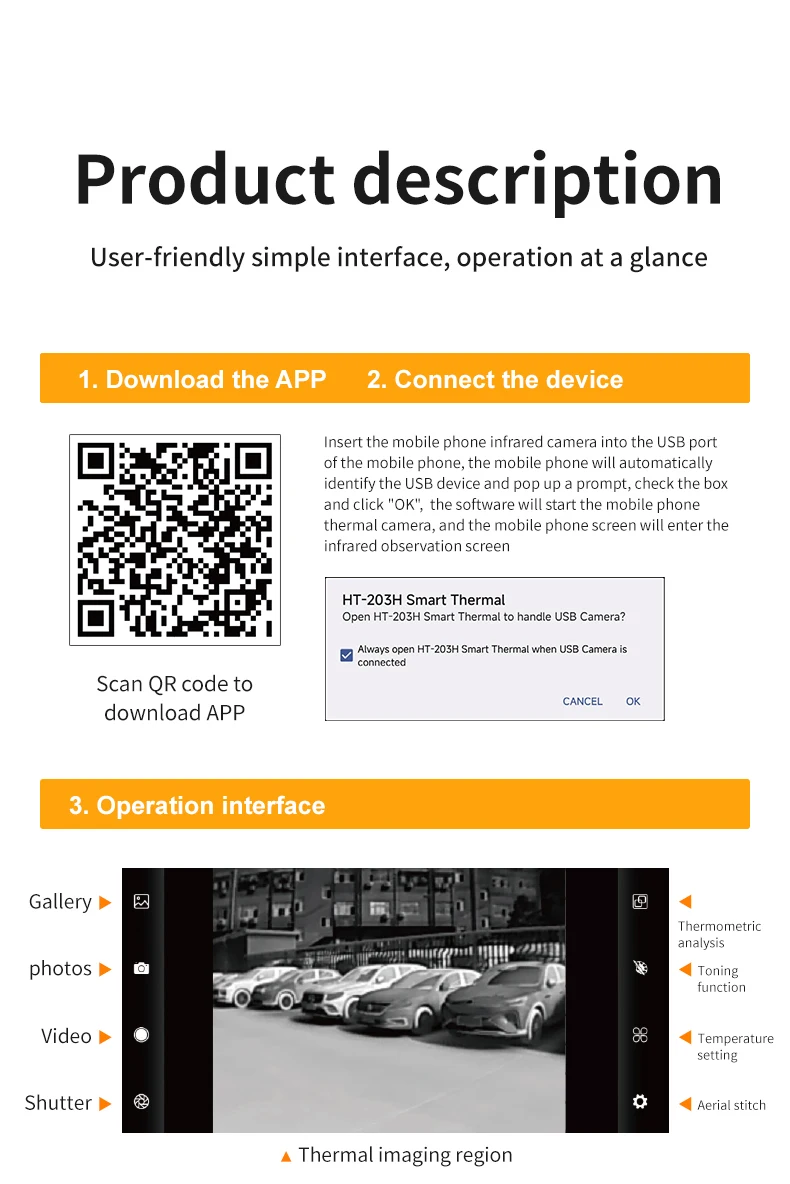

Android Compatibility: The HT-203H thermal camera is compatible with USB-C interface phones, is suitable for Android.Download the application by scanning the QR code in the user manual .Simply download the dedicated APP application to achieve instant plug and play operation

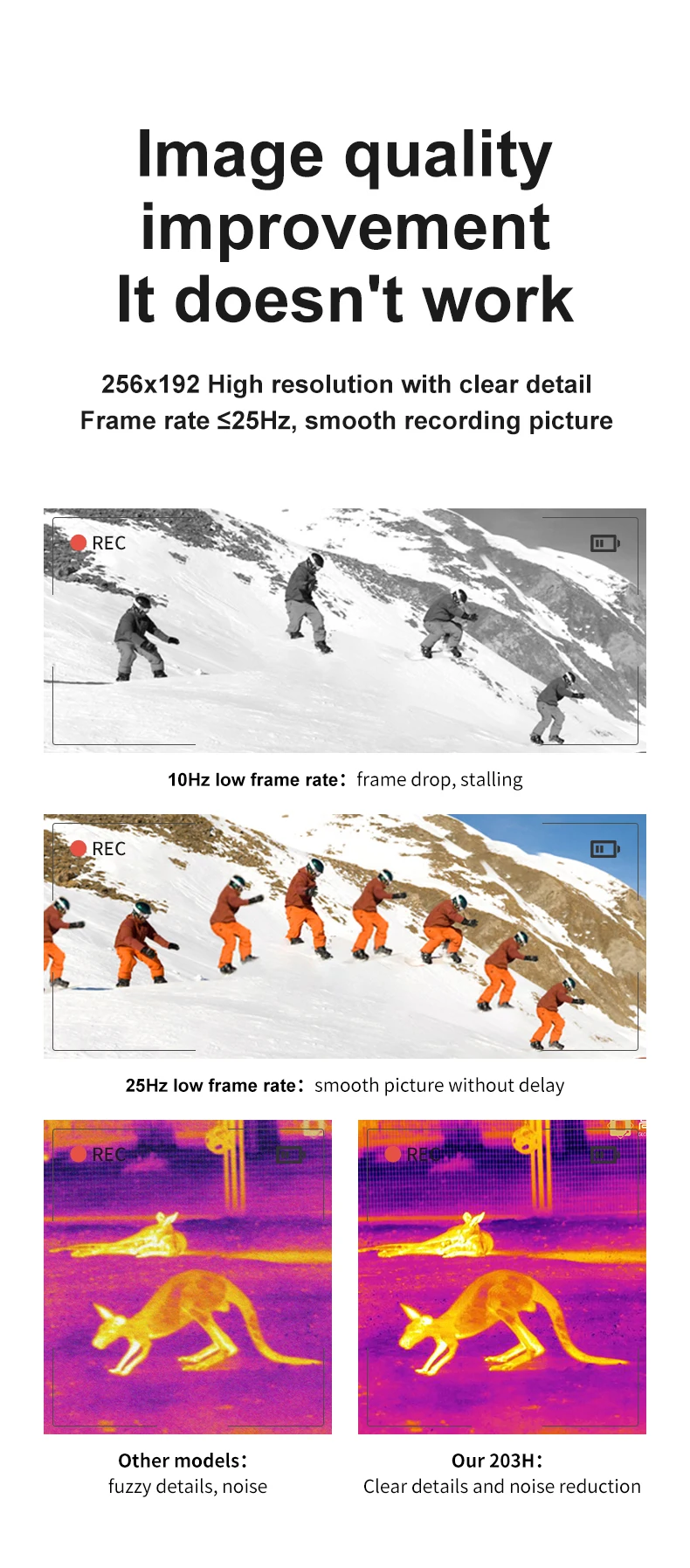

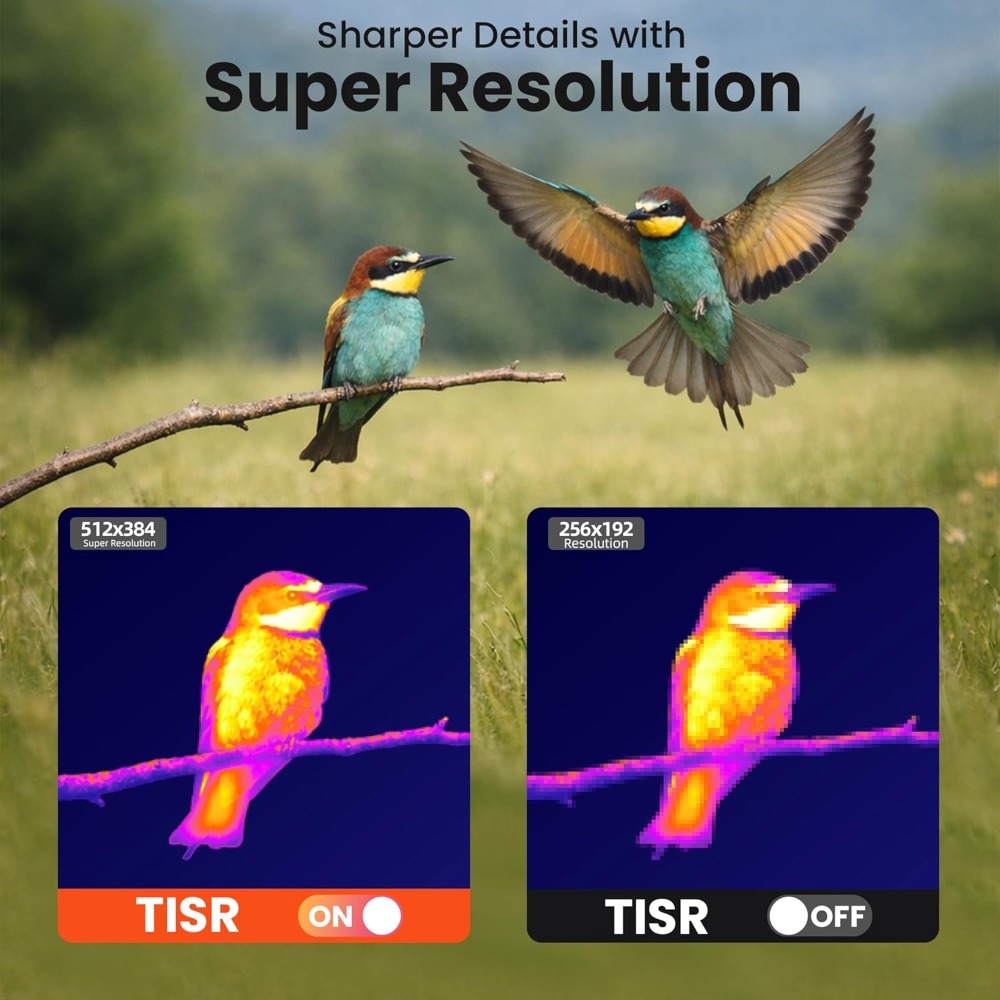

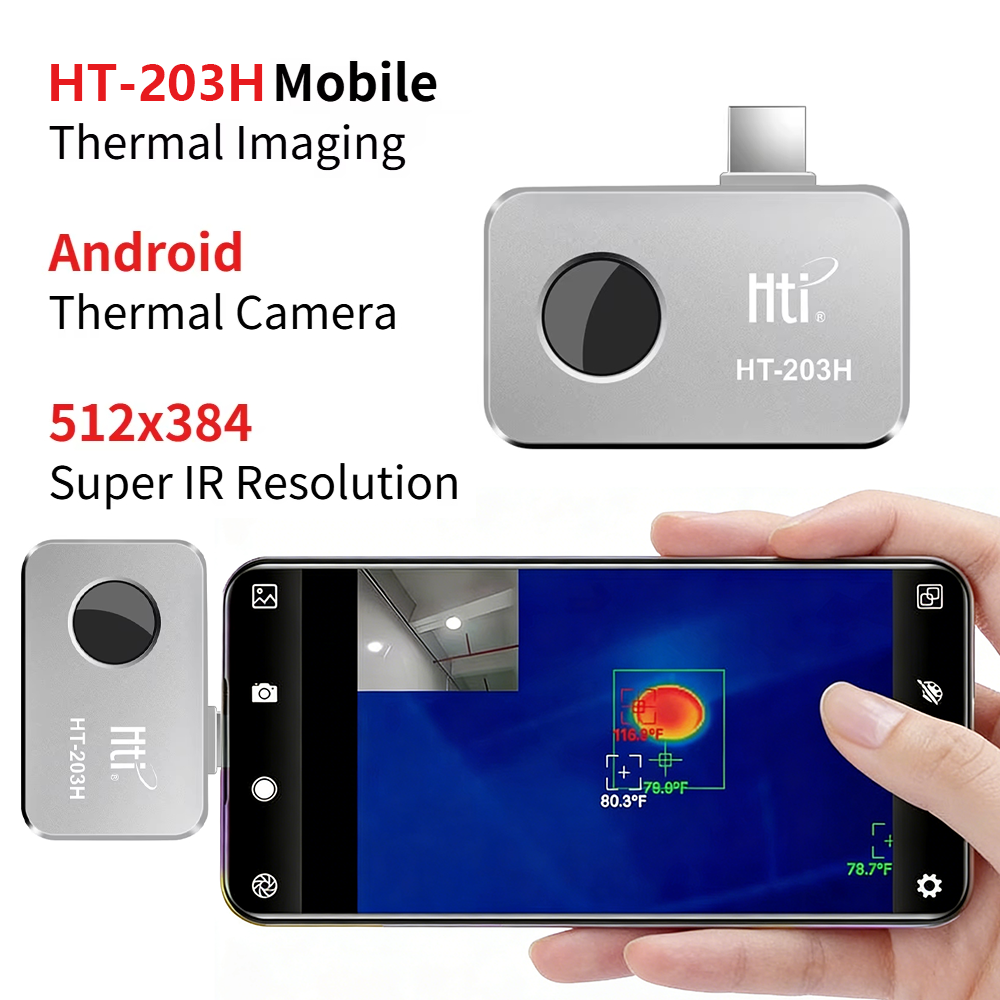

512×384 Super Resolution: This thermal imager is equipped with advanced super-resolution technology, which can improve the image quality to 512×384 resolution; Combined with a high refresh rate of 25Hz and a thermal sensitivity of 40mk, it can provide a high-definition and smooth user experience, helping to detect temperature anomalies faster

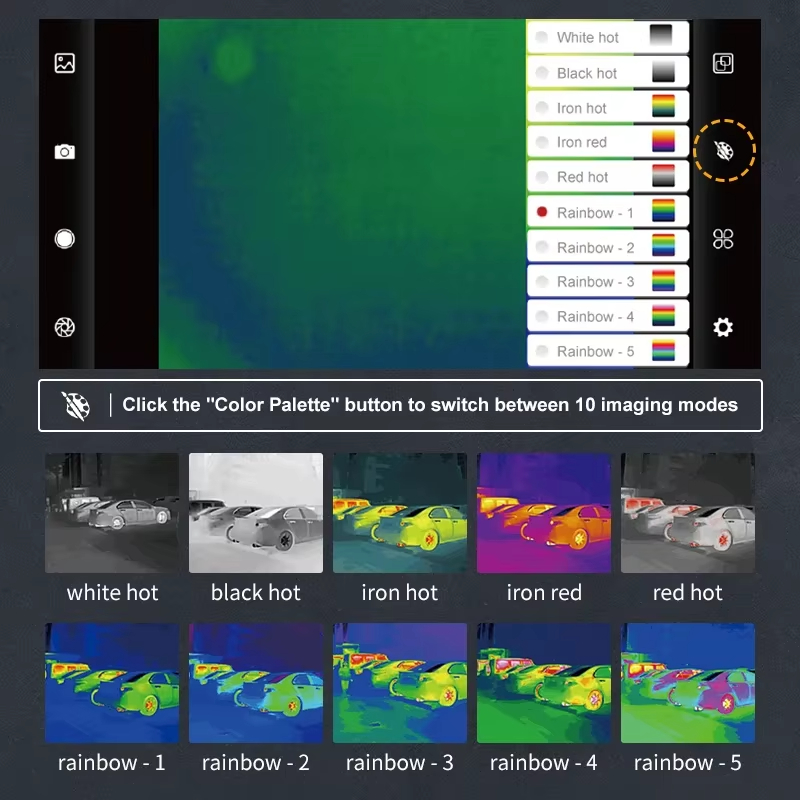

Wide Temperature Range: The reading range of the thermal imaging camera is -4 ° F to 842 ° F (-20 ° C to 450 ° C), with a maximum error of ± 2 ° C or 2%. Equipped with 10 color modes, different modes can be selected according to usage needs for more intuitive image analysis
Multi Functional in One: The thermal imaging device has high and low temperature alarm, temperature tracking, and visible light picture in picture function; Help you quickly detect hot and cold spots, clearly inspect and observe details
Widely Used: HT-203H thermal imaging is compact in size, lightweight, and can be carried around. By adjusting various parameters, precise detection can be carried out. It provides reliable thermal imaging solutions for home insulation inspection, HVAC system diagnosis, distribution panel inspection, industrial equipment maintenance, and automotive troubleshooting

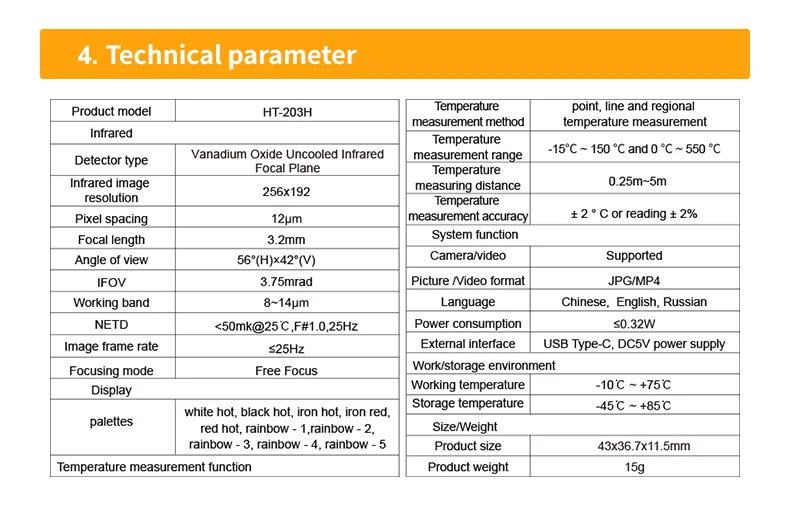

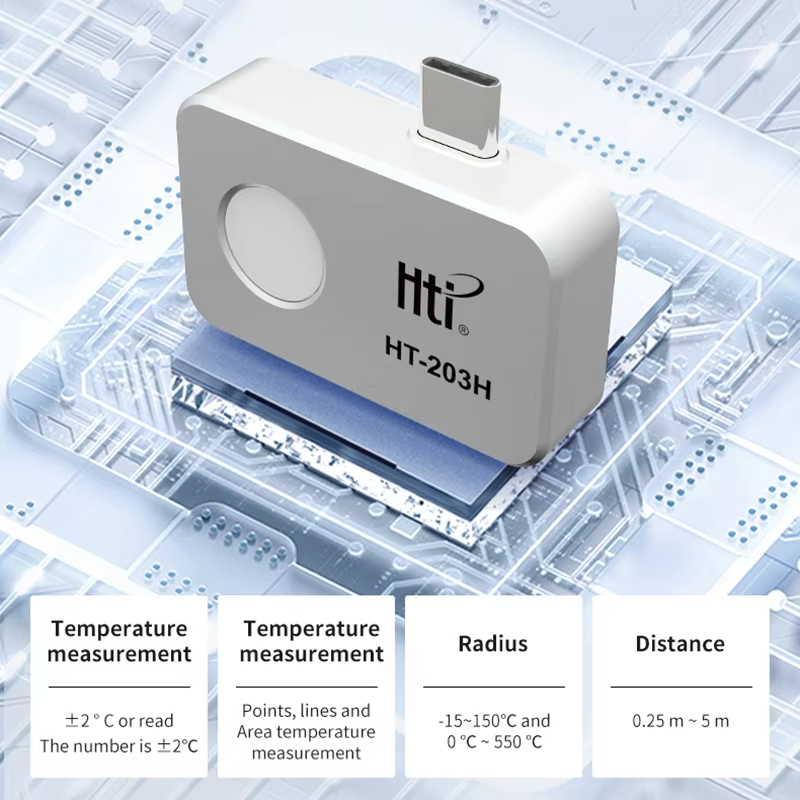

Model Number: HT-203H
Measuring Range: -20℃~550℃(-4℉~1022℉)
Accuracy: ±2℃ or ±2%
Thermal image resolution: 256×192
Super IR Resolution: 512×384
Wavelength coverage: 8~14μm
Pixel Size: 12μm
Focal Length: 3.2mm
Frame: 25Hz
Temperature measurement mode: Center point/hot and cold spot tracking
Temperature measurement method: Temperature measurement of points, lines, and surfaces

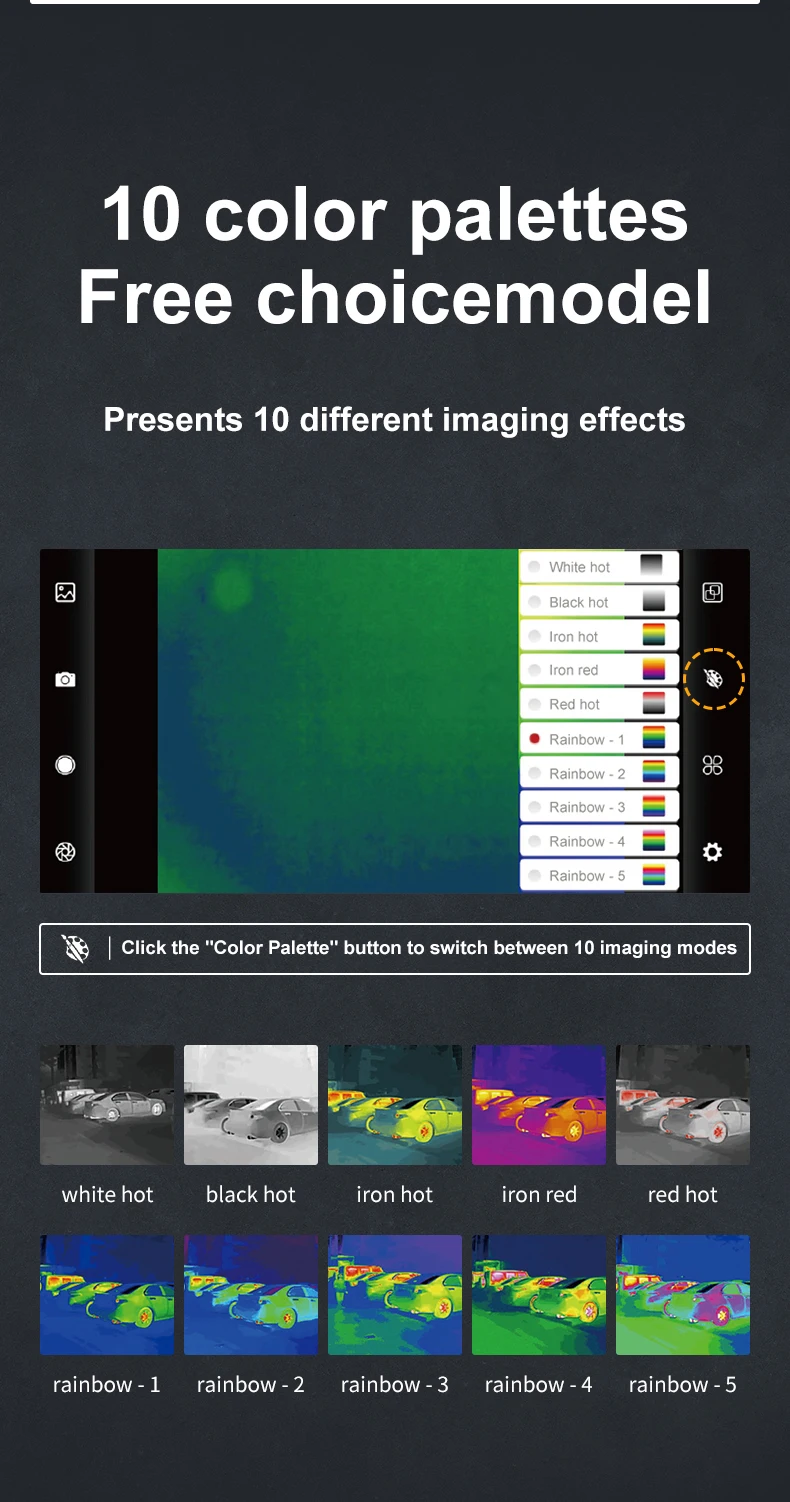

palette: Rainbow/Iron Red/Cool/White Heat/Black Heat
NETD lens Focal Length: ≤ 40mk@25℃,@F/1.2
Field angle: 50.0°×37.2°
Detector Type: Amorphous silicon uncooled infrared focal plane
Emissivity Setting: 0.01~1.00 Adjustable
Focus Mode: No focusing
Thermal Sensitivity: 0.1℃

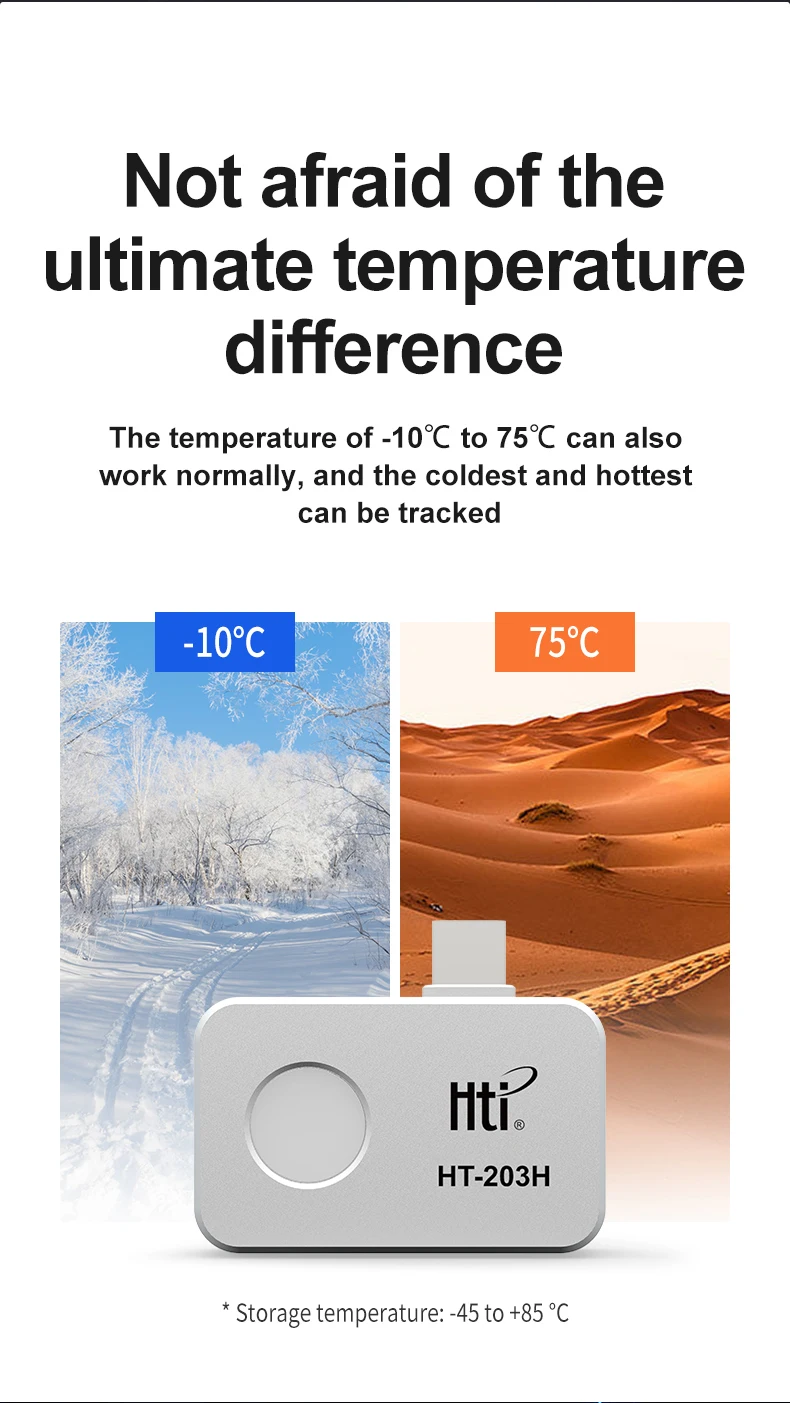

Working Temperature: -20℃~50℃
Storage Temperature: -30℃~70℃

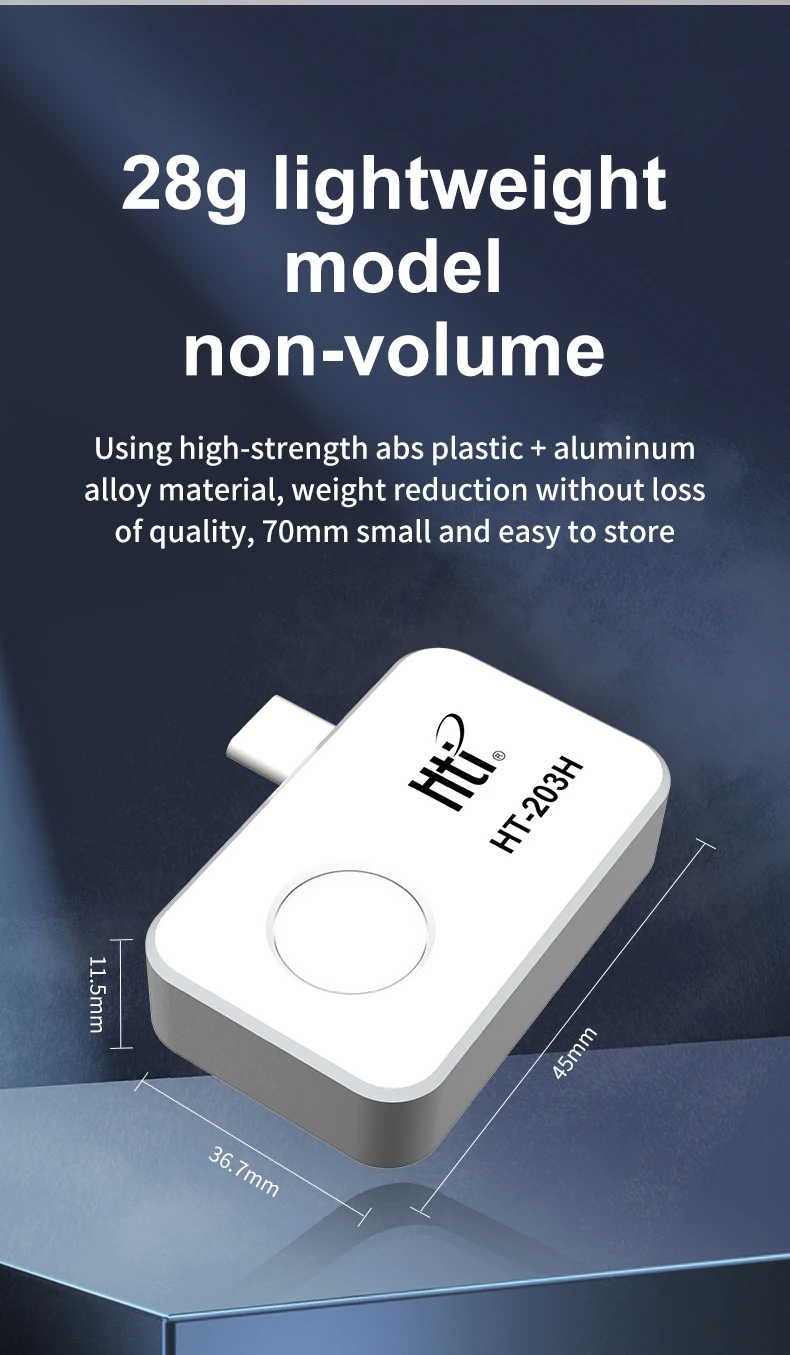

Weight: 28g
Size: 46*70*14mm
