Product Specifictions:

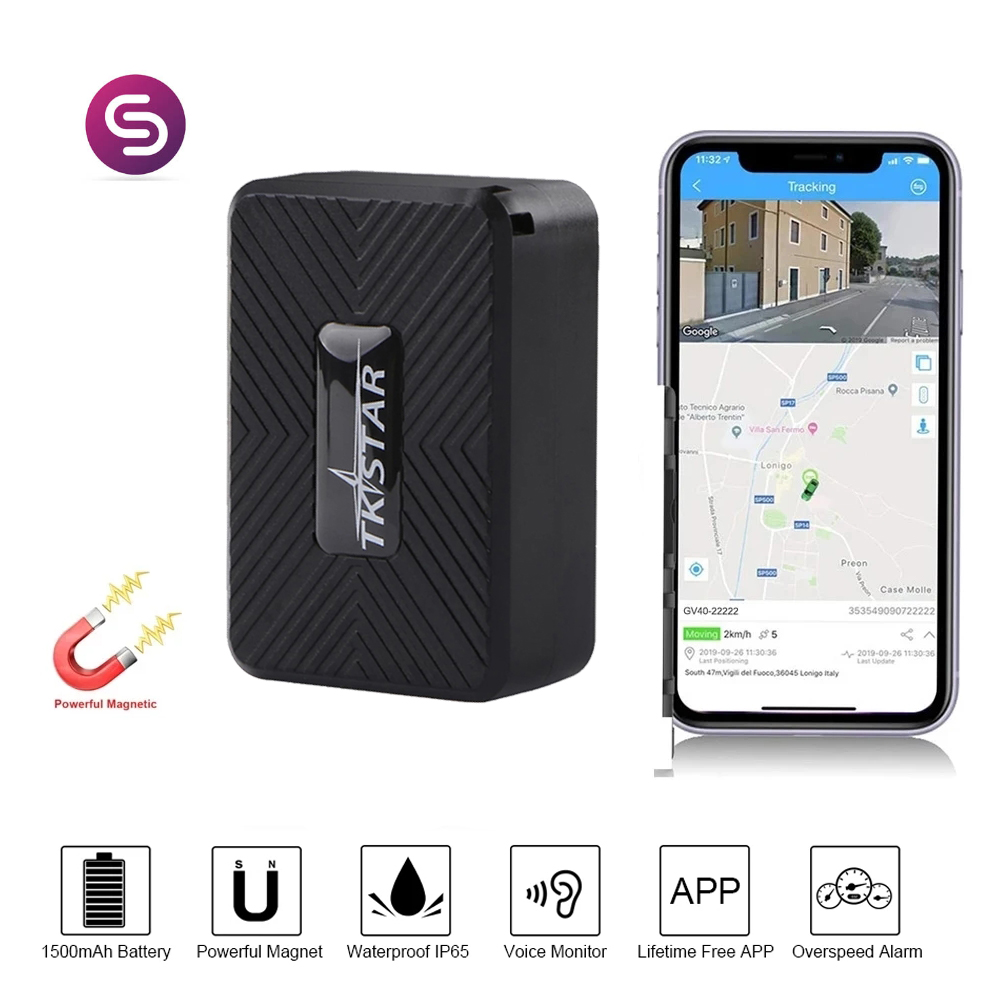

Model name: TK913
Dim: 55mm x 36mm x 21mm
Host Weight: 58G
Color:Black
Network: GSM/GPRS
Frequency: GSM 850/900/1800/1900Mhz
GPS sensitivity: -159dBm
GPS accuracy: 5m
Time To First Fix:
Cold status 35-80s
Warm status 35s
Hot status 1s
Wall charger: 110-220V input, 5V output
Battery: Built-in 3.7V 1500mAh Li-ion battery
Standby: 15 days
Storage Temp.: -40 to +85 degrees
Operation Temp.: -20 to +55 degrees
Humidity: 5%–95% non-condensing
Package List:
1 * TK913 Main Unit
1 * USB Cabl
1 * User Manual
1 * Original Box (Optional)
(No Sim Card and SD Card included)
Main Functions:
1. GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-2000 meters.
2. Realtime Tracking: You will can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds.
3. History Route Playback: The APP and web server can record the upload data of the device up to 6 months, you will can playback the history route at any time.
4. Long Standby Time: It has built-in1500 mAh Li-ion battery, the standby time is up to 25 days and the working time is up to 3-4 days;
5. Waterproof IP67: The waterproof level of this device is IP67, it can resist splash water but can't be put under water.
6. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed is exceed the speed you presetted, it will send message ldquospeed alarm!rdquo to the admin number every 5 minutes.
7. Shock Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working. It will send SMS ldquosensor alarm!rdquo to the admin number when the unit get shocked.
8. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command “move+passord”, then in case the device moved 500m it will send alarm SMS “Move Alarm+Latitude and longitude” to the authorized number.
9. Geo-fence: set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.
10. Powerful Magnetic: with super strong powerful magnetic,can be very easily installed.
11. Lifetime Free to Support PC Tracking platform and smartphone tracking Application.
Tracking software (Server IP 47.88.85.196 Port 7700):
More details:
