LPG-GPL Regulator AT09 LPG Conversion Kits Gas Pressure Reducer Electronic Regulator For Sale
Autogas Reducer

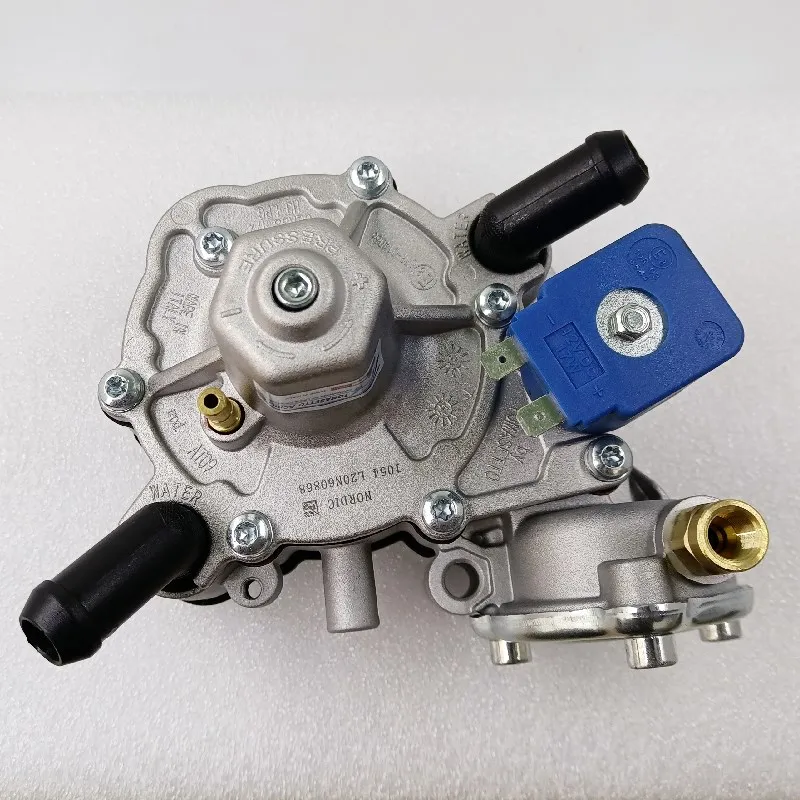

The model AT09 version LPG reducer is a single stage reducer for LPG sequential injection systems, homologated ECE 67R-01.
Equipped with filter unit and inlet solenoid valve, compared to basic version it has also an additional post-heating of the LPG at the outlet, that allows higher gas flow and higher gas temperature at the exit. With lower temperatures the reducer could not be sufficient to follow the maximum power requirement from the engine.
The pressure at the outlet is adjustable from 0,9 to 1,8 bar (pressures referred to reducer not connected to the engine).
Technical specification:
Material Aluminium die cast body
Weight 1.5 kg
Dimensions 120x125x105 mm
Max. inlet pressure 3 MPa
Outlet pressure variable from 90 to 180 kPa (when not connected to engine)
Solenoid voltage 12 V DC
Solenoid absorption 17 W
Inlet connection M10x1 pipe Ø6 mm
Outlet connection Fixed fitting Ø12 mm
![]()
![]()
![]()
![]()
![]()
![]()
