Note:
In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry
Feature:

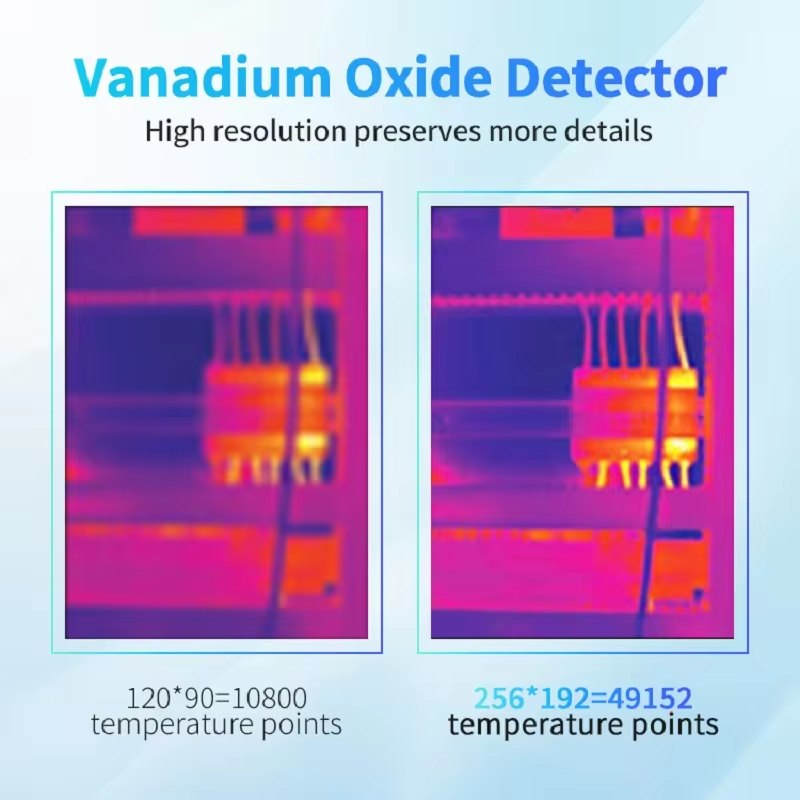

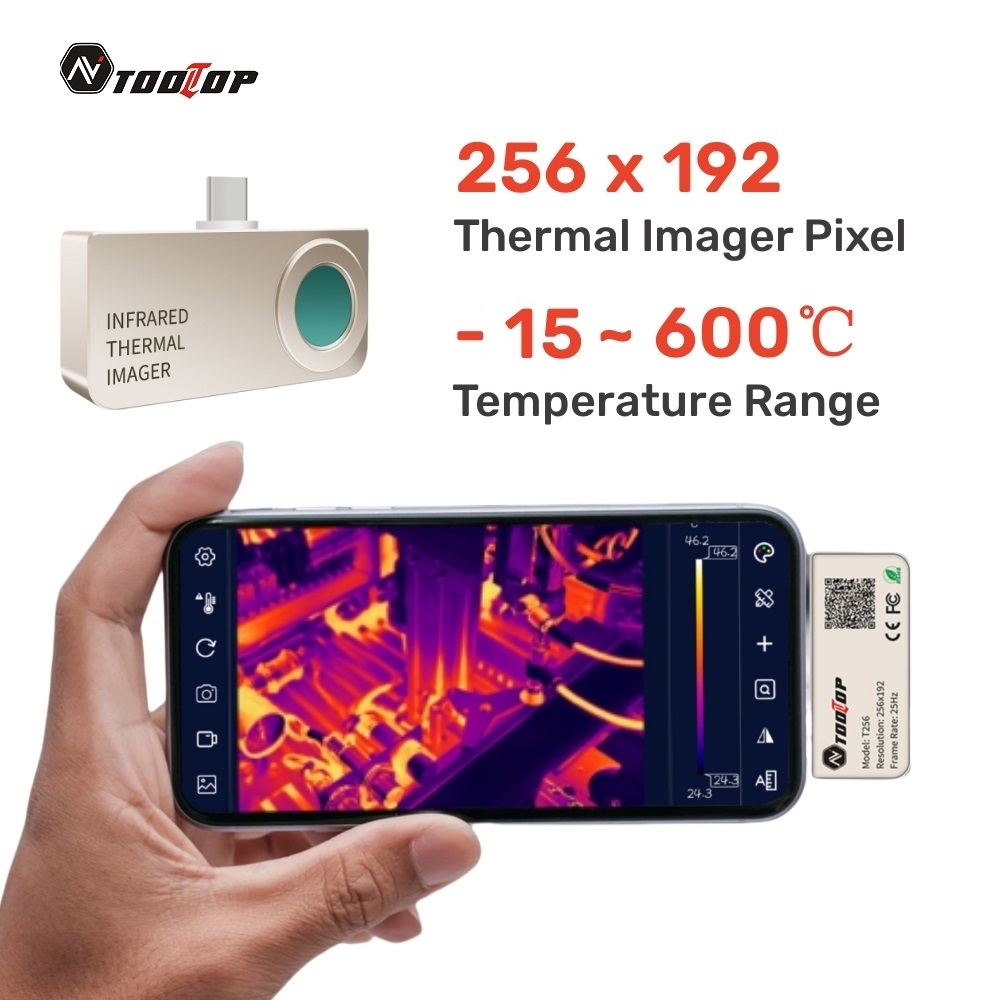

[ 256*192 IR Resolution ] has high-quality optical lens and high-resolution detector, with excellent imaging effect
[ lightweight and portable ] only 22g,small size and plug to play, aluminum alloy shell, which is firm and durable.
[ -15℃ – 600℃ ] It has a wide temperature measurement range: -15℃ – 600℃
[ Temperature alarm & tacking ] supports high temperature alarm and customized alarm threshold, high and low temperature tracking

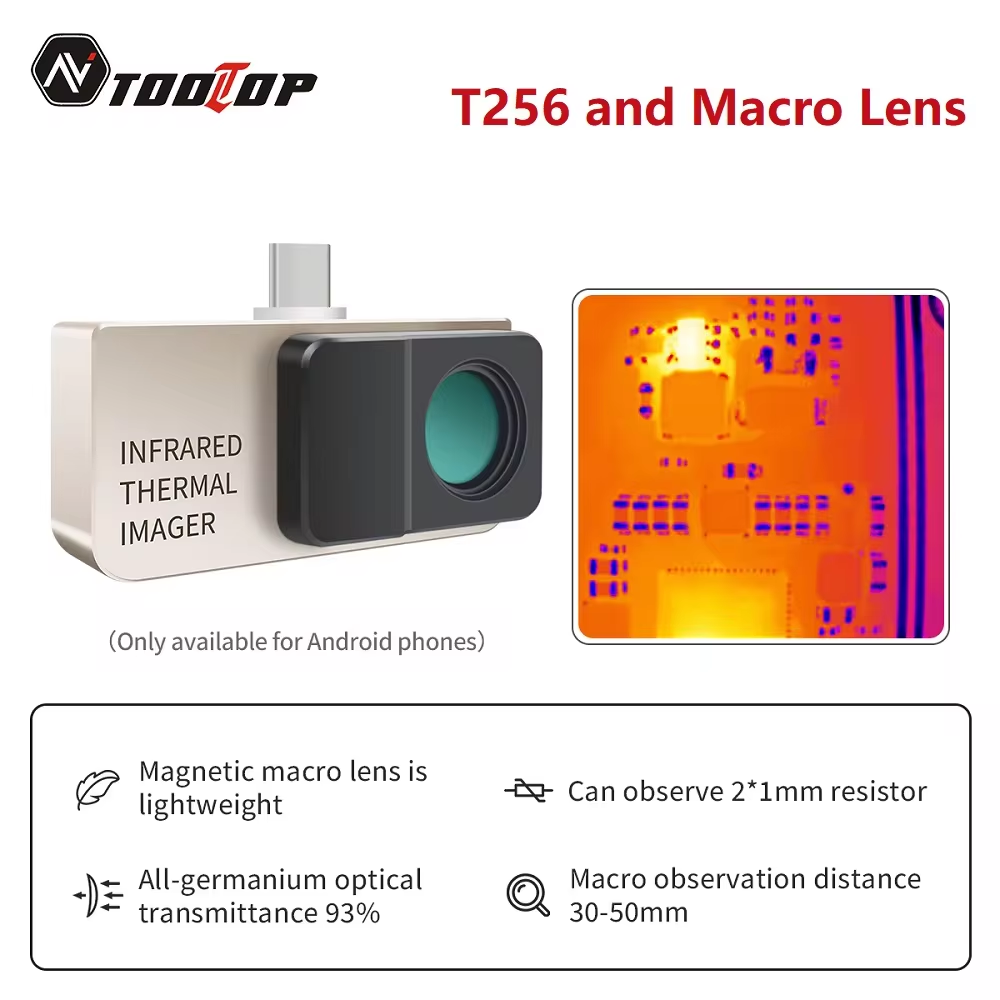

[ Optional magnetic macro lens ]all germanium optical transmittance 93%,minimum observable component size of 2 * 1mm
[ Detail enhancement ] adjusts the sharpness and contrast of the image to make the field of view clearer and more delicate
[ Uer-defined Measurement ] can customize temperature range screen display, high temperature area display has rich usage scenarios, and supports adding points, lines, and rectangular boxes for regional temperature measurement
[Android Type-c ] compatible with Android system APP to perform professional thermal imaging analysis anytime and anywhere
Specification:
Model：T256
Resolution:256 x 192
Wavelength:8-14um
Frame rate:25Hz
NETD:<50mk@25℃
FOV :56°x42°
Lens:3.2mm
Temperature measurement range:-15℃~600℃
Temperature measurement accuracy: ±2℃ or 2%
Temperature measurement: Highest, lowest, central point and area temperature measurement are supported

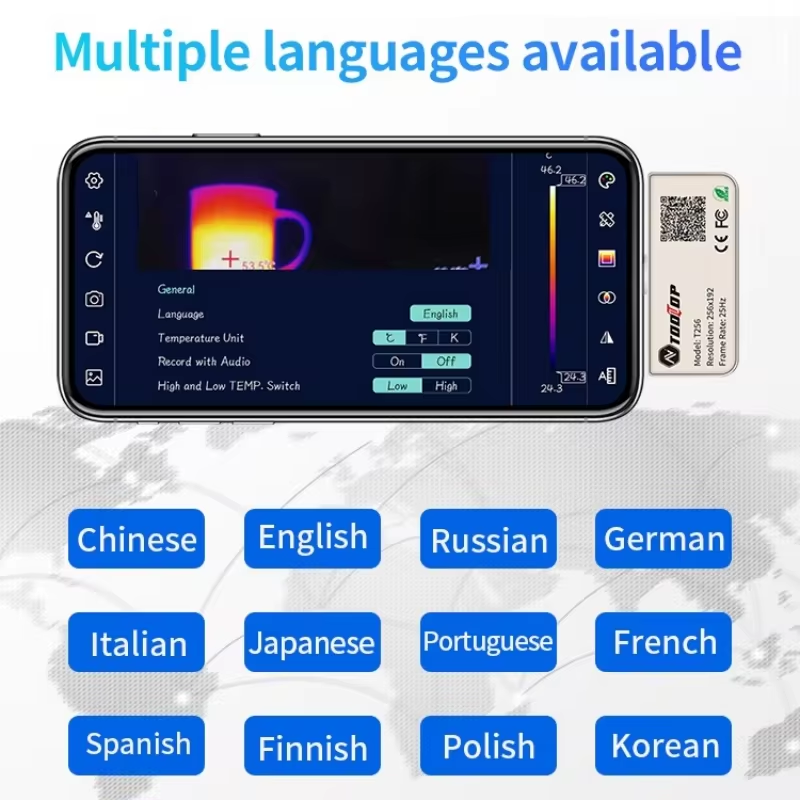

Language: Chinese, English, Korean, Portuguese, Russian, Spanish, Italian, Dutch, Polish, Japanese, French, Finnish
Working temperature:-10℃~75℃
Storage temperature:-45℃~85℃
IP rating:IP54
Dimensions:25mm x40mm x14mm
Net weight:22g
Package List:
1 x Thermal Imager
1 x Cloth
1 x Cloth Bag
1 x User Manual
1 x Box
1 x Macro Lens(Optional)
