Note: In order to correct non-uniformity, a mechanical control calibration plate is installed in front of the thermal imaging detector, which will be calibrated every 10 seconds to ensure more accurate measurements. Usually, there is a pause of about 1-3 seconds, which is caused by the thermal imaging detector calibration . This is a normal phenomenon, please don't worry
This app is only available for Android and is not supported on iOS.
Note: The product's app is not compatible with the following phone models. Please check before purchasing:
OnePlus 13
OnePlus 6T
Samsung Galaxy Z Fold4
Samsung Galaxy S10
Redmi Note 9 Pro
Redmi Note 11 Pro 5G
Redmi Note 7 Pro
HUAWEI P30 lite
-

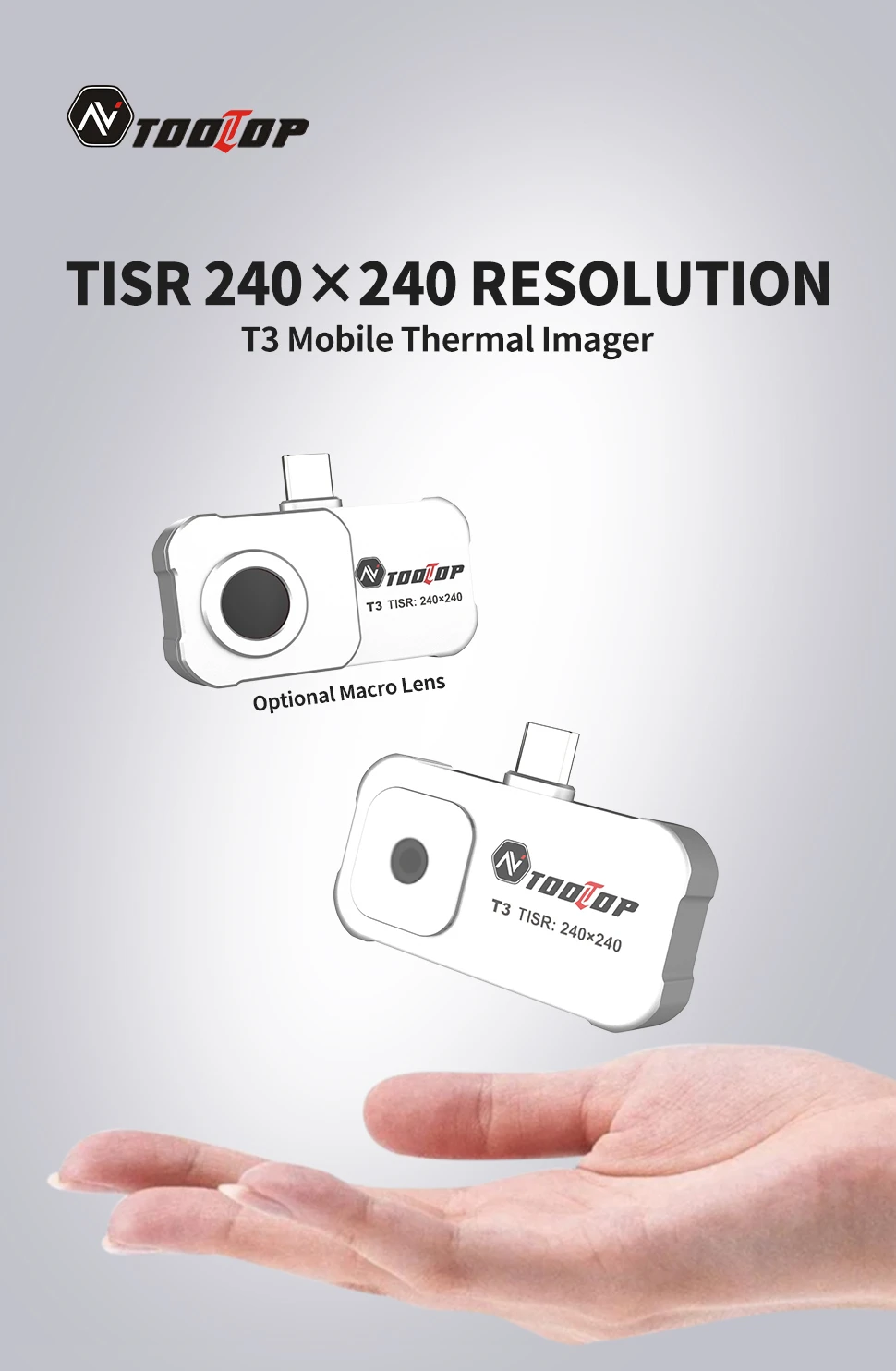

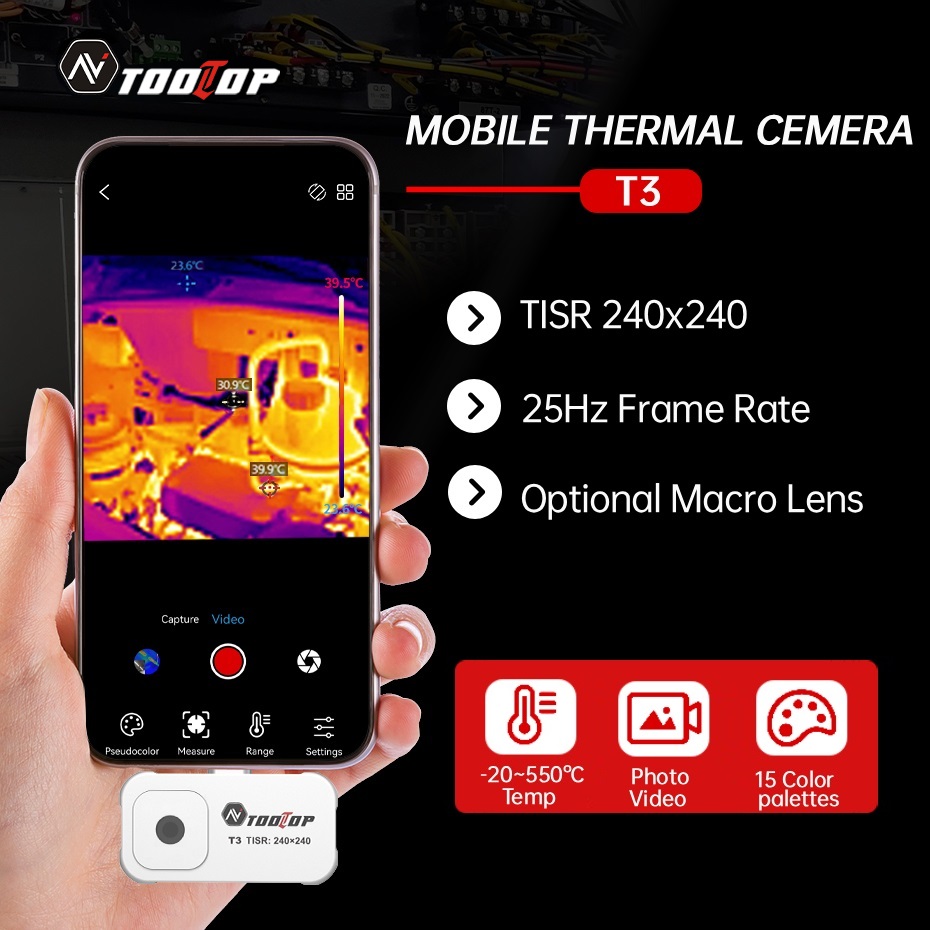

TISR emhance resolution 240*240 display
-

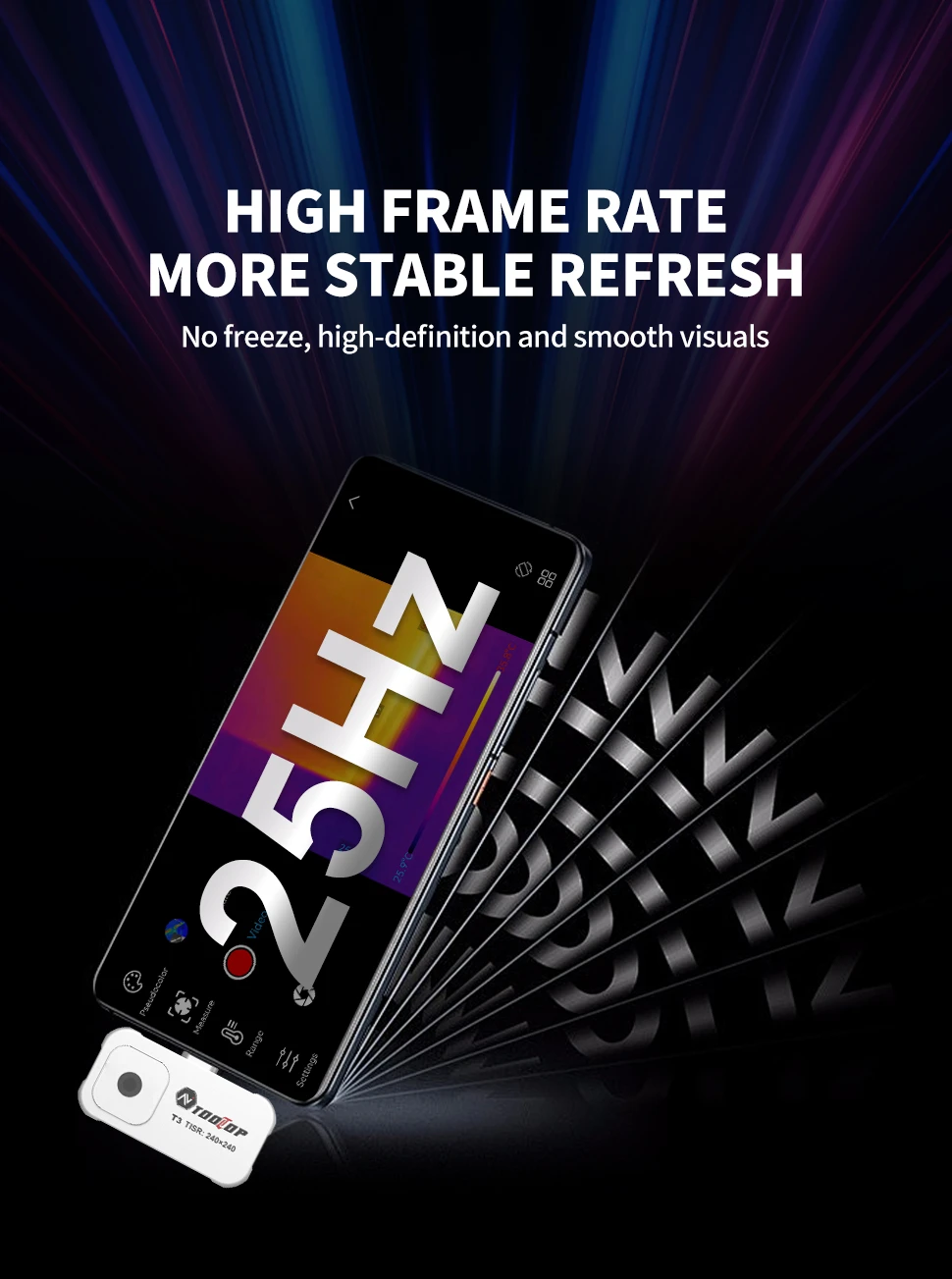

25Hz high frame rate for smooth visuals
-

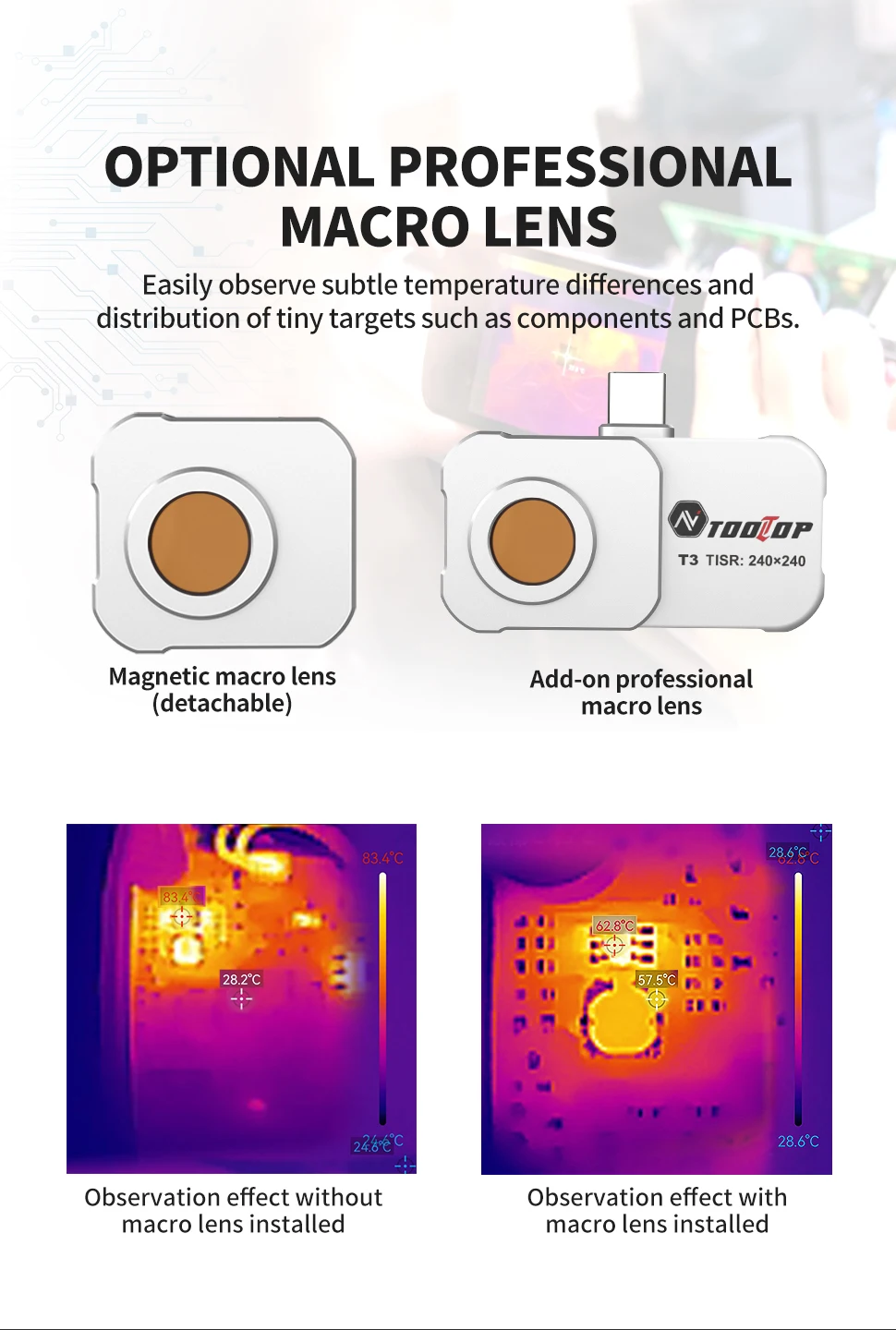

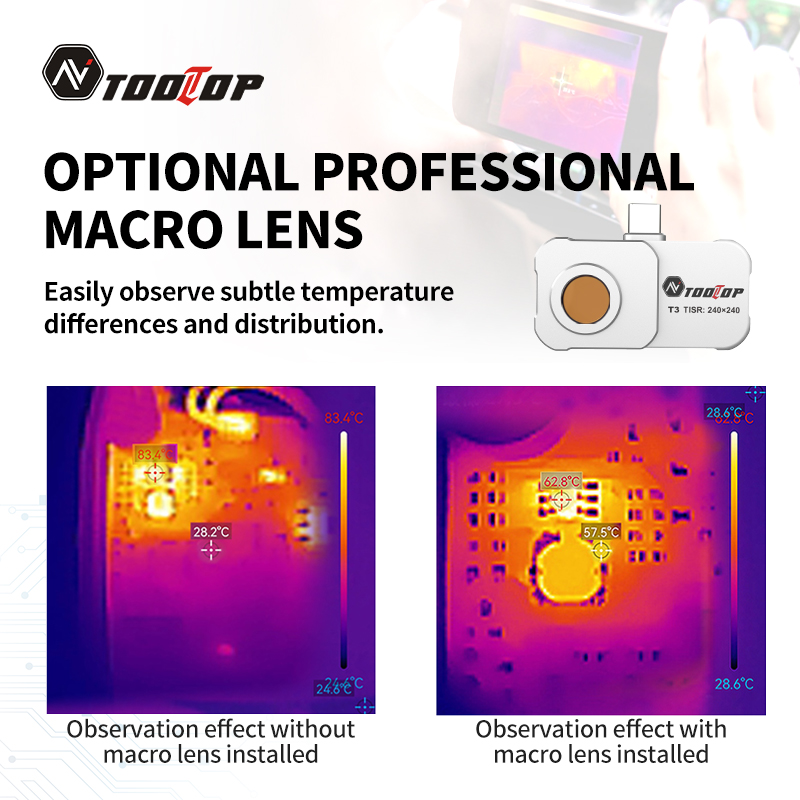

Optional magnetic macro lens can easily observe small components
-

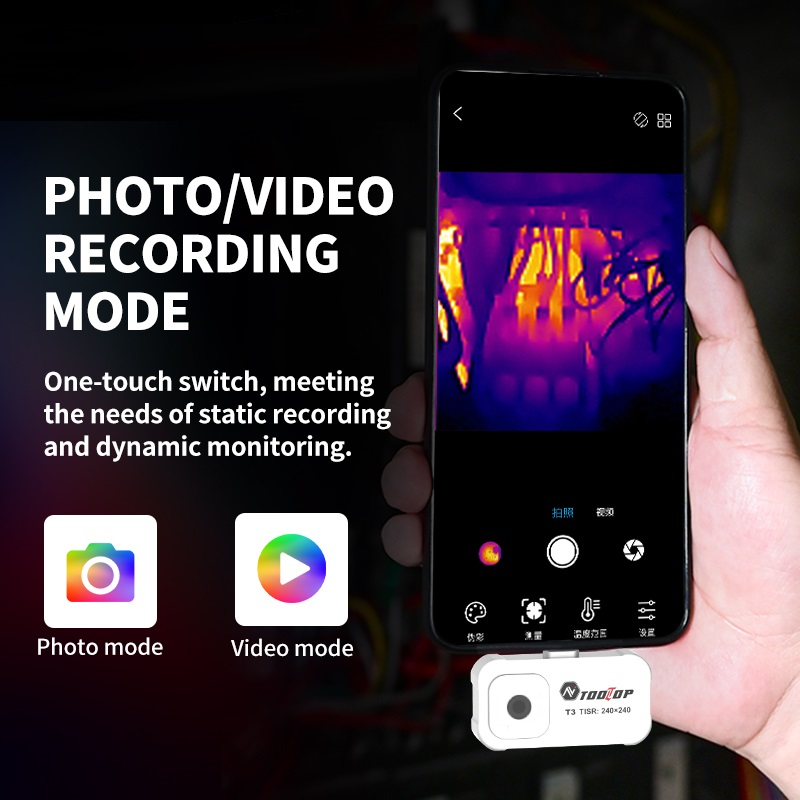

Photo and video recording,one-touch switch control
-
-20~550℃ wide temperature measurement range
-

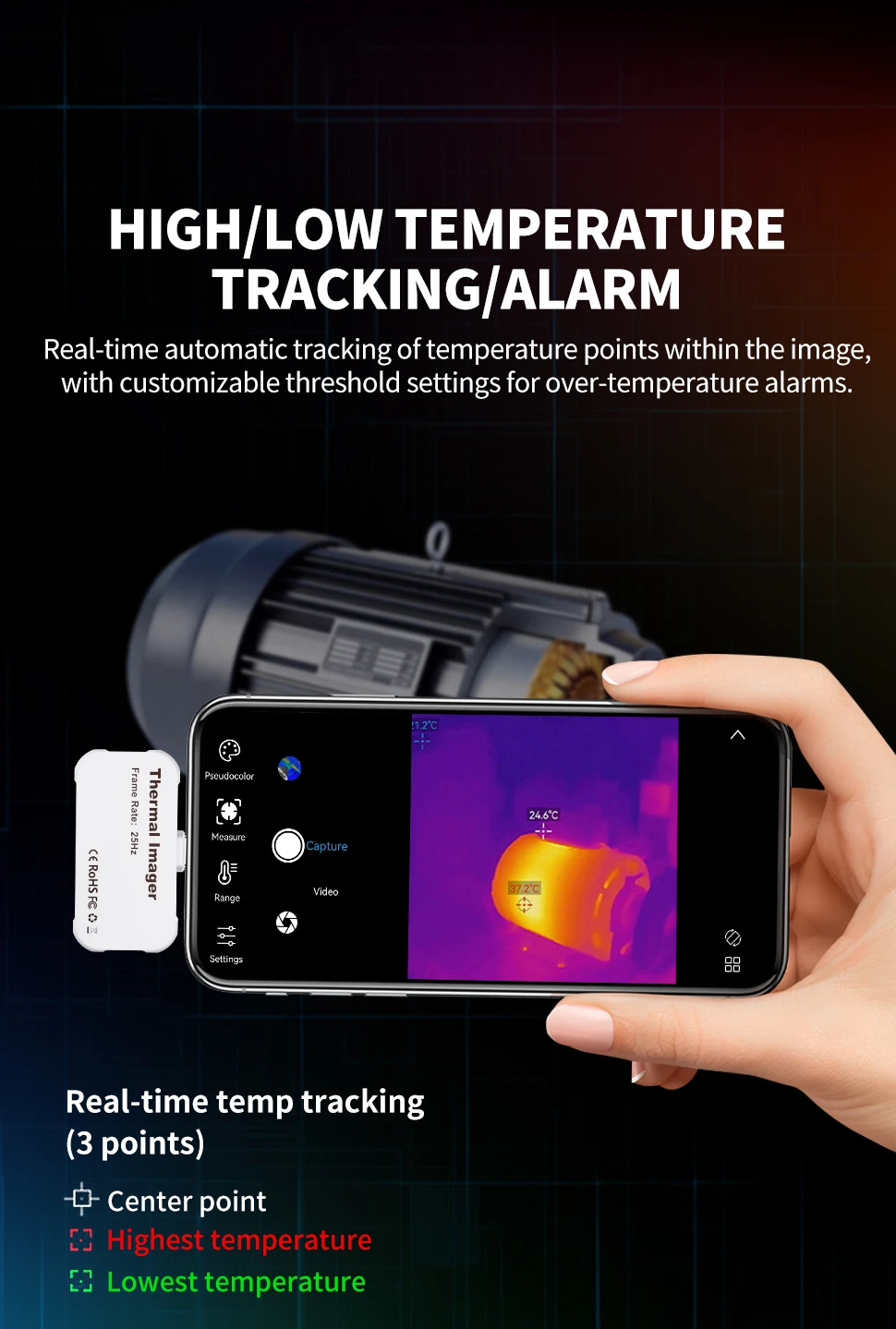

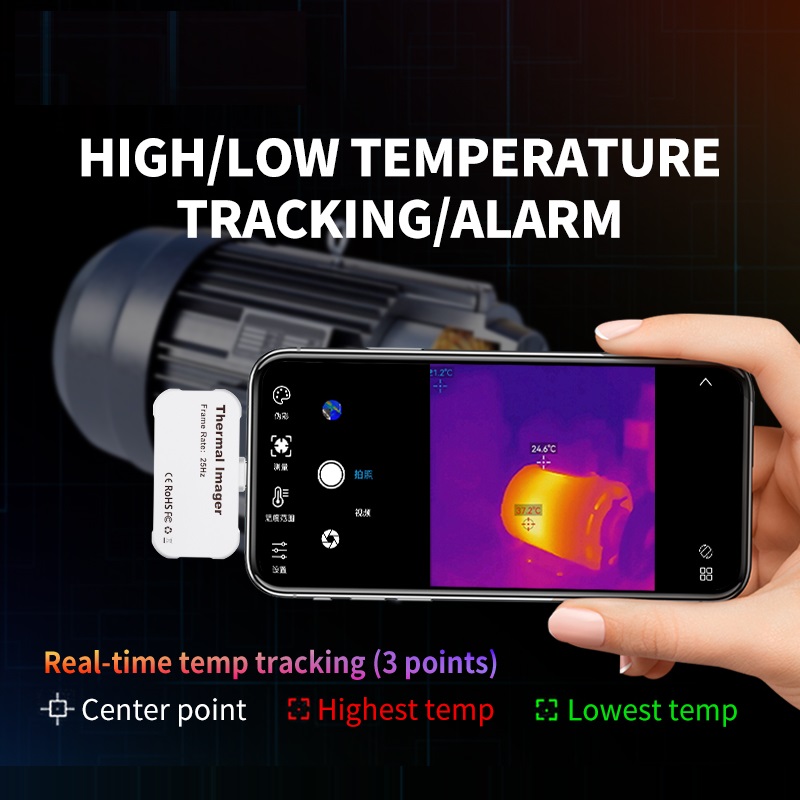

Real-time temperature tracking with temperature alarm
-
Support 15 kinds color palettes mode
-

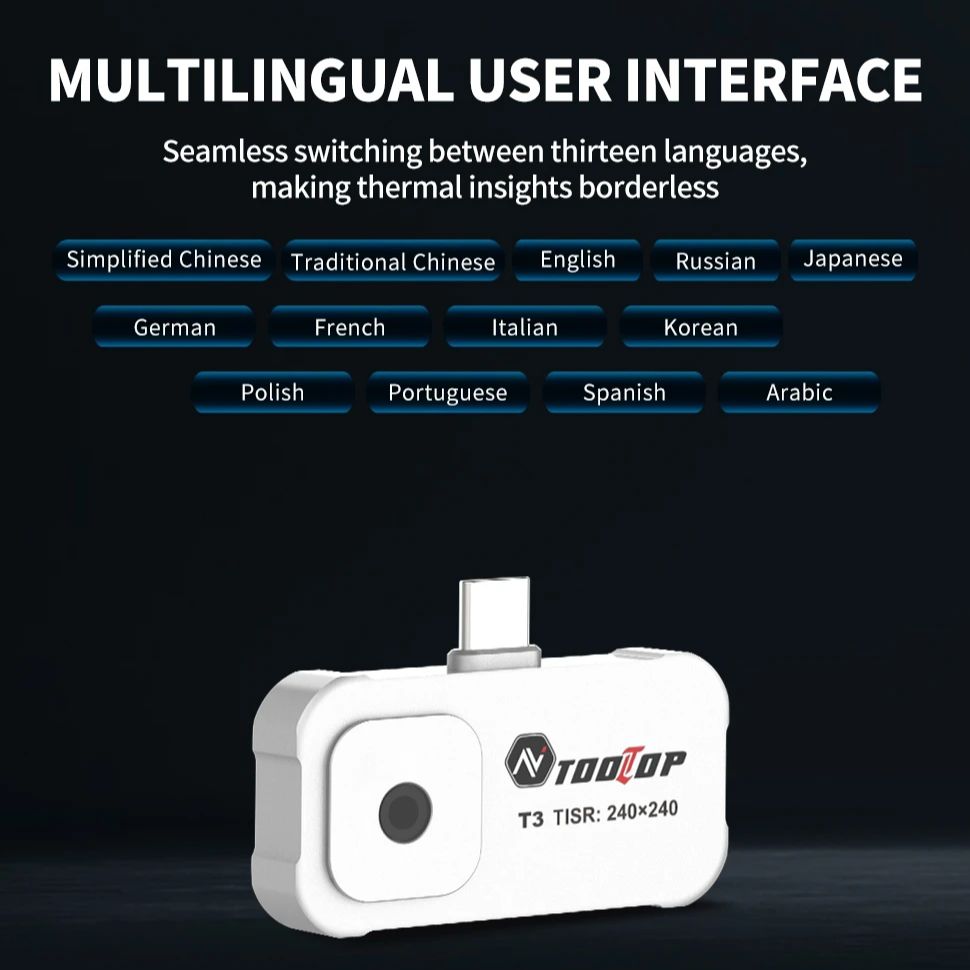

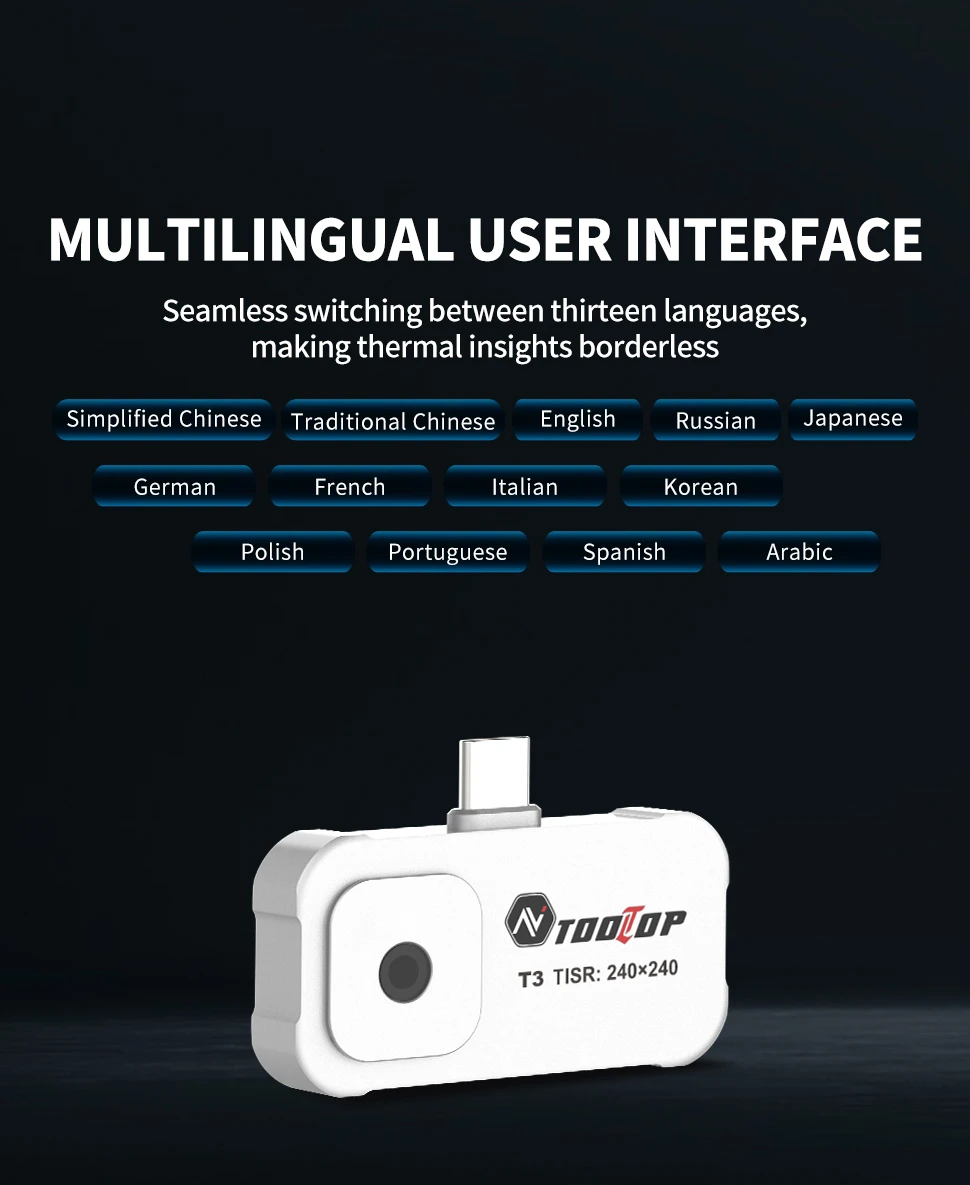

Support 13 kinds langues setting

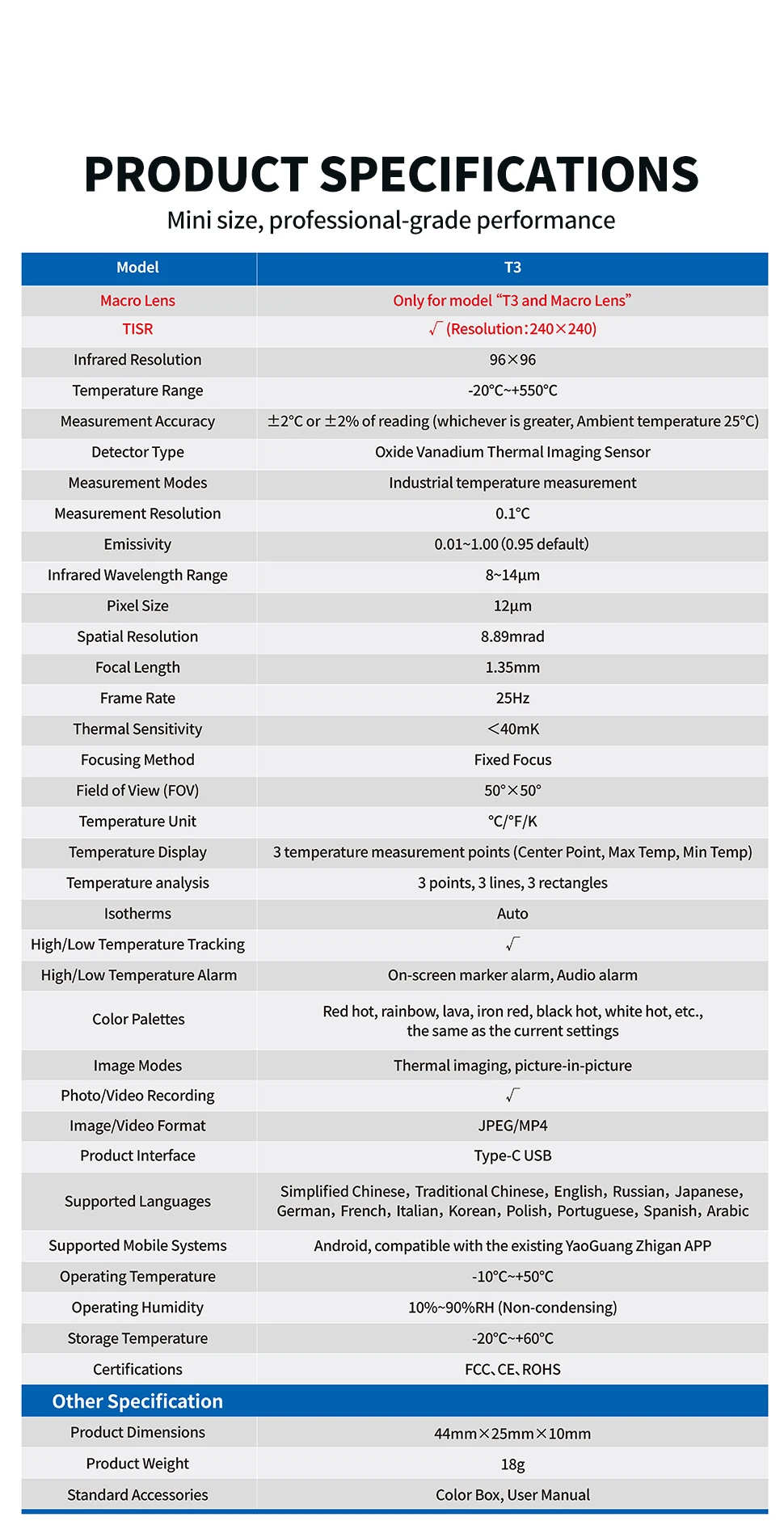

Specifications:
Model:T3
Infrared sensor : 96×96
TISR thermal resolution: 240×240

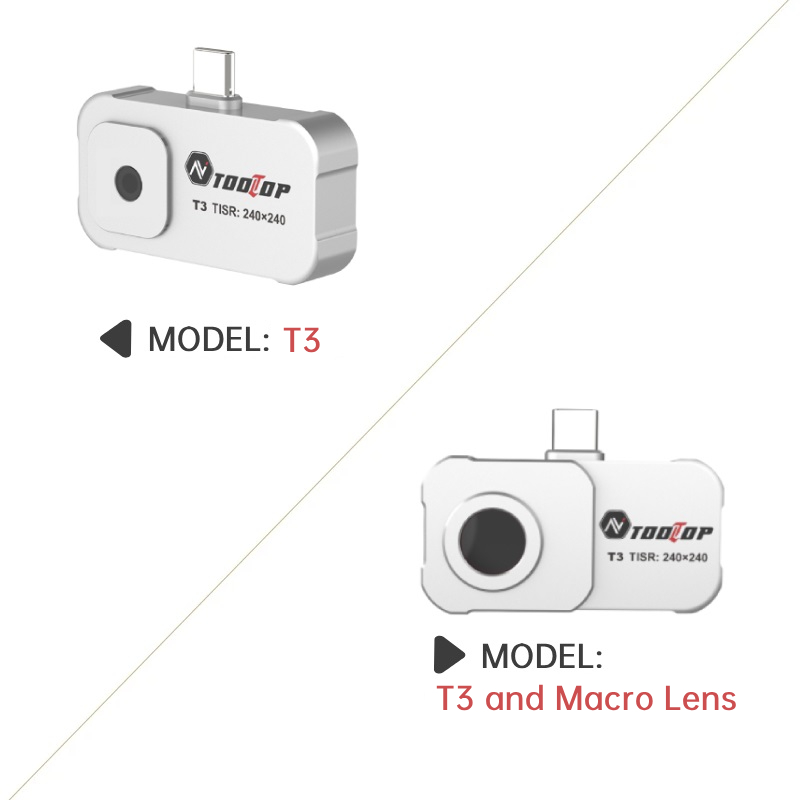

Macro lens: only for model “T3 and Macro Lens”
Measurement Accuracy: ±2°C or ±2% of reading (whichever is greater, Ambient temperature 25°C)
Detector Type: Oxide Vanadium Thermal lmaging Sensor
Measurement Resolution:0.1°C
Emissivity: 0.01~1.00 (0.95 default)
Infrared Wavelength Range: 8~14um
Pixel Size: 12um
Spatial Resolution: 8.89mrad
Focal Length:1.35mm
Frame Rate : 25Hz
Thermal Sensitivity: <40mK
Focusing Method: Fixed Focus
Field of View (FOV): 50°x50°
Temperature Unit: °C/°F/K
Temperature Display: 3 temperature measurement points (Center Point, Max Temp, Min Temp)

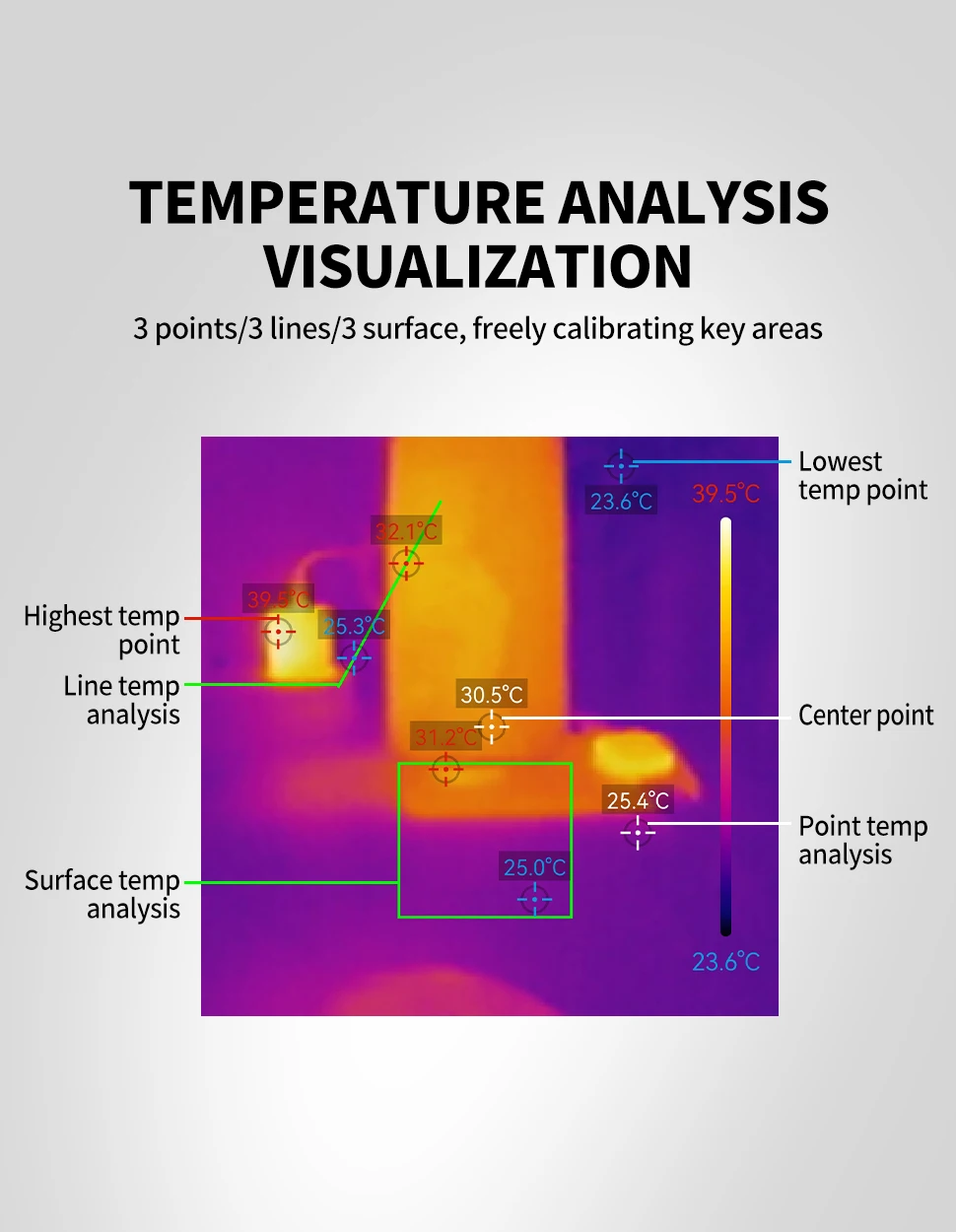

Temperature analysis: 3 points, 3 lines, 3 rectangles
High/Low Temperature Alarm: On-screen marker alarm, Audio alarm
Color Palettes: Red hot, rainbow, lava, iron red, black hot, white hot, etc..the same as the current settings

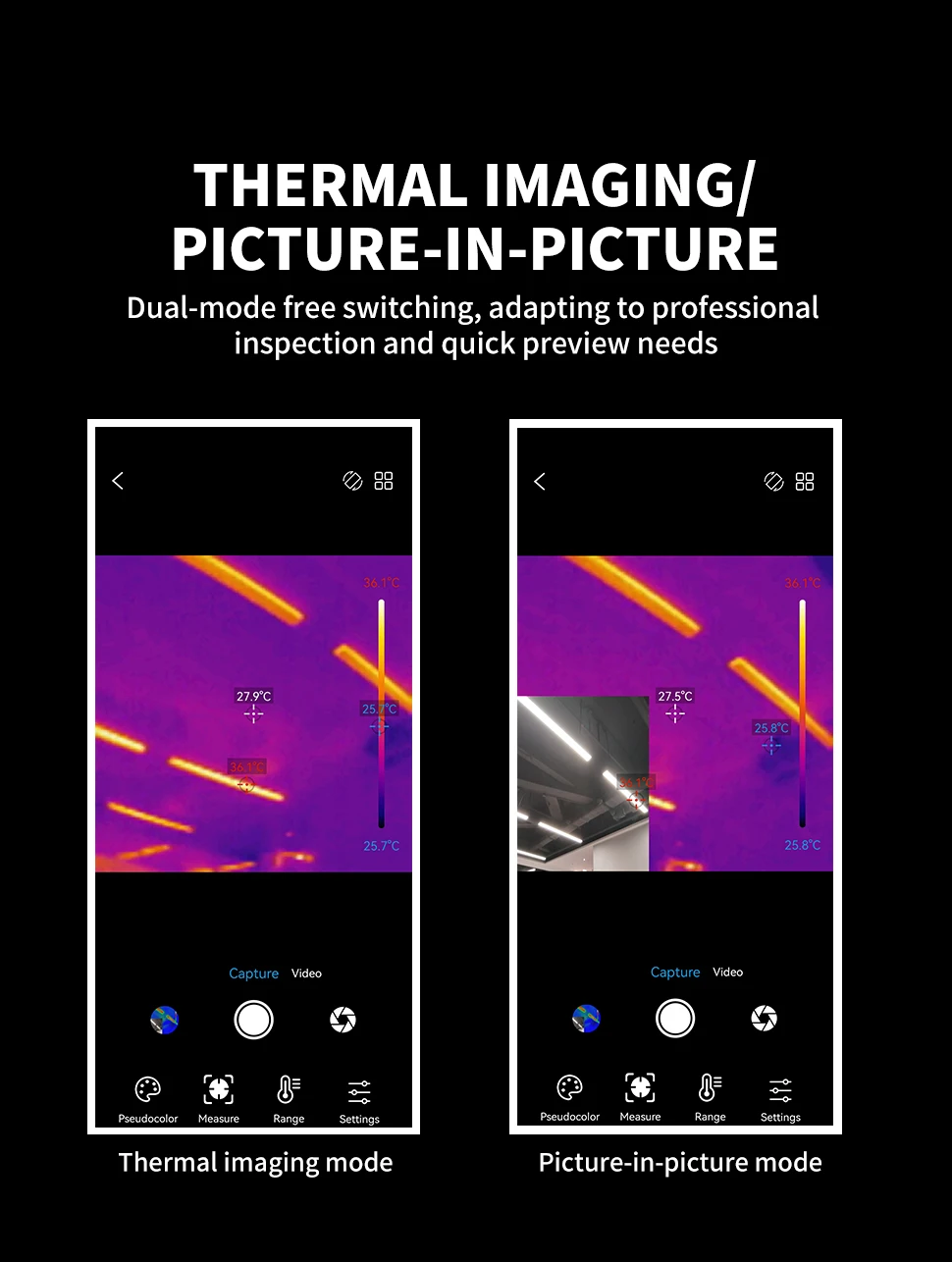

lmage Modes: Thermal imaging, picture-in-picture
lmage/Video Format: JPEG/MP4

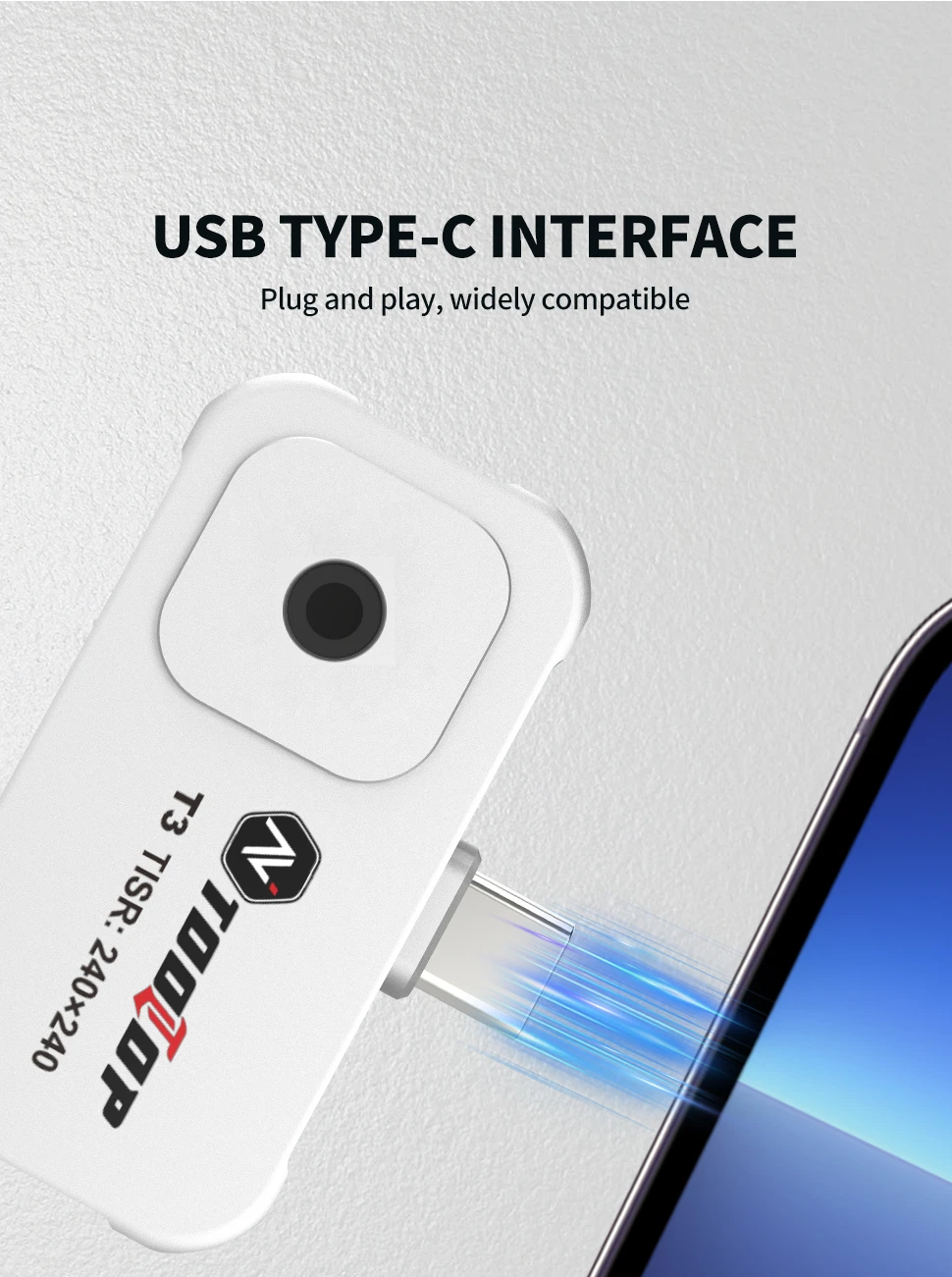

Product interface: Type-C USB
Supported Languages: Simplified Chinese, Traditional Chinese, English, Russian, Japanese,German, French, ltalian, Korean, Polish, Portuguese, Spanish, Arabic
Supported Mobile Systems：Android, compatible with the existing YaoGuang Zhigan APP
Operating Temperature：-10°C~+50°C
Operating Humidity：10%~90%RH (Non-condensing)
Storage Temperature：-20°C~+60°C
Certifications：FCC、CE、ROHS
Product Dimensions：44mmx25mmx10mm
Product Weight：18g
Package List:
1 x Thermal Camera
1 X English Manual
1 x Storage Bag
1 x Cloth
