Note before order:
The RF curtain remote can just work with the roller shutter switch in this listing, because the curtain switch in this listing is RF + WiFi version. Please don’t buy the curtain switches in other listing even they are cheaper, they are not compatible.
– Please check your motor is with 4 wires (Blue Wire, Brown wire, Black Wire, Green/Yellow Wire) before you buy our.
– Before using App to control the shutter, please keep the wall manual switch at 'STOP' position, otherwise , the App can't work, it's to protect the motor.
– Please contact the seller online if you have any questions for compatibility.
RF+WiFi Shutter Switch Module with RF Remote Control Switch
Multi ways to control the electrical curtain blinds
– App Remote Control ( Open, Pause, Close)
– Use a Manual Remote to control the curtain blinds, ( Open, Pause, Close) Control Range up to 30m
– Voice Control with Google Home, Amazon Alexa, (OPEN, CLOSE, and you can make a scene in smart life App to stop the curtain, and make a routine in Google home, or alexa App to activate to stop the curtain by voice control)
Built in RF module, enable you can remote control your blinds shutter even if you have trouble with WIFI
The remote is with a wall mount, you can also mount it on wall where would be convenient for you.
Voice Control
Hands-free Smart Blind Switch Compatible with Alexa, Google Home.
With voice control to turn on and turn off the curtains.
Free APP Name: Smart Life, Tuya

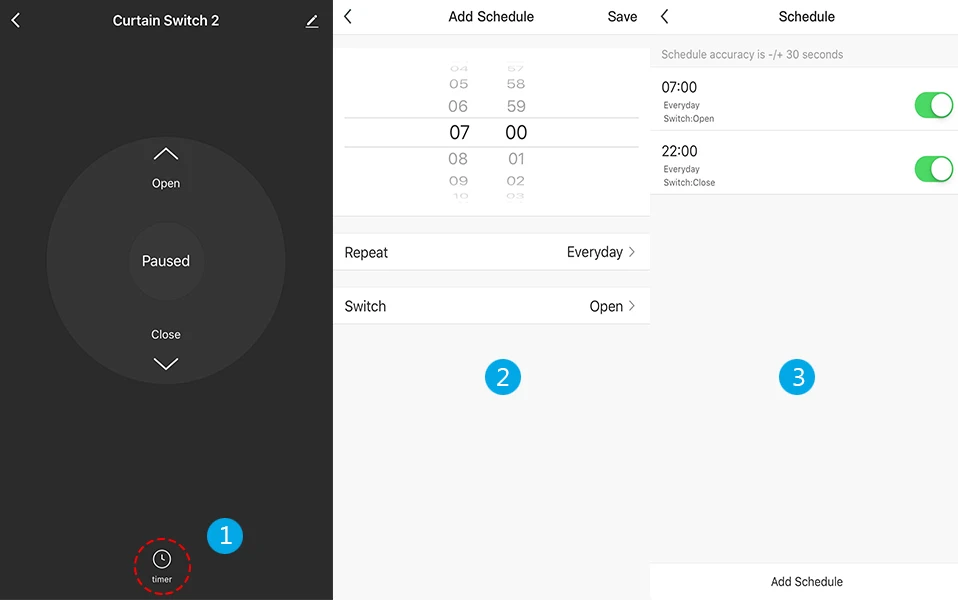

– Timing Function, APP remote control
Program the switch module on App 'smart life/Tuya', then your curtain, blind, roller shutter can be remote controlled by phone and you can set timing schedule for it, like open at 7:00am, close at 7:00pm, then your curtain blind can open or close automatically when time is up.
You can control your smart curtains by mobile phone anytime, anywhere as long as it's with network, Control Your Curtain Anywhere with Your mobile 2G, 3G, 4G, 5G network

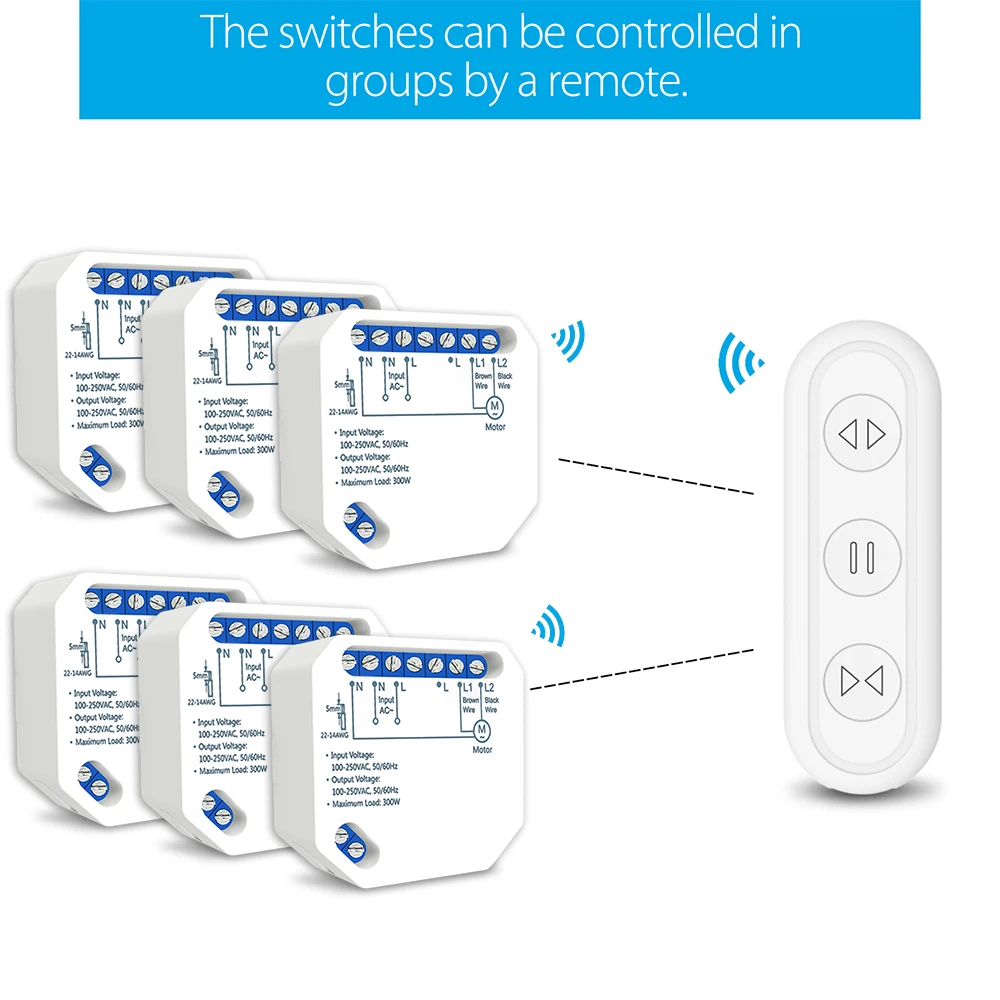

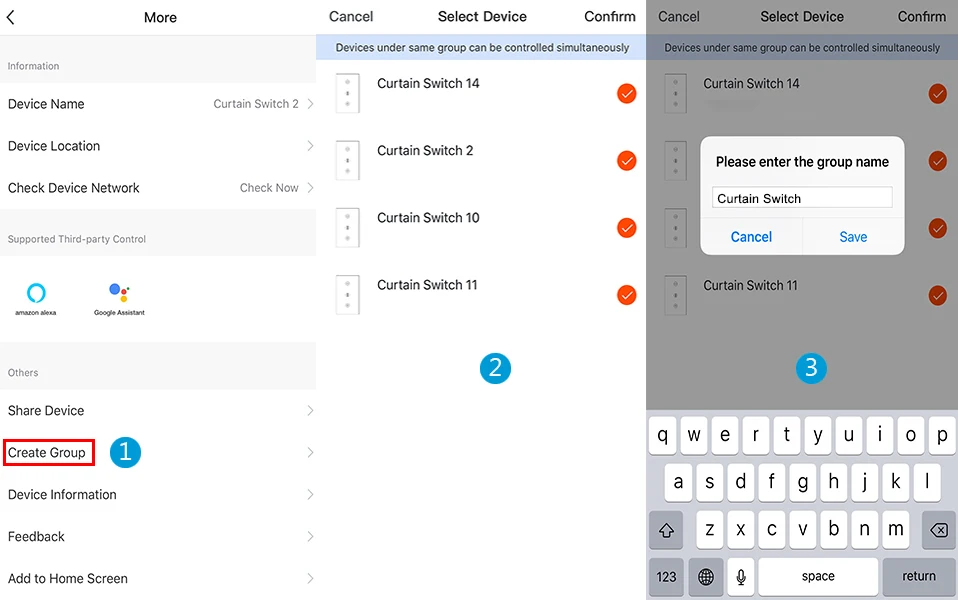

Group Function and Device Sharing
You can create group in the APP to manage all the blinds in your house and share the device to all your family members.

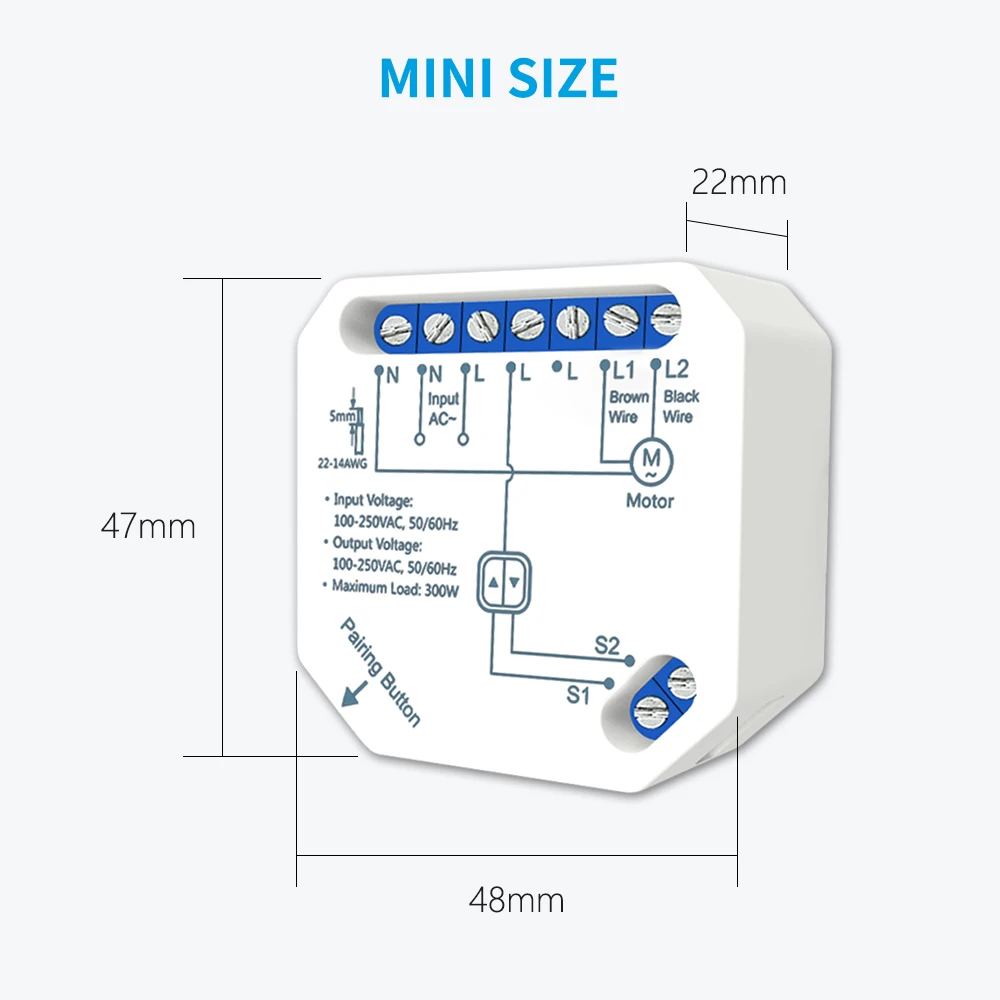

Patent Design & Compact Size
Tiny size can fit most junction box

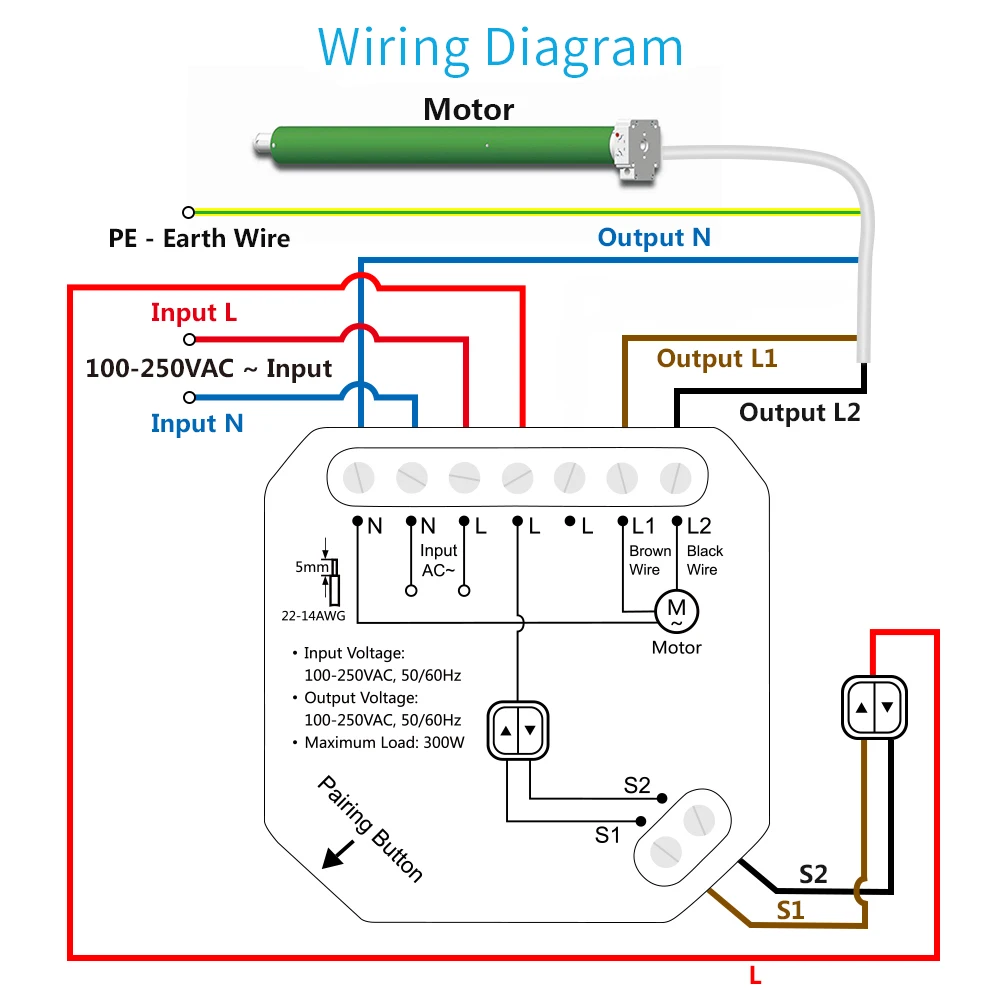

2 Wiring Diagram according to your need
1. If you need to connect the manual switch ( please only connect with push button and back switch type, not rocker)
2. After install the module, the manual wall switch can't pause the curtain in the middle, but the remote or App is able to pause the curtain

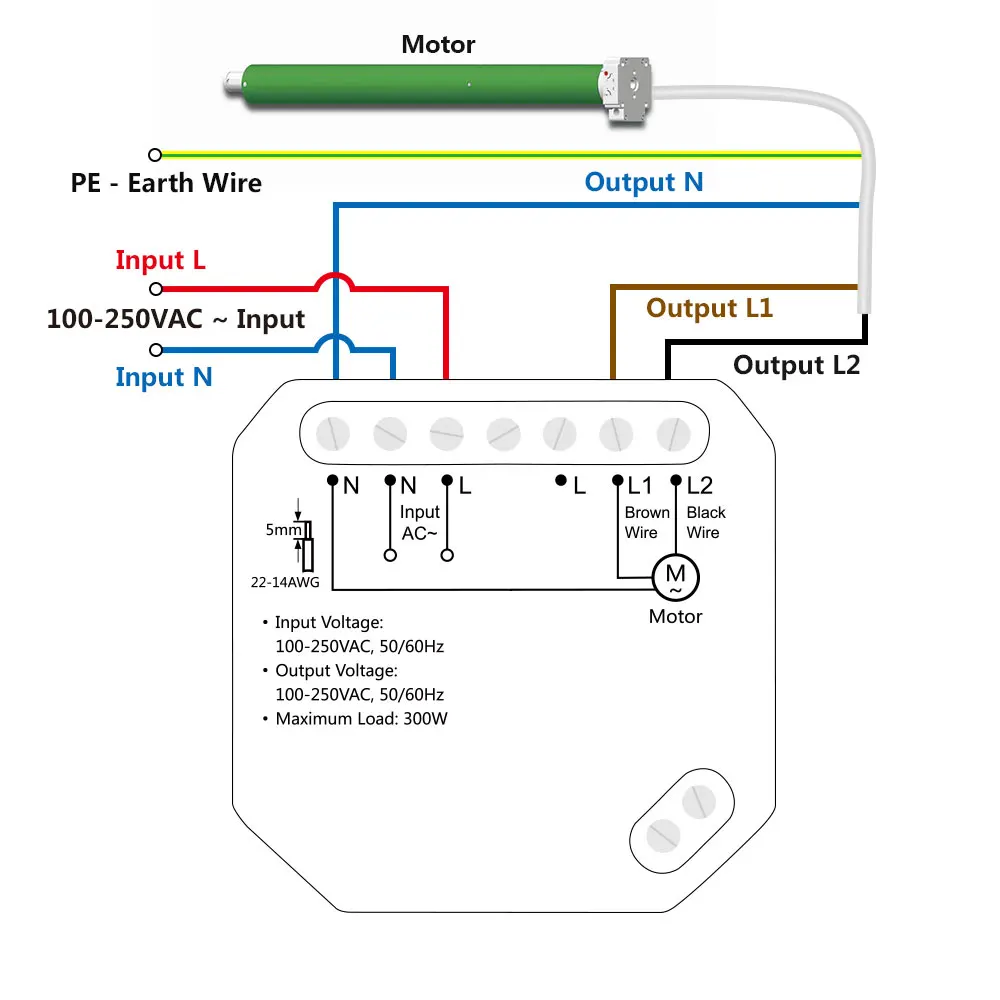

If you don't have a wall maual switch
If you don't need to connect manual wall switch, please connect wires as below , it's simpler.
You can use remote and App to control the roller shutter

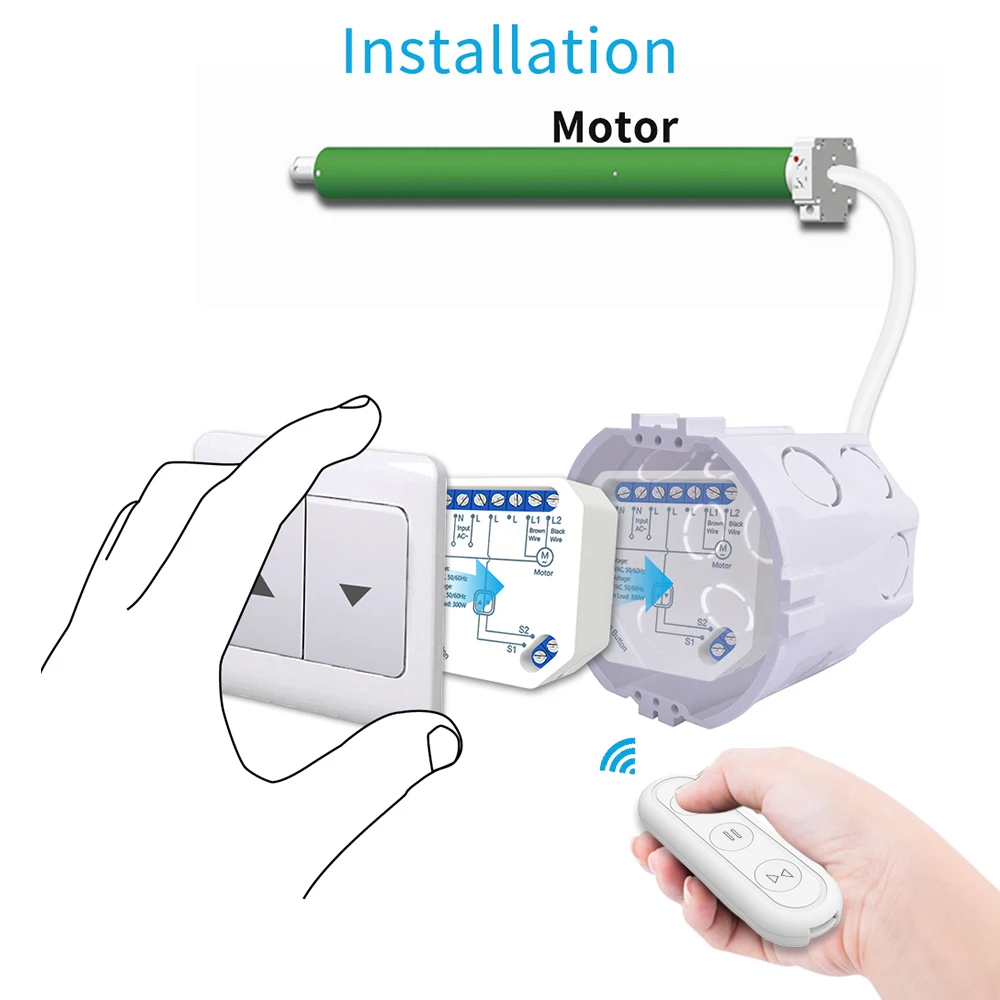

Installation Method
– You can install the module in the box or mount it besides the motor as you need.
– User Manual with 8 pages detailed instruction for how to connect curtain switch, how to connect App. Five languages available, Spanish, French, Germany, Italian and English. Please contact us if you have any special demand for the user guide.
Specification
Input voltage: 100-250 VAC, 50 / 60Hz
Wiring: Neutral Wire, L1, L2, Earth Wire
Max Load: 300 W
Wi-Fi Standard: 2.4 GHz 802.11 b / g / n (Not support 5Ghz)
RF Wireless Frequency: 868Mhz
Standby Consumption: below 0.5W
Dimensions: 48mm * 47mm * 22mm
Voice Control: Google Assitant, Echo Alexa
Plastic Material: Fireproof ABS

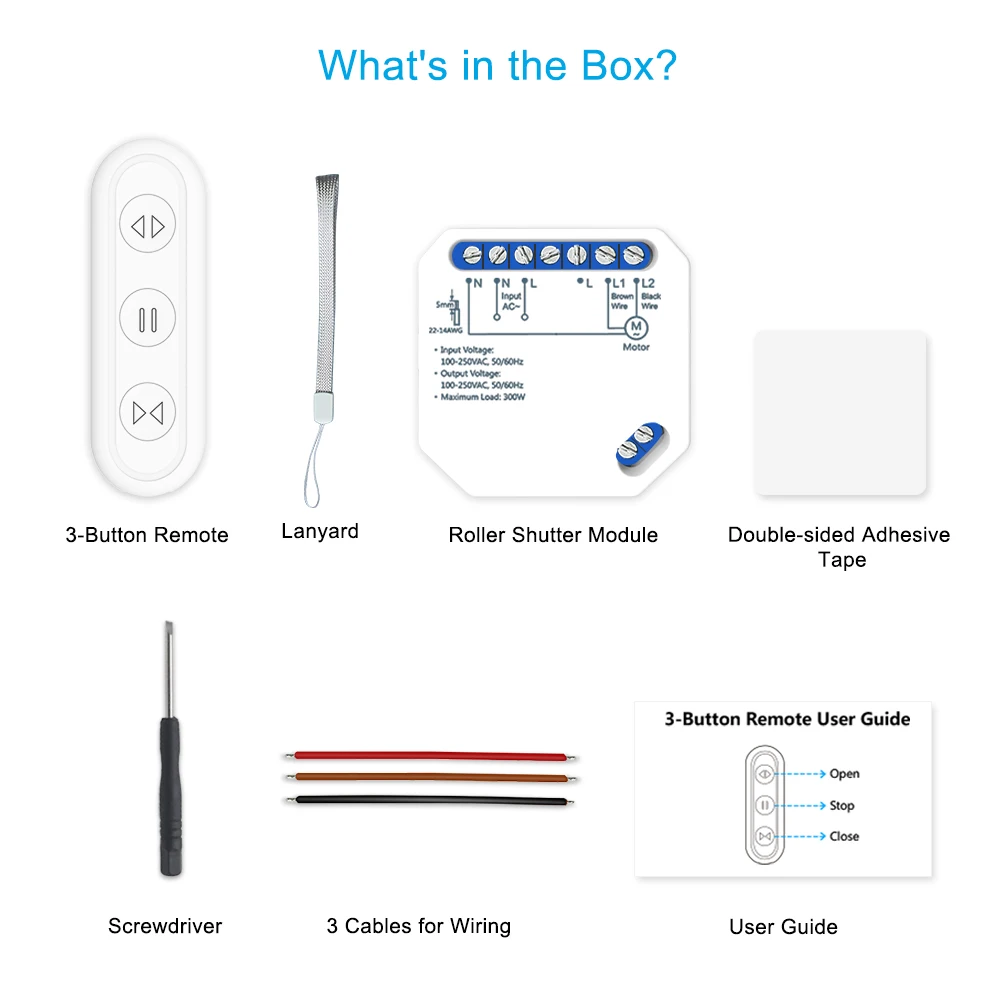

What's in the Box?
1 * RF&WiFi Curtain Switch Module
1 * 3-Button RF Remote
1 * User Guide
3 * Wires for easy to install
1 * Screw driver
1 * Double side tap
1 * Lanyard
Questions & Answers
Question: Why the price is so competitive?
Answer: We are a manufacturer for smart home products, we can accept mass order and can provide technical support. Please feel free to contact us if you have any questions.
Question: Can you do OEM service?
Answer: We are the manufacturer specialized in smart home products, we can provide OEM service and technical support.
Question: If there is any interference if use many in the same space
Answer: Our product with unique ID, no interference to use many kits in the same space
Question: About Product Quality
Answer: We are ISO9001 certified , All products will be fully tested before ship from our factory.
