APP
1.Tuya Smart;
2.Smart Life;
Product Features
1.Support SD card, the maximum memory support 128G;
2.Support APP remote wake-up function and cloud storage(Cloud storage paid for use);
3.Built-in speaker and microphone support remote two-way voice;
4.5000mah polymer rechargeable lithium battery, low power consumption and long life;
5.850nm high-power infrared light compensation night vision, night vision illumination distance up to 5 meters;
6.The doorbell can be connected to Tuya App and Smart Life App with 2.4g WIFI;
7.Type-C interface charging;
Tuya WiFi Video Doorbell Parameters
Main control chip: Ingenic T31
Sensor device: 1080P COMS sensor
Lens: 4G wide-angle 2.2mm lens
Screen: 4.3 inch IPS/480*272
Battery capacity: 5000mah (built-in)
Viewing angle: Diagonal 167 degrees / Horizontal 138 degrees
Video stream: 1920*1080/15fps
CMOS performance: support auto white balance, auto gain control, auto backlight compensation
System: Lite OS
Standby time: about 6 months (10 wake-ups per day, 30S each time)
Day and night conversion: automatic switching of double filters
Infrared distance: 850nm infrared, effective distance 5m
Network configuration mode: QR code distribution network
PIR human detection: support PIR detection wake-up
Standby power consumption: 220uA
Working power consumption: 1.5W
Audio coding standard: WAV
Audio input/output: -42dB microphone/built-in 1 speaker
Video recording mode: automatic recording + event recording
Wi-Fi: 2.4GHz
Network protocol: TCP/IP, HTTP, TCP, UDP, SMTP, DHCP,
DNS, P2P
Wireless protocol: 2.4GHz WIFI 802.11b/g/n wireless network
Passive human infrared detection: support
Adaptive code rate: support
Two-way intercom: support full-duplex real-time calls
Sleep time: 15S, 30S, 60S/adjustable
Voice phone call: support
Remote wake-up: support
PIR wake-up: support
Mobile client: ios11.0, android6.0 or above
Power: 5000mAh/18.5Wh soft-pack lithium battery (built-in)
Working temperature: -10℃ ~+50℃
Working humidity: ≤80%RH

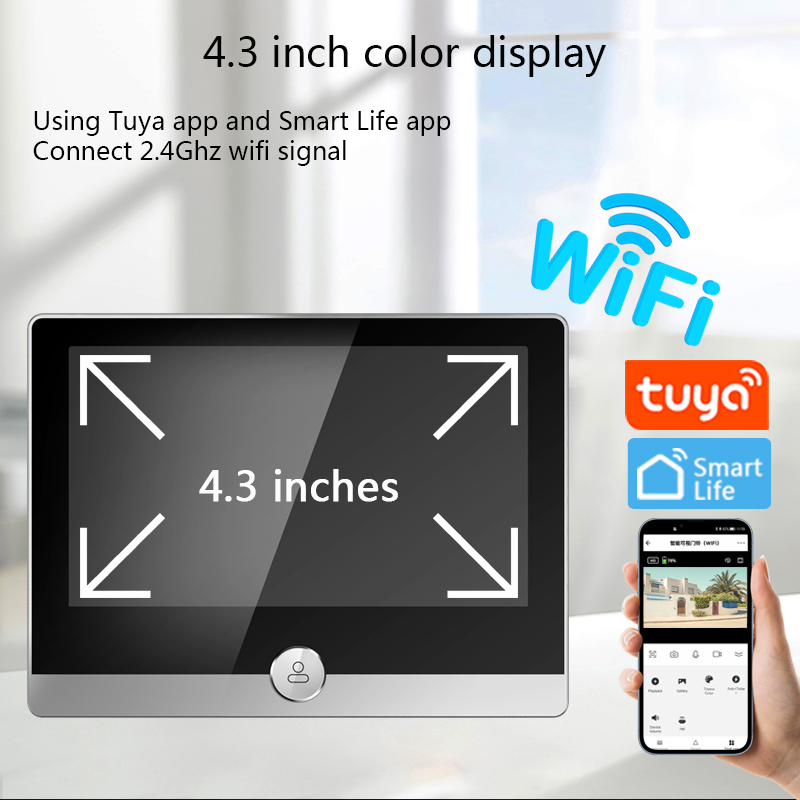

4.3 inch color display
Using Tuya app and Smart Life app Connect 2.4Ghz wifi signa

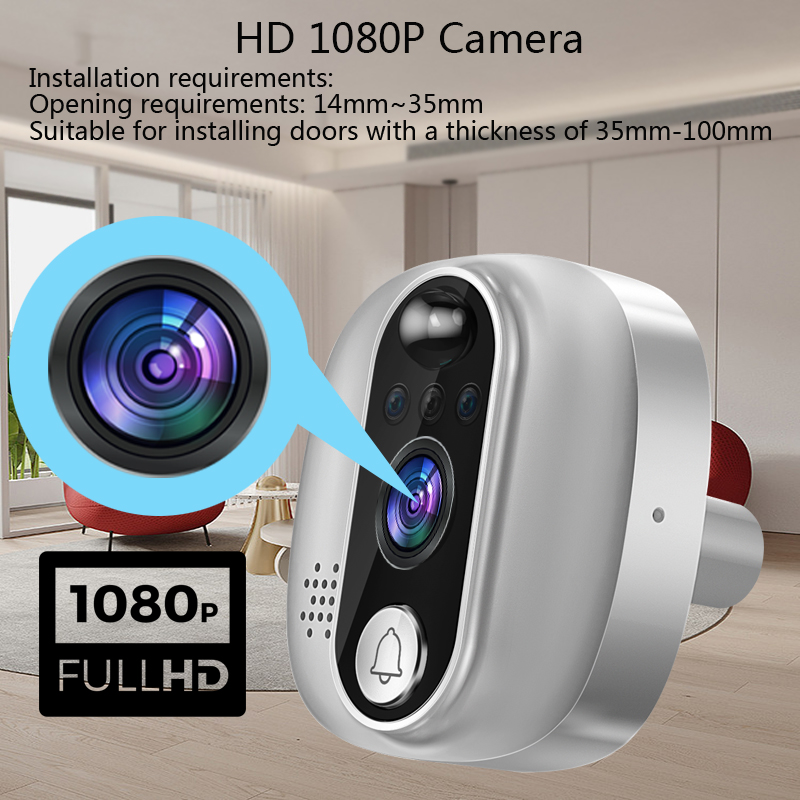

HD 1080P Camera
Installation requirements
Opening requirements:14mm ~ 35mm
Suitable for installing doors with a thickness of 35mm-100mm

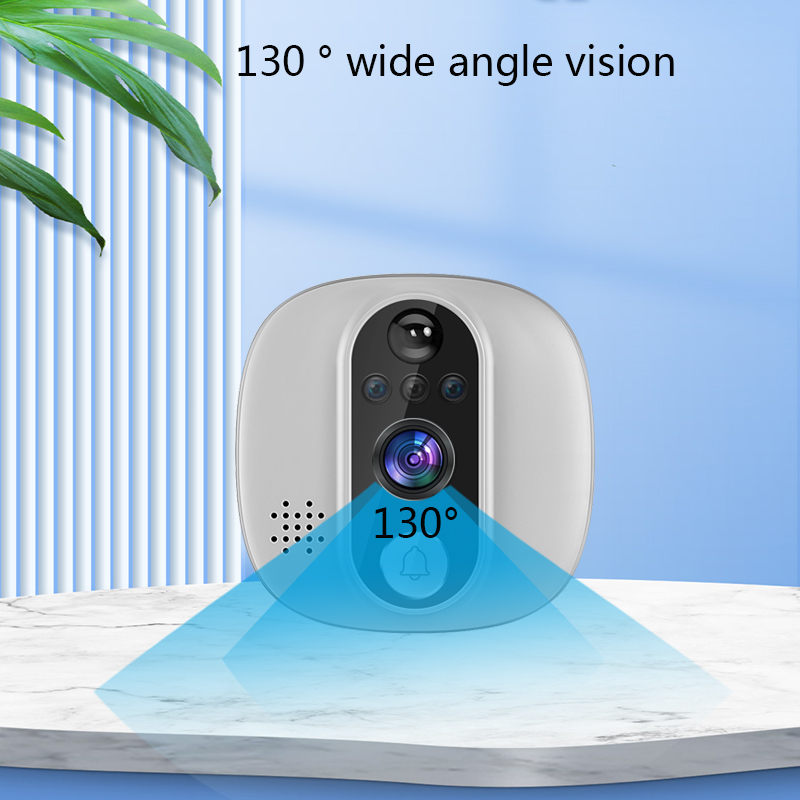

130°wide angle vision
Infrared night vision
APP bidirectional voice dialogue
Visitors can only have two-way conversations through the application when they ring the doorbell
Movement detection
Triggering the PIR function requires the object to continuously move in front of the camera ( within a range of 2 meters ) for about 5 seconds It will trigger a mobile detection alarm , and the app will receive a mobile detection alarm message reminder . Due to network caching issues , it may be delayed for a few seconds
Installation requirements
Opening requirements 14mm-35mm
Suitable for installing doors with a thickness of 35mm-100mm
SIZE
