Very important
1. This device only fits for a car which ignites by original push button.
2. When installing the device , it need solder an original key and leave it in the car .When locked by our device,the car can’t be started even if a thief entry the car .
Remote start

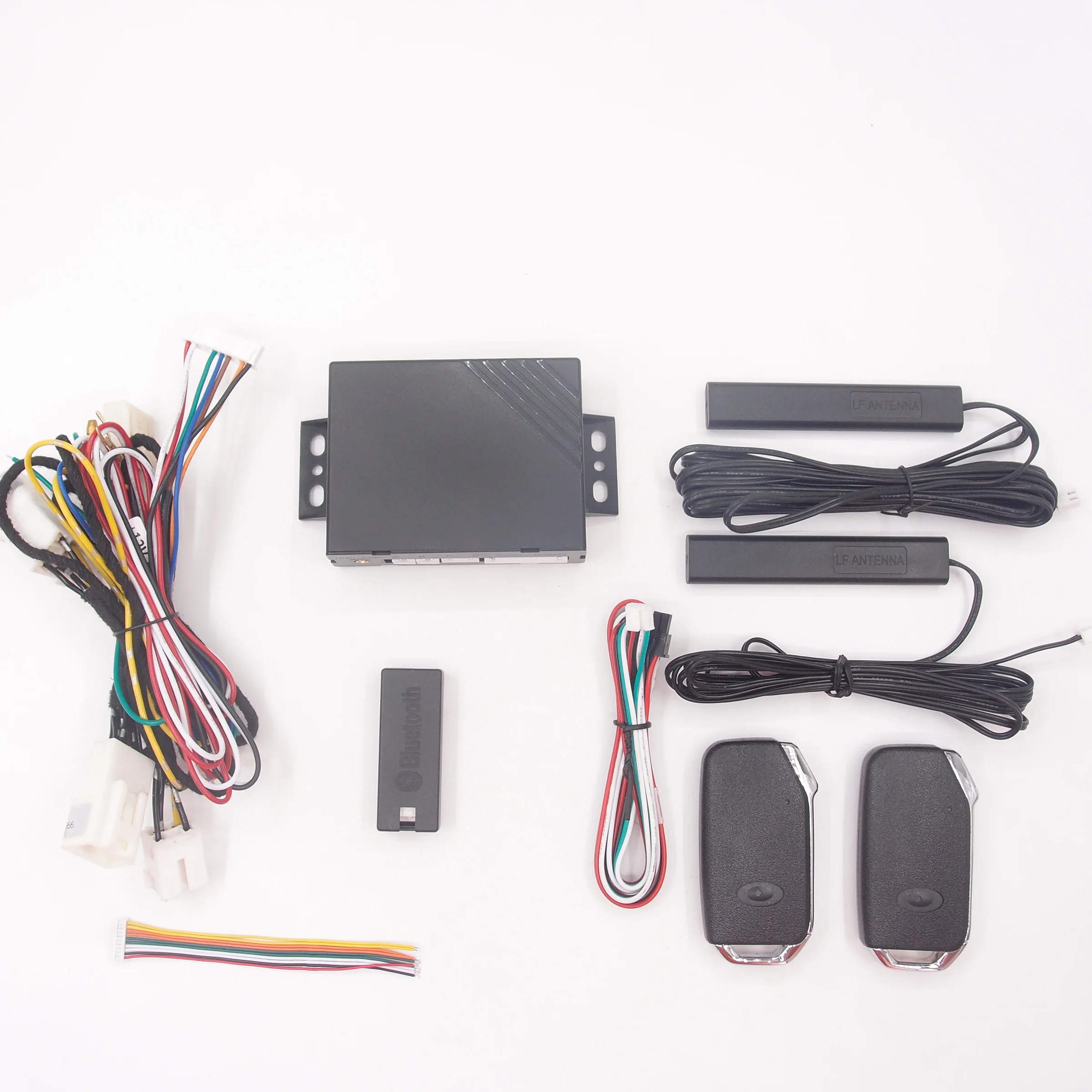

Features of car remote start/stop, passive keyless entry system:
1. Remote start to Cool Or Warm your car before Driving. it will feel more comfortable in cold winter and hot summer.
2.How to use remote start:
2.1Use the key if you select keyless entry option, to press unlock first , then press and hold lock button 3 seconds
2.2Use APP if you select APP option.
3. Passive Keyless entry: take the smart key leave car 3-5 meters ,the car will lock automatically and close windows, and take key close to car 1-2 meters , the car will unlock automatically

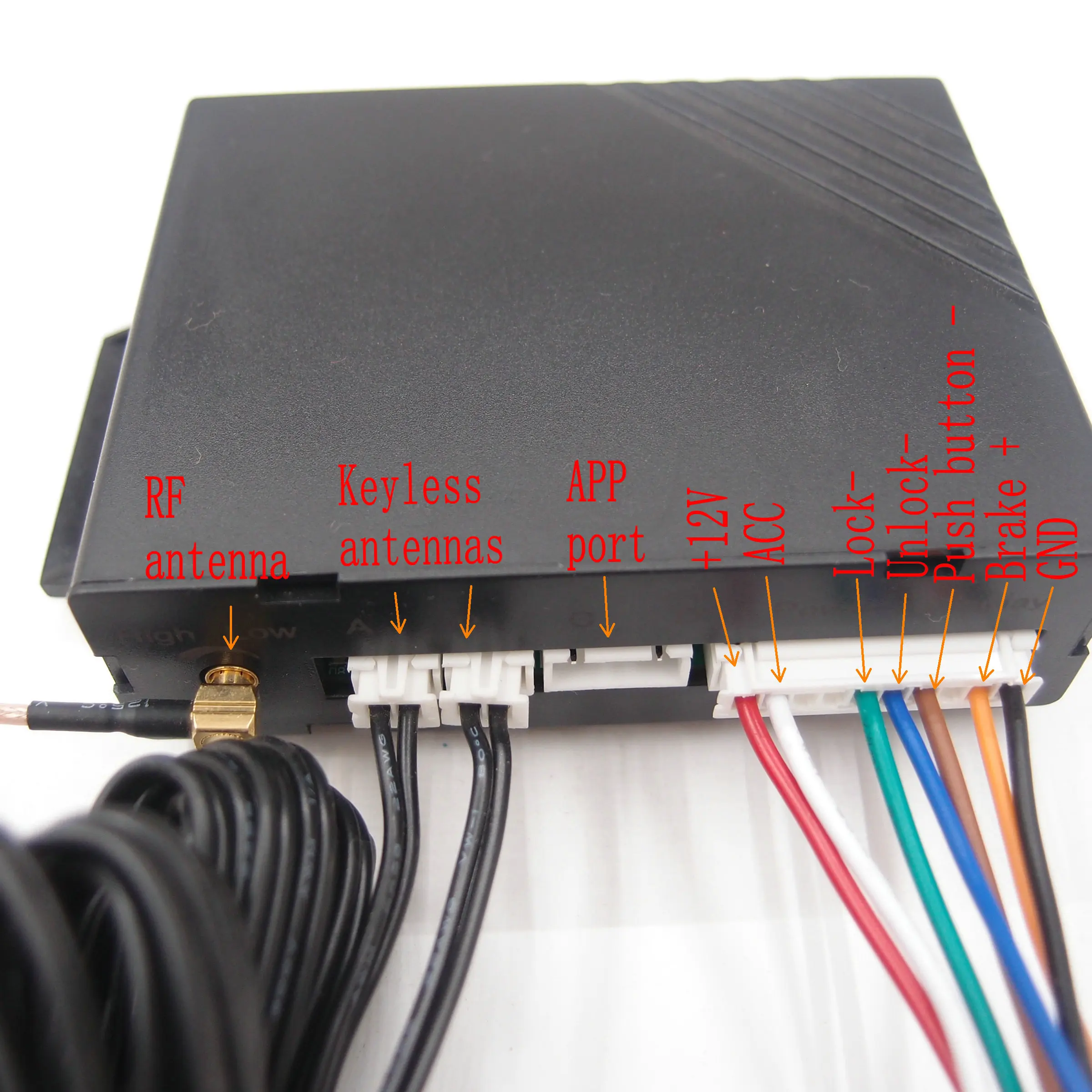

4. Installation : it should solder one of your original remote controller and put it into the device when installing .
4.1 Connect +12V and ACC/ON with fuse adapter from fuse box
4.2 Connect Ground

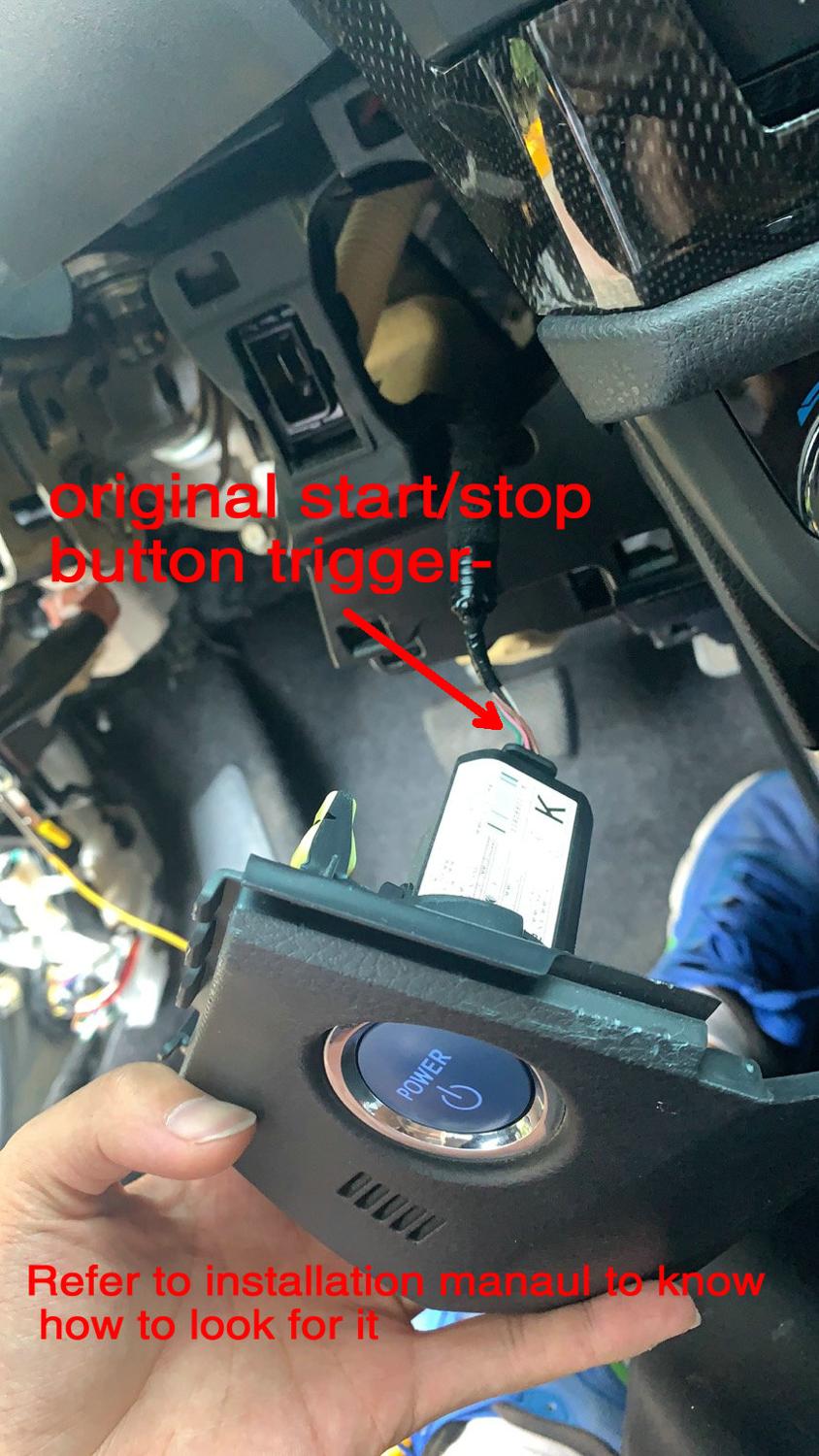

4.3 Connect original push button trigger wire .(We can supply special connector for it if we have it )
4.4 Connect foot brake wire. (We can supply special connector for it if we have it )

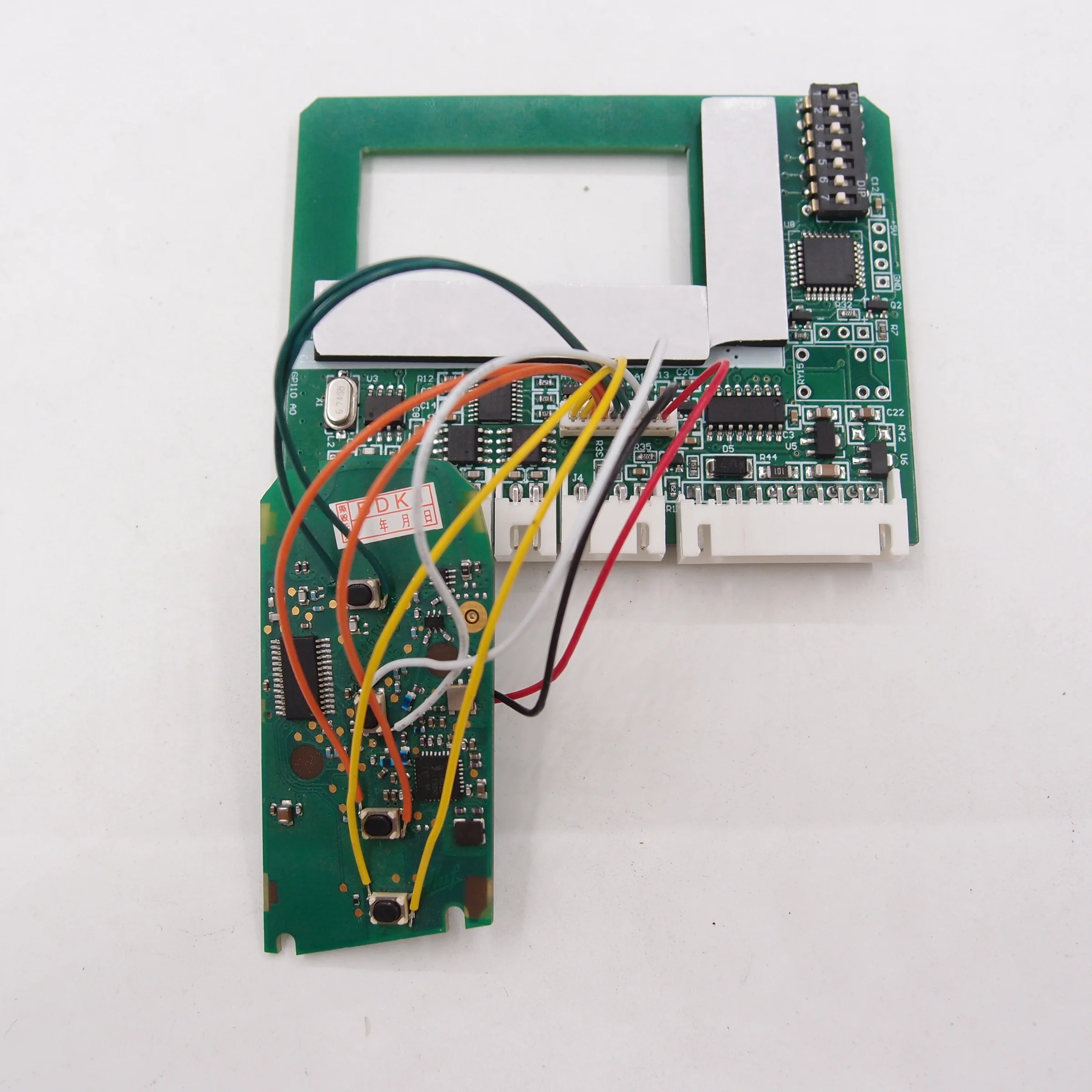

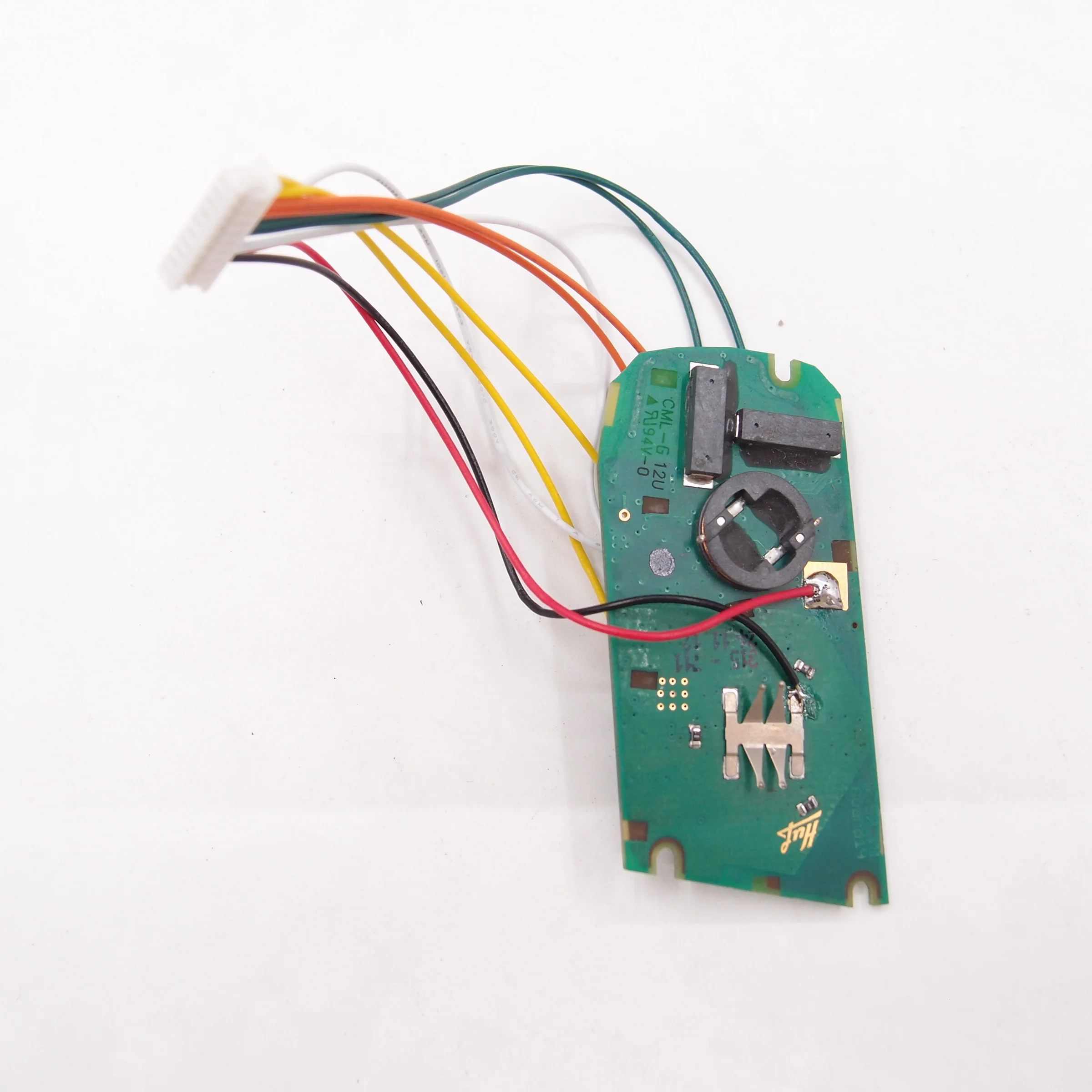

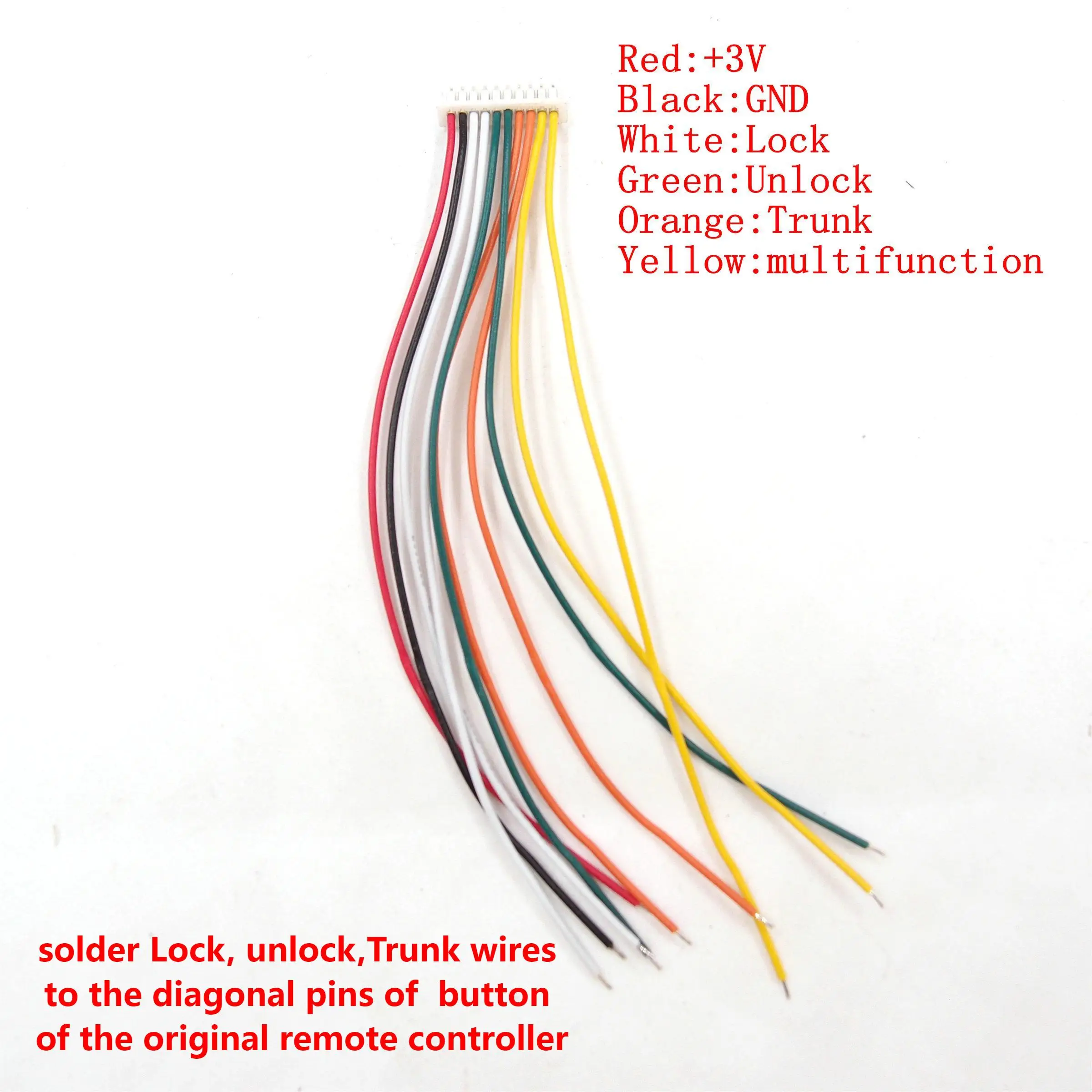

4.5 Open original key , and solder original PCB into the devicet . Our device will control it to do lock, unlock and open trunk while engine off.
4.6 Because original key can’t work when engine on, so it need Connect central lock/unlock wire to close/open the door after remote started.
4.7. If don’t want to connect central lock/unlock wires,it need set function switch on the PCB ,to activate engine stop function when lock or unlock : After remote start , the device will stop the engine first if press lock/unlock by our key or APP . Then original key which soldered can work again. It will unlock the door , then entry the car to do push start again.

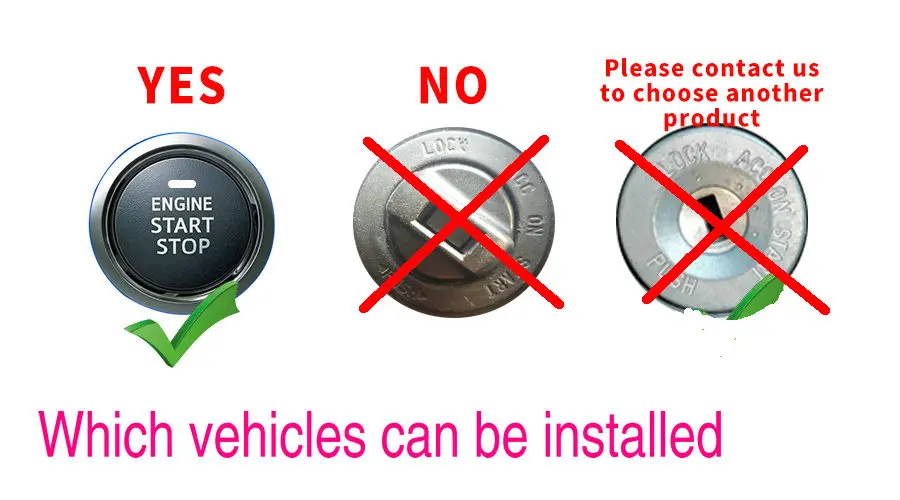

Which vehicles can use this product
It is suitable for vehicle with original push start system
Different options
You can select do remote start by APP, remote controllers
Part of the installation picture
To find more installation picture
//www.flickr.com/photos/193043553@N08/albums
To find installation video on Youtube:
//www.youtube.com/channel/UCMl8yPCZWmXgbmjEBIVQXJw
Please copy the link above to watch in your browser

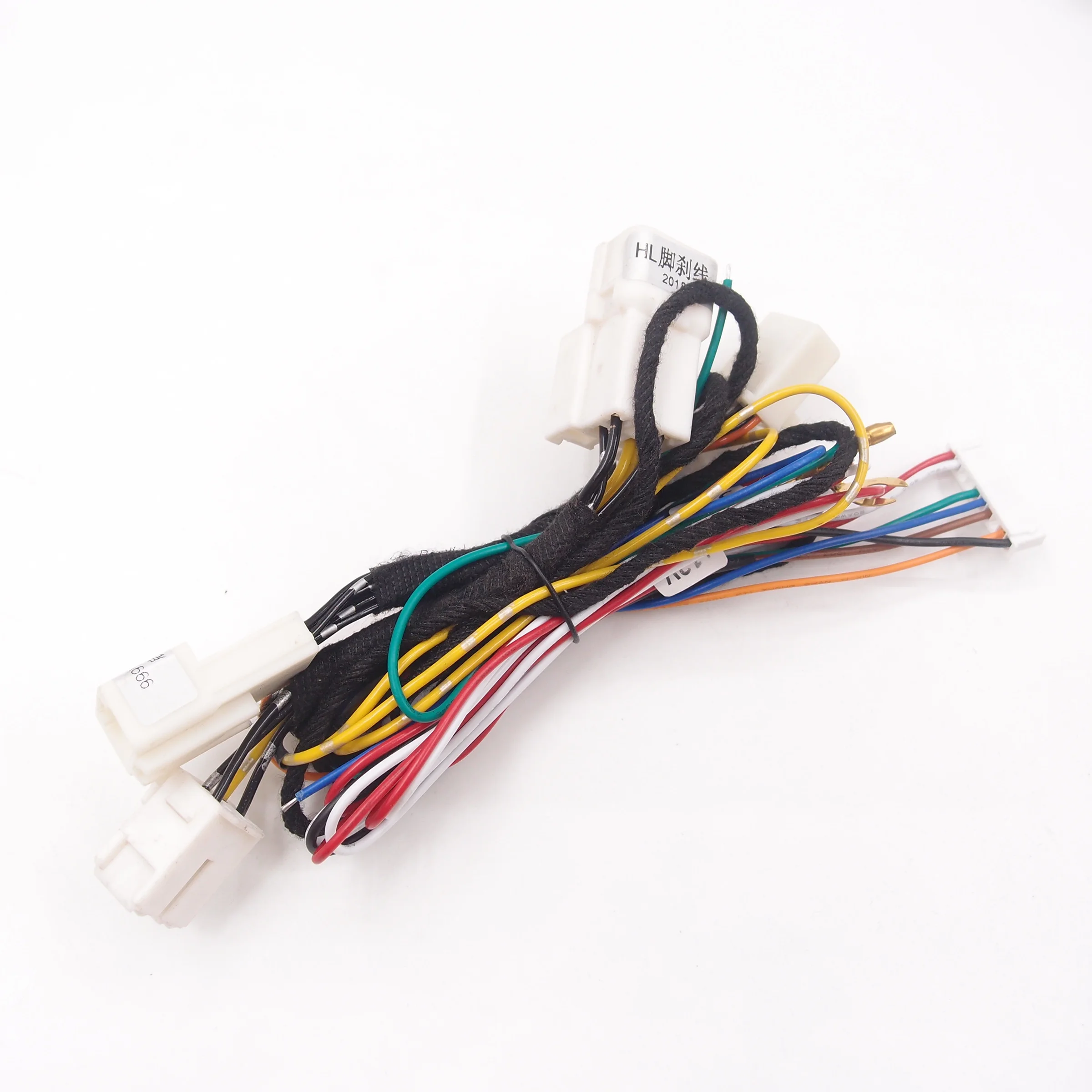

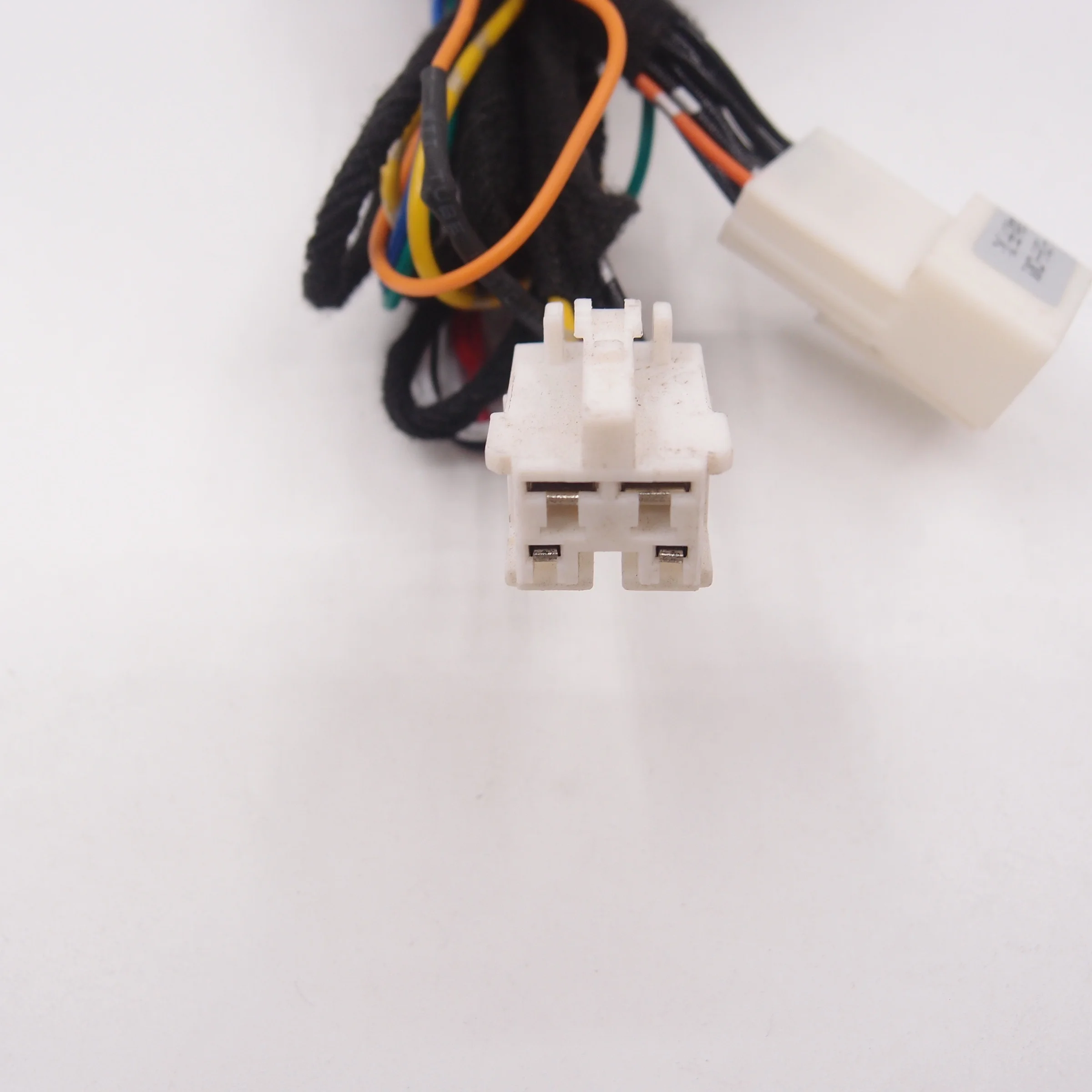

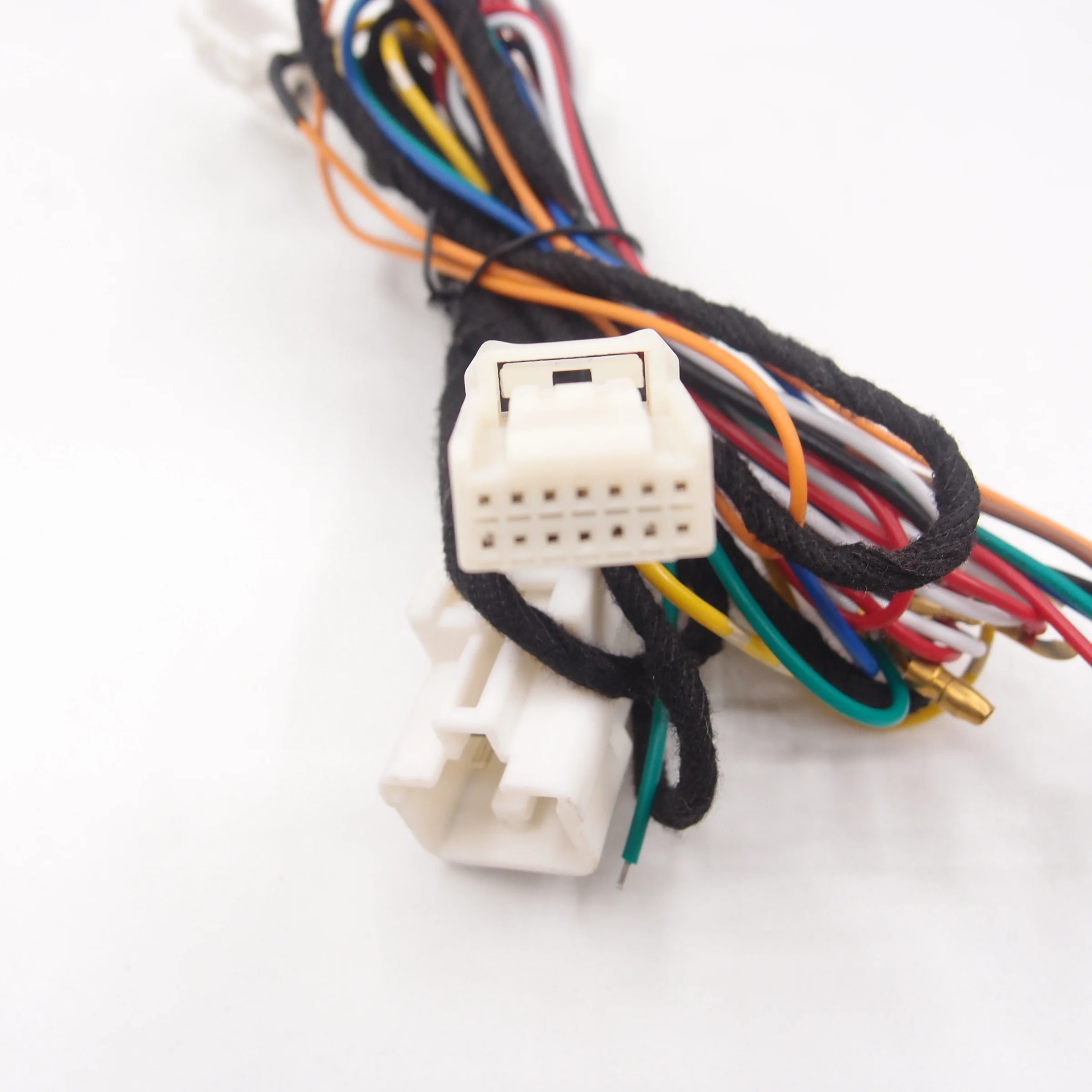

Special connector to connect brake and start button

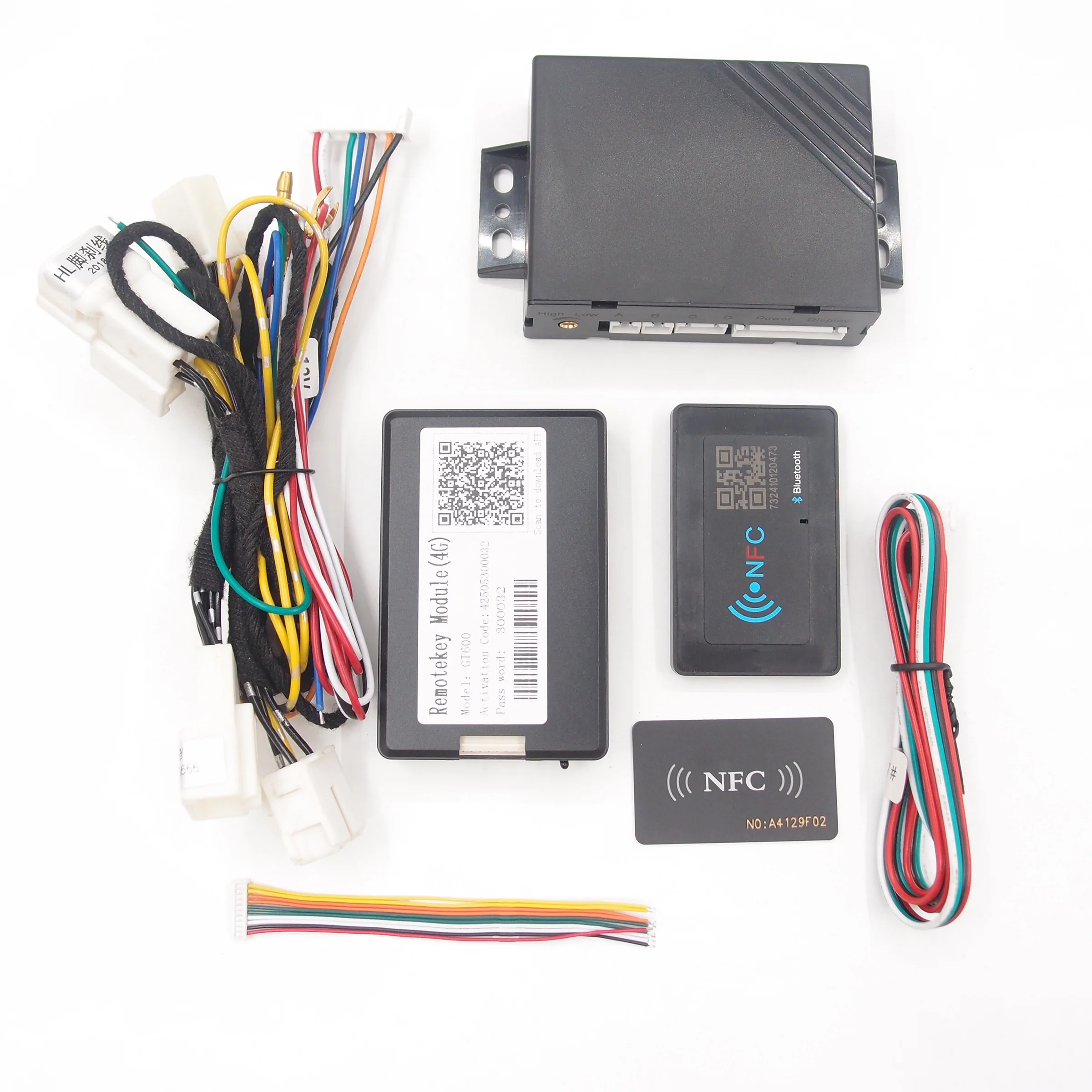

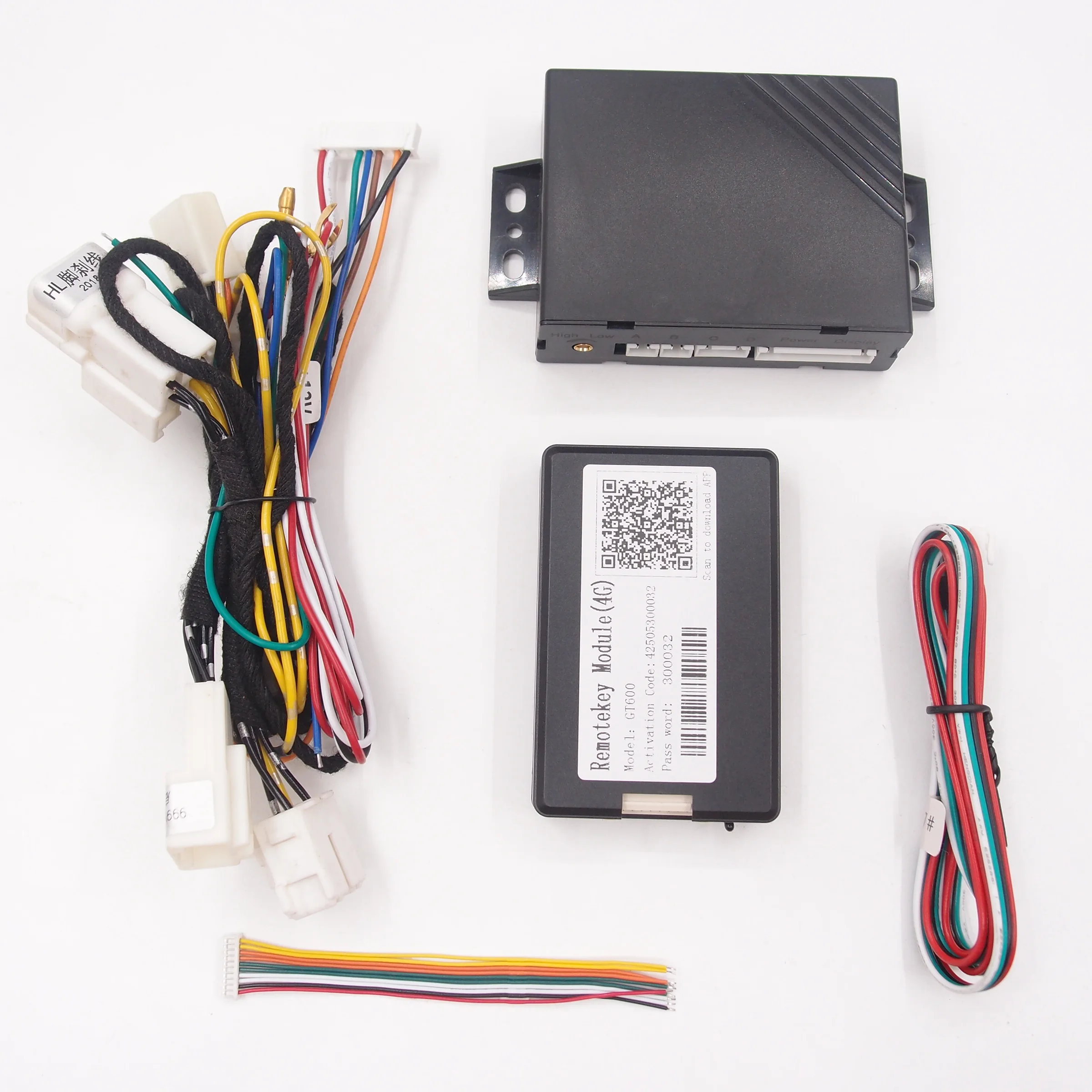

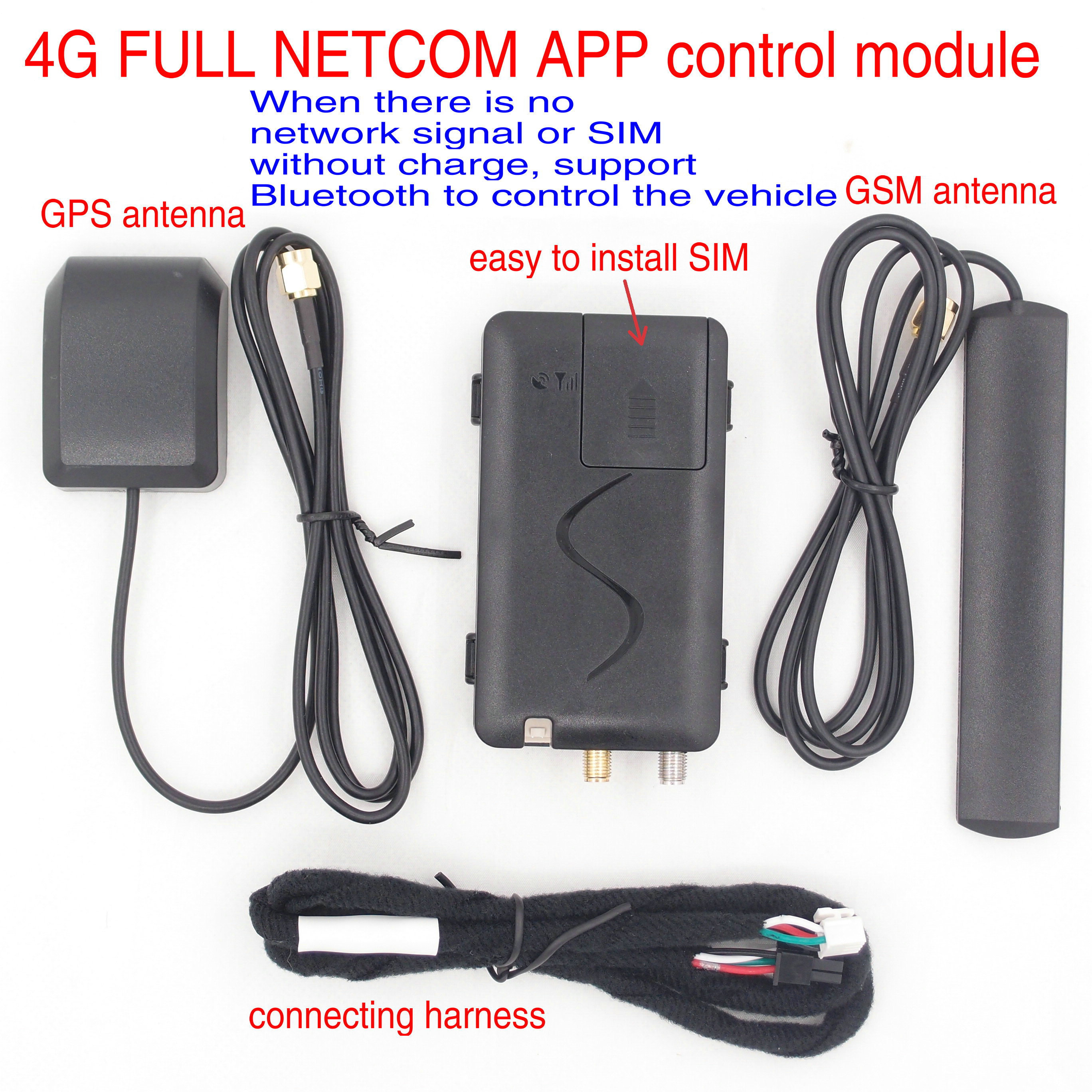

To add APP control car by 4G network and bluetooth
Note :
Bluetooth or 4G network module must work with the remote start device together , it is only for connecting the remote start device to smart phone, so don’t only buy Bluetooth or 4G module
You need to buy an extra micro SIM card in your local town, please tell us your micro SIM card carrier &APN before buying
GPS APP can be used for free for 3 years
Tips: To enable the GPS module can work with, your micro SIM card monthly data should at least 500Mb
The GPS module is with free 3 years subscription since date of activation( not including the SIM card subscription fees that charged by your SIM card operator). After 3 years, you need to pay for the server fees & maintenance fees if you plan to continue to use it.
And you can pay on the app directly to continue to use it.

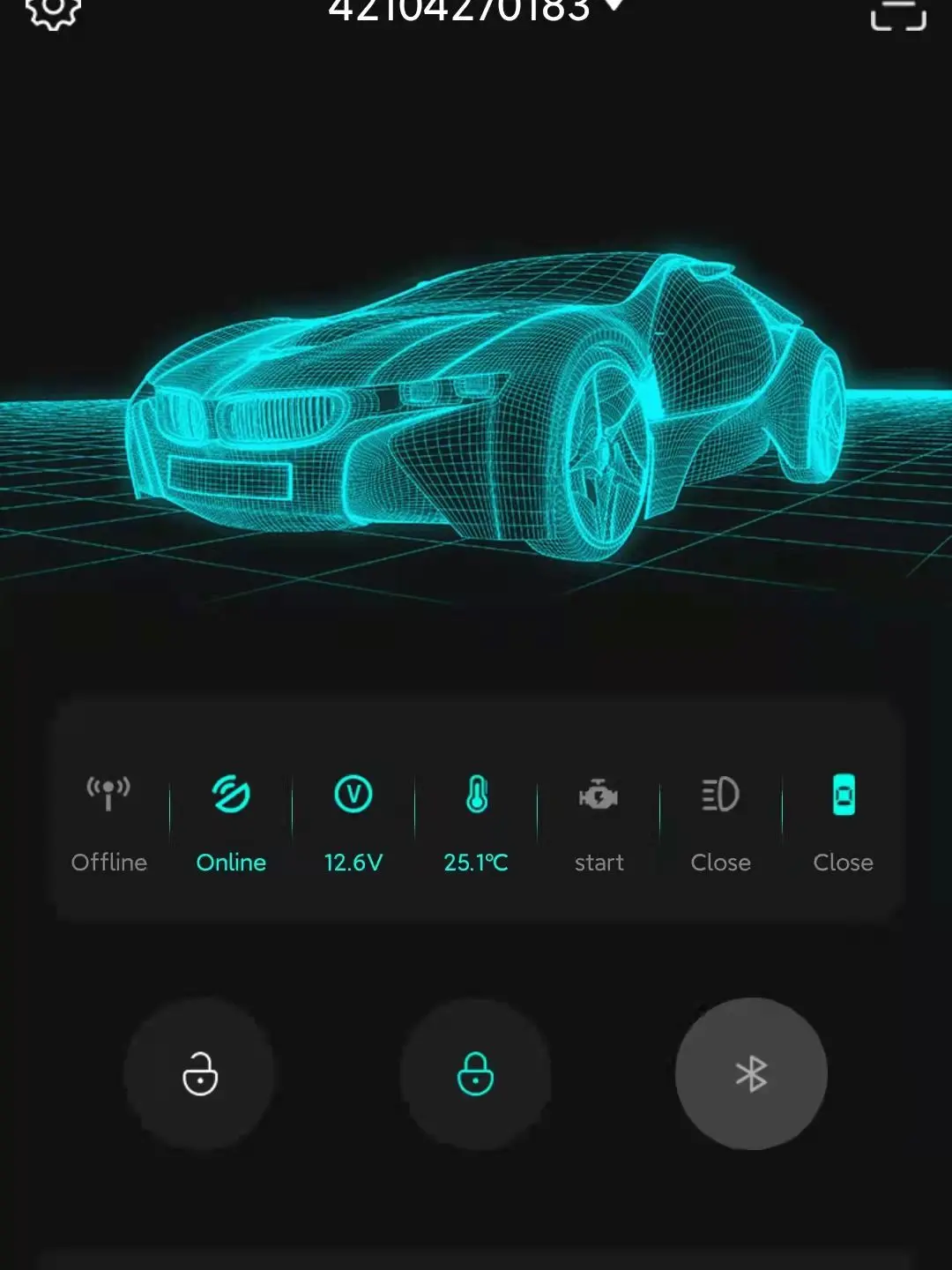

User can monitor their vehicles with the APP on the phone, no need to take the remote control. You can download the APP after purchasing.

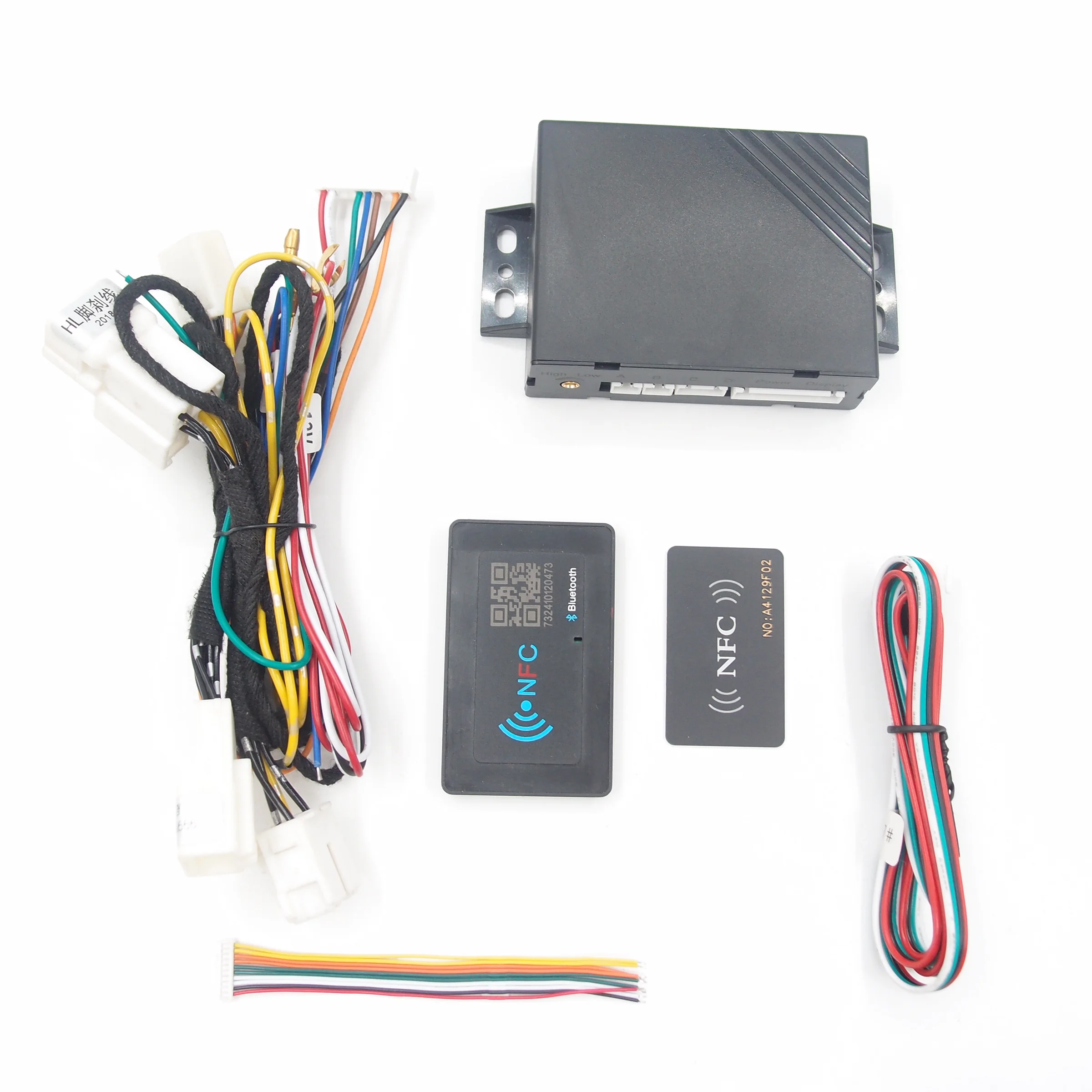

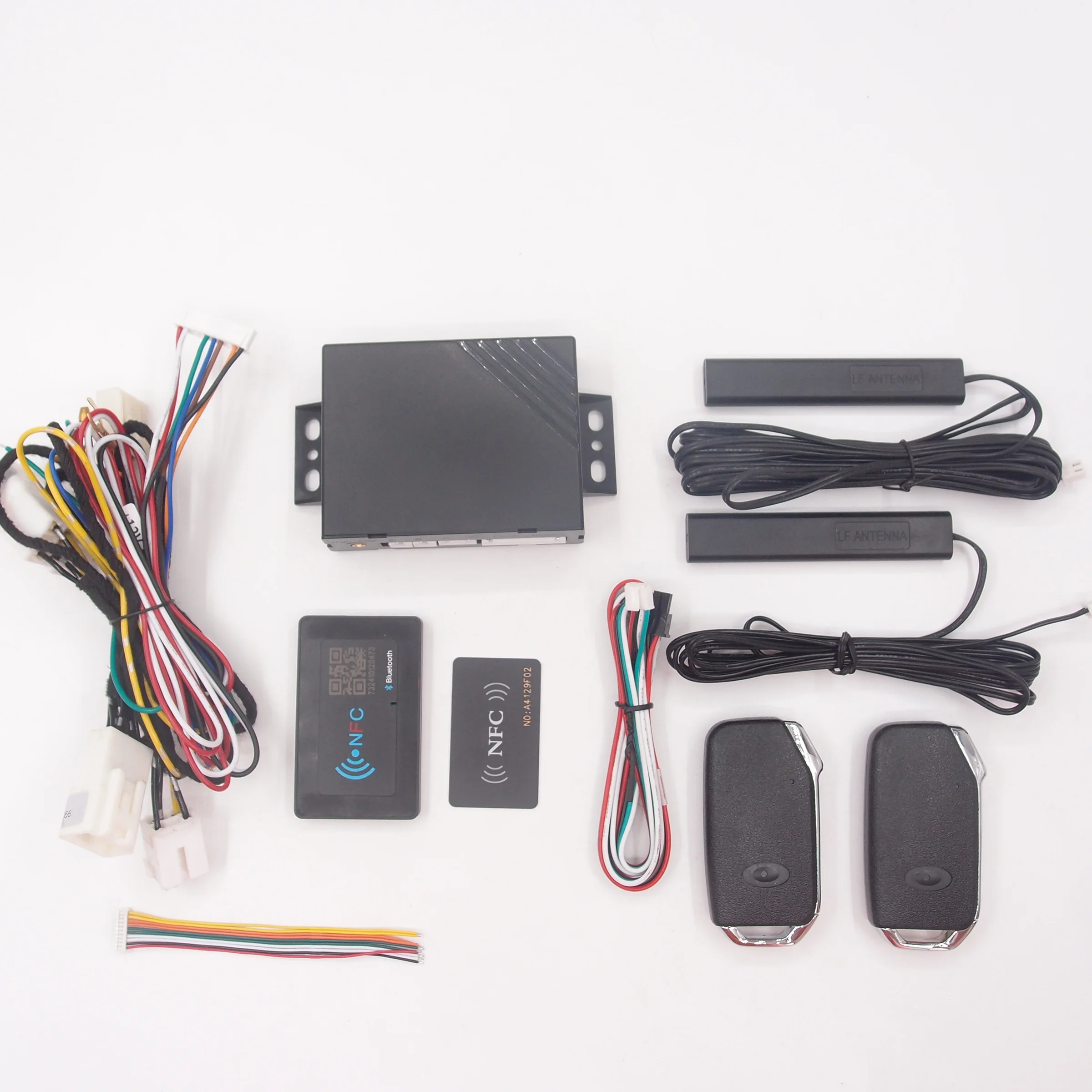

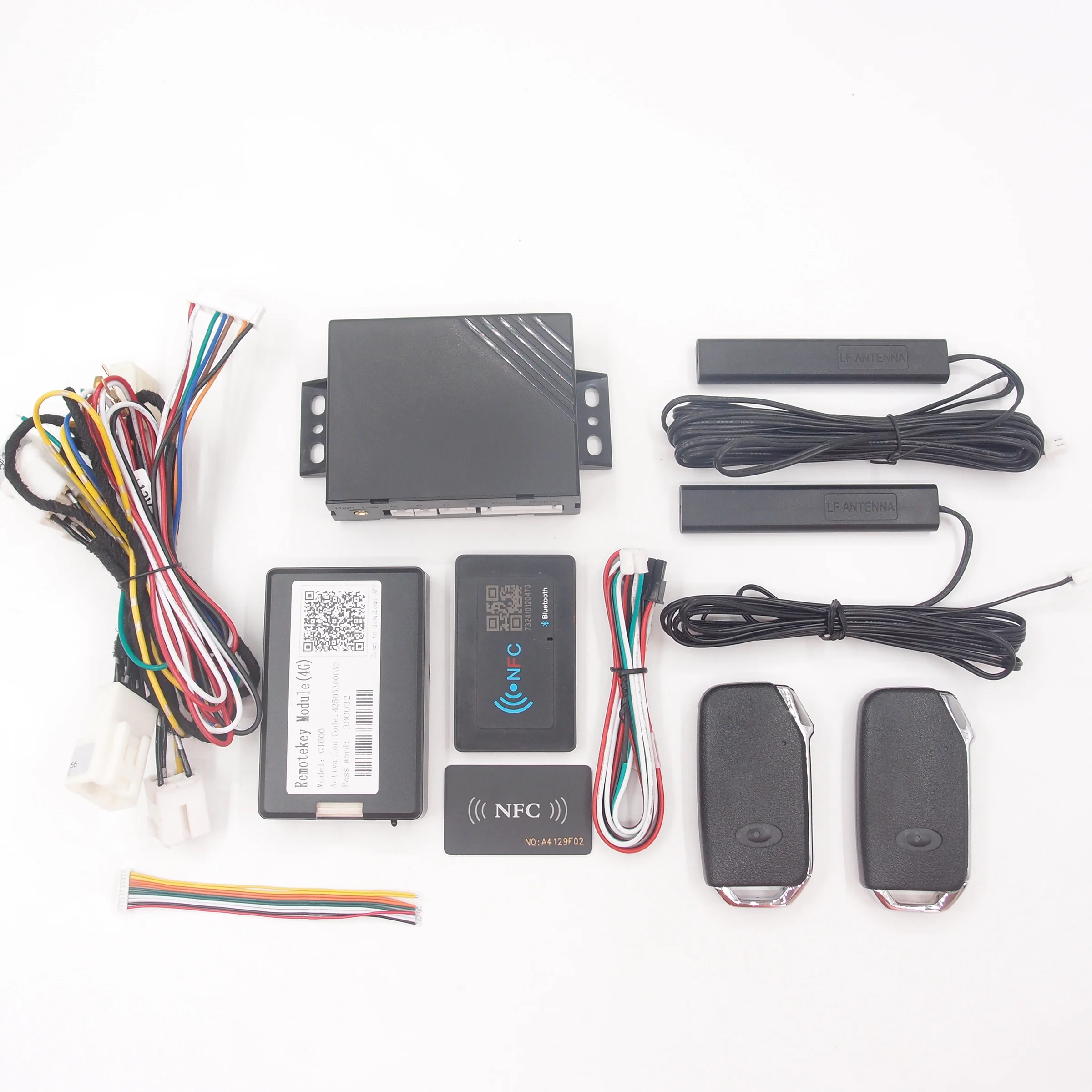

NFC and bluetooth device
How to use :
1. Swipe NFC card to do lock and unlock
2. For Andriod phone , copy NFC card to phone , swipe phone to do lock and unlock
3. For iphone , add a transportation card and bind NFC card with it

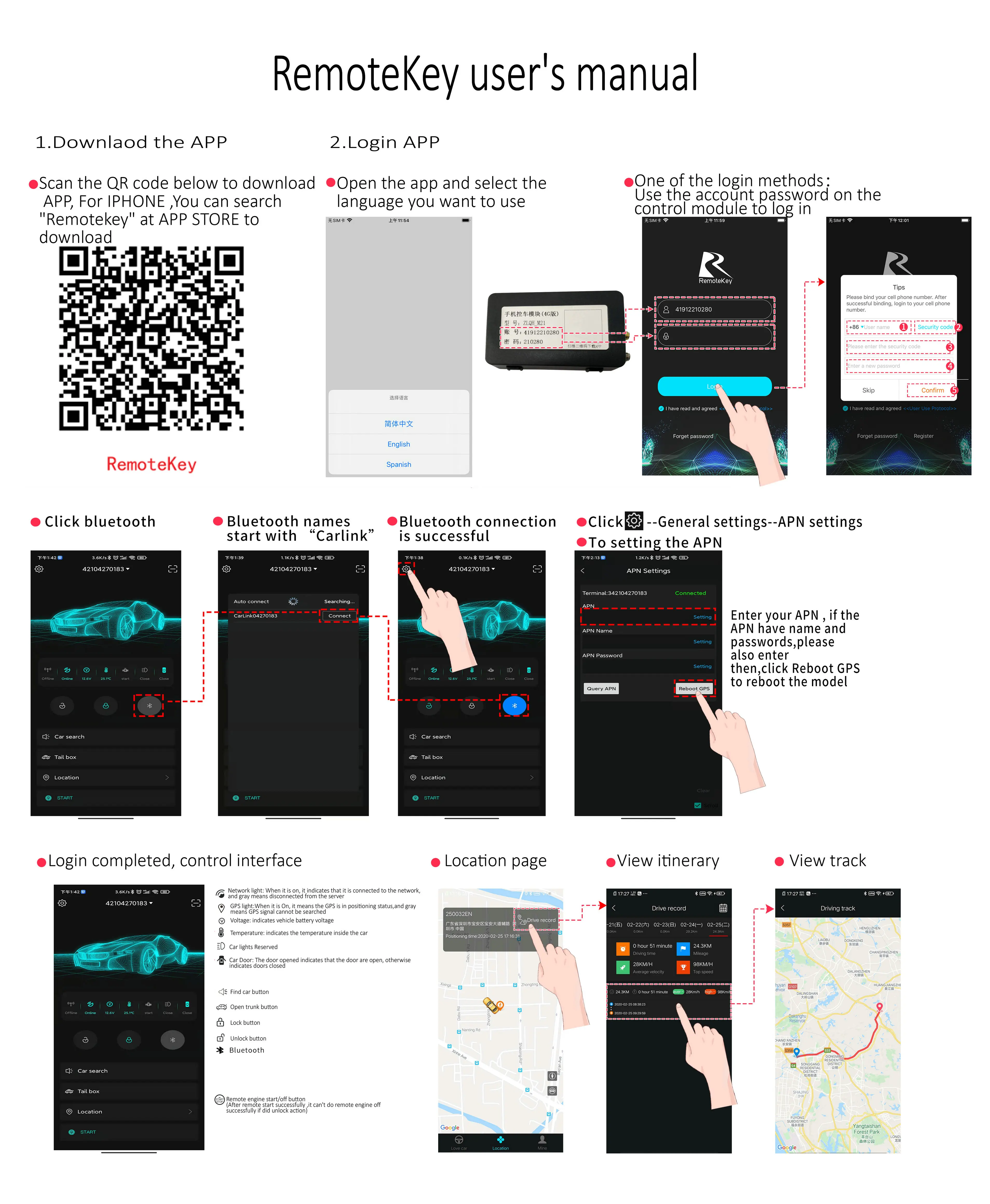

4. Scan QR to down APP , bind our device first , then use APP to do lock, unlock and trunk by Bluetooth.
5. It must work with our remote start device together, do not only buy it. Add it to your cart and buy it with remote start device together.
What is different between 4G network , Bluetooth and NFC module ?
1.4G module need install a SIM CARD , and it communicates through GSM LTE network without distance restrictions, and can work wherever there is a network to control vehicles.At the same time, there is also Bluetooth built-in. If there is no network signal or SIM card is not charged, the vehicle can be controlled through Bluetooth.
2.You need to buy an extra micro SIM card in your local town,and set APN by Bluetooth to make it connect to internet.
Tips: To enable the GPS module can work with, your micro SIM card monthly data should at least 50MB
The 4G module is with free 3 years subscription since date of activation( not including the SIM card subscription fees that charged by your SIM card operator). After 3 years, you need to pay for the server fees & maintenance fees if you plan to continue to use it. It is about USD26.00/year.And you can pay on the app directly to continue to use it.
4G module can be used for free for 3 years. It will show expire after 3 months , call us to renew it . If you don’t want pay it after 3 years , you also can use Bluetooth function free.
4G module has GPS positioning function, but in some countries, the specific location may not be displayed due to map issues
3.Bluetooth works only about 5-20meters .
4.NFC has Bluetooth built-in too ,likes as 4G module , it can use APP to do lock, unlock and remote start too . and there is a NFC card to swipe for locking and unlocking, it can add NFC card into your smart phone if it supports NFC function, Swipe smart phone like as NFC card . Don't worry about your phone running out of battery

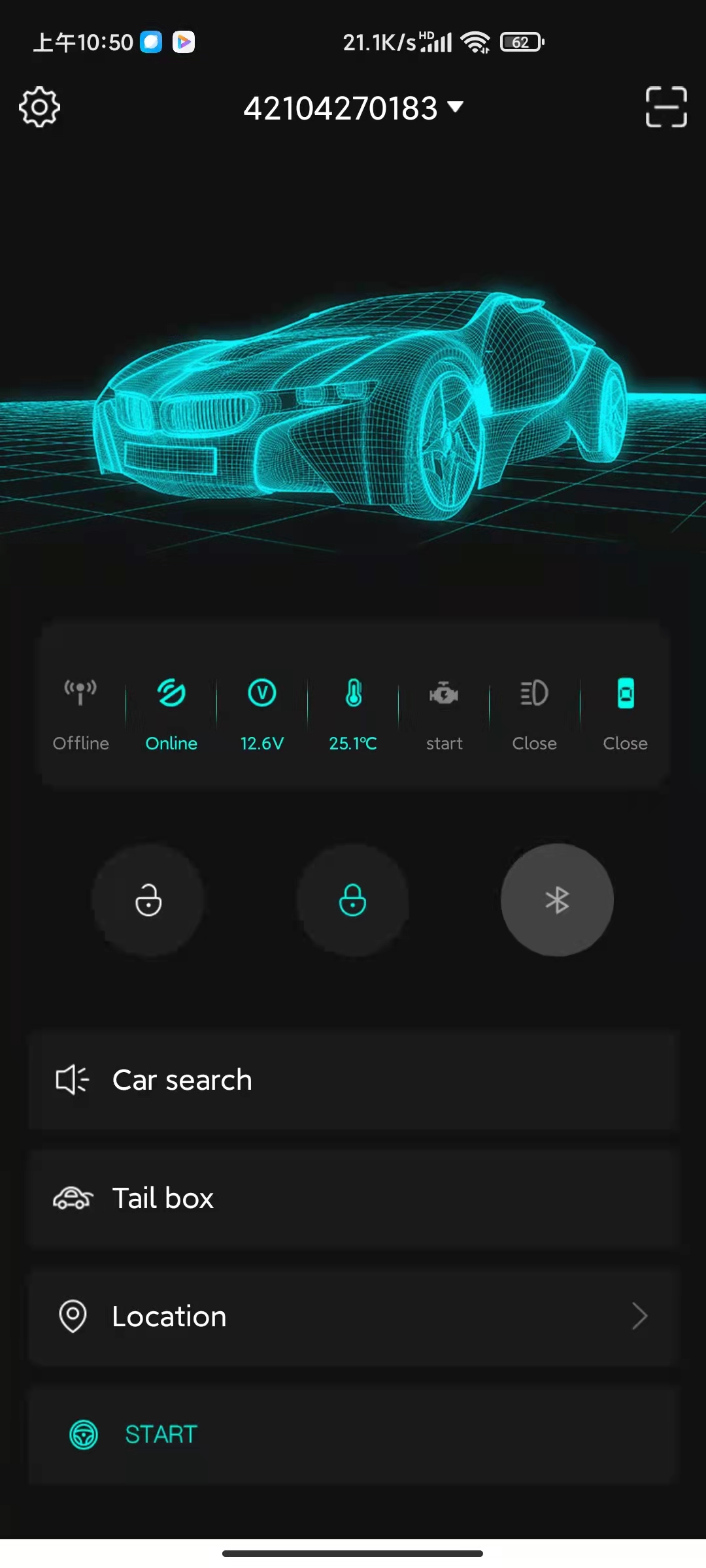

5.For 4G , Bluetooth and NFC module ,User can monitor their vehicles with the APP on the phone, no need to take the remote control. Your phone is your car key. You can download the APP after installation completed.
6.Both 4G , Bluetooth and NFC module has passive keyless entry function base on Bluetooth 5.0 . Take your phone closes to car for unlock automatically ,and leave away for locking.
Note :
Both 4G , Bluetooth and NFC module must work with the remote start device together , it is only for connecting the remote start device to smart phone, so don’t only buy the modules alone.
Please leave message to us
1. Please leave message to us when you place an order, to tell us which vehicle you want install , show us the details like as : brand , model name and years, we will as more as possible to supply special accessories for you.
2. Due to customs security problem , the key does not contain batteries.Please prepare 2 pcs CR2032 batteries by yourselves.
