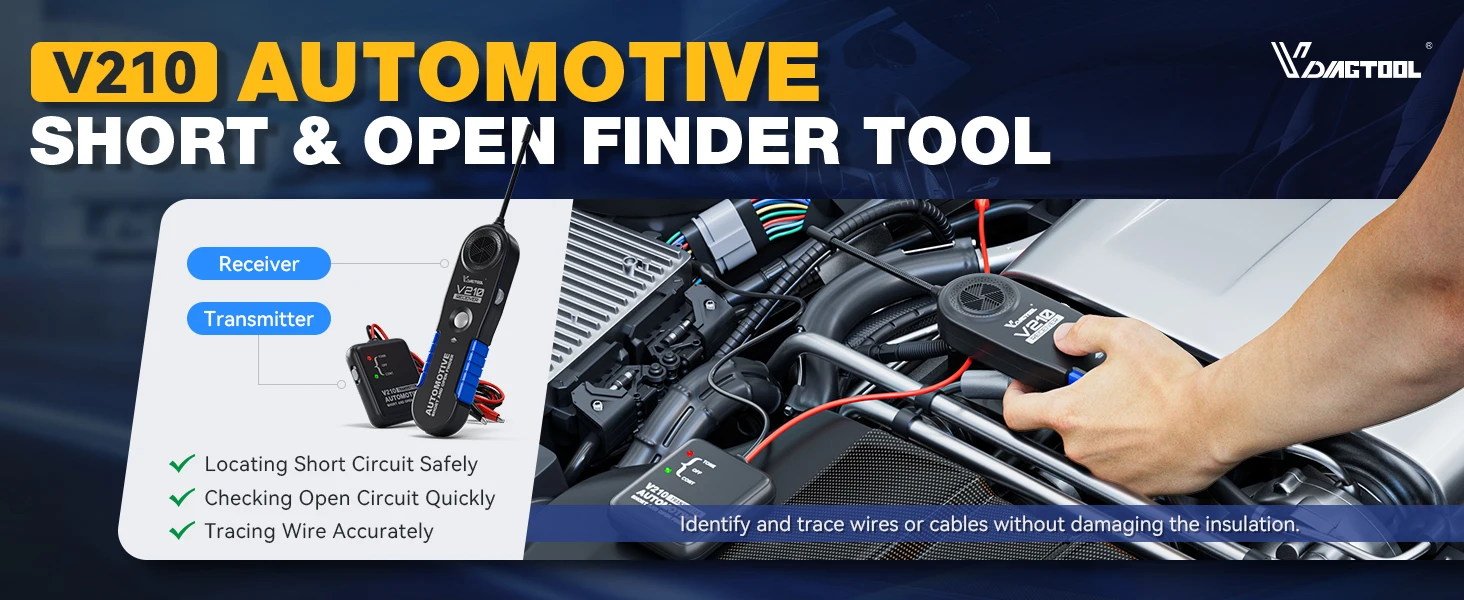

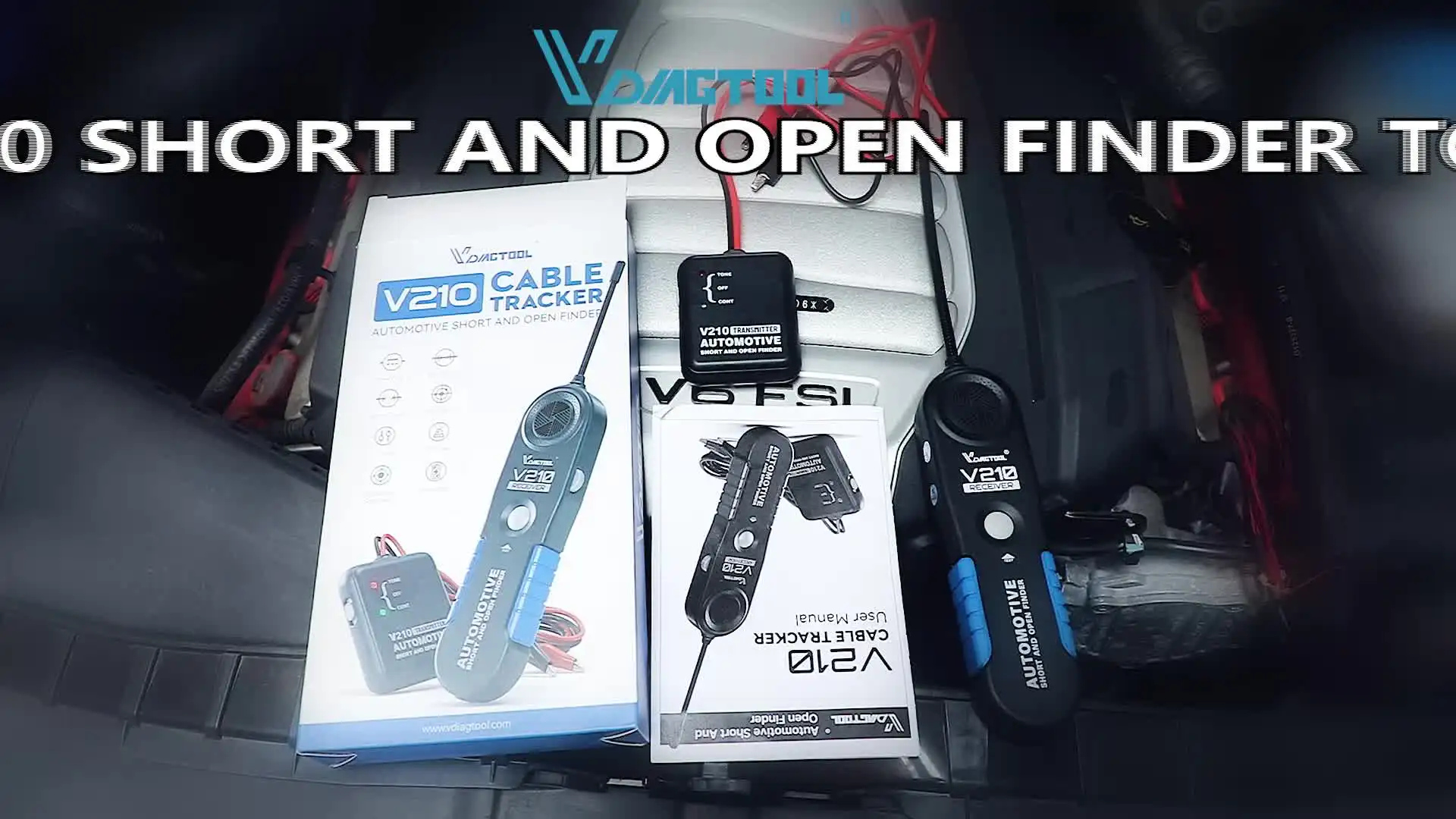

🏆 VDIAGTOOL V210 Automotive Short/Open Circuit Finder – Your Ultimate Wiring Diagnostic Assistant
Effortlessly identify, trace, and diagnose wiring issues with the VDIAGTOOL V210 Automotive Short/Open Circuit Finder.
Designed for both professional technicians and DIY enthusiasts, this compact yet powerful tool helps you locate short circuits safely, check open circuits quickly, and accurately trace wires or cables within automotive electrical systems.
✅️Locate Short Circuits Safely: Quickly identify short circuits without risking damage to wiring or components.
✅️Check Open Circuits Quickly: Accurately detect breaks or open circuits in wires and harnesses.
✅️Tracing Wire Accurately: Easily track and identify wires and cables through walls, looms, or conduits.
✅️Non-Invasive Testing: Works through insulation—no need to strip or cut wires.
✅️Dual-Mode Operation: Includes both transmitter and receiver for seamless signal transmission and detection.

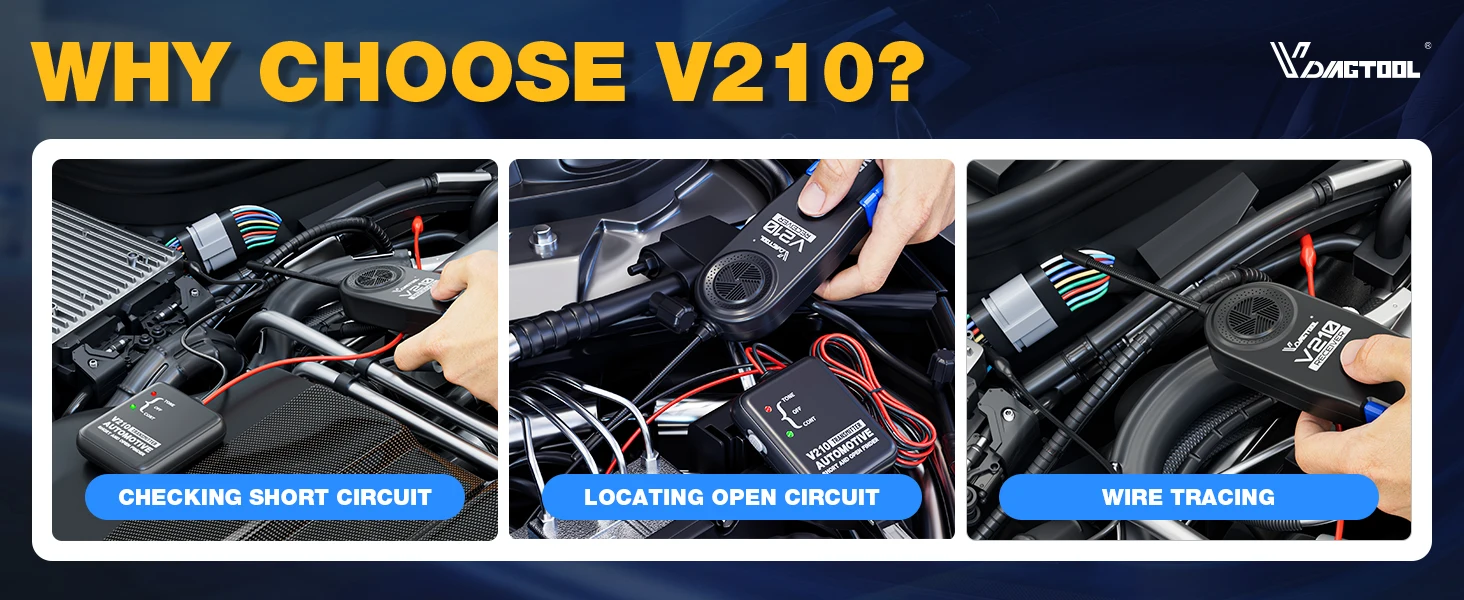

🏆 Why Choose VDIAGTOOL V210 Automotive Circuit Finder?
✅️3-in-1 Diagnostic Tool(Save $50 on separate tools)
Short Circuit Locating, Open Circuit Checking, and Wire Tracing.
✅️Efficient Short Circuit Checking
Quickly and safely identify the exact location of shorts in your wiring harness without the risk of causing further damage to sensitive vehicle electronics.
VDIAGTOOL V210 Automotive Short Circuit Detector features a 6.7-inch flexible probe.
It allows you to find intermittent circuit problems by flexing wires or connectors and listening for a change in the receiver tone without damaging the insulating layer.
Note: The sound signal may be affected by propagation,resistance, shielding, and circuit complexity. To improve accuracy, check wiring step-by-step and complete signals to pinpoint the exact short.
✅Precise Open Circuit Locating
Instantly pinpoint breaks, disconnections, or faulty grounds within a circuit, saving you hours of manual testing with a multimeter.
VDIAGTOOL V210 Open Circuit Detector is fitted with transmitter and receiver LED indicators, which can detect open circuits instantly and send out corresponding alerts.
By means of the audible beep built into the receiver, VDIAGTOOL V210 helps you quickly and accurately locate open connections, broken wires, leakage points, and even trace cable routes.
Note: Signal strength affects the volume of the audible alert. During testing, position the probe close to the cable. Should the sound suddenly diminish, this indicates the presence of a fault point.
✅️Accurate Wire Tracing
Easily identify and follow specific wires or cables through looms, behind panels, and across the vehicle body, eliminating confusion in complex wiring systems.
It’s user-friendly to use—just wire the transmitter in series with the target circuit or wire (such as substituting a blown fuse, spanning a connector, linking with an open wire or a light bulb socket), and then run the tracer’s flexible probe over the circuit/wire to locate the fault.
Choose the V210 for a smarter, faster, and more reliable approach to automotive electrical troubleshooting.

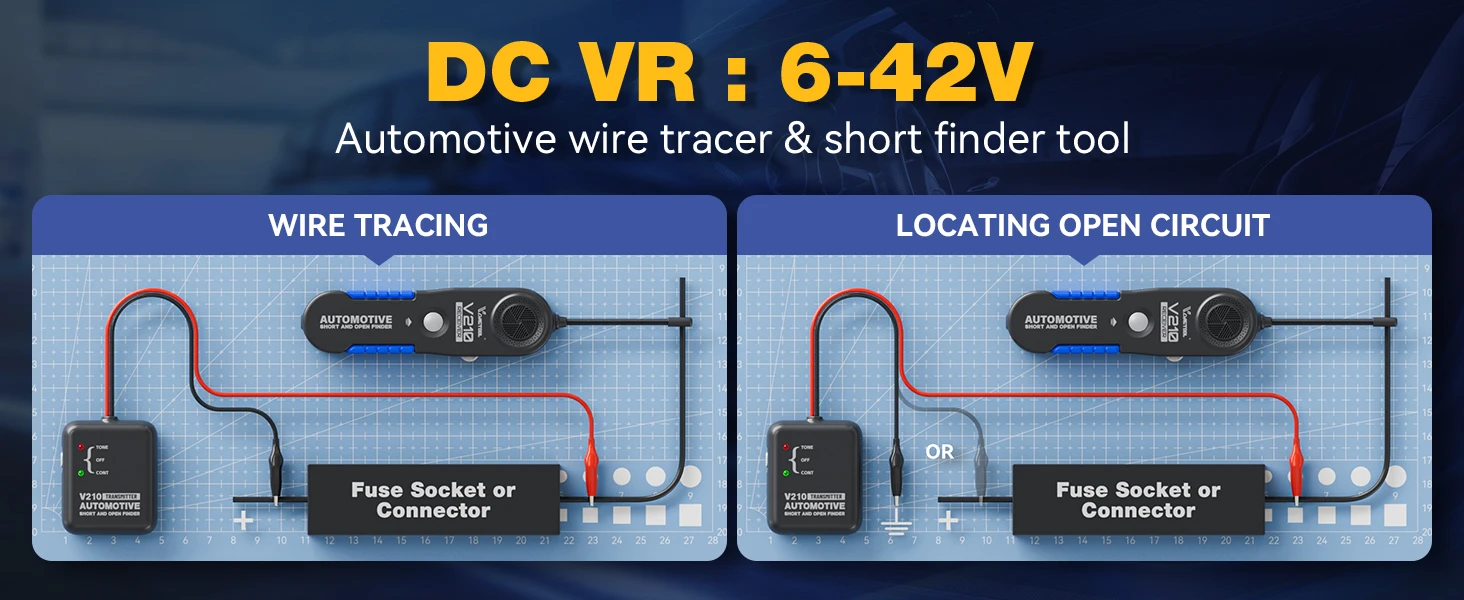

🏆 VDIAGTOOL V210 Professional DC 6-42V Automotive wire tracer & short finder tool
✅️Wide DC Voltage Range: Compatible with 6-42V DC systems.
✅️Use via Fuse Socket or Connector: Easily connect to fuse boxes or connectors for non-invasive testing.
🏆VDIAGTOOL V210 Car Circuit Tester User Guide

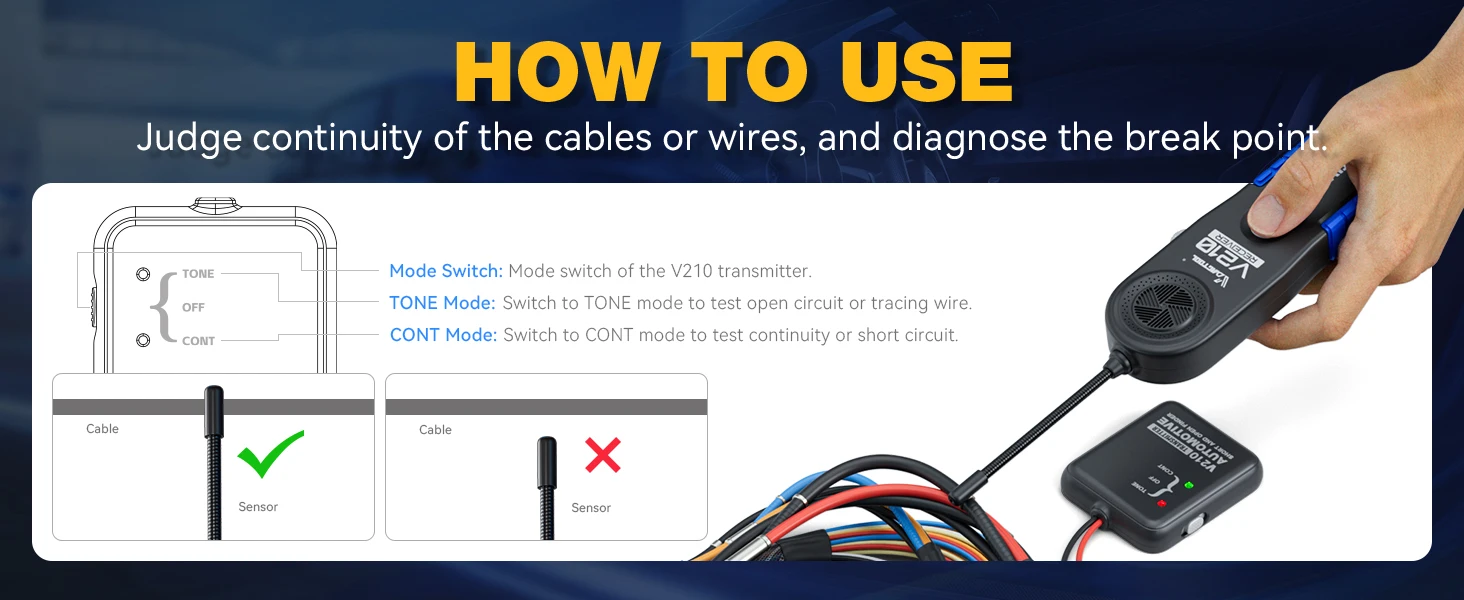

✅️3 Operation Modes
• Mode Switch: Mode switch of the V210 transmitter.
• TONE Mode: Used for open circuit testing and precise wire tracing.
• CONT Mode: Designed for continuity checks and short circuit detection.
• Easy Mode Switching: Simple transmitter mode selector for fast adaptation to different testing scenarios.

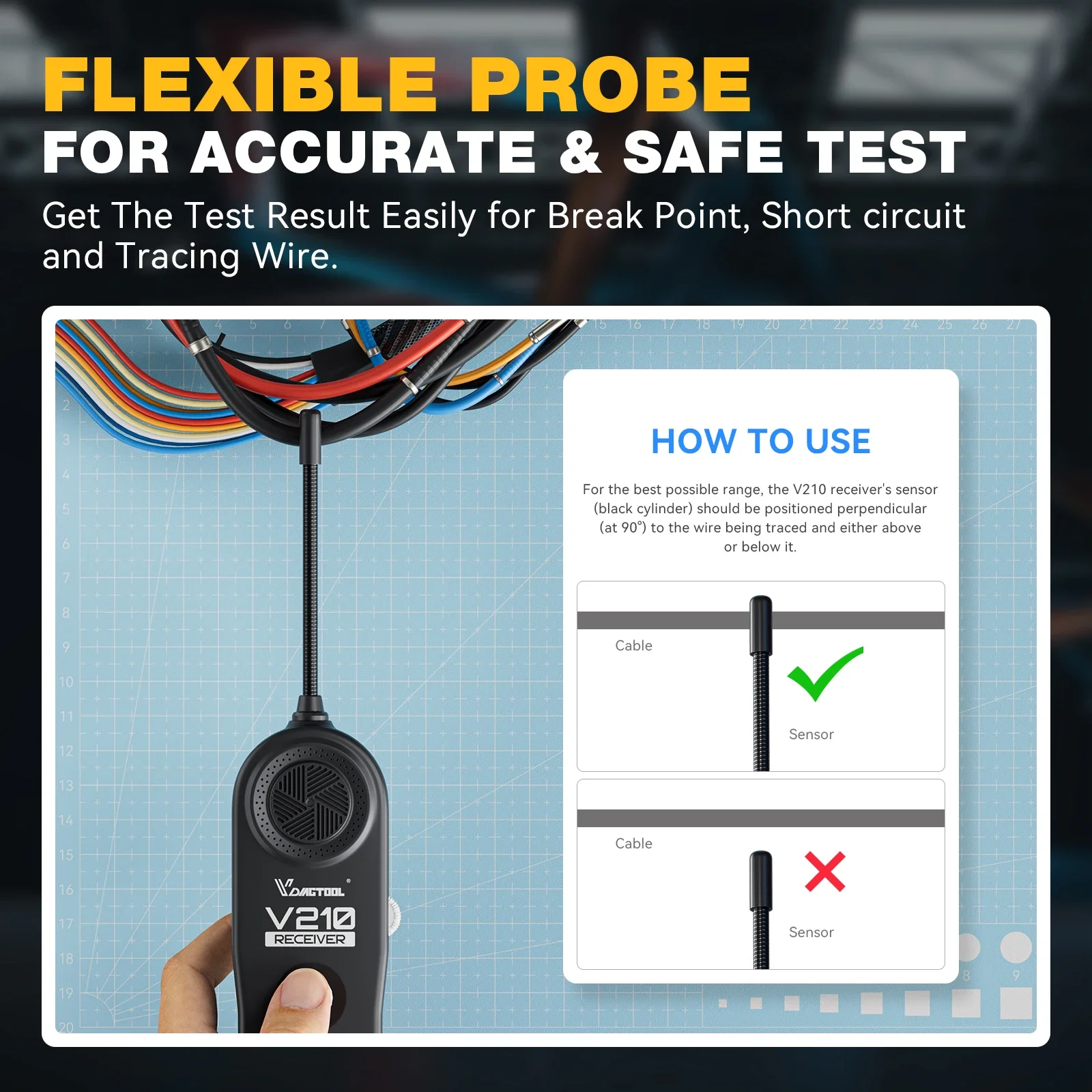

Flexible Probe For Accurate & Safe Test
For the best possible range, the V210 receiver's sensor (black cylinder) should be positioned perpendicular (at 90°) to the wire being traced and either above or below it.
Note:When the signal is not strong enough, the volume will be low in the receiver, please find a strong signal and try to turn the signal up to the highest level.
Checking whether the battery power is sufficient at the same time, since it will effect the tool working properly. When the V210 wire locator is not used, please leave it in the OFF position or remove the batteries directly to avoid draining the power.

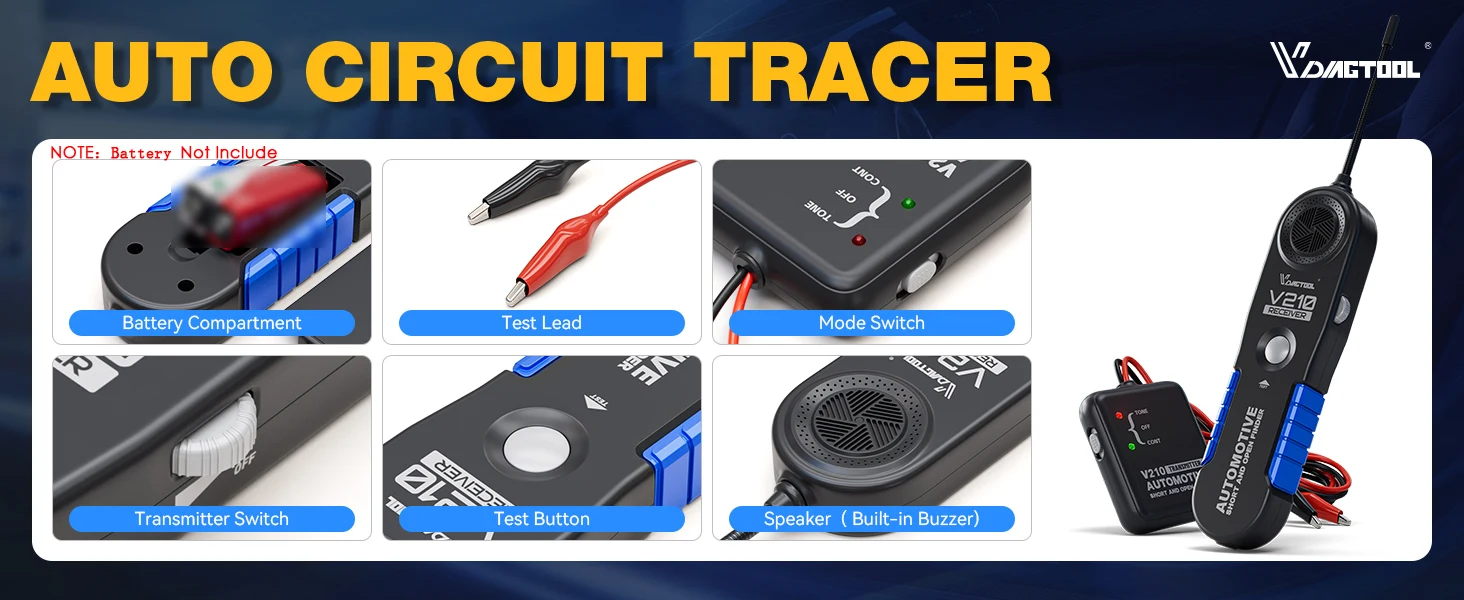

🏆VDIAGTOOL V210 – Portable Auto Circuit Tracer with Self-Contained Diagnostics
✅️Battery-Powered Operation – Requires batteries (not included) for cordless convenience and portability.
✅️Integrated Battery Compartment – Easy access for quick battery replacement.
✅️Test Lead Included – For direct connection to circuits and reliable signal transmission.
✅️Mode Switch – Select between TONE (open circuit/wire tracing) and CONT (continuity/short circuit) modes.
✅️Transmitter Switch – Simple on/off control for efficient operation.
✅️Built-In Buzzer (Speaker) – Audible alerts for clear fault indication without needing visual confirmation.
✅️Test Button – Allows manual signal testing and verification during diagnostics.
✅️Compact & Ergonomic Design – Lightweight, handheld form ideal for use in tight spaces.

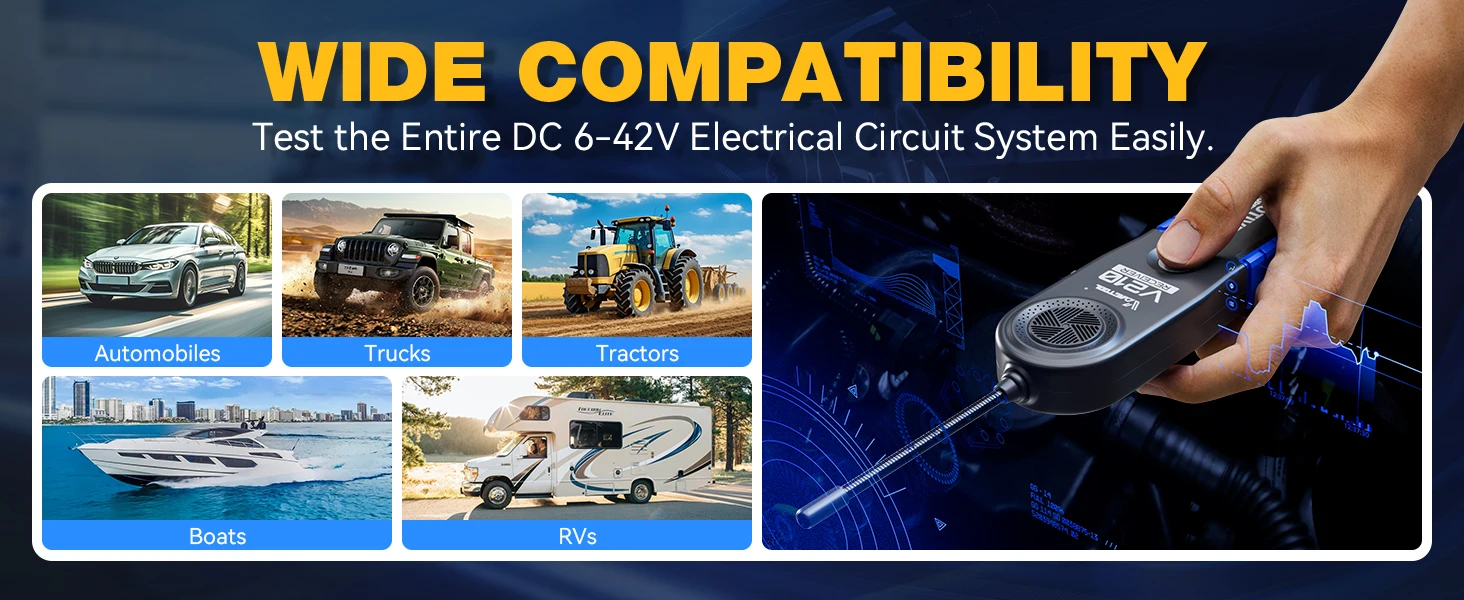

🏆VDIAGTOOL V210 Universal Electrical Circuit Tester Applicable Models
✅️Wide Voltage Range: Works with entire DC 6-42V versatile for low and high voltage applications.
✅️Automobiles: Perfect for diagnosing cars, SUVs, and other light vehicles.
✅️Trucks & Tractors : Robust enough to handle commercial vehicles and agricultural machinery.
✅️Boats: Safely trace and test wiring in boats and other marine vehicles.
✅️RVs: Great for recreational vehicles and mobile home electrical systems.

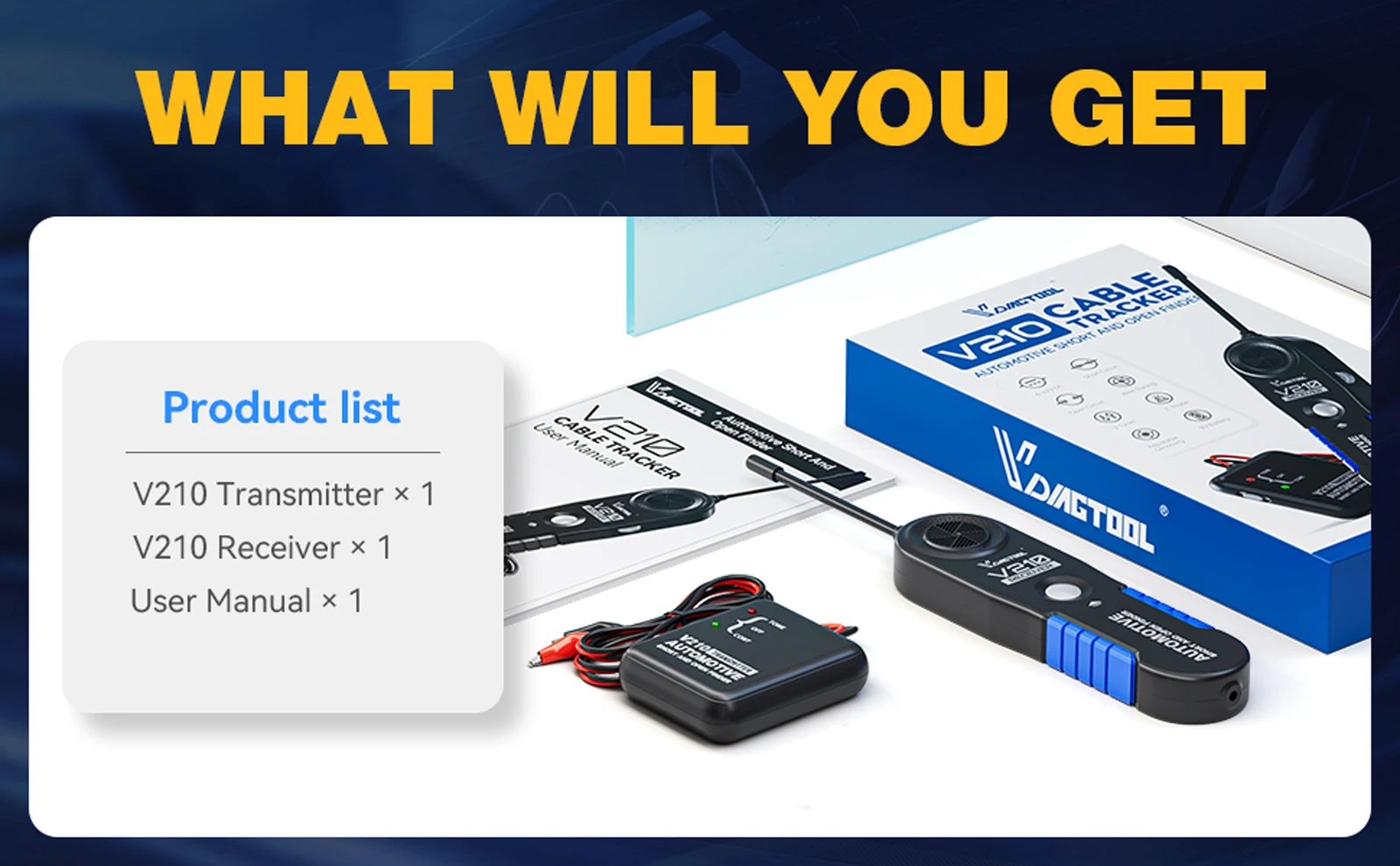

🏆VDIAGTOOL V210 Auto Circuit Tester Product List
✅️V210 Transmitter × 1
✅️V210 Receiver × 1
✅️User Manual × 1
