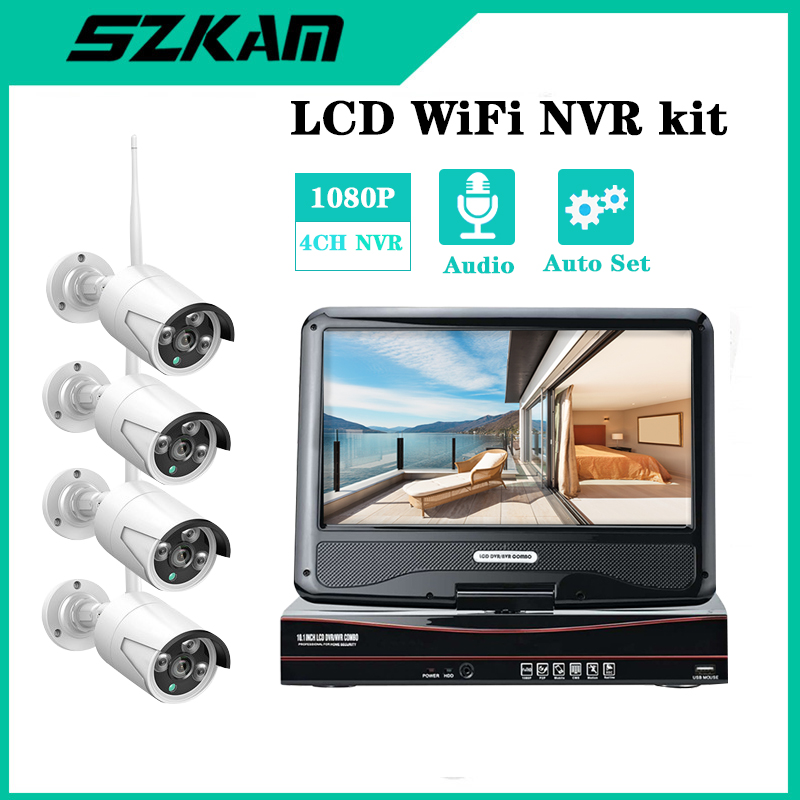

Wireless 4CH Nvr Kit 10' LCD Screen 4pc 2MP WIFI IP Surveillance Camera Monitor 1080P HD Video Audio Record Security CCTV System
4CH 3MP LCD Wireless Cameras NVR Kit
key features:
1：with built-in 10'' LCD monitor, Easy to Use, complete system
2:Automatic Wireless Connection, plug and play
3：Wireless WiFi / Lan Cable connection between NVR and IP Cameras
4:1080P H.265+wireless network recorder and 4pcs 3MP 1080P wireless cameras
5:In open space without itrefere transmission distance up to 600 meters；
IR-Cut Array LED Lights: up to 30m Night Vision Distance;
6:Insert professional surveillance Wireless board, with stonger anti-interfere ability
7:One-push to configure
8:Support alarm pushmotion detection and alarm output(voice/email/ FTP etc.)
9:Support Android/Apple cell phone or pad by LAN & WAN visit and control
10:P2P IP PRO, fluent and fast remote access
11：Suit to homes, offices, small businesses & retail stores
12：Easy to Install, User-Friendly Operation
Specification：
Model：4CH Wireless 1080P HD-NVR
Main processor：Hi3536D
Operating System：Embedded Linux
Video compression：H.265 High Profile/ H.264 Main Profile
Video output：720P60,XGA,1080P60
Video input(IP)：4*1080P/4*960P/4*720P
Audio compression：G.711
intercom：None
Recording mode：Manual/Alarm/Video Detection/Continuous
Local Playback：4*1080P
Record Storage：network
Backup mode：Network backup, USB hard disk
Protocol TCP/IP,HTTP,DHCP,UDP,RTP,RTSP,FTP,NTP,ONVIF,SADP,P2P
Frequency:2.4G
Antenna Structure：2 × 2MIMO
Distance：More than 80 meters with no obstacle，more than 30 meters if penetrate the wall， the actual transmission distance according to the situation
Video output:1ch HDMI, 1ch VGA output
Audio I/O:None
Alarm I/O:None
Network interface:1*RJ45 10M/100M Adaptive Ethernet port
USB: 2*USB 2.0 port
Hard disk:1 SATA(Up to 4TB)
Power supply: DC +12V /2A
Power Consumption:5W（Without HDD）
Work environment:Temperature:-10℃－＋55℃, Humidity:10%-90%RH
with built-in 10'' LCD monitor, Easy to Use, complete system
4CH NVR Kit Expandable to 8pcs wifi Cameras
8Channel NVR Design,support to connect up to 8pcs cameras,you can buy IPPRO APP IP
cameras to expand your cctv system
10.1'' LCD Monitor Auto Connected to 1080P Wireless Camera
Automatic Wireless Connection, plug and play
Audio Record IP Camera
Built-in a integrated microphone let you hear the sound around the camera,records what people say,
make it authentic with sound video recording.
Humanoid Motion Detection Alarm
After the camera turns on motion detection, when it detects that there is an object moving in the monitoring range,
Will automatically push the alarm to the phone
Up to 50 Meters Wireless Transmission without obstacles
Full Clear 1080P Day Mode and Night Vision
Multi-mobilephones Viewing.
Packing List:
