Attention:
1. The remote control does not have batteries
2.28# BT Led Controller Non-music mode controls 2048Pixel, music mode can only control 960Pixel

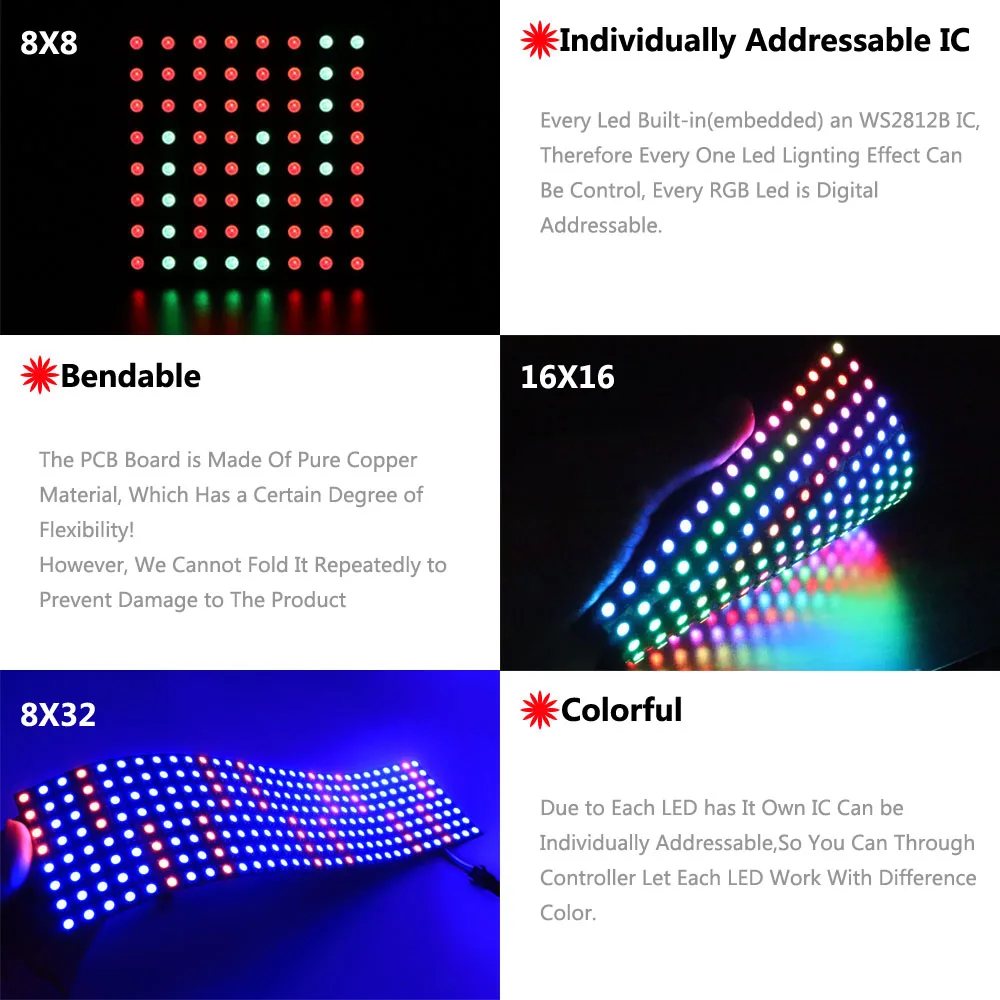

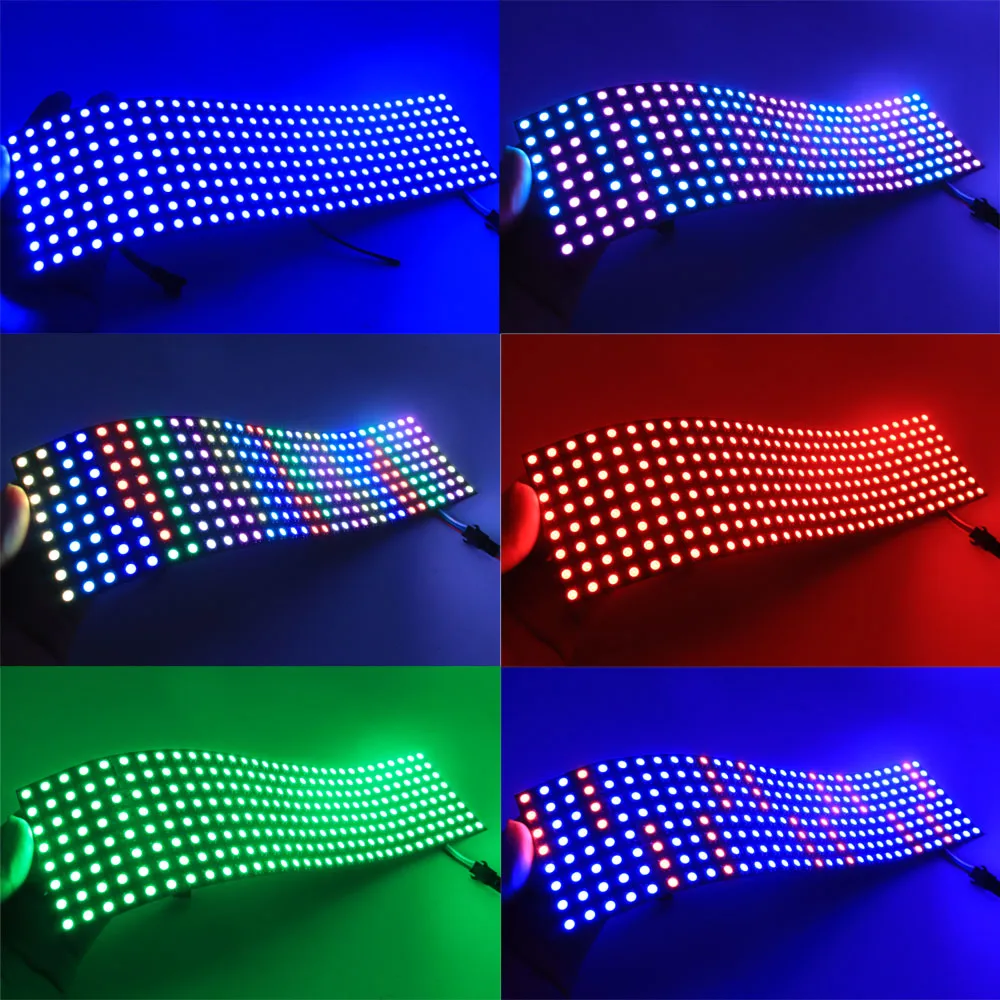

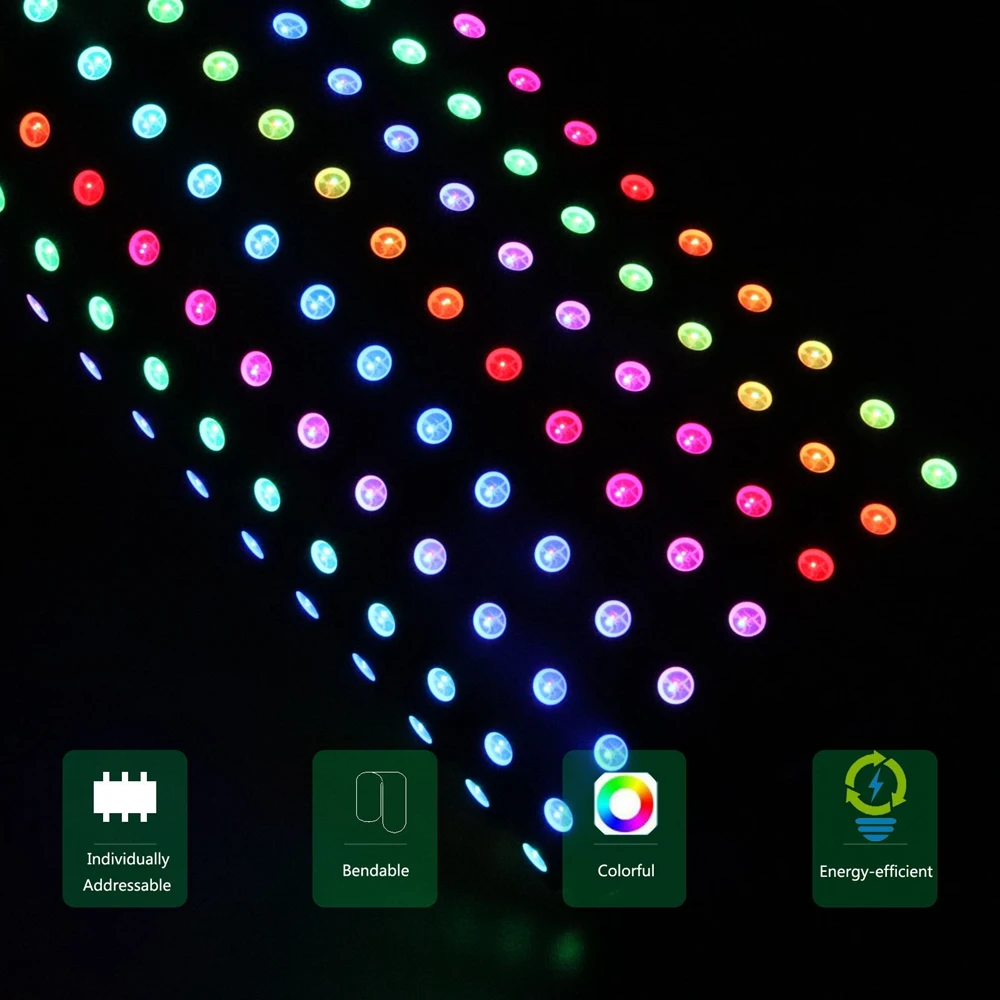

WS2812B LED Panel Description:
Voltage: DC5V
IC: WS2812B
FPCB Colors: Black
Light Source: SMD 5050 RGB
Working Life: >50,000 hours
LED Quantity: 4*12 48Pixels / 8*8 64Pixels / 16*16 8*32 256Pixels
Power: 48Leds 14.4W/ 64LEDs 19.2W/ 256LEDs 75W

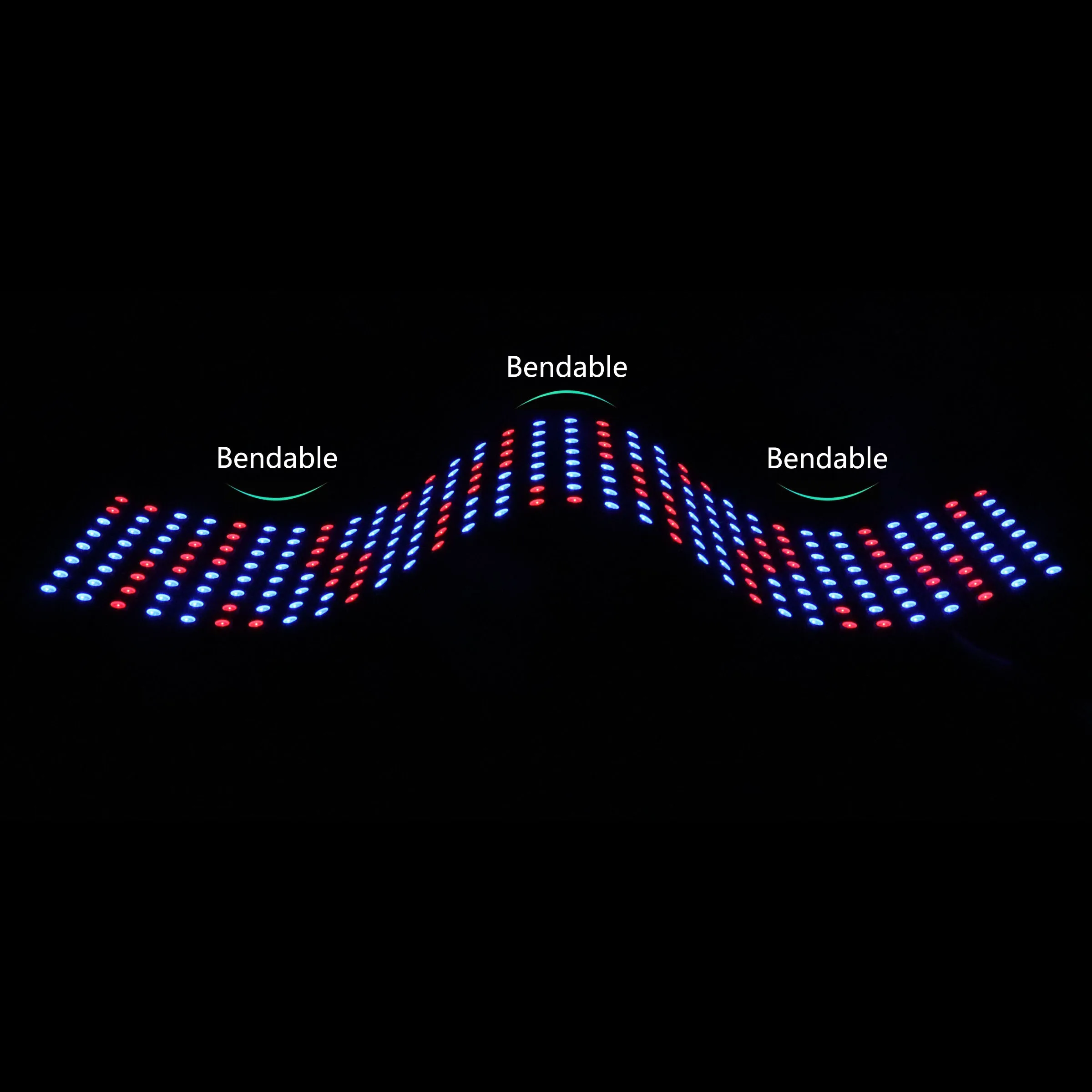

Plate: Soft Copper
Waterproof: IP30 Non- Waterproof
Working Temperature:-20°C~40°C

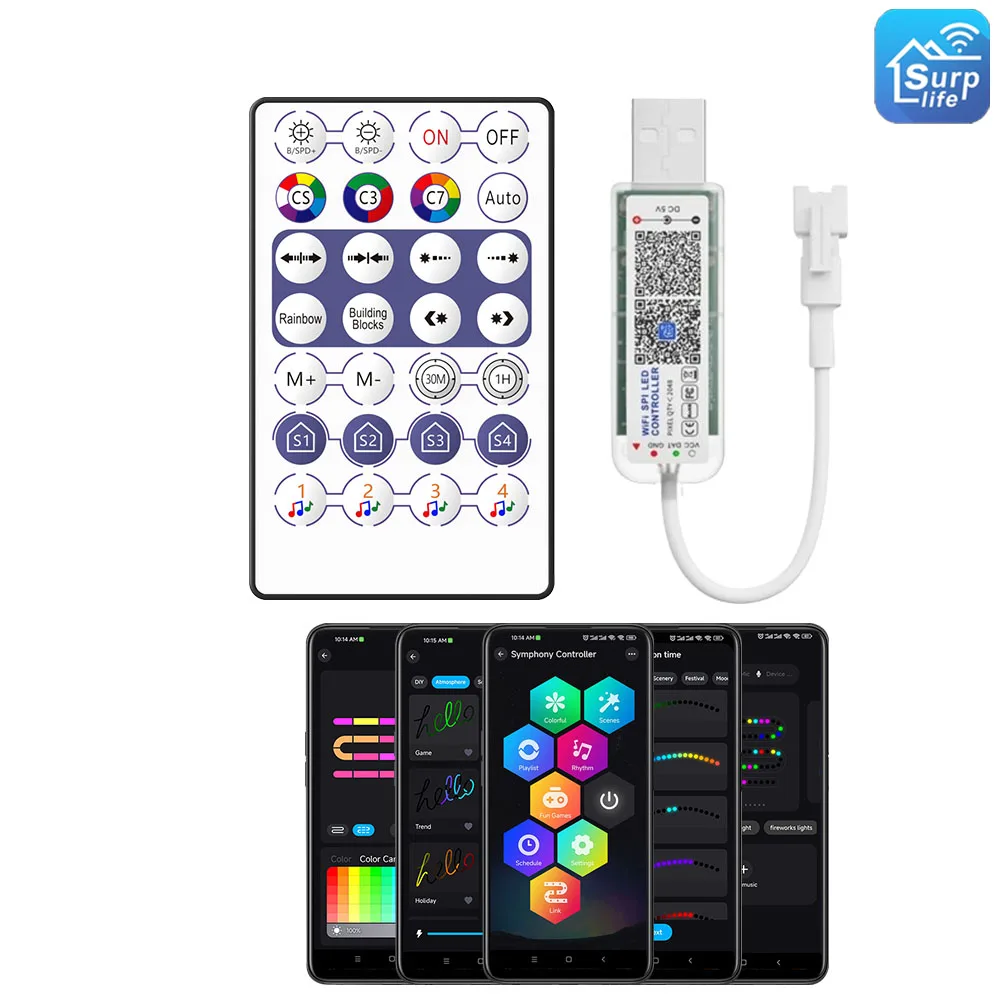

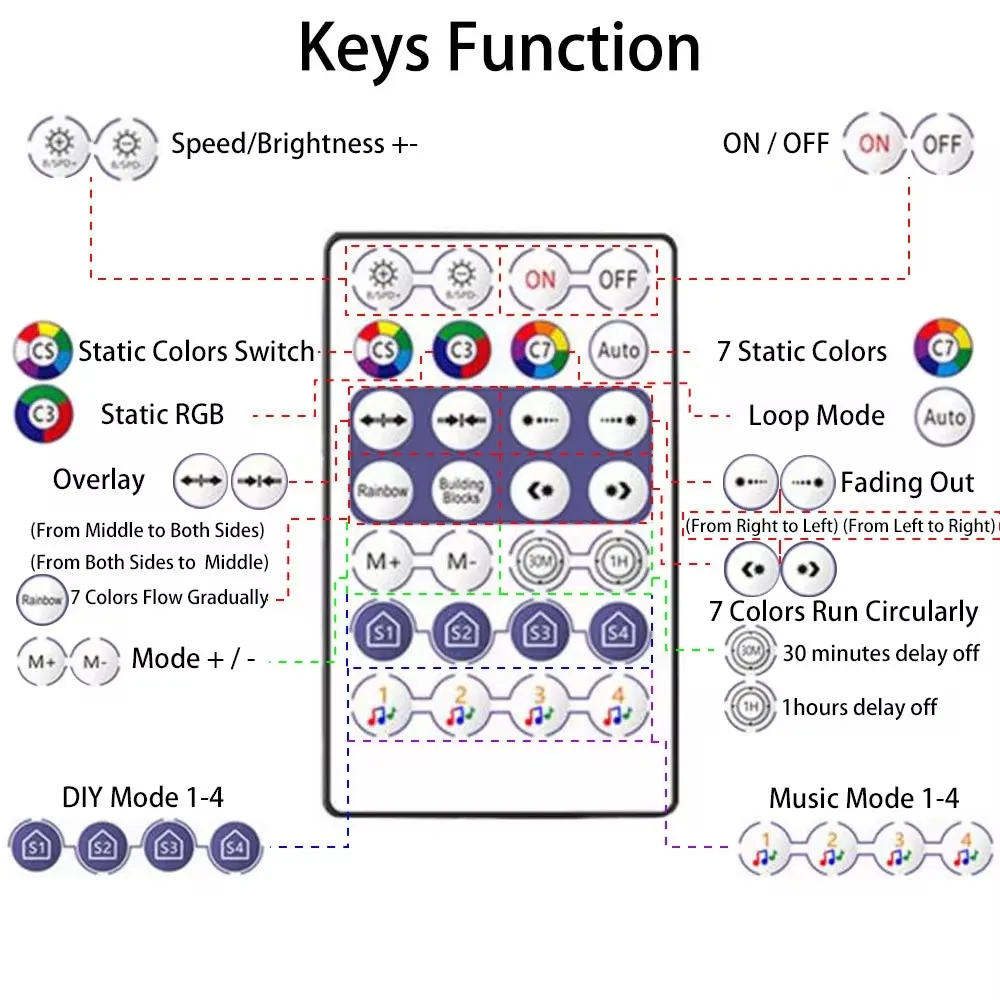

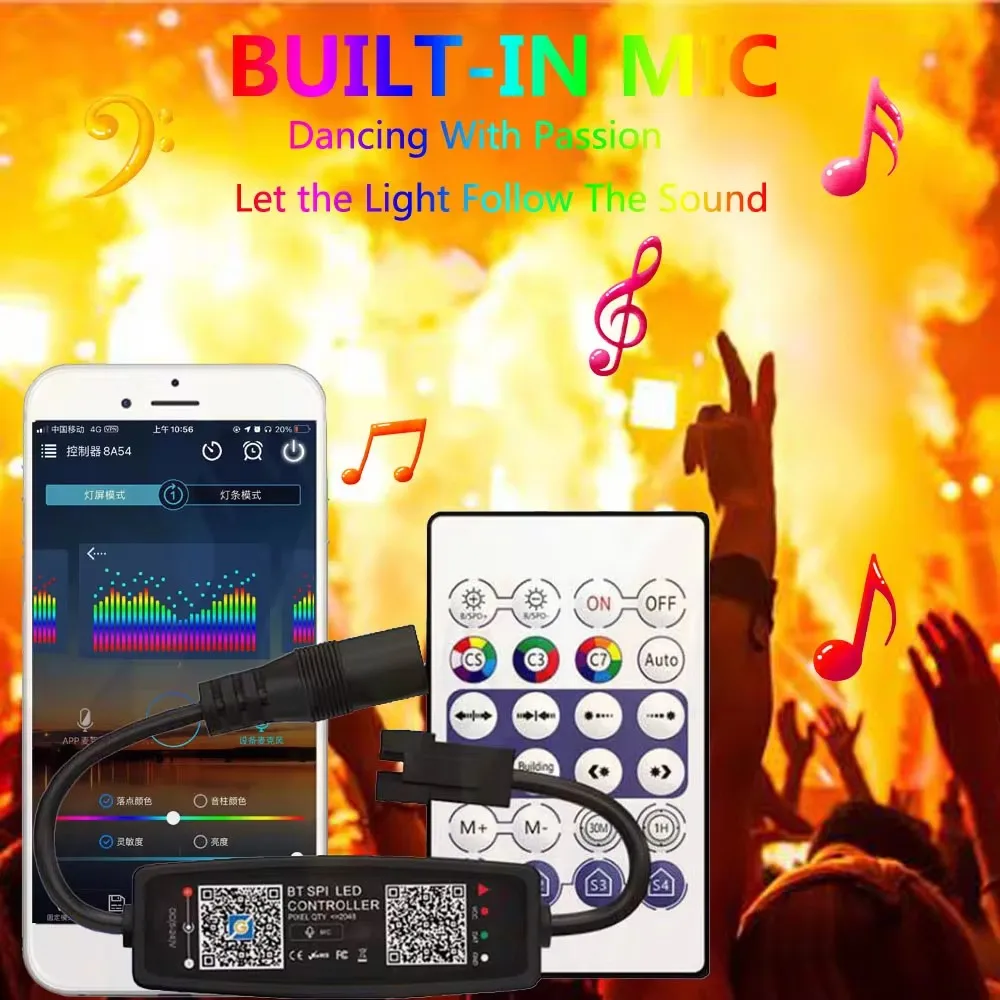

28Keys LED Controller Parameter：

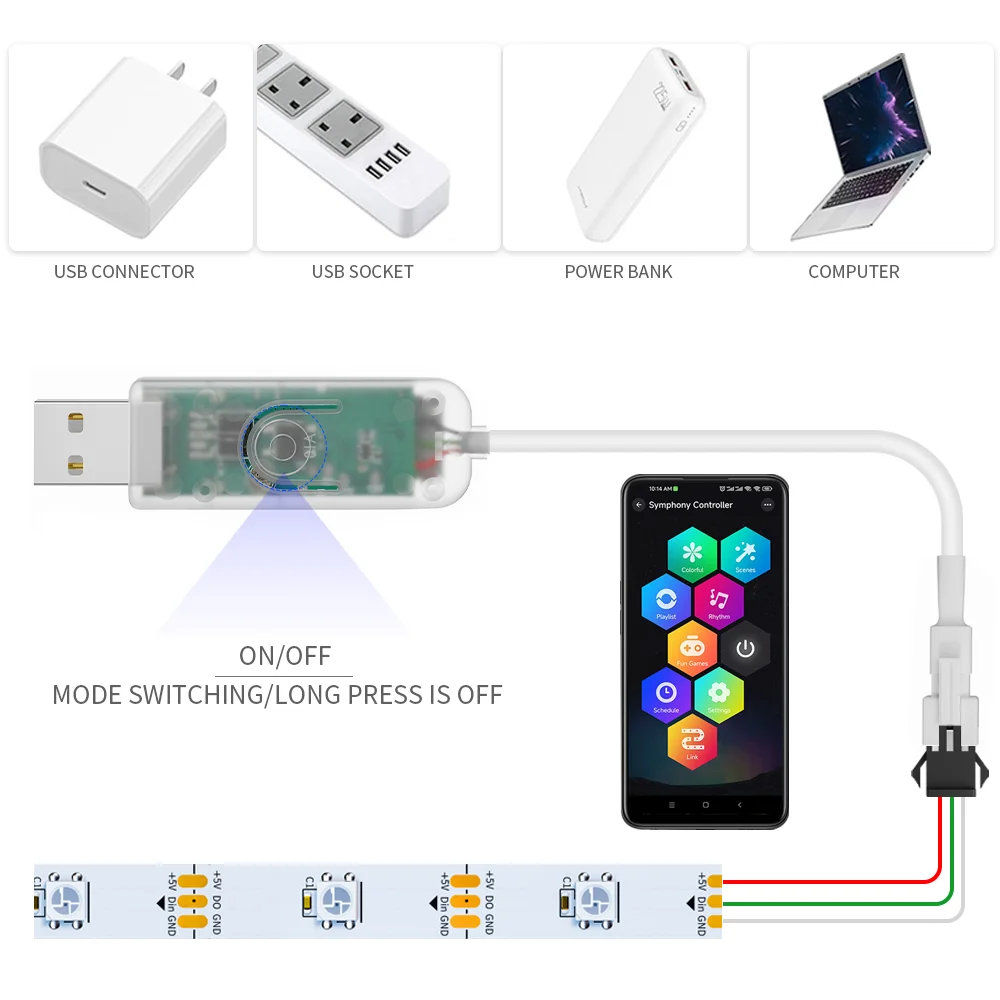

Rated Voltage: DC5V
Connection Method: USB
Control Method: Mobile phone APP remote control
Control Range: 40M
Remote Battery:CR2025 3V(Note:Battery not include)
Surplife LED Controller Parameter：
Rated voltage: USB-5V, DC12~24V
Controllable points: Max 2048 points
Support IC: 2812, 2811, 16703, 16704, 1903, 6812, 1003, 2904, etc.
Remote control battery: 1* CR2025 (Not included)
Connection method: USB / DC
Control method: mobile phone APP remote control
Control range: 40m(open area)

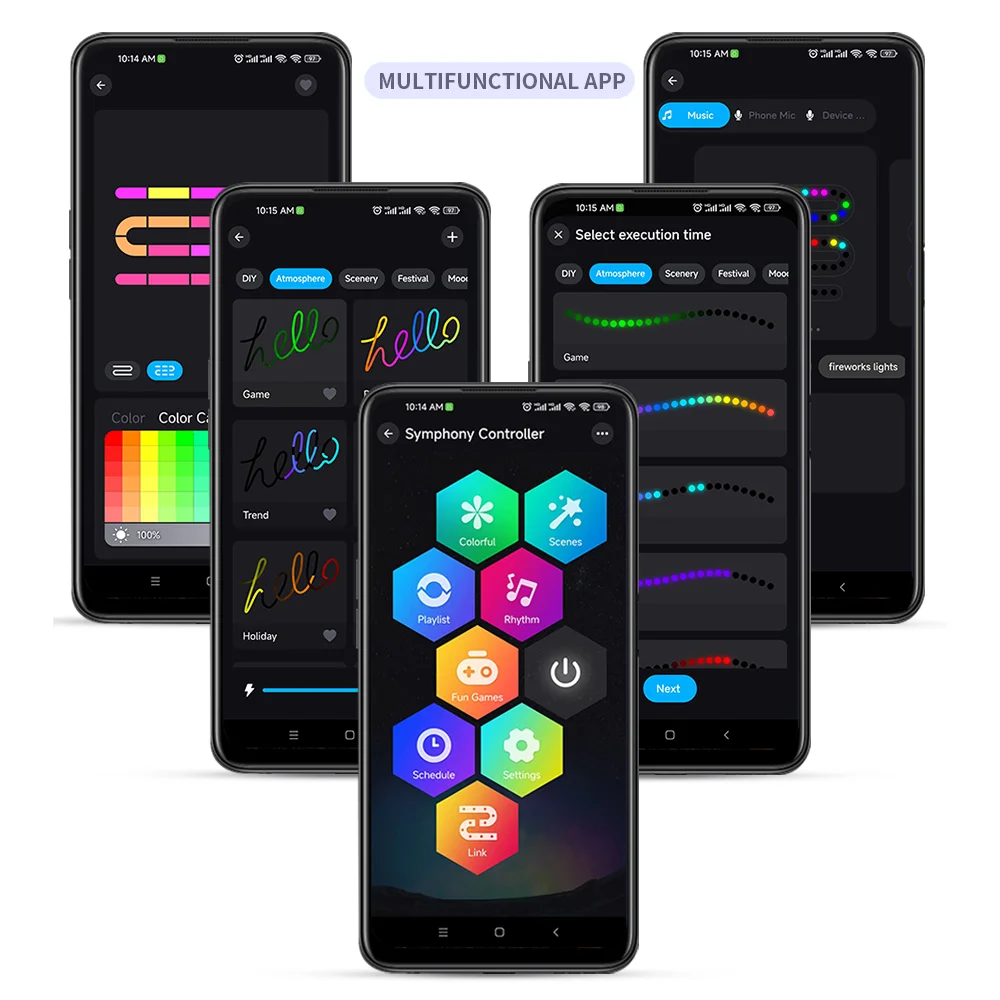

1. Download the application app
Download the “Surflife” application from the app store and Google Play Store, or scan the QR code.
2. How to connect to the Surface App?
(1) Register/log in to your Surflife account.
(2) You can log in as a tourist.
(3) Turn on the device and enable the Bluetooth function of the phone
(4) Enter the “Surlife” app, click “Add Device” or “+” to add a device. Then select your Wi Fi network (only applicable to 2.4GHz networks) and enter your password.
(5) Renaming the device and selecting a room for it
