XTOOL KC501 KC100 KS01 M821 M822 CAN FD AIl Key Lost key Programming For Benz/Toyota/VW/BMW Work With X100MAX IK618 X100PAD3

Name: XTOOL KC501 KC100 KS01 M821 M822 CAN FD AIl Key Lost key Programming For Benz/Toyota/VW/BMW Work With X100MAX IK618 X100PAD3
Brand: kasuwa24.com
SKU: 14:691
Price: 264435 NGN
Availability: InStock

Quantity:

In Stock

Free shipping worldwide

60 Day Returns

View Cart

Guaranteed safe checkout

Estimated Delivery Date: Monday, 06 January

Due to high demand, please allow at least 2-4 weeks for delivery.

Insured & Trackable Worldwide Shipping

Your tracking number will be sent to you after 3-5 processing days.

Love It or Get A 100% Refund!

We're absolutely confident that you'll love this product. If you don't, just return it for a FULL refund! No questions asked!

Product Details

Shipping & Returns

FAQs

About Us

Product Details

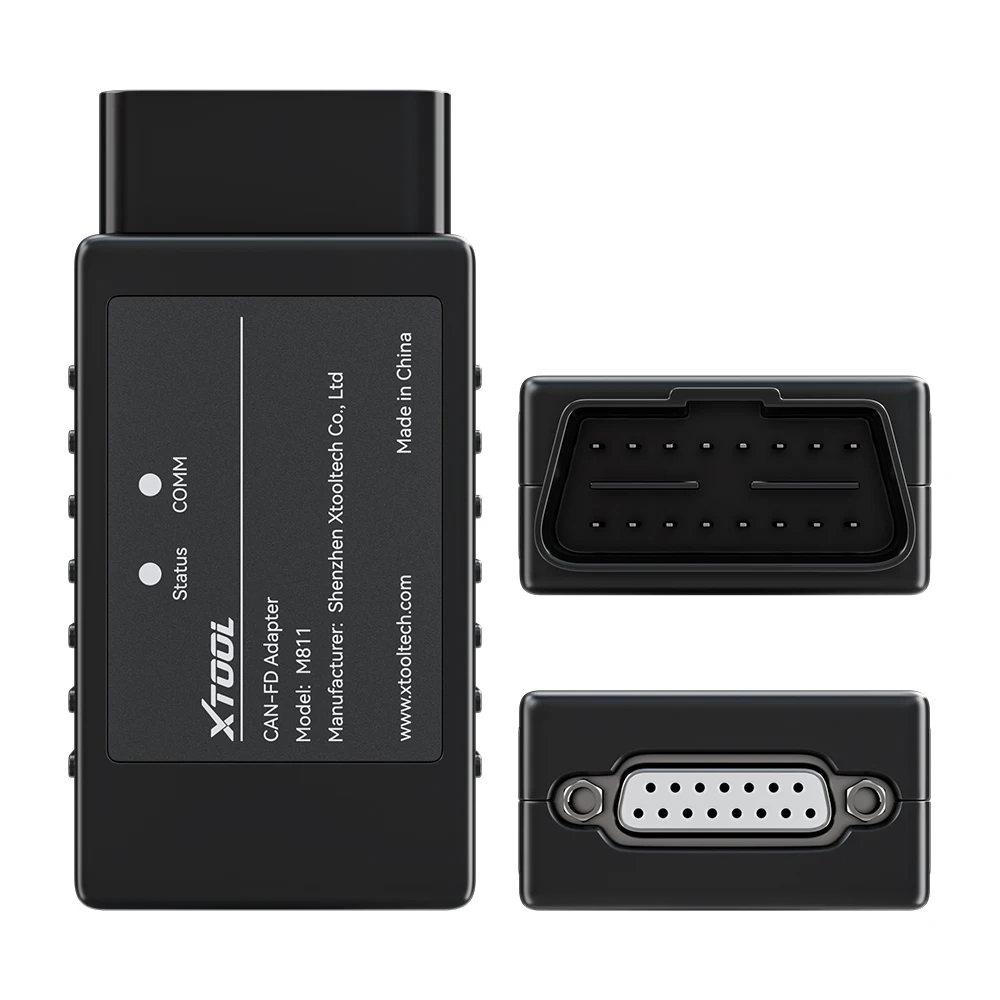

🔥1.CAN FD:

XTOOL CANFD Adapter is designed for diagnosing ECU systems of cars meeting with CANFD protocols. It's used with XTOOL's tablets series products. It's high performance and easy operation. When the user selects the CANFD model, if the current device does not support CANFD communication, the user needs to be prompted to use the CANFD adapter to connect.

✅CAN-FD Data Frame Format

1. CAN-FD data frame newly adds EDL bit, BRS bit, ESI bit in the control field, and adopts new DLC encoding method and new CRC algorithm (CRC field is extended to 21 bits) 2. According to the length of the data field, different CRCs are used, such as CRC_17 (0-16Bytes), CRC21 (17-64Bytes) 3. Does not support remote frames (no RTR bit)

✅CAN-FD Application Scenarios

For the conversion of the existing CAN system, the current mainstream has the following rules for compatibility with CAN and CAN-FD: 1. Use separate two hardware channels in one system 2. Under the unified platform, keep the original CAN processor and improve the CAN transceiver 3. When using CAN-FD communication, sleep CAN node

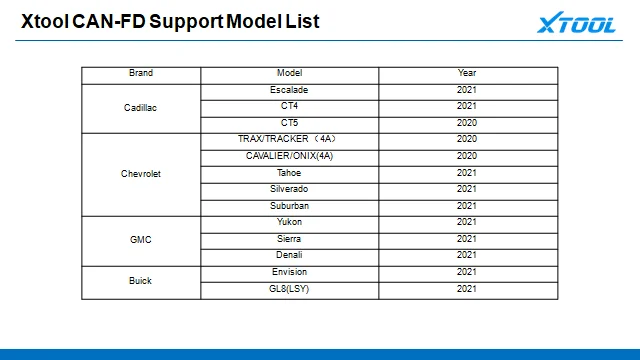

CAN FD adapter can work with many car models, like Chevrolet, Cadillac, GMC, Buick and etc.

Work With :X100PADPLUS,X100PAD2,X100PAD3,X100MAX,IK618,X100Pro2,X100Pro3
,A30Pro,PS701Pro,EZ400PRO,D7,D8,D8BT,IP616,IP819,IP508,IP508S,IP608,A80,A80Pro
,A80Pro Master,PS90,D9,D9Pro

🔥2.KC100:

✅KC100 Functions:

Support For Volks-wagen / For Audi /For Skoda 4th generation, 5th generation, MQB key matching

Support For Volks-wagen / For Audi /For Skoda 4 generation 96 bit online, 5 generation online, MQB online key matching

Support For B-M-W CAS1-CAS3 ++ key matching

Support For Land Rover's smart key write start function after 2015

Support For Fiat, For Fischer, 500, For Palio and other models

Support For To-yo-ta / For Le-xus all lost and disassembly-free, can realize 94, 98, 88, A8, A9, 39 simulation key generation

Work With:X100PAD2,X100PAD3,X100MAX,IK618,D8,D8B,IP616,IP819,A80,A80Pro,A80Pro Master,PS90,D9,D9Pro,IP819TP

🔥3.SK1:

XTool AnyToyo SK1 is a data collector as well as a smart key emulator, allows you to do key cloning process in both add key / all keys lost situations for 2013+ Toyota models with smart key. AnyToyo SK1 can also do emergency start when there is no key available on your hand and generate new keys using AnyToyo smart key that comes with the set.

✅SK1 Support: 2013-2022 Toyota/Lexus Models With 8A/4A Chip Smart Keys

✅SK1 Functions:

1.Add key
2.All keys lost
3.Emergency start
4.Frequency & key type reading

NOTE:Need to work with Xtool tablet+KC100/KC501

Work With:X100PAD2,X100PAD3,X100MAX,IK618,D8,D8BT,IP616,IP819,A80,A80Pro,A80Pro Master,PS90,D9,D9Pro,IP819TP

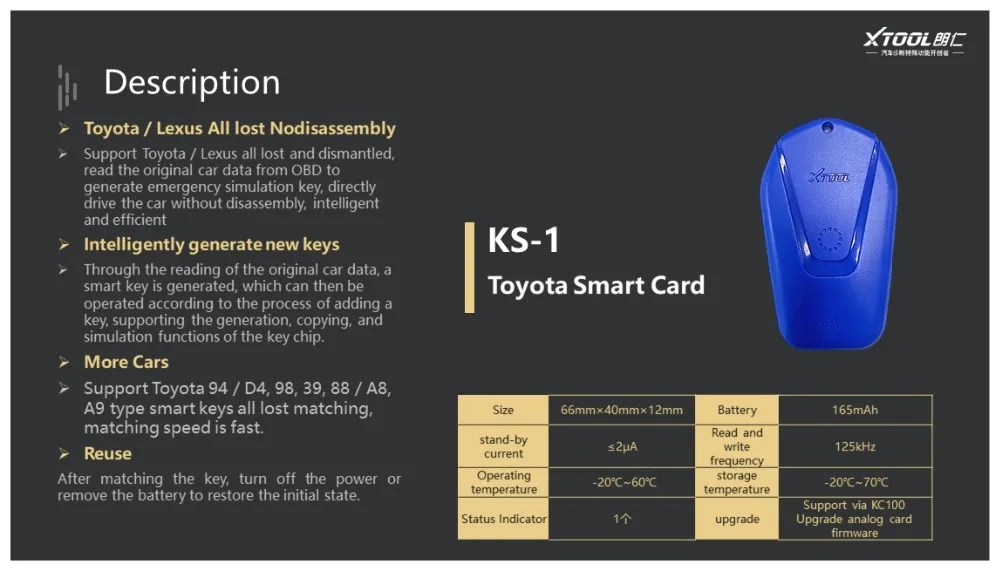

🔥4.KS01:

✅KS01 Functions:

1. For Toy-ota / For Le-xus All lost Nodisassembly:

Support For To-yota / For L-ex-us all lost and dismantled, read the original car data from OBD to generate emergency simulation key, directly drive the car without disassembly, intelligent and efficient

2. Intelligently generate new keys:

Through the reading of the original car data, a smart key is generated, which can then be operated according to the process of adding a key, supporting the generation, copying, and simulation functions of the key chip.

3:More Cars:

Support For To-yot-a 94 / D4, 98, 39, 88 / A8, A9 type smart keys all lost matching, matching speed is fast.

4:Reuse

After matching the key, turn off the power or remove the battery to restore the initial state

NOTE:Need to work with Xtool tablet+KC100/KC501

Work With:X100PAD2,X100PAD3,X100MAX,IK618,D8,D8BT,IP616,IP819,A80,A80Pro,

A80Pro Master,PS90,D9,D9Pro,IP819TP

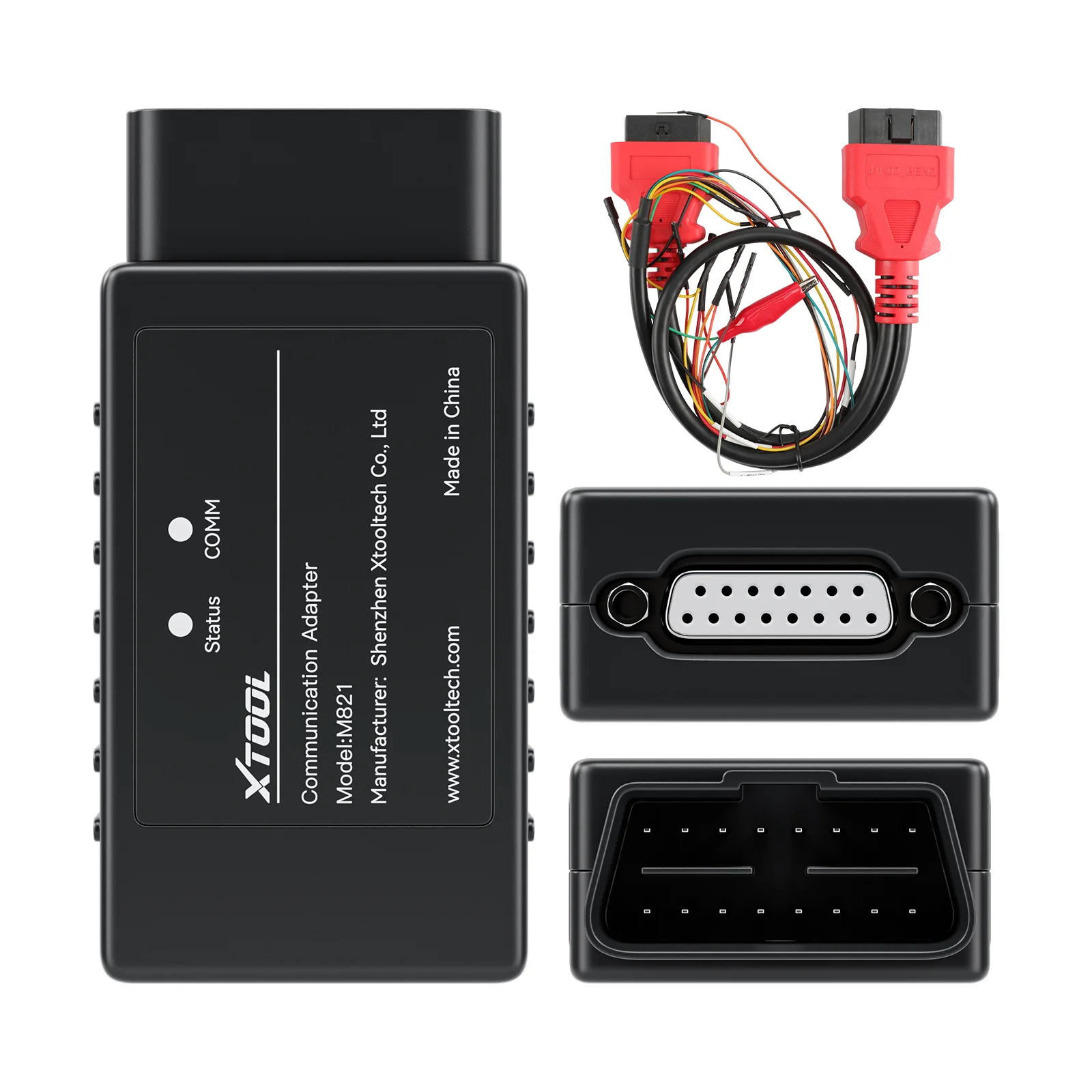

🔥5.M821:

M821 Mercedes-Benz All Keys Lost Communication Adapter is used for finishing and optimizing all key lost programming for multiple Mercedes-Benz modules.

M821 Product Description

1. OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables. Caution: Don't connect to the OBD port on the car directly.

2. Status Light: Shows the power status of the adapter. When the red lights are on, that indicates the power is on.

3. Comm Light: Shows the communication status of the adapter. When the blue lights are on, that indicates the adapter is communicating with the tablet.

4.DB15 port: Used to connect to the main cable of XTOOL tablets.

Note: Before connected to M821 Adapter, please disconnect the OBD2-16 connector from the main cable.

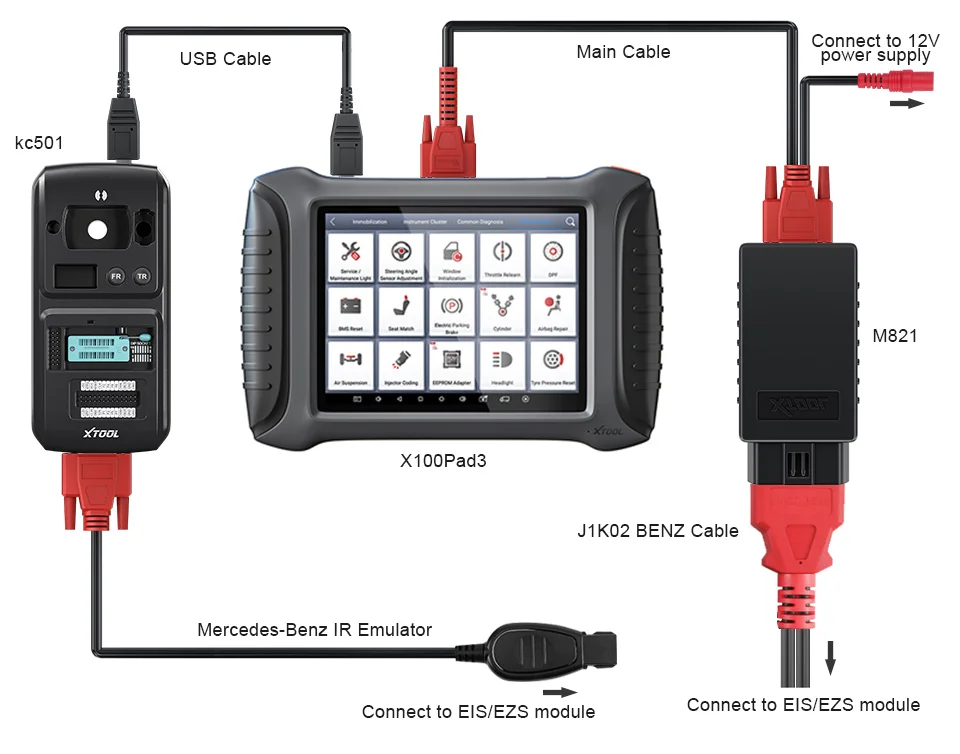

Connection Method

1. Connect KC501 to the device via USB. 2. Connect Mercedes-Benz IR emulator onto KC501. 3. Disconnect the OBD2 connector from the main cable, then connect the device (or the VCI box) with the M821 Adapter using the main cable. 4. Connect 12V power supply onto the main cable. 5. Connect the EIS/EZS module with the M821 Adapter using the J1K02_BENZ cable. Please check the device for connection details.

*Note: Please check the pictures in the device when connecting M821 Adapter and EIS/EZS module via J1K02_BENZ cable.*Note: The Mercedes-Benz IR emulator should be plugged into the slot of the module when operating. *Note: For devices which comes up with a VCI box, connect the M821 Adapter with the VCI box using the main cable, and keep the VCI box connected with the device via Bluetooth. You can check the connection details for such devices in the device.

NOTE:Need to work with Xtool tablet+KC501

Work With:

X100PAD2 ,X100PAD3 ,X100MAX ,IK618 ,D8 ,D8BT ,IP616 ,IP819 ,A80 ,A80Pro ,A80Pro Master ,PS90 ,D9 ,D9Pro ,IP819TP

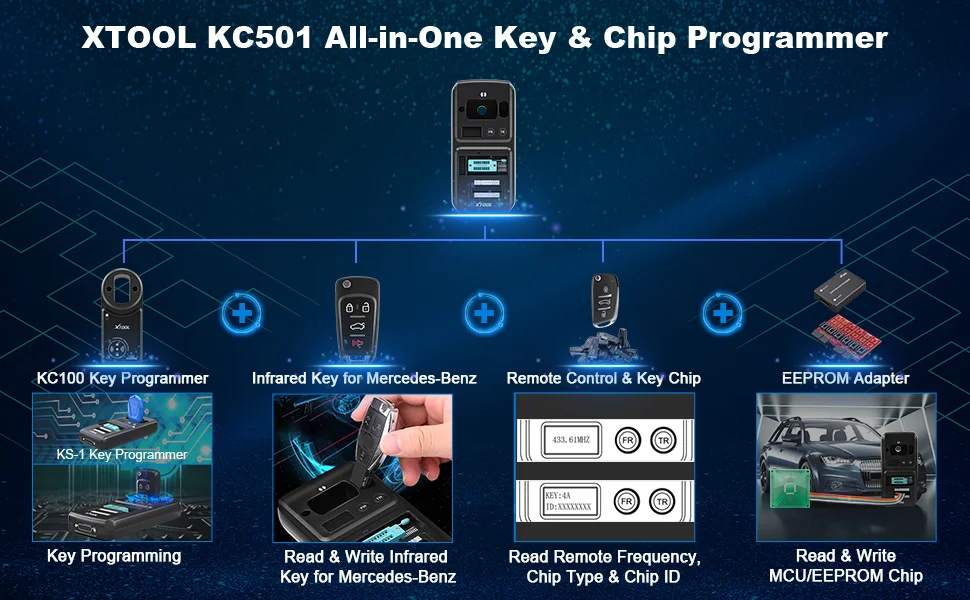

🔥6.KC501

KC501=KC100+EEPROM+Other IMMO functions

XTOOL KC501 auto key & chip programming toolnot only contains all the functions of the KC100 key programmer and EEPROM adapter, but also supports other IMMO functions and Key & Chip Programming features.

✅ Key Matching for Audi/for Skoda/for VW 4th & 5th, for MQB and for BMW CAS1-CAS3++.

* Read & Write MCU/ECU/EEPROM Chips.

* Read Remote Control Frequency, Chip Type & Transponder ID.

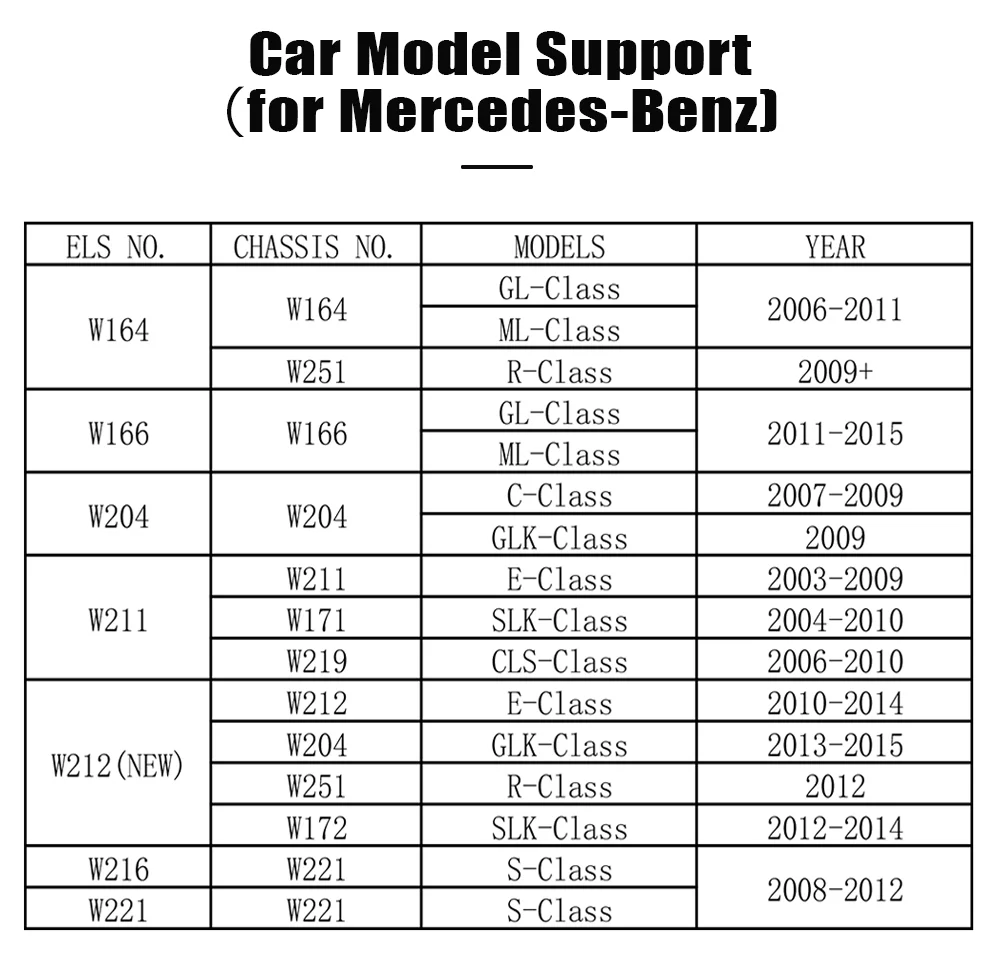

✅Read & Write Infrared Keys for Mercedes Benz:

> For A Series 2005-2013

> For B Series 2005-2014

> For C/For CLK Series 2006-2014 | For CLA Series 2013-2016 | For CL Series 2006-2013 | For CLS Series 2006-2013

> For E Series 2005-2015

> For G Series -2015 | For GL/For GLS Series 2006-2014 | For GL/For GLK Series 2008-2015

> For M/For ML Series 2006-2013

> For R Series 2006-2017

> For S Series 2006-2012 | For SLK/For GLC Series 2006-2016.

✅Support PC Connection & Xtool tablet:

KC501 supports PC connection & tablet( X100 Pad3/X100 Pad3 SE/X100 Max/D8/D8 BT/D9/D9 Pro/A80/A80 Pro/A80 Pro Master).

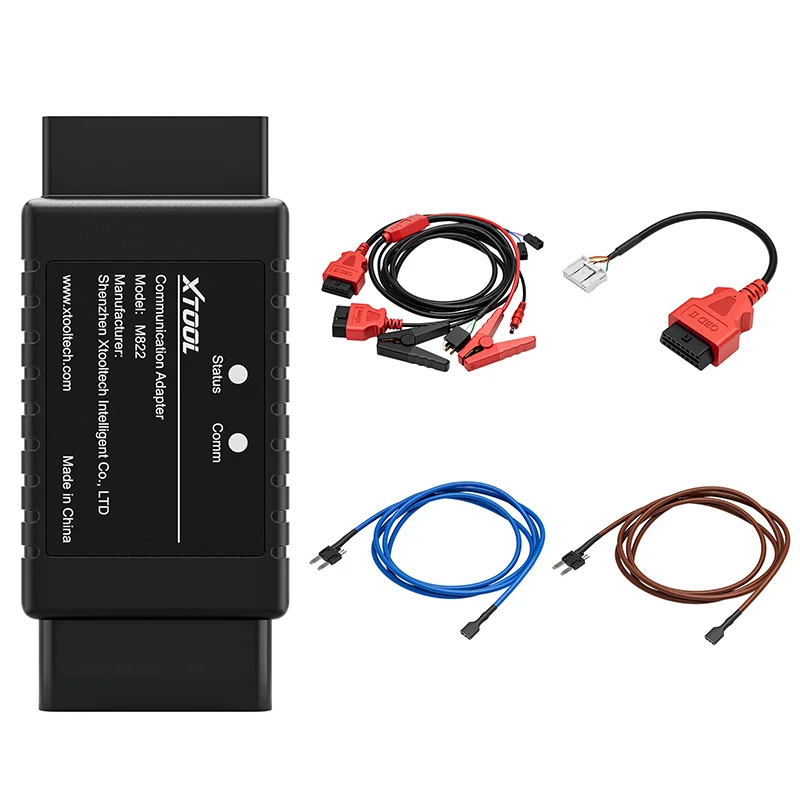

🔥7.M822

M822 Includes M821 Features，

M822+Benz Cable=M822+M821

XTOOL M822 Adapter For Toyota 8A AIl Key Lost Programming Need Work With KC501 Programmer&KS-1 Emulator For X100PAD3 X100MAX

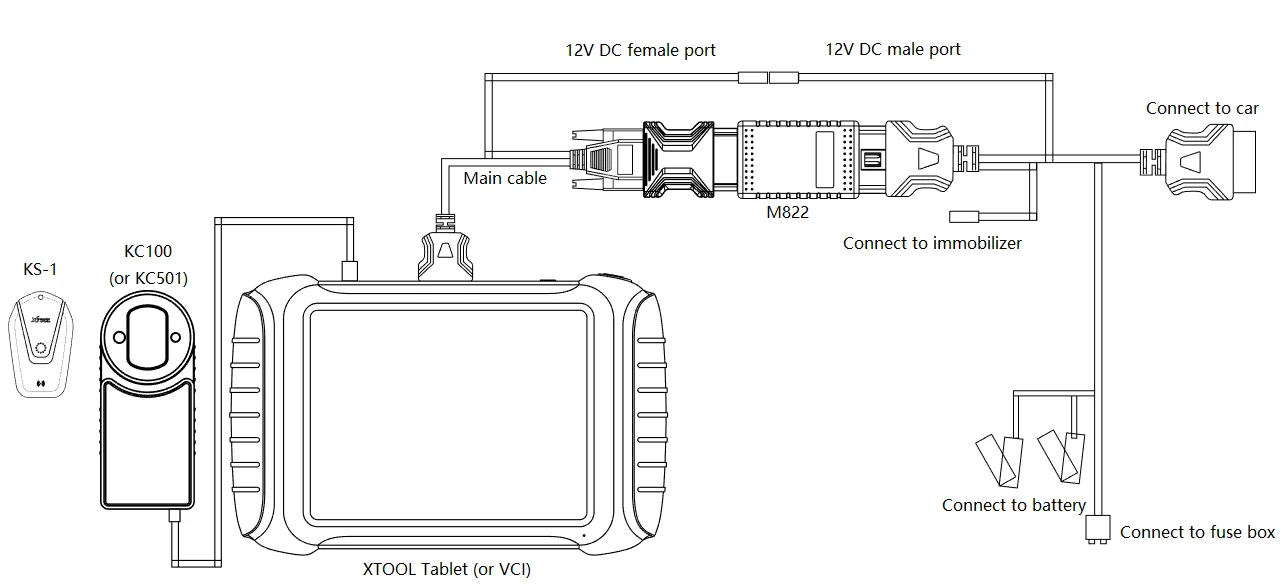

Tools You Need:

XTOOL Tablet (Take X100PAD Elite as example)

Main Cable & OBD2-16 Connector

M822 Communication Adapter

Toyota 8A Specialized Wiring Harness

KC100 orKC501 Key Programmer

KS-1 Toyota Key Emulator

Network Connection

Models Supported:

2014~2019

For Toyota Levin For Corolla For RAV4 For Prado For Land Cruiser For Camry For Highlander For Reiz For Sienna For Hiace For Hilux For Crown Kluger For Aygo with IMMO box F3-F4-K6-S6

Note:This is not compatible with American models with “H” Chip blade keys. For these models, please use the Reset IMMO function that is supported on X100PAD3/X100PAD Elite/X100MAX.
