KC501 Key & Chip PROGRAMMER
·PC Supported
·MCU / EEPROM Chip Read / Write
·ECU Read / Write
·MC9S12 Encrypted Chip Read / Write
·Key Reading / Writing
·Mercedes Infrared Key Reading / Writing
·Finding the Control Frequency
·IC Card Reading / Writing
Powerful in functions and fashionable in appearance, KC501 is a professional Key & chip programmer which can not only read,write keys and read key remote frequency, but also generate dealer keys. It support read and write MCU/EEPROM chips, reach and write Me-r-ced-es Infrared keys. Moreover, it support PC connection which brings you better user experience.
Reach and Write Mercedes Infrared Keys:
So We Can Know From This Details
1). KC501= KC100+BENZ IR+ Detect key ID + detect key frequency
2). KC501 can be used stand-alone based on PC software. KC100 cannot.
3). KC501 performs similar function as Autel XP400 to IM608.
KC100 Adapter Product Introduction
XTOOL Original KC100 For XTOOL X100 PAD2 To Do VW4&5th IMMO .
With KC100 , X100 PAD2 can do all the function X100 Pad2 pro can Fulfill.
Functions:
Support For Volks-wagen / For Audi /For Skoda 4th generation, 5th generation, MQB key matching
Support For Volks-wagen / For Audi /For Skoda 4 generation 96 bit online, 5 generation online, MQB online key matching
Support For B-M-W CAS1-CAS3 ++ key matching
Support For Land Rover's smart key write start function after 2015
Support For Fiat, For Fischer, 500, For Palio and other models
Support For To-yo-ta / For Le-xus all lost and disassembly-free, can realize 94, 98, 88, A8, A9, 39 simulation key generation
KS01 Adapter Product Introduction
After matching the key, turn off the power or remove the battery to restore the initial state
Compatible With Those Devices Work together
XTOOL X100 PAD2 （Need Buy KC100）
X100 PAD2 PRO
X100 PAD3
X100MAX
XTOOL IK618
M821 Adapter Product Introduction
M821 Mercedes-Benz All Keys Lost Communication Adapter is used for finishing and optimizing all key lost programming for multiple Mercedes-Benz modules.
With M821 Adapter, you can save as much as 65% of the calculation time on the process, or save you from plugging the key emulator in and out for hundreds of times.
Note: M821 Adapter needs to be used with advanced XTOOL Key Programming Devices eg: X100 Pad3/X100 Max and KC501 Key Programmer.
Product Description

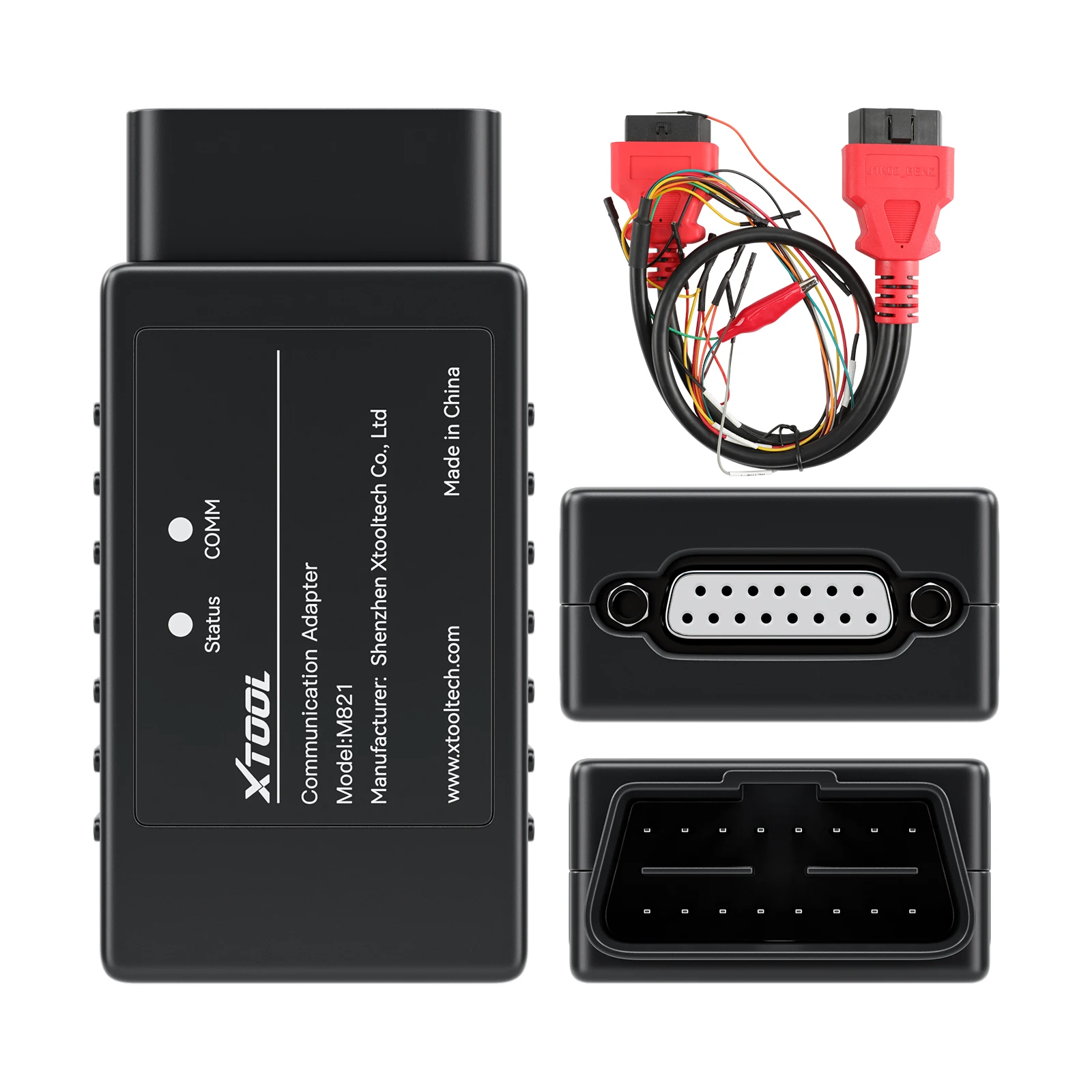

1. OBD-16 port: Used to connect to J1Z02_BENZ communication cable or connect to EIS/EZS modules via DuPont cables. Caution: Don't connect to the OBD port on the car directly.
2. Status Light: Shows the power status of the adapter. When the red lights are on, that indicates the power is on.
3. Comm Light: Shows the communication status of the adapter. When the blue lights are on, that indicates the adapter is communicating with the tablet.
4.DB15 port: Used to connect to the main cable of XTOOL tablets.
Note: Before connected to M821 Adapter, please disconnect the OBD2-16 connector from the main cable.
Connection Method
1. Connect KC501 to the device via USB.
2. Connect Mercedes-Benz IR emulator onto KC501.
3. Disconnect the OBD2 connector from the main cable, then connect the device (or the VCI box) with the M821 Adapter using the main cable.
4. Connect 12V power supply onto the main cable.
5. Connect the EIS/EZS module with the M821 Adapter using the J1K02_BENZ cable. Please check the device for connection details.
*Note:Please check the pictures in the device when connecting M821 Adapter and EIS/EZS module via J1K02_BENZ cable.
*Note: The Mercedes-Benz IR emulator should be plugged into the slot of the module when operating.
*Note: For devices which comes up with a VCI box, connect the M821 Adapter with the VCI box using the main cable, and keep the VCI box connected with the device via Bluetooth. You can check the connection details for such devices in the device.
Models Supported:
2014~2019
For Toyota Levin
For Corolla
For RAV4
For Prado
For Land Cruiser
For Camry
For Highlander
For Reiz
For Sienna
For Hiace
For Hilux
For Crown Kluger
For Aygo with IMMO box F3-F4-K6-S6
Tools You Need:
XTOOL Tablet (Take X100PAD Elite as example)
Main Cable & OBD2-16 Connector
M822 Communication Adapter
Toyota 8A Specialized Wiring Harness
KC100 Key Programmer
KS-1 Toyota Key Emulator
Network Connection
Note:This is not compatible with American models with “H” Chip blade keys. For these models, please use the Reset IMMO function that is supported on X100PAD3/X100PAD Elite/X100MAX.
CAN FD Adapter Product Introduction
XTOOL CAN FD Adapteris designed for diagnosing ECU systems of cars meeting with CANFD protocols.
It's used with XTOOL's tablets series products. It's high performance and easy operation.
CAN-FD Data Frame Format
1. CAN-FD data frame newly adds EDL bit, BRS bit, ESI bit in the control field, and adopts new DLC encoding method and new CRC algorithm (CRC field is extended to 21 bits)
2. According to the length of the data field, different CRCs are used, such as CRC_17 (0-16Bytes), CRC21 (17-64Bytes)
3. Does not support remote frames (no RTR bit)
CAN-FD Application Scenarios
For the conversion of the existing CAN system, the current mainstream has the following rules for compatibility with CAN and CAN-FD:
1. Use separate two hardware channels in one system
2. Under the unified platform, keep the original CAN processor and improve the CAN transceiver
3. When using CAN-FD communication, sleep CAN node
